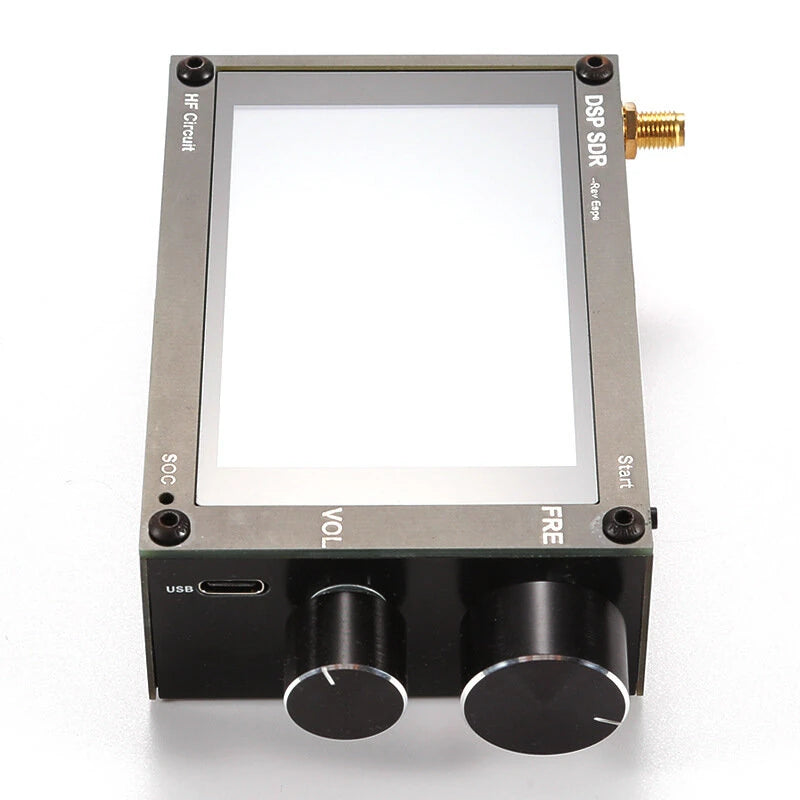

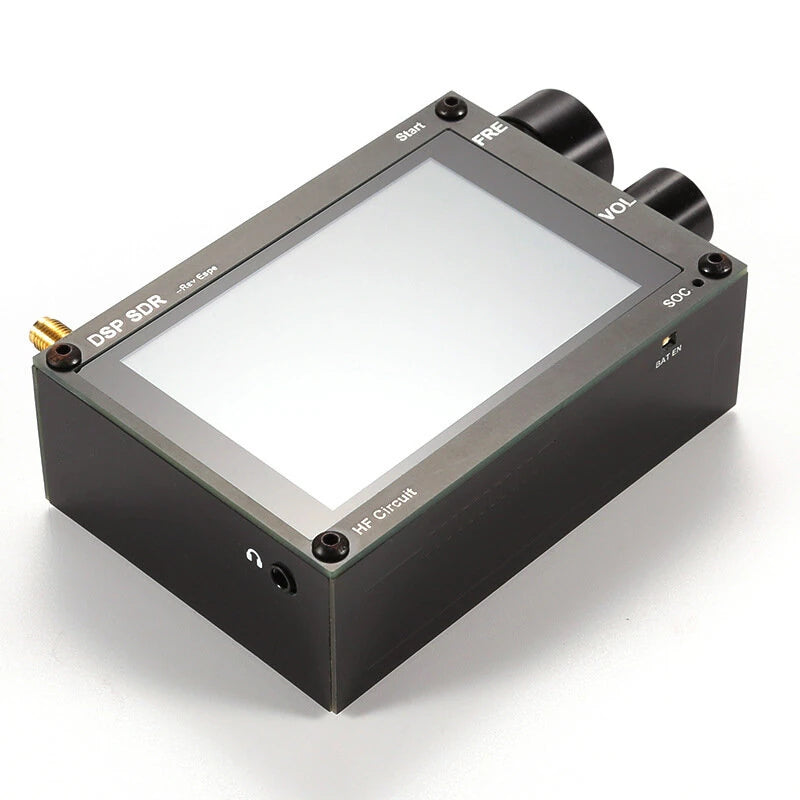

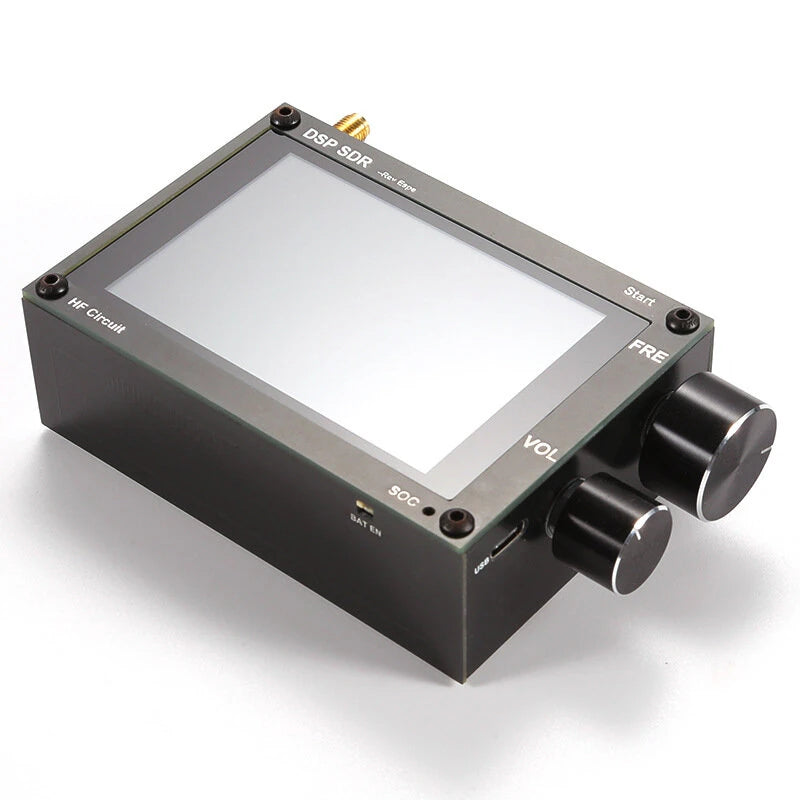

Thicker Malachite DSP SDR Receiver

Specifications

• Frequency Range: 50kHz - 200MHz, 400MHz - 2GHz
• Demodulation Modes: AM, SSB, NFM, WFM, CW
• RF Chip: msi001
• MCU: stm32h743
• Operating Current: 300mA
• Sensitivity: 0.3μ (at 200MHz)
• Screen: 3.5-inch ISP touchscreen
• Dynamic Blocking Range: Approximately 85dB
• Screen Display Bandwidth: 160kHz scalable
• Power Supply: Built-in battery and USB power supply
• Mainboard: Four-layer PCB process
• Antenna: SMA-type antenna socket
• Screen Backlight: Adjustable
• UHF Band: Supported
• IQ Transmission: Supported
• Size: 115 x 75 x 32mm
• Color: Black
• Battery: 3000mA
• Speaker: Bass diaphragm sound chamber speaker
• Encoder: EC11 direct insert encoder

Features

1. Wide Frequency Coverage: Covers an extensive frequency range from 50kHz to 2GHz, perfect for various applications.
2. Advanced Demodulation Modes: Supports multiple modes including AM, SSB, NFM, WFM, and CW for versatile usage.
3. High Performance: Equipped with msi001 RF chip and stm32h743 MCU for enhanced sensitivity and reliability.
4. User-Friendly Interface: Features a 3.5-inch ISP touchscreen with scalable display bandwidth and adjustable backlight for easy operation.
5. Enduring Construction: Built with a robust four-layer PCB and premium components for longevity and reliable performance.

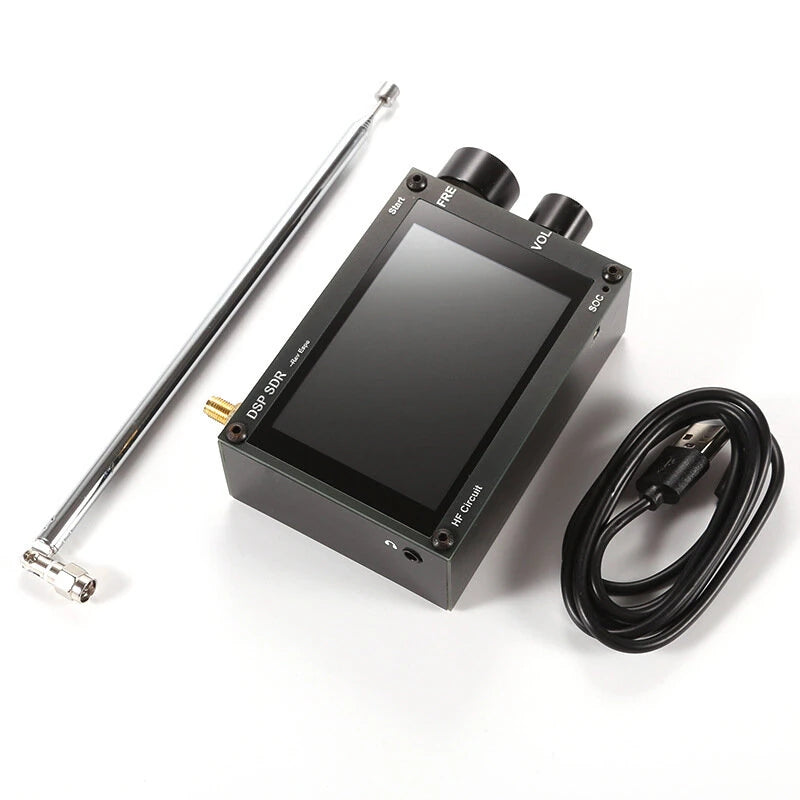

Package Includes

• 1x Thicker Malachite DSP SDR Receiver
• 1x SMA Antenna
