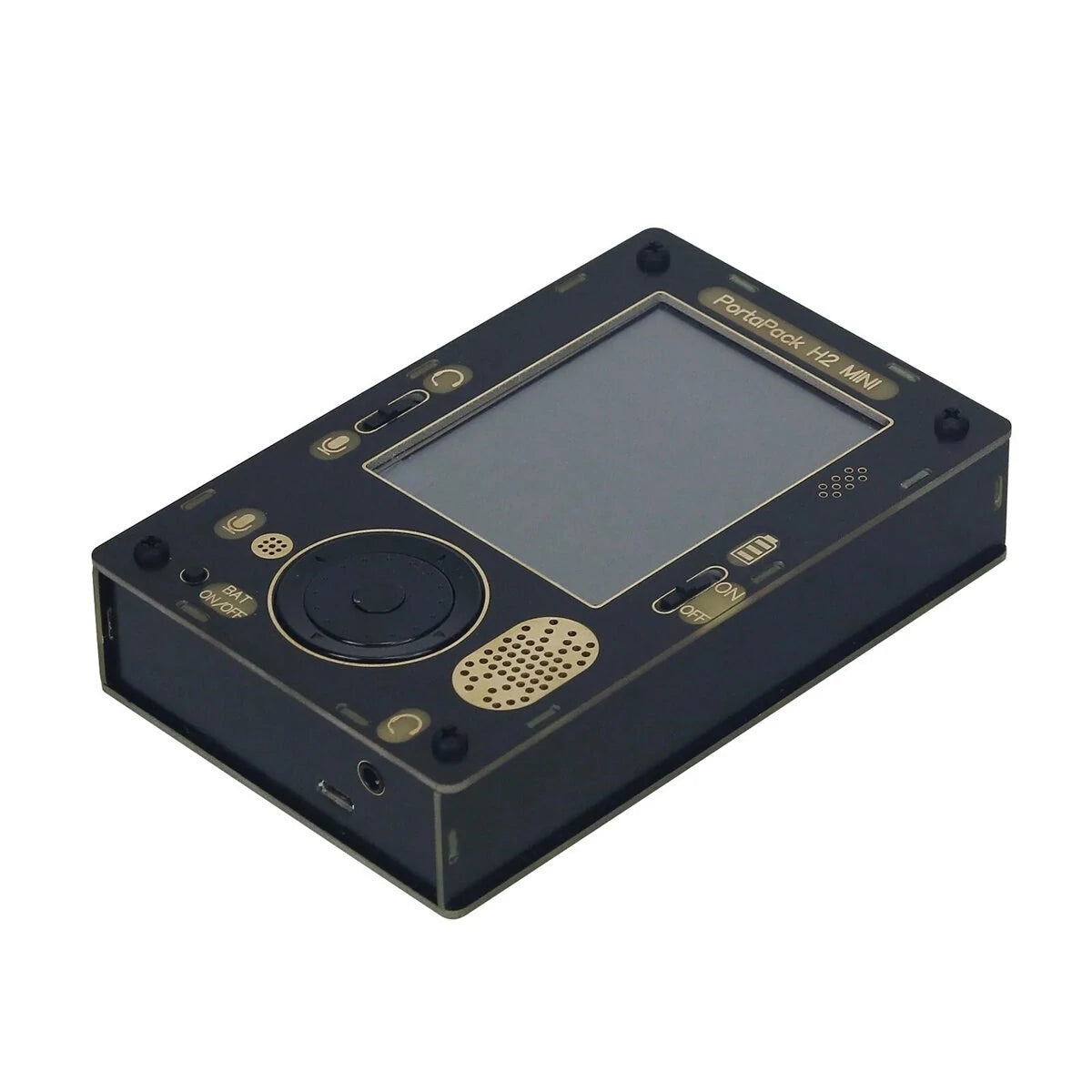

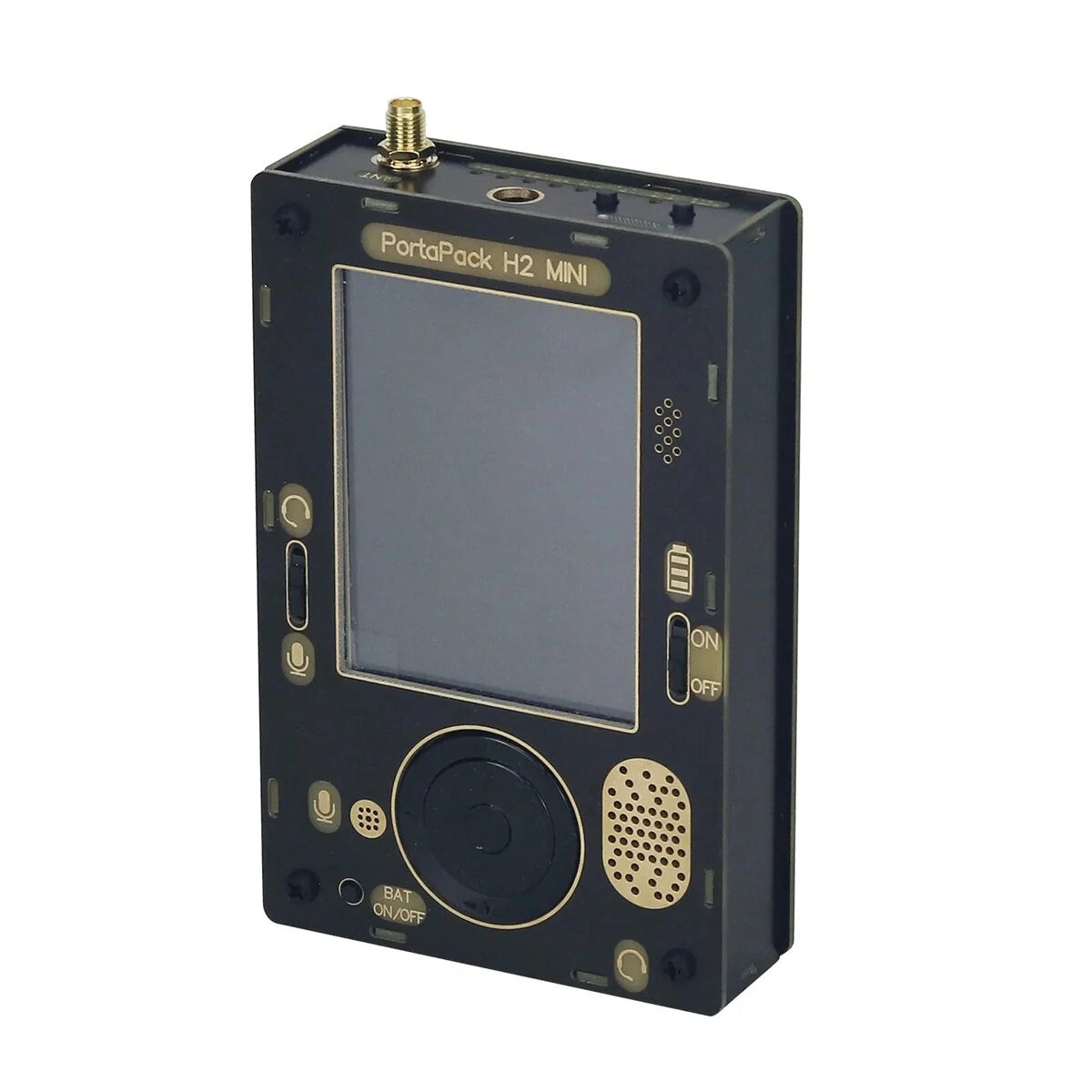

Portapack H2 Mini

HackRF One R9 V2.0.0 SDR Radio Receiver + 5 Antenna Signal Amp

Upgrades of HackRF One R9:

• MAX2837 is replaced by MAX2839.
• Si5351C is replaced by Si5351A with additional clock distribution.
• A series diode is added to the antenna port power supply.

Attention:

1. The latest firmware is supported, and the current firmware is Mayhem firmware V2.0.0 by default.
2. For certain functionality like the world map, GPS simulator, and others, you need to prepare a PortaPack H2 and a FAT32 formatted MicroSD card over 1G.

HackRF One Description:

• HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
• Designed to enable test and development of modern and next-generation radio technologies, HackRF One is an open-source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

HackRF One Specifications:

• 1 MHz to 6 GHz operating frequency
• Half-duplex transceiver
• Up to 20 million samples per second
• 8-bit quadrature samples (8-bit I and 8-bit Q)
• Compatible with GNU Radio, SDR#, and similar applications
• Software-configurable RX and TX gain and baseband filter
• Software-controlled antenna port power (50 mA at 3.3 V)
• SMA female antenna connector
• SMA female clock input and output for synchronization
• Convenient buttons for programming
• Internal pin headers for expansion
• Hi-Speed USB 2.0
• USB-powered
• Open source hardware

Features:

• Large 3.2-inch LCD display, 240 x 320 RGB resolution with resistive touch screen.
• Durable functional buttons with four-way arrow buttons, a 360° rotation button, and select buttons.
• Built-in microphone and loudspeaker with automatic switching between built-in and external speakers.
• High-precision clock with 0.1-0.5 PPM resolution.
• 1MHz-6GHz working frequency band, 20MHz radio frequency bandwidth, and 2 Msps-20 Msps sampling rate for superior performance.
• Ideal for research in wireless communication technology: WiFi, LTE, ADS-B, DVB, and other applications.
• Research applications in information safety: eavesdropping, replay, identity impersonation, and more.

Overall Specifications:

• Name: HackRF Portapack H2 Mini Set
• Material: Printed Circuit Board
• Duplex mode: Half-duplex transceivers
• Radio frequency bandwidth: 20M Hz
• Sampling rate: 2 Msps-20 Msps
• Power supply/transmission interface: USB 2.0
• Transmit power:
• 5-15dBm (10MHz-2150MHz)
• 13-15 dBm (2150-2750 MHz)
• 0-5 dBm (2750-4000 MHz)
• -10 to 0dBm (4000-6000 MHz)
• Received power: -5dBm
• Clock Accuracy: 0.1-0.5ppm
• Working frequency band: 1MHz-6GHz

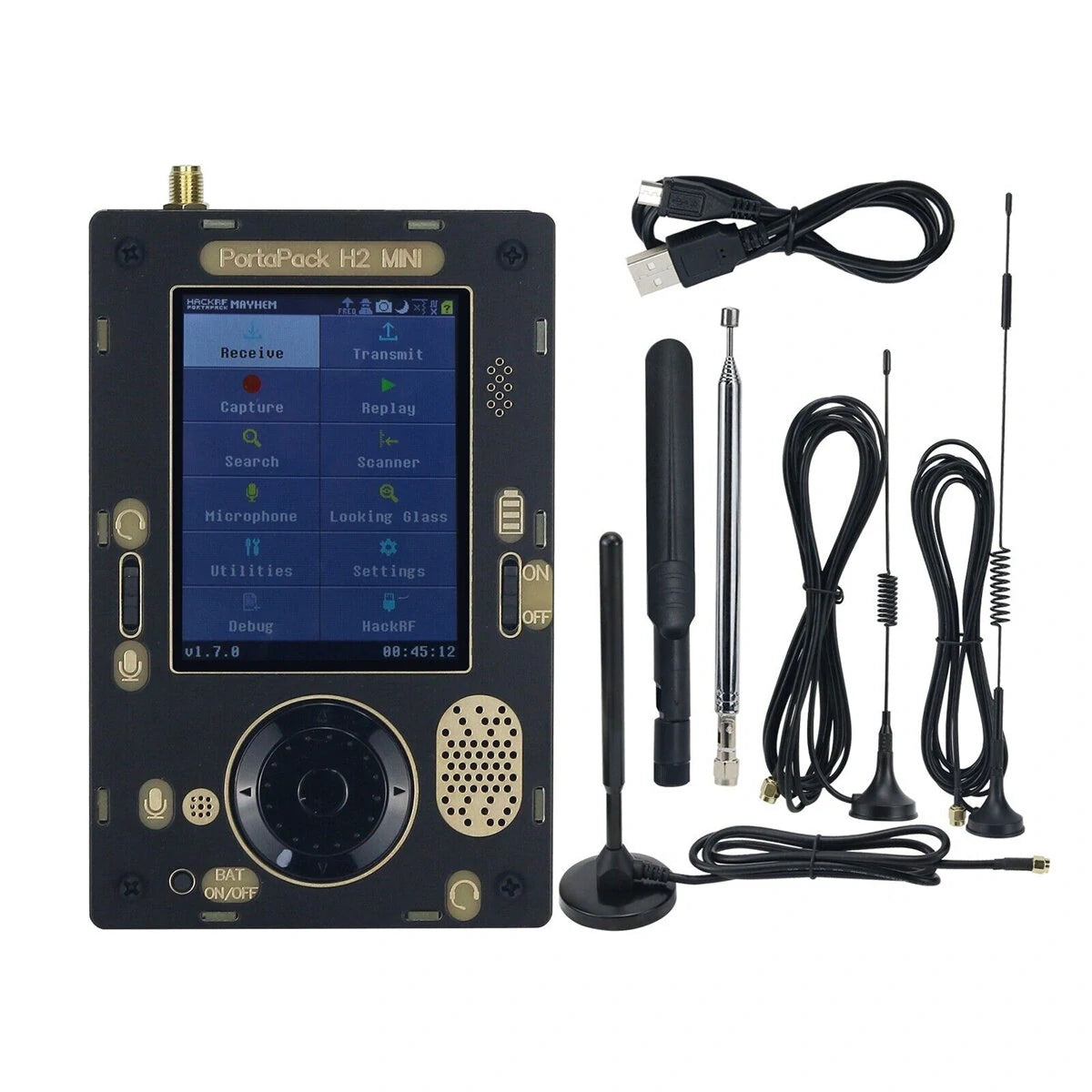

Package Included:

• 1 x HackRF One
• H2 Mini Shell
• 1 x USB Cable for LG
• 1 x 40MHz-6GHz Telescopic Antenna
• 1 x 12dBi 700MHz-2700MHz Antenna
• 1 x 8dBi 2.4/5/5.8GHz Antenna
• 1 x 35dBi 700MHz-2700MHz Antenna
• 1 x 12dBi 700MHz-2700MHz Antenna
