Mustool ET4410 Series Desktop Bridge

Reminder: Please be aware of order restrictions.

Download the English User Manual

Download the Software

Buy SMD Clip Probe

Product Description

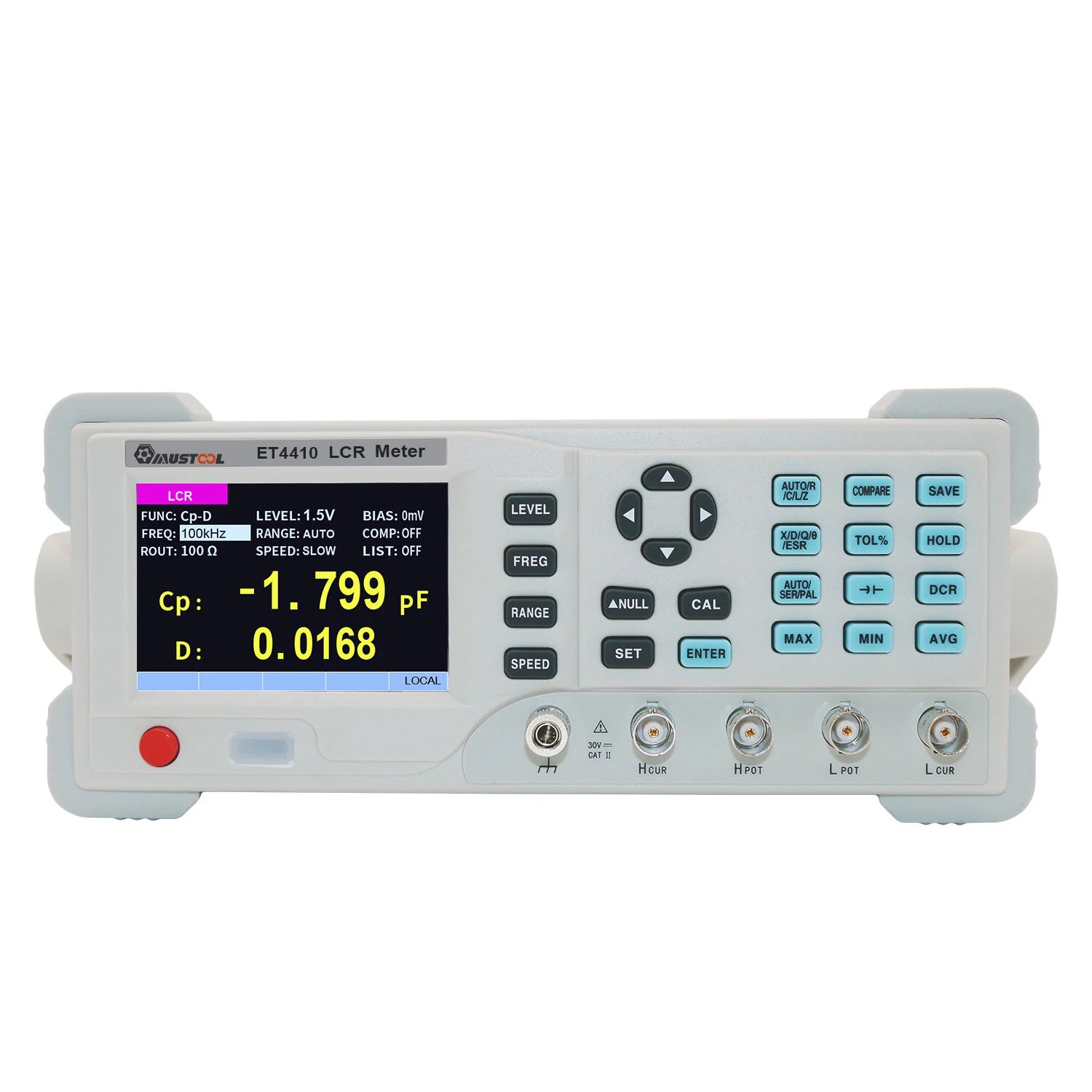

The Mustool ET4410 series desktop bridge is designed with a 3.5-inch TFT display and a user-friendly interface, integrating a wide variety of measurement parameters in one compact device. It supports remote control operations through USB and RS232 interfaces and feature a handy component sorting option. Additionally, it allows for output frequency and test level adjustments while providing component value recording during measurements. Its basic accuracy stands at an impressive 0.2%.

Key Features

• Measurement frequency up to 100kHz
• Test level range from 100 to 2000mV
• Supports DC resistance and electrolytic capacitor measurement
• Internal bias voltage output adjustable (1mV-1500mV)
• Automatic component measurement identification
• 3.5-inch TFT display; 5.5-digit readout
• USB, RS232 communication interface, handle sorting capabilities
• Data recording for maximum, minimum, and average values
• Supports SCPI communication protocol with customizable system settings
• 0.2% basic accuracy with manual and automatic ranging
• Equipped with open and short circuit correction
• Comparator with sorting and alarm function
• Variety of test ports available

Specifications

Model: ET4410

Digits: Main parameter: 5 digits; Secondary parameter: 5 digits

Measurement Parameters: Main: L/C/R/Z; Secondary: X/D/Q/θ/ESR

Measurement Ranges:

• L: 0.01μH - 9999H
• C: 0.01pF - 9999μF
• R: 0.0001Ω - 99.99MΩ

Basic Accuracy: 0.2%

Test Frequency (Hz): 100~100kHz (16 points)

Measurement Display Speed: 2 times/sec (slow), 4 times/sec (medium), 8 times/sec (fast)

Internal Bias: 0-1500mV adjustable, 1mV stepping

Test Levels: 100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mV

Correction Functions: Open and short circuit correction

Screening Function: Limits can be set from -50% to 50% with intervals at 1%, 5%, 10%, and 20%

Comparator Selection: Five-level sorting, with qualified and failed indicators

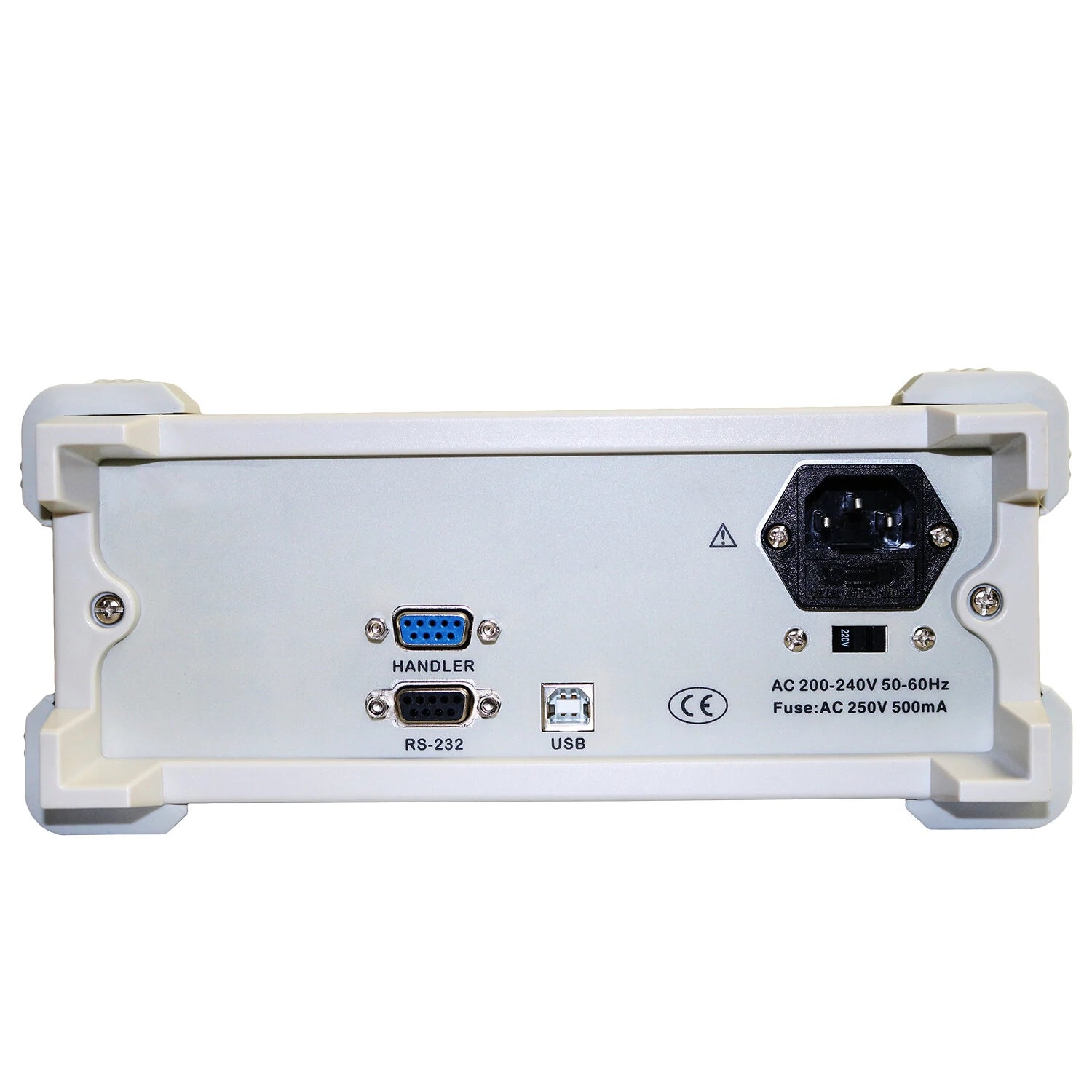

Communication Interface: Standard: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB Host

Additional Features: DCR and electrolytic capacitor measurement modes, adjustable backlight brightness, language options in English and Chinese

Power Supply: 220V AC ± 10%, or 110V AC ± 10%, 45-65Hz

Operating Environment: 0 ~ 40℃, relative humidity

Storage Environment: -10 ~ 50℃, relative humidity

Dimensions: 265mm (W) x 105mm (H) x 305mm (D)

Weight: 2.3kg

Package Includes

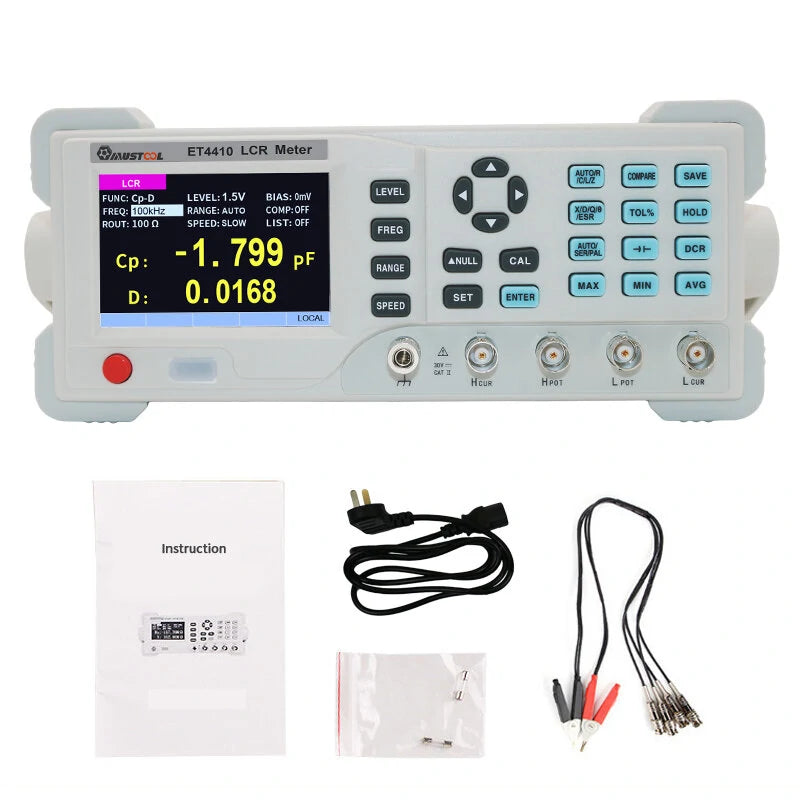

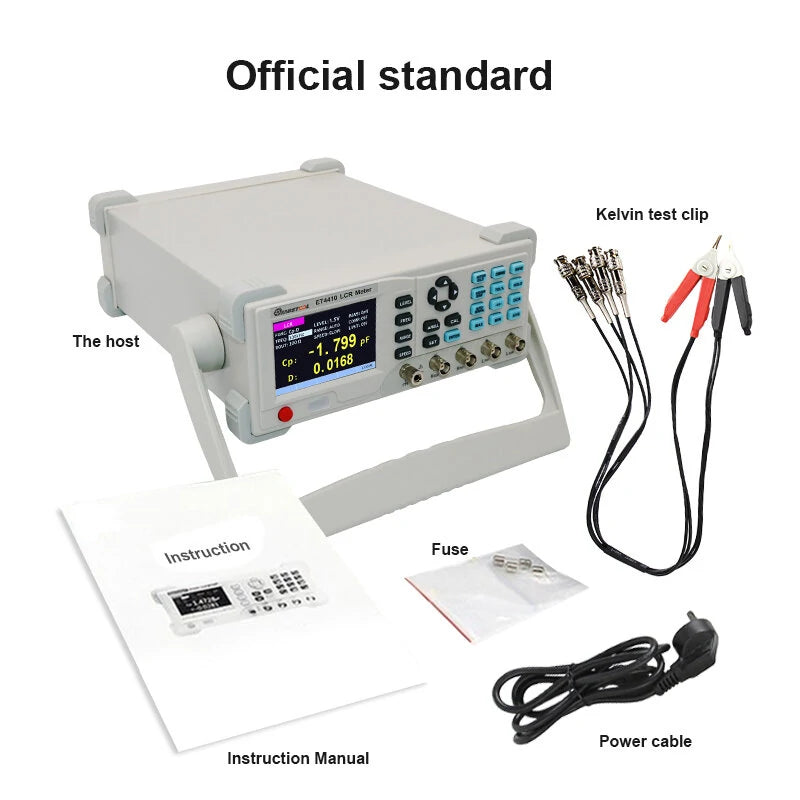

• 1 x Mustool ET4410 LCR Tester
• 1 x Set of accessories
