Ultrathin 1.10D Firmware Malahit SDR DSP Radio Receiver 50kHz-2GHz AM SSB NFM WFM

Product Highlights:

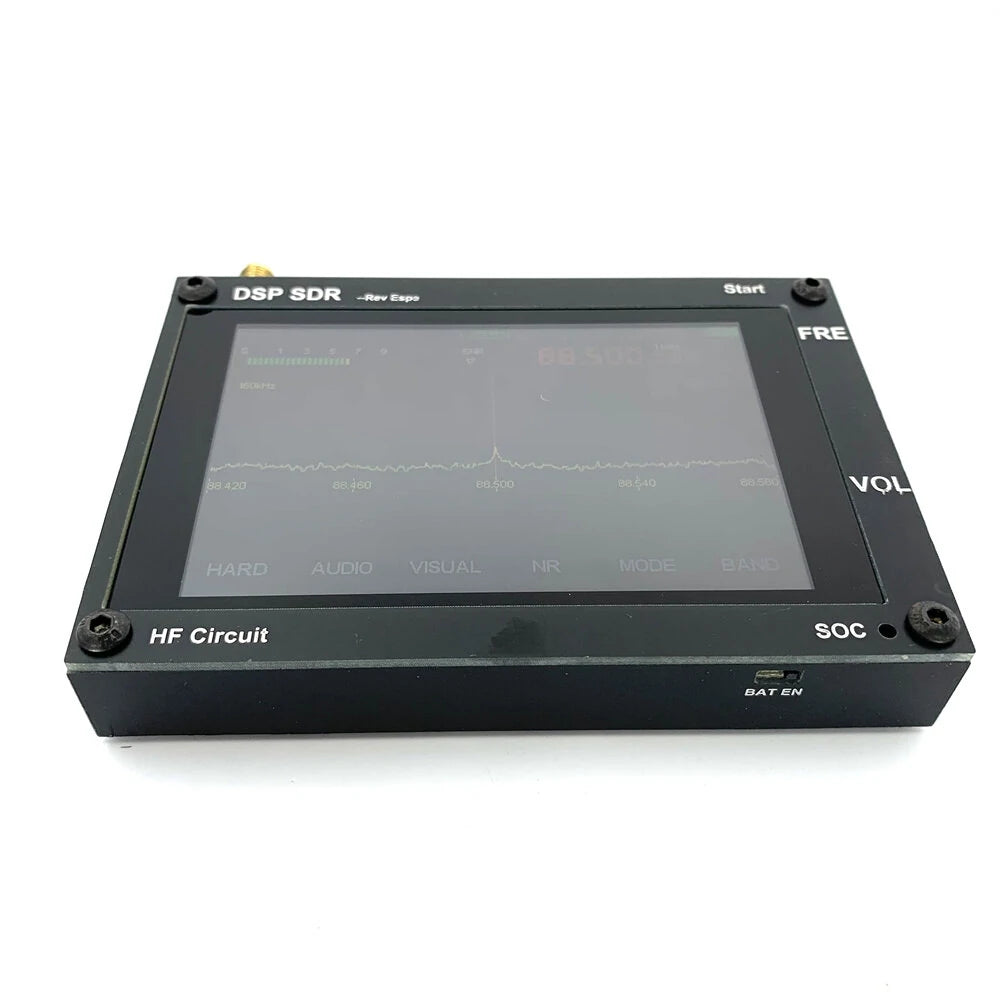

• 3.5-inch IPS capacitive touch screen for a vivid display experience.
• Advanced 4-layer board structure ensuring superior performance.
• High-quality sound unit with dual vibrating chambers for rich bass and clear treble.
• Sleek and durable aluminum alloy shell.
• Integrated bass diaphragm speakers for enhanced audio quality.

Key Features:

• Powerful 3000mA rechargeable lithium battery.
• Flash capability via USB cable for easy connectivity.

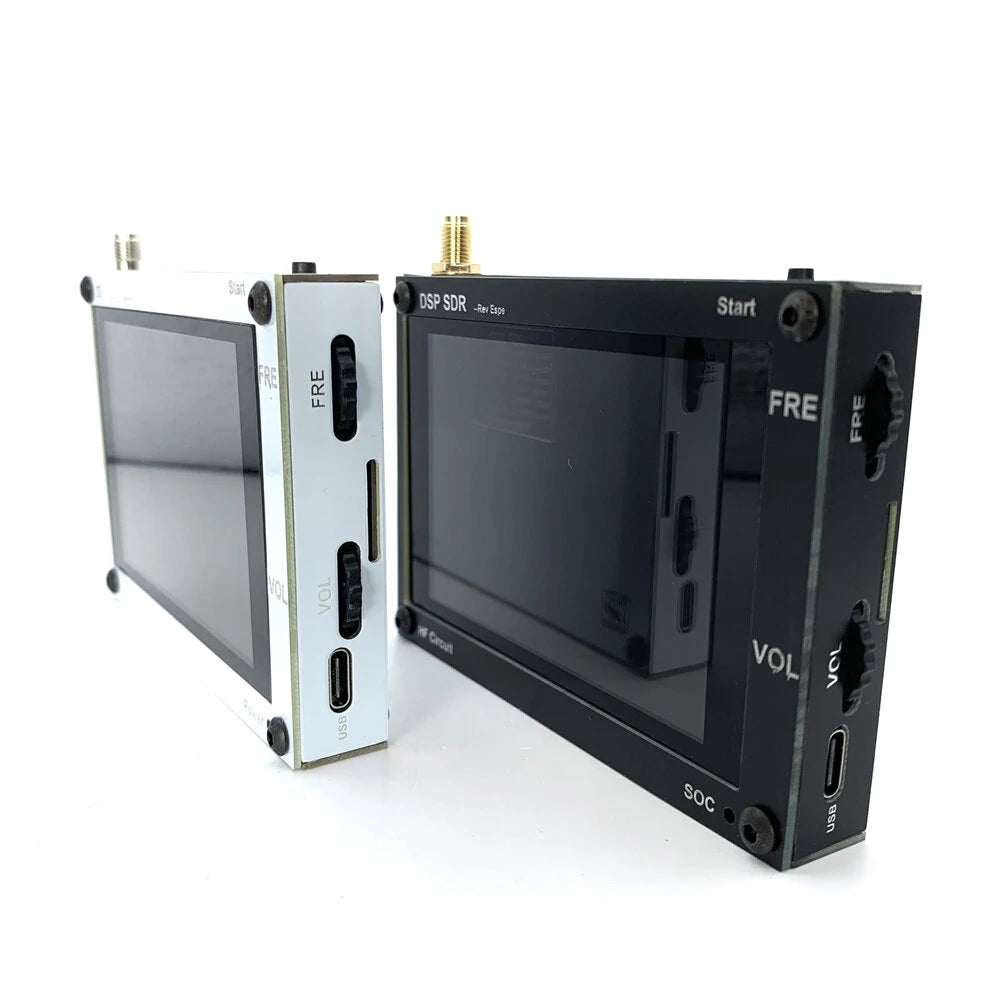

• Ergonomic CNC aluminum alloy knobs with EC11 encoder for precise control.
• Wide frequency support: 50KHz-2GHz (note: 250MHz-400MHz is blocked).
• Multiple demodulation modes: USB, AM, SSB, NFM, WFM, CW, DSB.
• Latest firmware version 1.10c.
• Optional expansion board installation for enhanced functionality.
• Includes registration code for software access.

Technical Specifications:

• SDR-based radio functionality determined by software.
• Comprehensive analog modulation support: AM, SSB, NFM, WFM.

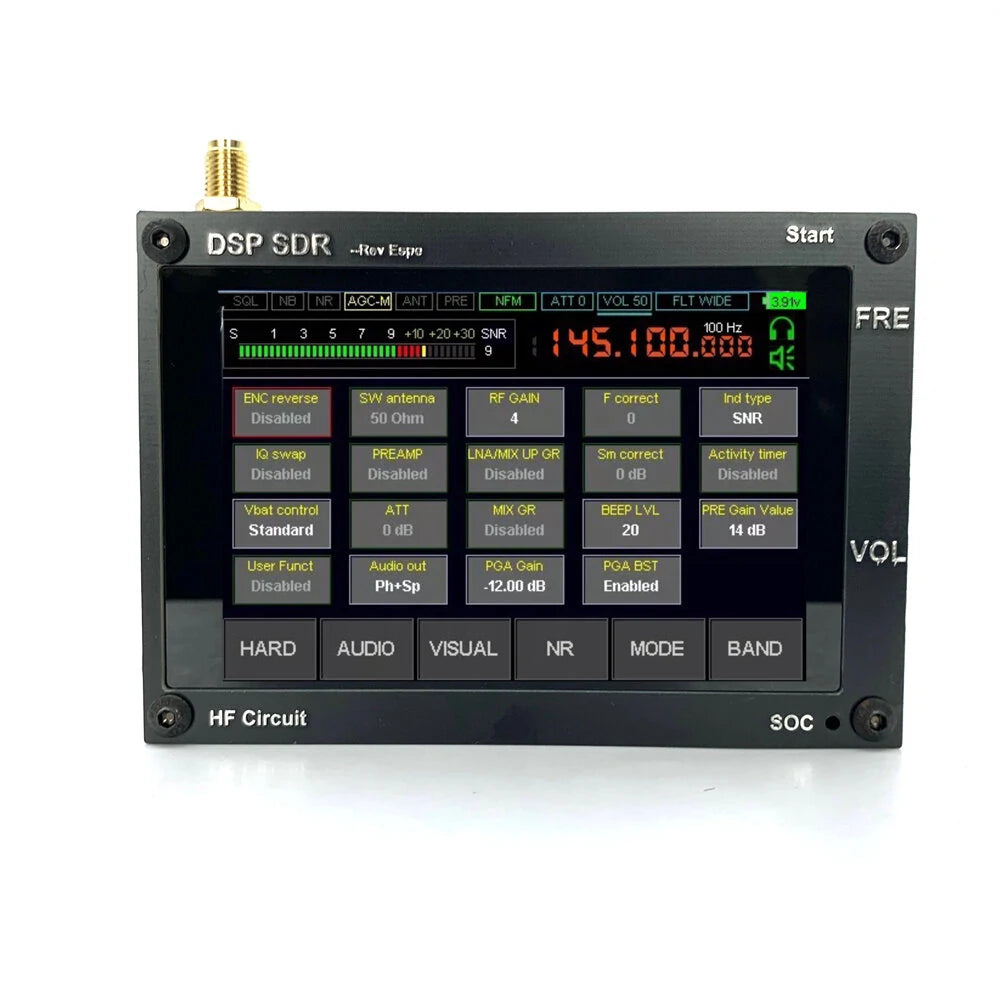

• Dynamic audio features including variable filter width and adaptive noise suppression.
• Utilizes cost-effective, full-function MSI001 chip.
• Equipped with a robust STM32H743 processor with 480 MHz clock frequency.
• Built-in UHF with two control encoders and touch screen operation.

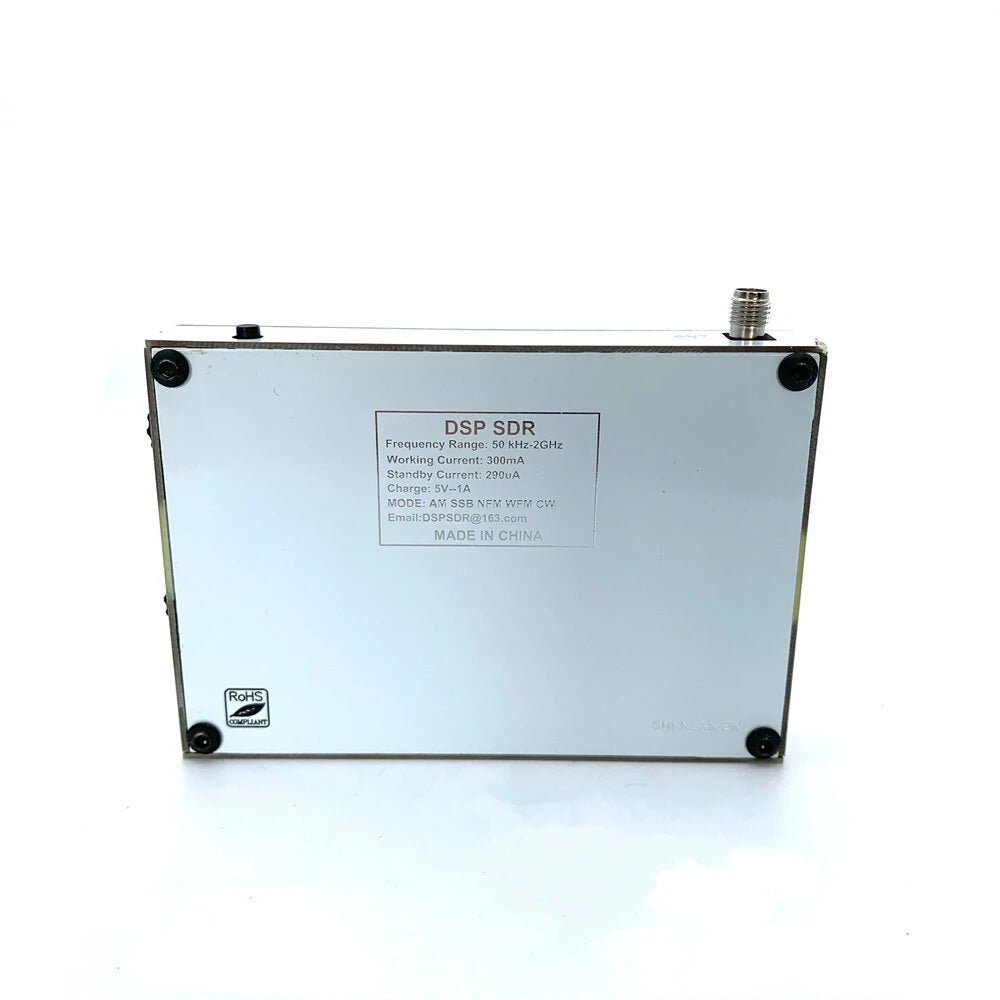

• Low power consumption of 300mA with headphone use.
• Connects to computers via TYPE-C for CAT, IQ, and audio transfer.
• 160kHz span with scalability options.
• High sensitivity under 250MHz conditions: SW 0.3μV = 10dB.
• Dynamic blocking range approximately 85dB, leveraging MSI001 chip characteristics.
• Backlight control for improved visibility.
• Equipped with SMA female antenna socket.
• Compact size: approximately 122 x 105 x 29mm (excluding connector dimensions).

Options:

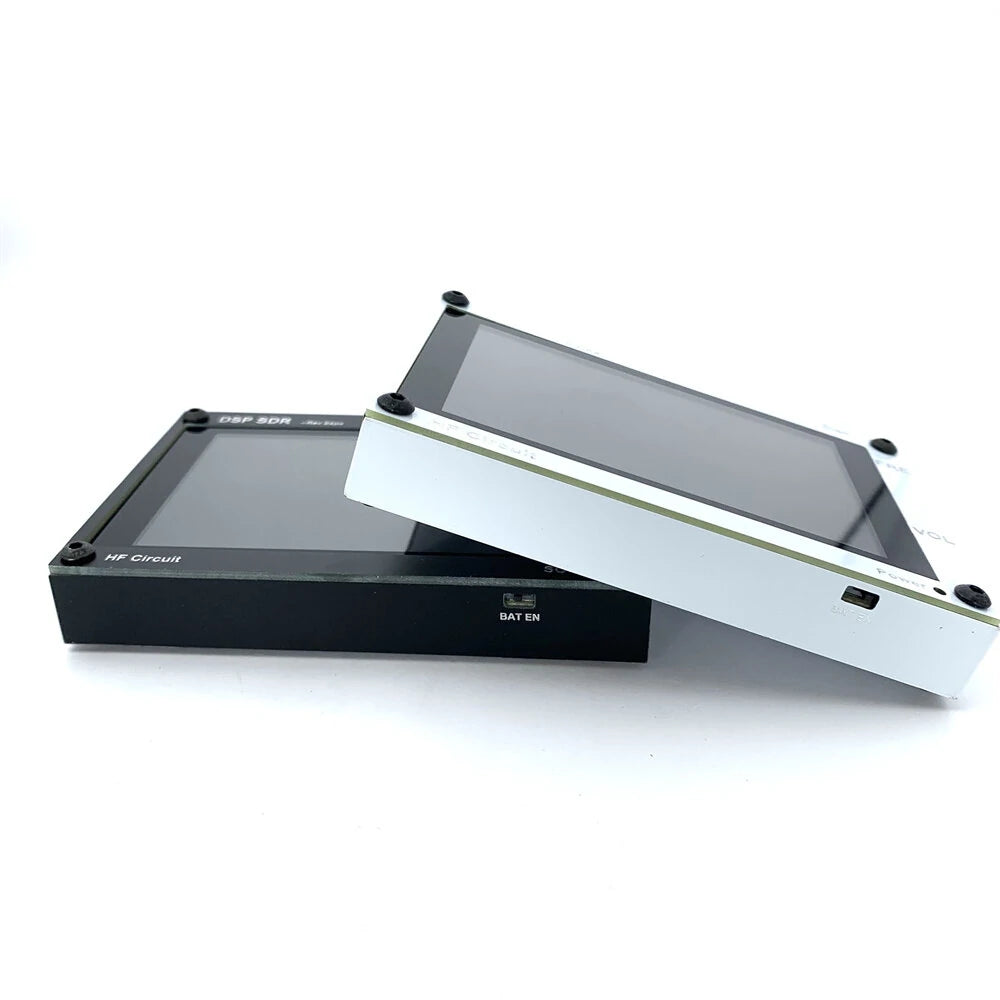

• Available in White or Black color variants.

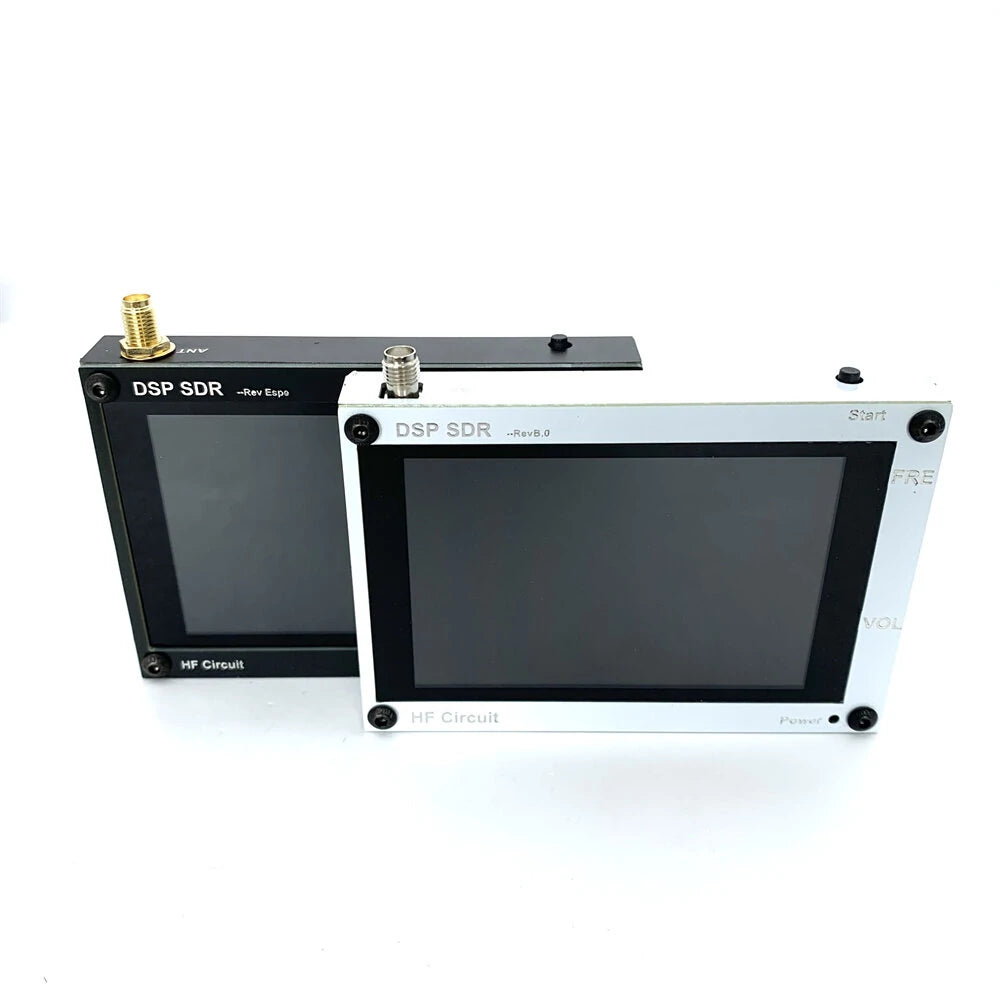

• Choose between Standard and Upgraded versions.

Package Includes:

• 1 x SDR Receiver (option to include built-in expansion board).

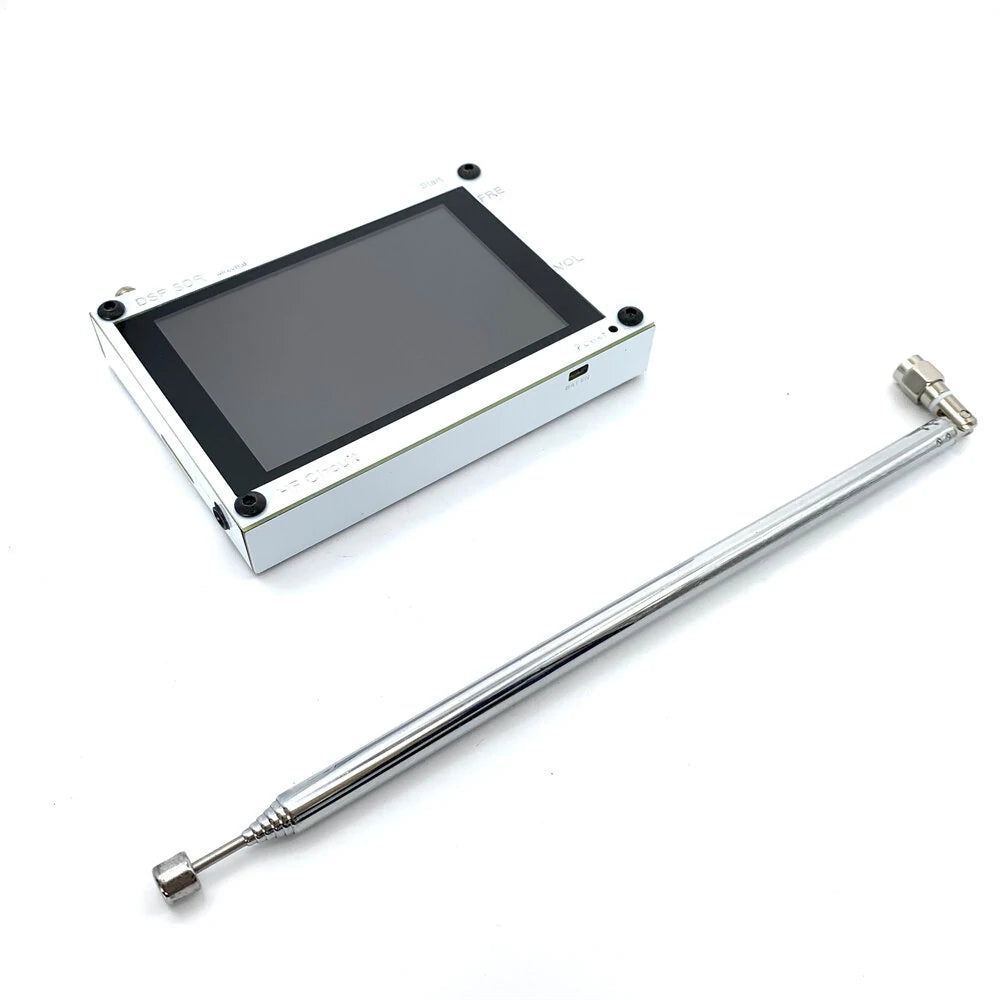

• 1 x SMA Antenna
