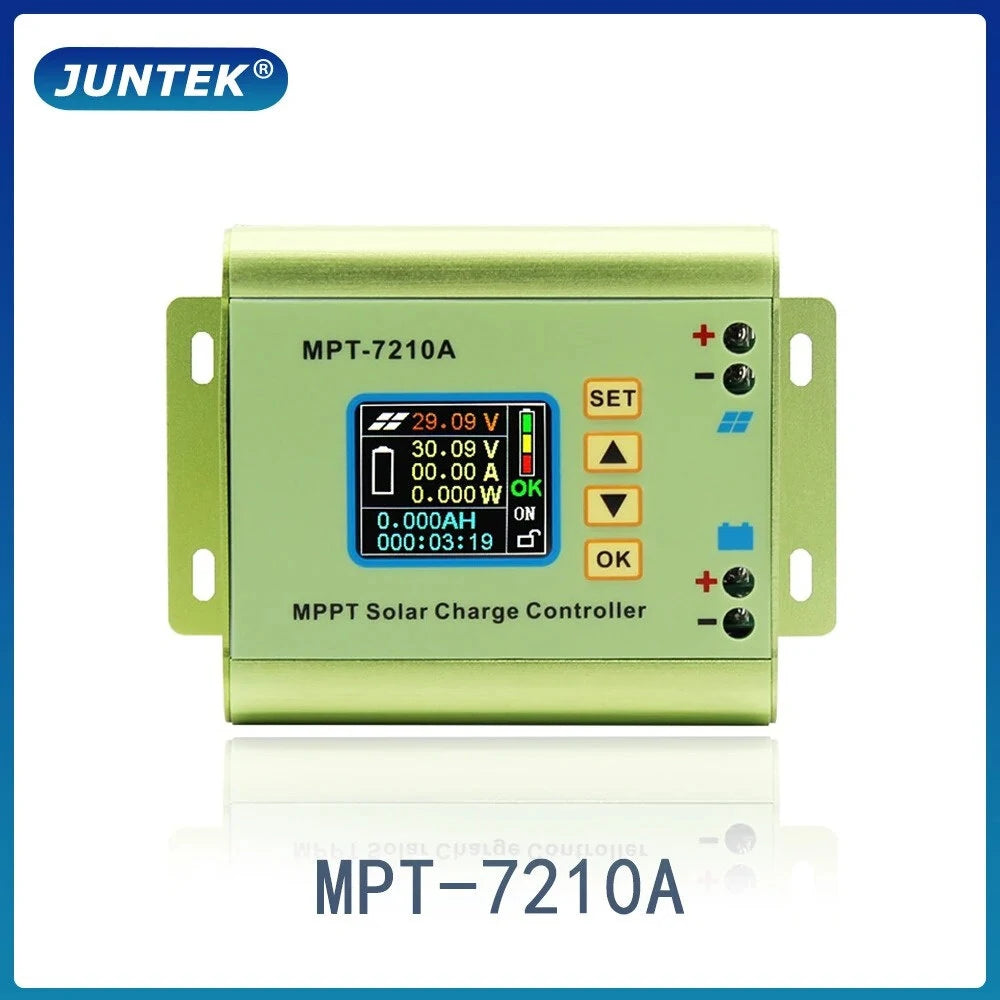

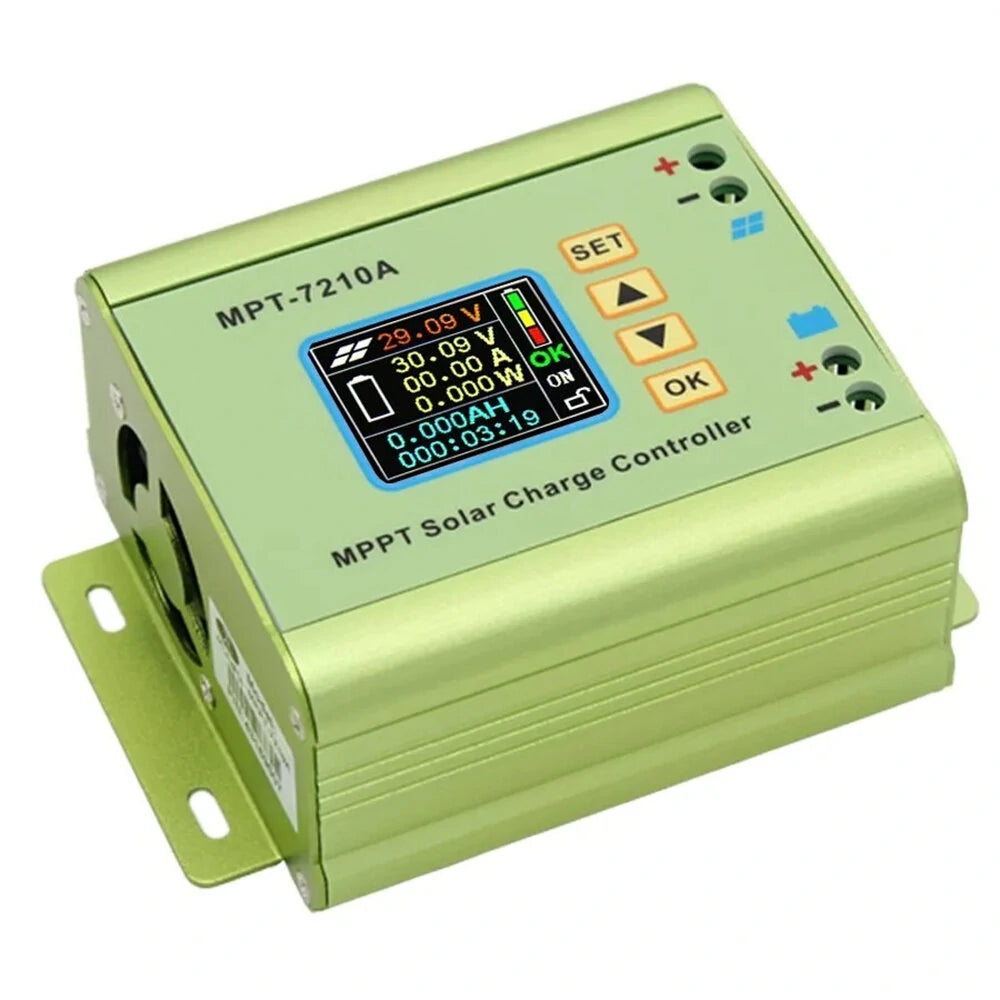

JUNTEK MPT-7210A MPPT Solar Charger Controller with High-Efficiency Boost Module, Durable ABS, 12-60V Input, 15-90V Output

Features:

• Advanced Charging Technology: The JUNTEK MPT-7210A is a highly efficient solar battery charger utilizing MPPT and DC-DC conversion. This advanced technology boosts the output voltage, enabling it to charge batteries of up to 72V.
• User-Friendly Digital Control: The product offers a digital control interface, allowing you to manage the charging process effortlessly. Set the input voltage, output voltage, and output current to precise values with a resolution of 10mV and 10mA, respectively.

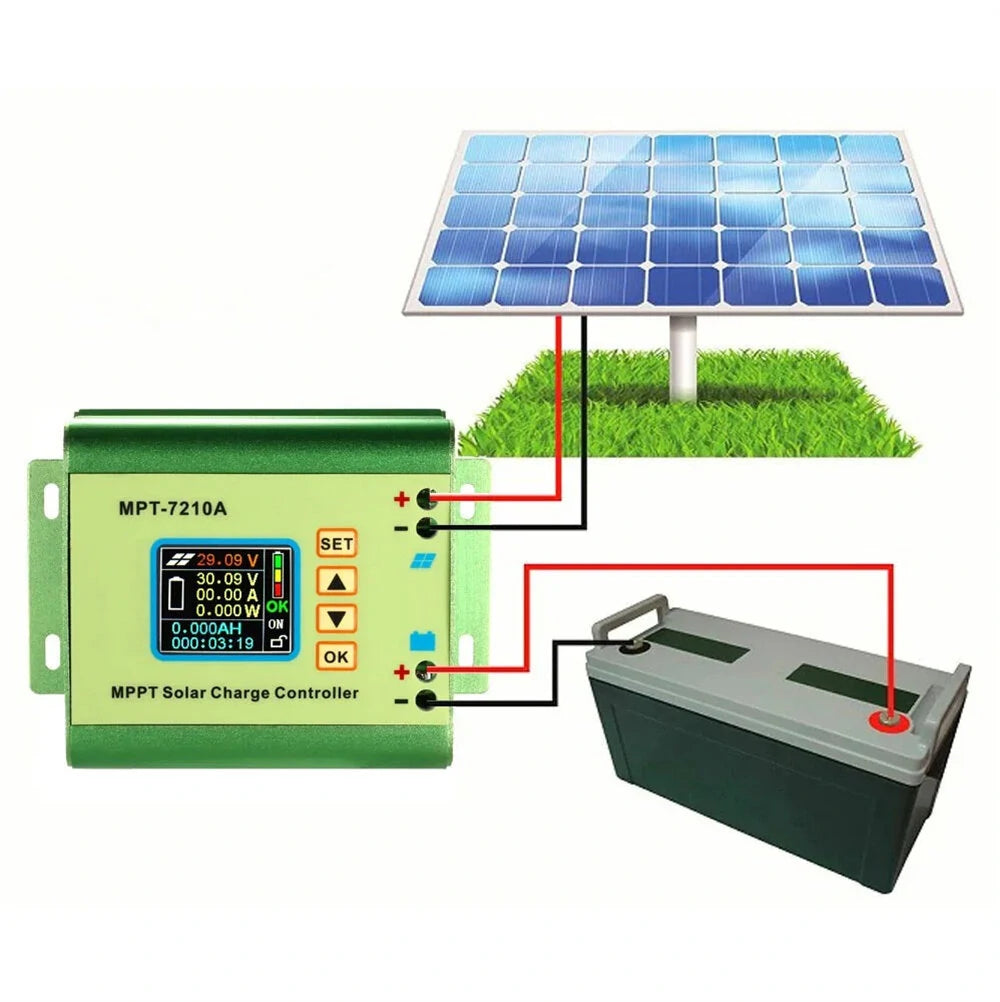

• Solar Panel Compatible: This charger is compatible with solar panels, making it ideal for users utilizing renewable power sources. The convenience of solar energy enhances both the product’s appeal and usability.
• High Conversion Efficiency: With an operating temperature range of -10℃ to 60℃, the JUNTEK MPT-7210A offers a high conversion efficiency of up to 85%. Maximize the power yield from your solar panels, reducing waste and saving money.
• Durable and Long-Lasting: Constructed from high-quality ABS material, this unit is designed to withstand extreme weather conditions and harsh environments, ensuring it stands the test of time.

Specifications:

• Input Voltage: 12-60V
• Output Voltage: 15-90V
• Output Current: 0-10A
• Output Power: 0-600W
• Output Voltage Setting Resolution: 10mV
• Output Current Setting Resolution: 10mA
• Working Mode: MPPT and DC-DC
• Operating Temperature: -10℃~60℃
• Conversion Efficiency: 85%
• Product Dimensions: 131 x 96 x 55 mm
• Net Weight: 400g

Package Includes:

• 1 x JUNTEK MPT-7210A Solar Battery Charger
• 1 x Digital Control Module
• 1 x User Manual
