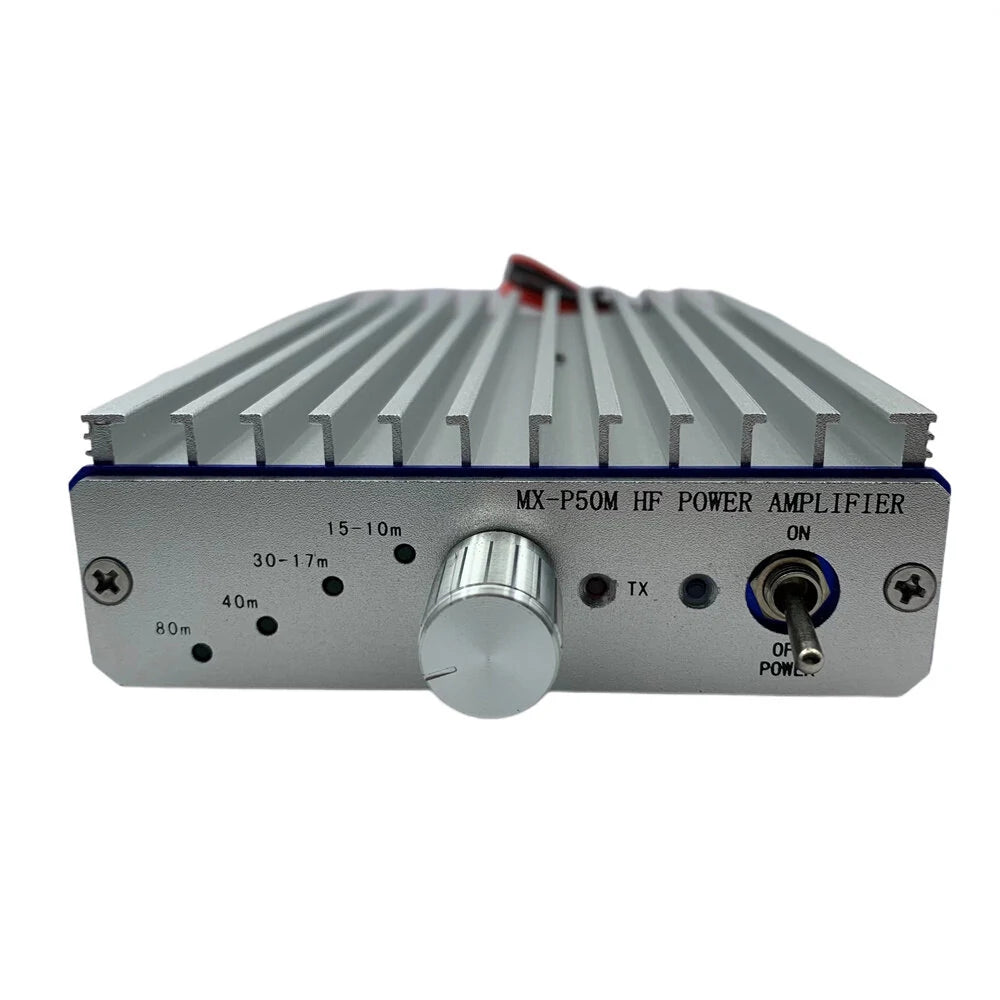

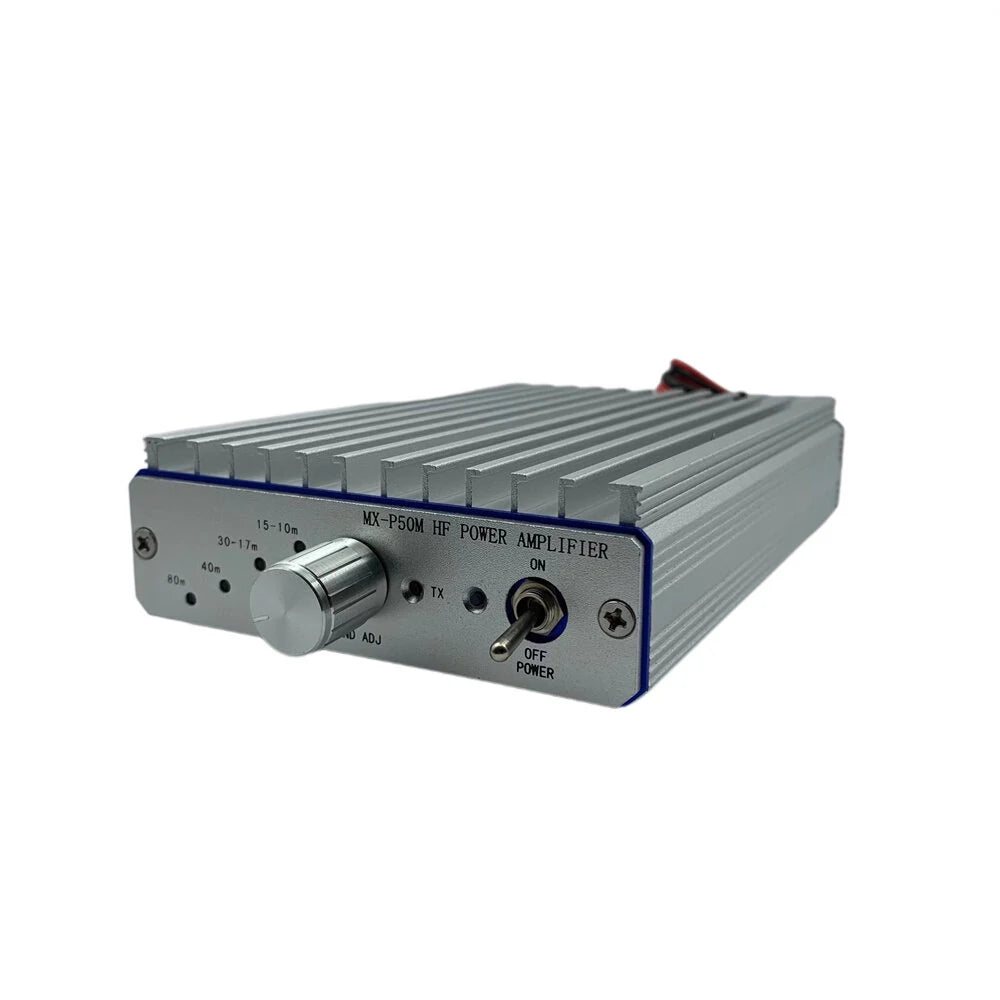

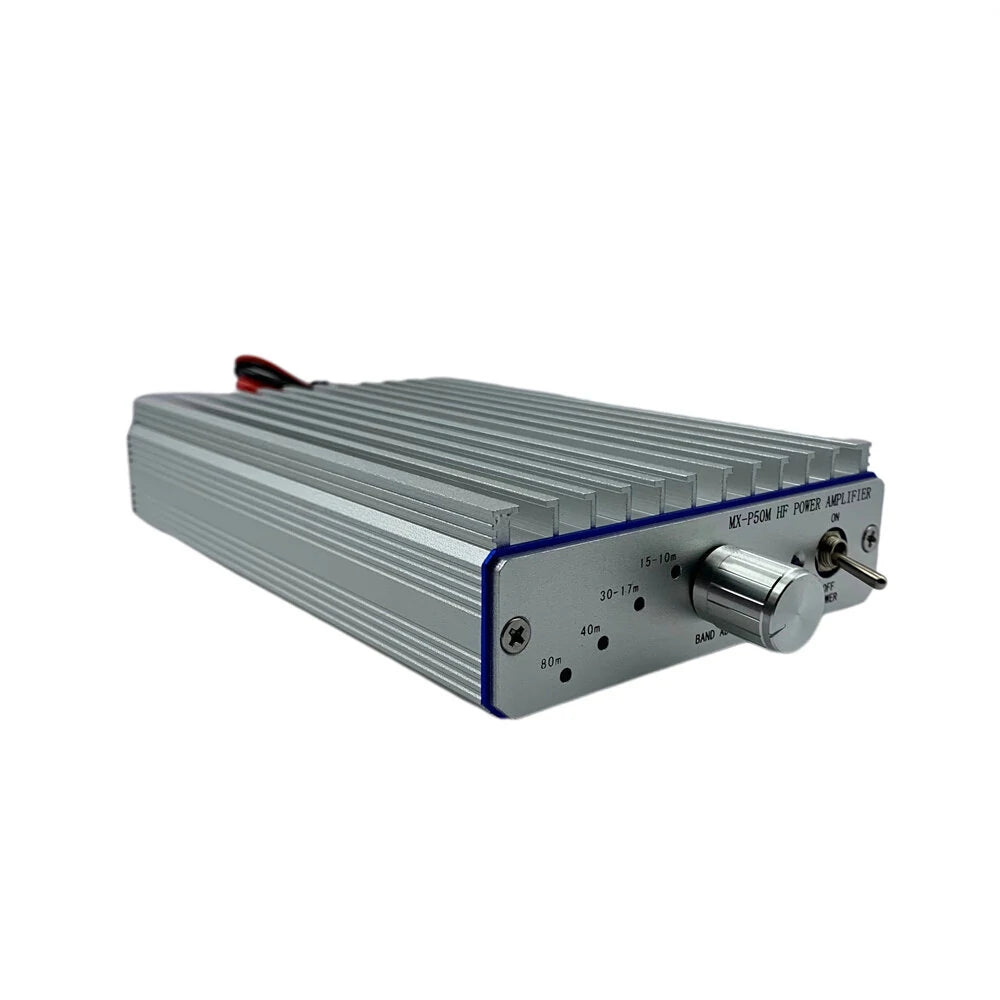

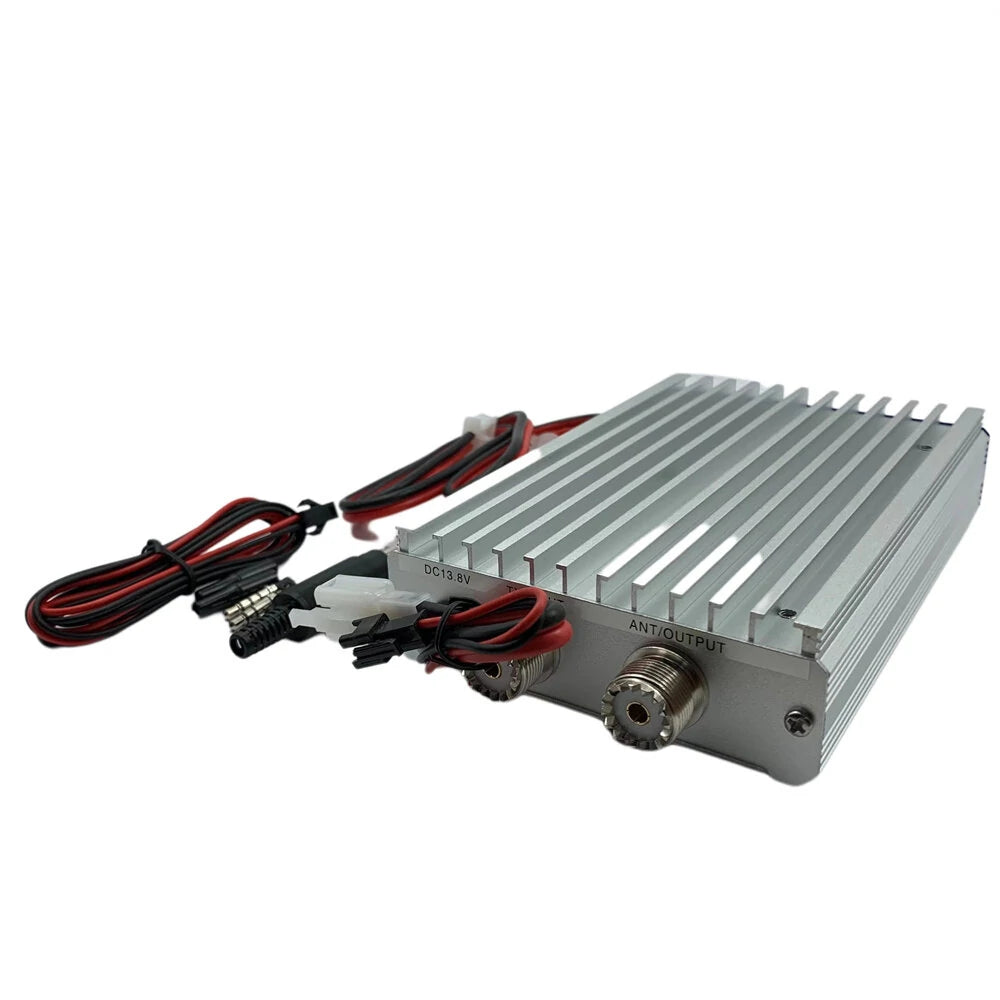

MX-P50M HF Short Wave Power Amplifier

Features

• Broad Compatibility: Compatible with QRP rigs such as the ICOM IC-703 and Elecraft KX3. Specially designed for FT-817ND, FT-818ND, and SUNSDR2.
• Easy to Operate: Comes with a convenient quick operating manual for FT-817ND and other QRP transceivers. Features manual band adjustment and PTT, TX indicators for smooth operation.
• Enhanced Performance: Designed to boost your QRP radio's performance, it offers an output power of 45W with an input RF of 5W, increasing output signal strength.
• Compact and Portable: Compact and lightweight with dimensions of 155x100x35mm and a weight of 0.55KG, making it easy to carry and ideal for field and mobile radio communication.
• Efficient Cooling: Equipped with a passive air cooling system that keeps it cool under continuous operation, ensuring longevity and durability.

Specifications

• Model: MX-P50M
• Frequency Band: 80m, 40m, 30m-17m, 15m-10m
• Operating Modes: SSB, CW, AM, RTTY, FM (Reduced duty cycle)
• RF Input: 5W
• Output Power: 45W
• Band Mode: Manual
• Power Requirement: 13.8V, 8A (RED "+" BLACK "-")
• Cooling Method: Passive air cooling
• Antenna Connector: SO-239 50Ω
• Size: 155x100x35mm (DxWxH)
• Weight: 0.55KG

Package Included

• 1 x MX-P50M Power Amplifier

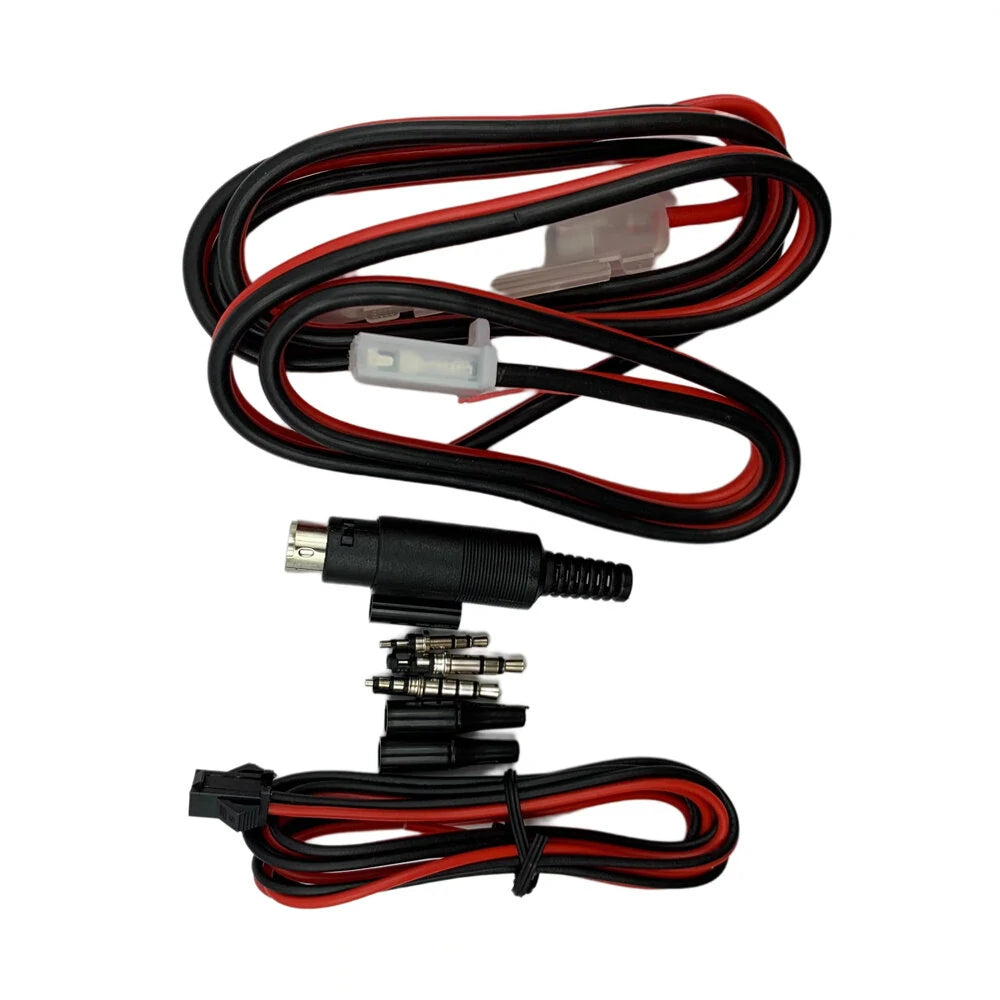

• 1 x Power Cord
• 1 x FT-817ND ACC Control Cable
• 1 x KX3 ACC Control Cable
