10W Portable uSDX 8-Band SDR All Mode QRP Transceiver (Single Microphone) - USB, LSB, CW, AM, FM HF SSB QCX-SSB with Battery

Product Overview

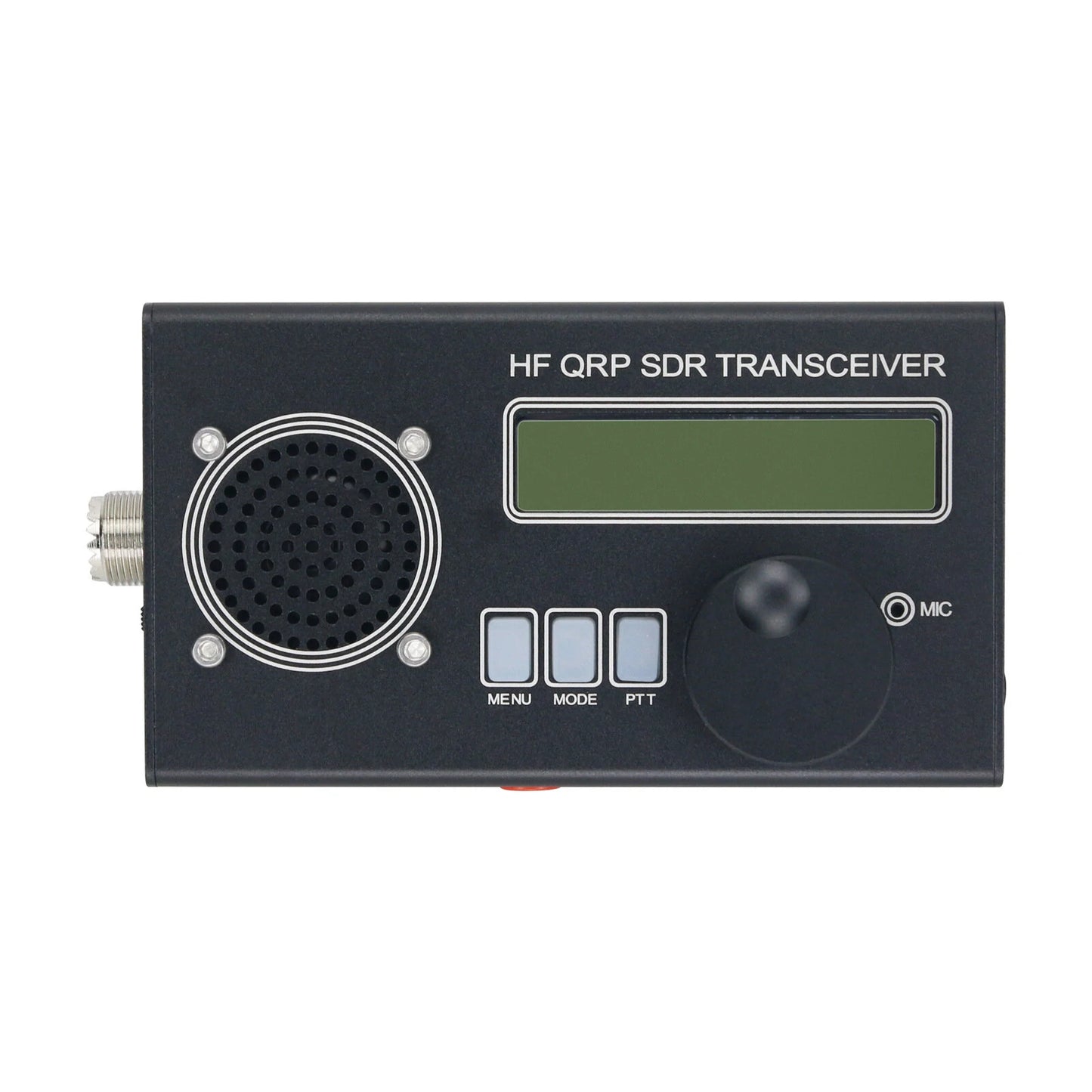

Discover the enhanced shortwave QRP SSB/CW transceiver with upgraded appearance and performance. Featuring a 1602 screen, built-in battery, and charger, this compact device is designed for seamless connectivity and superior sound quality.

Key Features

• Advanced Technology: Employs IRF series launch tube; use with M seat antenna.
• Multi-band Functionality: Supports 8 bands with a digital power standing wave display. Maximum power of 10W using external 13.8V power supply. Built-in 12.6V battery for convenience.
• Precise and Reliable: TCXO for KDS with an accuracy of 0.5PPM.
• Durable Construction: Aluminum shell with laser marking and all-aluminum knobs. Includes translucent silica gel buttons.

Specifications

• Dimensions: 76 x 46 x 130 mm (3 x 1.8 x 5.1 inches)
• Weight: Lightweight, easy to transport.
• Environmental Benefits: High power efficiency with no need for bulky heatsinks.

Operating Modes and Features

• Simple, versatile QRP SSB HF transceiver with embedded DSP and SDR functions.
• Supports full modes: USB, LSB, CW, AM, FM with multiple DSP filters.
• Equipped with EER E-level driven SSB launch stage.
• Open-source firmware for Arduino IDE; easily customizable through GitHub contributions.

Functionality and Design

• Software-based SSB transmitter with phase and amplitude control for precise signal reconstruction.
• Comes with a fully digital SDR receiver stage and option for external speaker and microphone connections.
• Built-in CW decoder and keyer for enhanced user control.

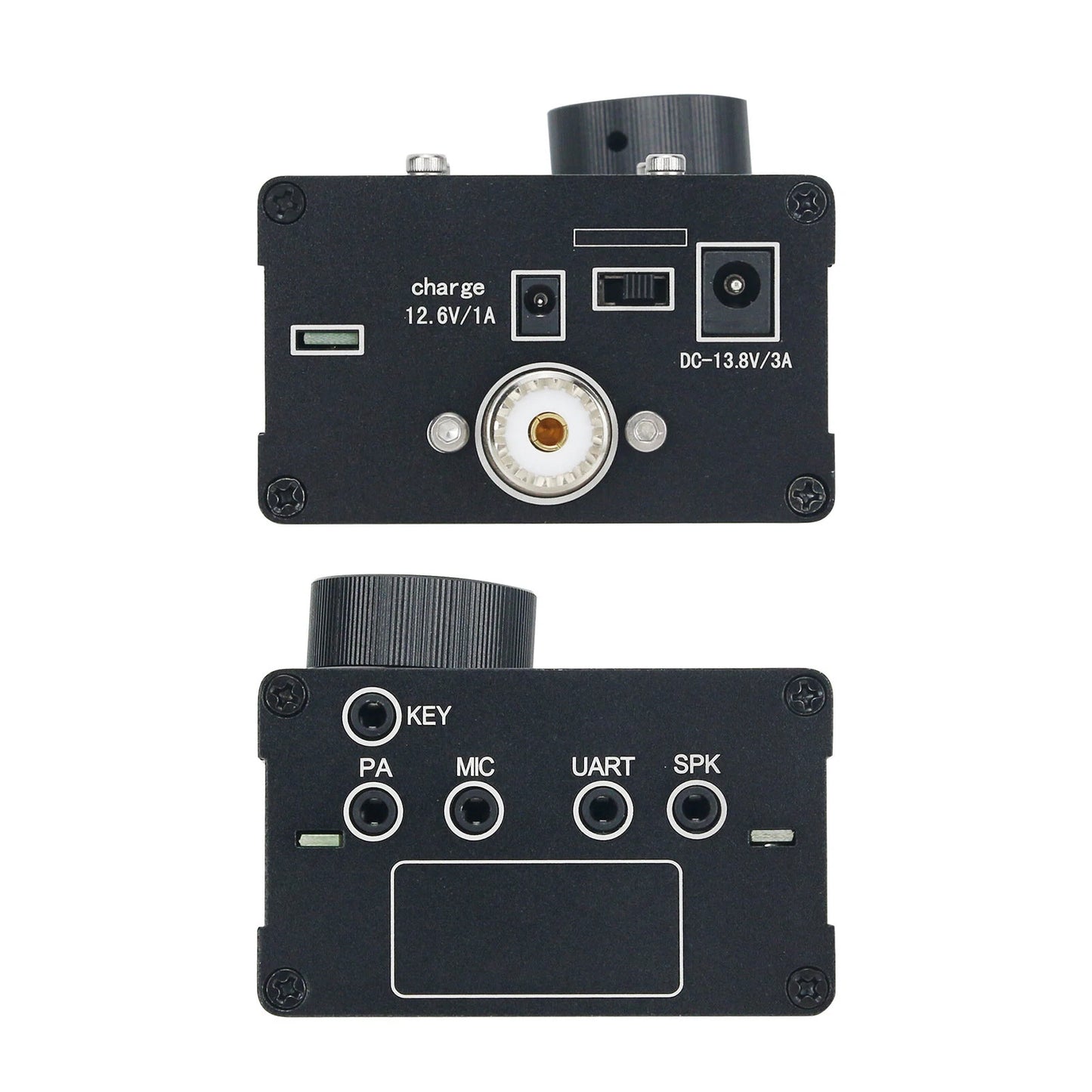

Port Features

• Charge: Use only the supplied charger for the built-in lithium battery.
• Switch: Easy toggle between off, built-in battery, and external power supply operation.
• Connections: Multiple ports for external power, microphones, speakers, and serial communication.

Product Configurations

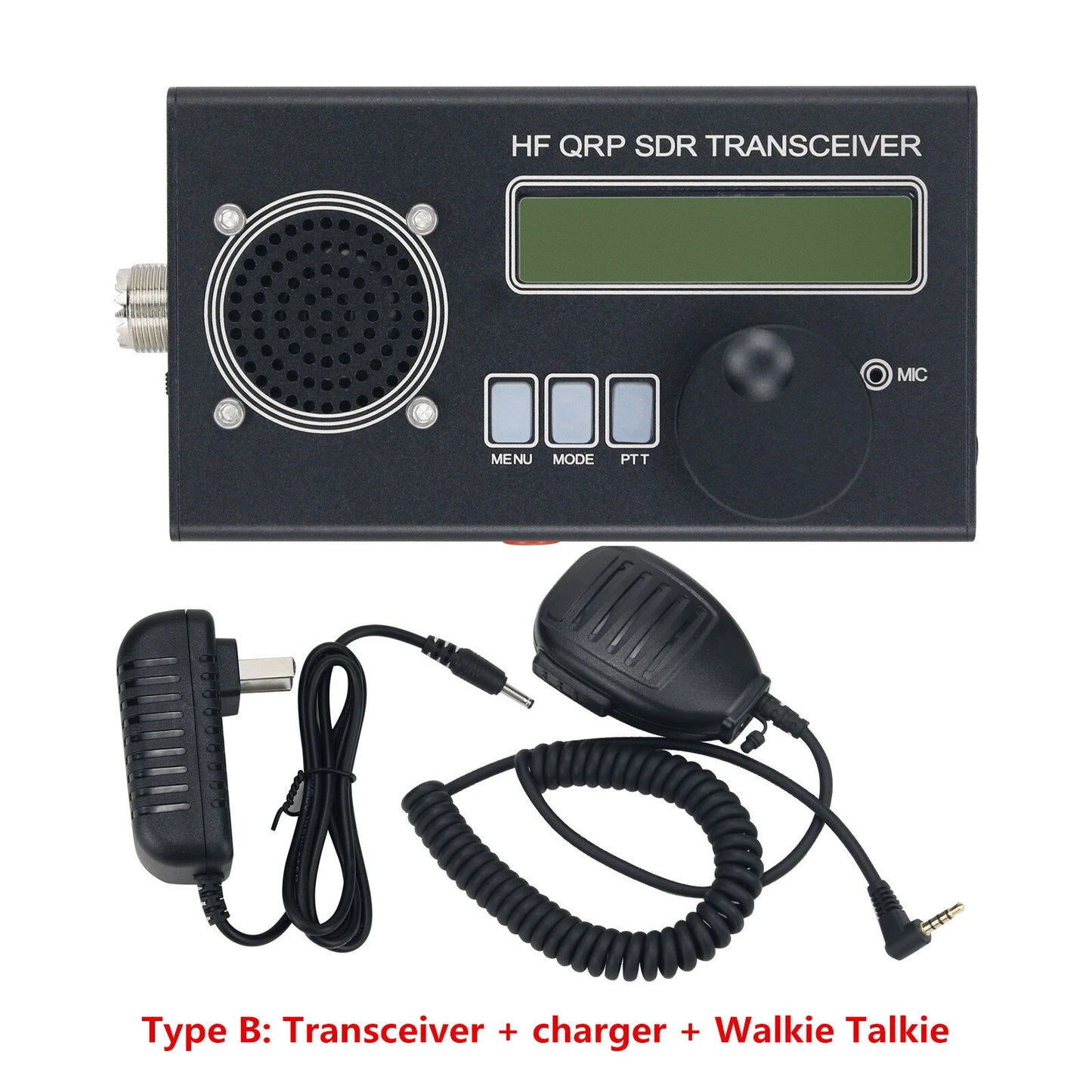

• Type B: Includes one set of transceiver.

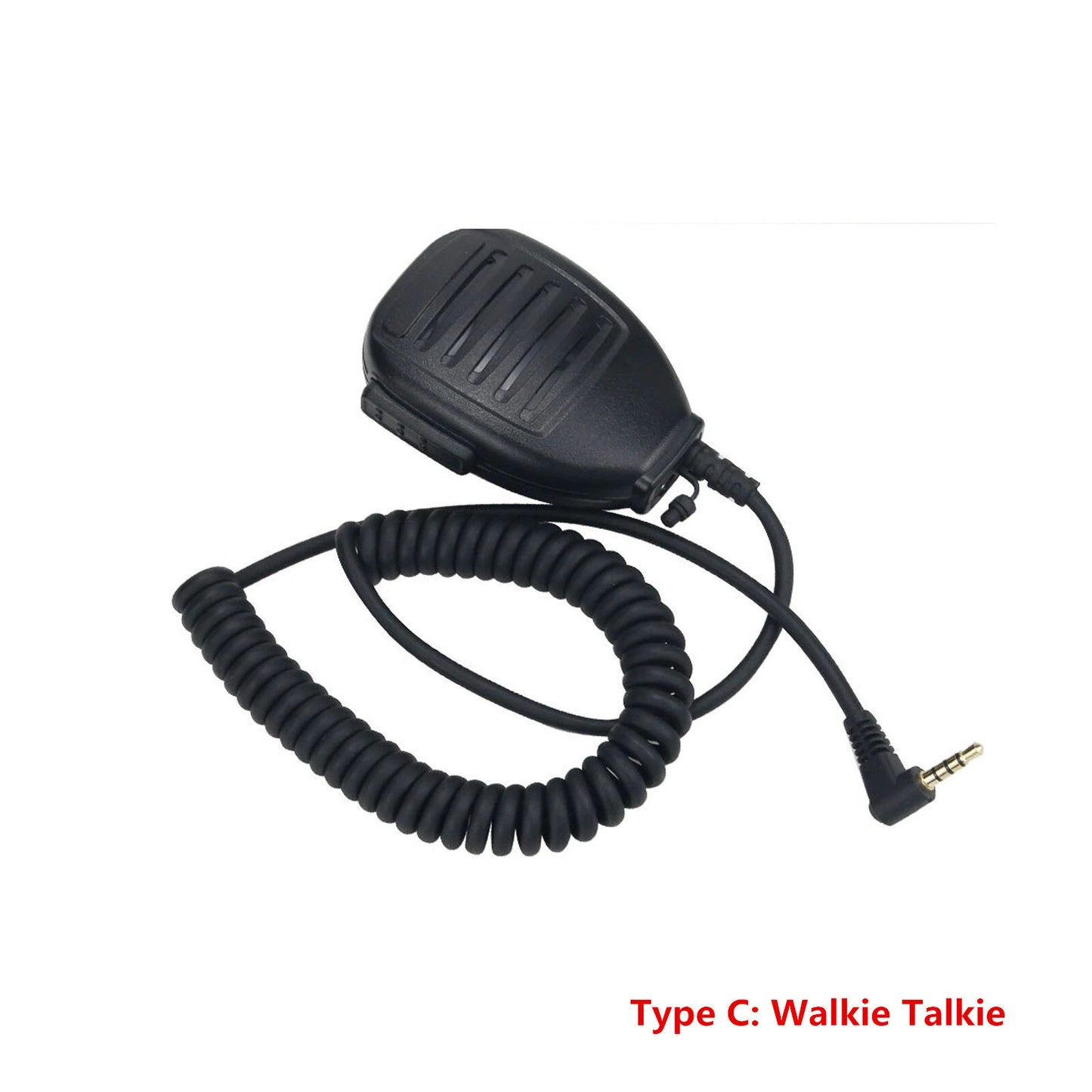

• Type C: Includes one microphone.
