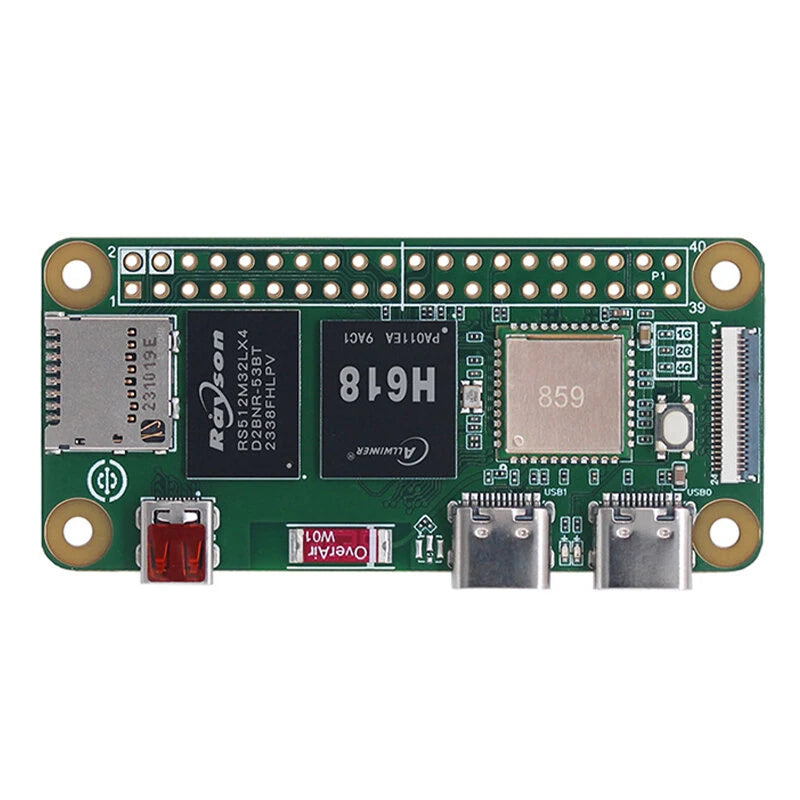

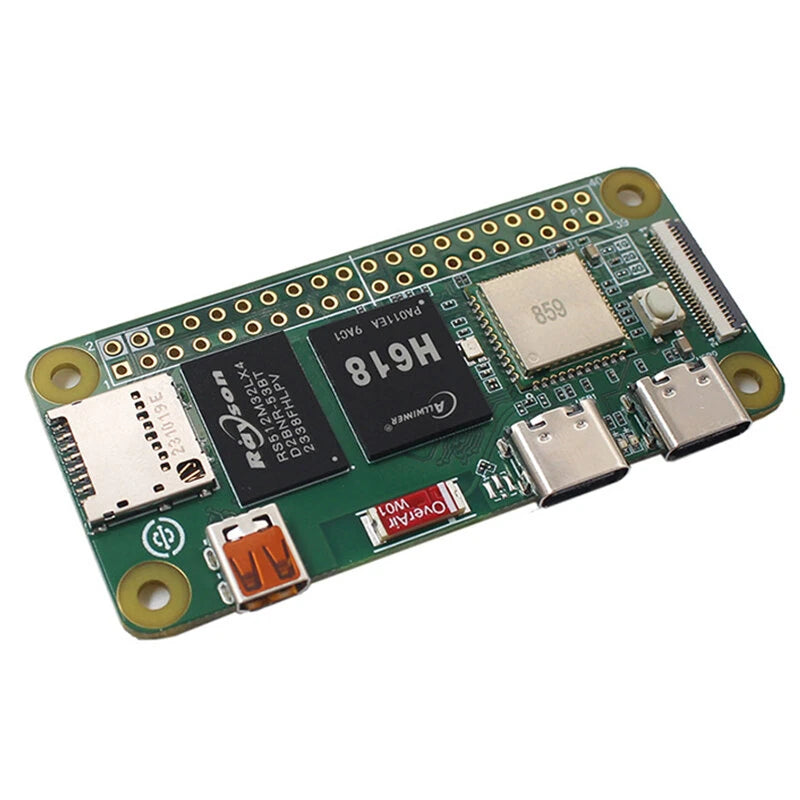

Walnut Pi Zero W H618 Quad-Core Linux Development Board, Dual-Band WiFi+BT5.0, Raspberry Pi Compatible

Walnut Pi Zero W H618 Quad-Core Linux Development Board, Dual-Band WiFi+BT5.0, Raspberry Pi Compatible

Regular price $23.99 USD
Regular price $0.00 USD Sale price $23.99 USD
Sale Sold out
Shipping calculated at checkout.
Storage

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
Walnut Pi Product Description

Walnut Pi

The Walnut Pi is an advanced, cost-effective single-board computer designed and manufactured in China, compatible in size with the renowned Raspberry Pi. This robust Linux development board empowers you to surf the Internet, play games, learn programming, and build your own electronic projects with ease.

Specifications

  • CPU: Allwinner H618 64-bit Quad-core Cortex-A53, 1.5 GHz
  • GPU: Mali G31 MP2, supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0
  • Memory: Options of 1GB/2GB/4GB LPDDR4
  • Storage: MicroSD slot (up to 512GB), reserved SPI flash (unpopulated)
  • Wireless Networking: Dual-band WiFi (2.4GHz & 5GHz), Bluetooth 5.0
  • Video Output: MicroHDMI 2.0a, supports 4K@60fps
  • Peripheral Interfaces:
    • 1x USB 2.0 (Type-C)
    • 1x Button
    • 1x LED
    • 40 Pin GPIO Header (Raspberry Pi Compatible)
    • FPC Seat
    • IR Receiver
    • USB 2.0 x 2
    • FPC Connector
    • 10/100 Mbps Ethernet
    • Debug UART (Serial)
    • Audio Output
    • Power Output (5V and 3.3V)
  • Power Supply: Type-C interface, 5V/1A input
  • Operating Systems: WalnutPi OS (Debian), Ubuntu 22.04, Home Assistant
  • Dimensions: 65 x 30 x 5 mm (PCB size)
  • Weight: 8.5 g (bare board)

Features

  1. High-Performance Processing: Powered by the Allwinner H618 64-bit Quad-core Cortex-A53 CPU at 1.5GHz, ensuring efficient handling of various tasks.
  2. Advanced Graphics Support: Mali G31 MP2 GPU supports advanced graphics rendering with OpenGL ES and OpenCL capabilities.
  3. Versatile Connectivity: Dual-band WiFi and Bluetooth 5.0 with onboard high-gain ceramic antenna for robust wireless communication.
  4. Comprehensive Interface Options: Features include a Raspberry Pi-compatible GPIO header, USB ports, and MicroHDMI for 4K video output.
  5. Wide OS Compatibility: Compatible with multiple operating systems, offering flexibility for development.

Package Includes

  • 1x Module Board

The onboard antenna is supported but not included. Memory options cater to diverse needs based on application complexity:

  • 1GB: Suitable for lightweight applications, minimal multitasking, or deploying micro web servers.
  • 2GB: Ideal for more complex multitasking, such as browsing multiple web pages simultaneously.
  • 4GB: Best for running memory-intensive applications efficiently.
