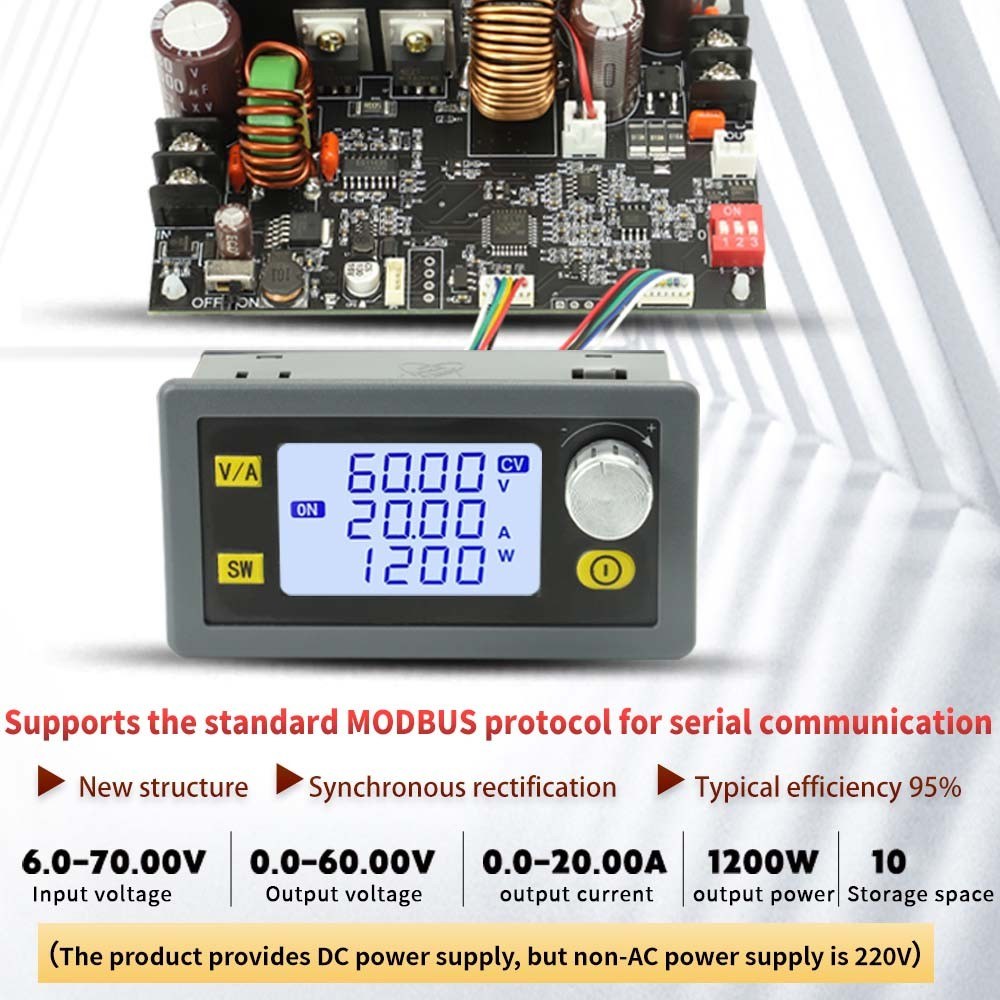

Adjustable LCD Display DC Power Supply 20A 1200W Step-down Module with Constant Voltage & Current

Product Options

Choose the model that best suits your needs: XY-6020L or XY-6020L Base Plate.

XY-6020L

This model includes:

• Voltage Regulator
• Base Plate
• 2 Cables

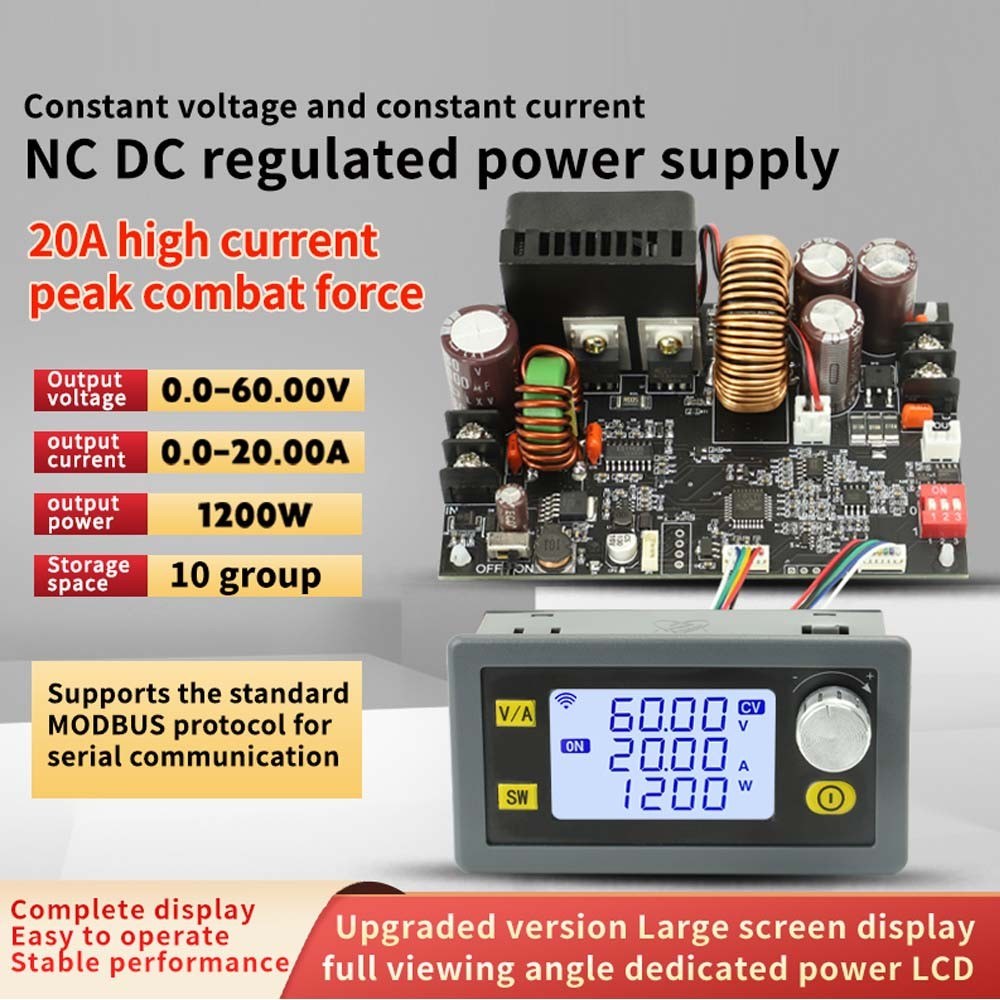

The direct current voltage regulator, designed for constant voltage and current, offers:

• Output Voltage: 0.0-60.00V
• Output Current: 0.0-20.00A
• Output Power: 1200W

It features a large LCD for easy data display and simple operation, ensuring stable performance.

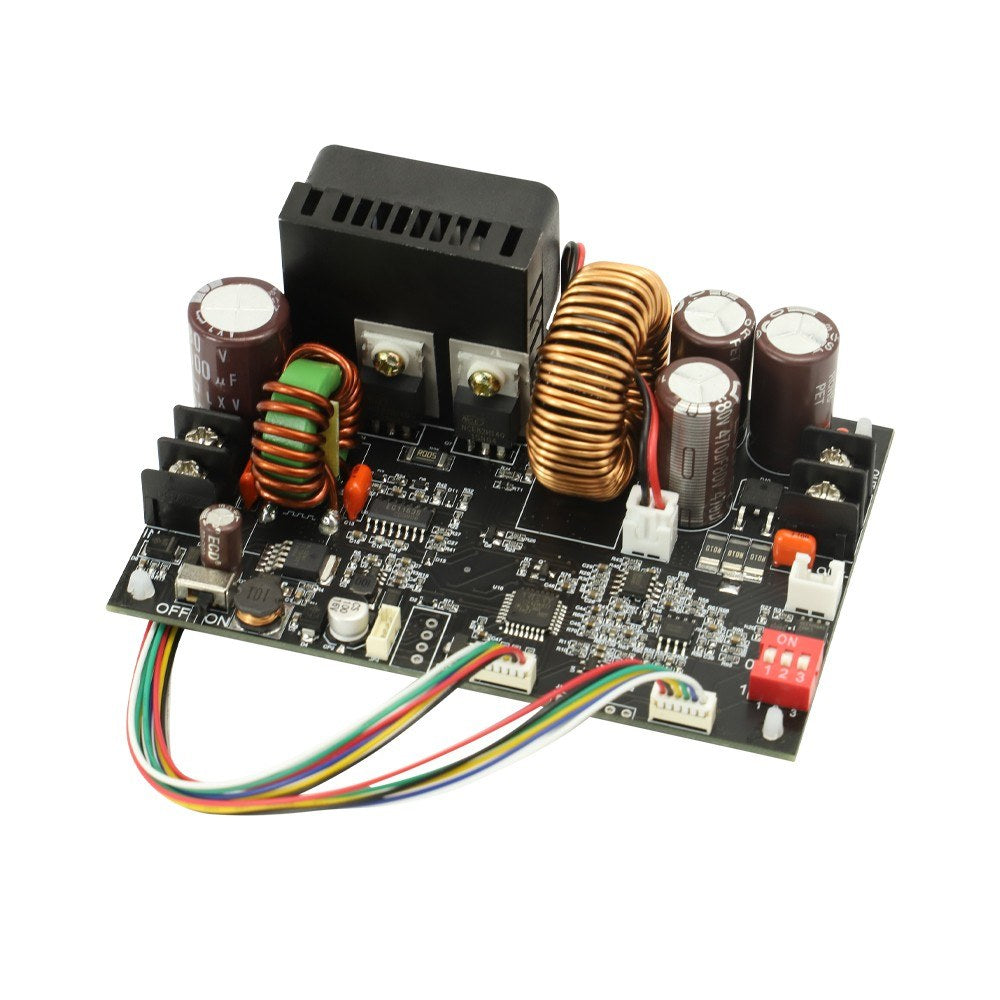

XY-6020L Base Plate

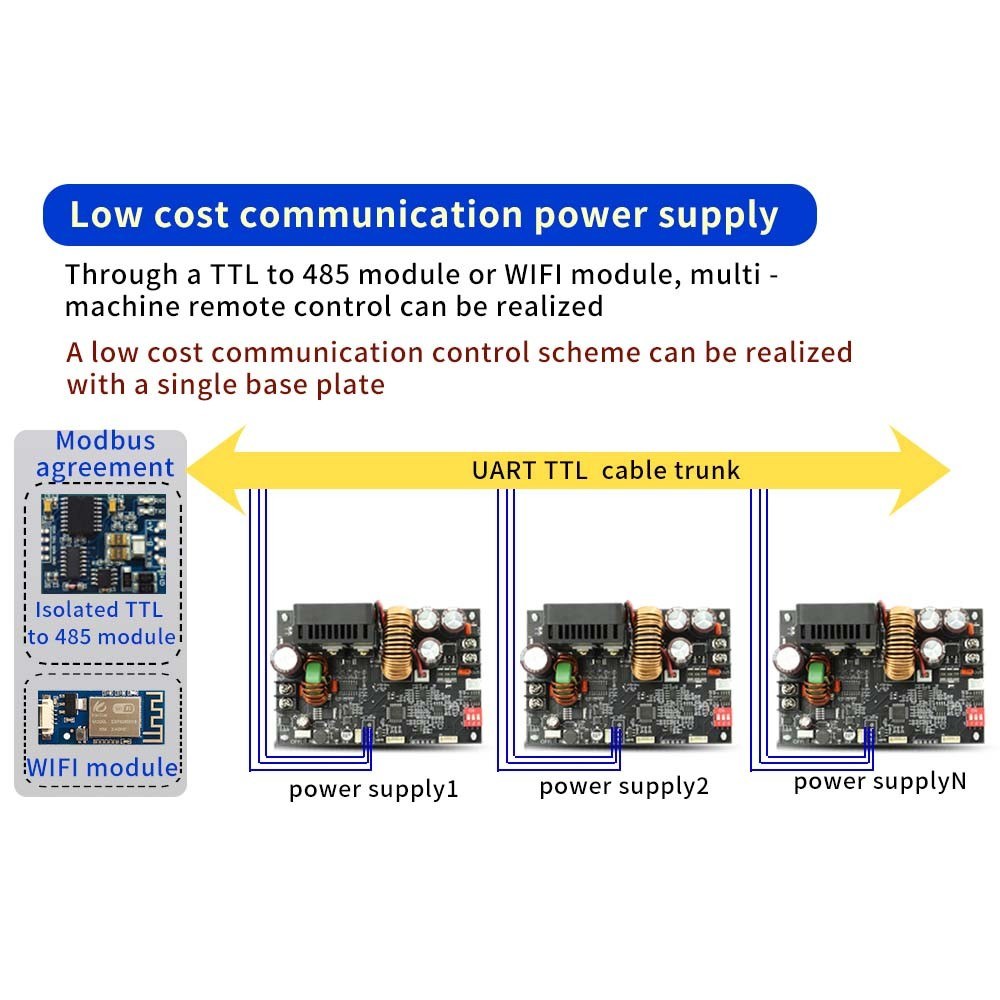

Supports adjustable output voltage with fixed settings of 5/9/12/24/36/48/60V. It is a cost-effective communication power supply solution that allows remote control of multiple machines via a TTL to 485 or WIFI module.

• Can be operated independently
• Output Current: 0-20A

Features

Voltage Stabilizer

• Constant voltage and current design

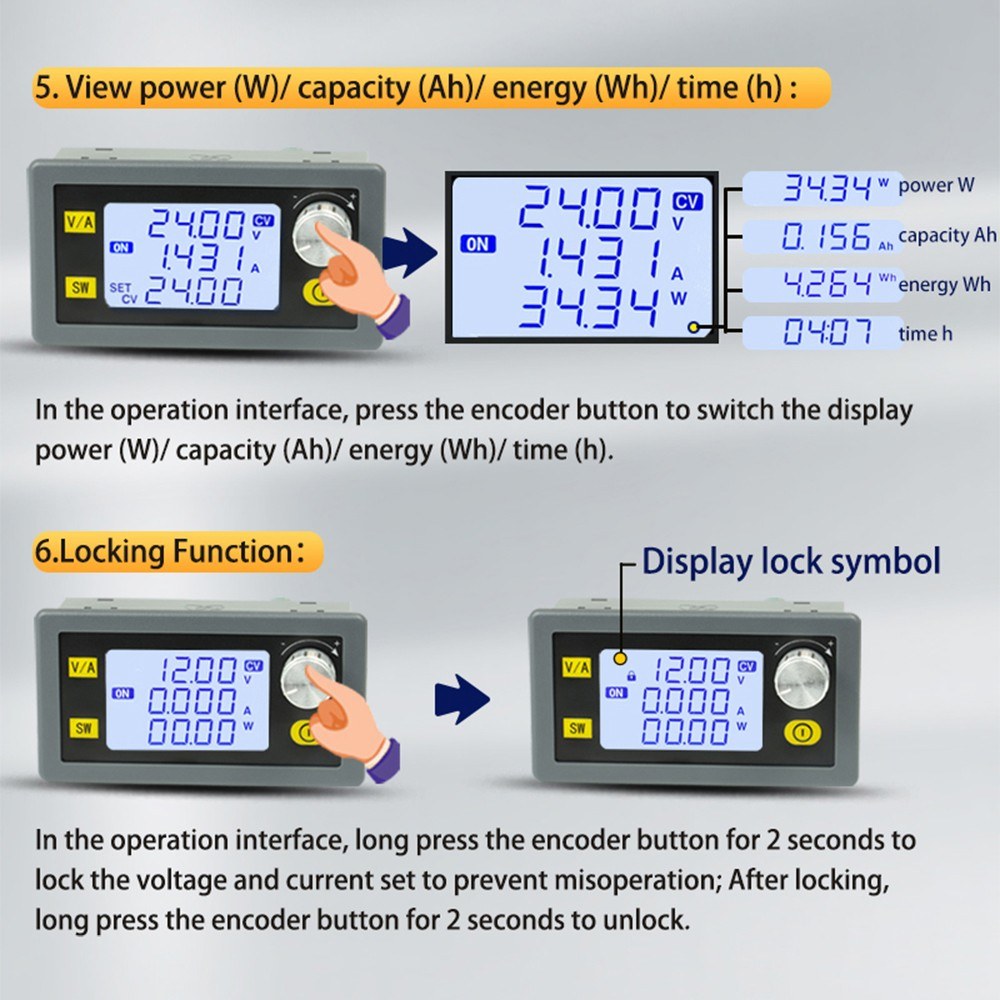

• Large screen LCD for full data display
• Multiple protections: voltage, current, power, temperature, and others
• 10 group storage function
• MODBUS protocol supported

Base Plate

• Solid material with excellent heat dissipation

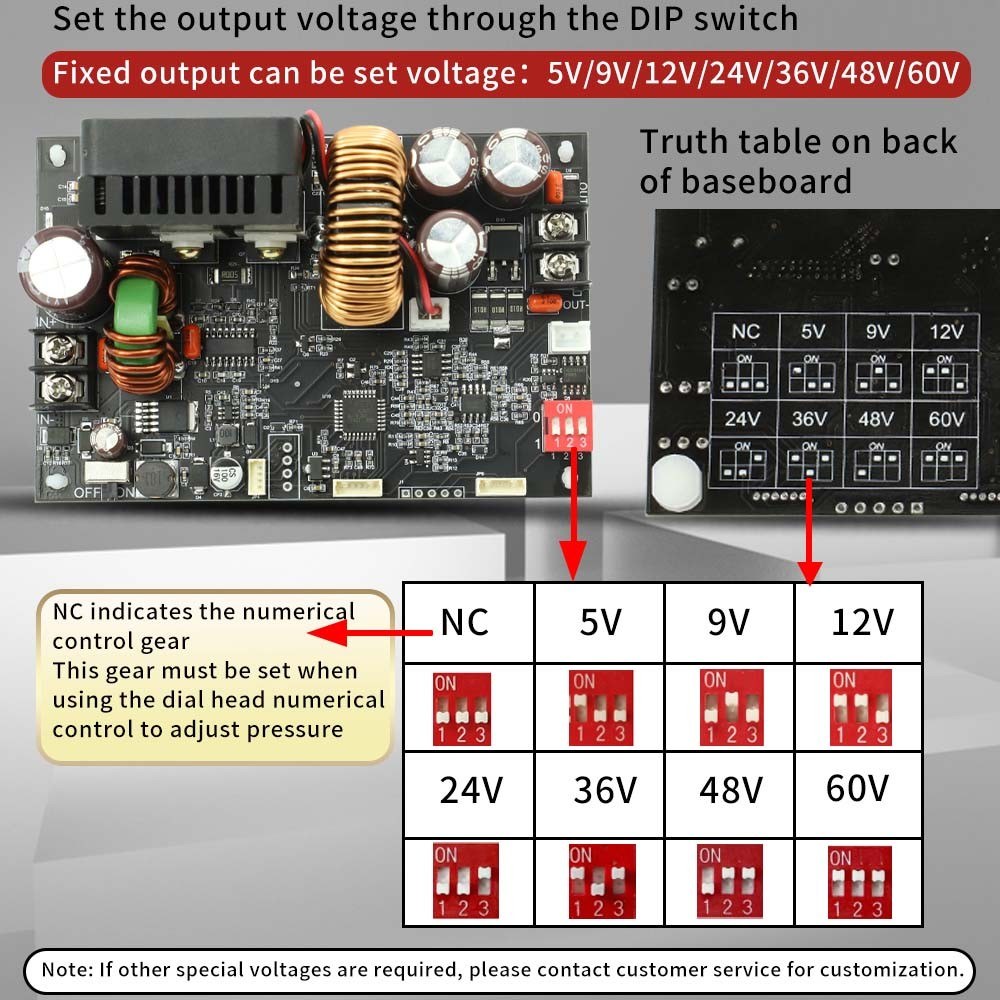

• Dip switch for setting output voltage
• Independent operation with intelligent temperature control

Specifications

• Type: XY-6020L, XY-6020L Base Plate
• Input Voltage: 6.0-70V
• Output Voltage: 0.0-60V
• Output Current: 0-20.00A
• Output Power: 0-1200W
• Cooling: Fan activates based on current, power, and temperature

Conservation Mechanism

• External Temperature Protection: 0-110℃, default off
• Input Overvoltage Protection: 71V, default
• Output Overvoltage Protection: 65V, default
• Output Overcurrent Protection: 0-22A, default 22A

Package Details

XY-6020L Package Includes:

• 1 Direct Current Voltage Stabilizer
• 1 Base Plate
• 2 Cables

XY-6020L Base Plate Package Includes:

• 1 XY-6020L Base Plate
