360° PIR Motion Sensor Switch - Mini Infrared Detector

Product Features

• Efficient Infrared Detection: This switch utilizes infrared technology to detect human presence and effortlessly control the connected load, promoting energy savings. It's easy to install and user-friendly.
• Smart Brightness Sensor: Equipped with a photosensitive control that ensures the lamp remains off during daylight or in brightly lit environments. Users also have the option to enable the lamp in any lighting condition.
• Versatile Lamp Compatibility: Works seamlessly with LED, incandescent, and fluorescent lamps. Automatically turns on when you enter the detection range (up to 6m) and switches off after a delay (adjustable) once you leave.

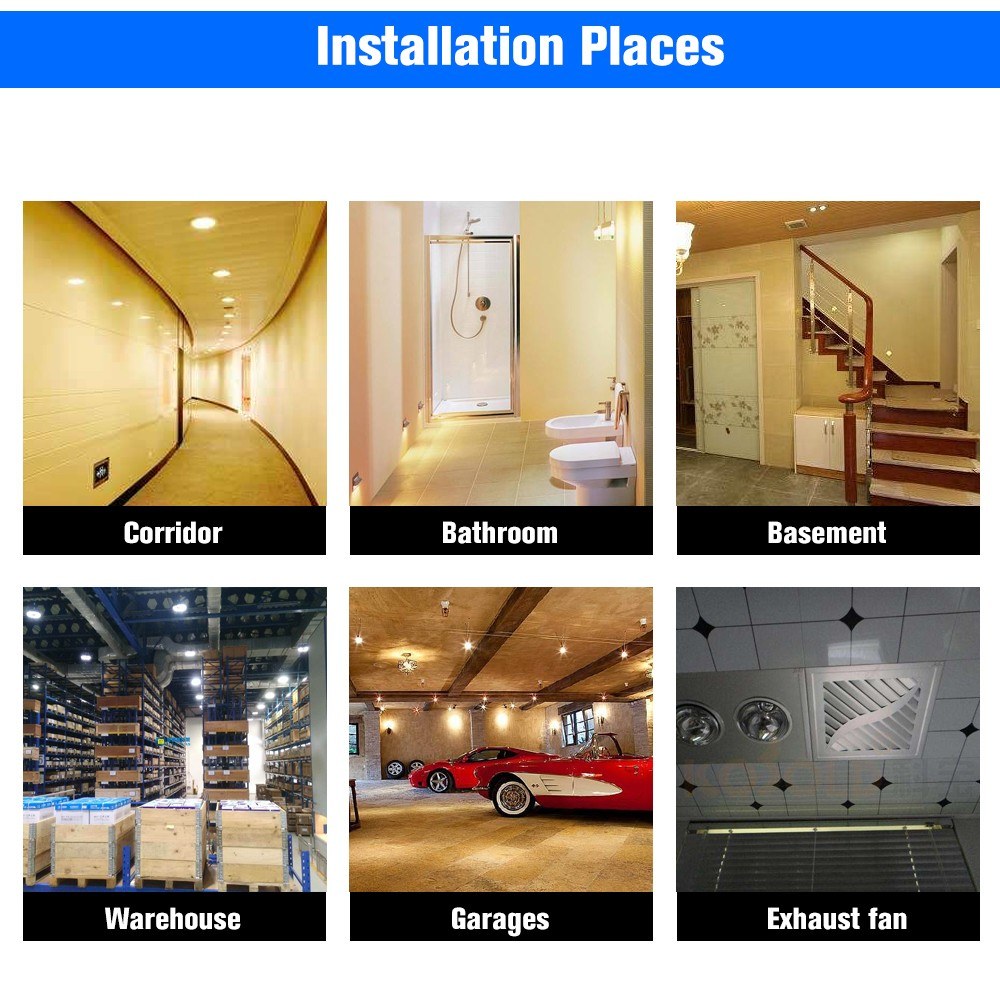

• Broad Application Range: Ideal for motion-activated lighting in various spaces such as corridors, bathrooms, basements, warehouses, and garages. It can also be used for automatic electrical controls like ventilation systems.
• Temperature Compensation: Features a built-in temperature compensation chip to minimize the effect of temperature variations on detection range.

Product Specifications

• Power Source: 110V-240V AC
• Power Frequency: 50/60Hz
• Power Consumption: 0.45W (working), 0.1W (idle)
• Maximum Load: 800W Incandescent / 300W Fluorescent
• Detection Range: 360°
• Detection Distance: Up to 6m (<24°C)
• Detection Speed: 0.6~1.5m/s

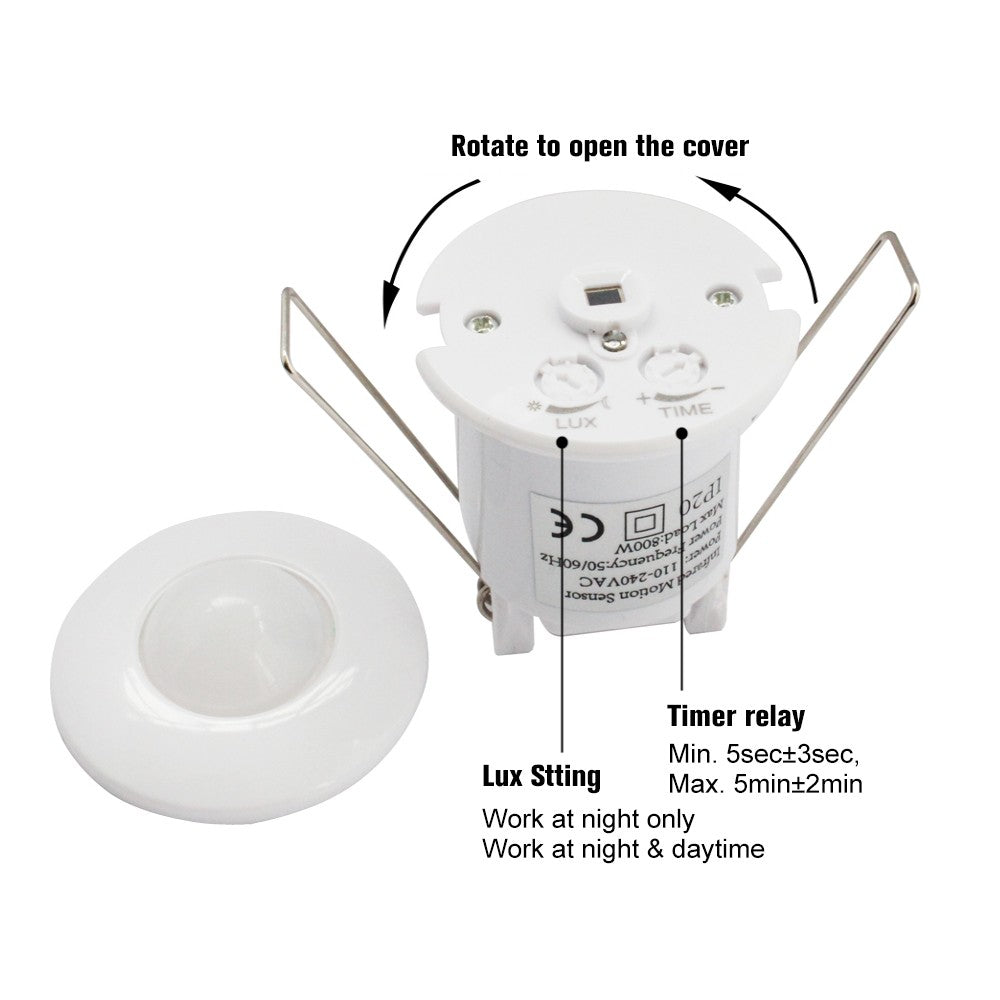

• Time Delay: Minimum 5sec±3sec, Maximum 5min±2min
• Ambient Light Sensitivity: 5-300LUX (adjustable)
• Installation Requirement: Lantern hole size 65mm
• Operating Temperature: -20~+40°C
• Operating Humidity: <93%RH

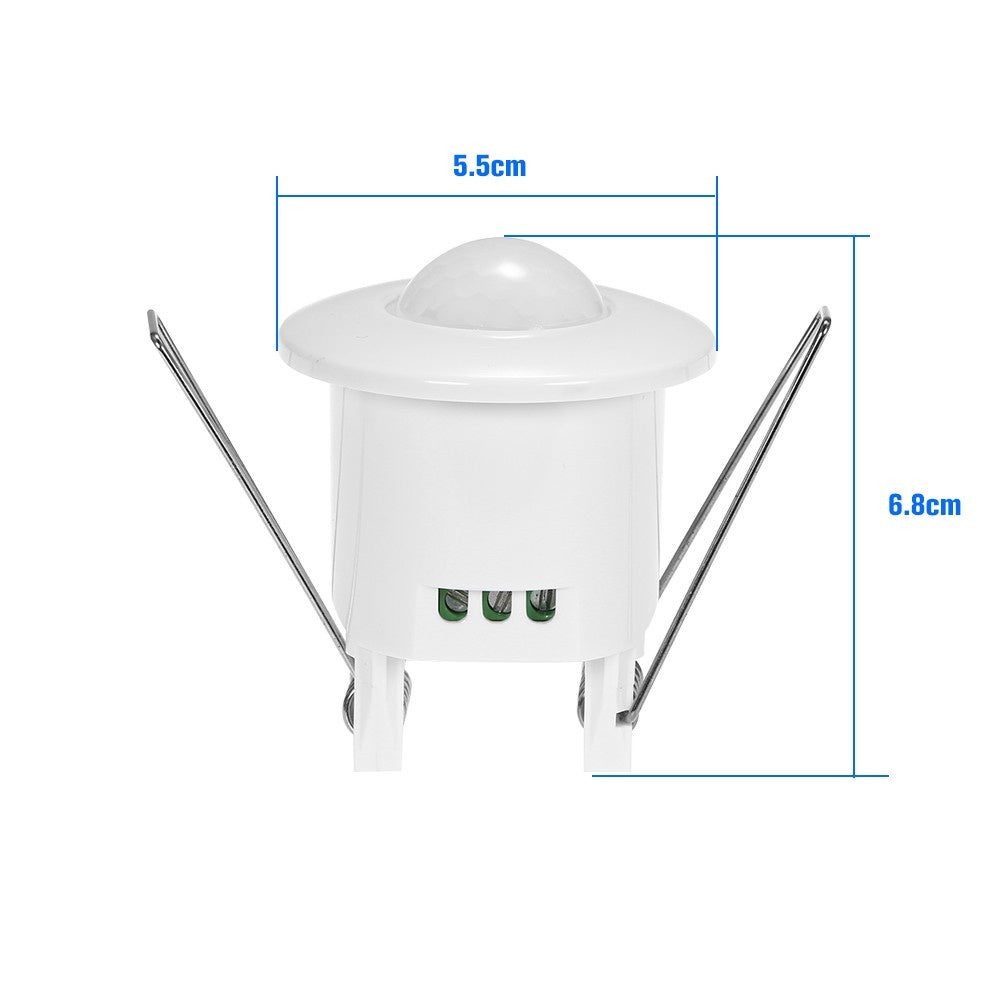

• Physical Dimensions: Approximately 5.5 x 5.5 x 6.8 cm (L x W x H)
• Weight: Approximately 51g / 1.8oz

Package Information

• Package Dimensions: Approximately 7.8 x 6.8 x 6.8 cm / 3.1 x 2.7 x 2.7 in
• Package Weight: Approximately 73g / 2.6oz

Package Includes

• 1 x PIR Ceiling Sensor Switch
• 1 x User Manual (English)
