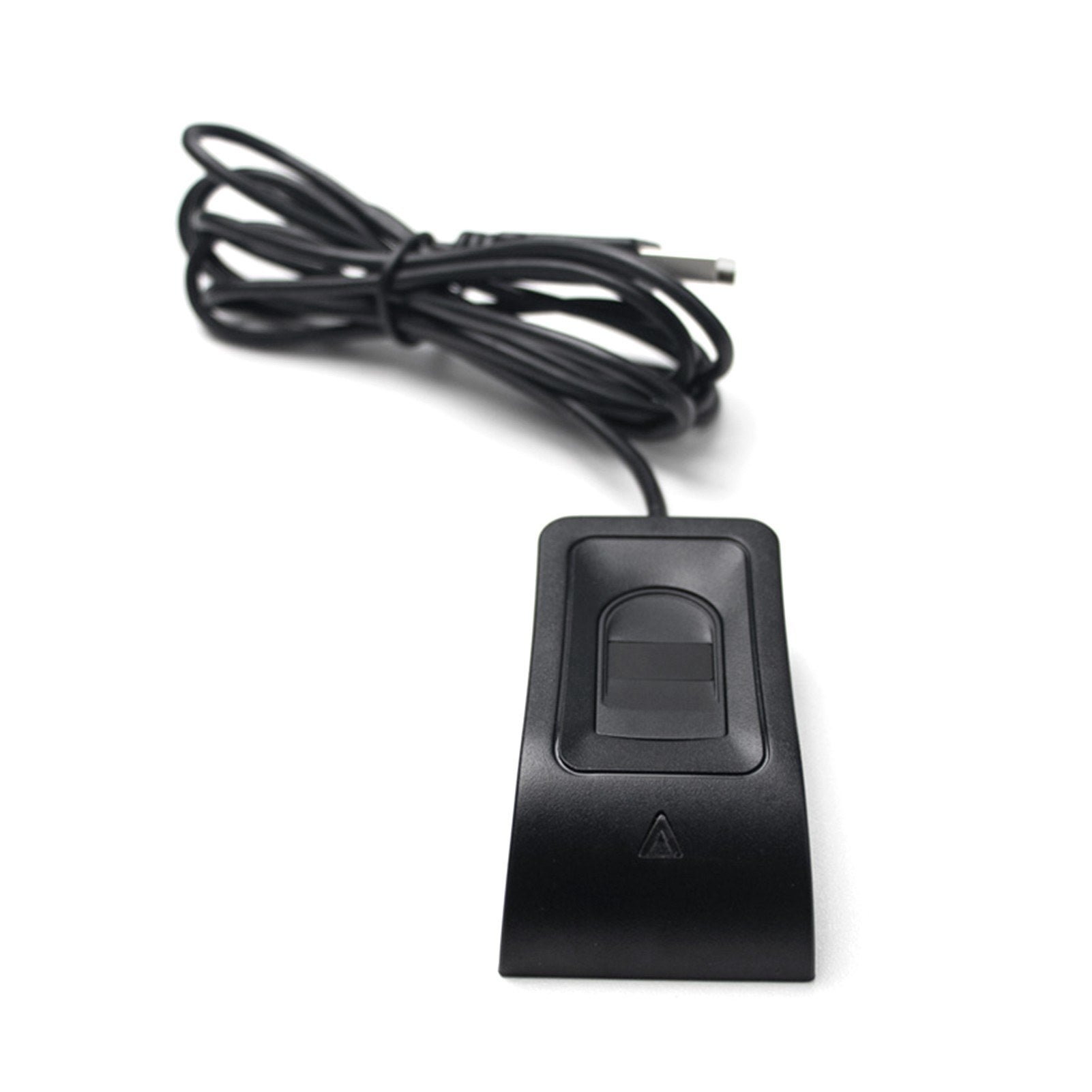

USB Fingerprint Reader WA28 - Biometric Scanner

Features

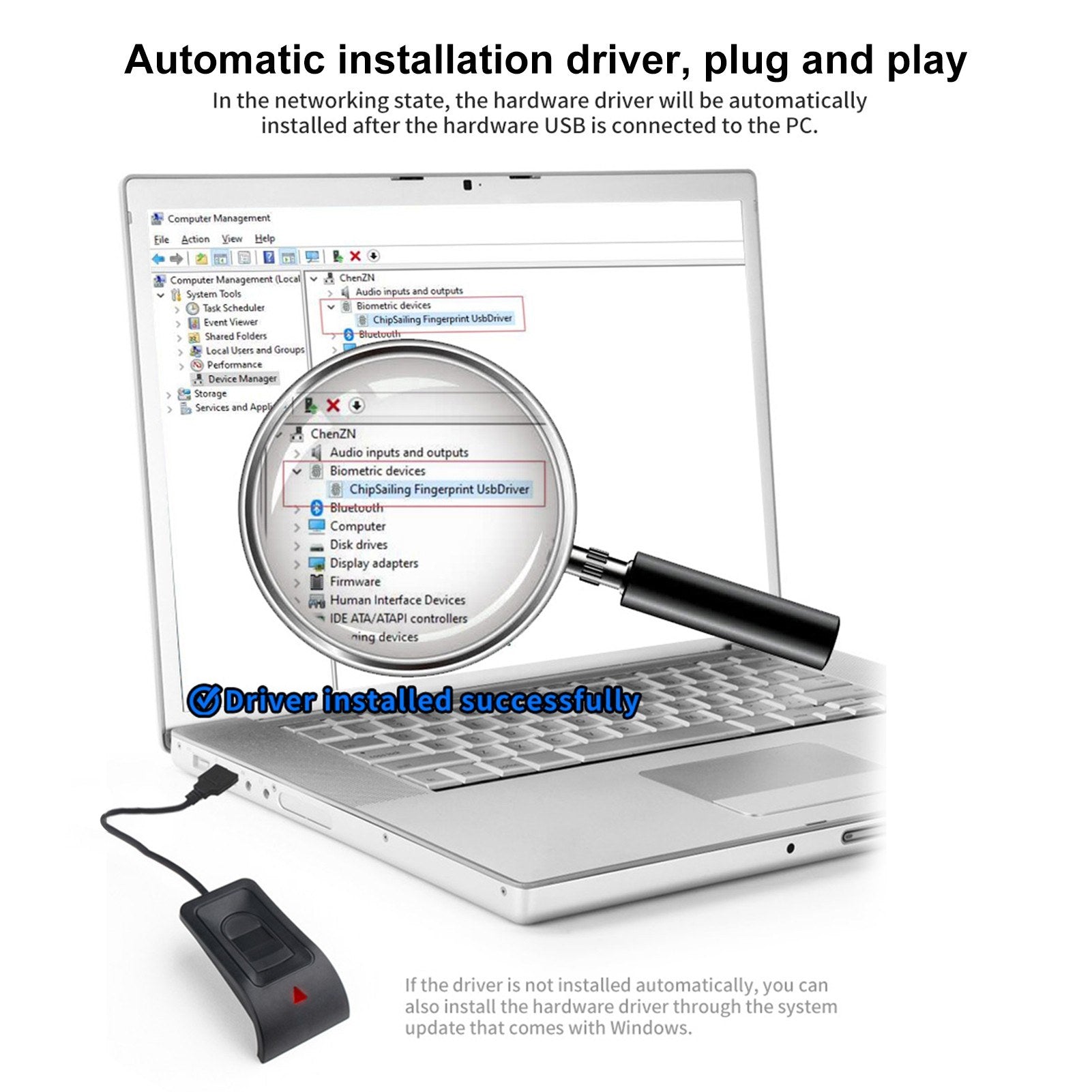

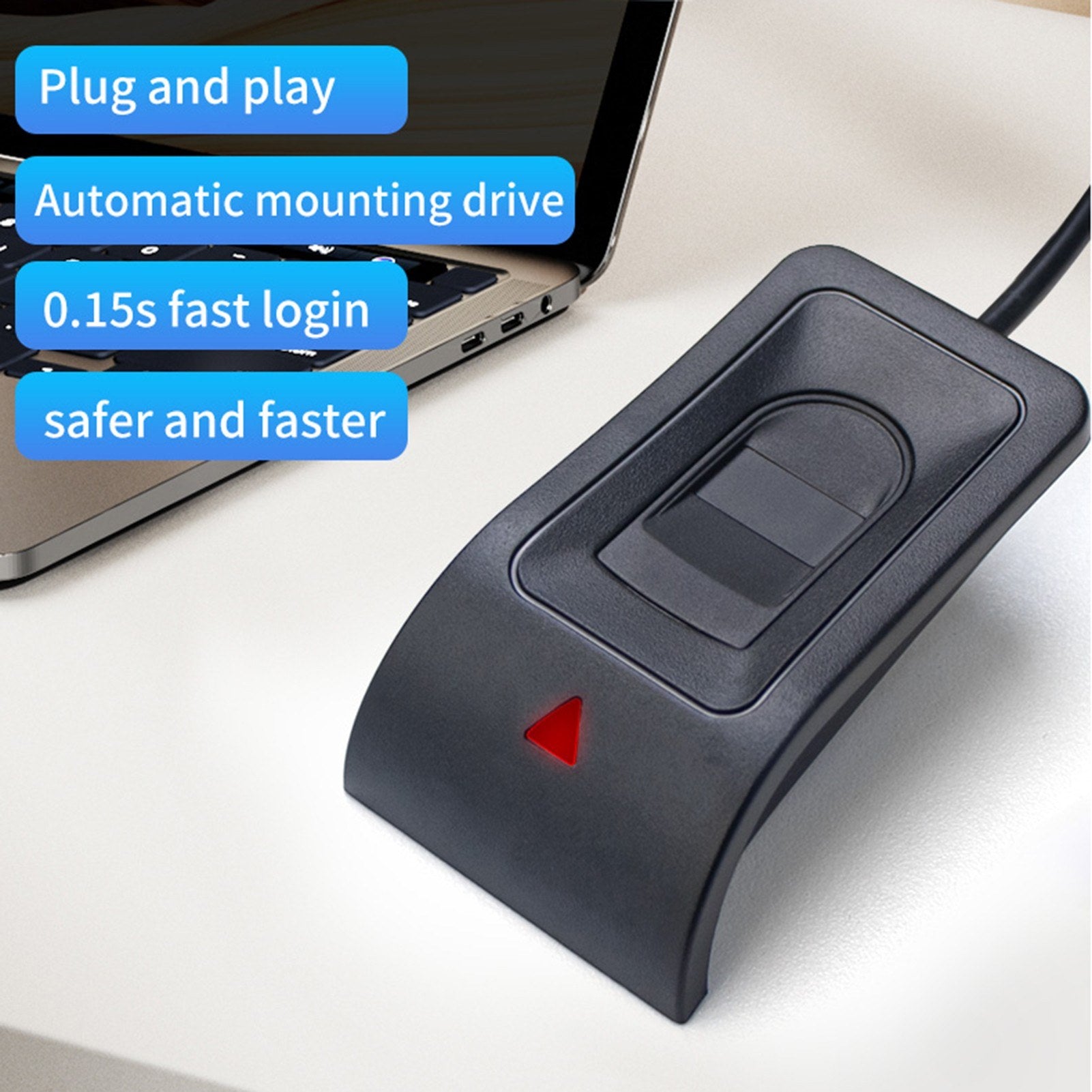

• Efficient and Convenient: Experience fast, hassle-free login with our plug-and-play USB fingerprint reader. It installs drivers automatically and logs you in within just 0.15 seconds.

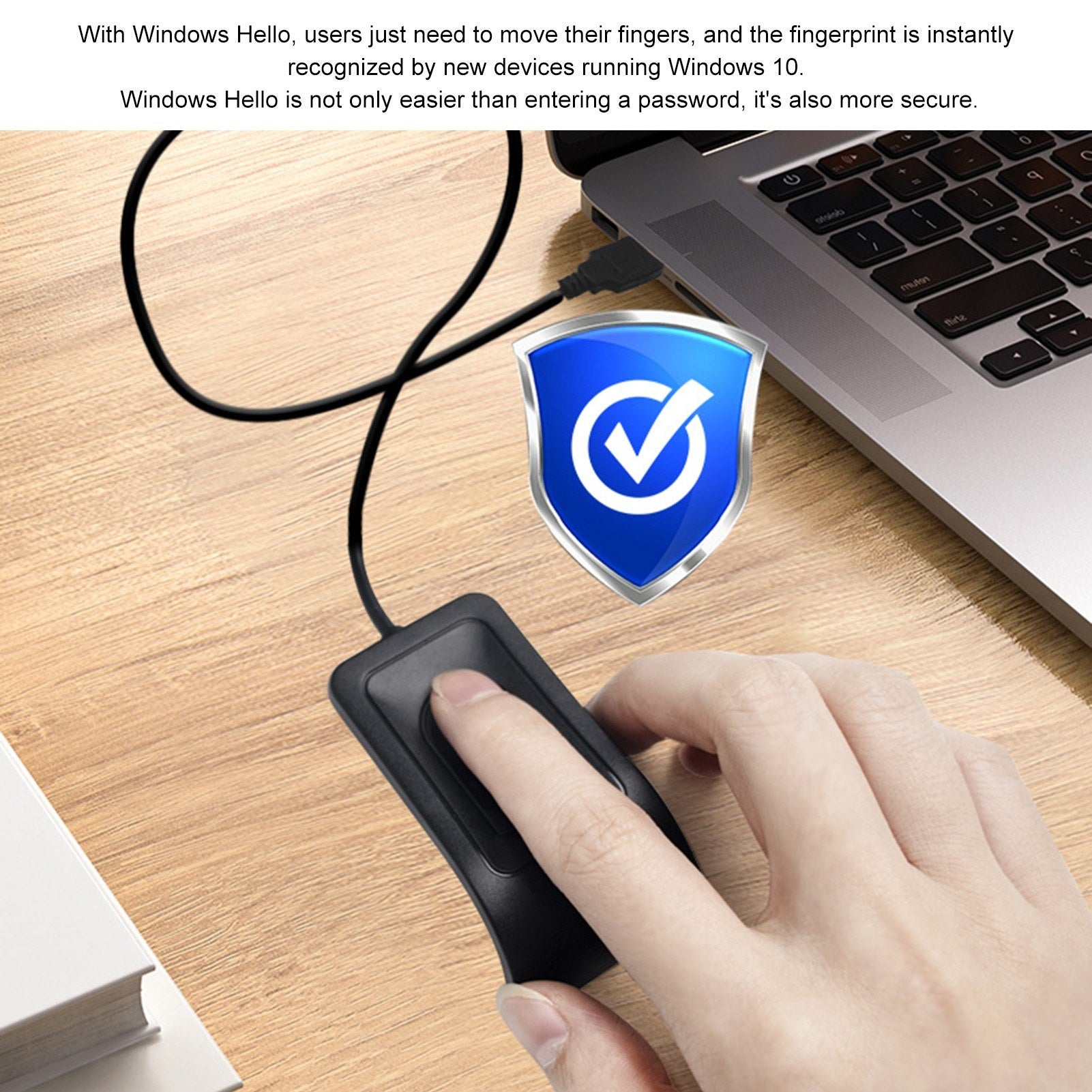

• Biometric Fingerprint: Enjoy enhanced security and speed with Windows Hello biometric fingerprint technology, which minimizes password leakage and account theft risks.
• Strong Compatibility: Designed to support both 32-bit and 64-bit genuine Windows 10 and above systems, ensuring a wide range of applications with robust compatibility.

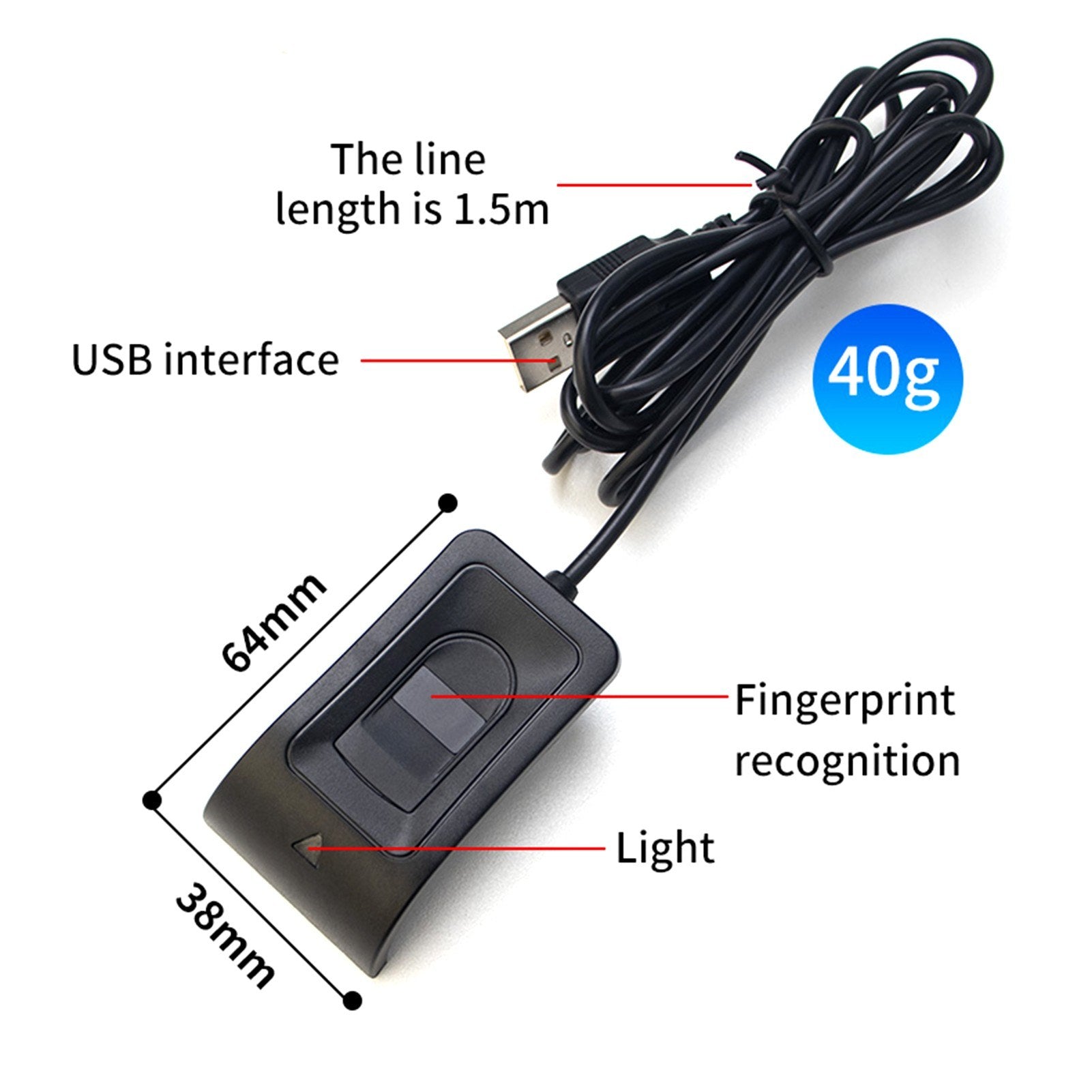

• Compact & Portable: Weighing only 40g, this small and lightweight reader is perfect for on-the-go use. Login from anywhere, anytime with ease.

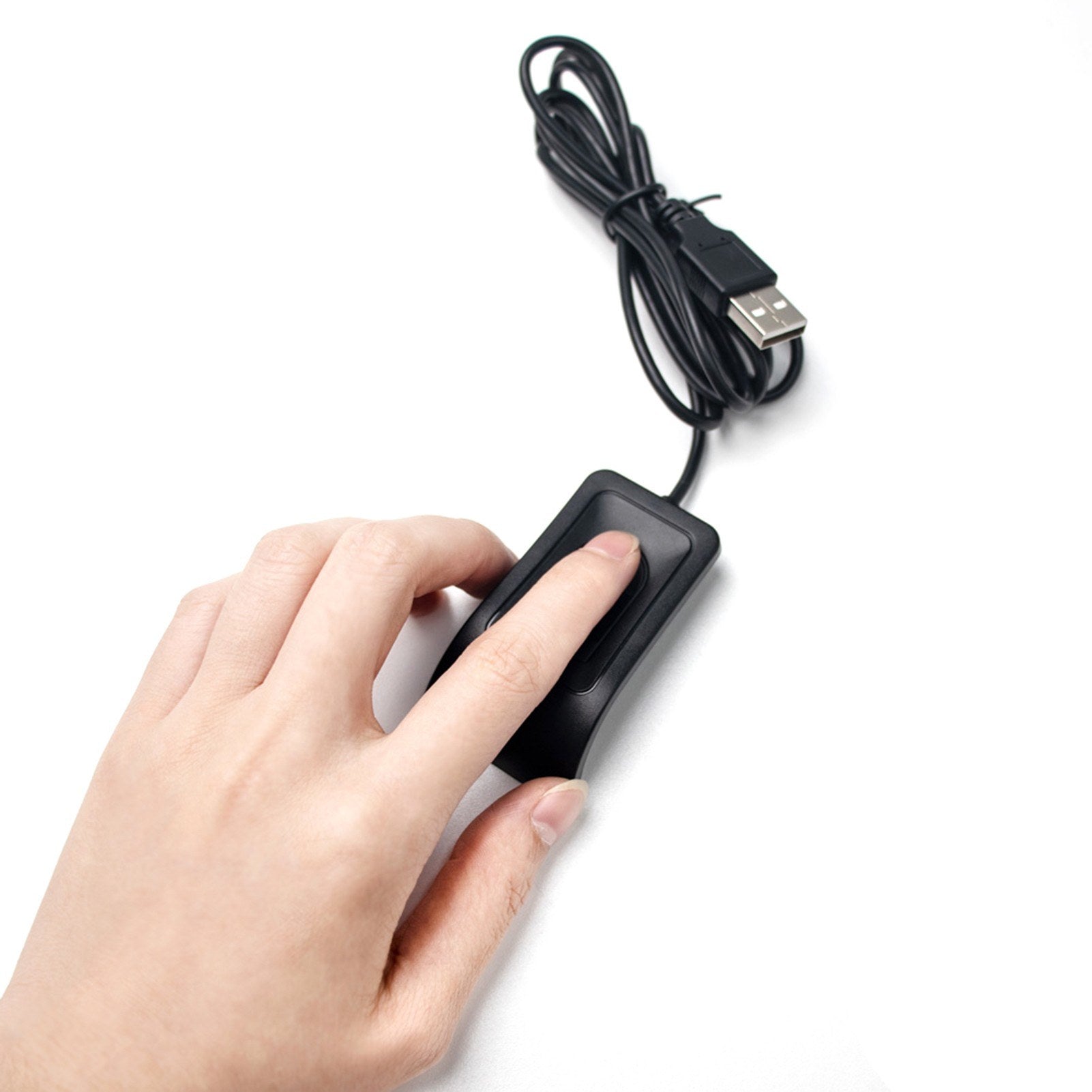

• Easy to Use: Simply press your fingerprint to log in effortlessly. Forget the hassle of remembering complex passwords and enjoy convenient access.

Specifications

• Item Name: Fingerprint Reader
• Main Material: ABS
• CPU: 144MHz main frequency, 1M Bits Flash Memory, 128KB SRAM
• Fingerprint Collector: Capacitive capture
• Fingerprint Image Size: 192 x 192 (pixels), 508 DPI
• Fingerprint Registration Capacity: Default is 1000, expandable to 5000
• False Recognition Rate (FAR): <0.001 % (Security Level is 3)
• False Rejection Rate (FRR): <0.1 % (Security Level is 3)
• Matching Method: 1:N and 1:1 comparison
• Fingerprint Template Size: 570 bytes
• Security Level Setting: Level 1 to Level 5, factory setting: Level 3
• Processing Speed: Feature extraction time <0.45 seconds
• 1:N Matching Time: <1.5 sec for 3000 full registrations
• Communication Interface: UART, 3.3V-TTL level or USB communication
• Serial Communication Parameters: No parity, 1 stop bit, No flow control, Baud rate of 9600-115200bps (factory setting: 115200bps)
• Working Voltage: DC3.3V±10%
• Operating Current: Less than 30mA, peak <80mA
• Sleeping Current: Less than 10uA
• Operating Environment: -10°C to 60°C
• Color: Black
• Weight: Approximately 40g

Package Information

• Package Size: 12 x 10 x 5 cm
• Package Weight: 50g

Package List

• 1 x Fingerprint Reader
