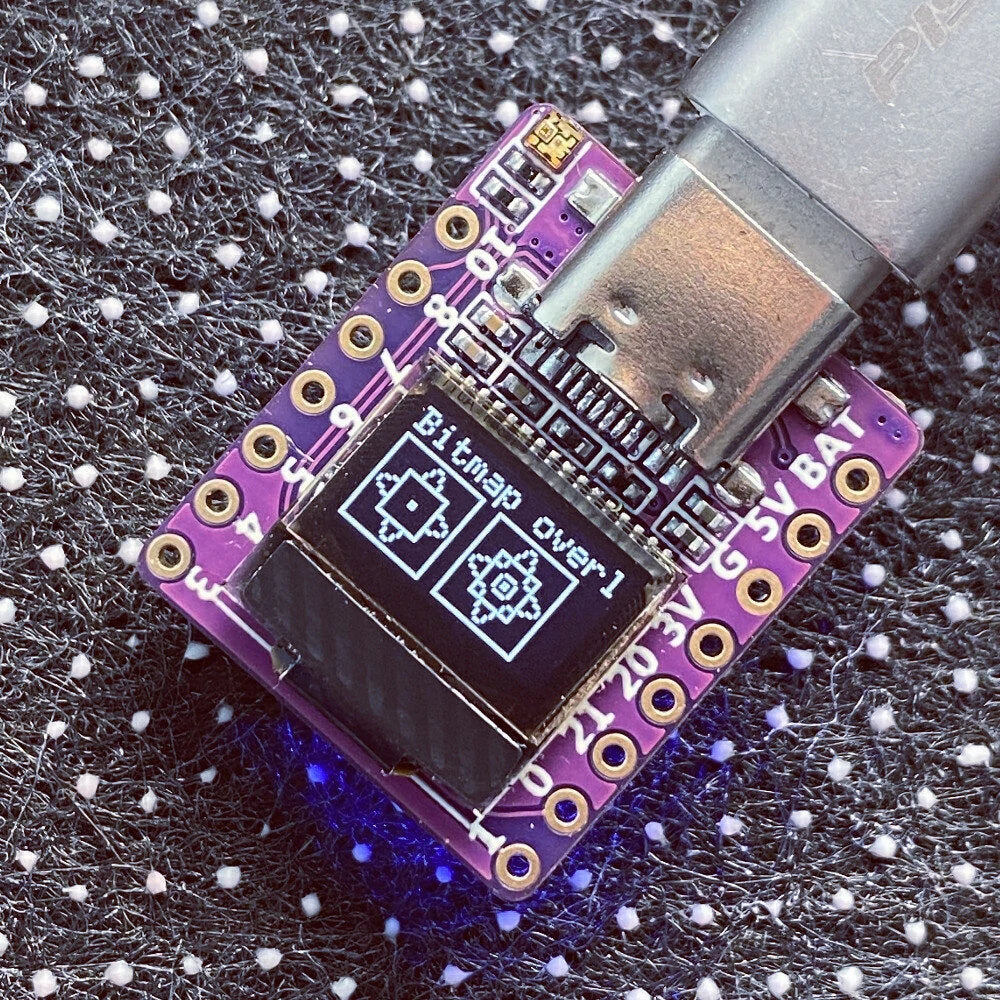

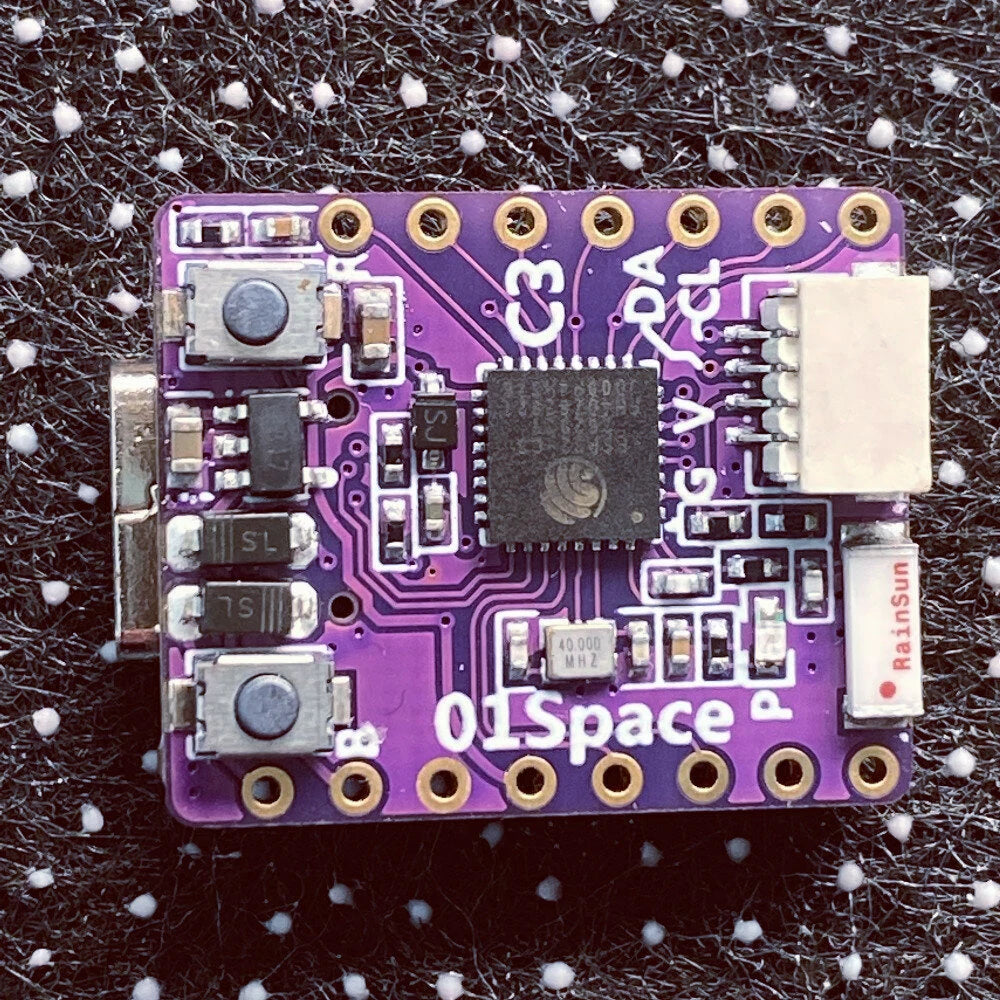

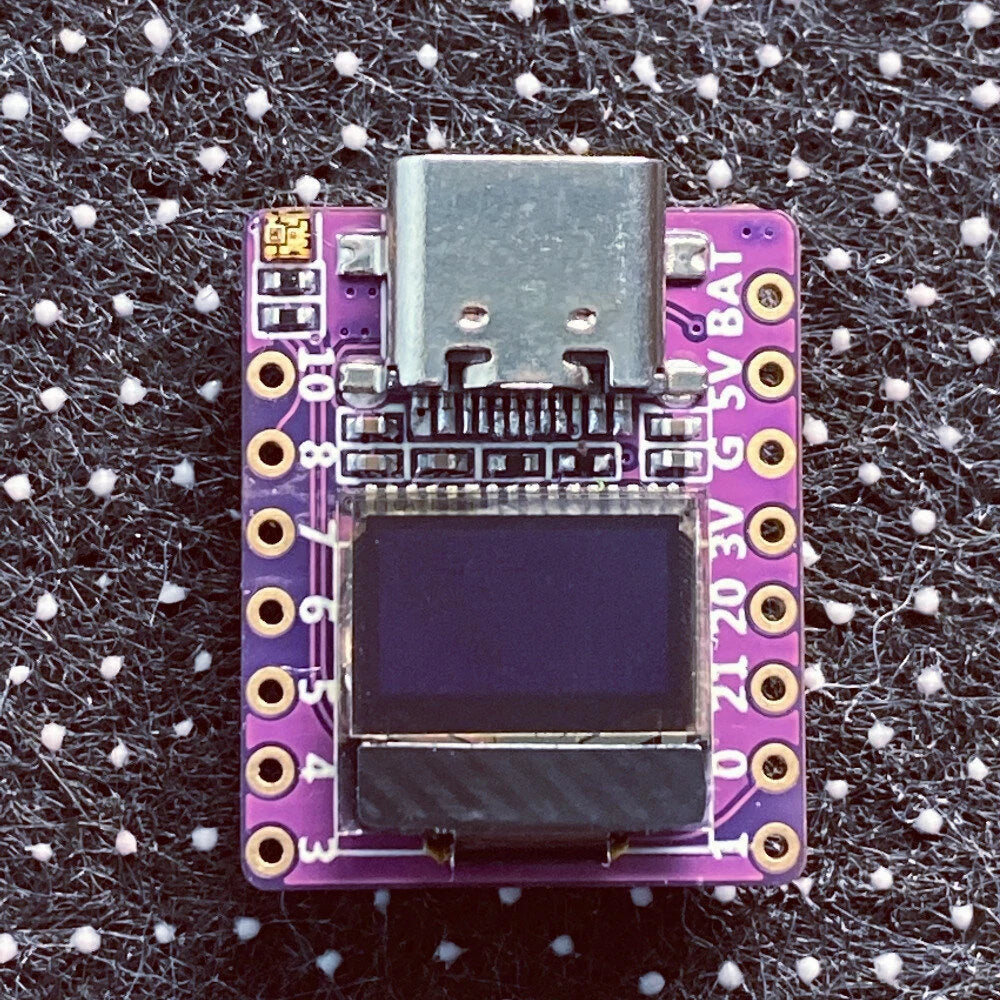

ESP32-C3 RISC-V Dev Board with 0.42” LCD, WiFi & Bluetooth - Arduino & MicroPython Compatible

Product Description

The ESP32-C3 is a cost-effective microcontroller from Espressif, equipped with 2.4 GHz Wi-Fi and Bluetooth® Low Energy (Bluetooth 5 LE) support. Built on a RISC-V core, it's tailored for straightforward projects, serving as a more affordable successor to the ESP8266 rather than the more complex ESP32-Sx or ESP32 classic chips.

Despite the minimal pin count, this microcontroller integrates a comprehensive range of peripherals, including:

• UART, I2C, I2S, and remote control peripheral
• LED PWM controller and general DMA controller
• TWAI controller, USB Serial/JTAG controller
• Temperature sensor and ADC
• SPI, Dual SPI, and Quad SPI interfaces

Note: It does not include a DAC or native capacitive touch functionality. While it features a built-in USB-to-Serial conversion, it lacks native USB support, meaning it can't be used as a keyboard or disk drive.

With advanced power and RF performance, the ESP32-C3 is ideal for a range of applications, including IoT, wearable electronics, and smart home devices.

Key Features

• ESP32-C3FH4 with WiFi & Bluetooth LE, RISC-V Single-Core CPU
• Standard Type-C USB connection
• 4MB Flash Memory
• 11x Input/Output Pins
• 1x 1.0-4P Connector (GND, 3V3, SDA(GPIO5), SCL(GPIO6))
• 1x RGB (GPIO2)
• 1x LED (3.3V Power Supply)
• 1x Reset Button (CHIP_EN for restarting or entering ROM bootloader)
• 1x Boot Button (GPIO9 for entering ROM bootloader or user input)
• Compatible with MicroPython, Arduino, and ESP-IDF
• 3.3V Regulator with 500mA peak output
• Built-in Ceramic Antenna

Size & Weight

• Size: 23.5 x 18 mm
• Weight: 2.6g

Documentation

For more information, visit the documentation site.

Package Includes

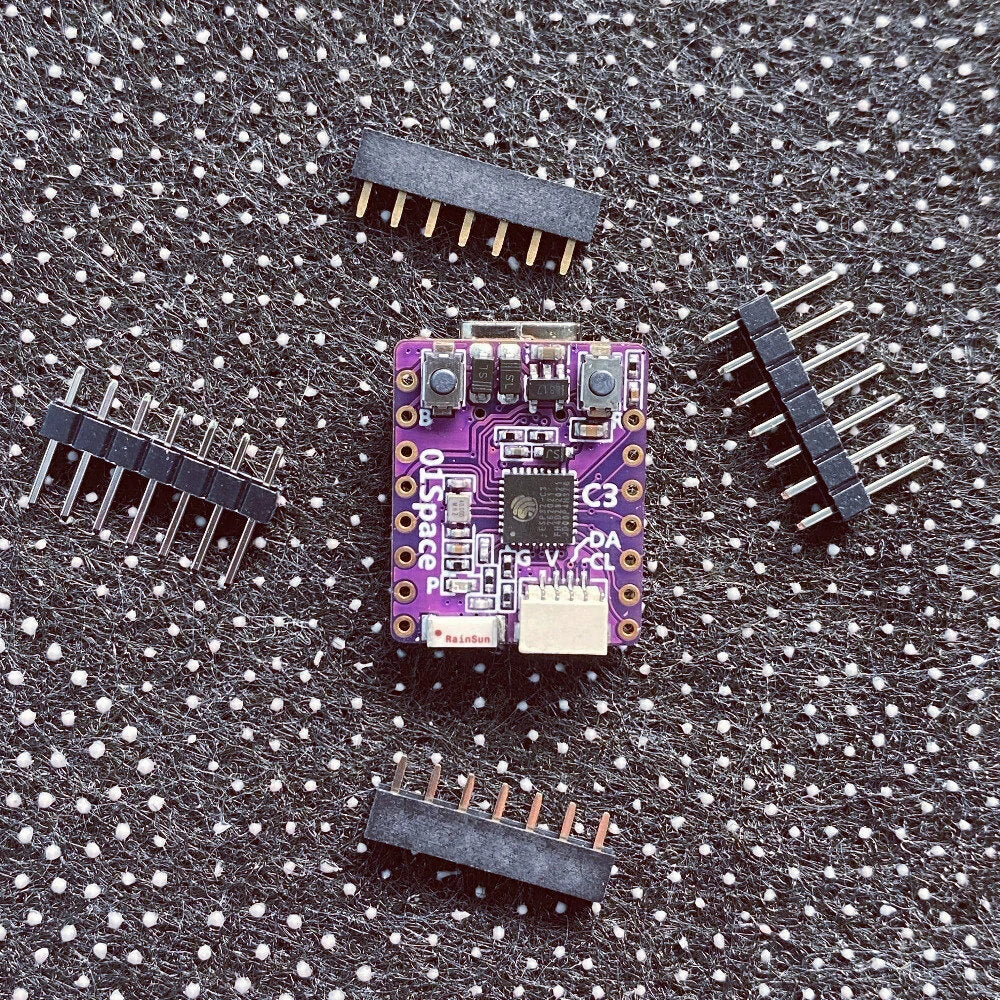

• 1 x Display
