TOOLTOP ET693C Thermal Imaging Camera – 256×192 IR Sensor + 1080P Visible, 512×384 Super IR Enhancement, for Automotive & Electrical Diagnostics

Product Overview

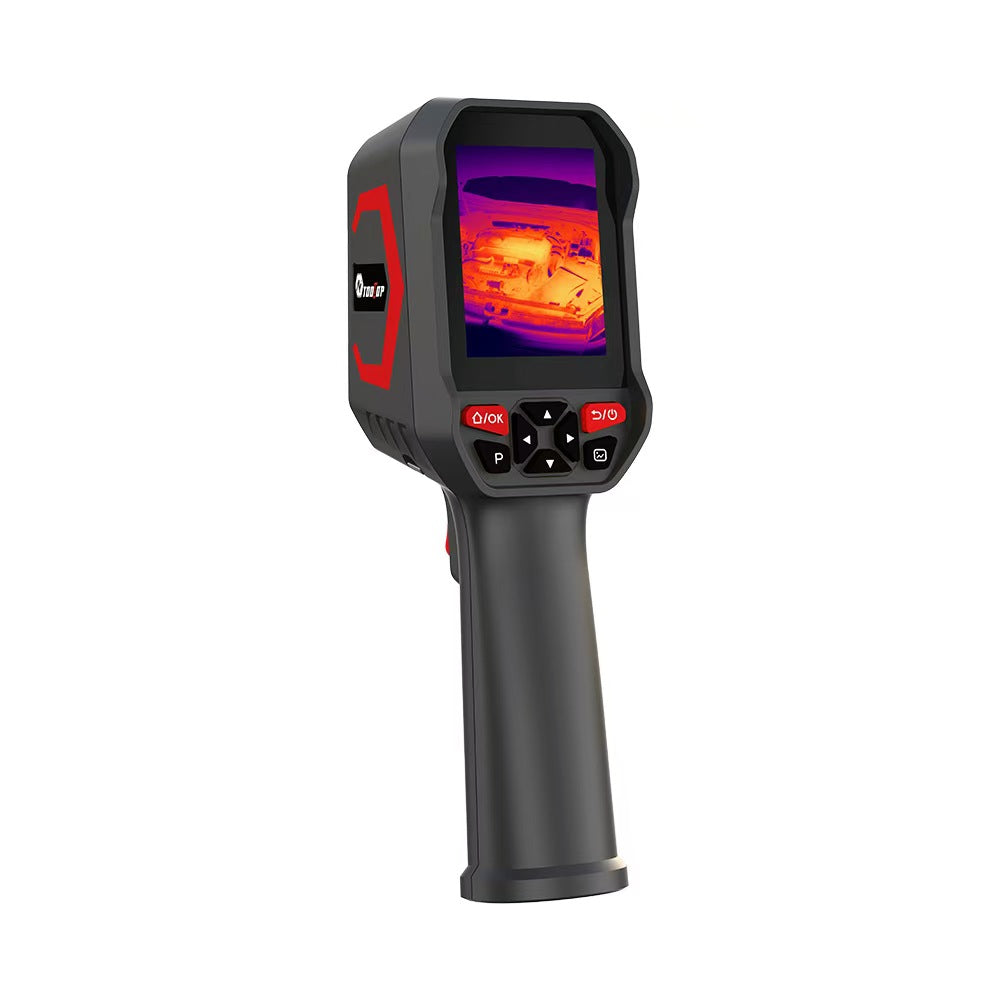

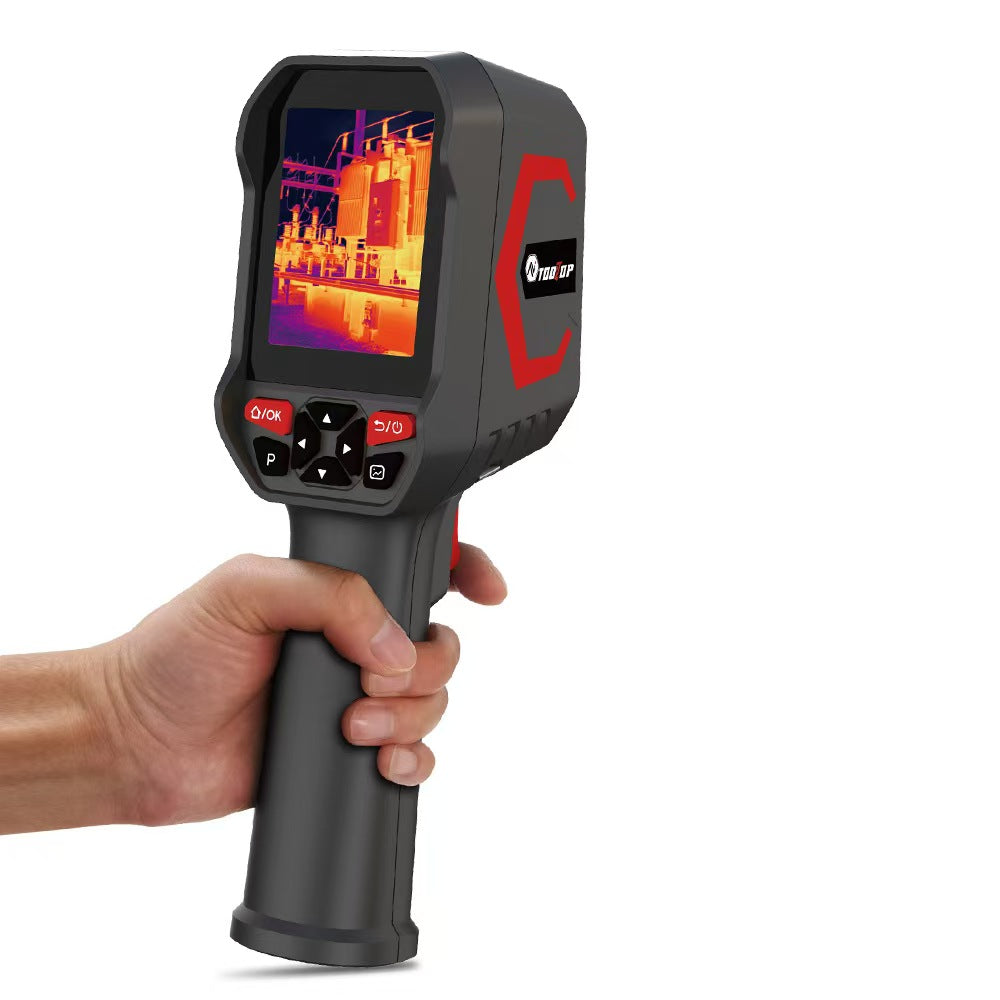

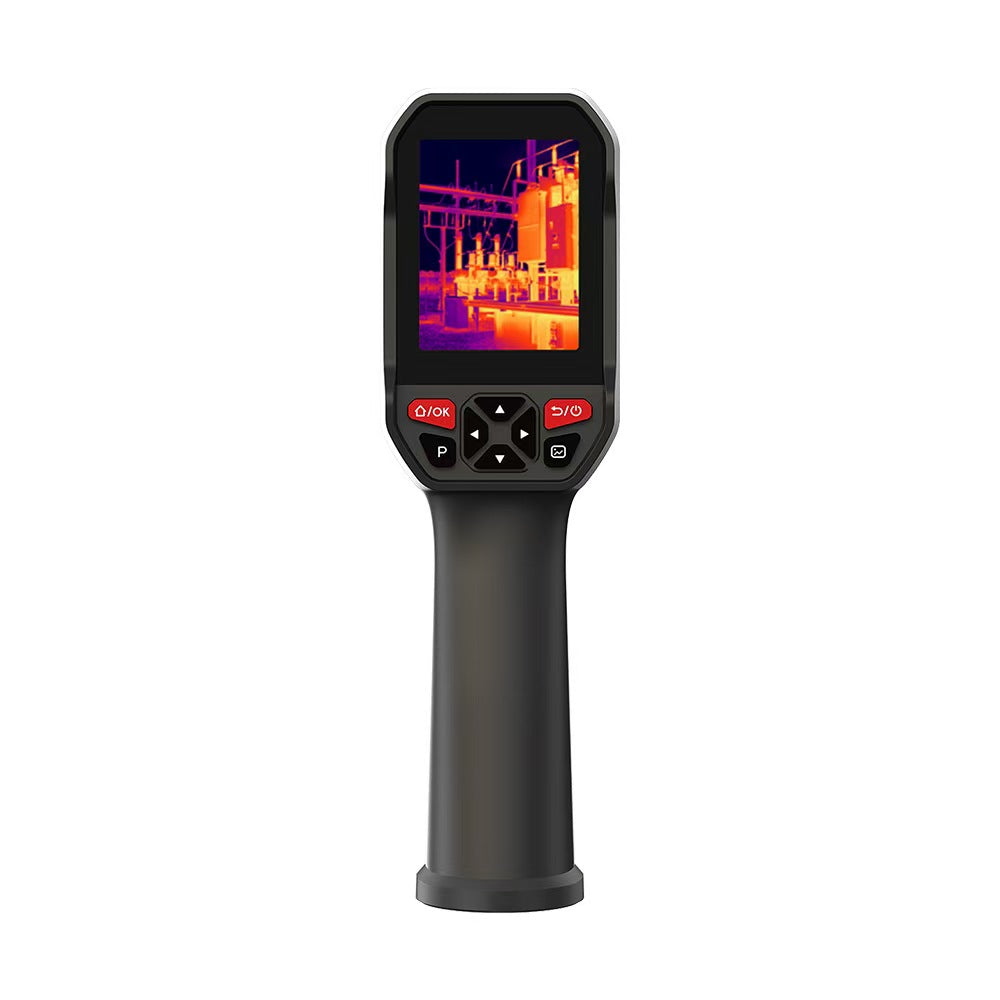

The TOOLTOP ET693C Infrared Thermal Imaging Camera is a powerful 2-in-1 device that combines a 256×192 thermal sensor with a 1080P visible light camera. Designed for professional applications in automotive, electrical, and industrial diagnostics, it provides high-precision temperature measurement and real-time imaging analysis. The enhanced Super IR technology boosts resolution to 512×384 for sharper image details.

Key Features

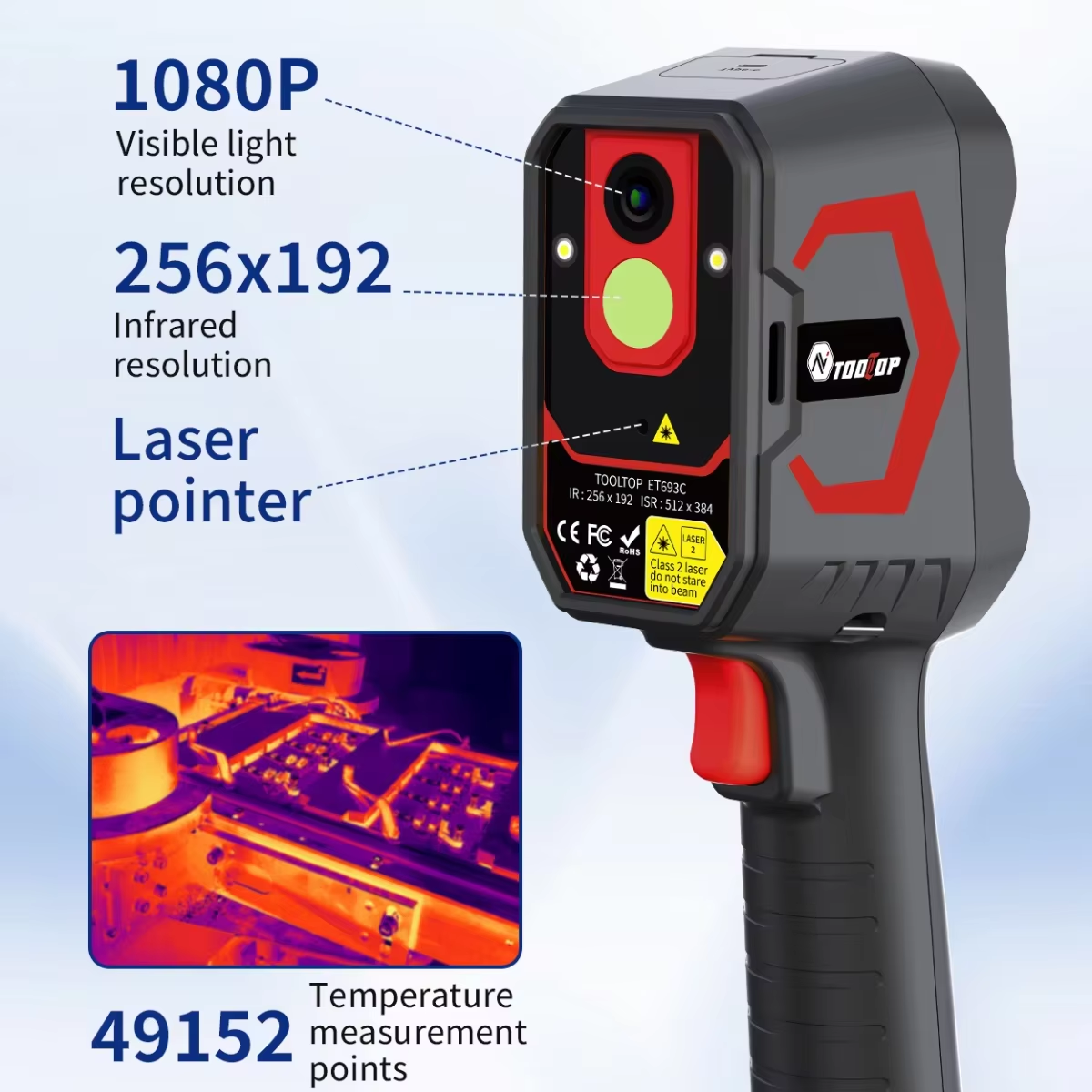

• Dual Camera System: 256×192 infrared thermal camera + 1080P visible light camera.

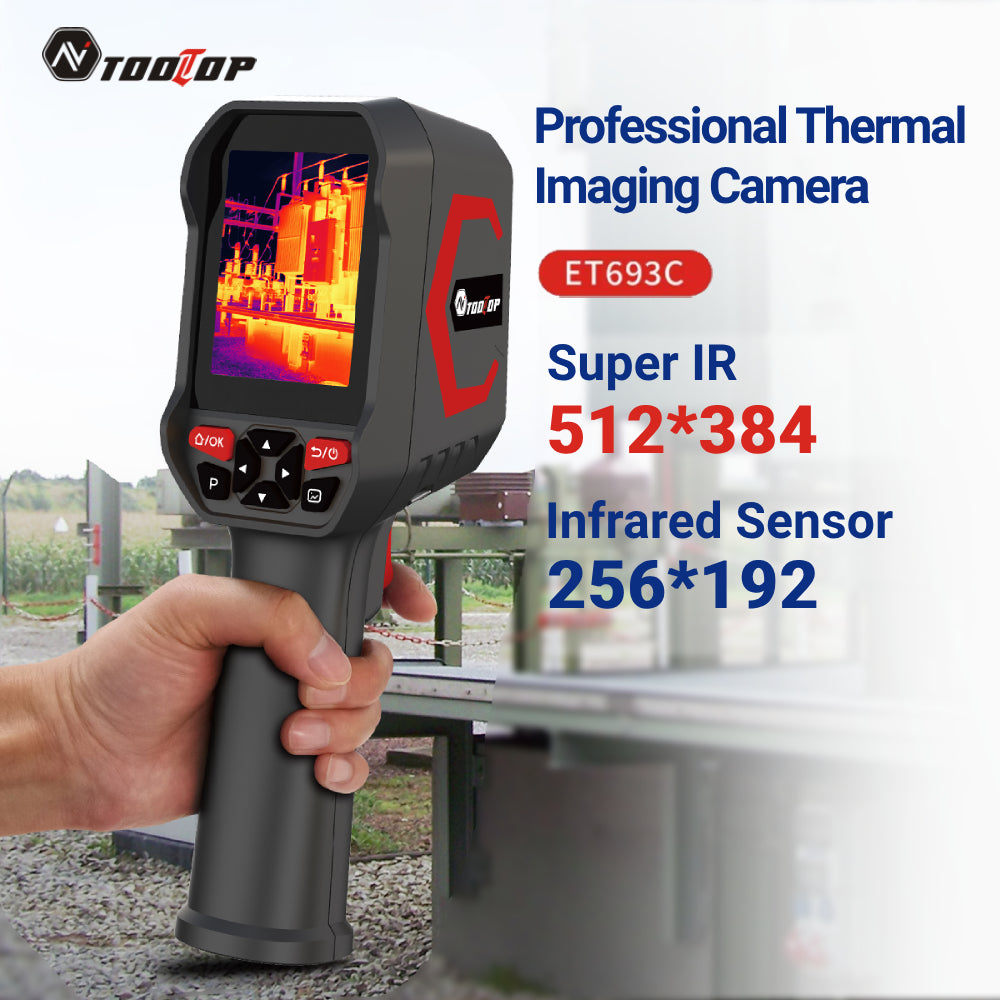

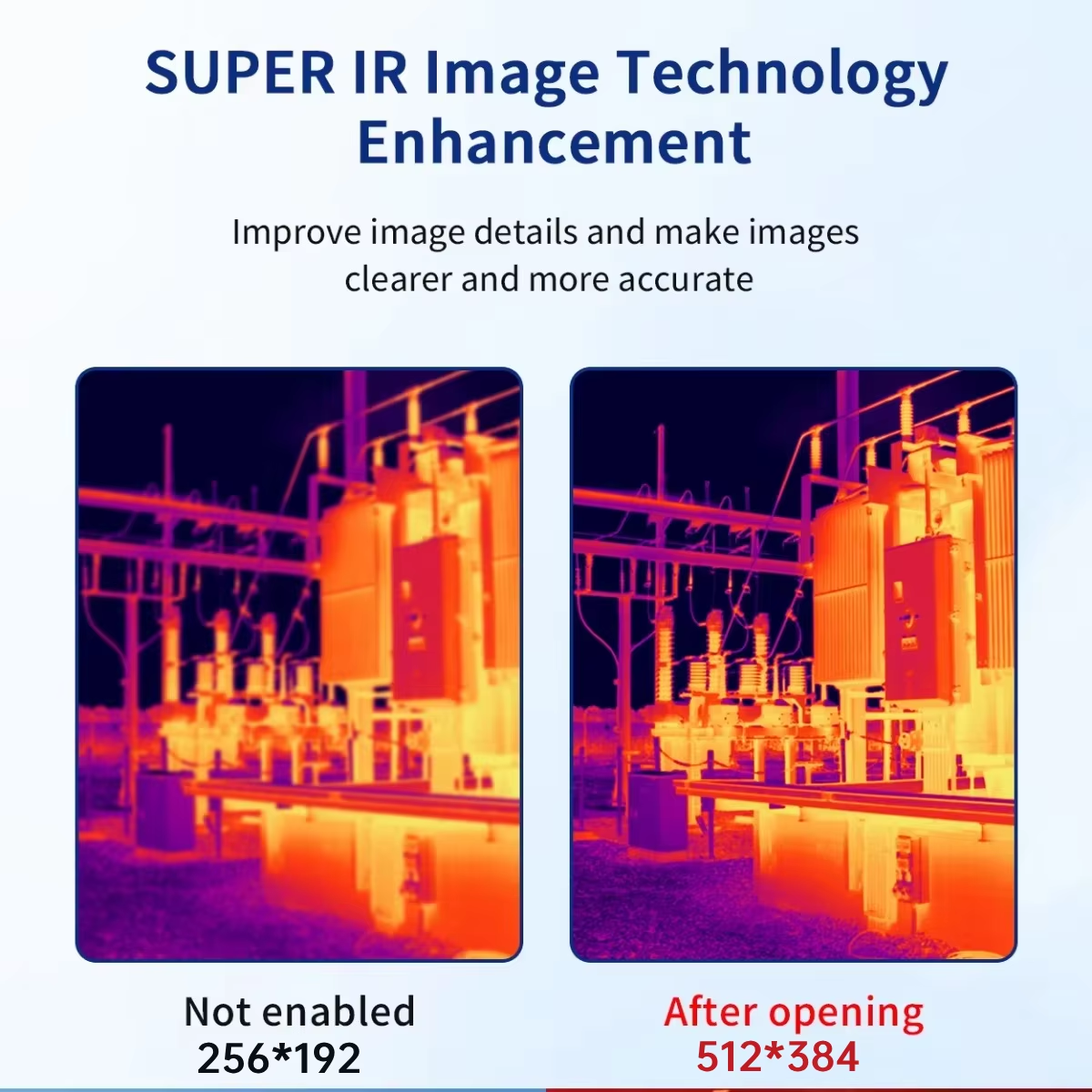

• Super IR Enhancement: Improves detail and clarity with 512×384 resolution output.
• Real-Time PC Software: Supports image transmission, data storage, and analysis.

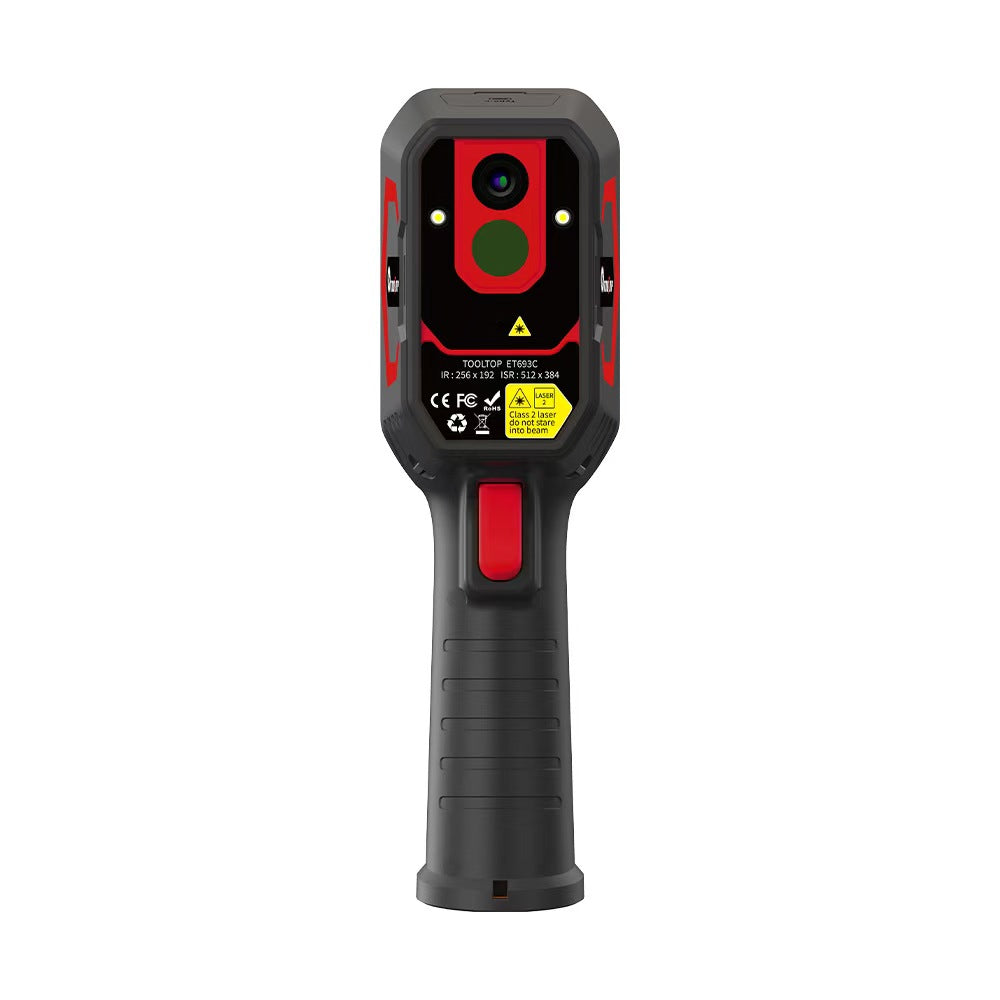

• Laser Pointer Function: Quickly locate and identify detection targets.

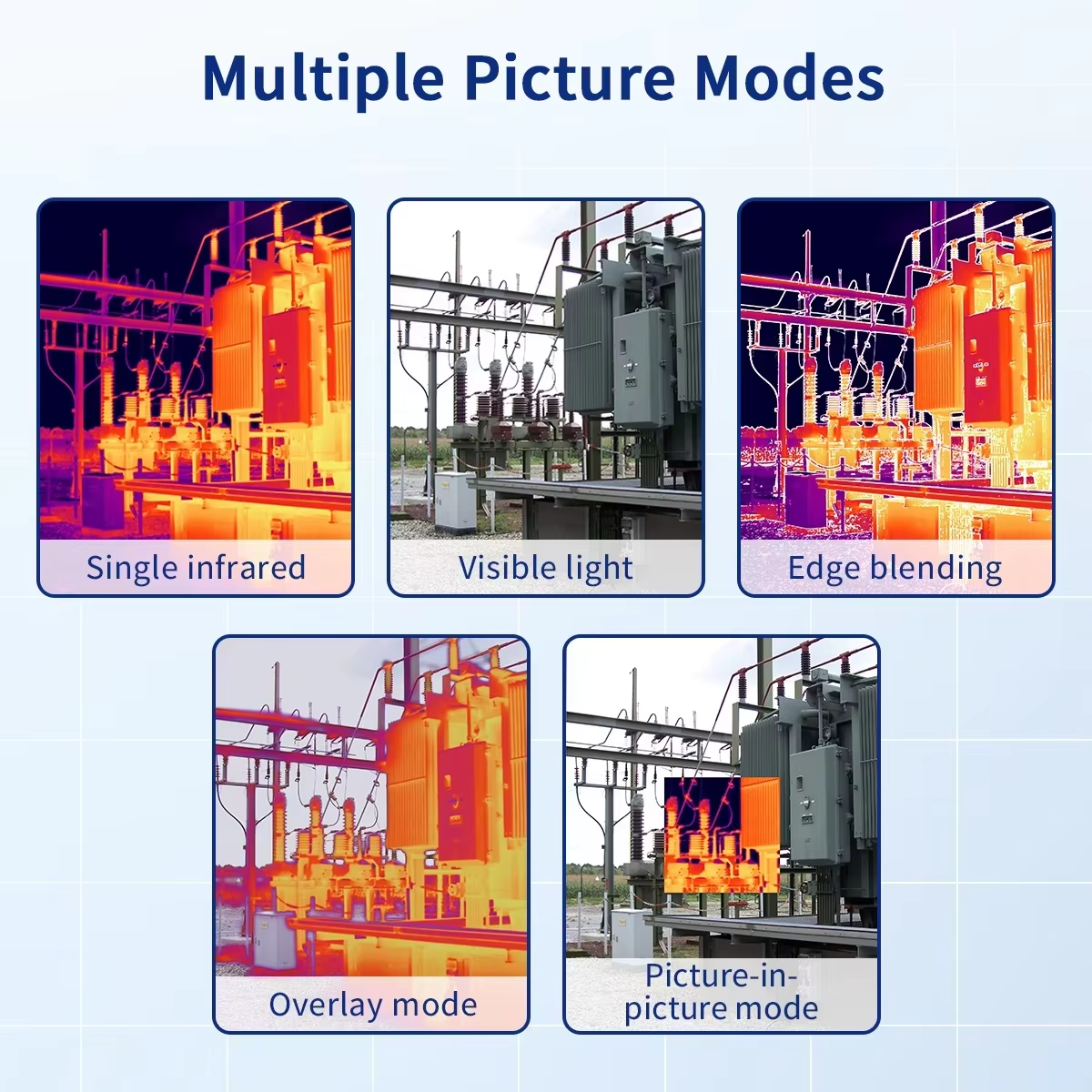

• Multiple Imaging Modes: Single IR, single visible, fusion, picture-in-picture, and outline overlay.
• 9 Color Palettes: Includes Iron, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Lava, Arctic, and Coldest.
• Built-in Battery & Storage: 2600mAh rechargeable battery and 8GB memory (20,000+ images).
• Multi-Language Display: Supports 11 languages including English, French, Spanish, and Chinese.

Technical Specifications

• Model: ET693C
• Infrared Sensor Resolution: 256×192
• Super IR Resolution: 512×384
• Visible Light Resolution: 1080P
• Display: 2.8-inch screen
• Working Band: 8–14μm
• Pixel Size: 12μm
• Frame Rate: 25Hz
• NETD: 50mK @ 25℃
• Field of View (IR): 42°×56°
• Field of View (Visible): 55°×83°
• Lens: 3.2mm F1.1
• Temperature Range: -20℃ ~ 550℃
• Accuracy: ±2℃ or ±2% of reading (whichever is greater)
• Fusion Working Distance: 1m–5m
• Fusion Adjustment: 0–100%
• Temperature Compensation: Supported (within 5m)
• Interface: USB Type-C
• Battery: 2600mAh lithium, ~4 hours working time
• Storage: 8GB built-in (usable 6.19GB)
• Image Format: JPG
• Video Format: MP4
• Operating Temperature: -10℃ ~ +60℃
• Storage Temperature: -40℃ ~ +85℃

Package Includes

• 1 × TOOLTOP ET693C Thermal Camera
• 1 × Type-C Data Cable
• 1 × English User Manual
• 1 × Lanyard
• 1 × Packing Box

Note

The recommended distance for optimal visible light fusion effect is 1m–5m. Using it too close may exceed the offset adjustment range. During operation, the device performs automatic thermal calibration every 10 seconds, causing a brief 1–2 second pause — this is a normal behavior ensuring accurate temperature readings.
