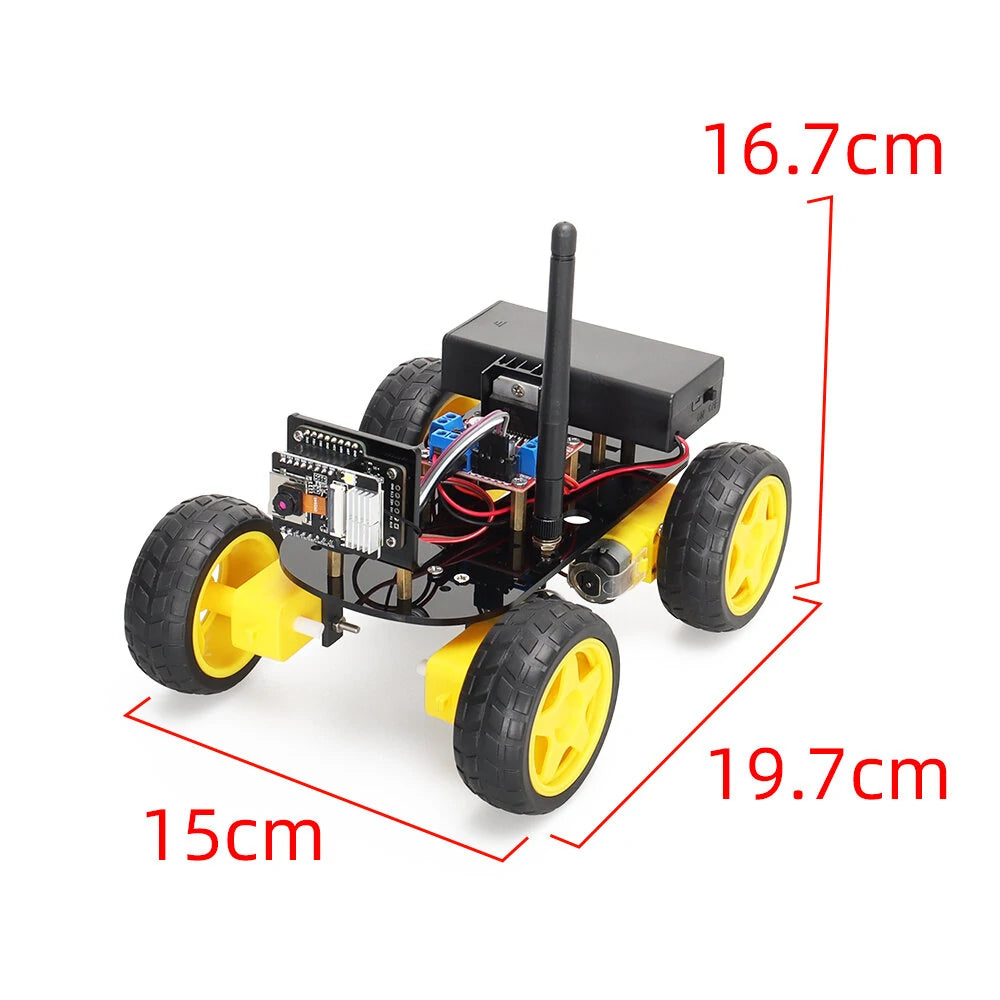

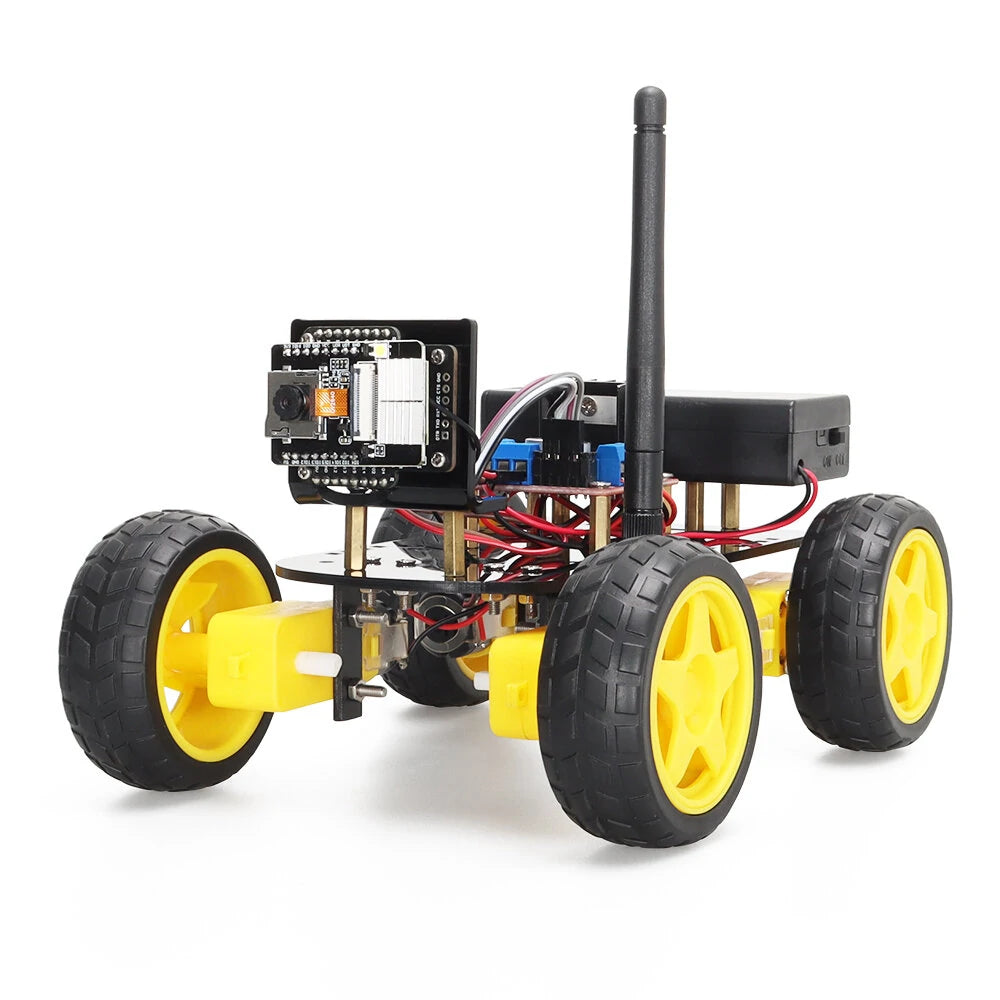

Robot Starter Kit for Arduino Programming: ESP32 Camera & Code Learning - Basic Version
Robot Starter Kit for Arduino Programming: ESP32 Camera & Code Learning - Basic Version
Regular price
$36.99 USD
Regular price
$0.00 USD
Sale price
$36.99 USD
Shipping calculated at checkout.
Estimated Delivery: -
Quantity
Couldn't load pickup availability
Guaranteed secure & safe checkout.
NOTE: These robots do not include batteries. The required battery type is 18650 3.7V (sold separately). There are no capacity limits. For downloading instructions, if you cannot locate the link provided, please contact us for assistance.
Introduction
Imagine having a robot with a camera that you can control via the internet. This opens up numerous possibilities! For example, you can send the robot to the kitchen to check if the kettle was left on the stove. The ESP32-CAM makes this easy.
The ESP32-CAM is a compact camera development board featuring an ESP32-S chip, OV2640 camera, microSD card slot, and various GPIOs for connecting peripherals. The OV2640 is a 1/4-inch CMOS UXGA (1632x1232) image sensor that combines the functionality of a UXGA camera and image processor within a small size and low operating voltage.
Updated Features
- Product now includes assembly instructions and a tool screwdriver for easier setup.
- Enhanced stability with the original external antenna version of the main control board, adding better WiFi signal reception and transmission.
Features
- Multi-functionality: Mecanum wheel multi-directional movement, three-way tracking, ultrasonic obstacle avoidance, camera image transmission, and WiFi control functions.
- Moderate assembly difficulty: No soldering required. The terminal connection port is user-friendly, complemented by a detailed assembly manual.
- High strength: Made with a solid material bracket, reinforced bottom plate, and high-quality Mecanum wheels.
- High extension potential: Rich interfaces allow for the expansion with other sensors and modules.
- Introduction to programming: Programming in C language.
- Novel function: Utilize the ESP32-CAM for diverse WiFi-controlled functionality.
Specifications
| Communication Method | WiFi |
| Camera Equipped | Yes |
| State of Assembly | Unassembled Kit |
| Bundle | Full Version Robot Kit |
| Model Number | ZYC0024 Smart Robot Car Kit |
| Compatibility | All Compatible |
| Certification | NONE |
| Working Voltage | 5V |
| Input Voltage | 7-12V |
| Maximum Output Current | 2A |
| Maximum Power Consumption | 25W (T=75℃) |
| Motor Speed | 5V 200rpm/min |
| Ultrasonic Detection Distance | 2cm-400cm |
| Bluetooth Remote Control Distance | 10~50 meters |
| Servo Motor Angle Range | 0~180° |
