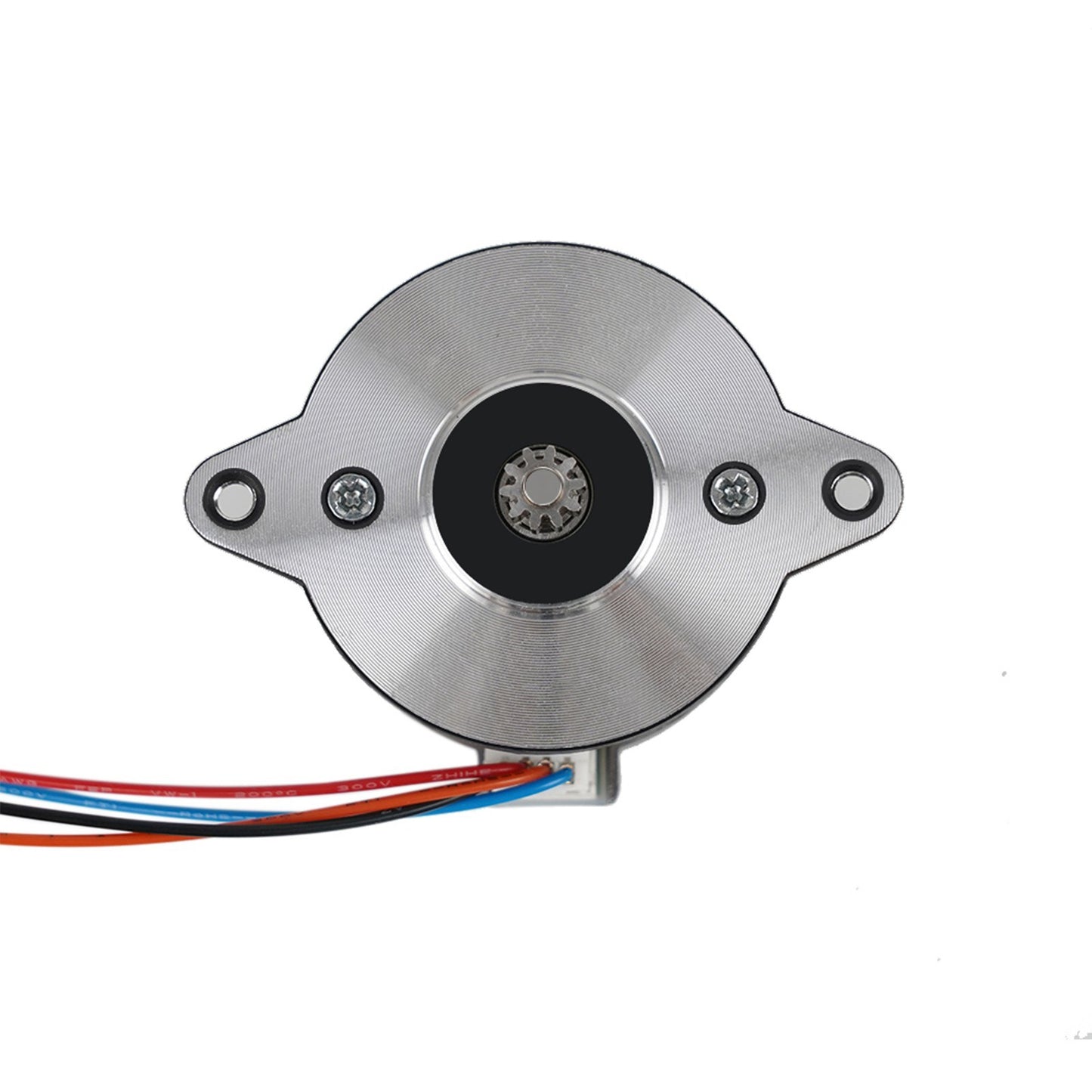

TWO TREES Orbiter Extruder Motor 36sth20-1004AHG 1.8° 30mm Stepper with 100cm Cable for Reprap, Ender 3/3 Pro/V2/5, CR-10, Voron 2.4, Sherba Mini, Orbite V1.5 3D Printers

Product Features

• Compatible with multiple 3D printer models including Reprap, Ender 3/3 Pro/3 V2, Ender 5, CR-10, and Voro 2.4.
• Essential spare motor for Sherba Mini Extruder or Orbite Extruder V1.5.
• Constructed from high-quality stainless steel, ensuring durability and lightweight design.
• Motor holding torque of up to 100mN.m, featuring a low-loss stator for proficient thermal control.
• Compatible with both 12V and 24V power supplies.
• If you encounter any issues, please contact our store. We are honored to assist you.

Specifications

• Phase Number: 2
• Step Angle: 1.8°± 5%
• Rated Voltage: DC 2.1V / Phase
• Rated Current: DC 1.0A / Phase
• Phase Resistance: 2.1x(1±10%)Ω
• Phase Inductance: 1.6x(1±20%) mH
• Holding Torque: 100mN-m MIN
• Detent Torque: 5 mN-m REF.
• Rotate Direction: ACBDA CW
• Insulation Resistance: 100Mohm (DC500V)
• HI-POT: AC600V/1mA/1S
• Insulation Class: Class H 180℃
• Rotor Inertia: 16 g.cm² REF
• Weight: 85 g REF
• Package Size: 10.5x6.5x4.5cm / 4.1x2.5x1.7in
• Package Weight: 110g / 3.9oz

Packing List

• 1 x Motor with Cable
