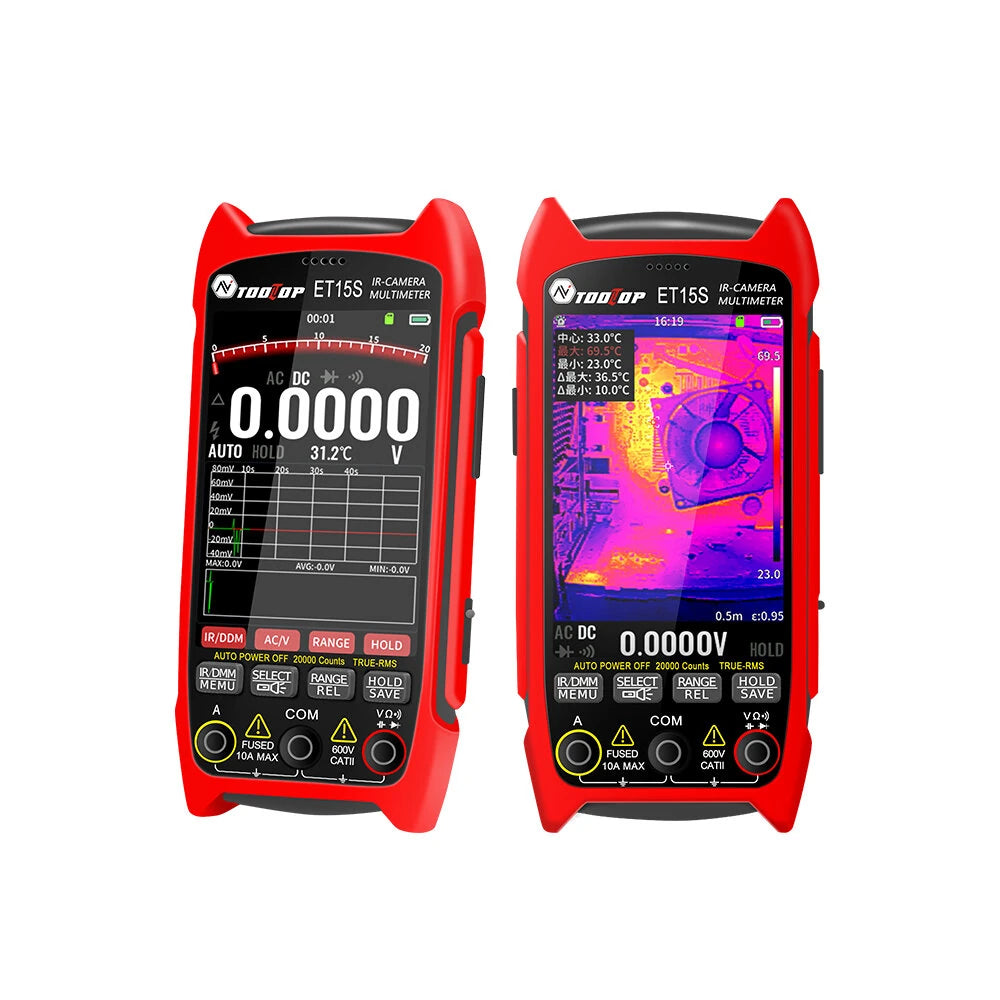

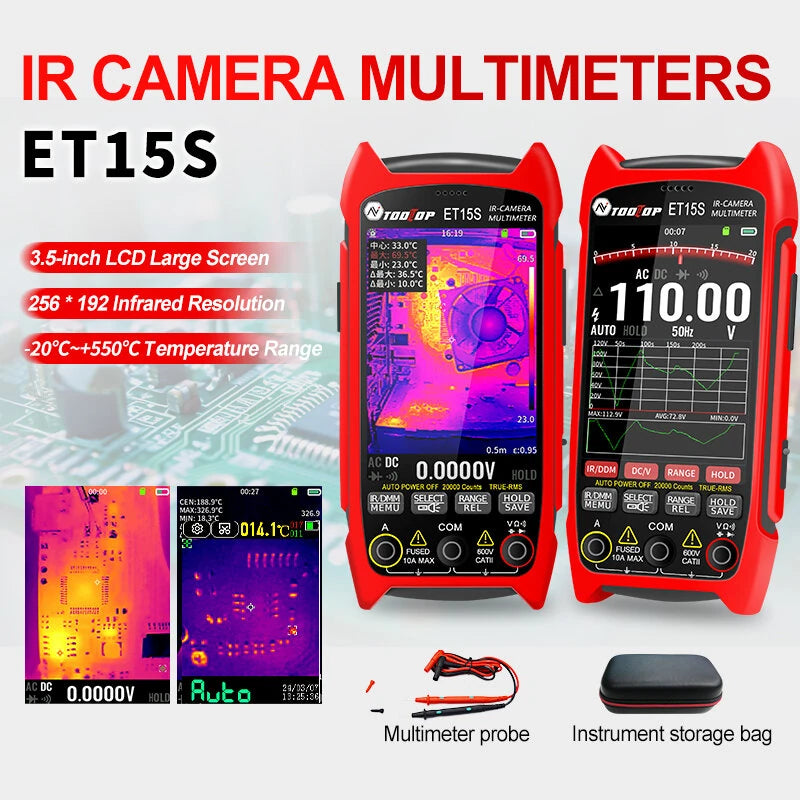

AV TOOLTOP ET15S PRO Thermal Imaging Camera 256x192 | 550°C Range | 25Hz | 15 Color Modes | 20000 Count Multimeter | Macro Lens

Product Specifications

Model Options: ET15S / ET15S PRO

• Thermal Imaging Pixel: 256 x 192
• Measurement Temperature Range: -20°C to 550°C
• Image Capture Frequency: 25Hz
• Display Image Resolution: 427 x 320
• Color Board: 15 types
• DC Highest Input Voltage: 1000V
• AC Highest Input Voltage: 750V
• Maximum Current Measurement: 10A
• Resistance Highest Measurement Resistance: 99.99MΩ
• Capacitance Highest Measurement Capacity: 199.99mF
• Duty Cycle Measurement Range: 0.1% to 99.9%
• Diode Measurement Range: 0V to 3V
• On-Off Detection Maximum Resistance: 199.99Ω
• Display Number: 19999 words updated about 3 times per second
• NCV/LIN: Yes
• Measuring Temperature: Built-in temperature, External thermocouple

Features

• High-Resolution Thermal Imaging: Offers 256x192 pixels for detailed and accurate thermal images, ensuring precise analysis.
• Wide Temperature Measurement Range: Capable of measuring temperatures from -20°C to 550°C, catering to various applications.
• Enhanced Display: Equipped with a 427x320 resolution display, providing clear and sharp visual output for better readability.
• Comprehensive Measurement Capabilities: Supports DC voltage up to 1000V, AC voltage up to 750V, current up to 10A, and resistance up to 99.99MΩ.

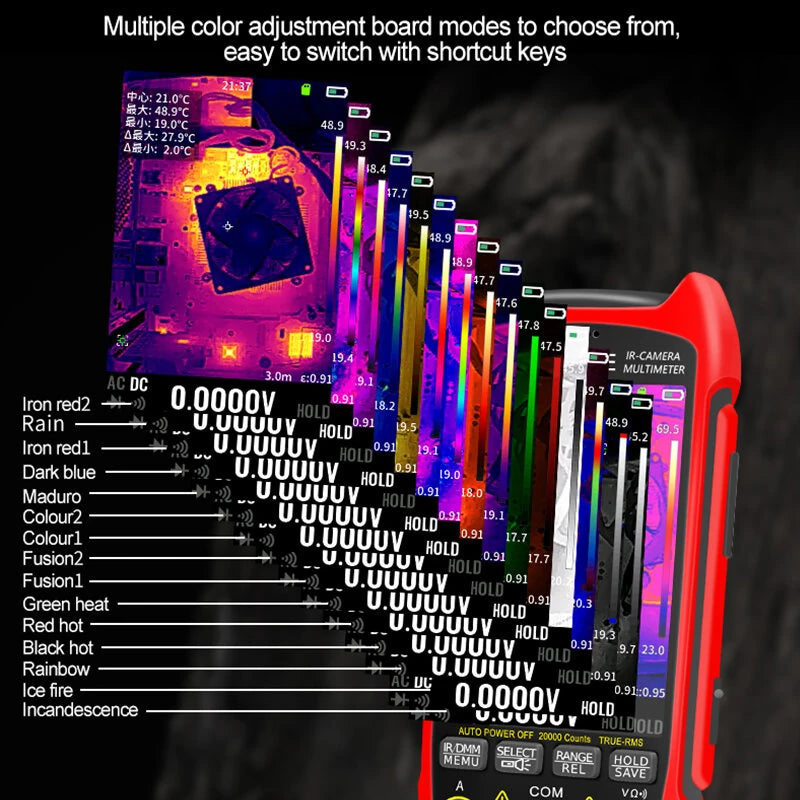

• Multiple Color Modes: Features 15 types of color palettes, allowing users to customize the thermal image for optimal viewing.

Package Included

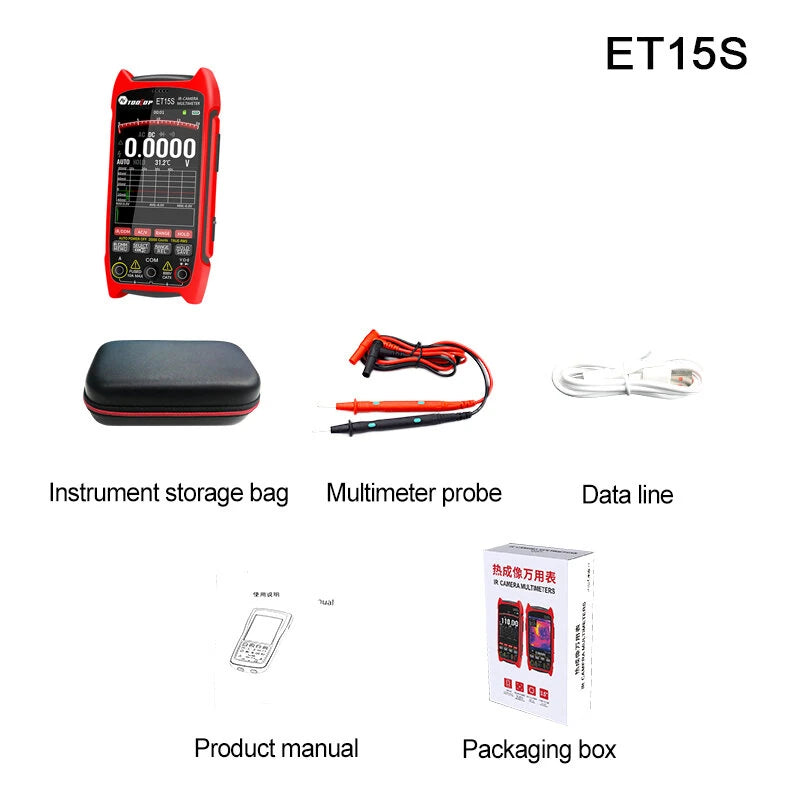

Type A: ET15S

• 1 x Instrument Storage Bag
• 1 x Multimeter Probe
• 1 x Data Line
• 1 x Product Manual
• 1 x Packaging Box

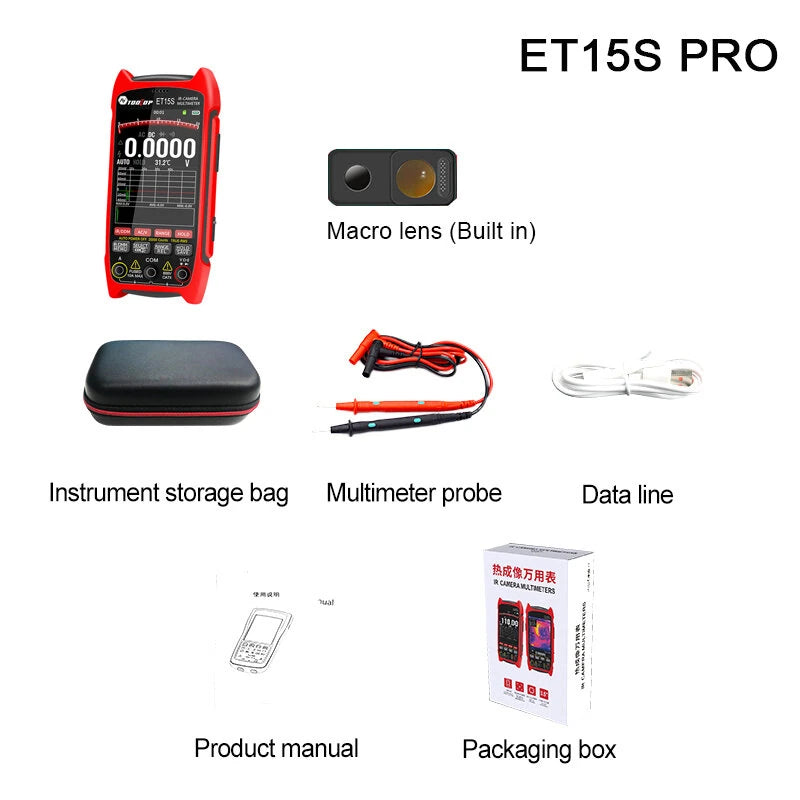

Type B: ET15S PRO

• 1 x Instrument Storage Bag

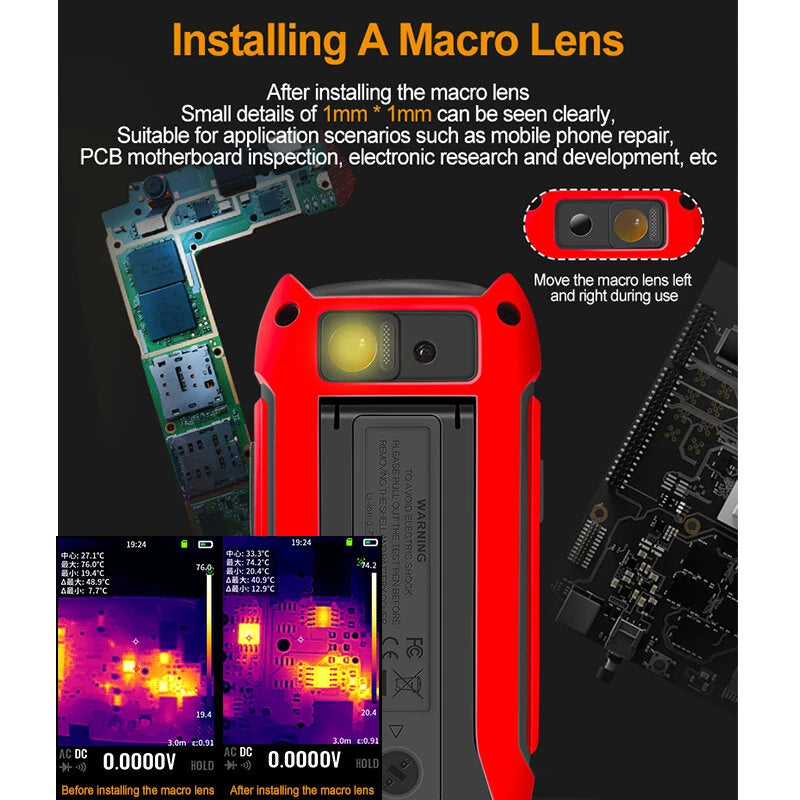

• 1 x Macro Lens
• 1 x Multimeter Probe
• 1 x Data Line
• 1 x Product Manual
• 1 x Packaging Box
