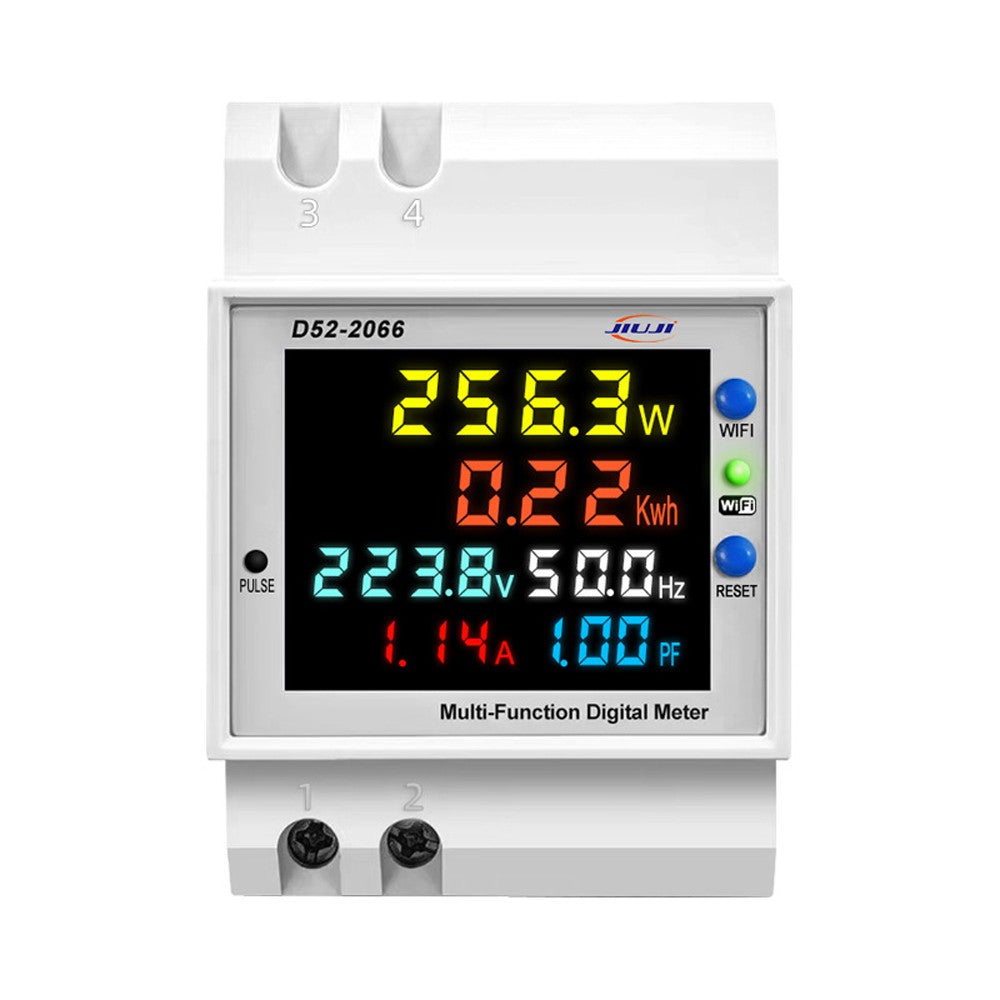

D52-2066 DIN-Rail Digital Multifunction Meter

The D52-2066 is a versatile DIN-rail digital multifunction meter that displays six critical electrical parameters: AC voltage, current, active power, power factor, frequency, and electric energy in real-time. This comprehensive monitoring provides a clear and immediate overview of electricity consumption, ensuring users have all the power information they need at a glance.

Key Features

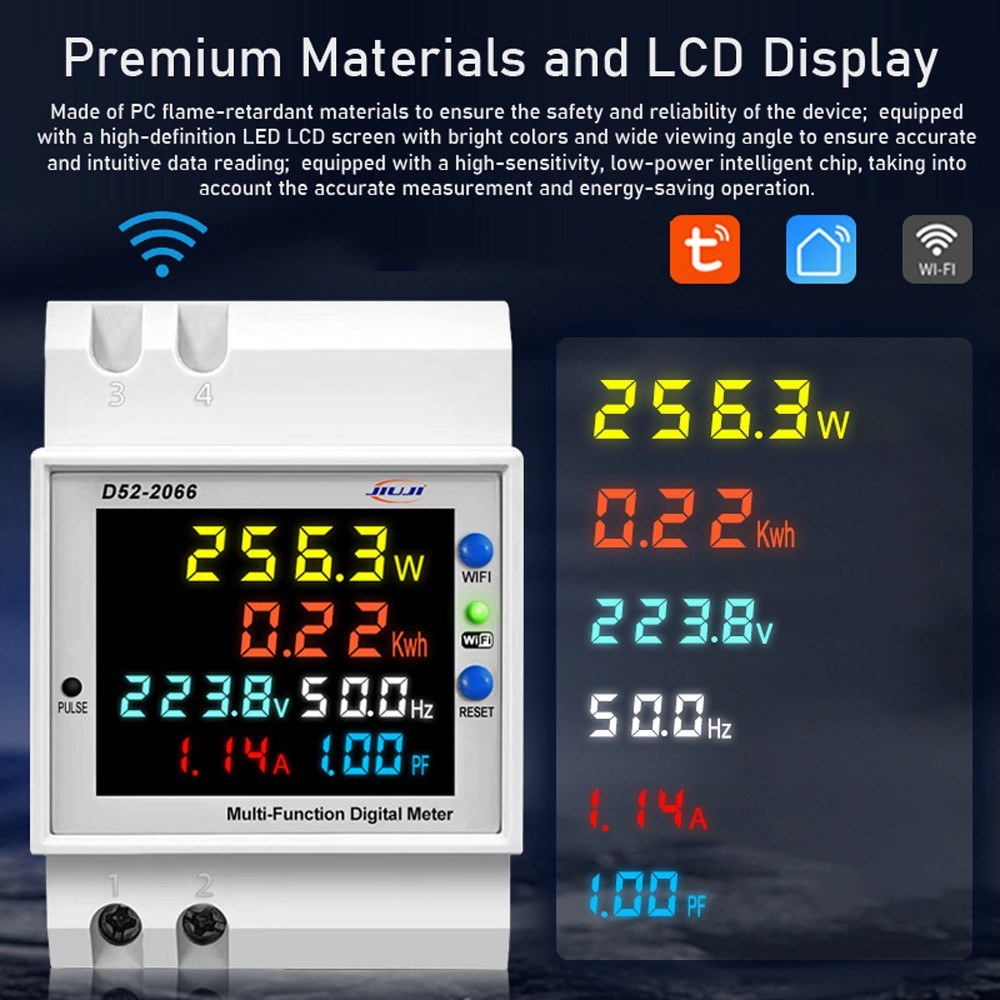

• Premium Materials and LCD Display: Made from PC flame-retardant materials for safety and reliability. The high-definition LED LCD screen with vibrant colors and a wide viewing angle ensures accurate, intuitive data reading. It also features a high-sensitivity, low-power intelligent chip for precise measurement and energy-efficient operation.

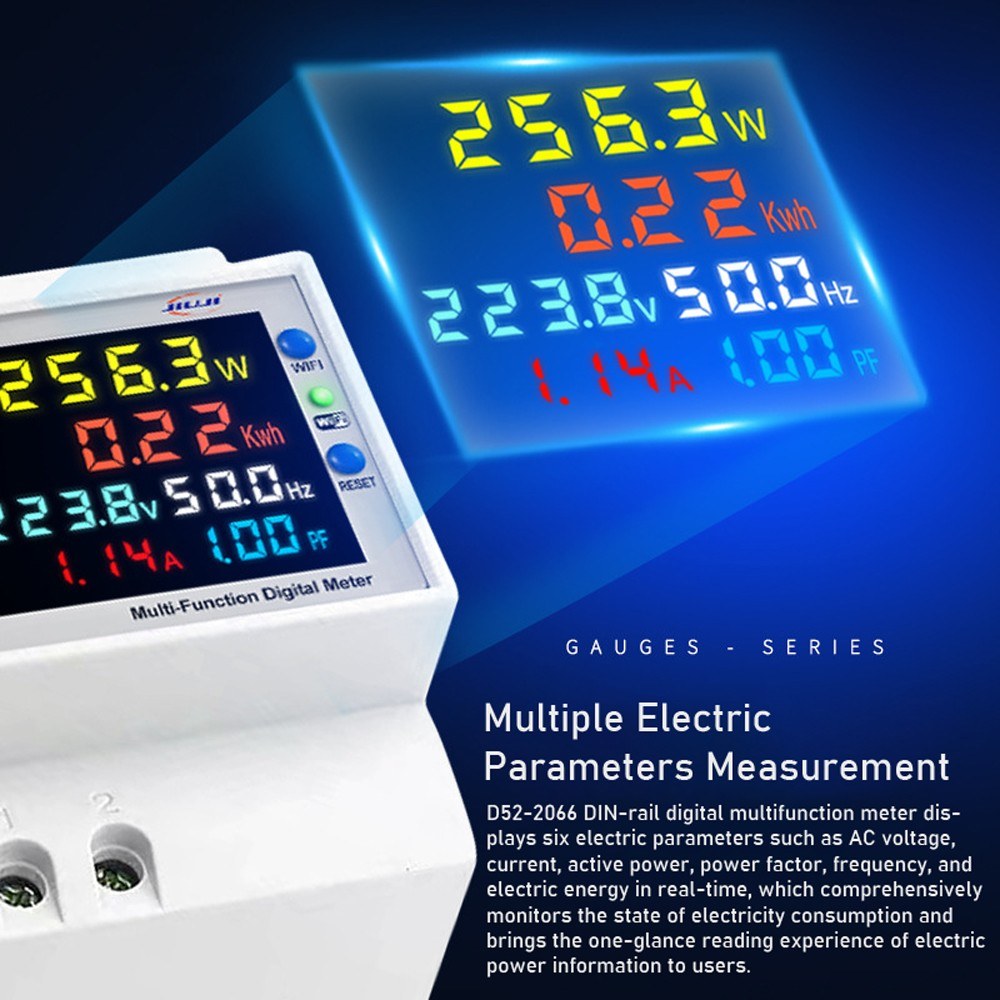

• Multiple Electric Parameters Measurement: Monitors AC voltage, current, active power, power factor, frequency, and electric energy in real-time to provide a complete view of electricity consumption, enabling users to manage their power usage effectively.

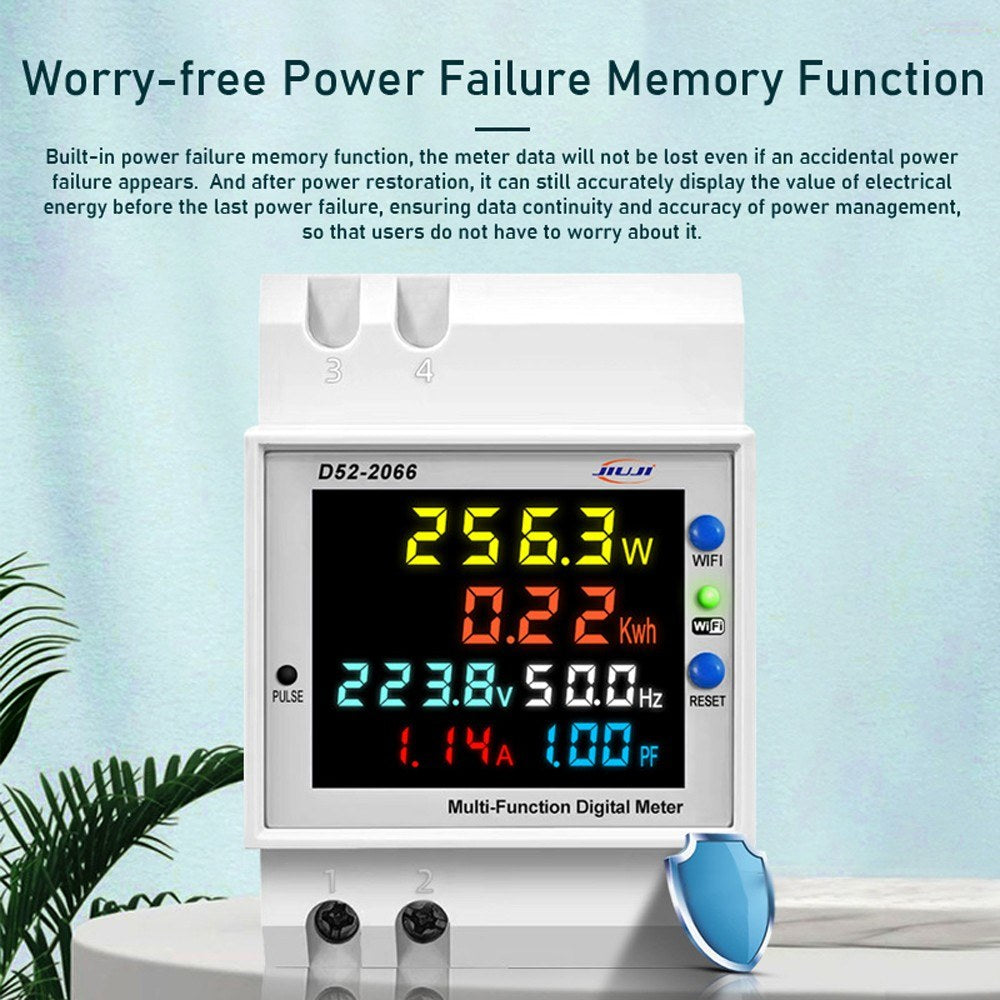

• Worry-Free Power Failure Memory Function: The built-in power failure memory ensures that data is preserved even during power outages. After restoration, it continues to display accurate pre-failure electrical energy values, maintaining data continuity for reliable power management.

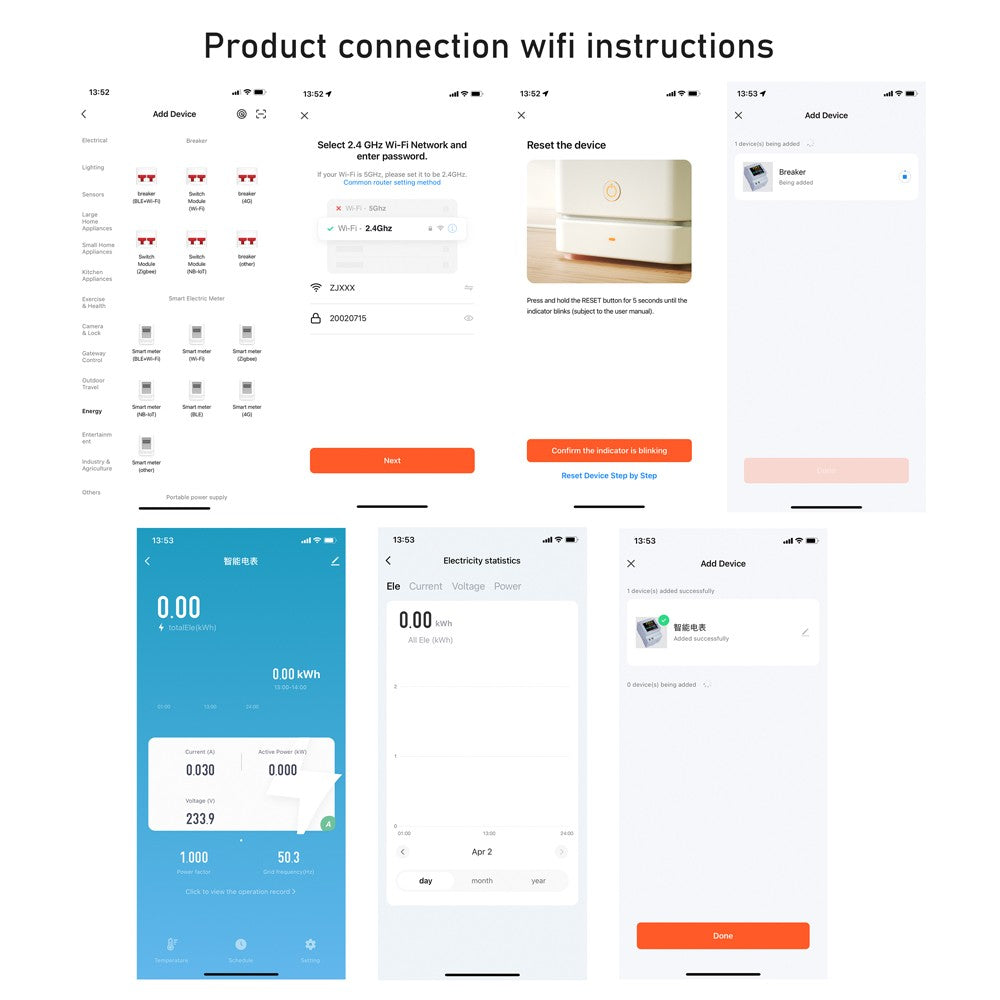

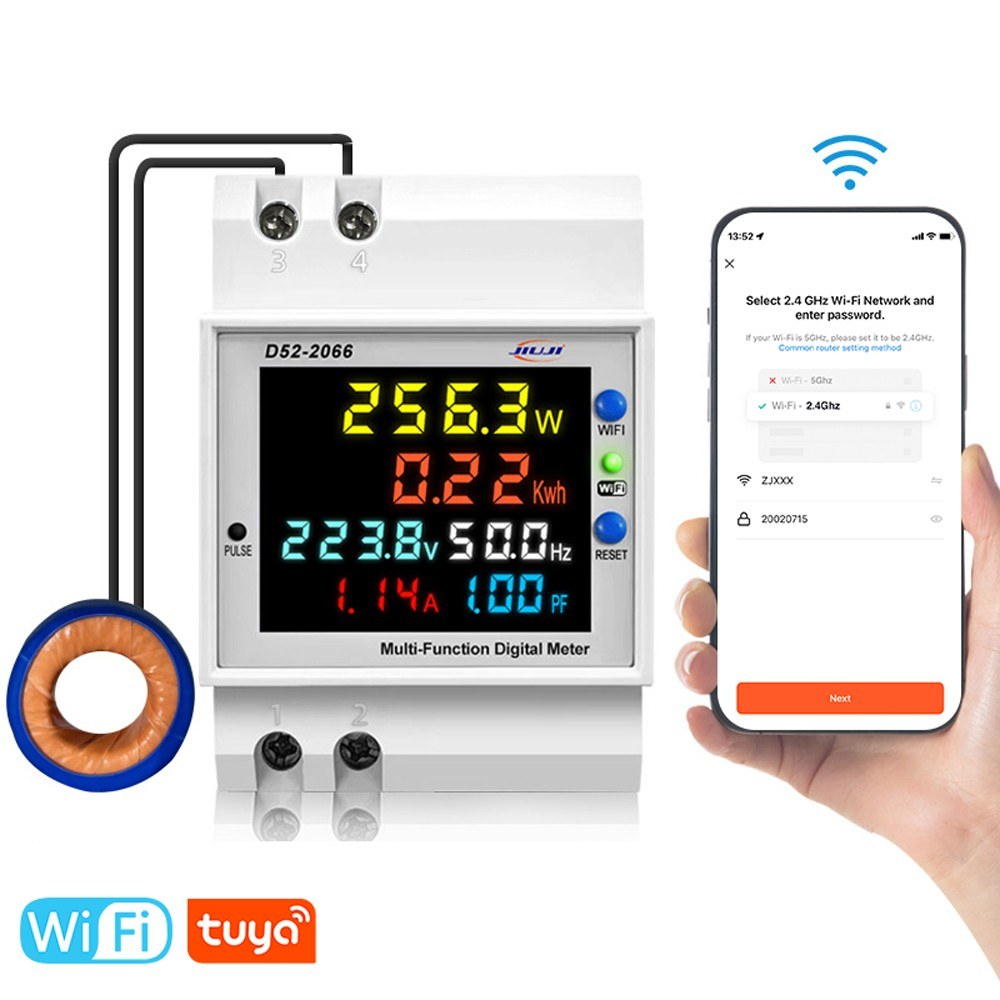

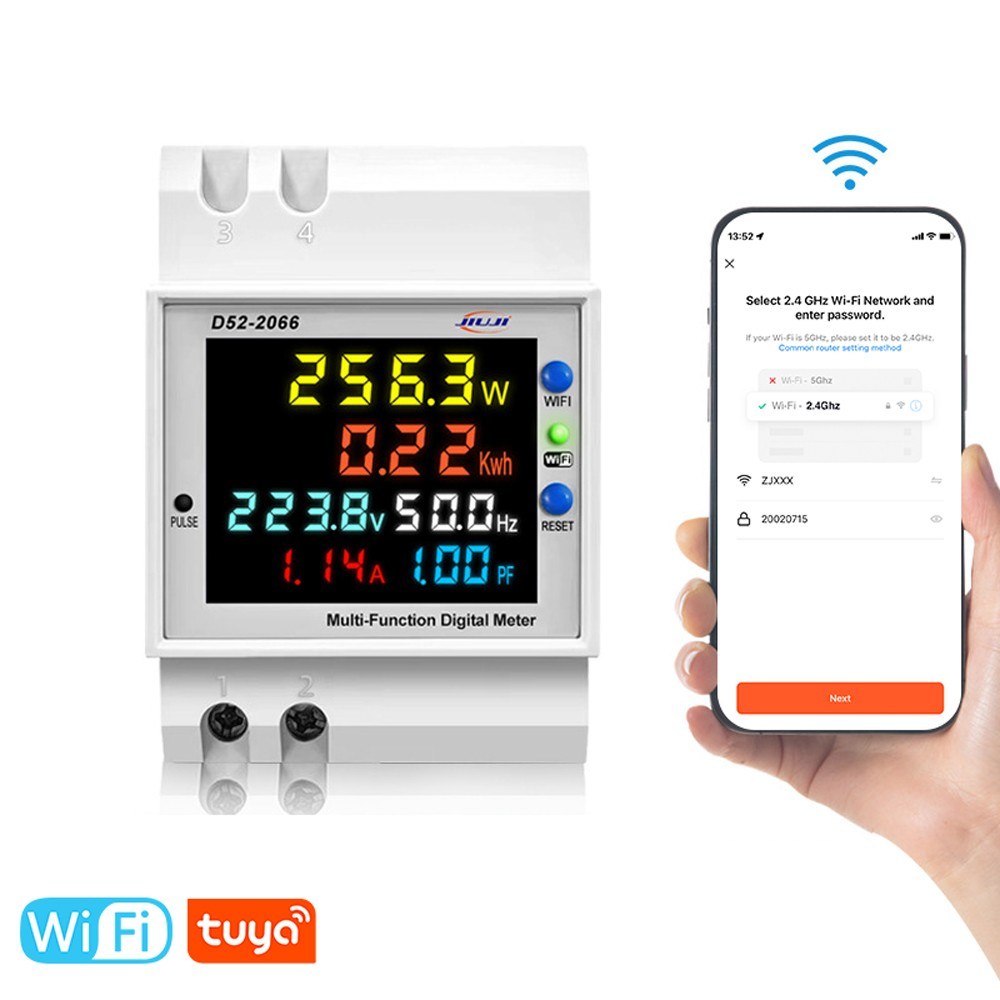

• Intelligent App Remote Controlling: Connects via Tuya WiFi, allowing remote control and real-time data viewing such as voltage, current, and power usage through a mobile device. Facilitate transparent electricity management, with access to daily, monthly, and yearly detailed consumption statistics.
• Convenient Installation & Wide Applicability: Its compact design is similar to a 3P air switch, making it easy to install on a guide rail without requiring a professional electrician. Suitable for homes, rental properties, hotels, offices, and shopping malls, it provides a versatile solution for various electrical measurement applications.

Specifications

• Name: Electricity Meter
• Material: PC
• Type: Built-in type, external type (optional)
• Measurement accuracy: 1% ± 2 words
• AC voltage measurement range: 40.0-300.0VAC
• AC current measurement range: 0-100.0A, resolution: 0.01A
• Frequency measurement range: 45.0Hz-65.0Hz
• Power factor measurement range: 0.00-1.0OPF
• Active power measurement range: 0-45000W, resolution: 0.1W (0-9999.9W), 1W (over 9999.9W)
• Electricity measurement range: 0-99999kWh, resolution varies by range
• Measuring speed: Approx. 2 times per second
• Installation mode: DIN-rail type
• Item size: 54 x 80 x 64mm
• Package size: 85 x 65 x 60mm
• Package weight: 150g

Packing List:

• 1 x Electricity Meter
