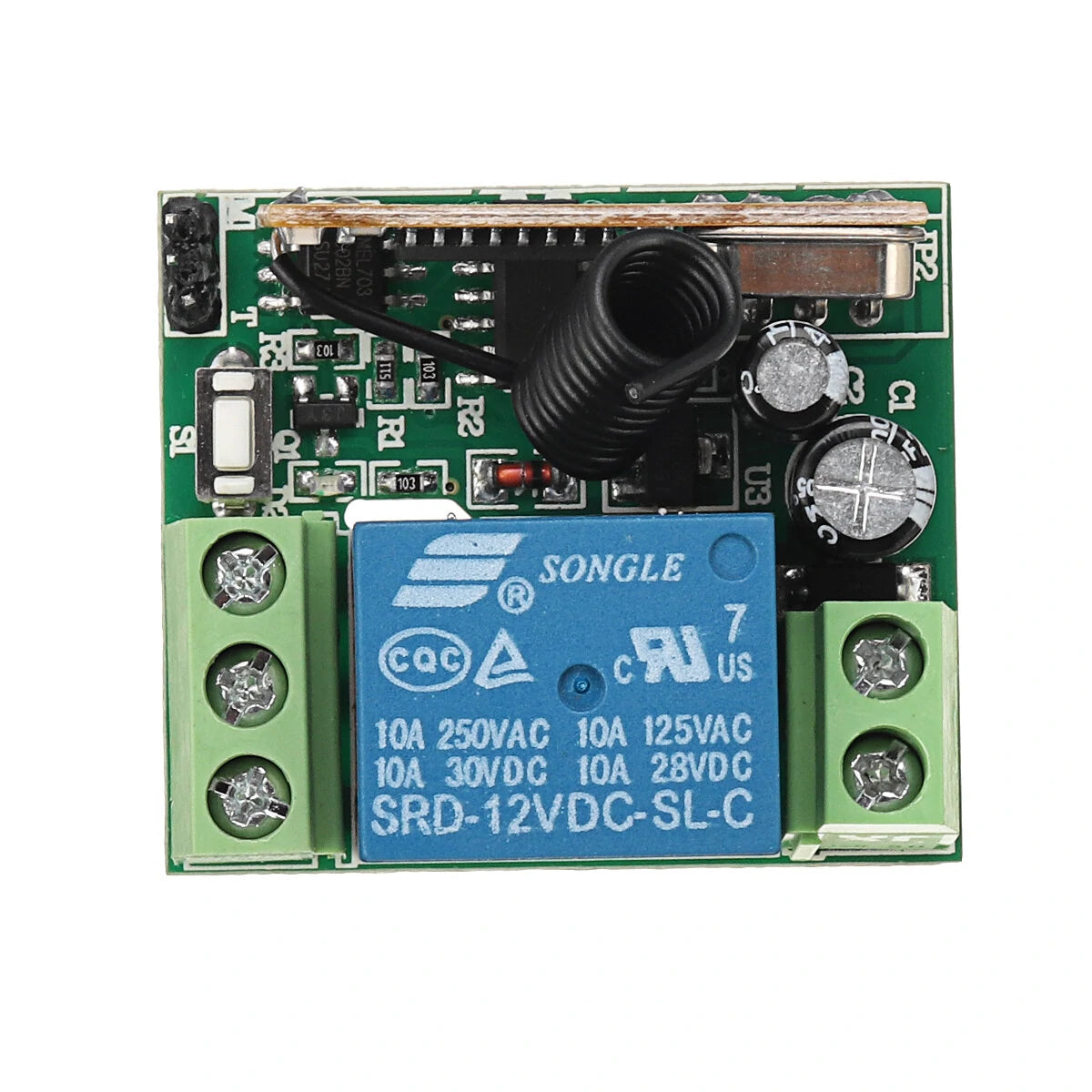

12V 1CH Wireless Relay Receiver Module with 2 RF Transmitters (433Mhz)

Product Features

Note: The system can store up to 15 remotes. If the number exceeds 15, the initial remote control settings will be lost.

• Wiring Type: Fixed terminal
• Standby Current:
• Input Power: DC10V-14V
• RF Frequency: 433MHz
• Receive Sensitivity: >97dBm

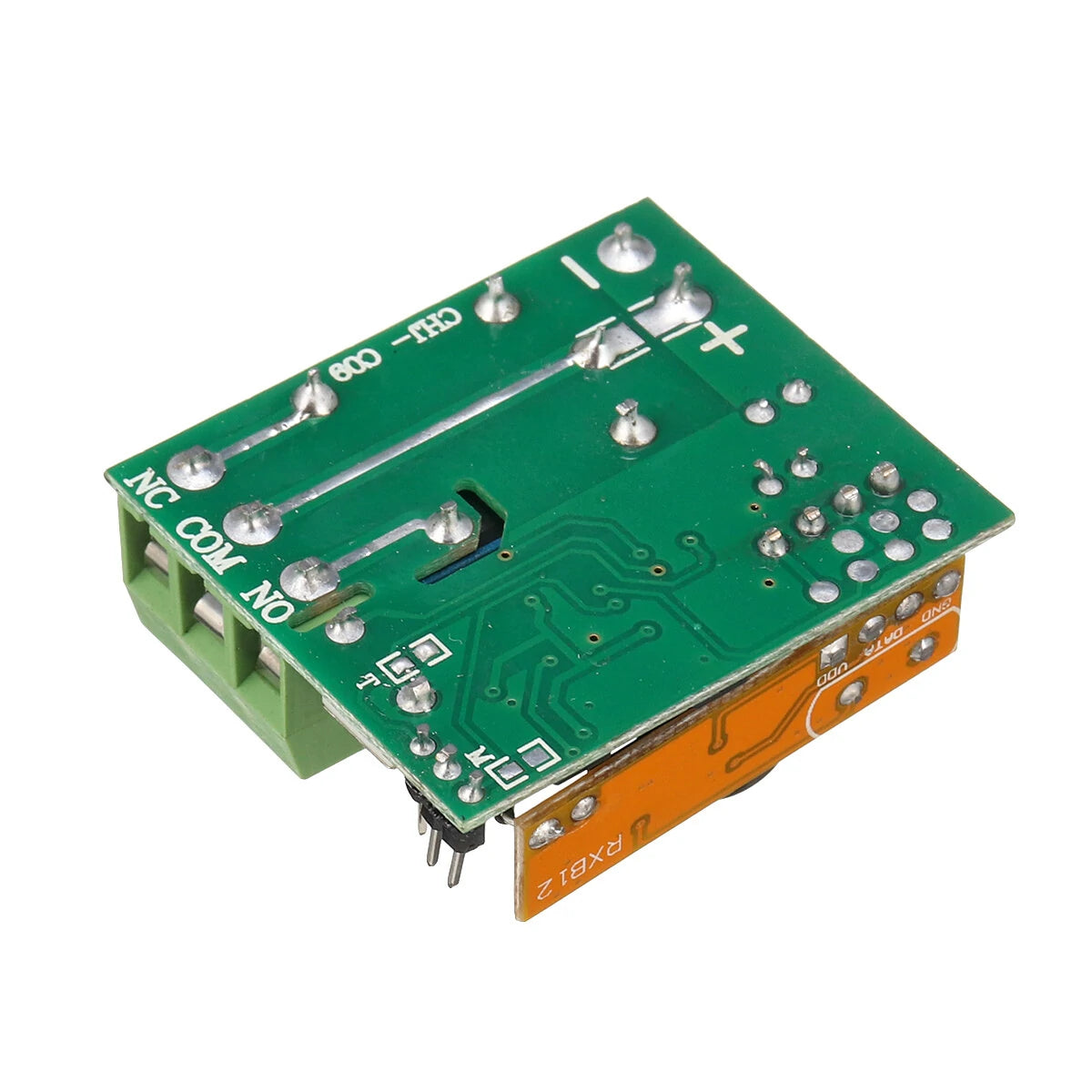

• Output Terminal: NO, NC, COM
• RF Working Mode: Superheterodyne
• Decoding Mode: MCU software decoding
• Transmitting Distance: >100m (open space)
• Support Remote Type: Learning code, Fixed code (Rolling code design available)
• Working Modes: Momentary, Toggle, Latching, Time Delay (5s, 10s, 15s)

Understanding Working Modes

• Momentary: Press the remote button to connect the relay; release to disconnect.
• Toggle: Press once to connect the relay; press again to disconnect.
• Latching: Press button A to connect; press button B to disconnect.
• Time Delay: Press to connect; relay disconnects automatically after 5s, 10s, or 15s upon release.

Clearing the Code

Press the learning button on the receiver 8 times to clear all codes. Once cleared, the remotes will no longer function.

Learning the Codes

1. Momentary Mode:
   • Press the learning key once. The LED will turn off, indicating learning state.
   • Press the remote button. The LED will flash and turn off. After 3 seconds, it will turn on again, indicating successful learning.
2. Toggle Mode:
   • Press the learning key twice for toggle mode. The LED will turn off, entering learning state.
   • Press the remote button. The LED will flash and turn off. After 3 seconds, it will turn on, indicating success.
3. Latching Mode:
   • Note: Two different buttons are needed: button A for "ON" and button B for "OFF".
   • Press the learning key three times for latching mode. The LED will flash then turn off.
   • Press button A. The LED will flash 5 times.
   • Press button B. The LED will flash 5 times. After 3 seconds, the LED will turn on again, confirming successful learning.

Package Includes

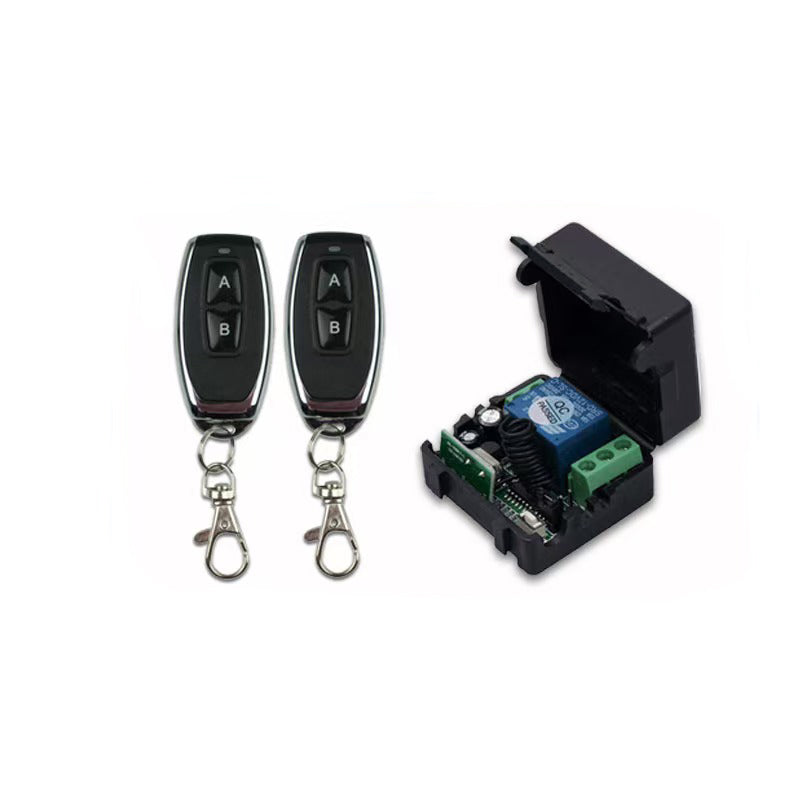

• 2 x Remote Control Transmitters (batteries included)

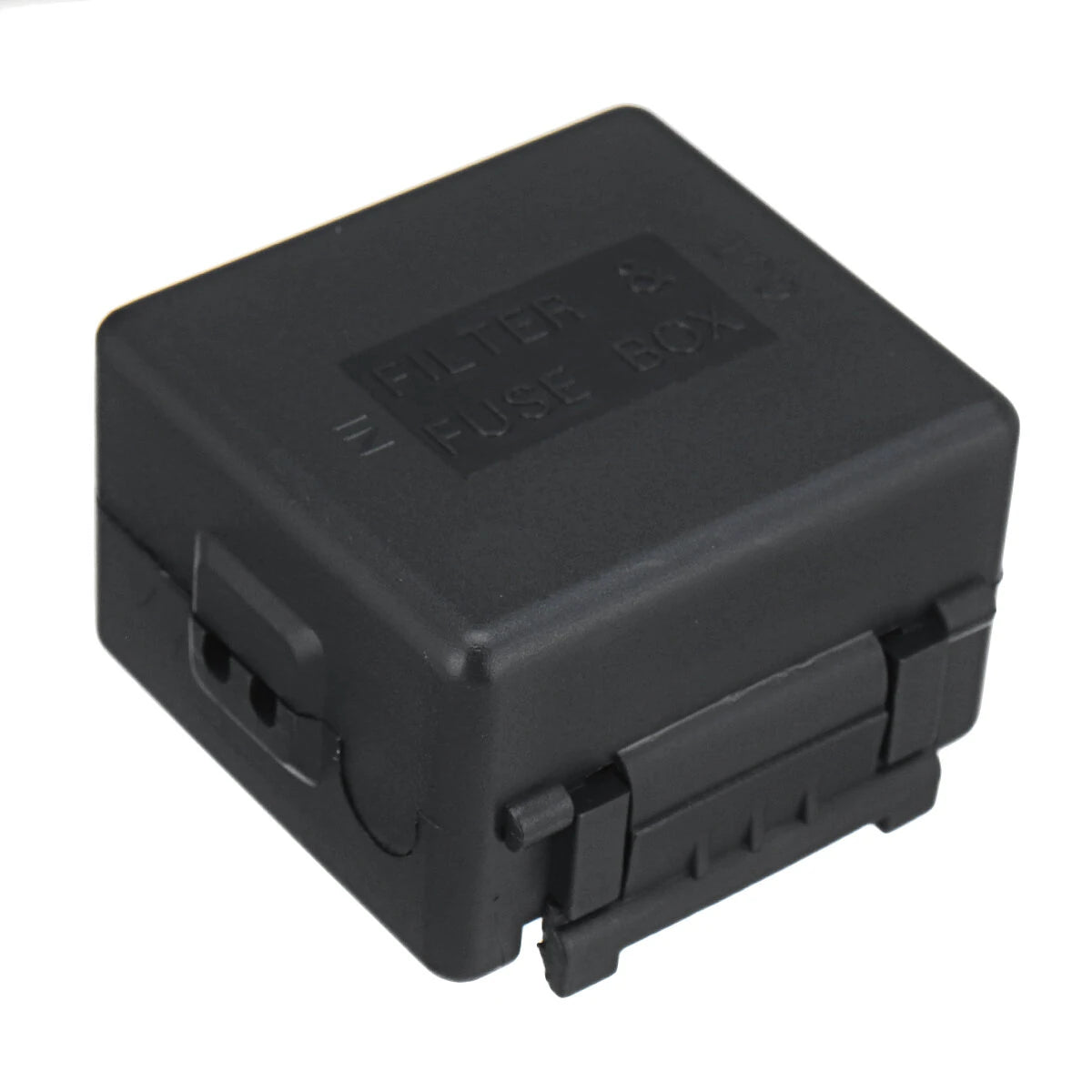

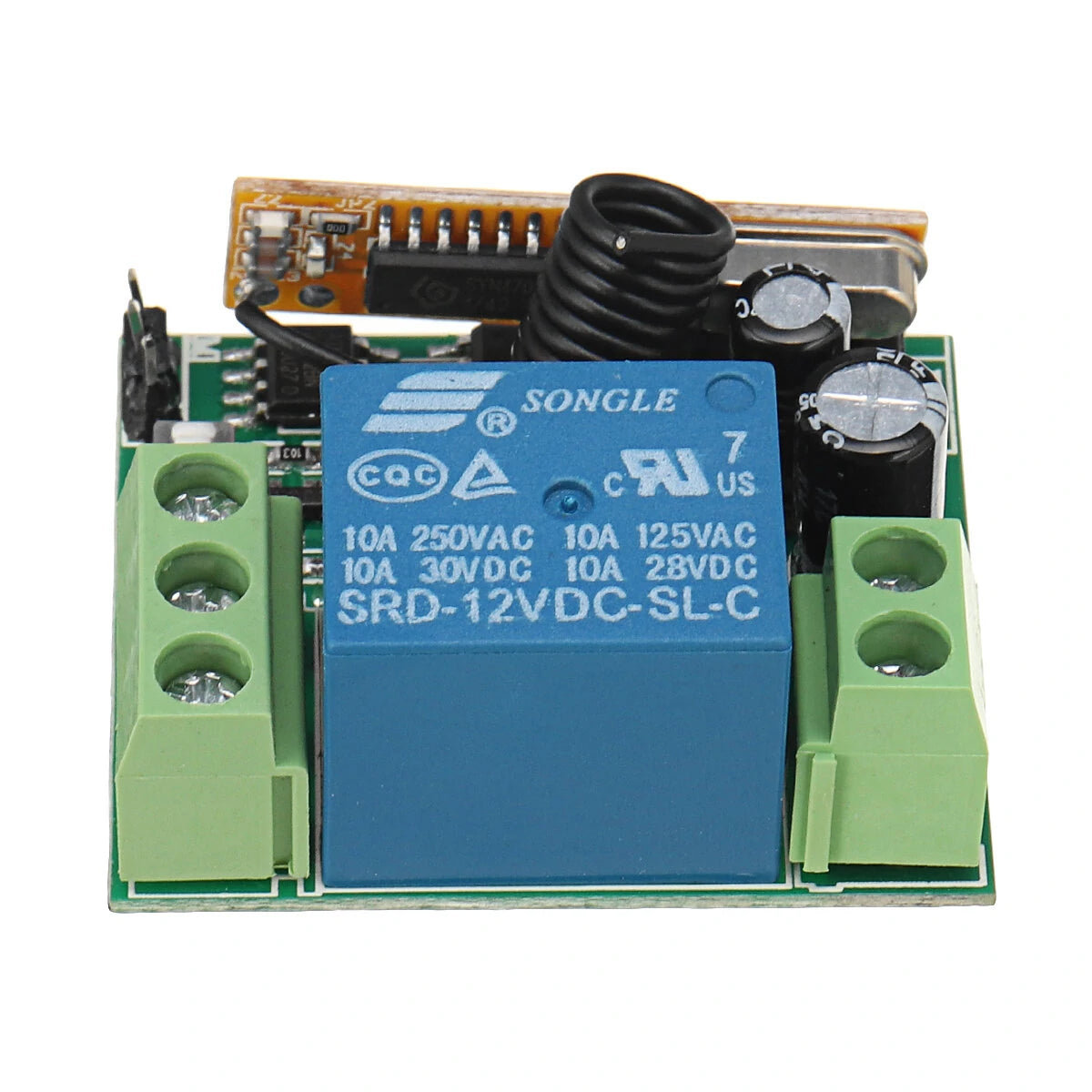

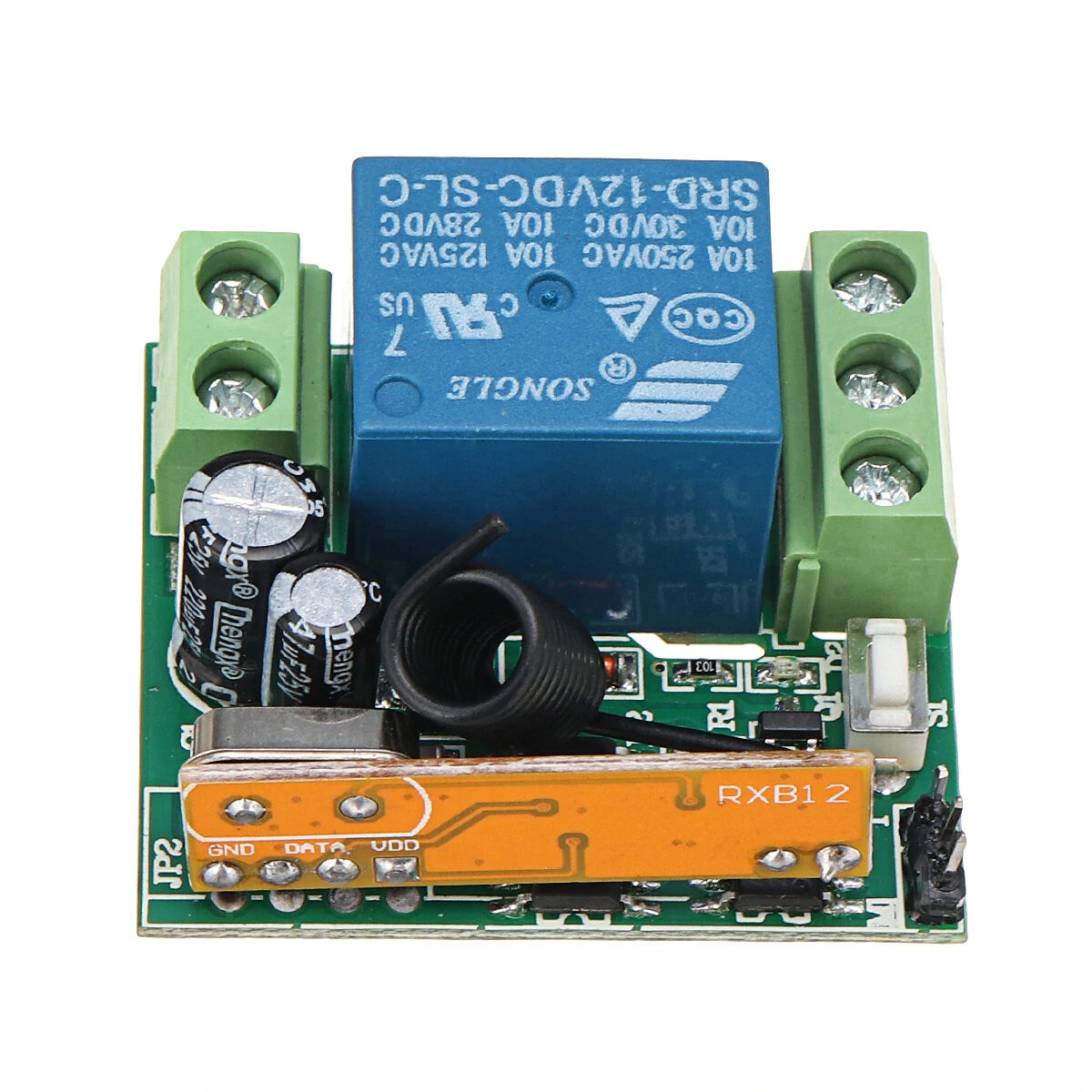

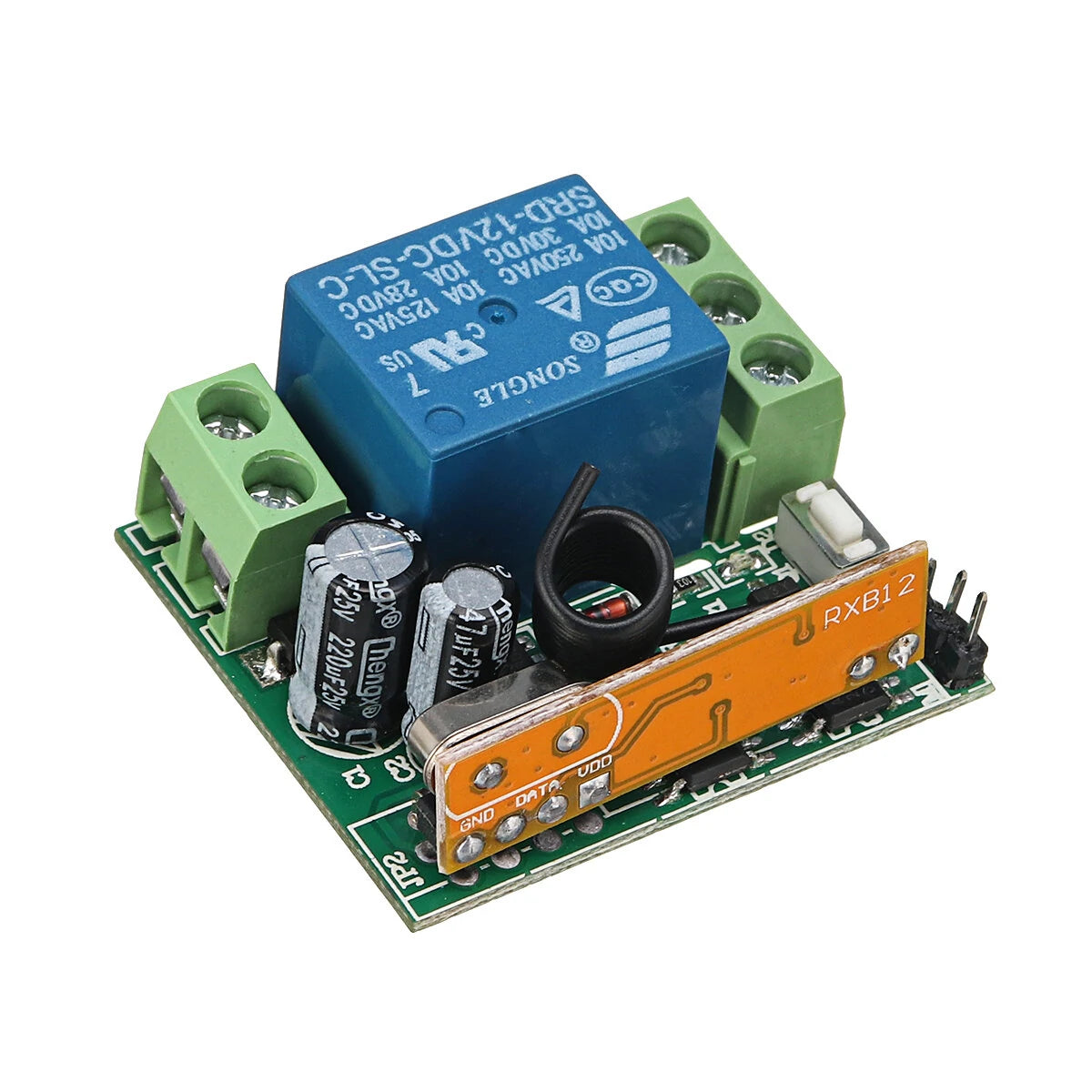

• 1 x Remote Receiver Module (Shell included)

Notes

• Please allow a margin of error of 1-3mm due to manual measurement.
• Colors may vary slightly due to different monitor settings. The product style is as shown in the description.
