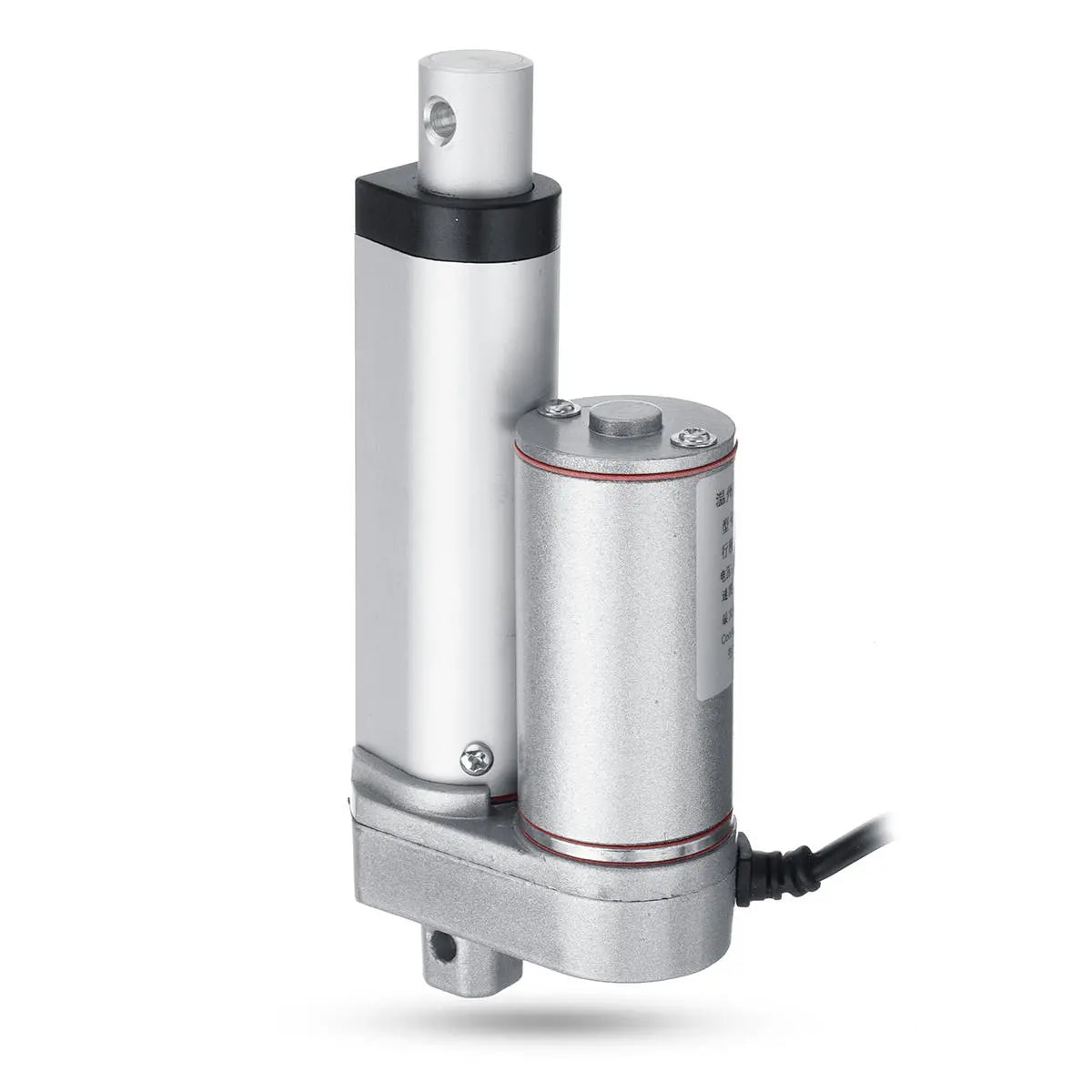

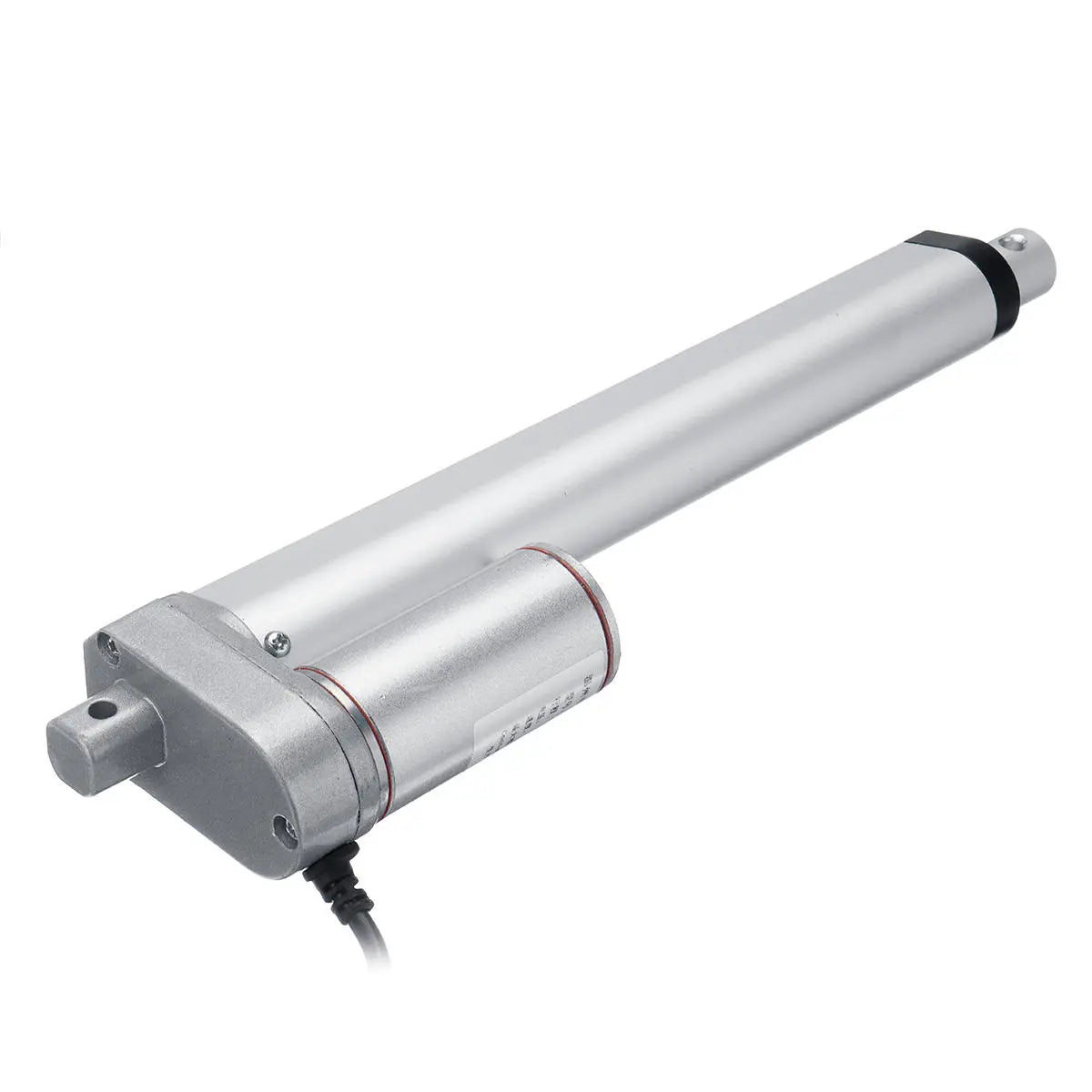

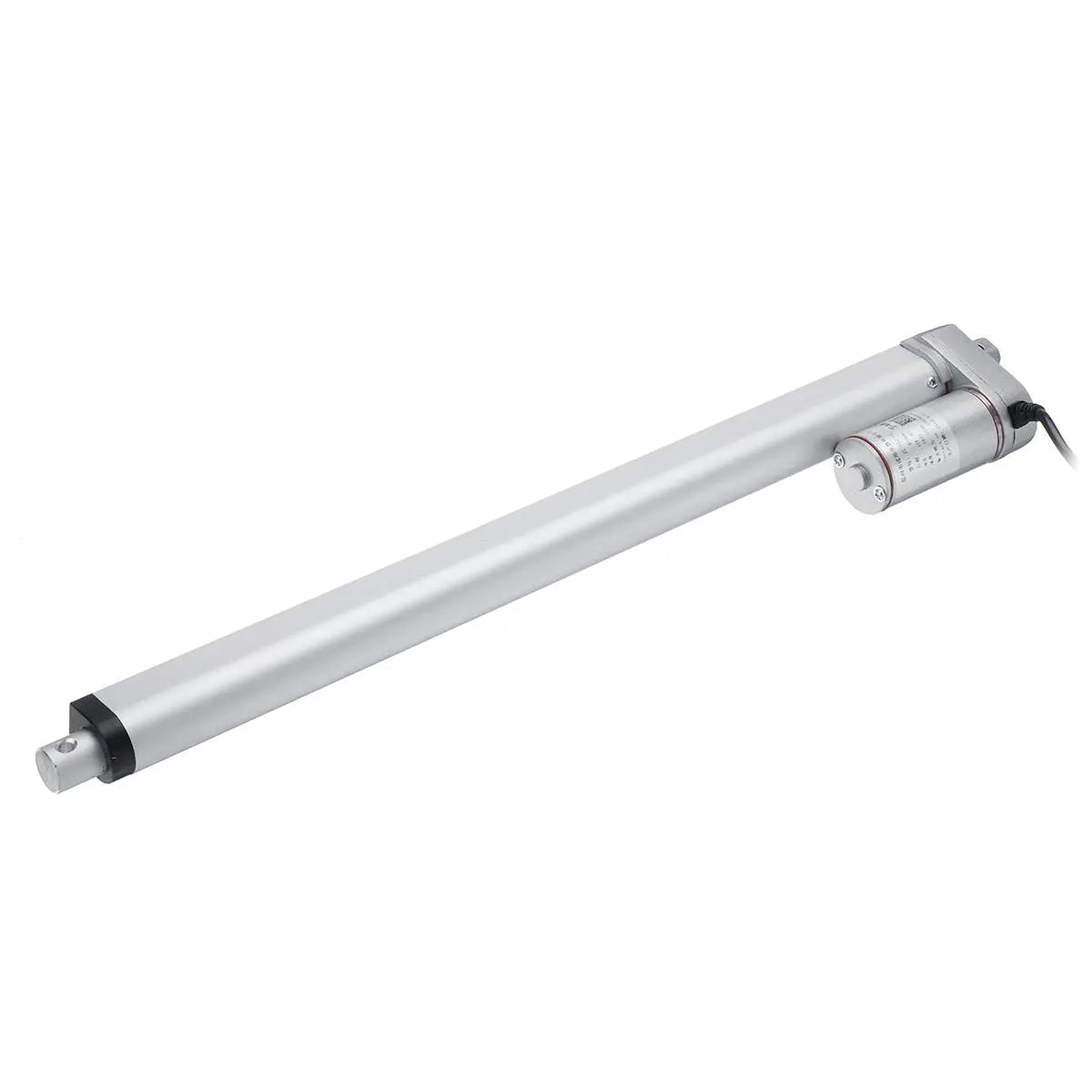

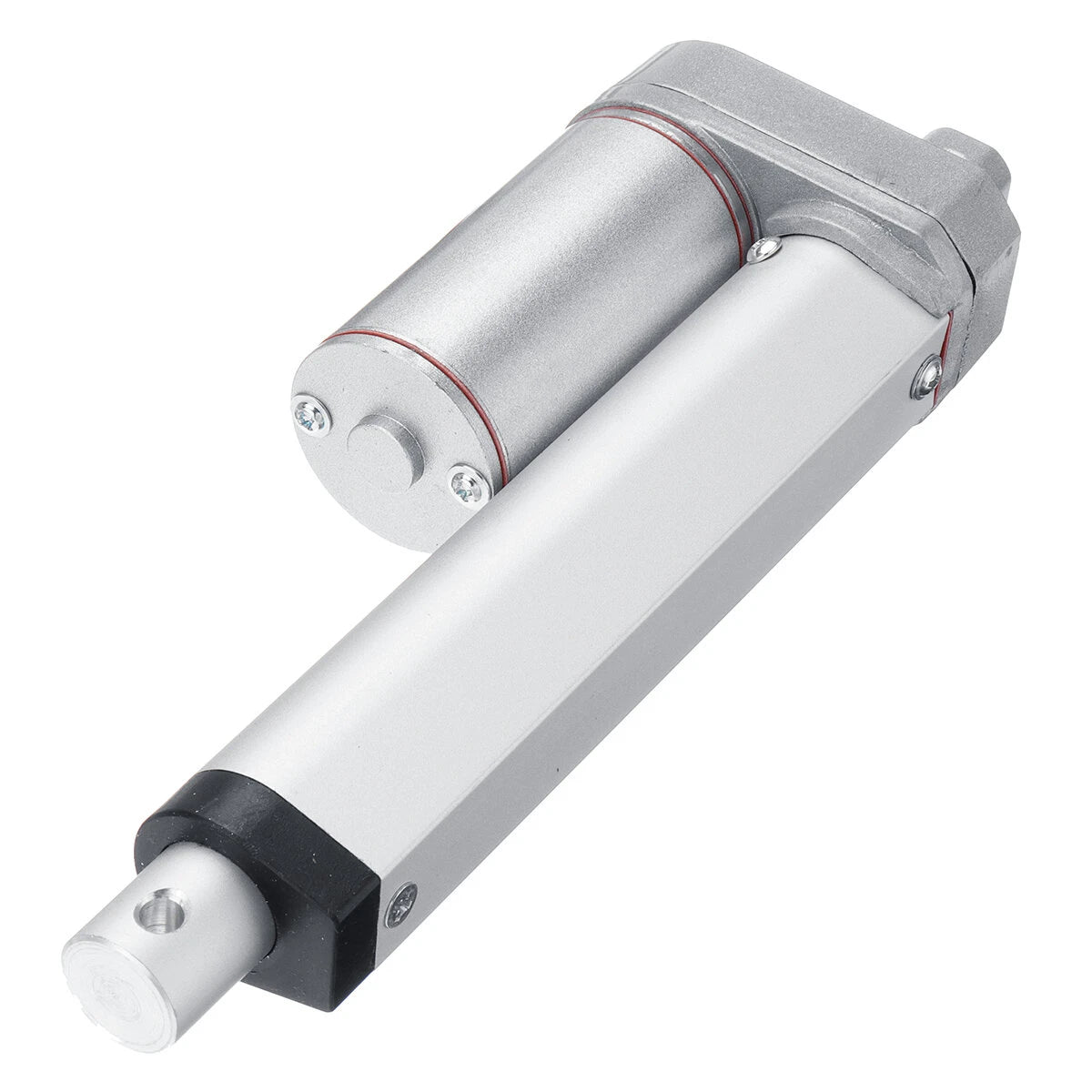

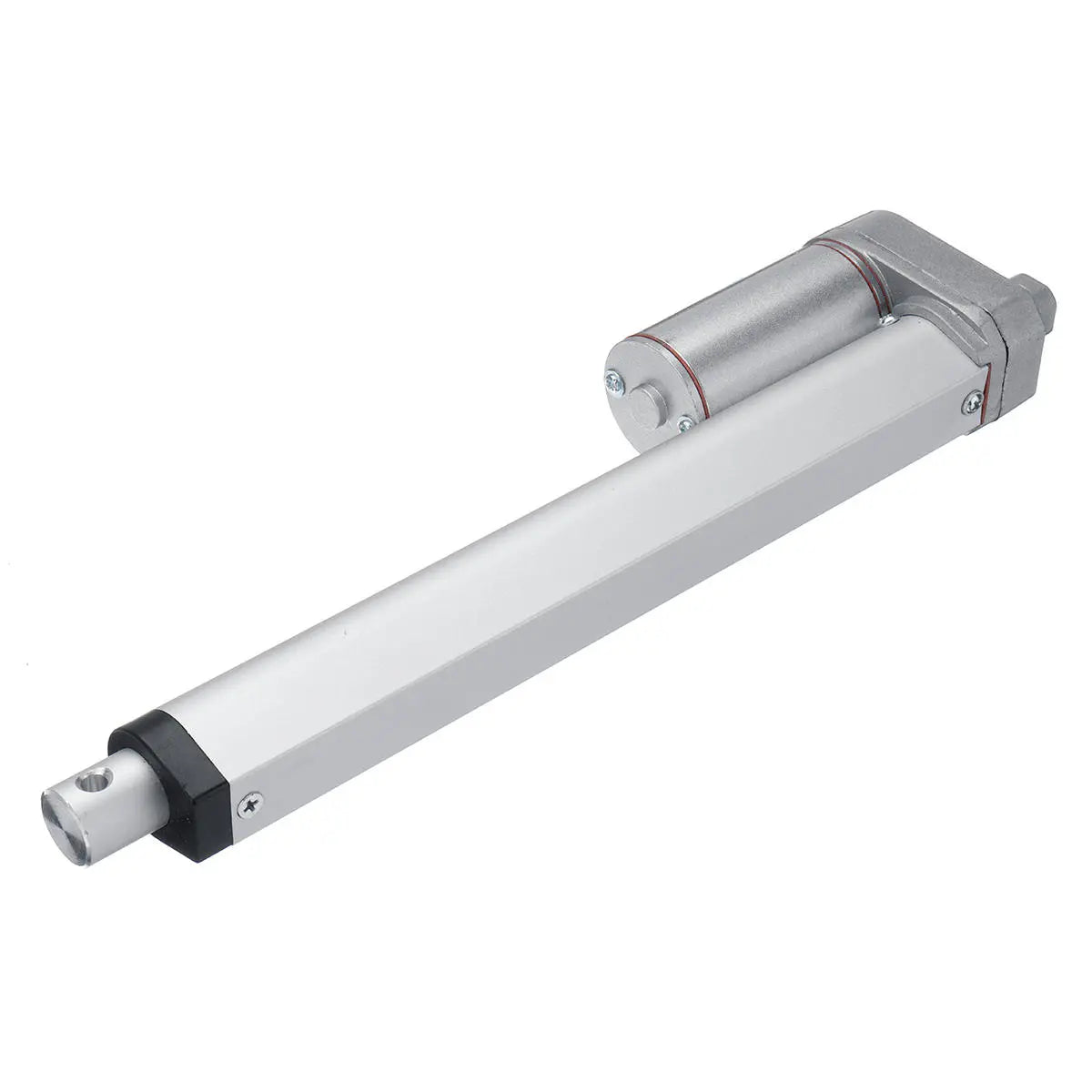

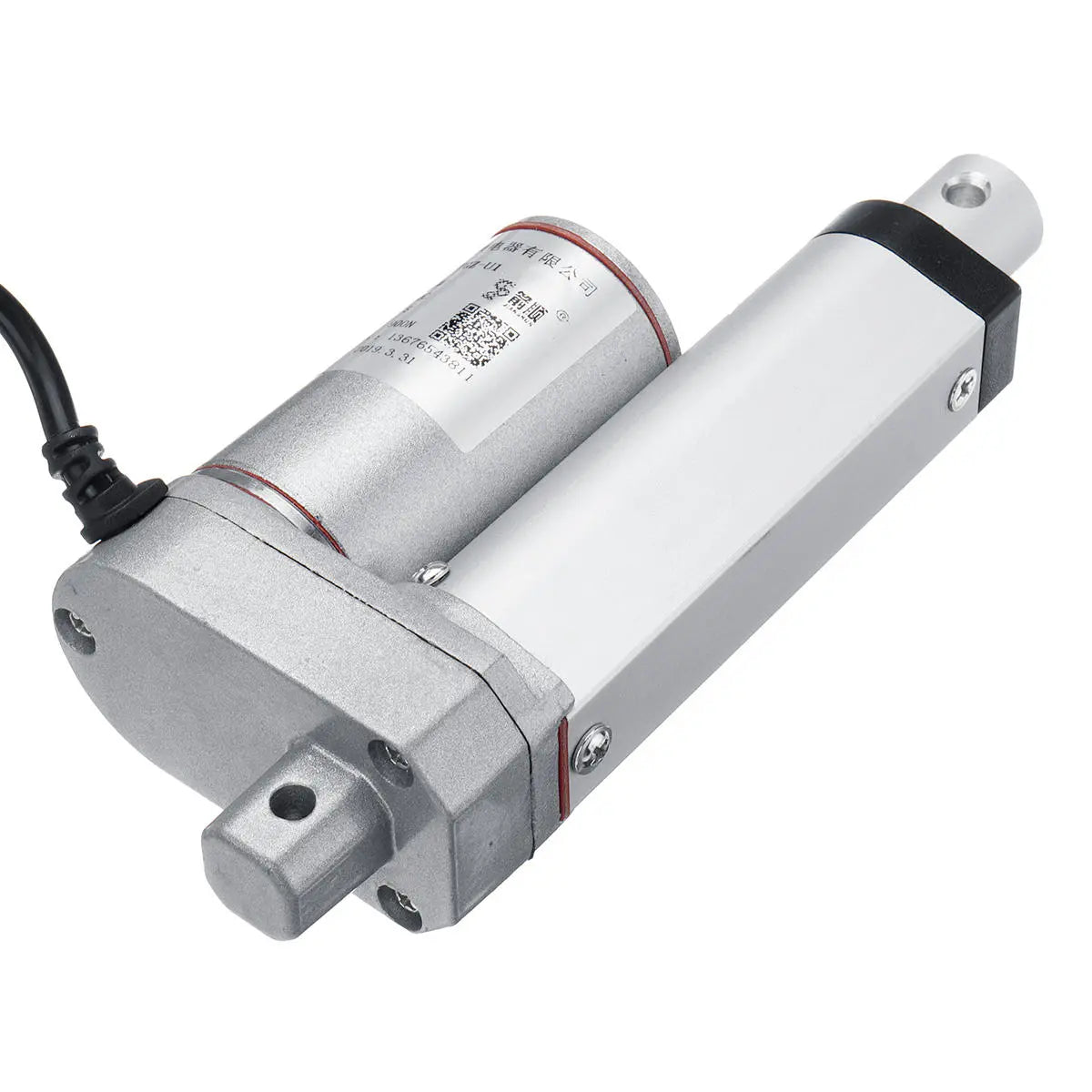

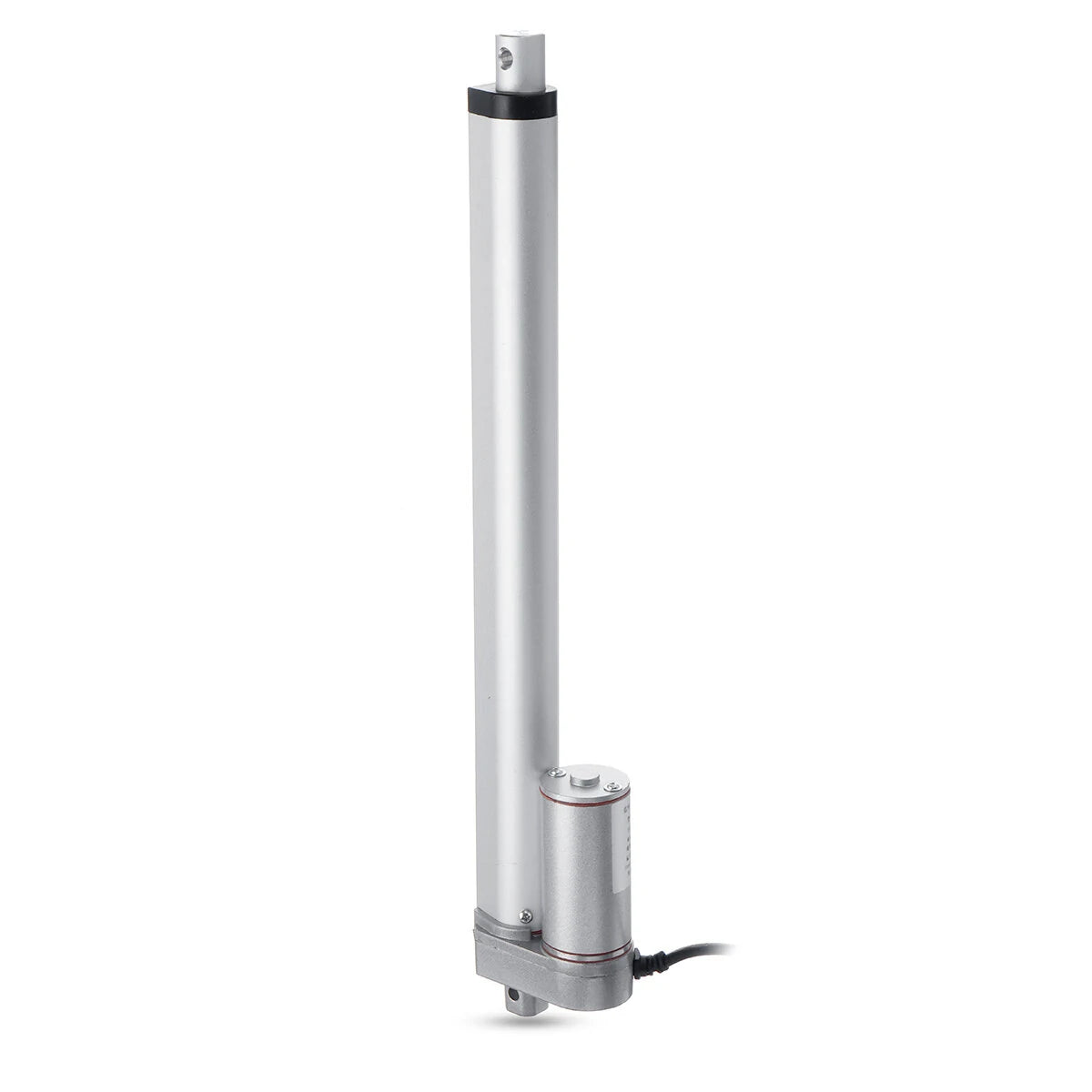

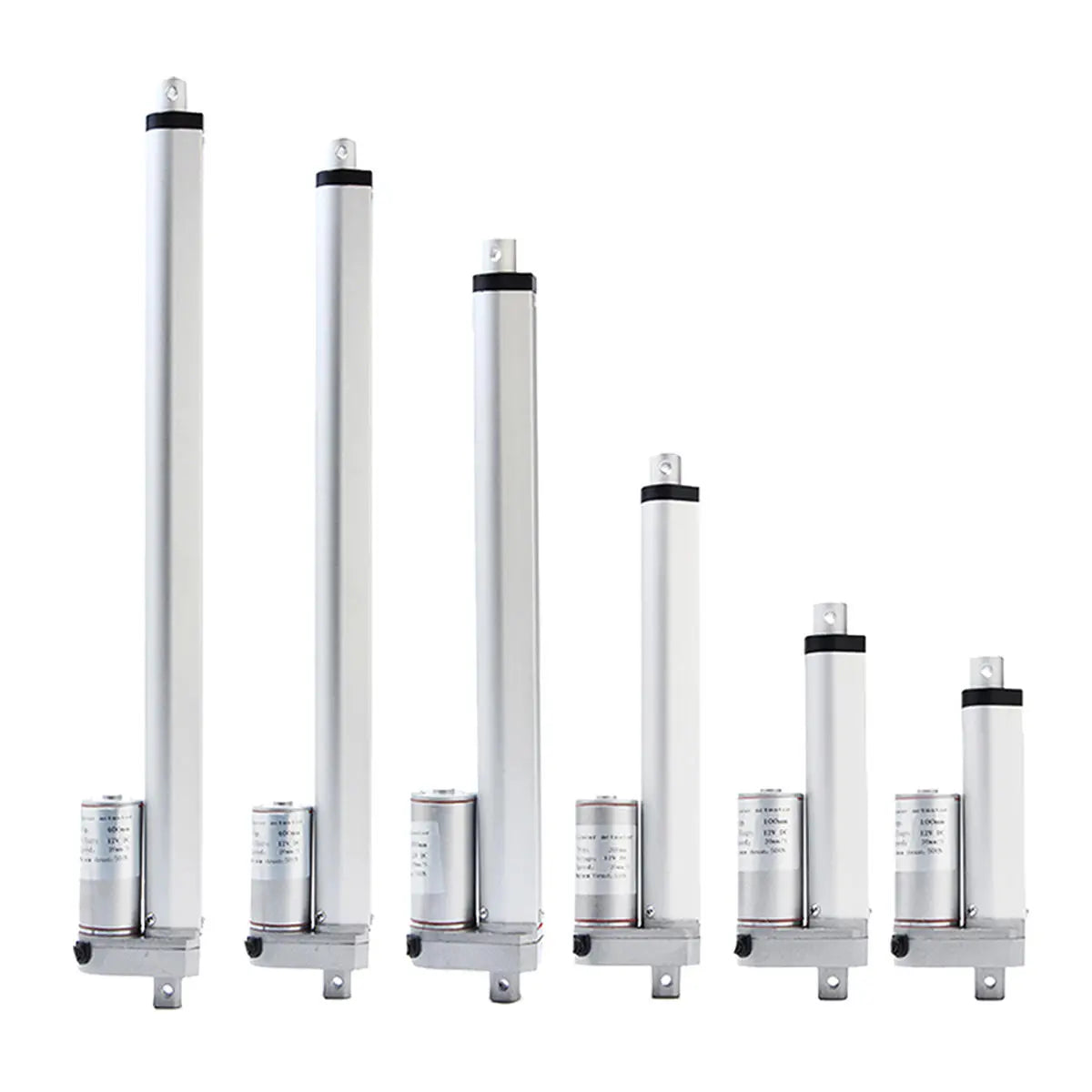

DC 12V Linear Actuator Motor, 900N, 2-20 Inch Stroke, 50-500mm Tubular Motor

Description

The DC 12V 900N Linear Actuator Motor is engineered for versatility and efficiency across diverse industries. With a stroke length range of 50-500mm, it offers reliable performance for applications in industrial and agricultural machinery, construction equipment, and other specialized uses.

Features

• Ideal replacement for hydraulic and pneumatic systems, significantly reducing energy consumption.
• Low noise design with levels below 42dB.
• Self-locking function ensures stability and safety.
• Ambient temperature operating range from -20°C to +75°C.
• IP54 standard protection against dust and water splashes.

Specifications

• Material: Aluminum alloy
• Load Capacity: 900N
• Speed: 16mm/s
• Input Voltage: 12V DC
• Duty Cycle: 10%

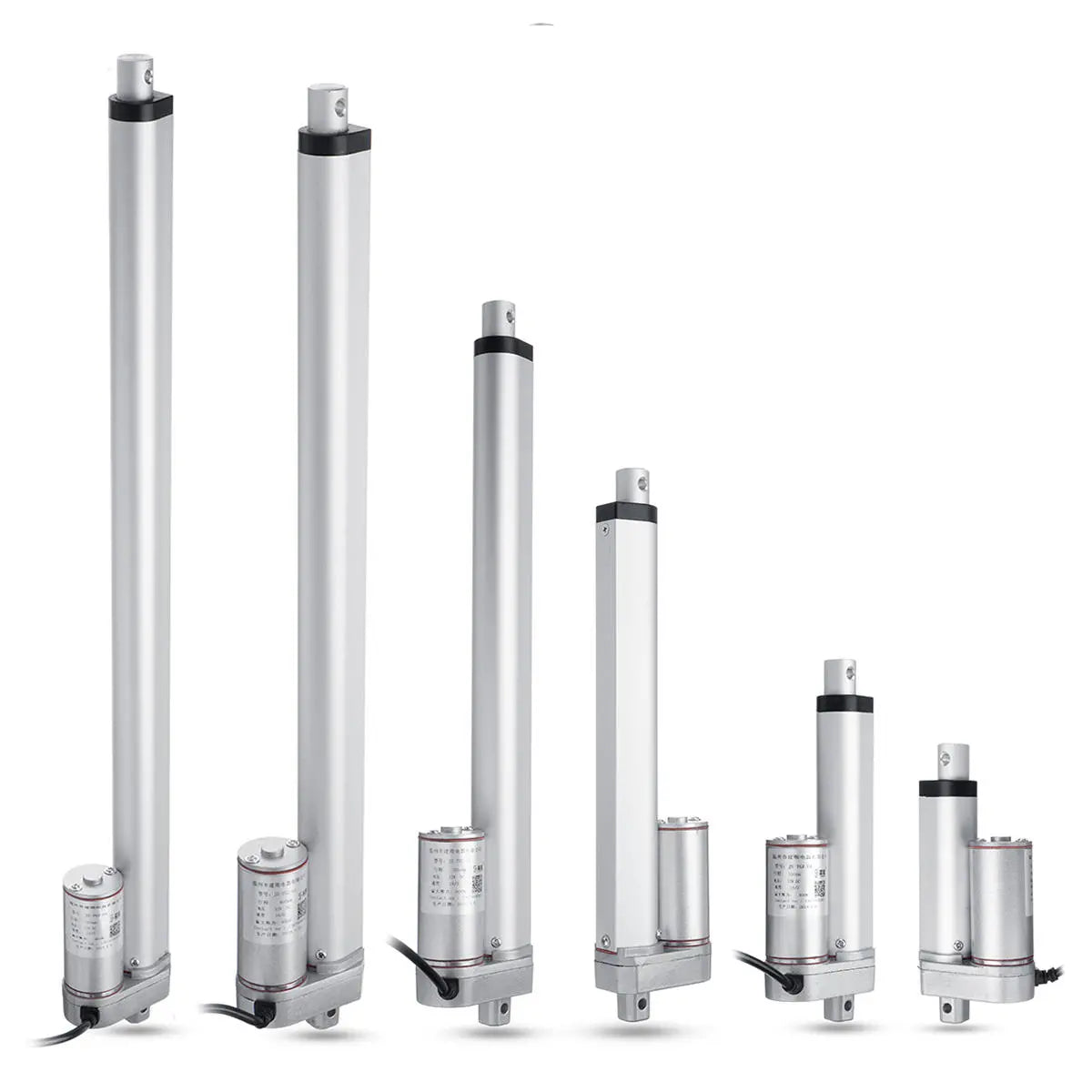

• Stroke Length: 50/100/200/300/400/500mm

Technical Parameters

• Rated power: 20W, maximum 30W.
• Equipped with travel limit switches for automatic disconnection at full extension or retraction.
• DC motor with screw drive allows extension and retraction without rotation.
• Polarity can be reversed to change the telescopic direction.

Applications

The actuator is suitable for a range of uses, including TV lift tables, massage beds, electric beds, medical chairs, electric sofas, camera frames, and more.

Installation Guidelines

• Below 300mm Stroke: Mounting length = 105mm + stroke length
• 300mm and Above Stroke: Mounting length = 155mm + stroke length

Important Notice

• Verify motor voltage and power supply current before use.
• Avoid operations in high temperature or humid environments; do not expose to corrosive gases.
• Attention to screwing: ensure screws are not too long to avoid damage to internal components.

Package Includes

1 x Linear Actuator Motor
