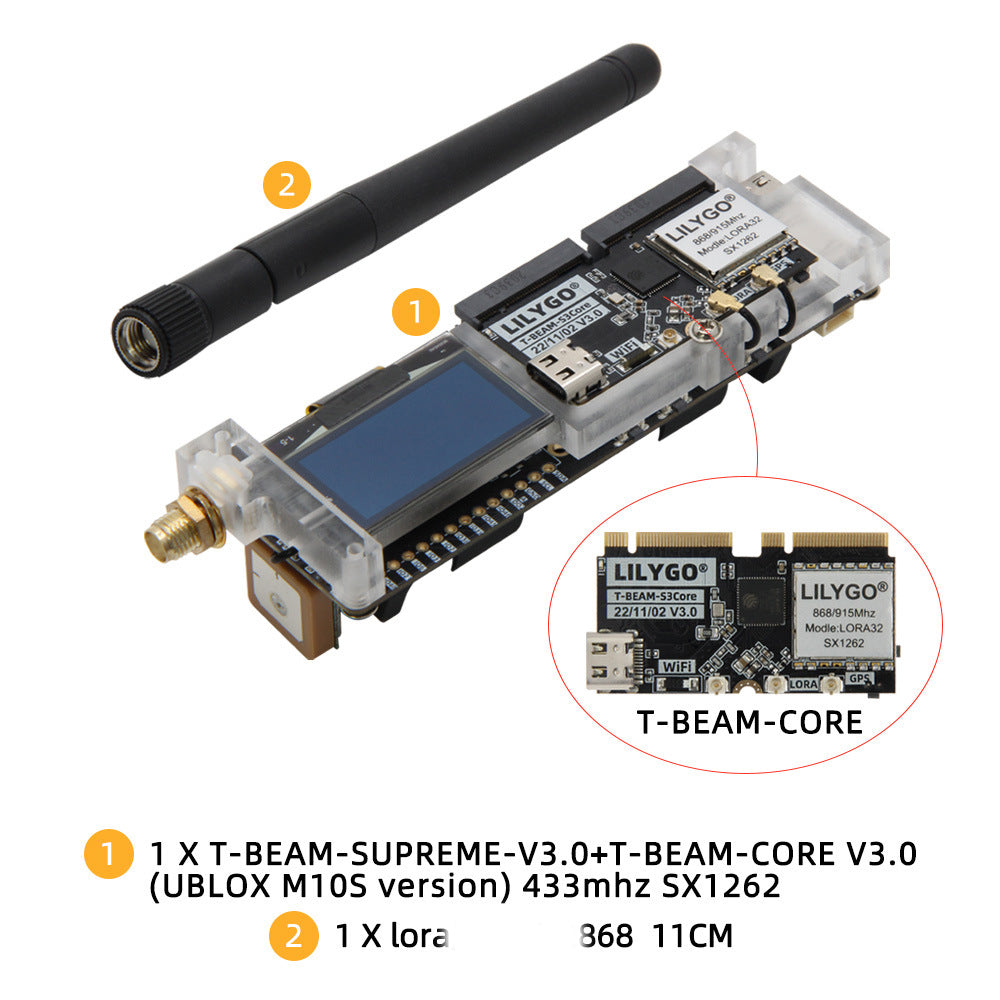

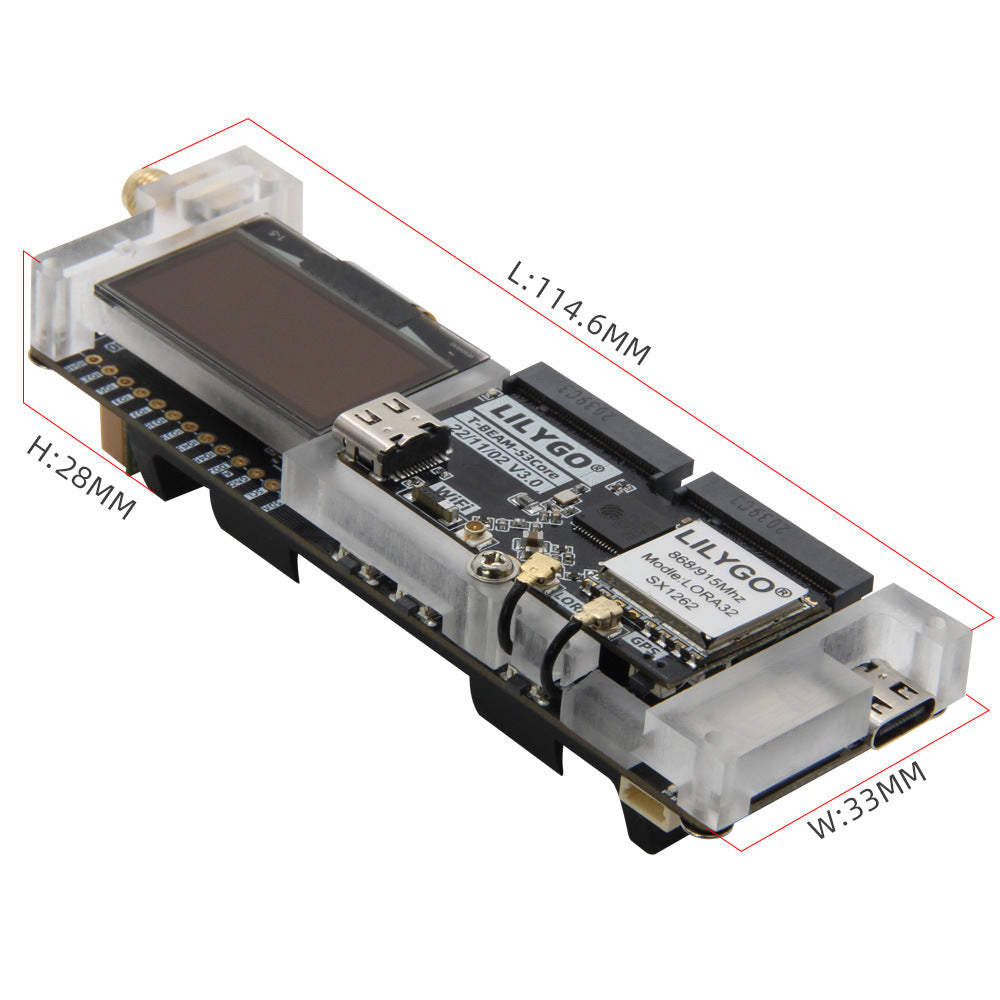

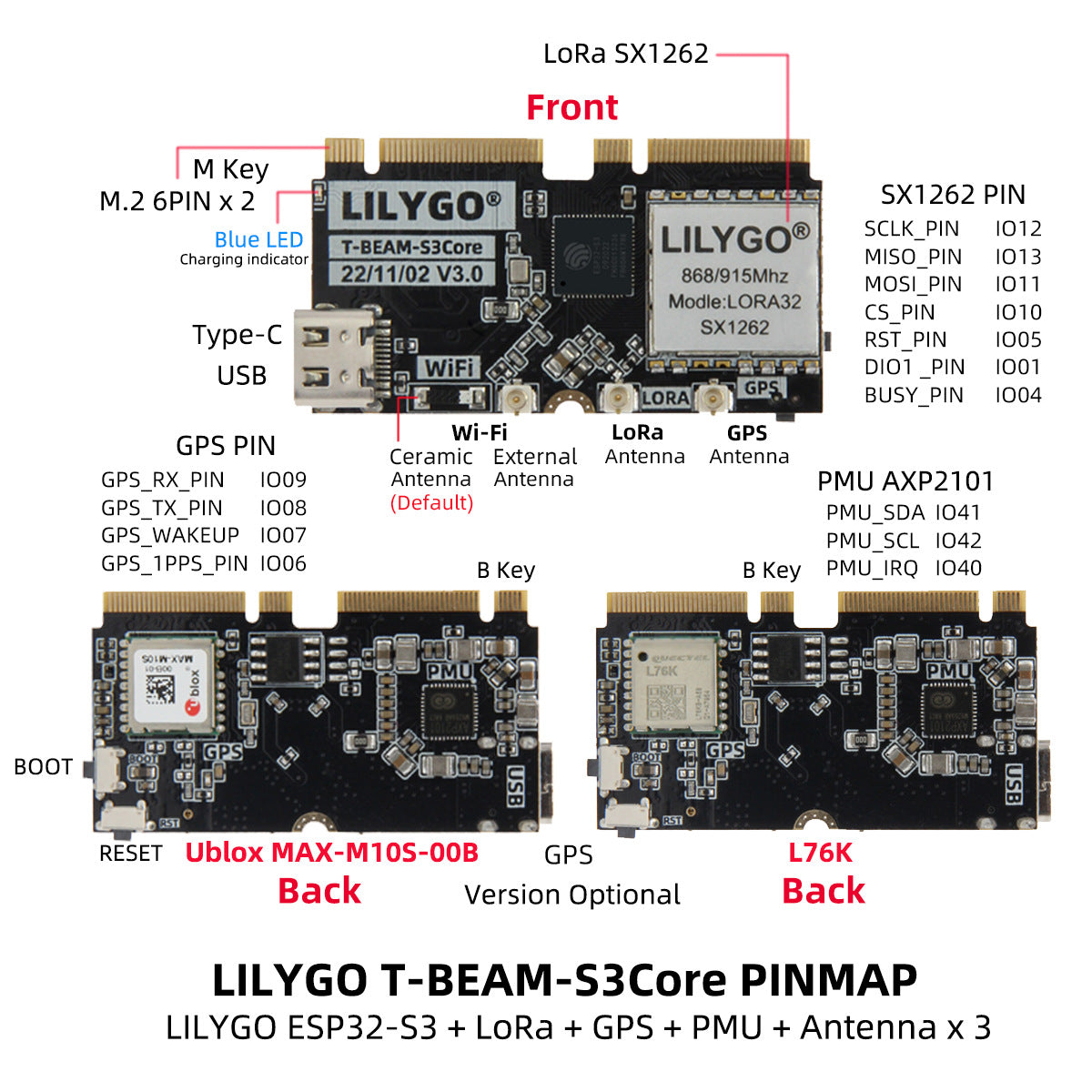

LILYGO® T-Beam SUPREME ESP32-S3+LoRa+GPS+OLED

Key Features:

• Processor: ESP32-S3FN8 with Tensilica Xtensa dual-core LX7 microprocessor
• Wireless Connectivity: Supports Wi-Fi 802.11 b/g/n and Bluetooth V5.0
• Programming Environment: Compatible with Arduino-IDE, Micropython, and VS Code

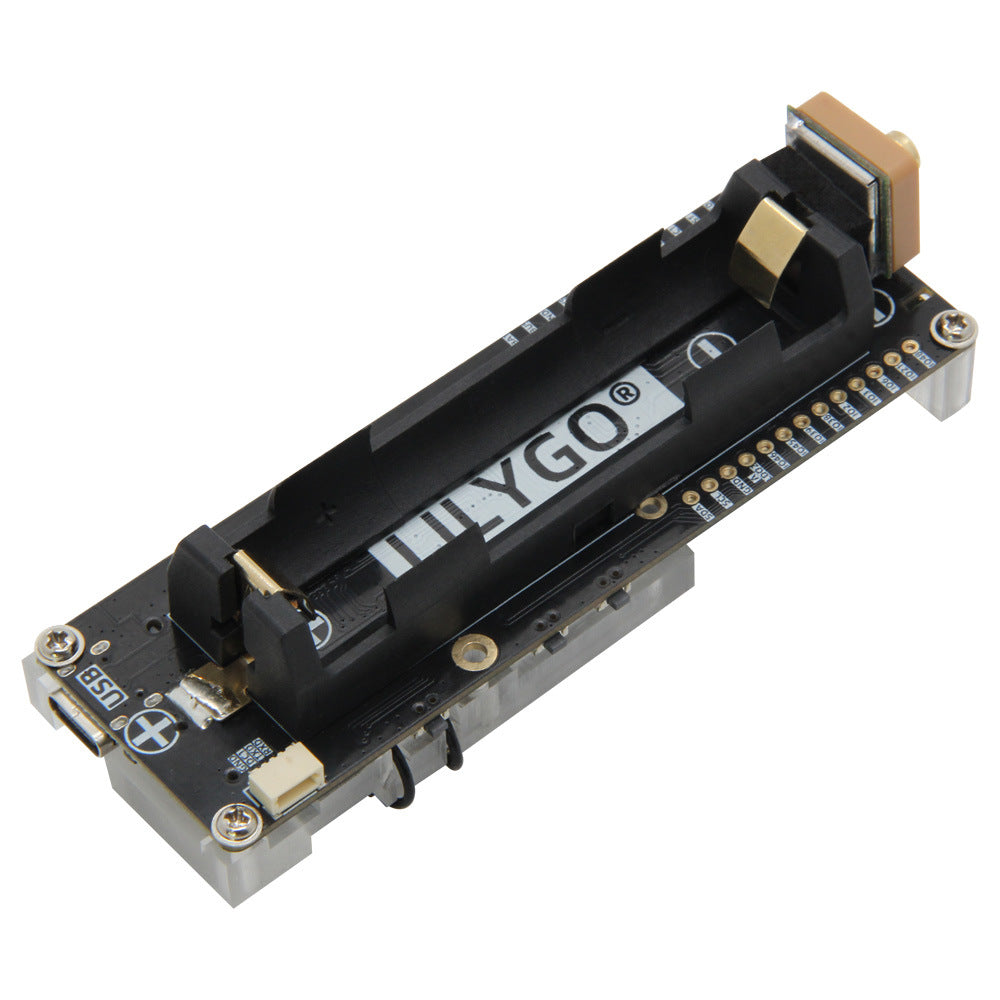

• Board Functions: Buttons (Boot, Reset, Power), supports 3.7V 18650 battery
• Sensors: Integrated six-axis sensor QMI8658
• Memory: 8MB PSRAM and 8MB FLASH

Display Module:

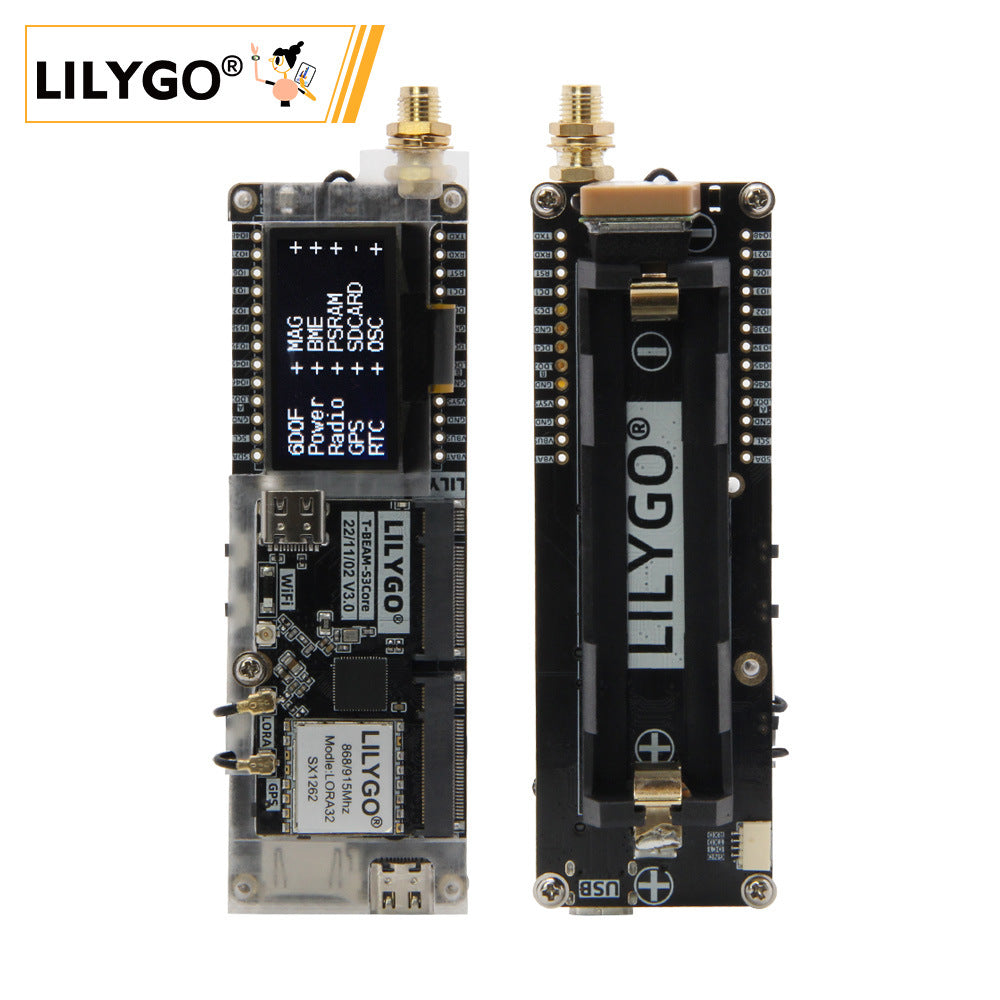

• 1.3-inch SH1106 OLED screen
• I2C interface, 128 x 64 resolution

LoRa Module:

• LoRa SX1262, low power, high sensitivity
• Frequency options: 433/868/915MHz

GNSS Module Options:

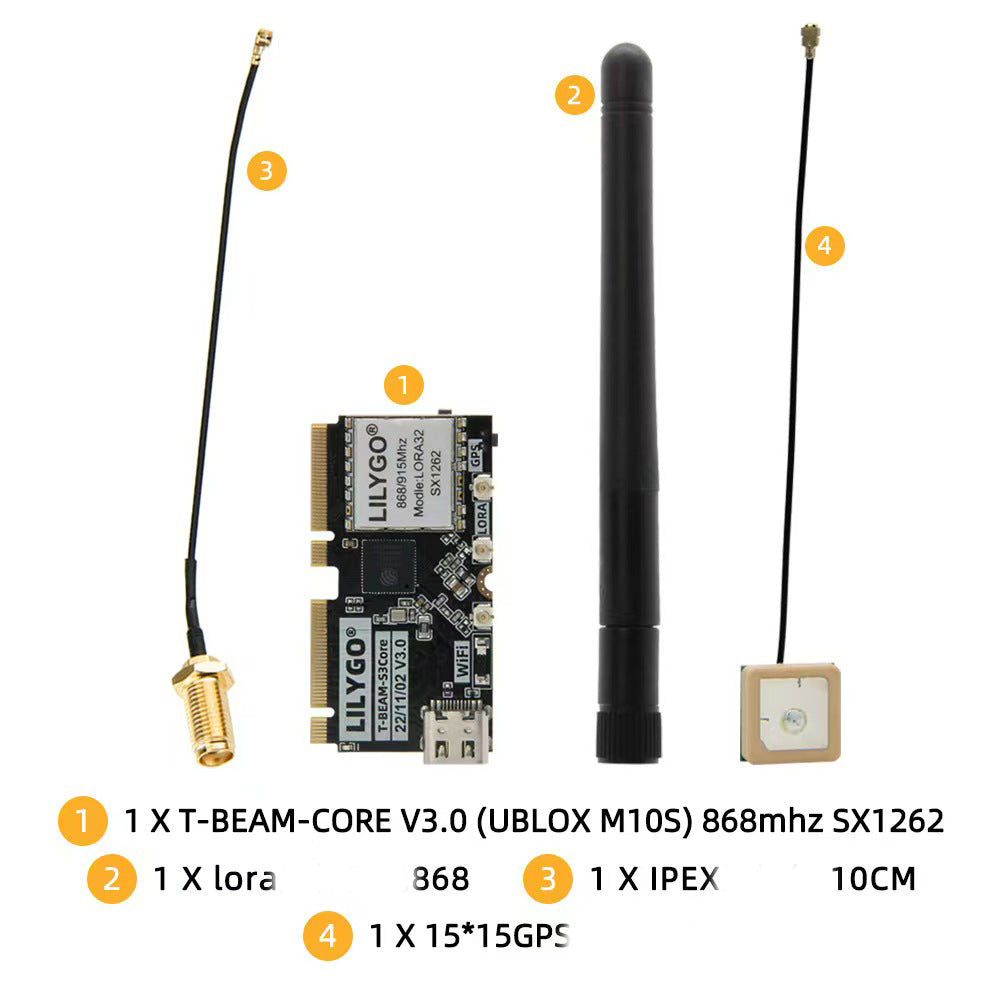

• Ublox MAX-M10S-00B (Professional grade, supports multiple systems in parallel, up to 18Hz refresh rate, with TCXO)

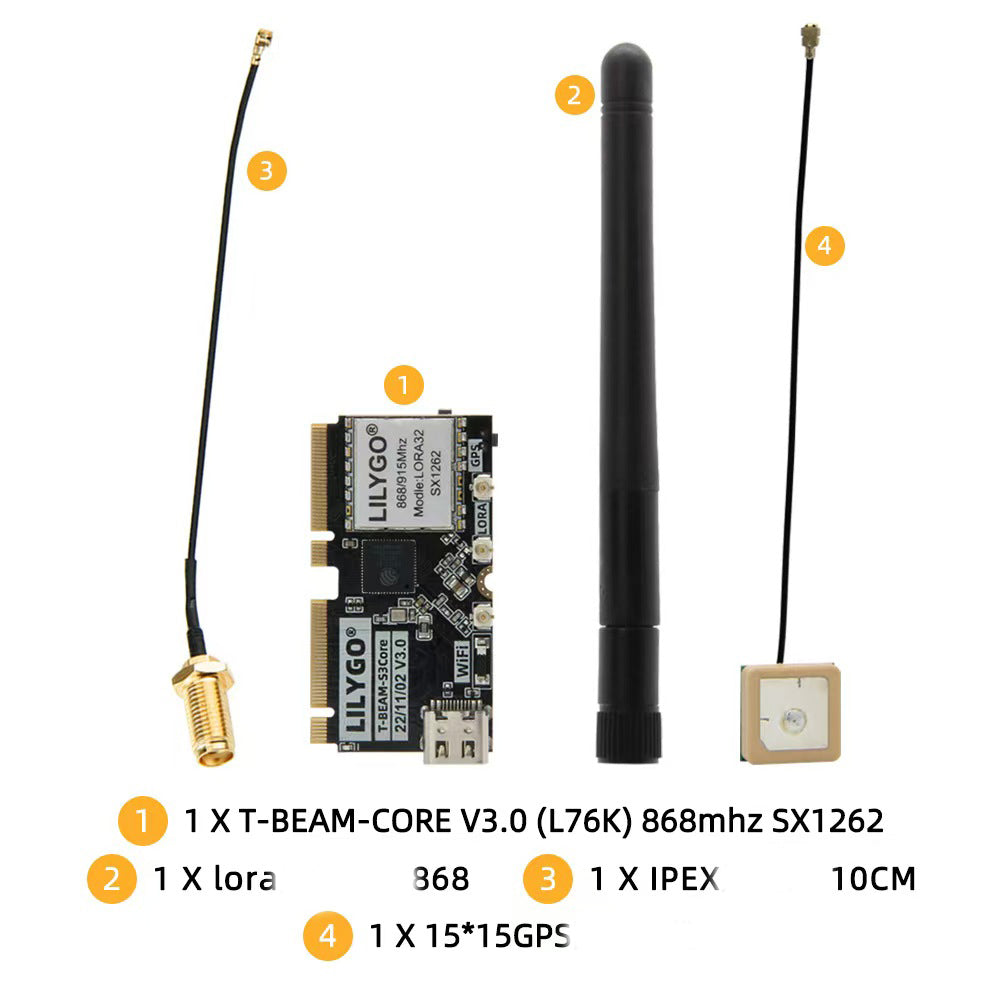

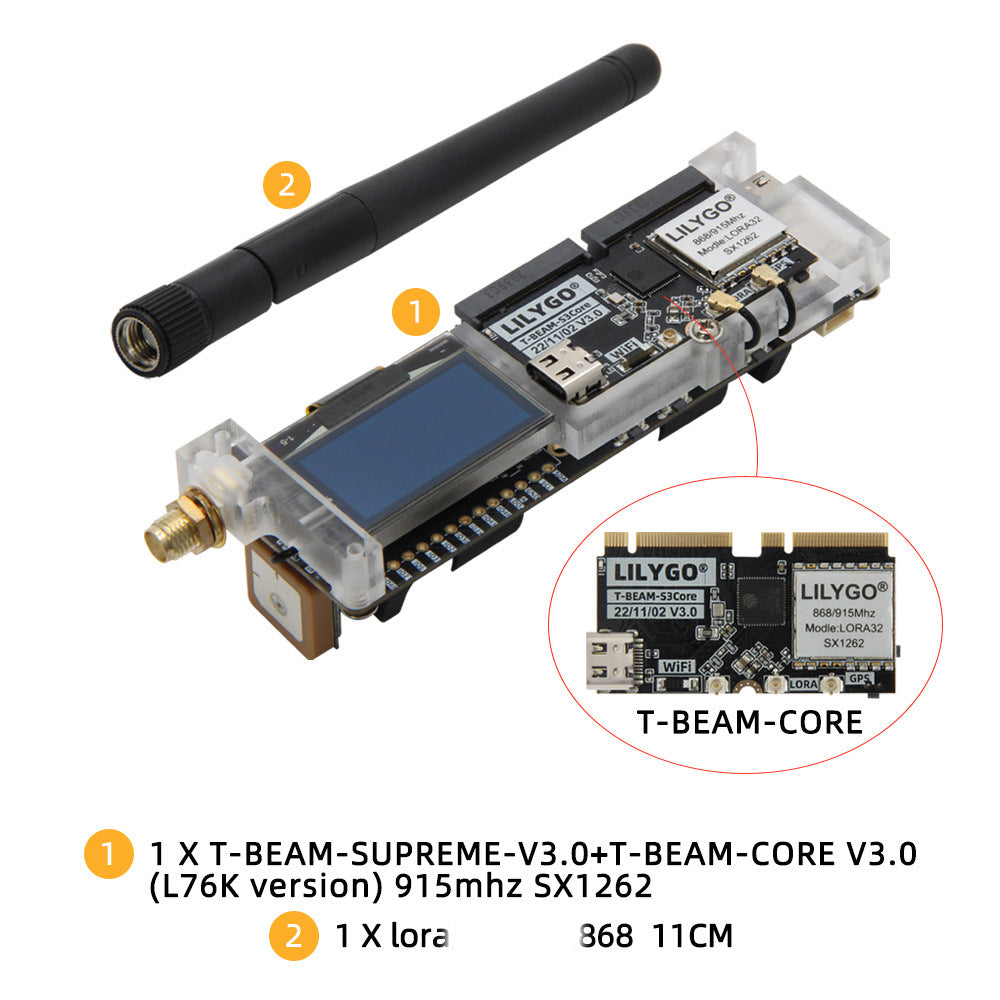

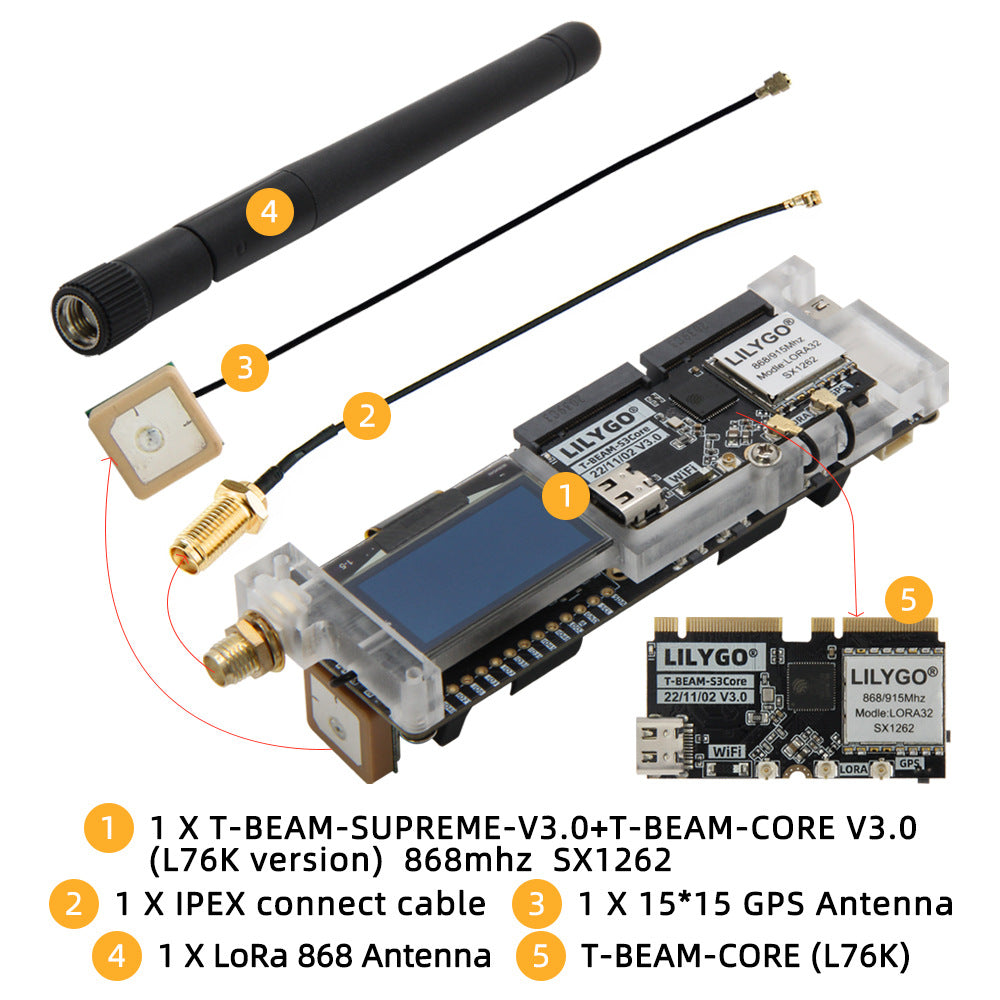

• L76K (Standard grade, supports 2 GNSS systems simultaneously)

Applications: Ideal for IoT, remote control, and outdoor positioning applications.
