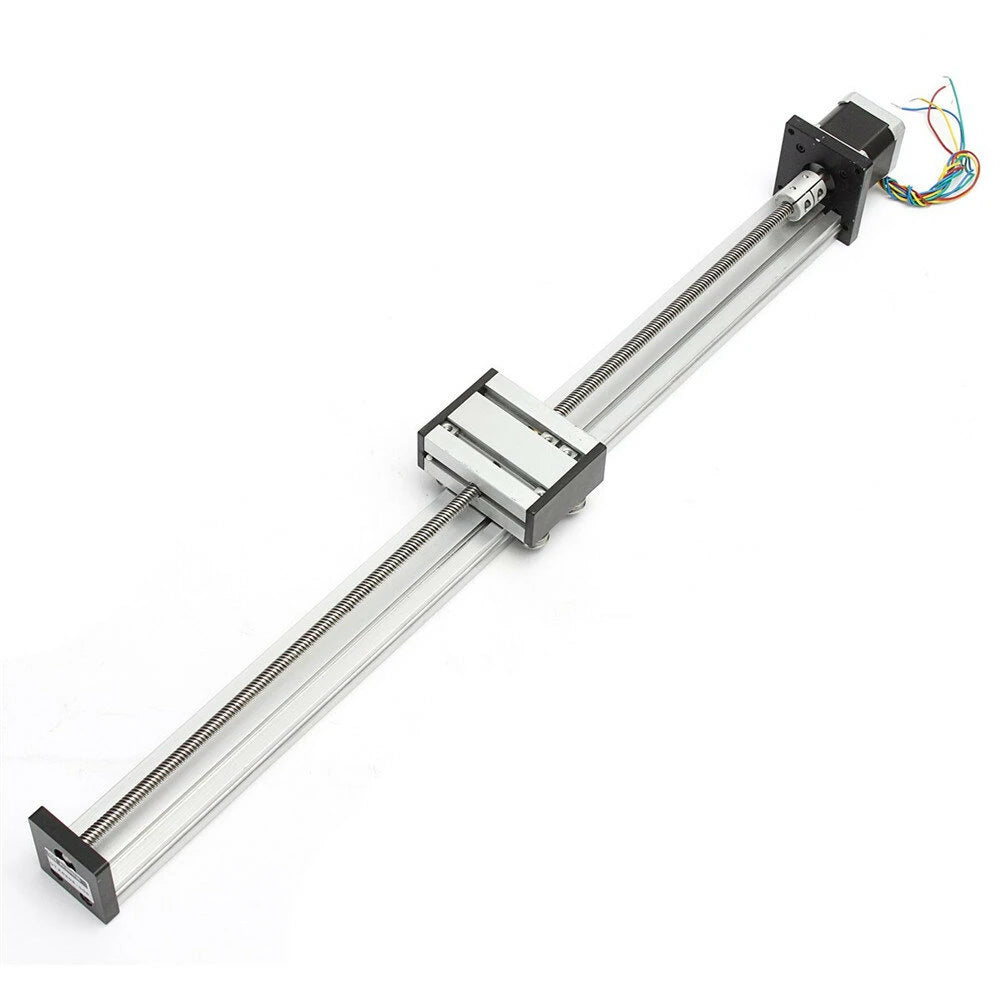

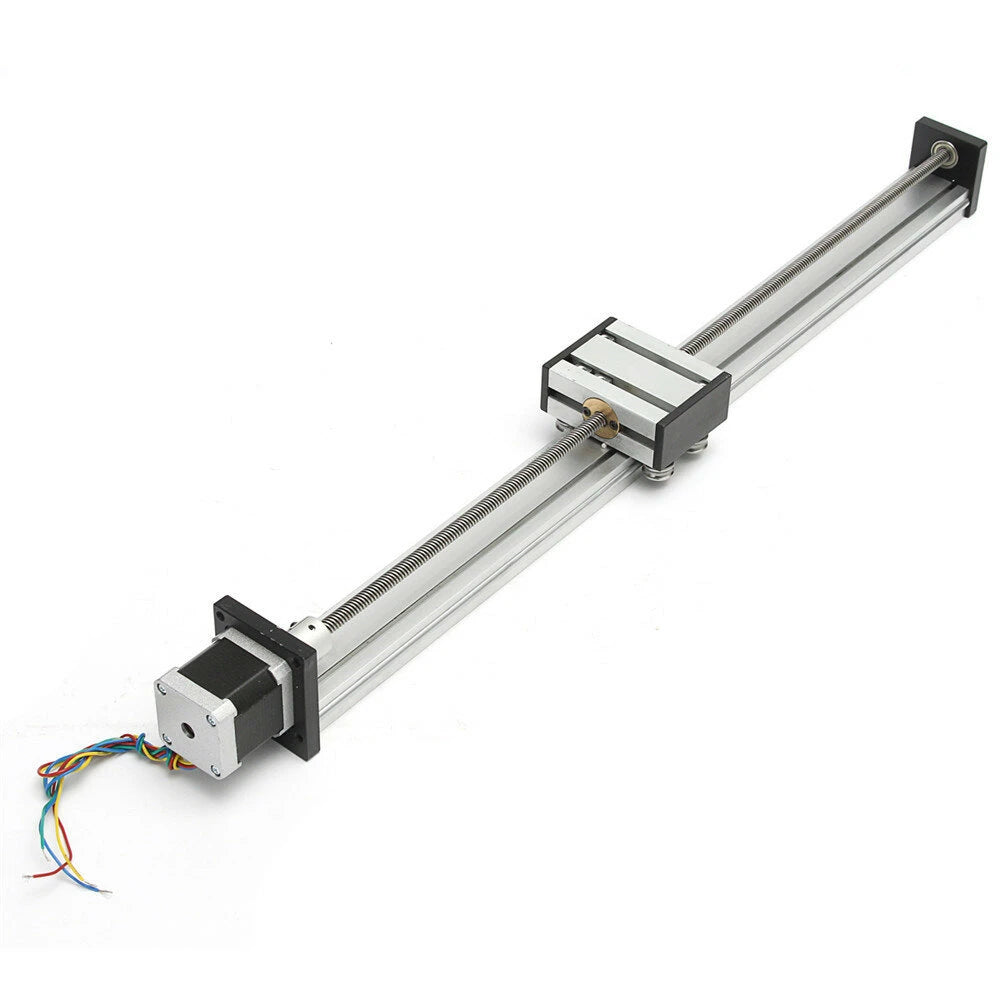

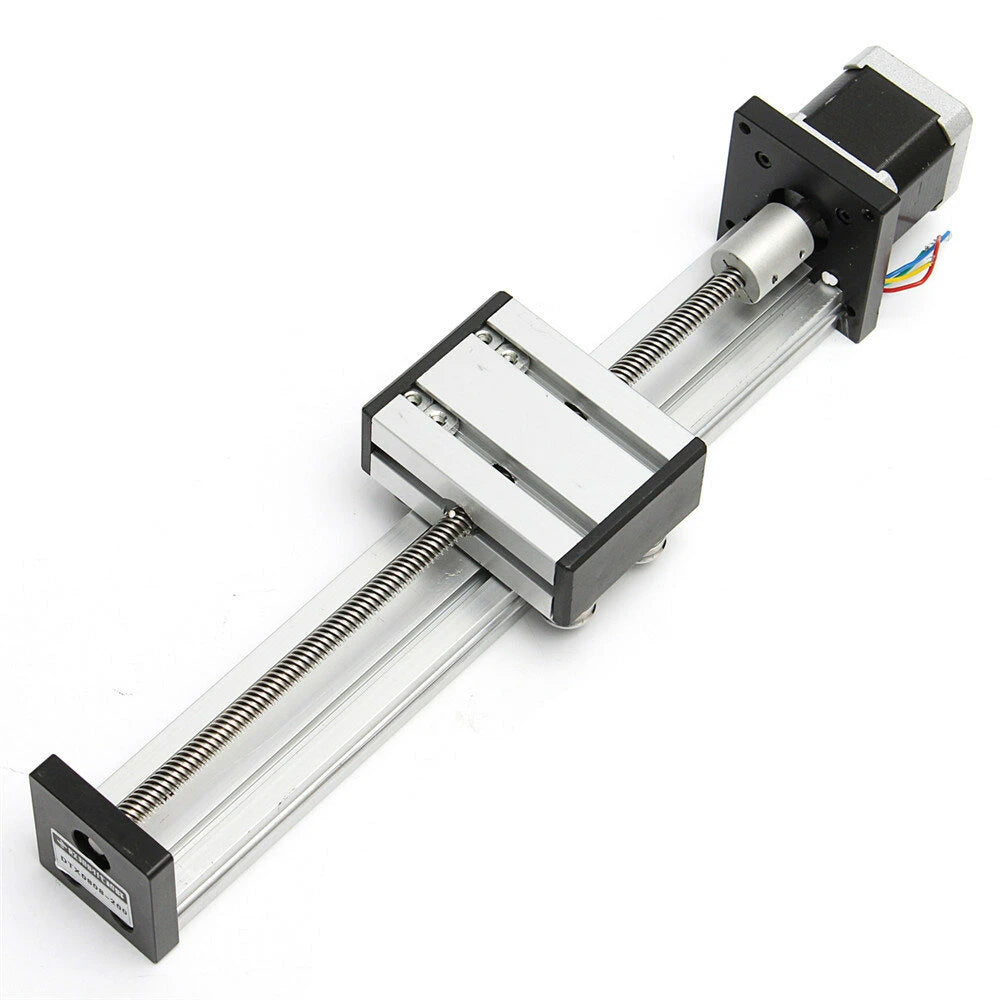

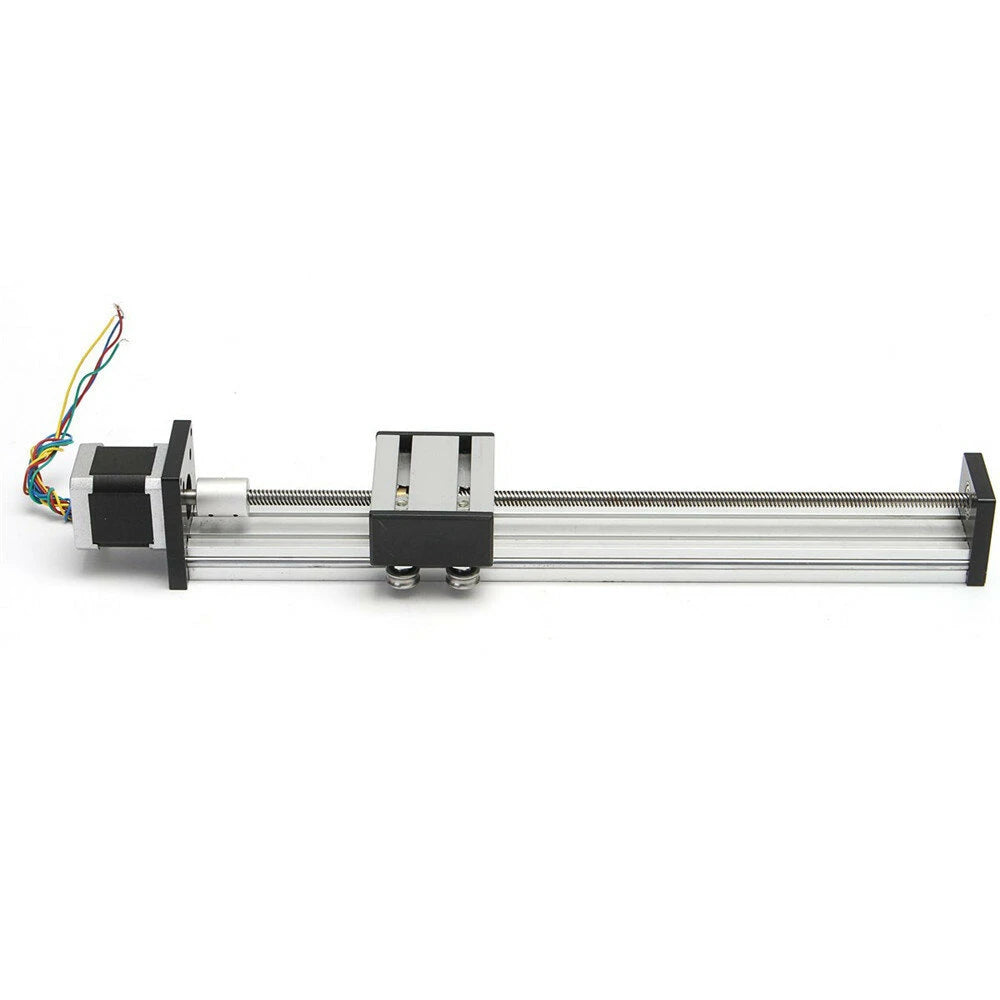

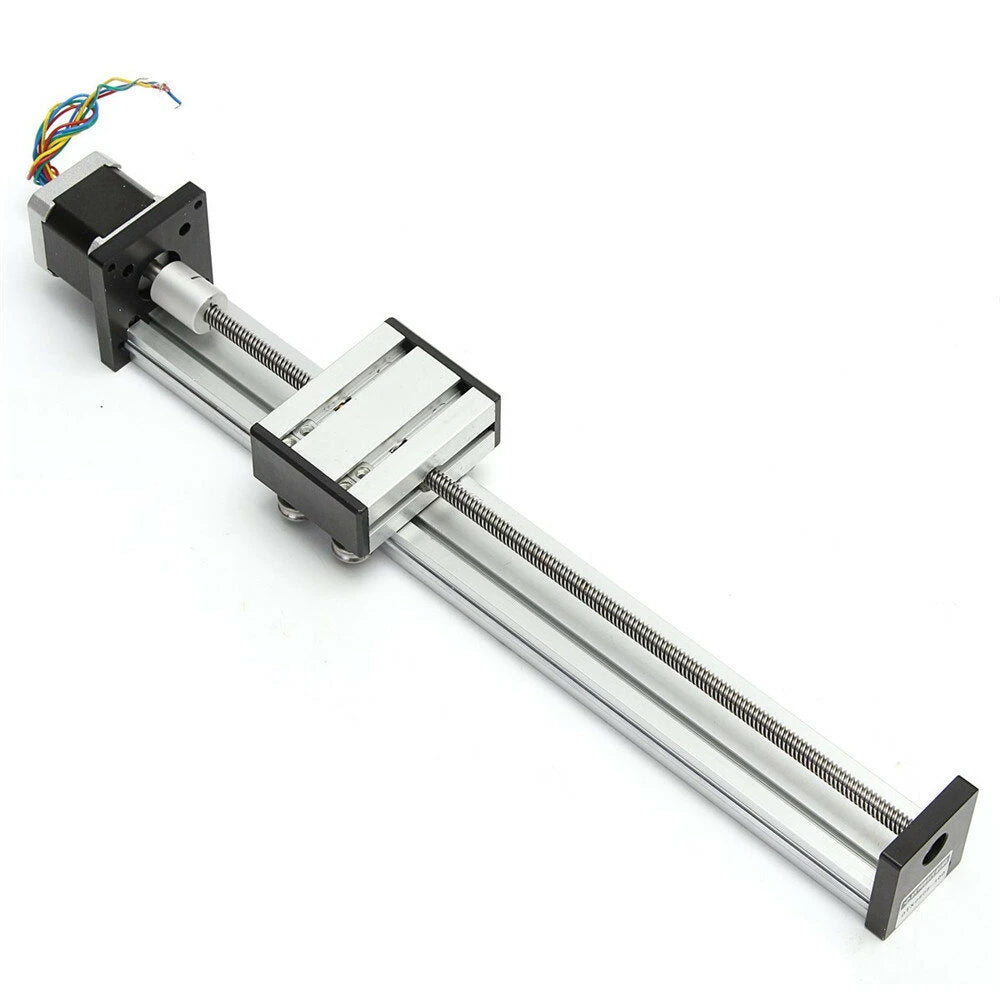

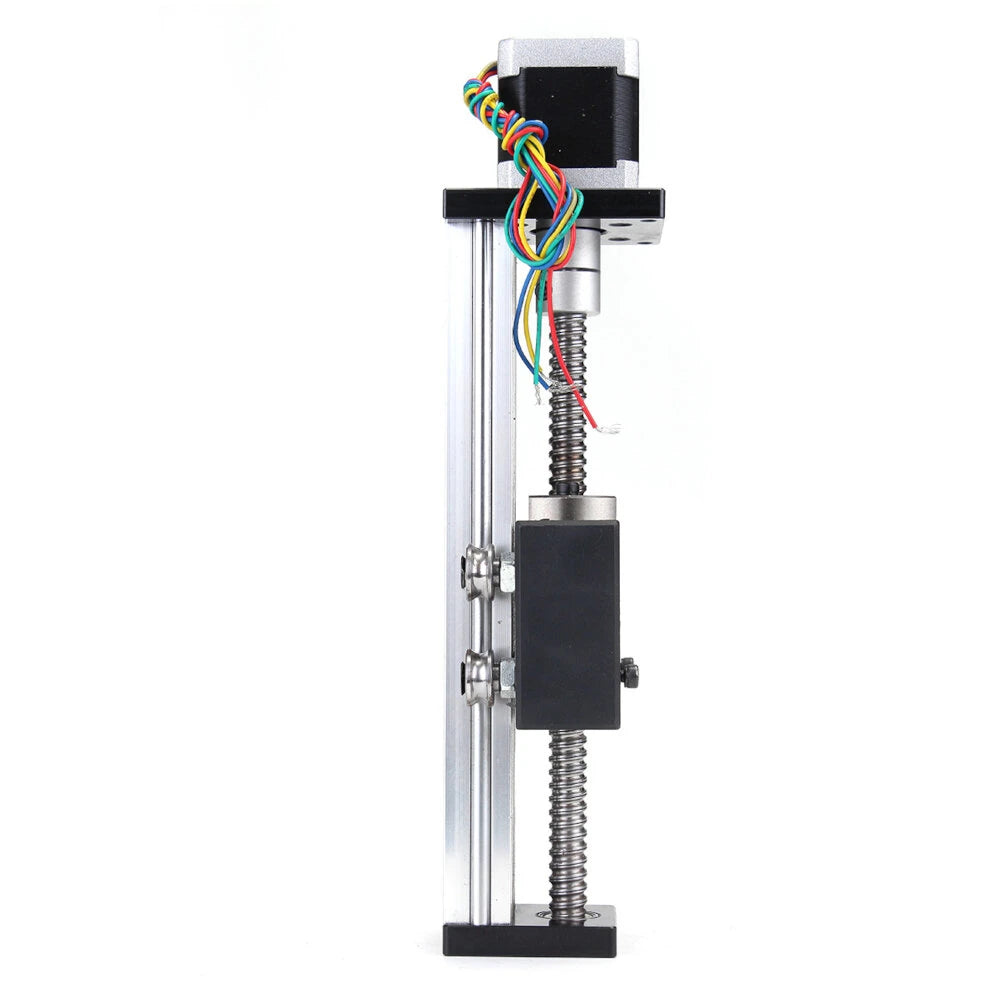

Machifit 100-500mm Stroke Linear Actuator CNC Linear Motion Lead Screw Slide Stage with Stepper Motor

Description:
100-500mm Stroke Linear Actuator CNC Linear Motion Lead Screw Slide Stage with Stepper Motor
Specifications:
Product Name: Stroke Actuator
Material: Aluminum Alloy
Size
270*50mm
350*64*50mm
450*64*50mm
550*64*50mm
650*64*50mm

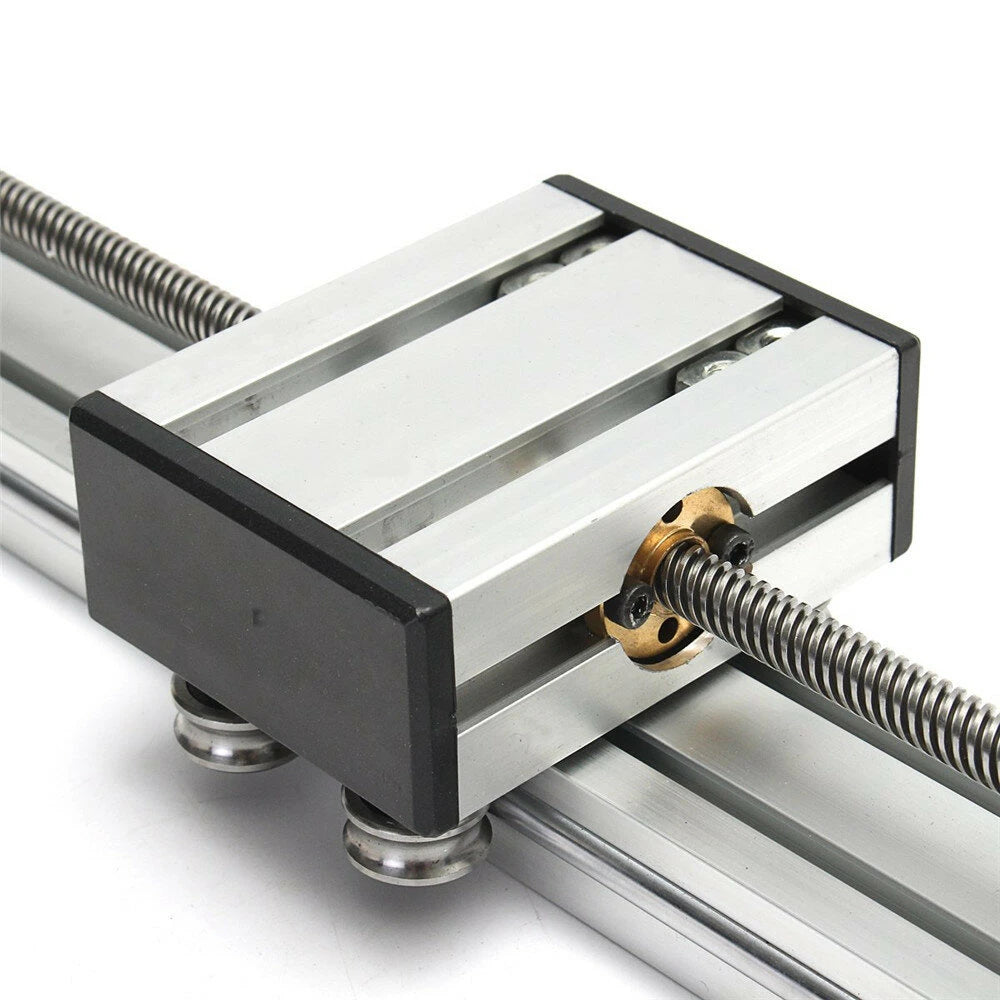

Slide Width
40mm
78mm
78mm
78mm
78mm
The Number of Slider
1
Horizontal Load
20kg
56kg
56kg
56kg
56kg
Vertical Load
8kg
15kg
15kg
15kg
15kg

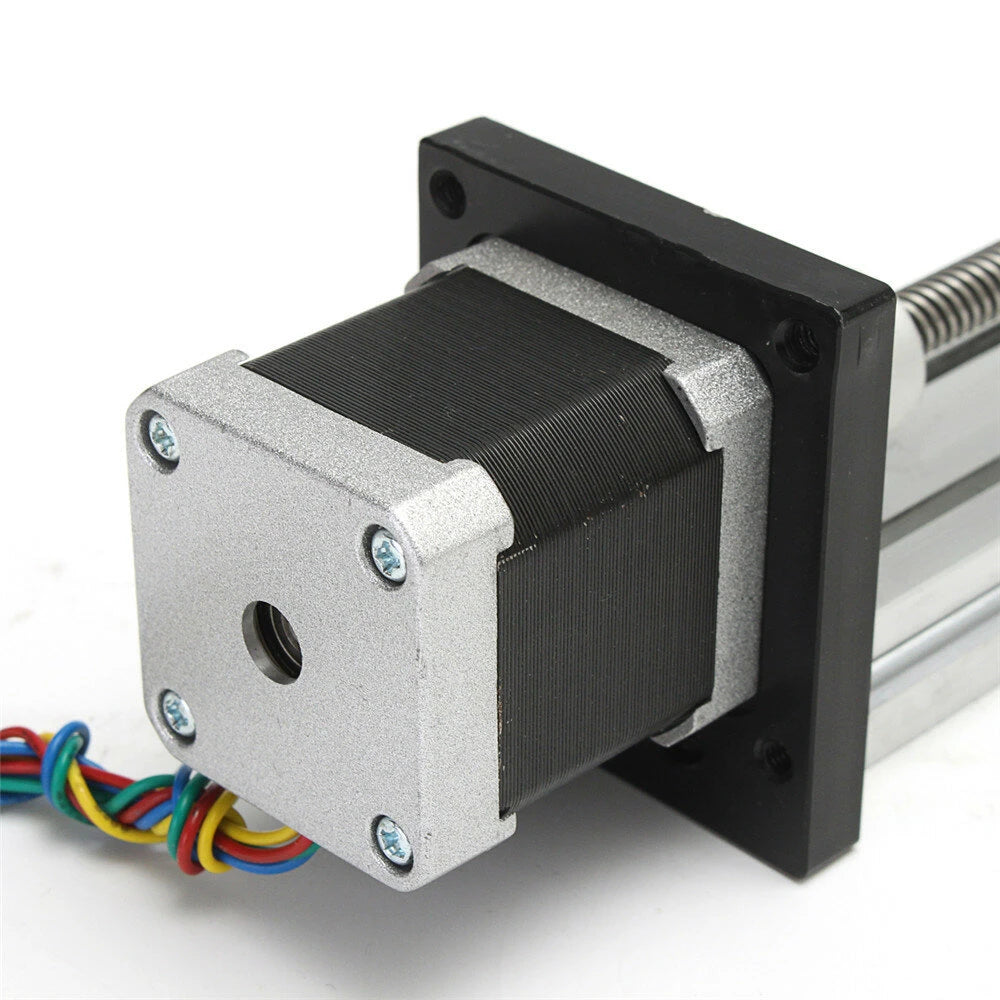

Current
1.2A
Voltage
12V
Resistance
3.2ohms
Step Angle
1.8°
Torque
45N.cm
Accuracy
0.01mm
Round Trip Accuracy
0.05-0.08mm
0.1-0.5mm
0.1-0.5mm
0.1-0.5mm
0.1-0.5mm
Ambient Temperature
-10-50℃
Slide Stroke
0-100mm
0-200mm
0-300mm
0-400mm
0-500mm
Quantity
1 Pc × Stroke Actuator
Features:
-Horizontal load 56KG, vertical (pull) load 15KG.
-High precision, heavy load resistance.
-Long life, low coefficient of friction, versatility.

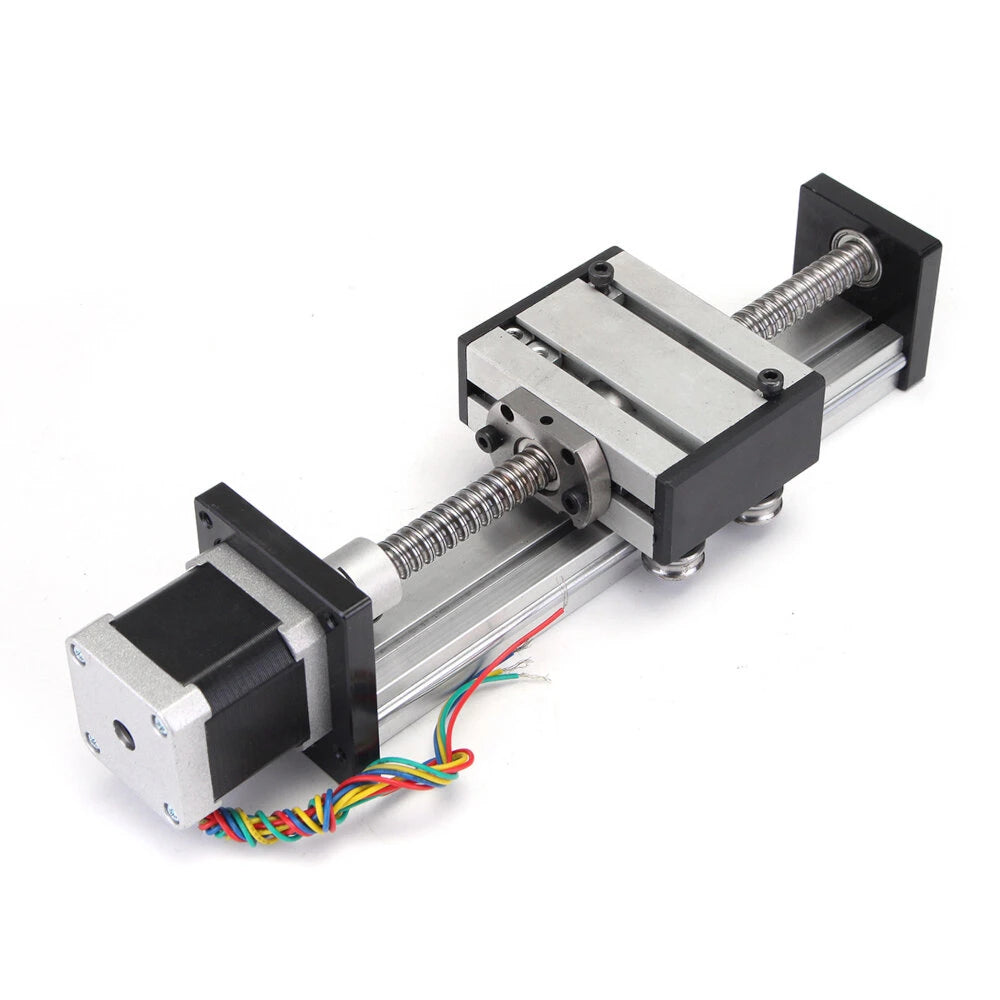

-The ball screw consists of a screw, nut and ball. The rotation movement into a linear motion, with a small frictional resistance.
Package Included:
1 Pc × Stroke Actuator (100/200/300/400/500mm Optional)
