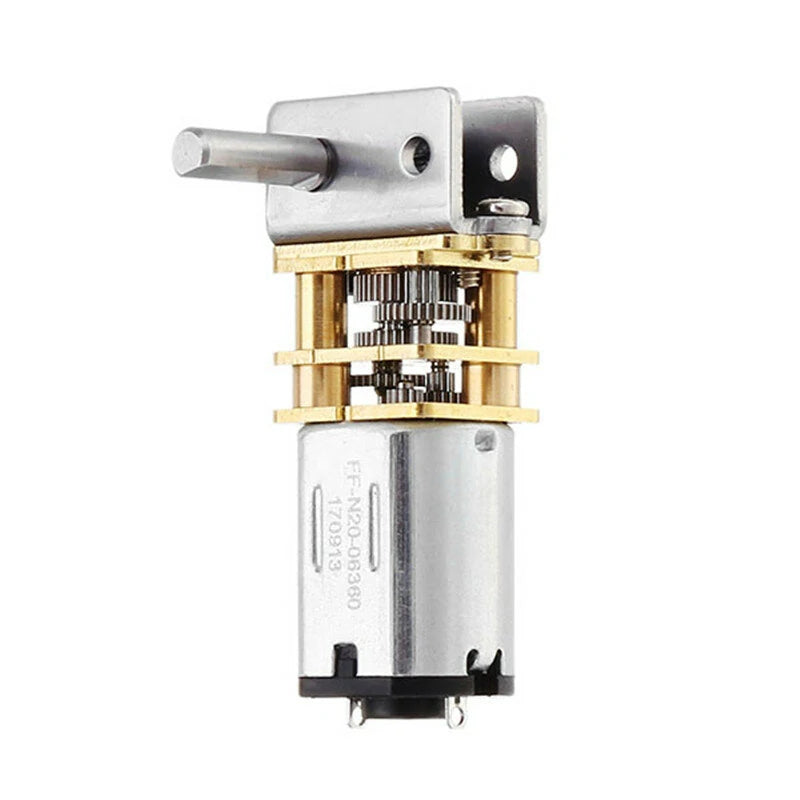

GM12-N20VA DC 6V 18rpm Worm Gear Motor Gear Box Worm Reducer Electric Motor

Description:
GM12-N20VA DC 6V 18rpm Worm Gear Motor Gear Box Worm Reducer Electric Motor
Specification:
ModelCHW-GM12-N20VA
VoltageDC 6V
Max power0.6W
Ratio1:900
No-load current≤ 70mA
No-load speed18rpm
Rated torque3.0kg.cm
Rated-load speed12rpm
Rated-load current≤ 0.25A
Stall torque≥ 4.0kg.cm
Stall current≤ 0.65A
Features:
This type is a miniature DC worm gear motor, reversible, variable and self-lock.
With self-locking function, the output shaft can't be rotated by certain force when switching off.
Gearbox output shaft and motor shaft are 90 degrees, it's widely used in various of occasions that require special install size.
According to these characteristics, worm gear motors are widely used in windows and doors opening and household electrical appliances, car model, boat model,
robot model, DIY engine, Industry application, house application, home automation, mini winch and other occasions.
Note:
Torsion of motor is too large. Frenquent start-up or blockage of motor is prohibited.
Package Included:
1 x GM12-N20VA Worm Gear Motor
