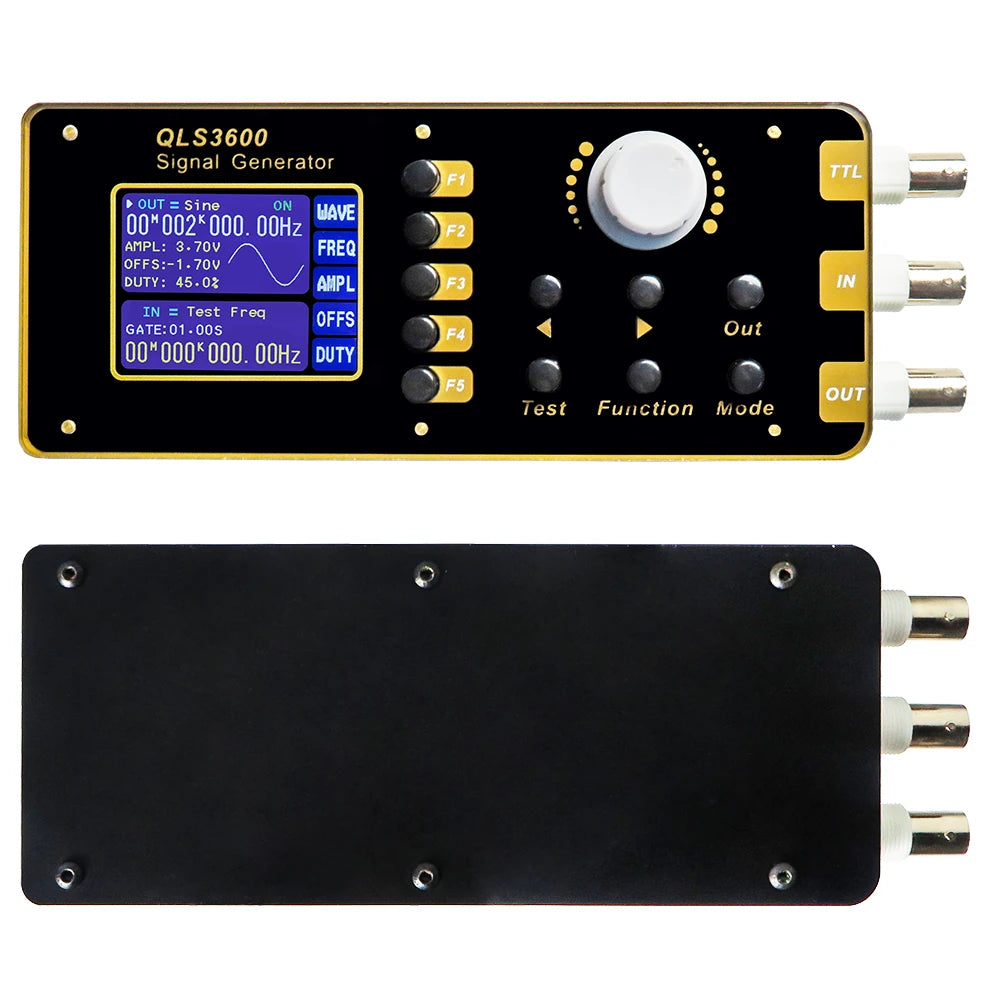

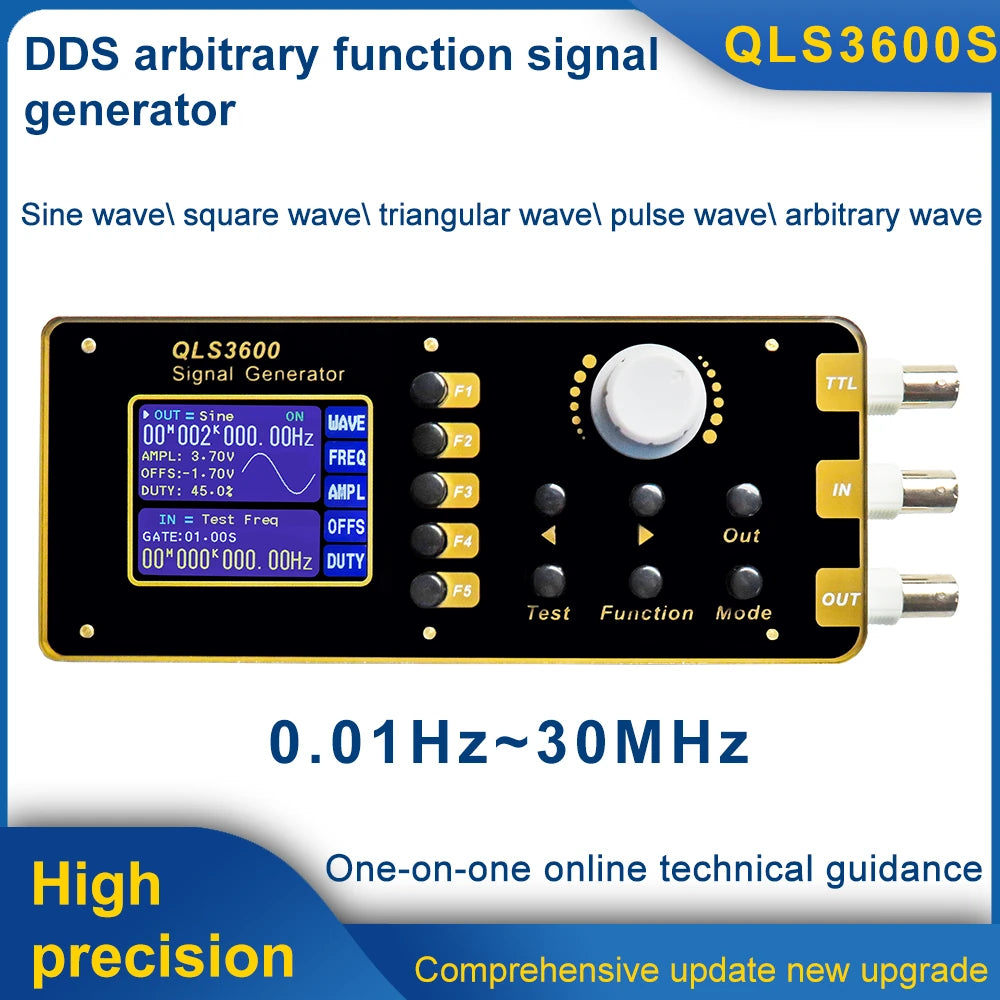

QLS3600S Signal Generator

Specifications

• Model: QLS3600S
• Frequency Range:
  • Sinusoidal Wave: 0Hz – 30MHz (varies by model)
  • Square, Triangular, Sawtooth, and Arbitrary Waves: 0Hz – 10MHz
• Output Modulation: Frequency sweep, burst, VCO
• Amplitude Range: 10mVp-p to 10Vp-p
• Output Impedance: 50Ω ±10%
• Frequency Stability: ±5 × 10⁻⁶
• Harmonic Offset:
  • < 35dBc (1MHz – 5MHz)
• Interface: USB to serial interface, 57600 bps communication rate
• Power Source: DC 5V (with overvoltage protection)
• Dimensions: 187 × 71 × 24 mm
• Weight: 220g

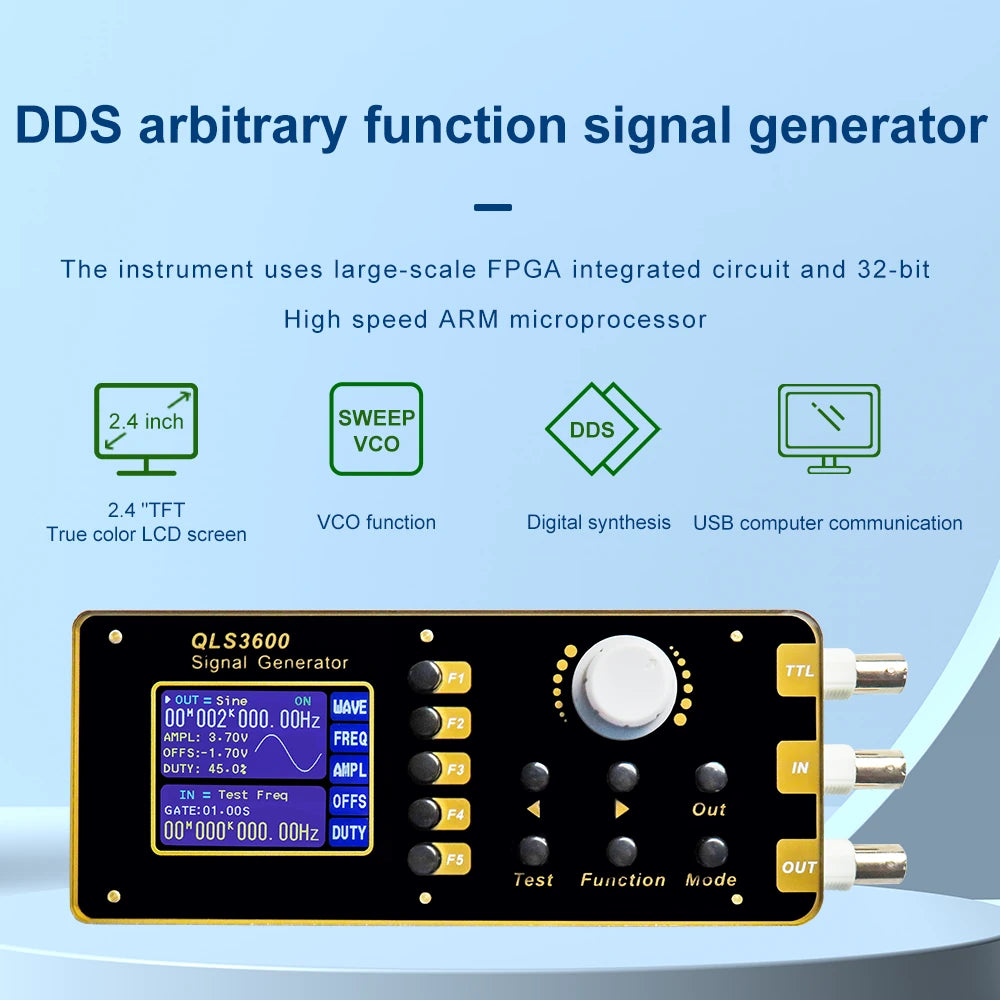

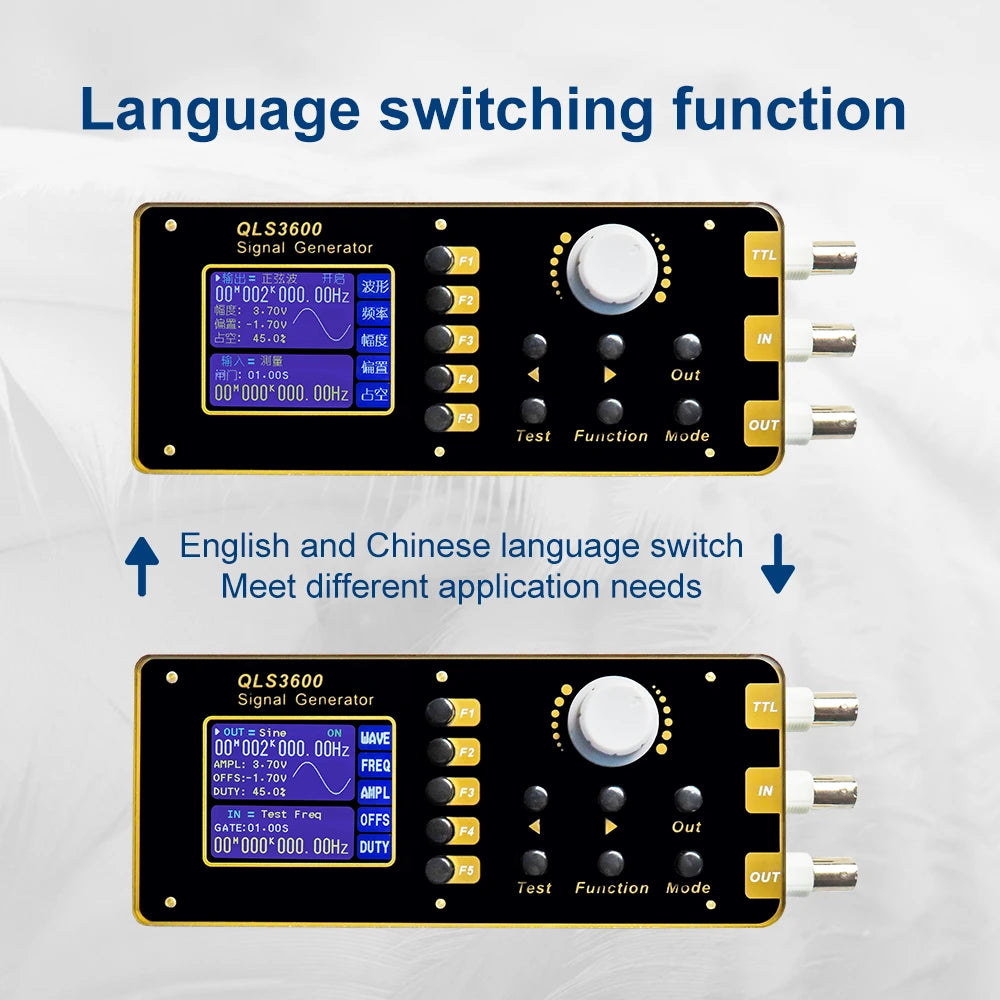

Features

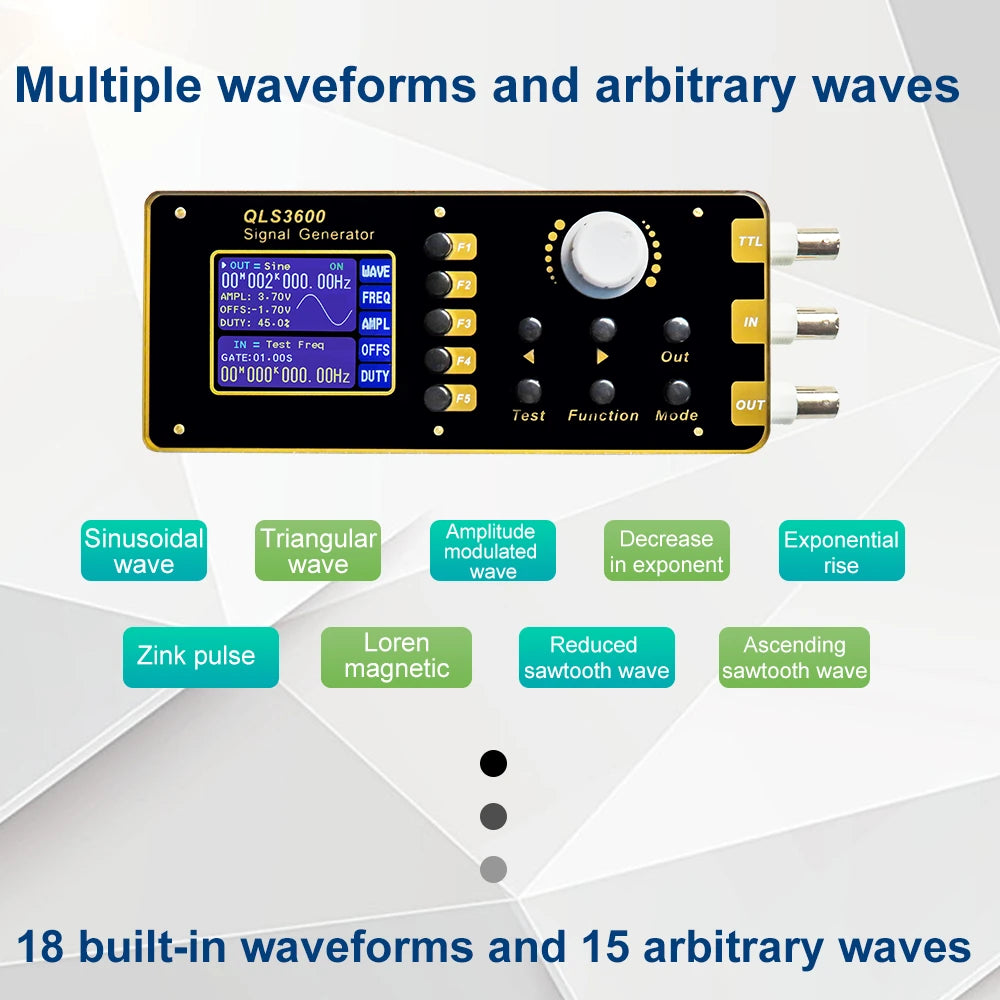

• Multiple Waveform Types: Generates sine, square, triangle, sawtooth, and arbitrary waves, including user-defined waves.
• High Stability: Frequency stability reaching up to ±5 × 10⁻⁶ ensuring precision in output.
• Wide Frequency Range: Supports a frequency range from 0Hz to 30MHz depending on the waveform type.
• Accurate Amplitude Control: Amplitude range of 10mVp-p to 10Vp-p with an error margin of ±1% 10mV.
• Comprehensive Output Modulation: Offers frequency sweep, burst, and VCO for versatile applications.

Package Included

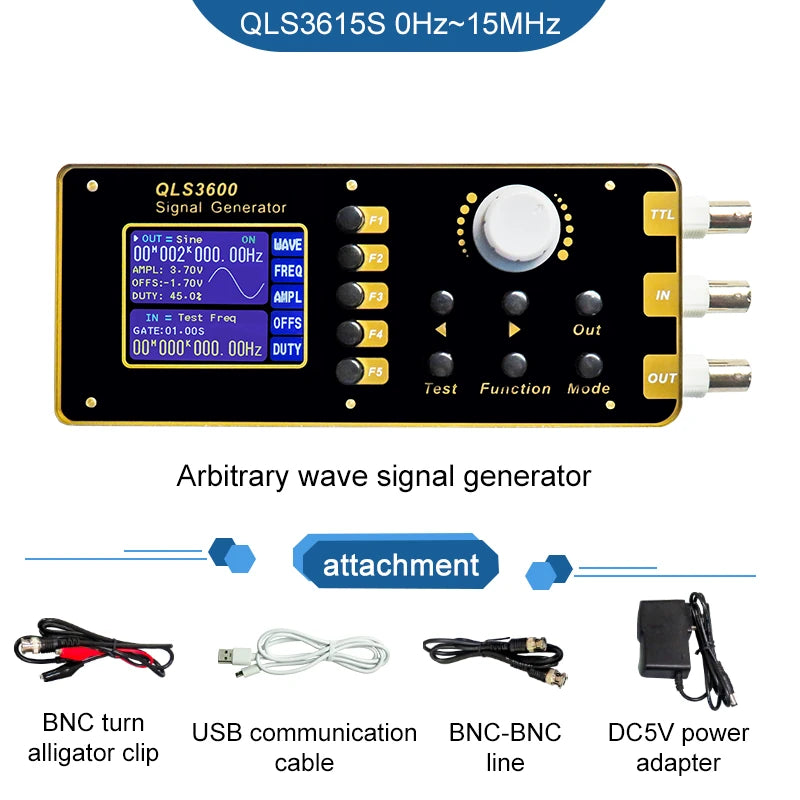

• Type A:
  • 1 x QLS3600S Signal Generator (0~5MHz)
  • 1 x DC 5V Power Adapter
  • 1 x BNC-BNC Line
  • 1 x USB Communication Cable
  • 1 x BNC to Alligator Clip
• Type B:
  • 1 x QLS3600S Signal Generator (0~10MHz)
  • 1 x DC 5V Power Adapter
  • 1 x BNC-BNC Line
  • 1 x USB Communication Cable
  • 1 x BNC to Alligator Clip
• Type C:
  • 1 x QLS3600S Signal Generator (0~15MHz)
  • 1 x DC 5V Power Adapter
  • 1 x BNC-BNC Line
  • 1 x USB Communication Cable
  • 1 x BNC to Alligator Clip
• Type D:
  • 1 x QLS3600S Signal Generator (0~20MHz)
  • 1 x DC 5V Power Adapter
  • 1 x BNC-BNC Line
  • 1 x USB Communication Cable
  • 1 x BNC to Alligator Clip
• Type E:
  • 1 x QLS3600S Signal Generator (0~30MHz)
  • 1 x DC 5V Power Adapter
  • 1 x BNC-BNC Line
  • 1 x USB Communication Cable
  • 1 x BNC to Alligator Clip
