High-Precision SMART SENSOR Battery Voltage & Internal Resistance Tester with USB & Mobile Connectivity

Product Features

• Versatile Battery Testing: Suitable for various batteries, including lithium, lead-acid, alkaline, carbon, and button batteries.
• Temperature & Internal Resistance Measurement: Offers temperature measurement from -10.0°C to 60.0°C and battery internal resistance measurement ranging from 0.000mΩ to 3.100Ω with high precision.
• Accurate Voltage Measurement: Utilizes resistor voltage divider, noise filtering, and ADC sampling for precise voltage readings from 0.000V to ±100.00V.
• Computer Connectivity for Data Management: Connects via USB to transfer measurement records and synchronize time, enhancing record-keeping and data analysis.
• Wireless Operation with Mobile App: Supports Bluetooth connection with Android devices (5.0 or above) allowing for wireless measurement and data viewing through a dedicated app.
• Customizable Threshold Settings: Set thresholds for test results (FAIL, WARNING, PASS) to enhance testing efficiency and accuracy.
• Eco-Friendly Power Source: Features a built-in rechargeable lithium battery, eliminating the need for frequent replacements and promoting environmental sustainability.

Specifications

• Model: ST9001
• Material: ABS
• Resistance Measurement:
• 3mΩ, 1uΩ, ±1%fs, ±20dgt
• 30mΩ, 10uΩ, ±0.5%fs, ±15dgt
• 300mΩ, 100uΩ, ±0.5%fs, ±15dgt
• 3Ω, 1mΩ, ±0.5%fs, ±15dgt
• Voltage Measurement: 0.000V to ±100.00V, resolution 1 mV
• Temperature Measurement: -10.0°C to 60.0°C, resolution 0.1°C
• Noise Avoidance Frequency: Automatic frequency conversion 920Hz - 1080Hz
• Measurement Method: 1KHz AC 4-terminal test with an open terminal voltage of 3V max
• USB & Bluetooth Connectivity: Allows data transfer and wireless functionality
• Power Consumption: 300mA MIN / 500mA MAX
• Working & Storage Conditions: Temperature -10°C to 40°C; below 80%RH for operation, -20°C to 60°C; below 70%RH for storage
• Item Dimensions & Weight: 190 x 121 x 51mm; 482g
• Package Details: Weight 2200g, Size 37 x 32 x 14.7cm

Package Includes

• 1 x Battery Resistance Tester
• 1 x CD
• 1 x Adapter
• 1 x USB Cable

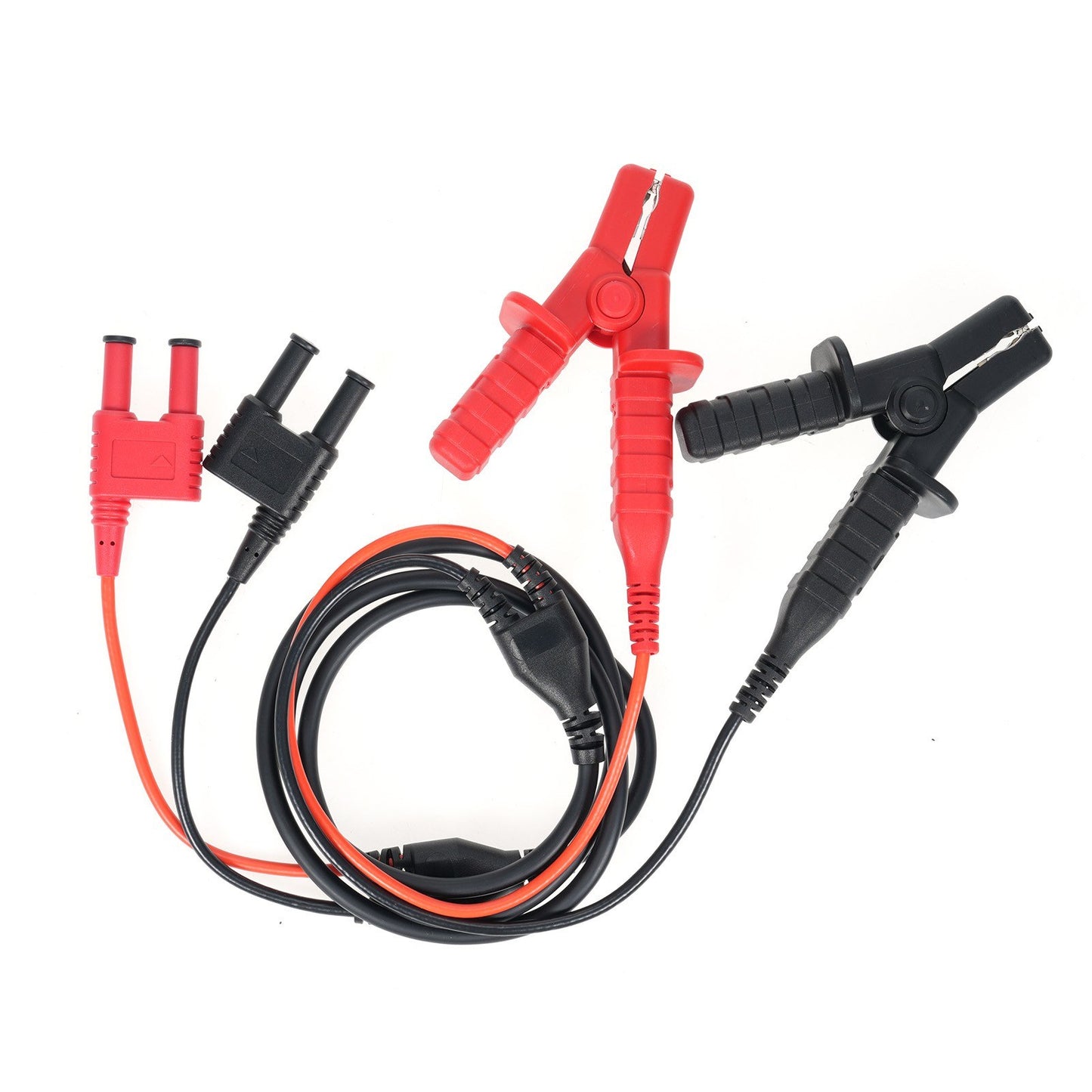

• 2 x Test Cables
• 1 x Carrying Case
• 1 x User Manual (English)
