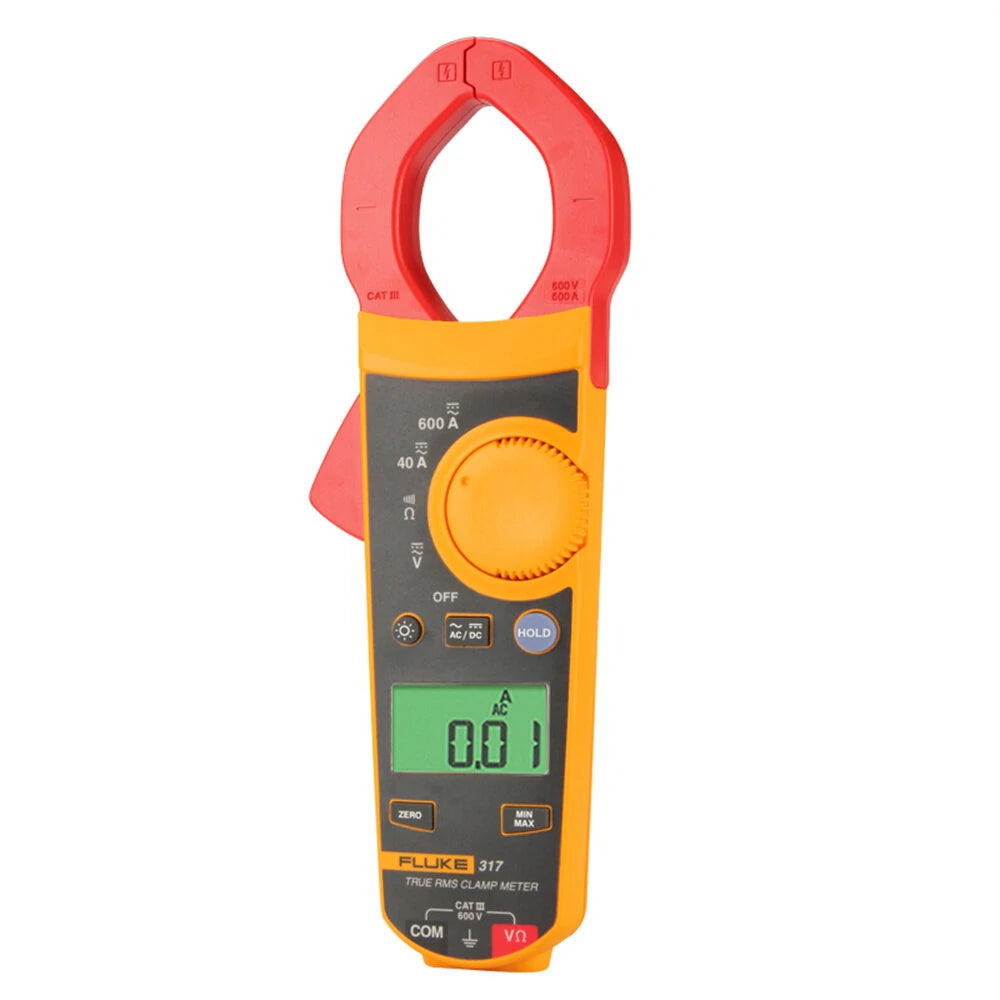

Fluke 317 True RMS Digital Clamp Meter AC/DC Multimeter Tester

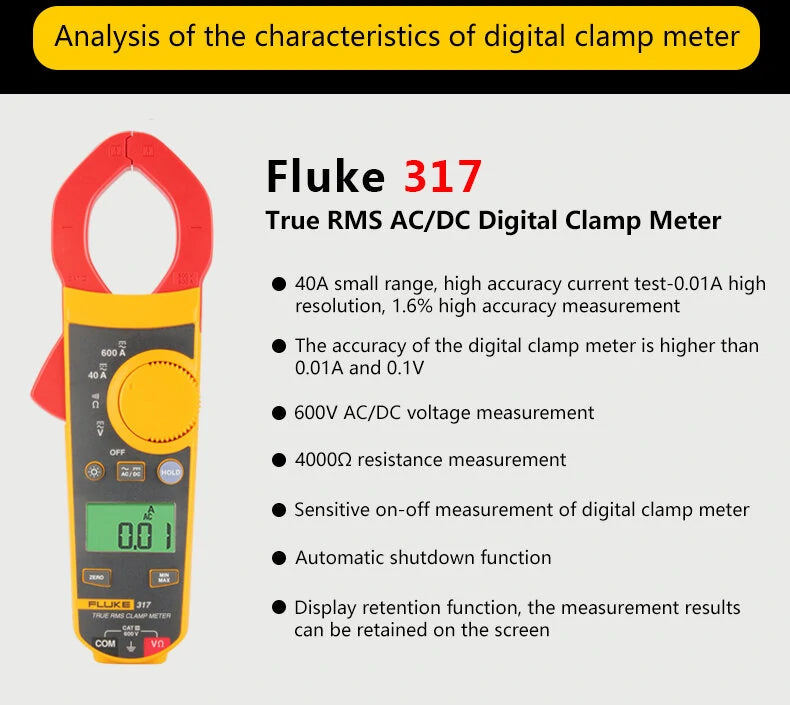

Product Features

• Unique 40A small range with high accuracy current test, featuring 0.01A high resolution and 1.6% high precision measurement.

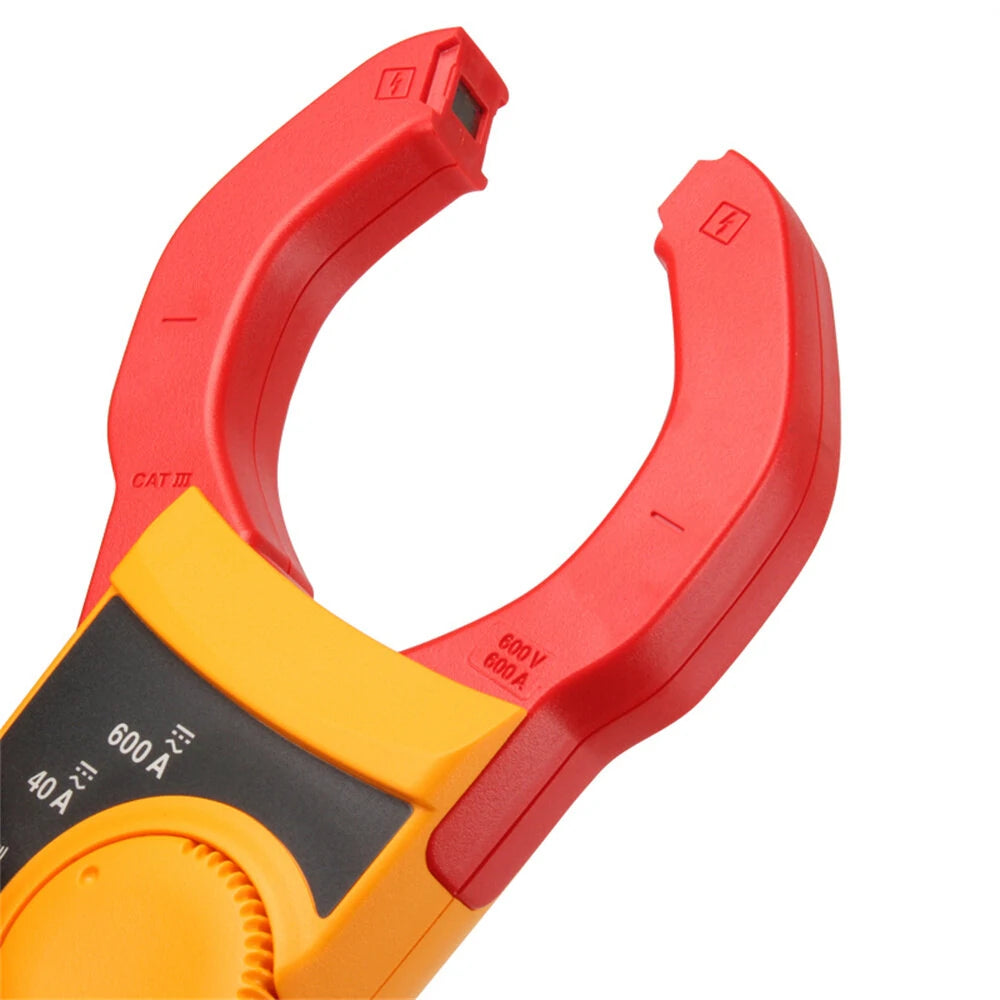

• Slim and lightweight pliers head, ideal for use in narrow spaces.
• Large backlit display allows easy reading in dark environments.
• Digital clamp meter accuracy better than 0.01A and 0.1V.
• Measures AC/DC voltage up to 600V.
• Resistance measurement range up to 4000Ω.
• Sensitive continuity measurement with digital clamp meter.
• Auto power-off feature maximizes battery life so the meter operates when needed.
• Display hold function retains measurement results on the screen.

Specifications

• AC Current: Range 40.00 A, 600.0 A, resolution 0.01 A, 0.1 A standard, accuracy 1.6% ± 6 digits (40 A), 2.5% ± 8 digits (600 A).
• DC Current: Range 40.00 A, 600.0 A, resolution 0.01 A, 0.1 A, accuracy 1.6% ± 6 digits (40 A), 1.5% ± 5 digits (600 A).
• AC Voltage: Range 600.0 V, resolution 0.1 V, accuracy 1.5% ± 5 digits (20-500Hz).
• DC Voltage: Range 600.0 V, resolution 0.1 V, accuracy 1% ± 4 digits.
• Resistance: Range 400.0 Ω, 4000 Ω, resolution 0.1 Ω, 1 Ω, accuracy 1% ± 5 digits.
• Continuity Measurement: ≤ 30 Ω.

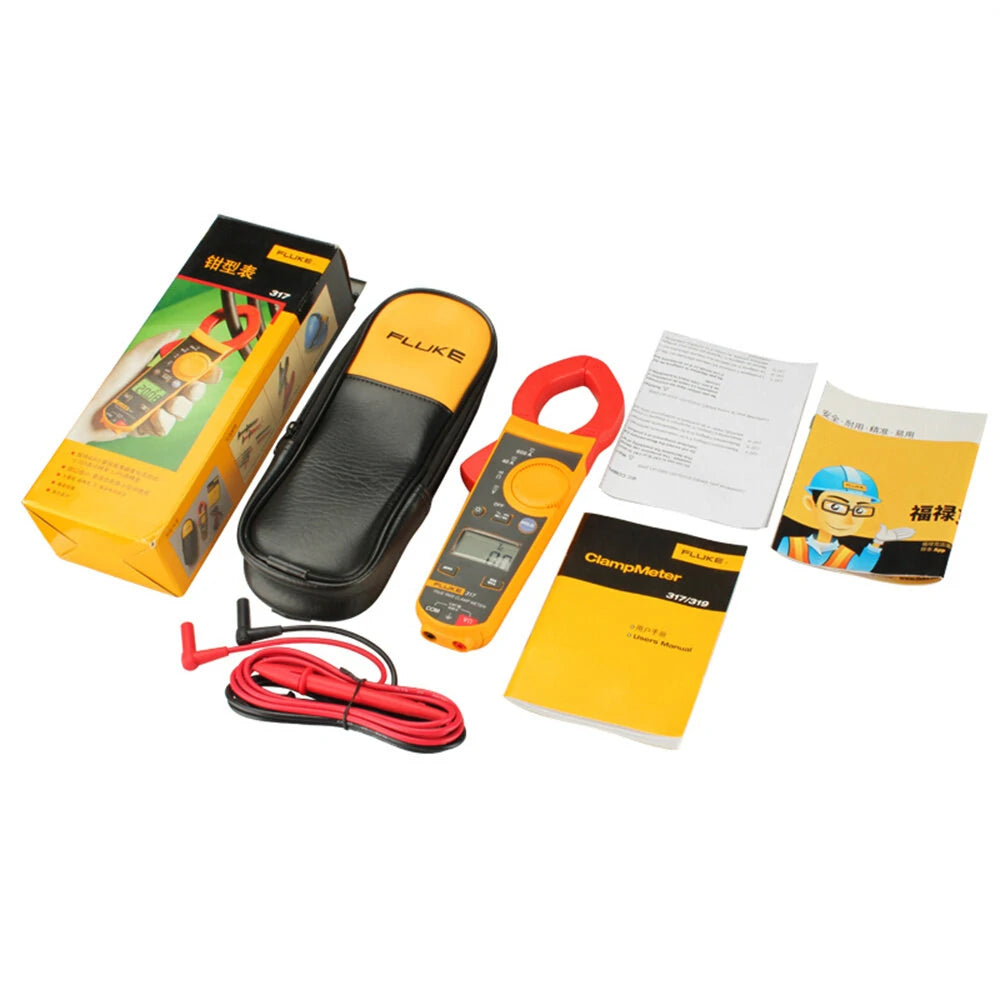

Package Includes

• 1 x Fluke 317 Clamp Meter
• 1 x Test Lead
