Compact Mobile Thermal Imaging Camera with Multi-Mode Temperature Measurement & Bilingual Support

Experience Precision with Our Mobile Phone Thermal Imaging Camera

This cutting-edge thermal imaging camera is designed with a small pixel pitch and high-resolution industrial-grade infrared detector, ensuring precise and rapid infrared thermal analysis on-the-go. Its portable design and plug-and-play functionality allow for seamless integration with your mobile phone, providing instant infrared imaging of target objects through a customized professional-grade thermal analysis app.

Features & Benefits:

• Easy Setup: User-friendly app interface and parameter settings for seamless operation.
• Reset Function: Quickly reset and restore the screen to its original state.

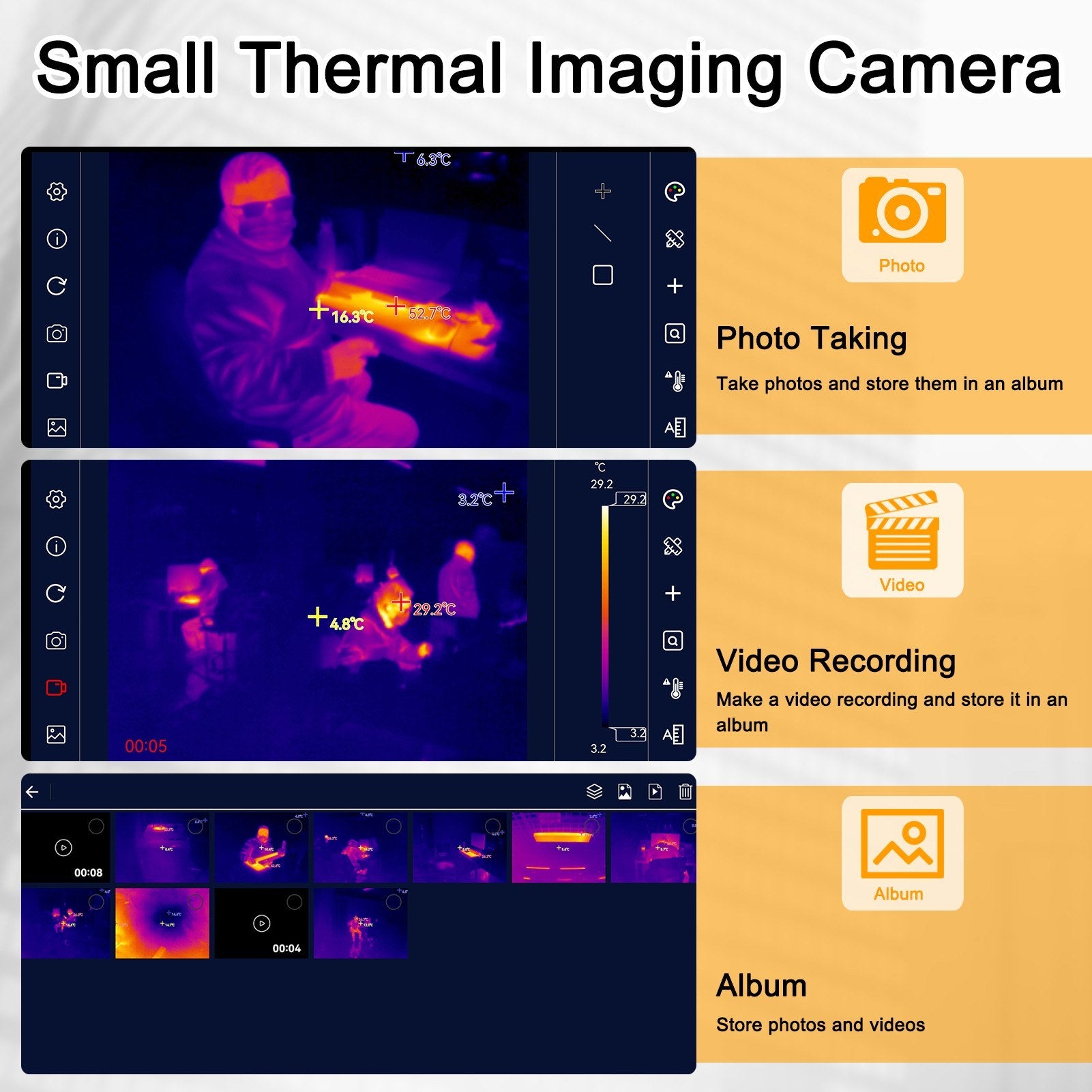

• Media Capture: Capture photos and videos, and store them in a dedicated album.
• Intuitive Infrared Imaging: View thermal imaging with ease.
• Color-Coded Temperature Bar: Display maximum and minimum temperatures with color block indicators.

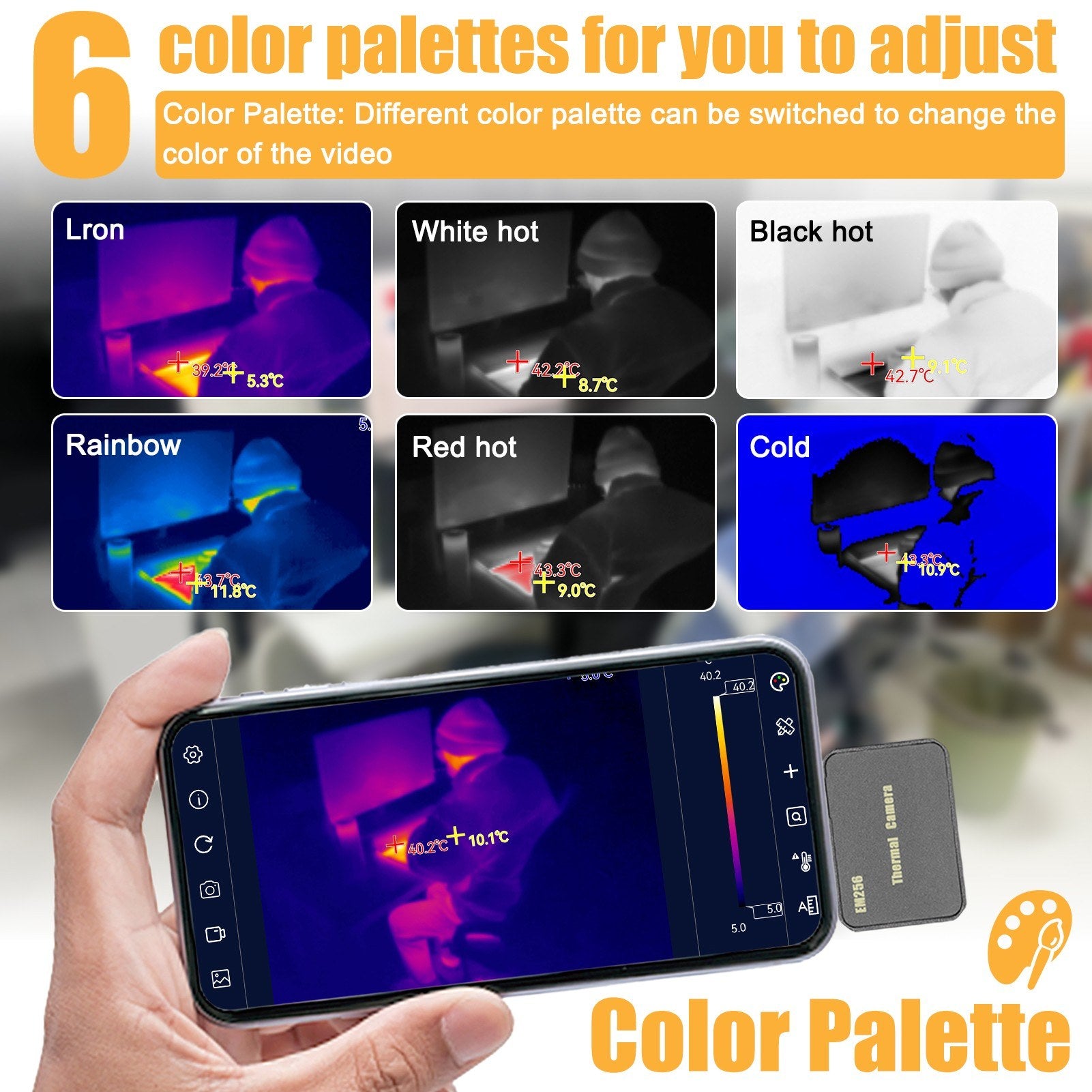

• Customizable Color Palette: Choose from six different palettes to suit your preferences.

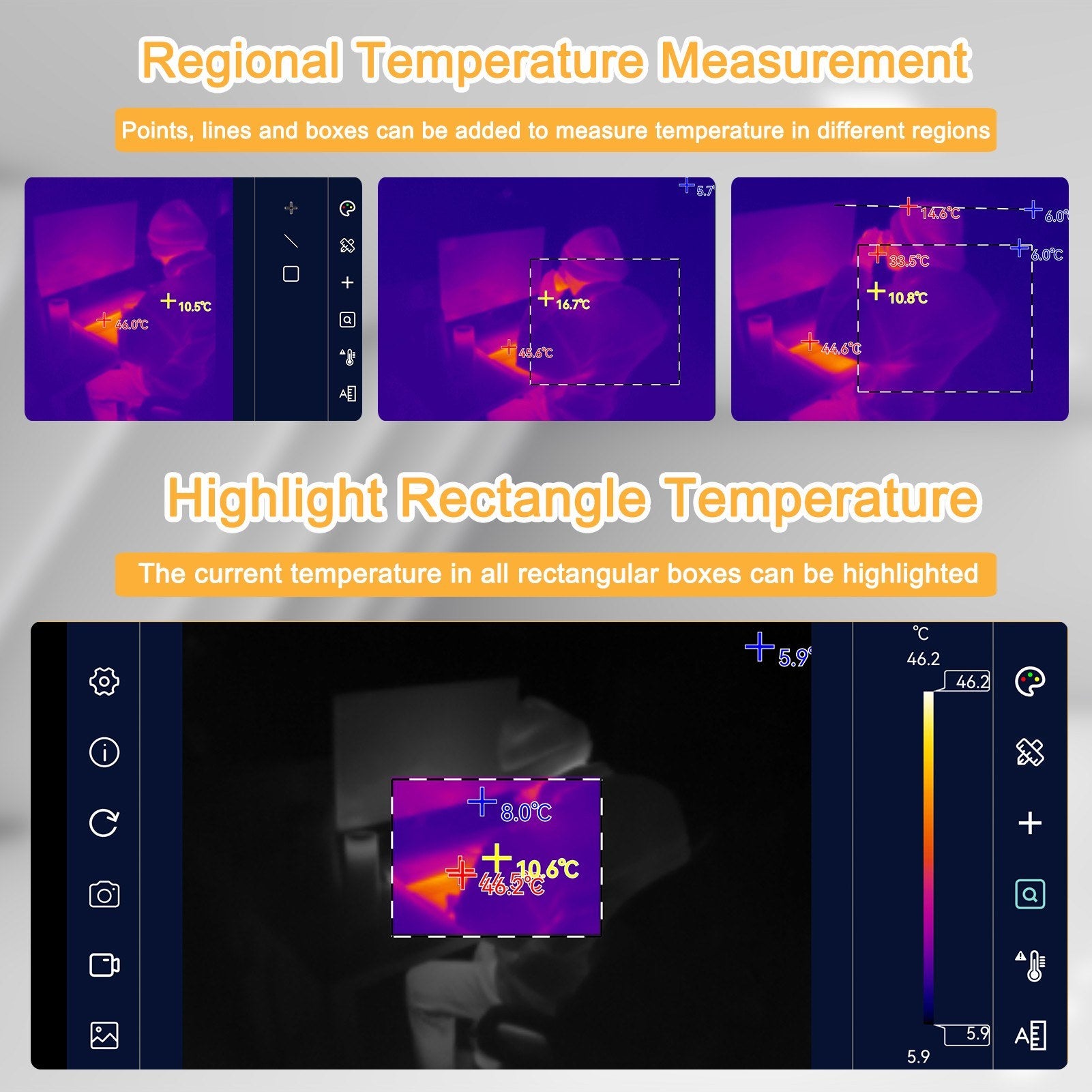

• Targeted Temperature Measurement: Measure temperature by adding points, lines, and boxes in various regions.

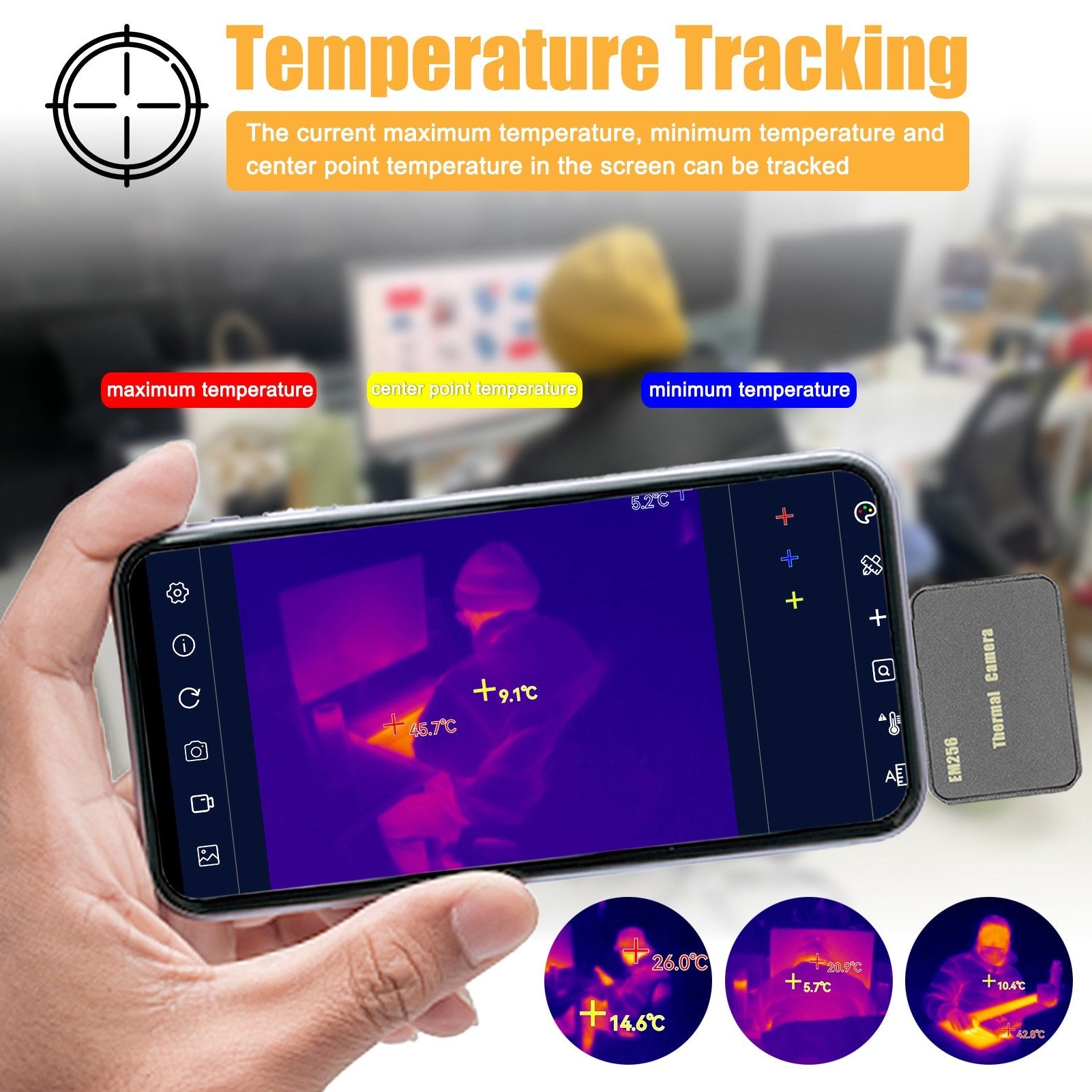

• Accurate Temperature Tracking: Track maximum, minimum, and center point temperatures on-screen.
• Enhanced Highlighting: Highlight temperature in defined rectangular regions, adding a box if necessary.

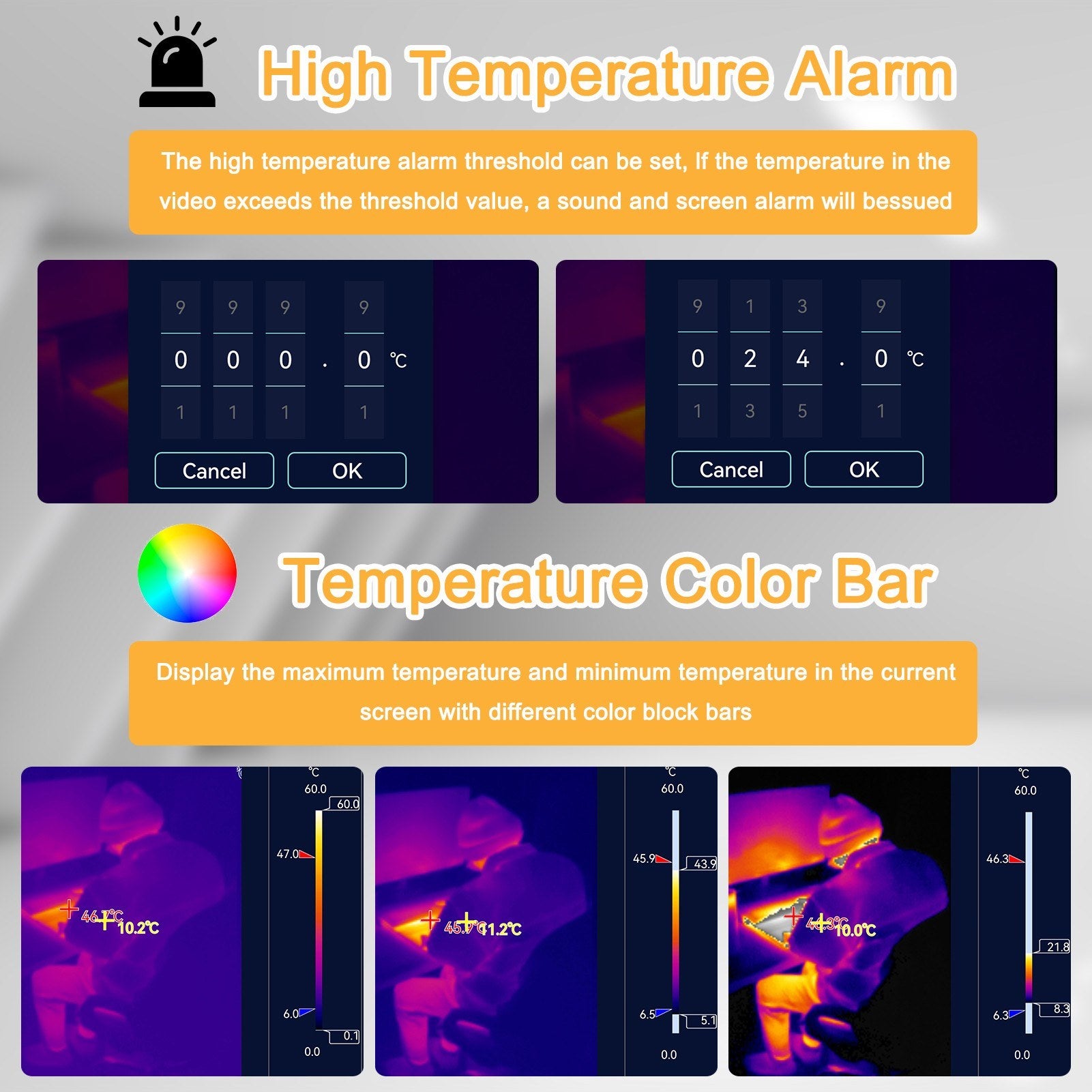

• High-Temperature Alerts: Set threshold alarms for sound and screen alerts when temperatures exceed the limit.
• Highlight Hotspots: Automatically display the highest temperature regions on the screen.

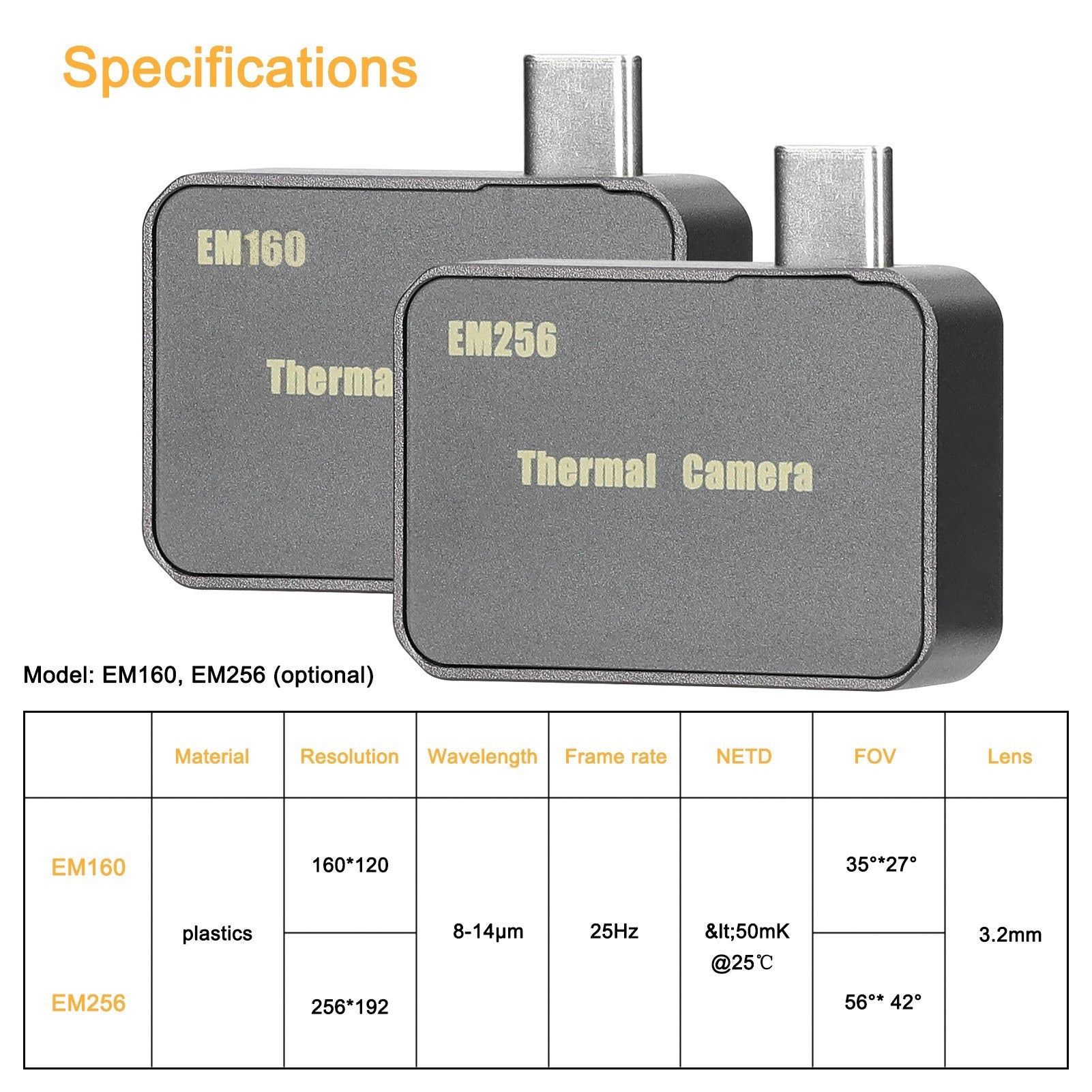

Specifications:

• Name: Thermal Imager
• Material: Plastics
• Model Options: EM160, EM256
• Resolution: 160x120 (EM160), 256x192 (EM256)
• Wavelength: 8-14μm
• Frame Rate: 25Hz
• NETD: <50mK @25℃
• FOV: 56°x 42°; 35°x27°
• Lens: 3.2mm
• Temperature Measurement Range: -15℃ to 600℃
• Measurement Accuracy: ±2℃ or ±2% of reading
• Color Palettes: 6 options
• Languages Supported: English and Chinese
• Operating Temperature: -10℃ to 75℃
• Storage Temperature: -45℃ to 85℃
• IP Rating: IP54
• Item Size: 34 x 26.5 x 15mm / 1.34 x 1.04 x 0.59 inches
• Item Weight: 19g / 0.67 ounces
• Package Size: 95 x 95 x 50mm / 3.95 x 3.94 x 1.97 inches
• Package Weight: 149g / 5.26 ounces

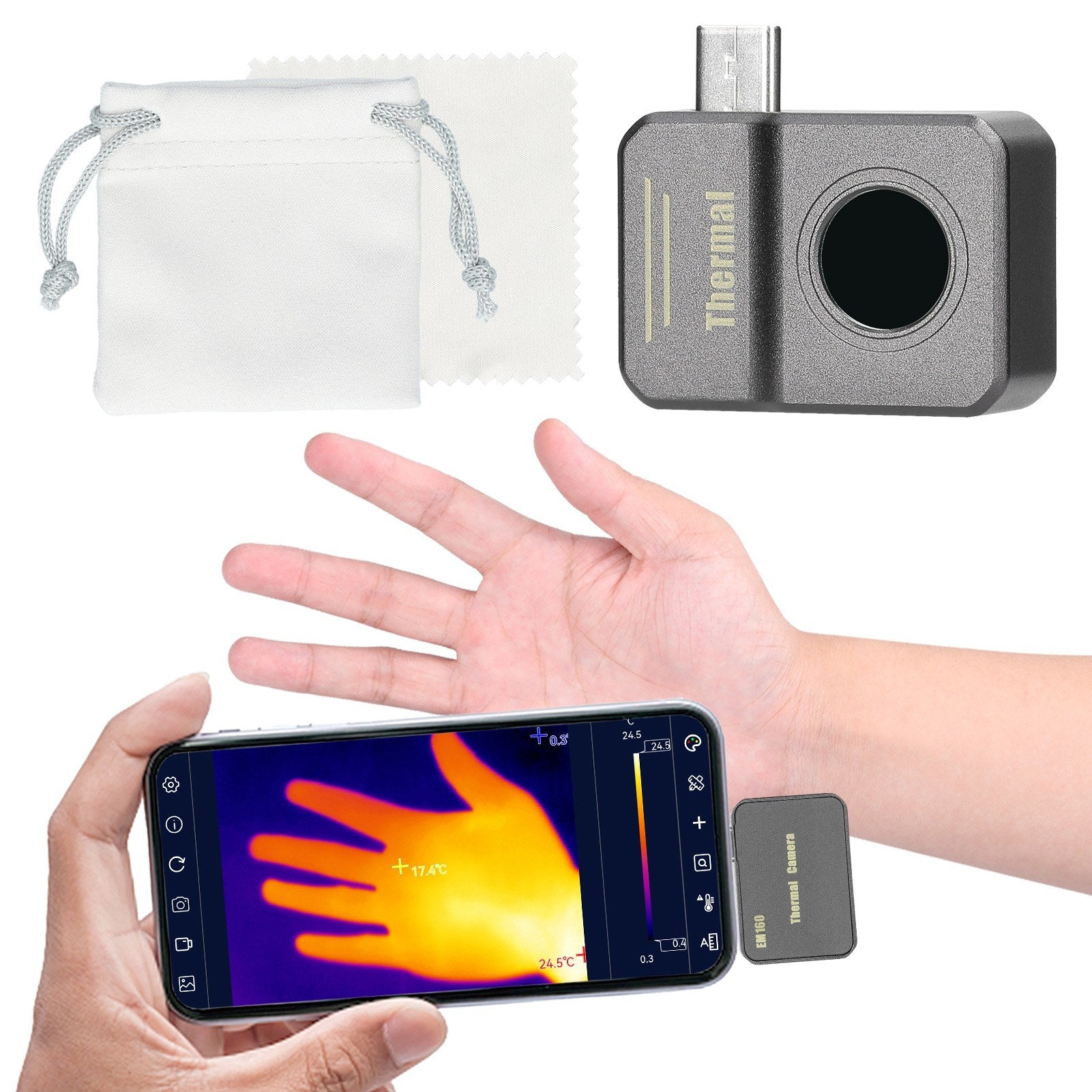

Package Includes:

• 1 x Thermal Imager
• 1 x Lens Cleaner
• 1 x Storage Bag

Note: Ensure the OTG function is turned on in your device settings for seamless operation.
