UNI-T UT673PV Solar MPPT Meter Photovoltaic Power Tester with Peak Voltage, Current, and Pmax Measurements

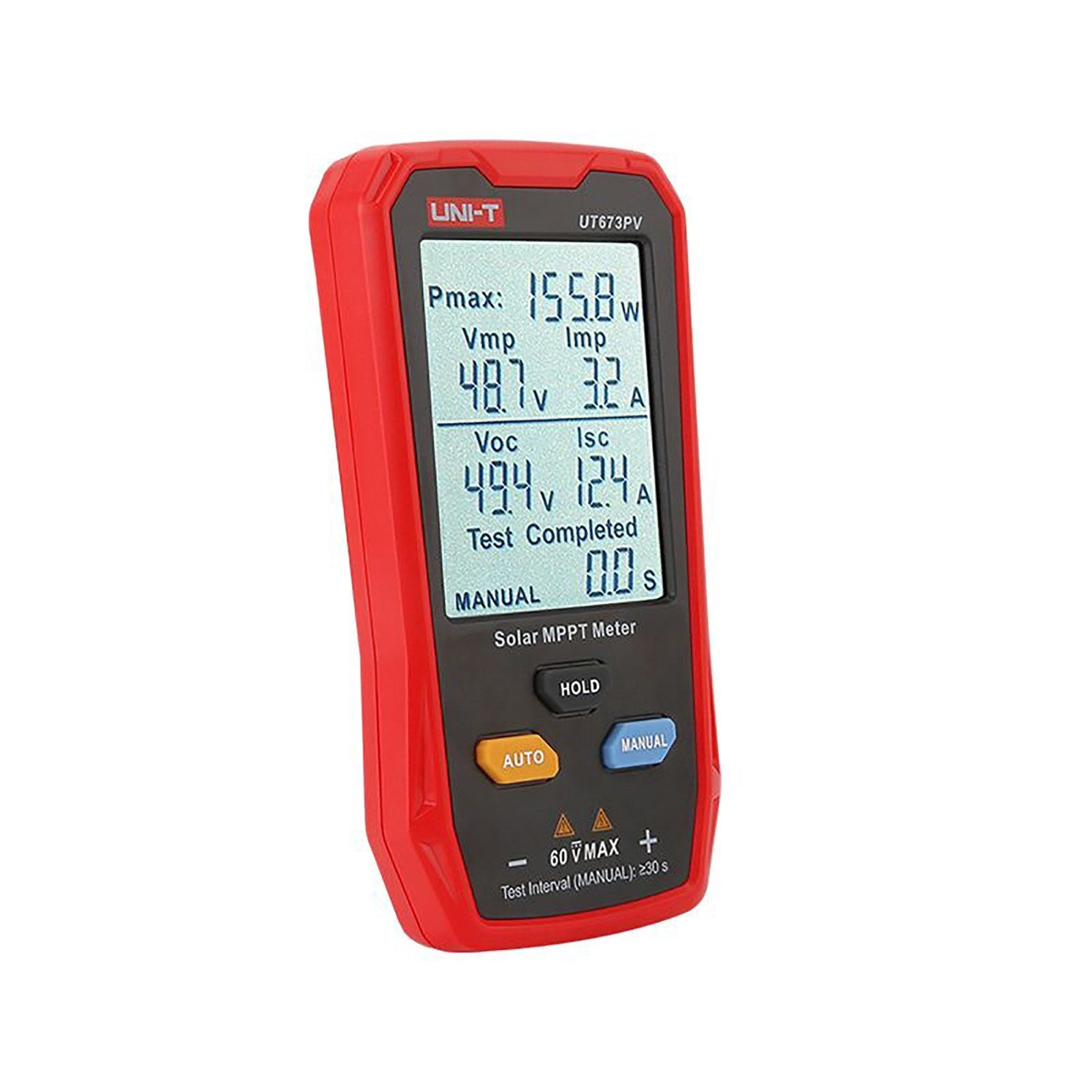

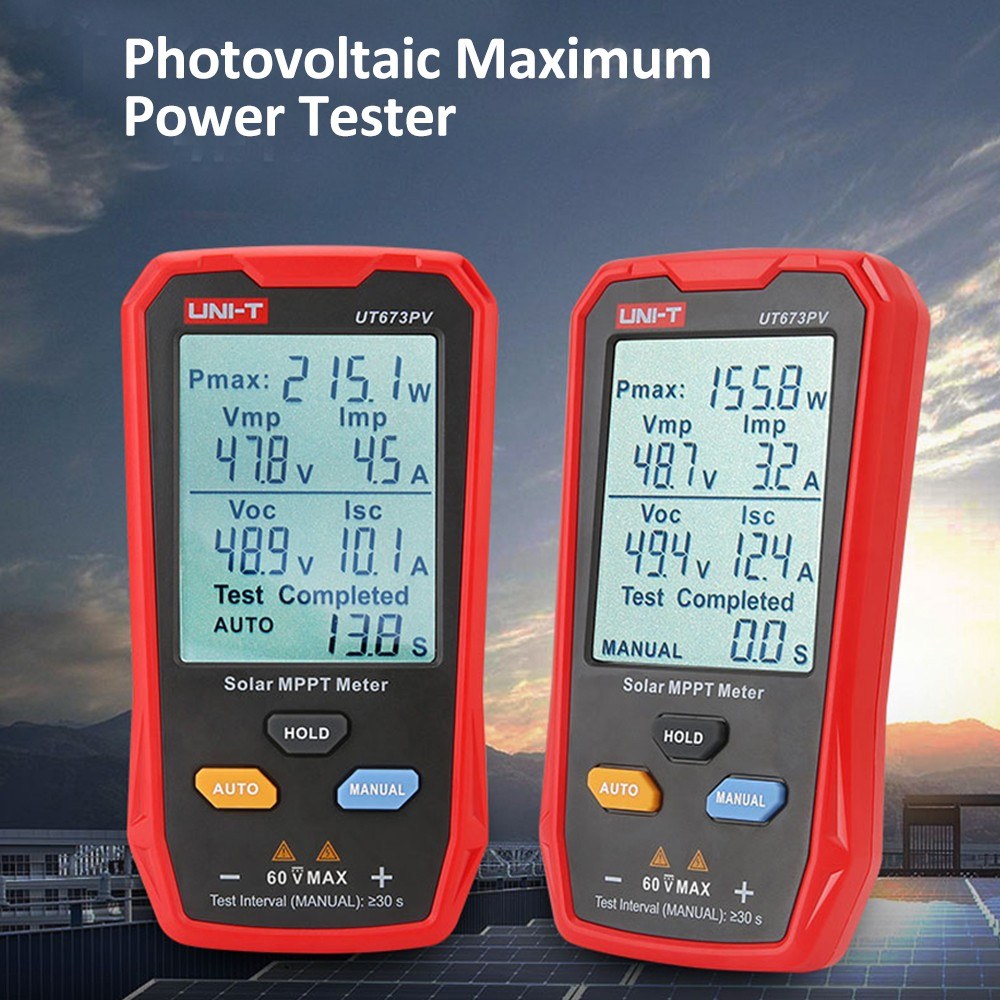

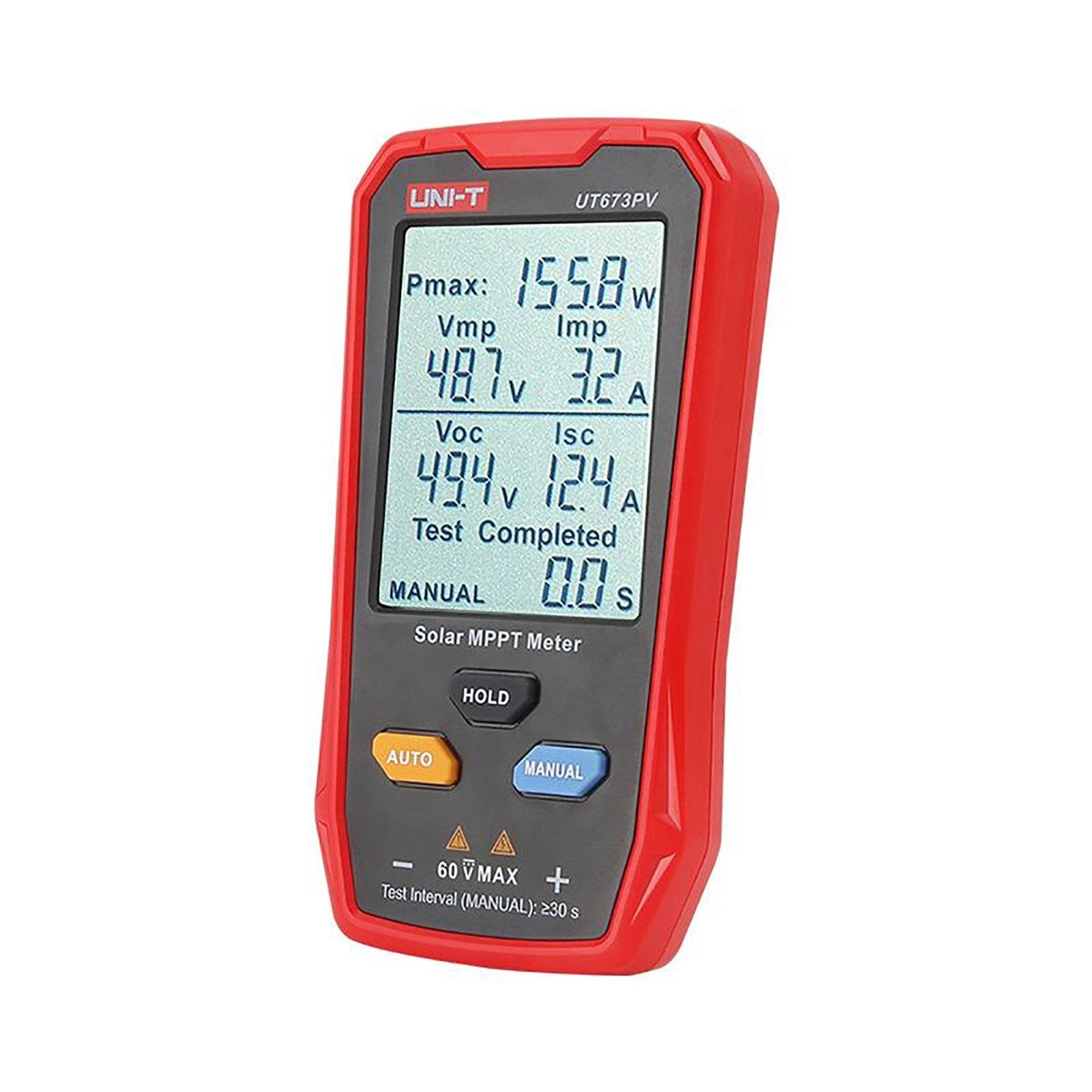

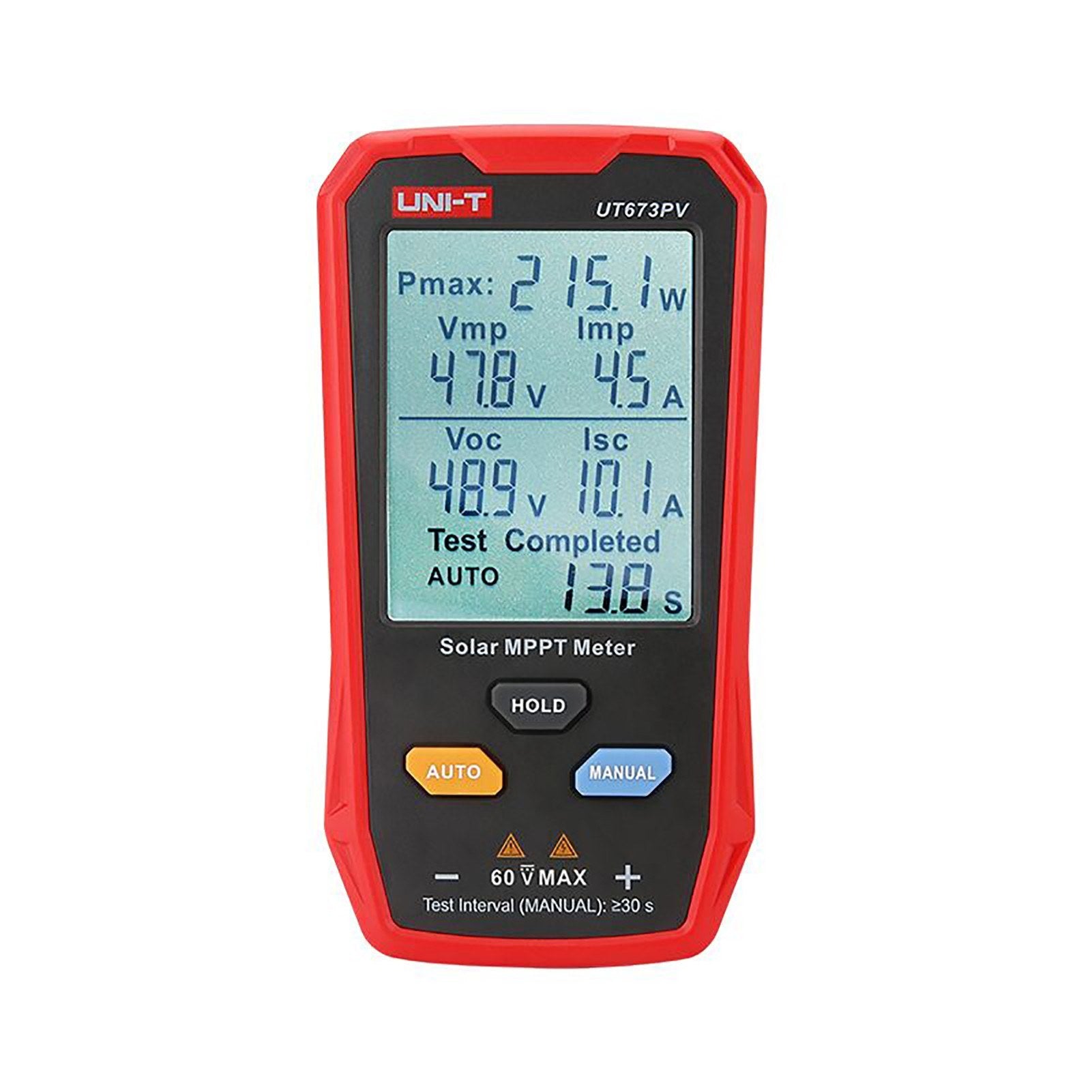

UT673PV Solar MPPT Meter

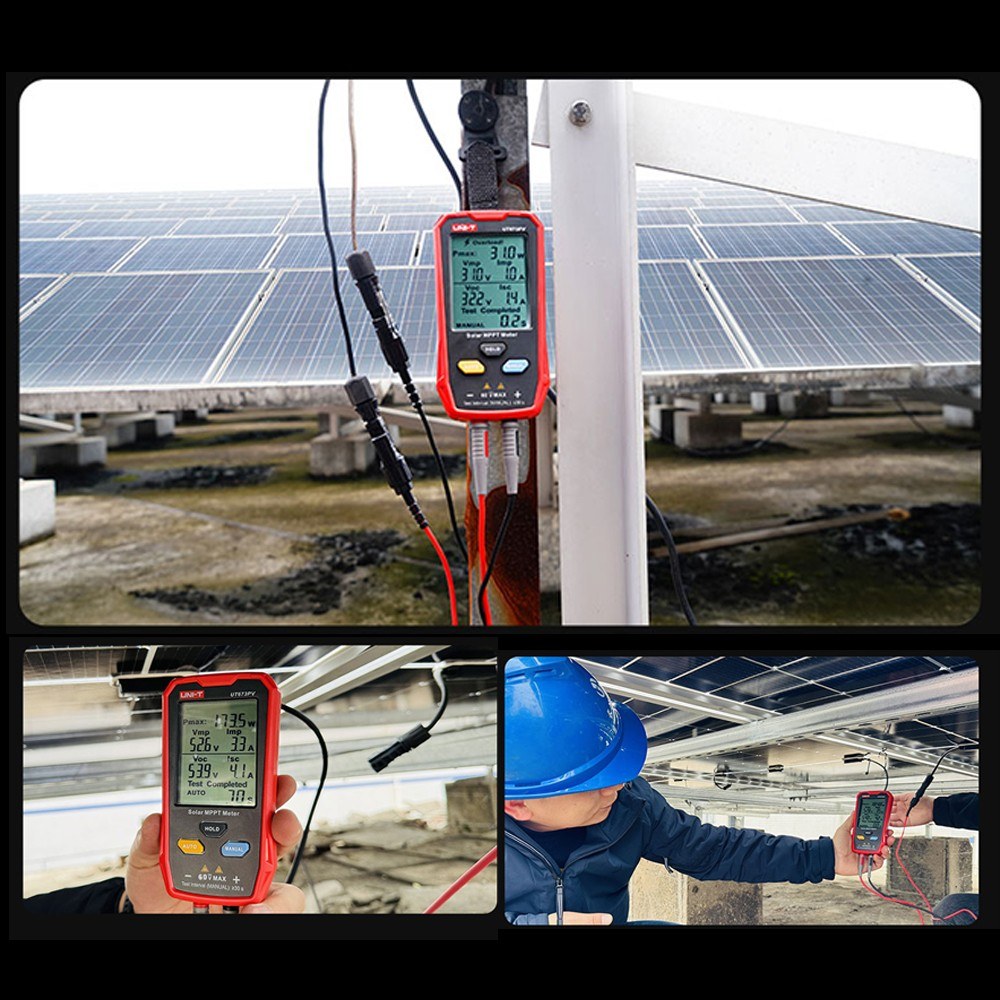

The UT673PV Solar MPPT Meter is your essential tool for swiftly measuring the maximum power of solar modules. It can simultaneously measure and display the maximum power (Pmax), open-circuit voltage (Voc), and short-circuit current (Isc) directly on its screen. The MPPT functionality is crucial for assessing a solar panel's efficiency and is invaluable for both measurement and troubleshooting faulty solar modules.

Applications: Ideal for solar panel manufacturers and users, among others.

Features

• Conducts photovoltaic maximum power tracking point tests: maximum power (Pmax) and peak power voltage (Vmp).

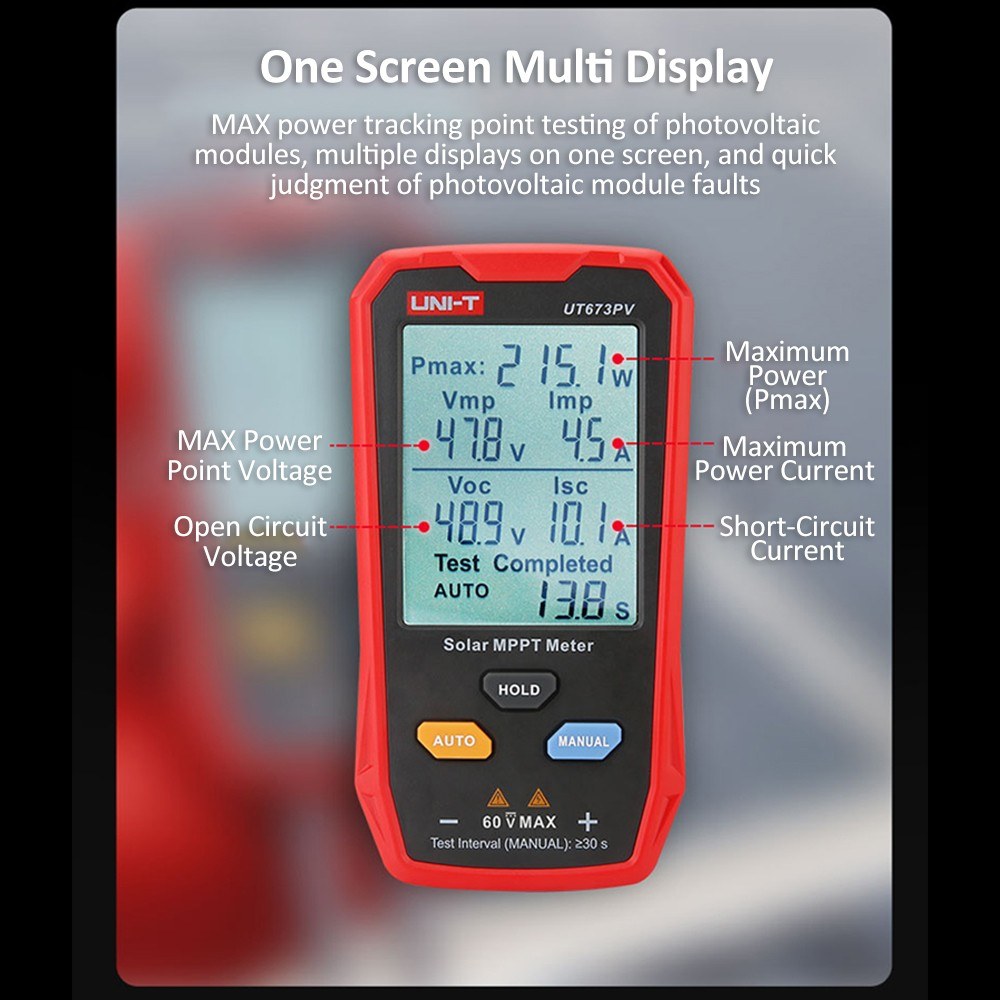

• Simultaneous display of peak power current (Imp), open circuit voltage (Voc), and short circuit current (Isc) facilitates quick fault detection in photovoltaic modules.
• Supports up to 800W maximum power testing, catering to the demands of high-power dual glass component testing in leading companies.

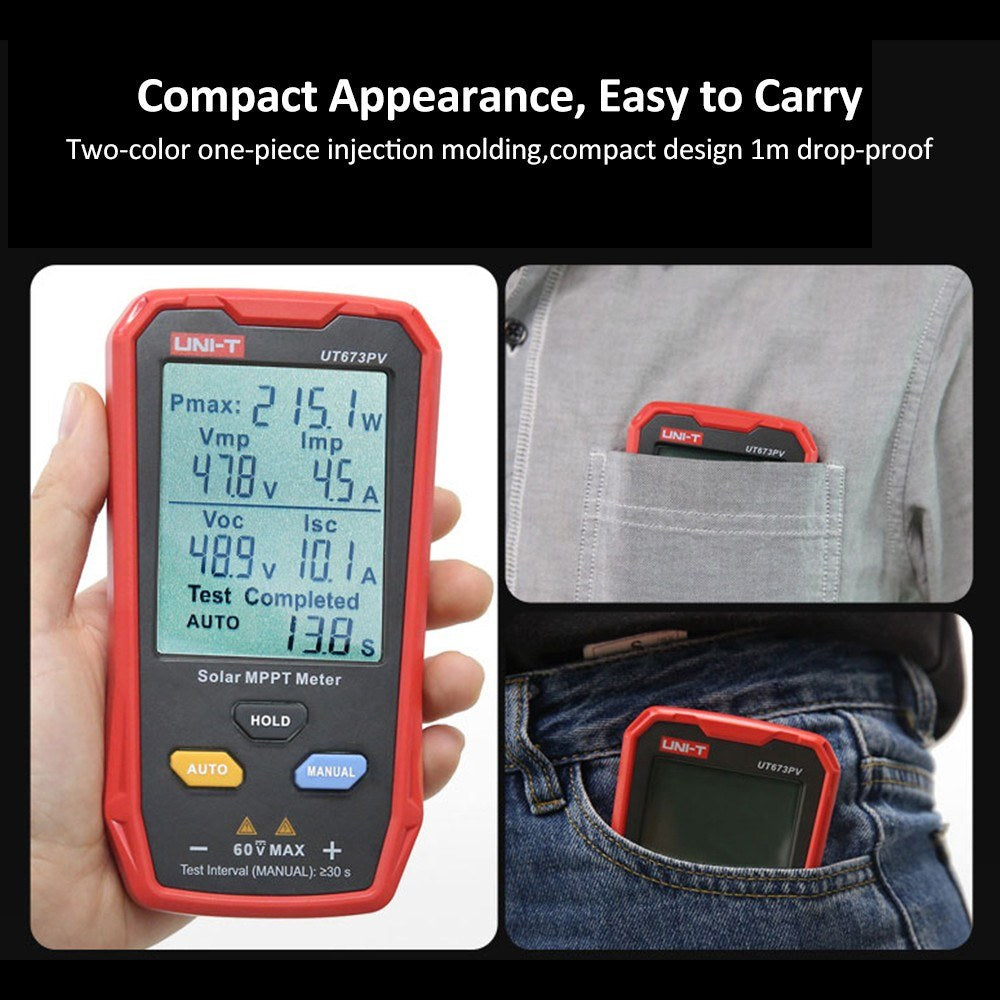

• Compact and portable; designed for palm-size convenience.

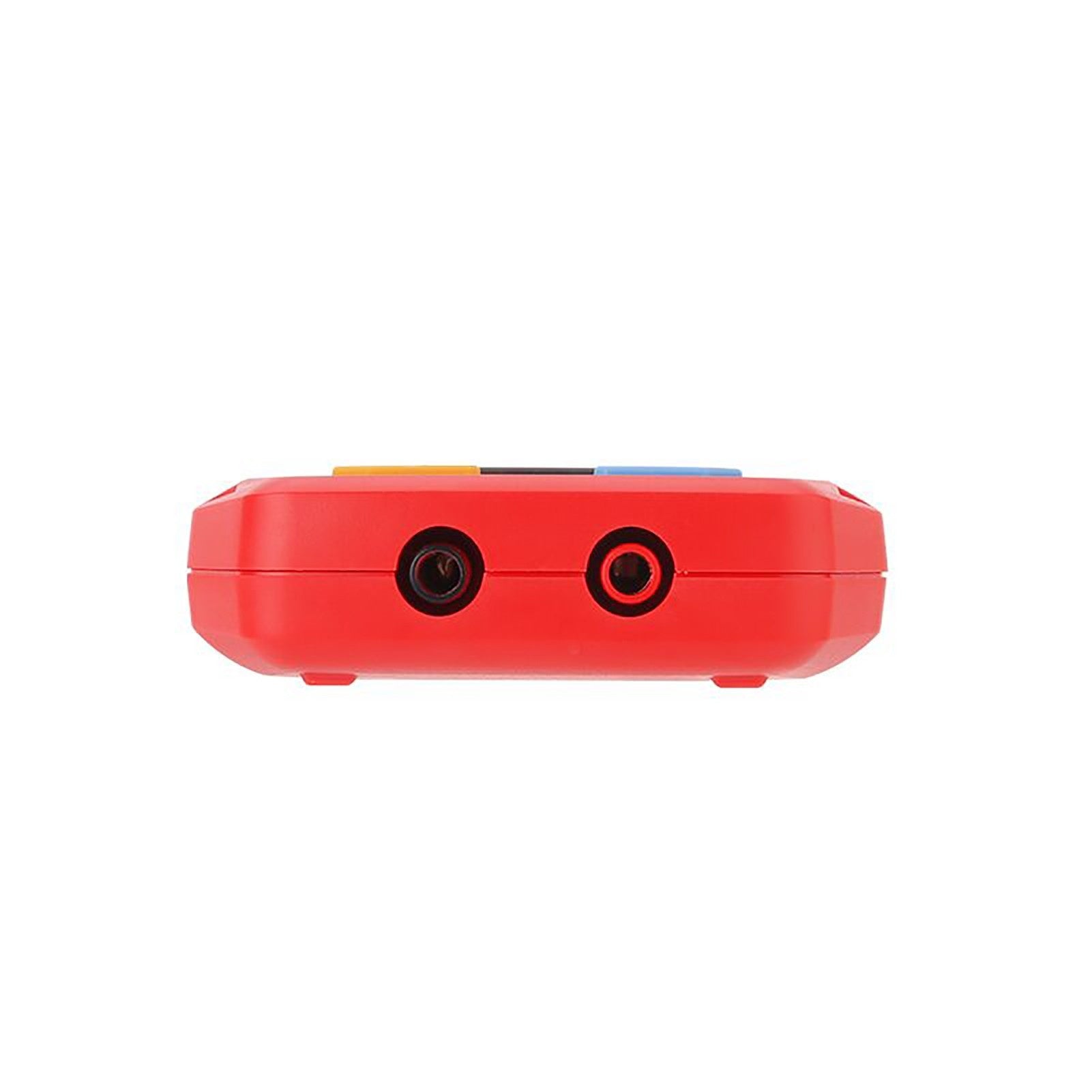

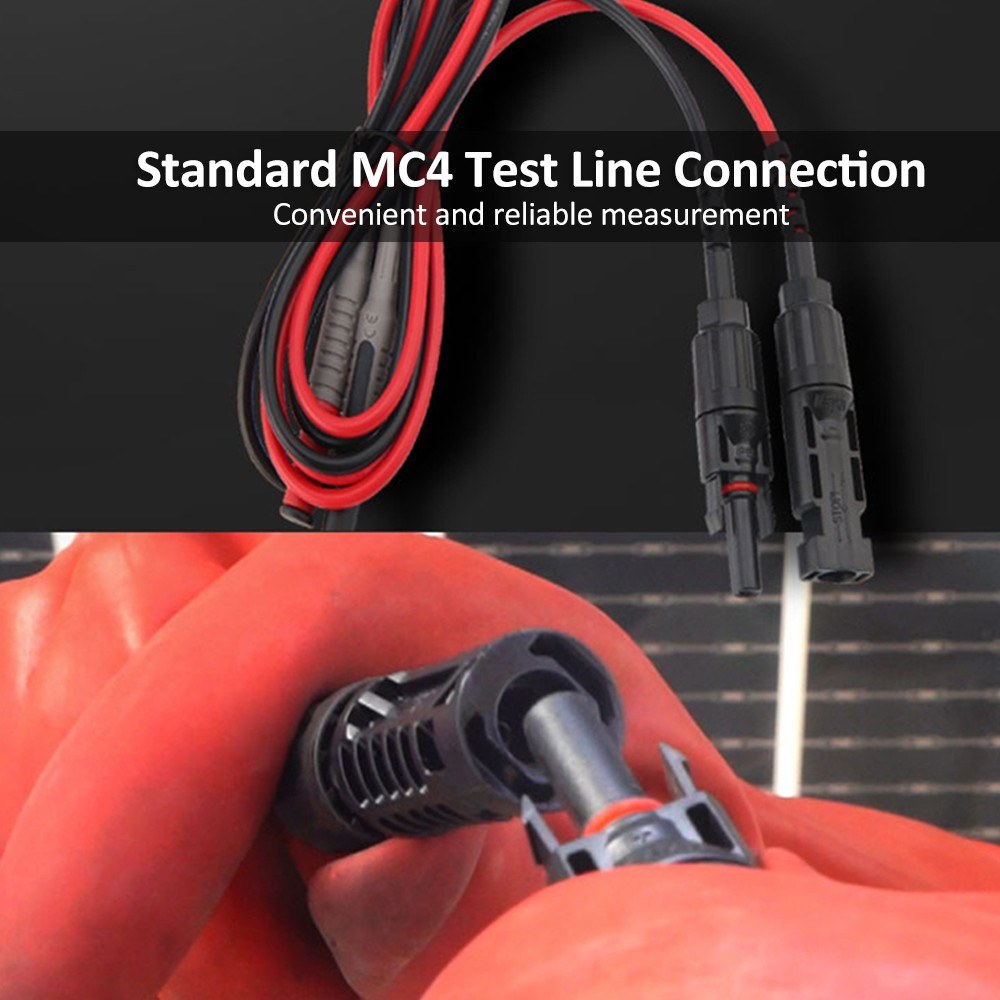

• MC4 test line connection ensures easy and reliable measurements.
• No need for battery power; operates directly via solar panel power.
• CE, ETL, and RoHS certified for safety and reliability.

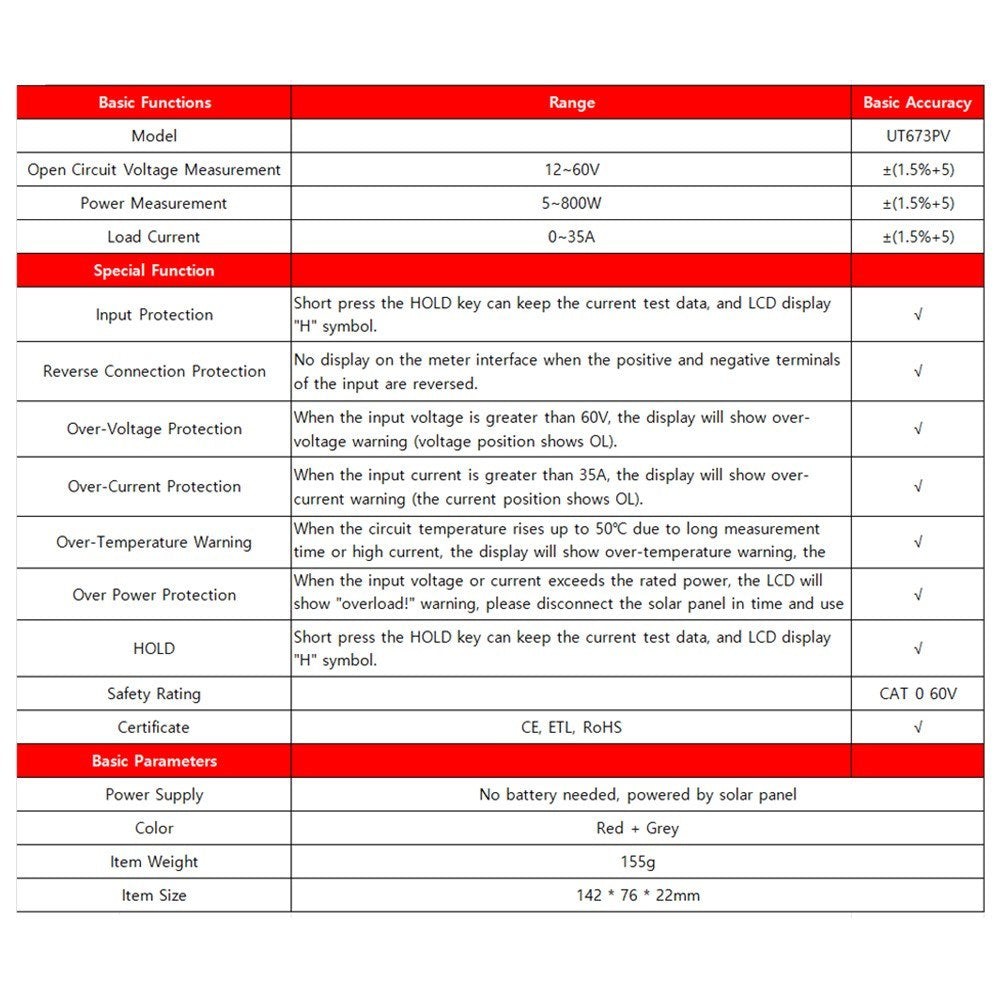

Specifications

• Model: UT673PV
• Material: ABS
• Color: Red + Grey
• Max Power Measurement: 5~800W, ±(1.5%+5)
• Max Power Current (DC): 0~35A, ±(1.5%+5)
• Open Circuit Current (DC): 12~60V, ±(1.5%+5)
• Short Circuit Current (Isc): 0~35A, ±(1.5%+5)
• Input Protection: Yes
• Reverse Protection: Yes
• Over Voltage Protection: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Over Power Protection: Yes
• Data Hold: Yes

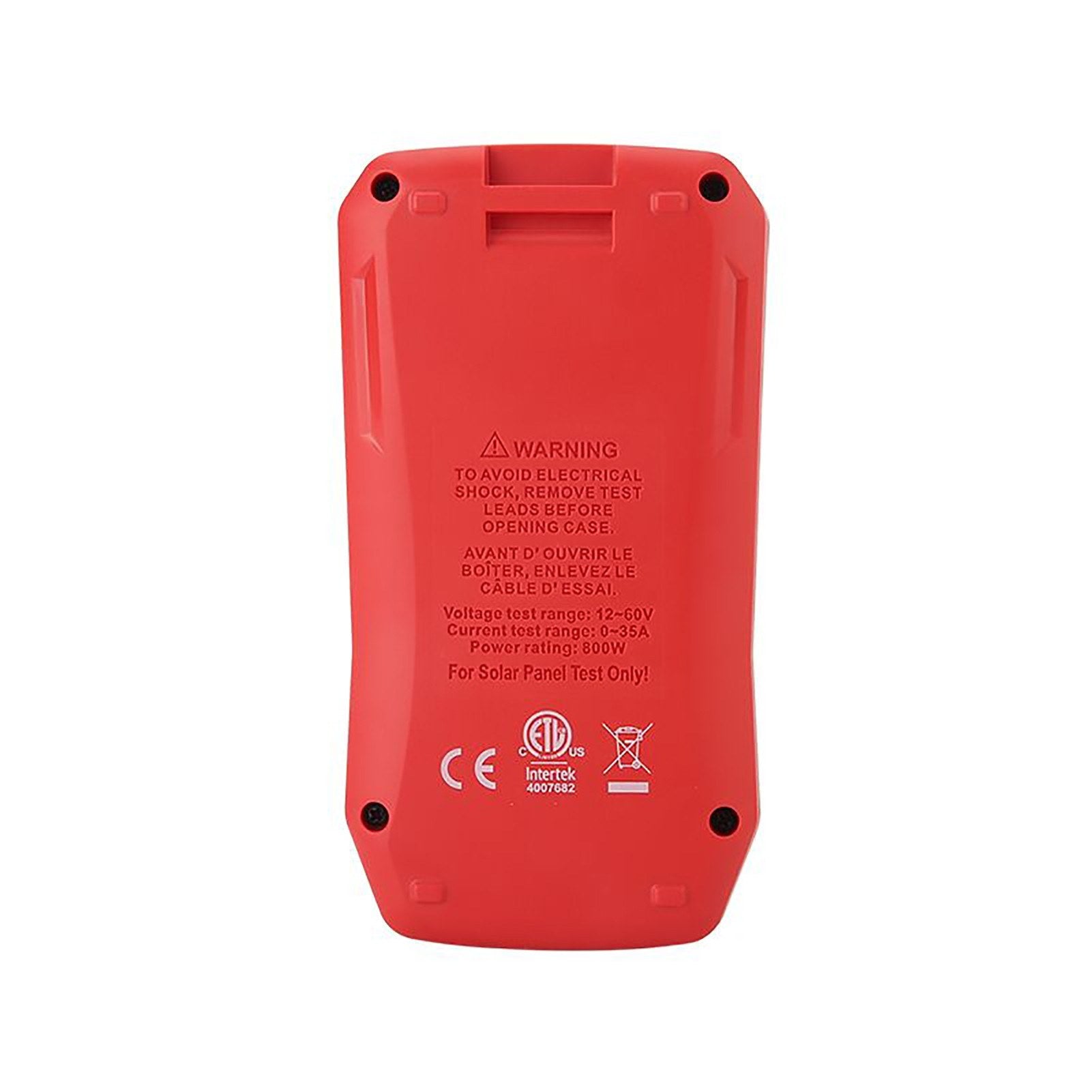

• Certificate: CE, ETL, RoHS
• Power Supply: No battery needed, powered by solar panel
• Item Size: 142 * 76 * 22mm / 5.59 * 2.99 * 0.86in
• Item Weight: 155g / 5.46oz
• Package Weight: 531g / 18.73oz
• Package Size: 22 * 17.8 * 6.5cm / 8.66 * 7.01 * 2.56in

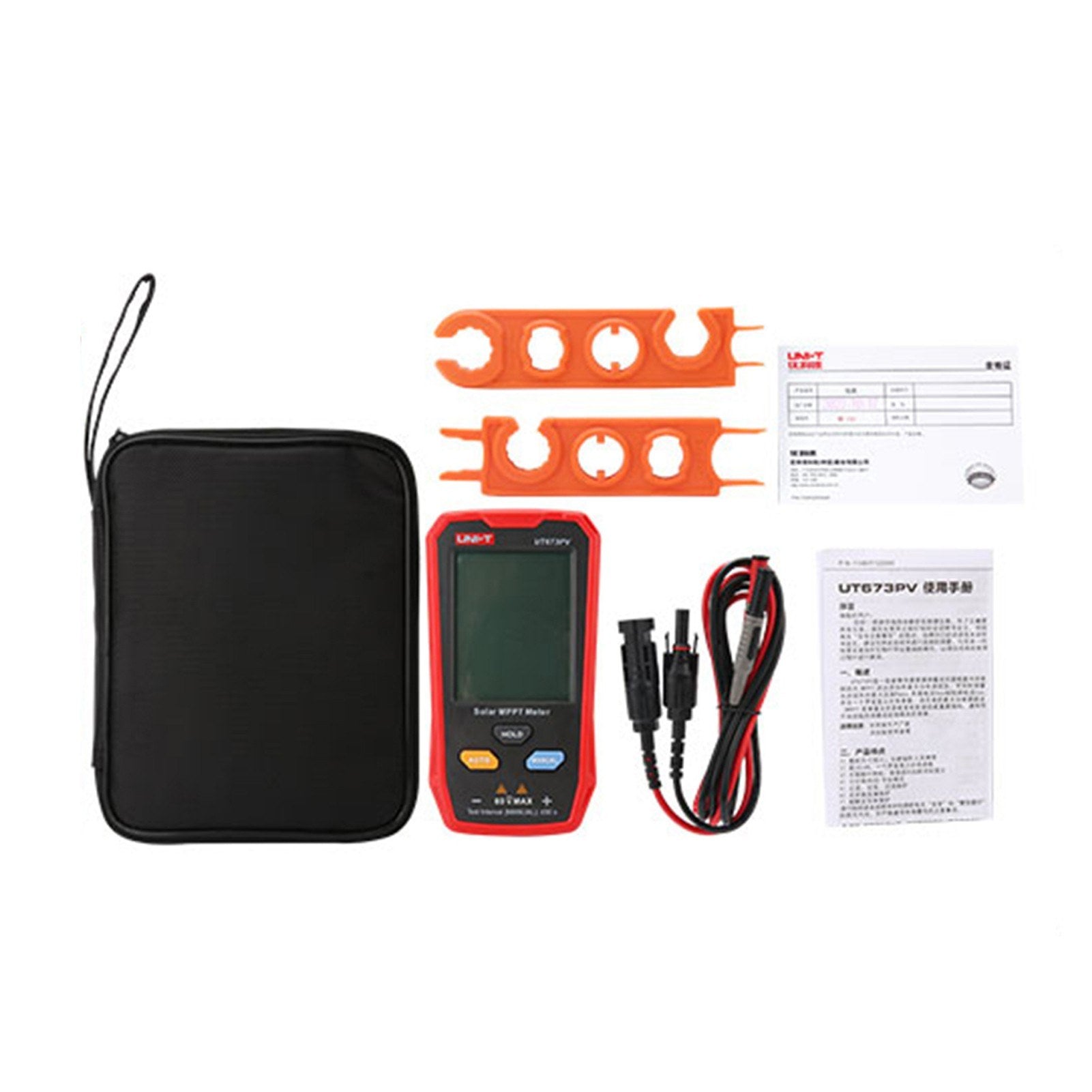

Package Includes

• 1 x Solar MPPT Meter
• 1 x MC Head Disassembly Tool
• 1 x MC4 Head Test Line
• 1 x Storage Bag
• 1 x User Manual (English)
