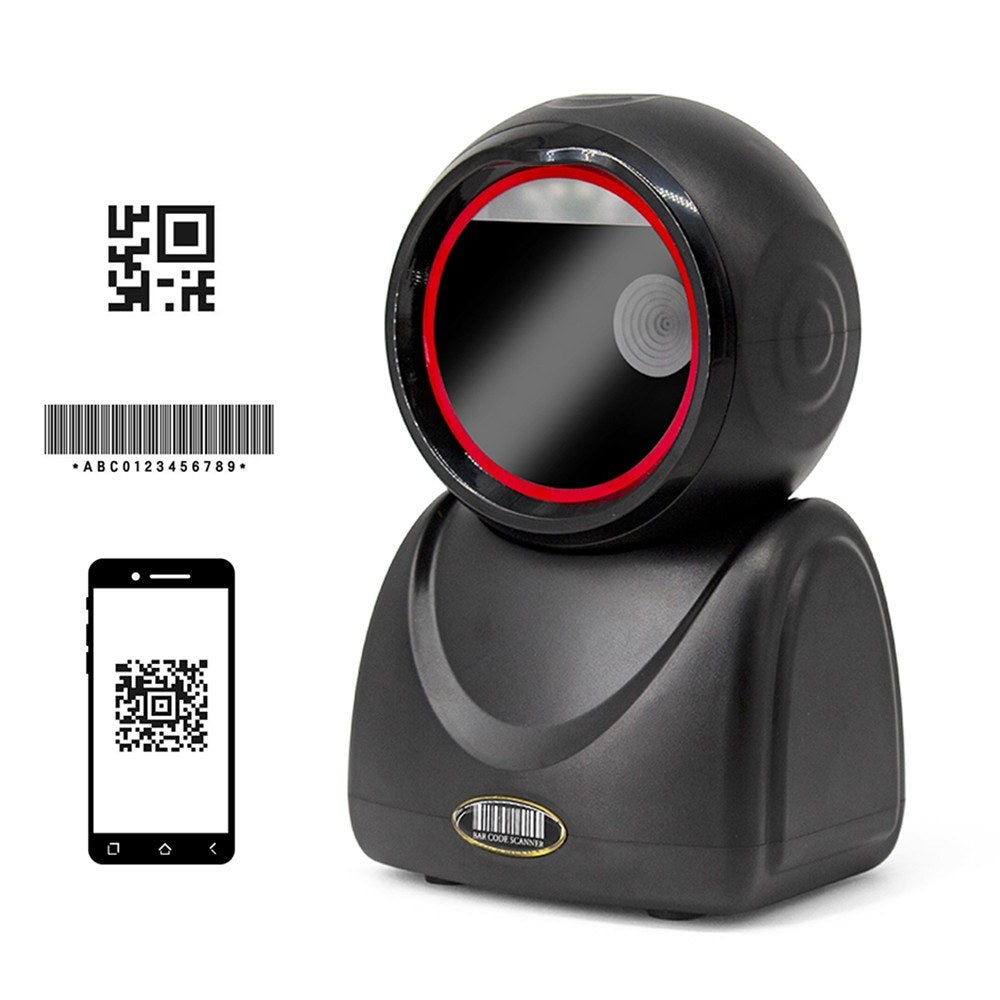

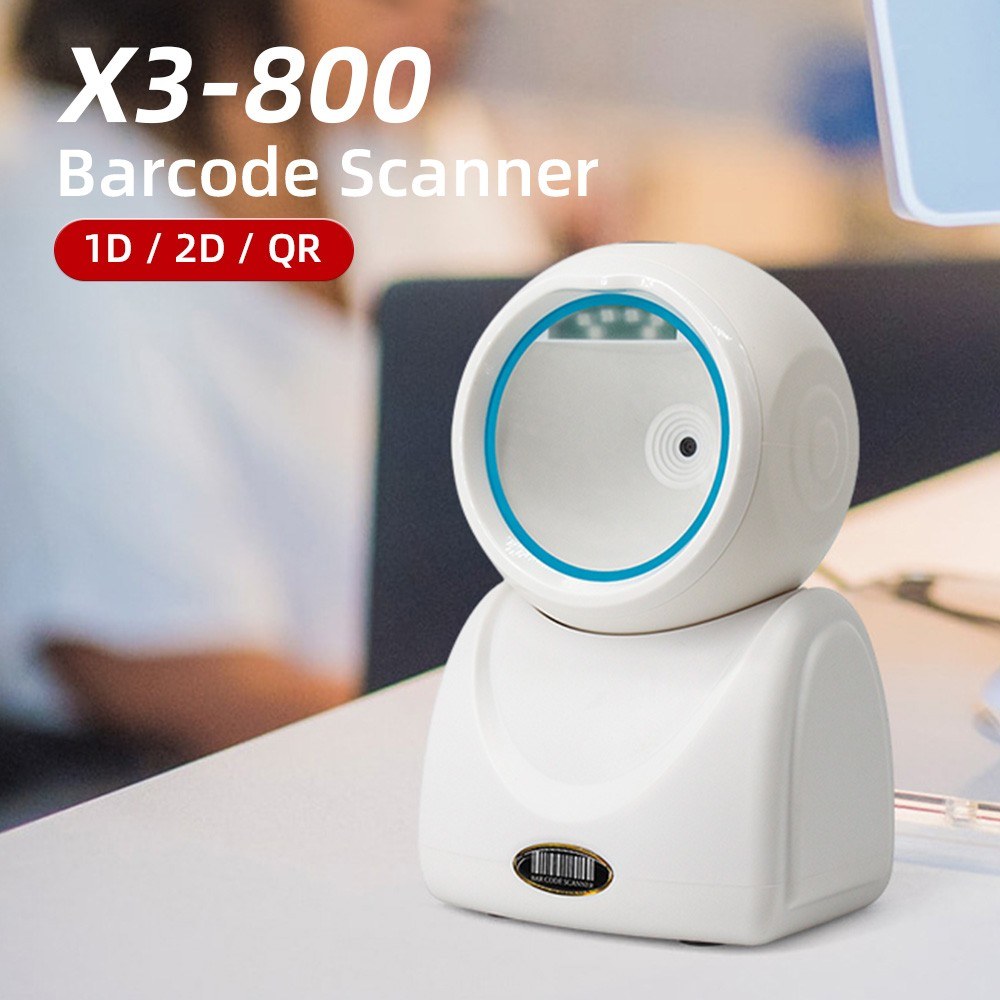

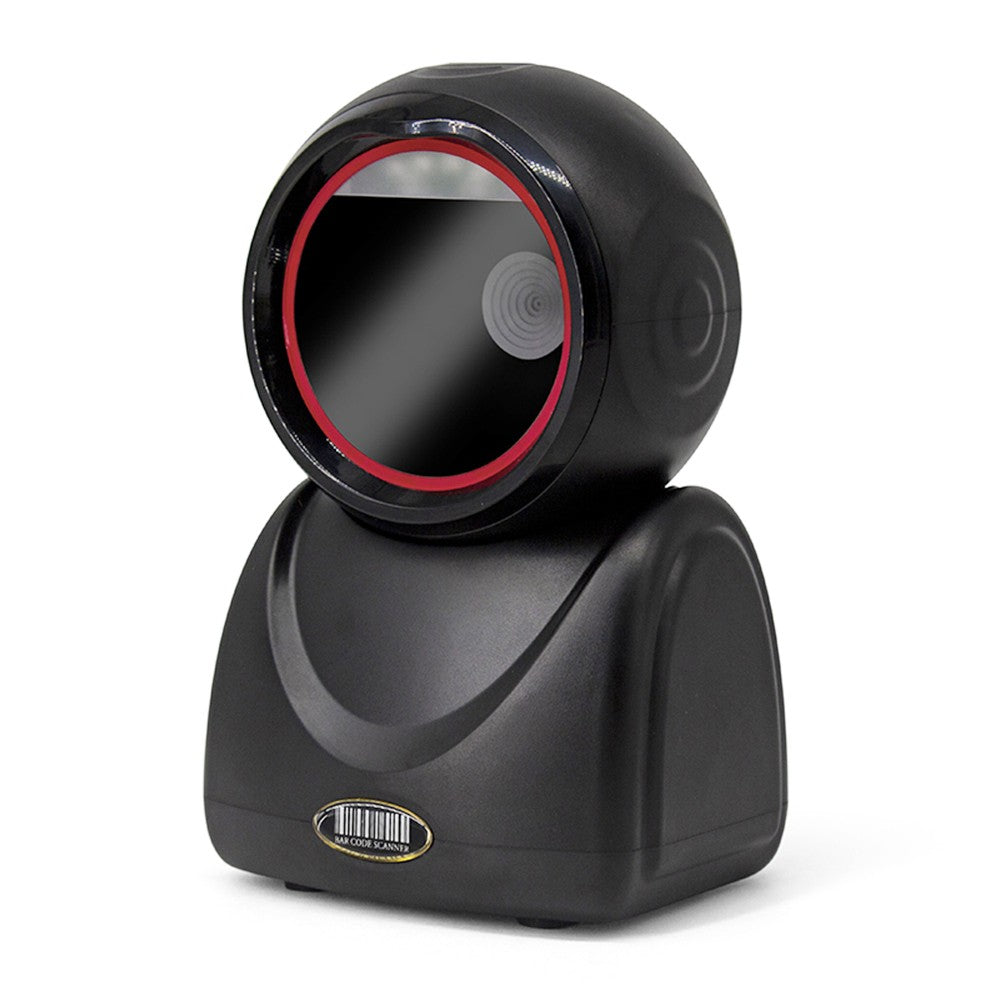

X3-800 High-Speed Wired Desktop Barcode Scanner: 1D/2D/QR Hands-Free Automatic Reader

Product Features

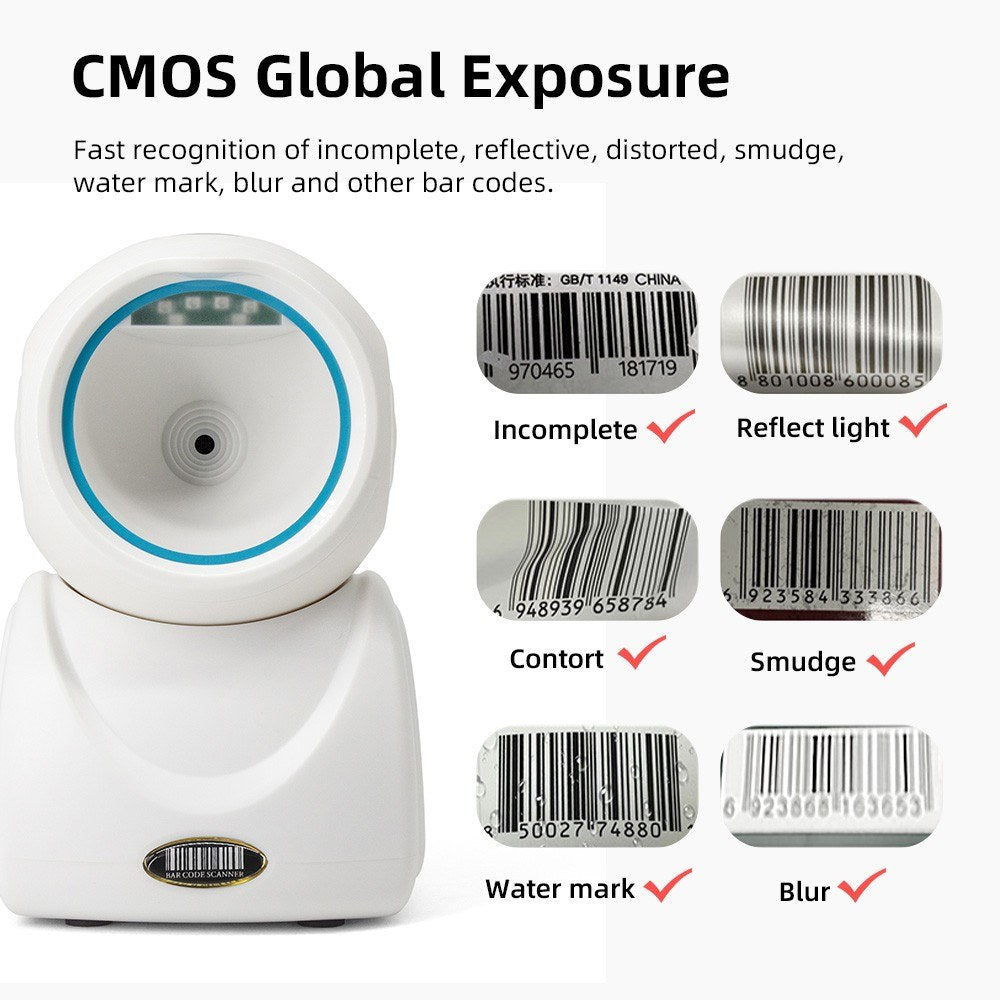

• Strong Decoding Capacity: Efficiently read 1D, 2D, and QR codes from various surfaces such as labels, paper, and screens. Supports distorted, damaged, blurred, and colorful codes.

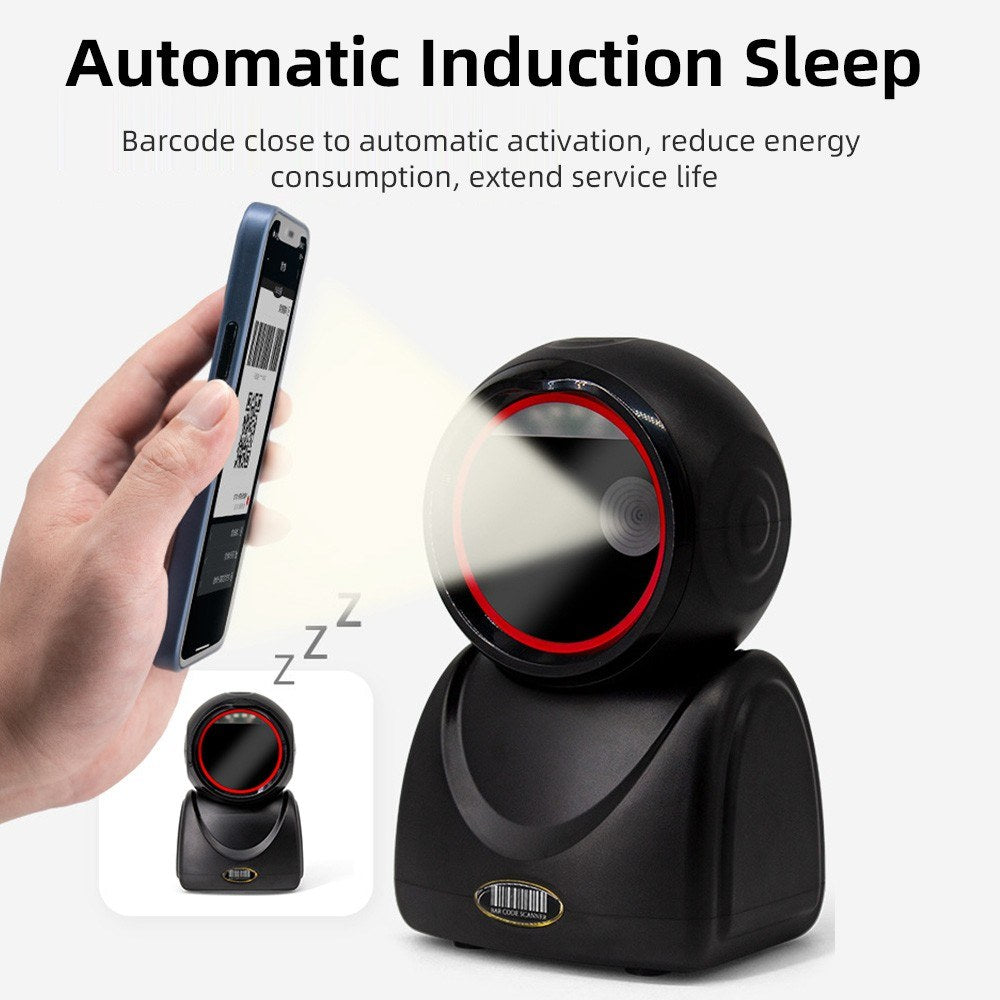

• Hands-Free Design: This portable desktop scanner enhances workflow efficiency with a super-fast and sensitive decoding speed, perfect for seamless mobile payments. Choose from 3 scanning modes: Omni-induction trigger, manual, or continuous.

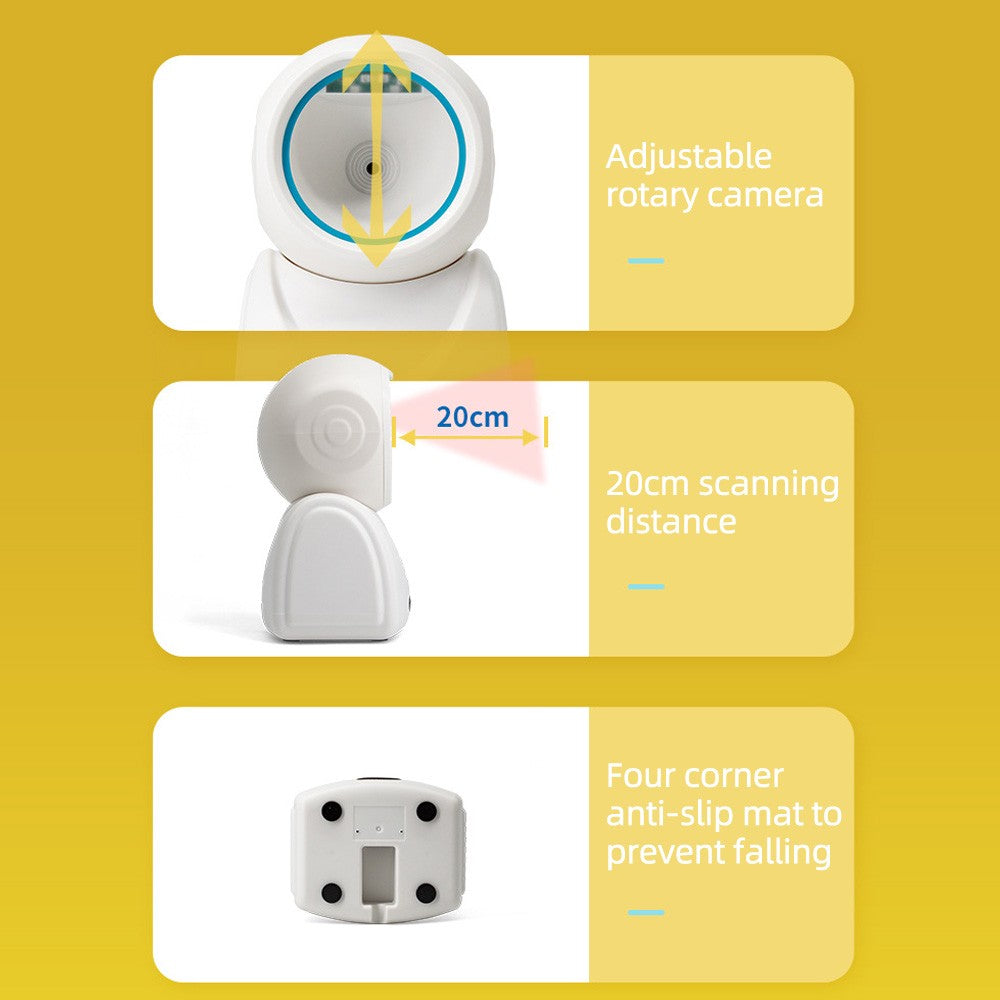

• Advanced Image Decoding: Features global exposure technology for fast image decoding. Boasts high-precision reading, ambient light resistance, multiple scanning functions, and a 20cm scanning distance with a tilt angle for easy barcode capture.

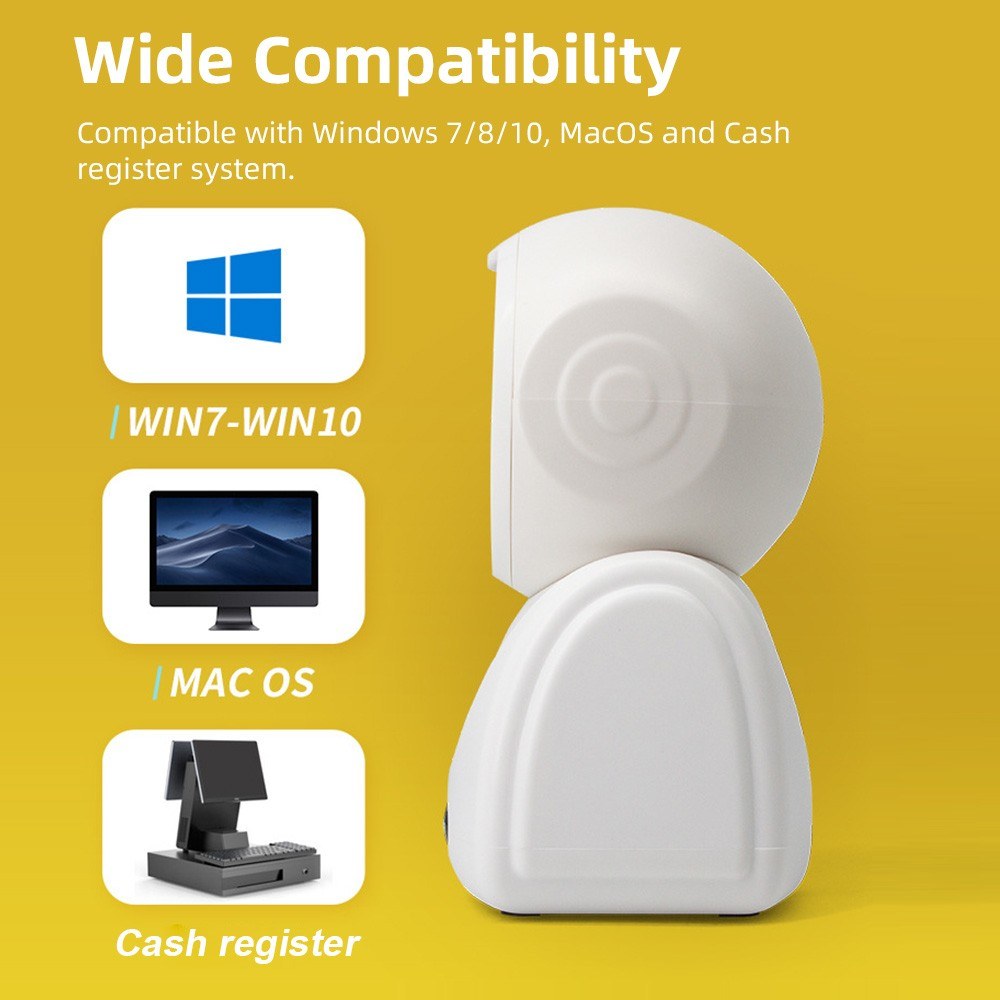

• Simple Plug and Play: Directly connect to a laptop, PC, or POS via USB without any drivers or software. The adjustable scanning window minimizes eye irritation.
• Wide Application: Ideal for use in supermarkets, retail stores, restaurants, clothing stores, pharmacies, libraries, warehouses, and more.

Product Specification

• Model: X3-800

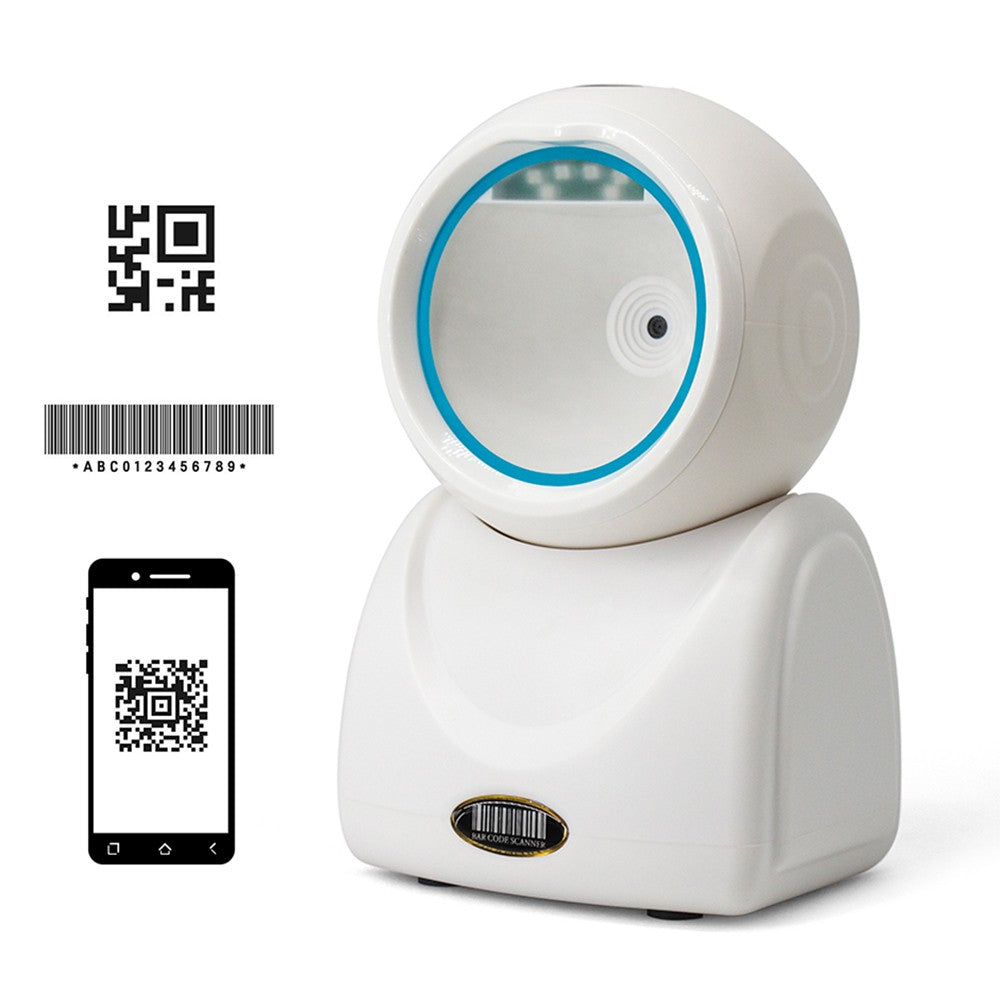

• Color Options: White, Black
• Code Reading Mode: CMOS (Global Exposure)
• Resolution: 640x480 pixels with a minimum resolution of 0.127mm (5mil) @Code 39, PCS=90%
• Light Source: 617nm red LED
• Scan Modes: Omni-induction trigger, manual, continuous
• Operating Environment: 0°C to 50°C, Storage Temperature: -20°C to 70°C, Storage Humidity: 5%-95% non-condensing
• Ambient Lighting: 0 to 8,600 Lux (fluorescent), 0 to 100,000 Lux (daylight)
• Power: Input voltage of 5VDC±10% with an operating current of 175mA typical
• View and Angle: Depth of field angle is 30° V x 48° H with a field of view of 48° (H) x 30° (V)
• Interface: USB

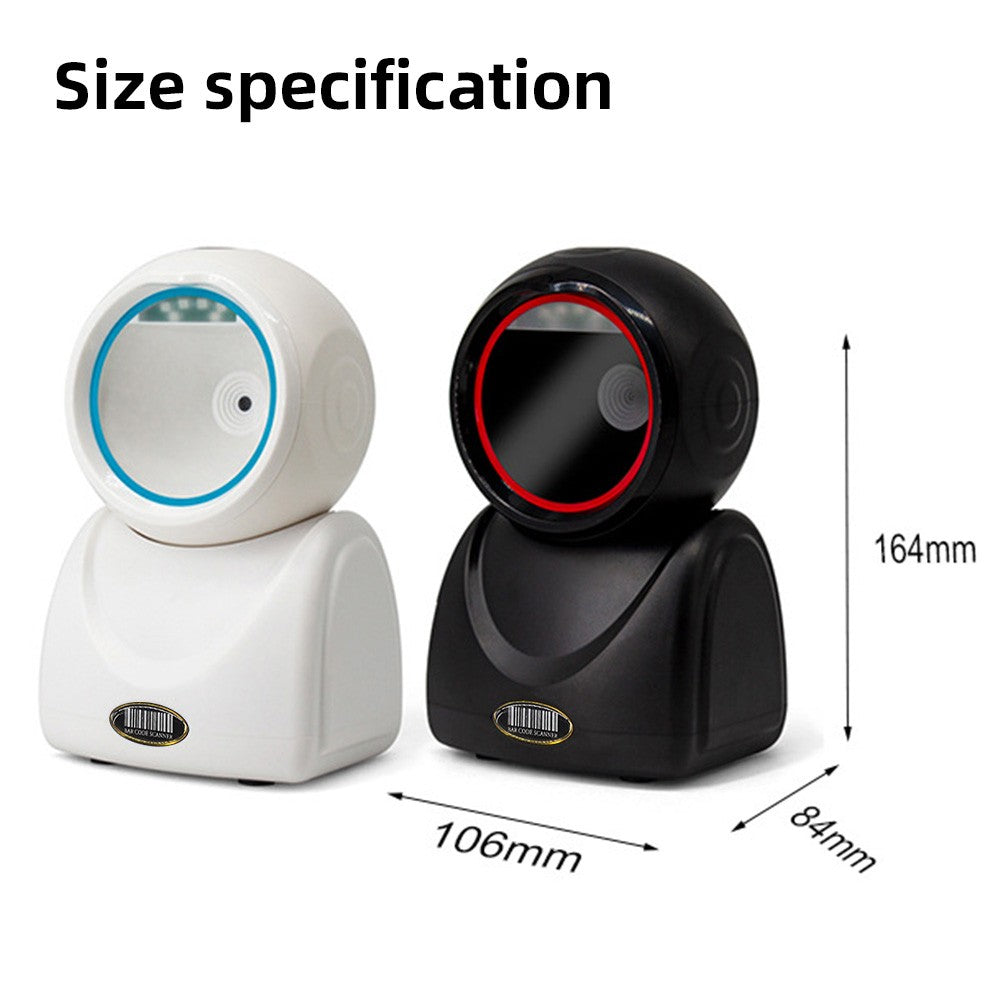

• Dimensions: 164mm x 106mm x 84mm
• Weight: 348g (excluding packaging and accessories)
• Cable Standards: 1.8m straight line

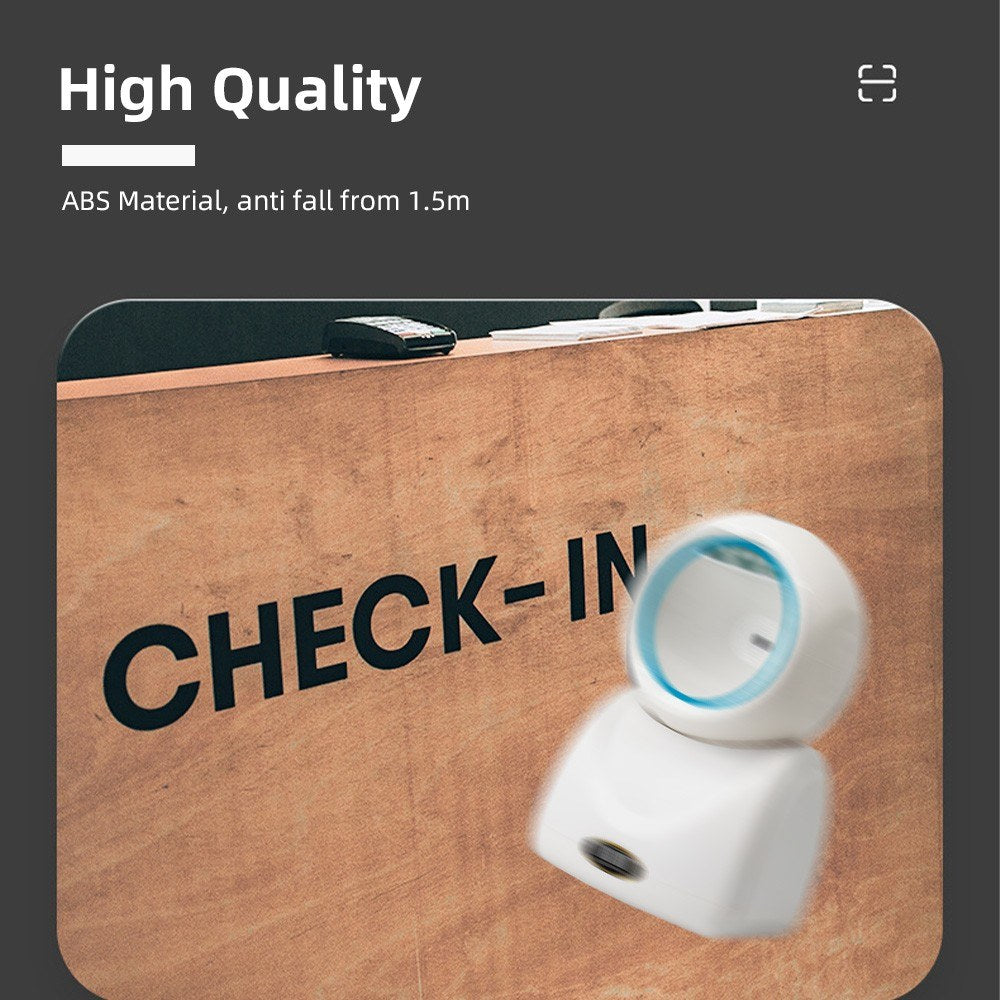

• Material: ABS+PC, Sealing Class: IP54, Drop Height: 1.5m

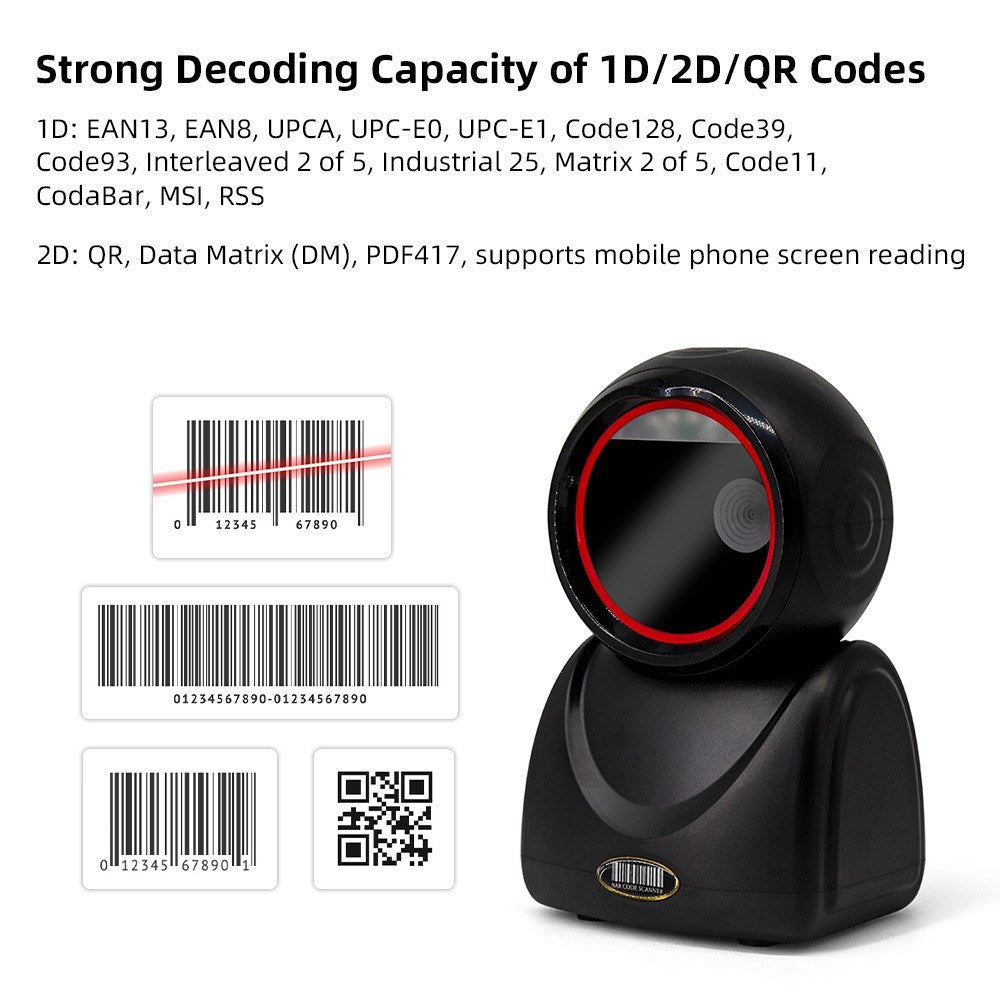

• Decoding Capability:
  • 1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS
  • 2D: QR, Data Matrix (DM), PDF417, including mobile phone screen reading
• Package Dimensions: 19.5 x 13.4 x 10.9 cm (7.6 x 5.2 x 4.2 in)
• Package Weight: 460g (16.2 oz)

Packing List

• 1 x 2D Barcode Scanner

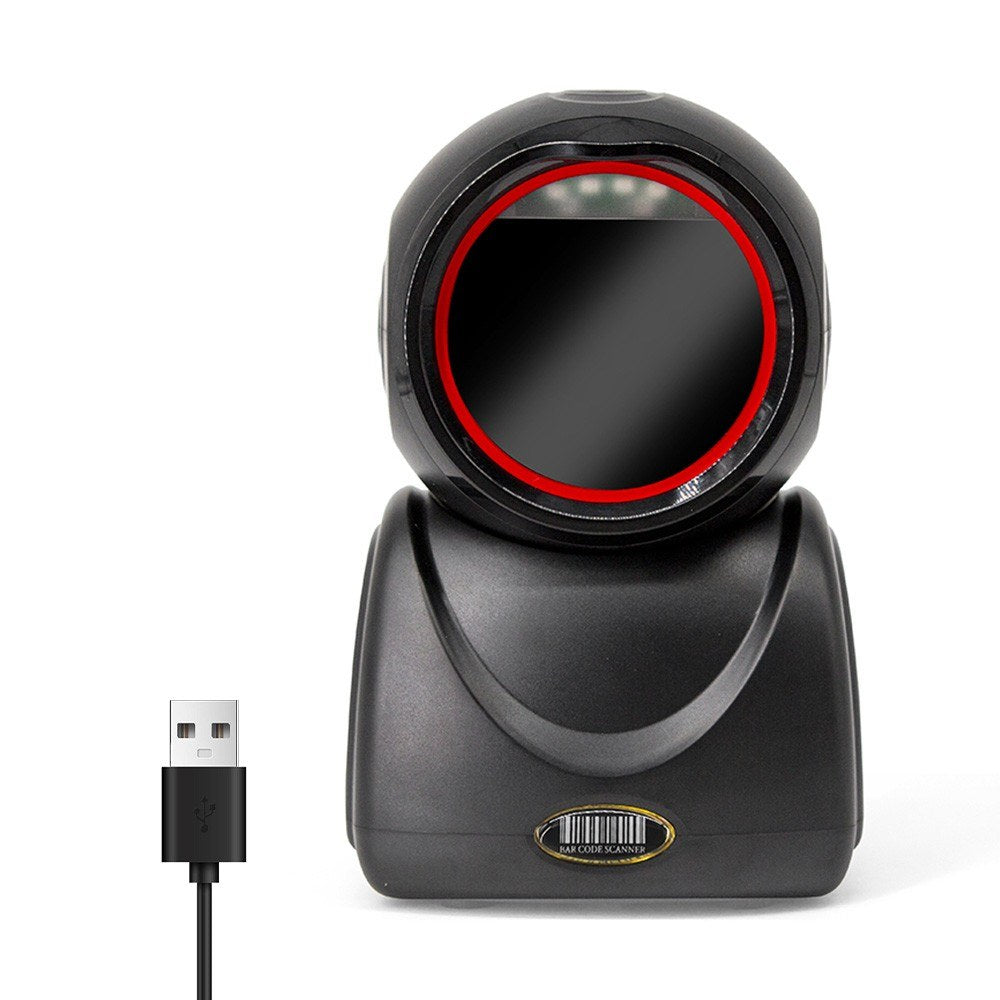

• 1 x USB Cable
