Advanced Network Cable Tester

Product Description:

Experience seamless testing with our Double-Twisted Cable Tester. Simply switch on the power to get started. The tester offers two modes: S represents the slow automatic grade, while M is for manual operation.

To begin testing, connect the cables to both the main tester and the remote tester:

• Main Tester: The indicator lights will illuminate sequentially from 1 to G.
• Remote Tester:
• 1-2-3-4-5-6-7-8-G for RJ45 connections
• 1-2-3-4-5-6 for RJ11 connections

Identify Abnormal Connections:

• If a single cable, such as cable NO.3, is open-circuited, both NO.3 lights on the main tester and remote tester will not light up.
• If multiple cables are not connected, their respective lights will remain off.
• If less than two cables are connected, no lights will illuminate.
• If two ends of a cable are misordered, for instance, NO.2 and NO.4, the lights will display as follows:
  • Main Tester: 1-2-3-4-5-6-7-8-G
  • Remote Tester: 1-4-3-2-5-6-7-8-G
• In the case of two cables being short-circuited, the corresponding lights on the remote tester will not turn on, while the main tester remains unchanged. If three or more cables are short-circuited, none of the corresponding lights will activate.

For testing patch panels or wall plate outlets, connect two RJ45 cables to the tester. For cables with the same axes, the BNC light will turn on when the cable functions correctly.

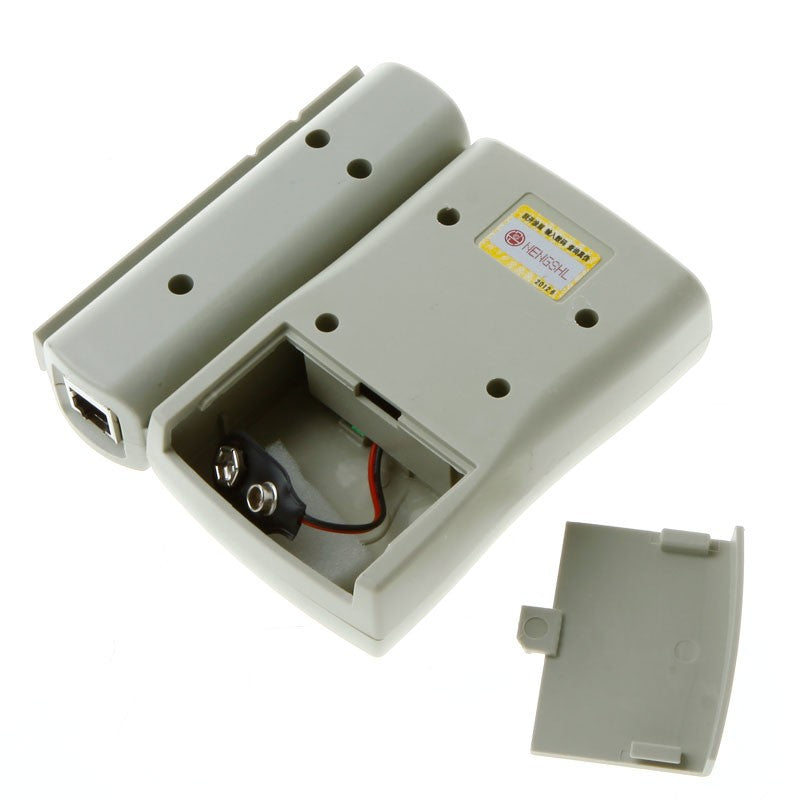

Battery Information:

The tester operates on a 9V battery, which is duplicated for extended use. Replace the battery if the lights appear dim. Please note that the battery is not included.

Product Specifications:

• Color: White
• Main Tester Size: 105 x 67 x 28 mm
• Main Tester Weight: 74g
• Remote Tester Size: 105 x 38 x 28 mm
• Remote Tester Weight: 47g
• Package Size: 185 x 113 x 34 mm
• Package Weight: 175g
