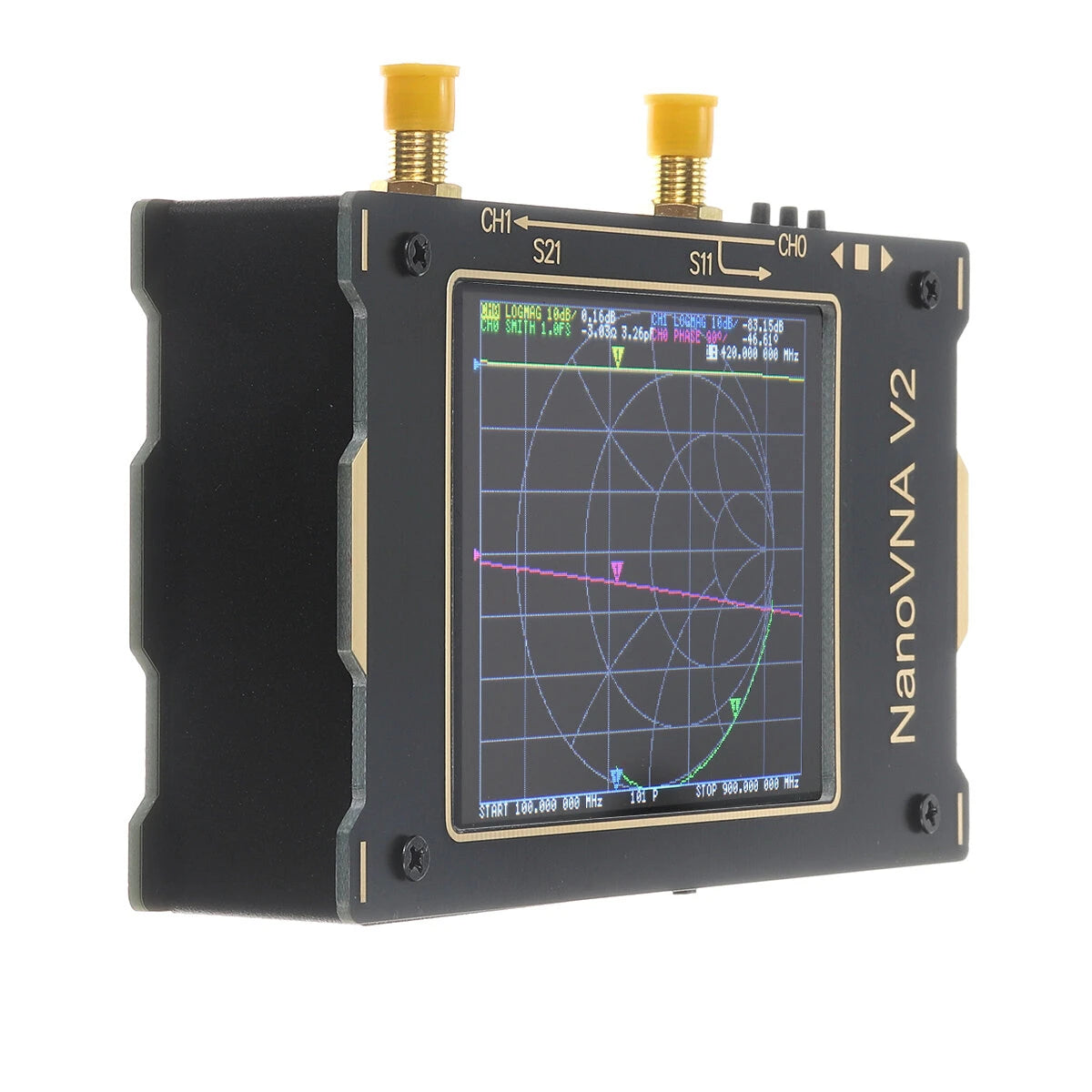

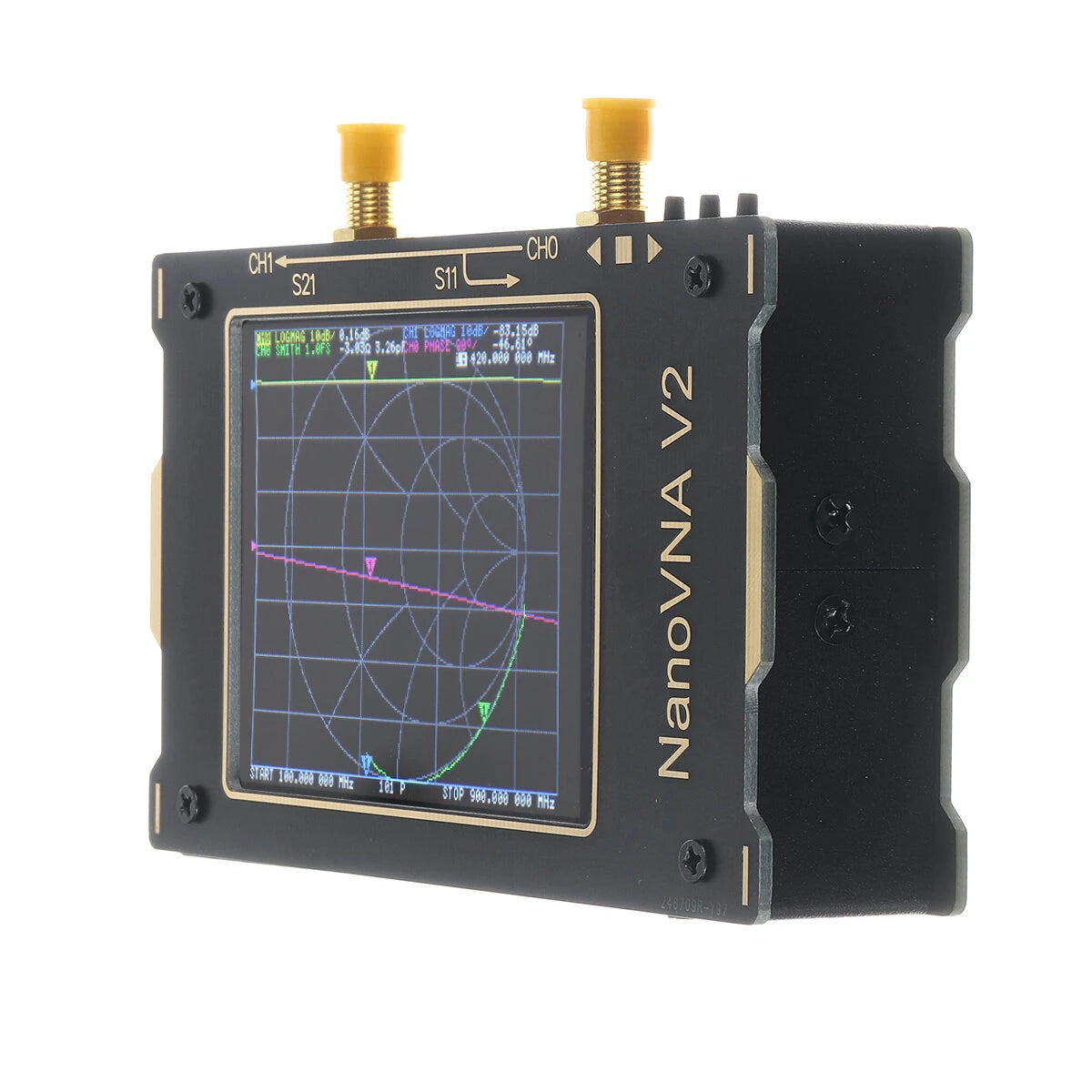

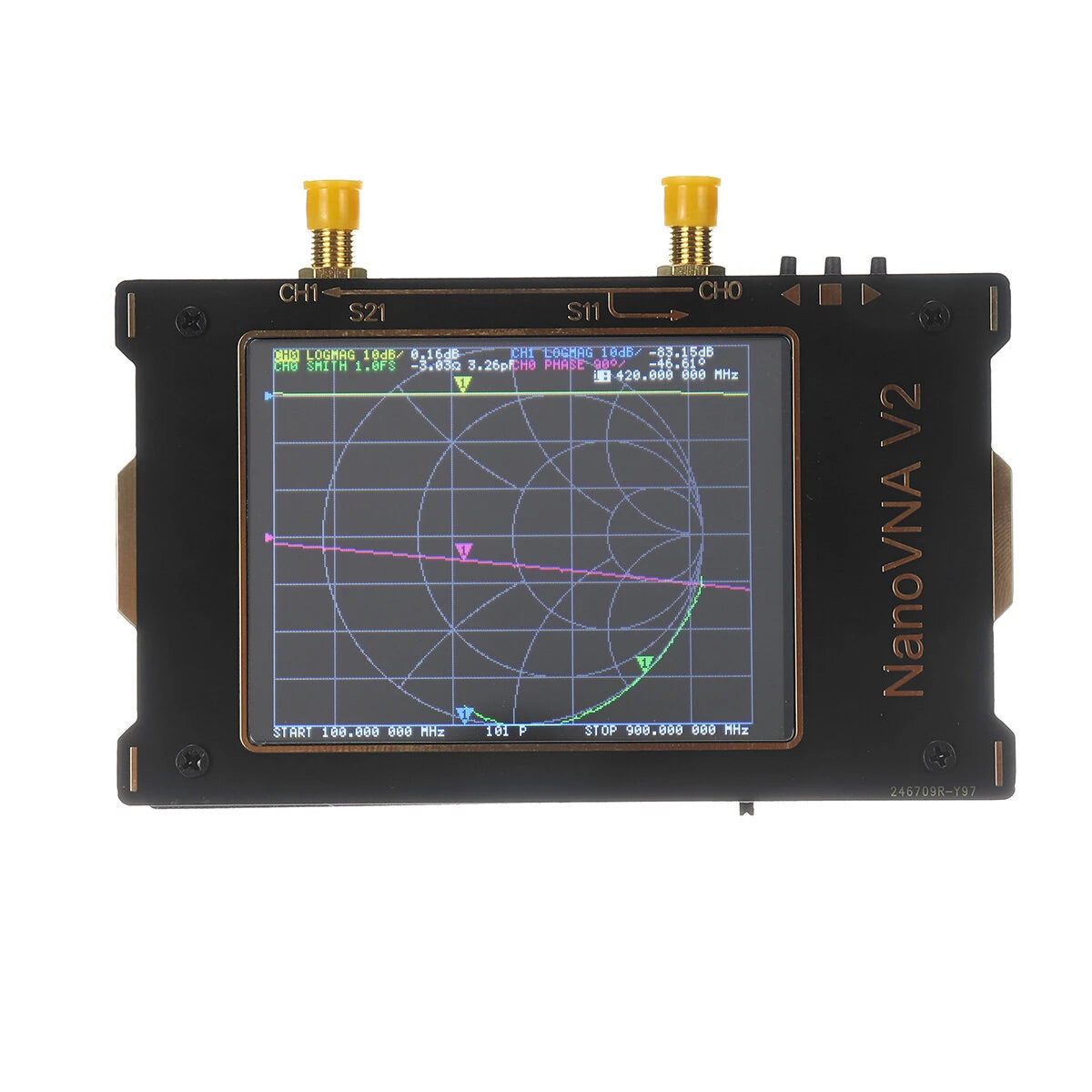

NanoVNA V2 3G Vector Network Analyzer 50KHz-3GHz Antenna for Windows

3G Vector Network Analyzer

Features

• Advanced Design: Based on OwOComm's S-A-A-2 design, offering enhanced performance.
• Comprehensive Testing: Analyze antenna standing wave and impedance, debug duplexers, filter insertion loss, isolation, standing wave, cable attenuation, phase, and antenna amplifier magnification.
• Frequency Meter Functionality: Equipped with a powerful frequency meter function.
• Large Display: Features a large, precise touch screen for easy operation.
• Portable Use: Operates without a need for continuous power connection.
• High Frequency Range: Capable of reaching 3GHz and measuring 2.4GHz antennas.
• Durable Construction: Encased in a robust metal housing.

Specifications

• Model: F43407
• Material: PCB and Metal
• Color: Black and Gold
• Frequency Range: 50kHz - 3GHz
• System Dynamic Range: 70dB (50k to 1.5GHz); 60dB (to 3GHz)
• S11 Noise Floor: -50dB (to 1.5GHz); -40dB (to 3GHz)
• Scan Rate: 100 points/second
• Max Scanning Points: 201 on device, 1024 via USB connection
• Power Supply: USB, 400mA
• RF Port: SMA (not RP-SMA)
• USB Interface: Micro USB
• Display: 3.2 inch TFT (320 x 480)
• Battery: 2000 mAh 3.6V/3.7V lithium battery
• Port 2 Return Loss: ≥ 13dB (to 3GHz), 20dB (to 1.5GHz)
• Tracking Display: 4 tracking, 4 markers, 5 settings saves
• Compatible Software: Linux and Windows (7+)

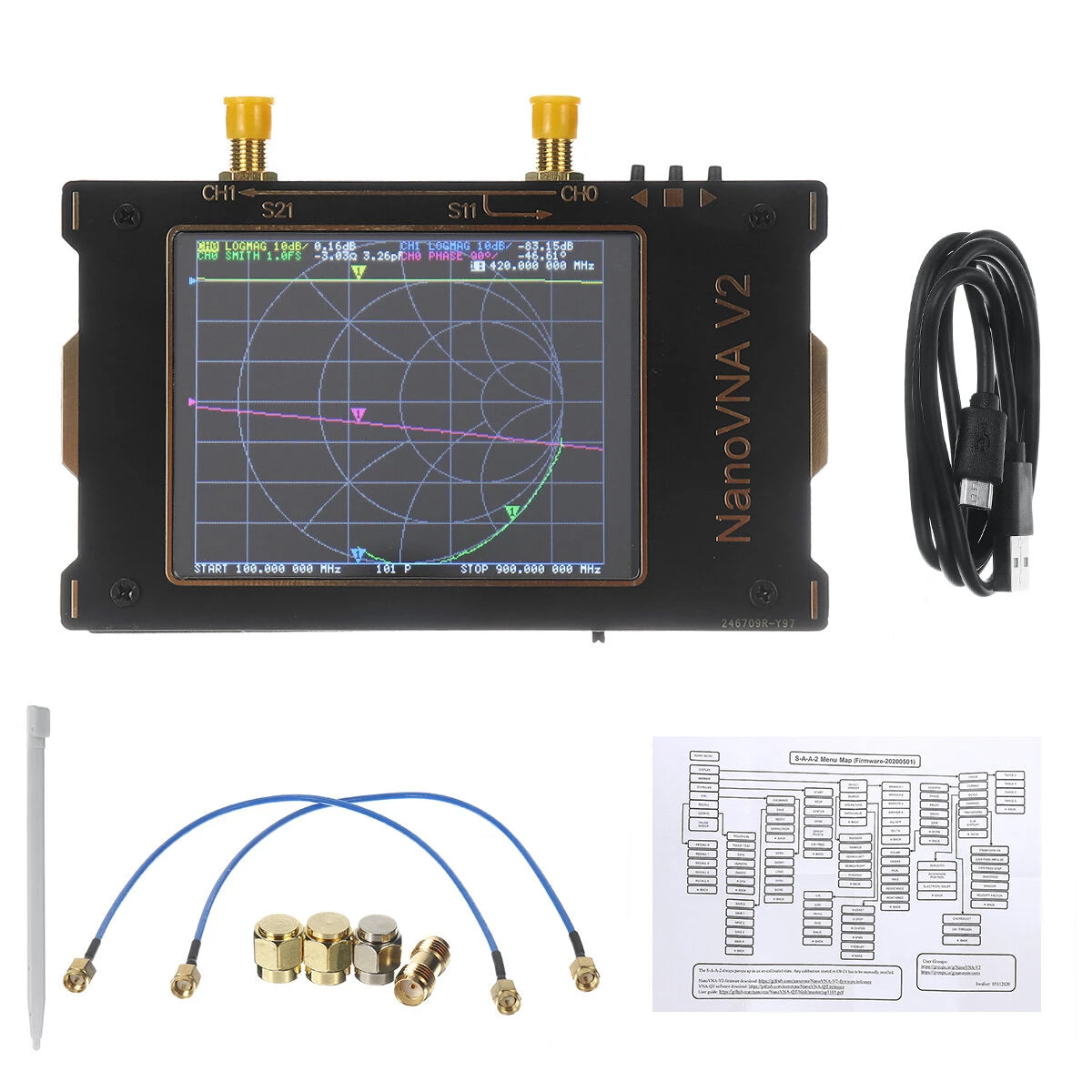

Package Includes

• 1 x NanoVNA Vector Network Analyzer
• 2 x Coaxial Cables
• 1 x USB Cable
• 1 x User Manual
