Nuclear Radiation Tester

Description

Our advanced nuclear radiation tester is designed to detect X-rays, γ-rays, and β-rays efficiently. It can measure the radioactive dose in various materials including marble, antiques, jade, and iodine 131, as well as assess radiation levels in medical equipment and unknown minerals used for decoration.

Features

• Sound and light indication function for alerting users.

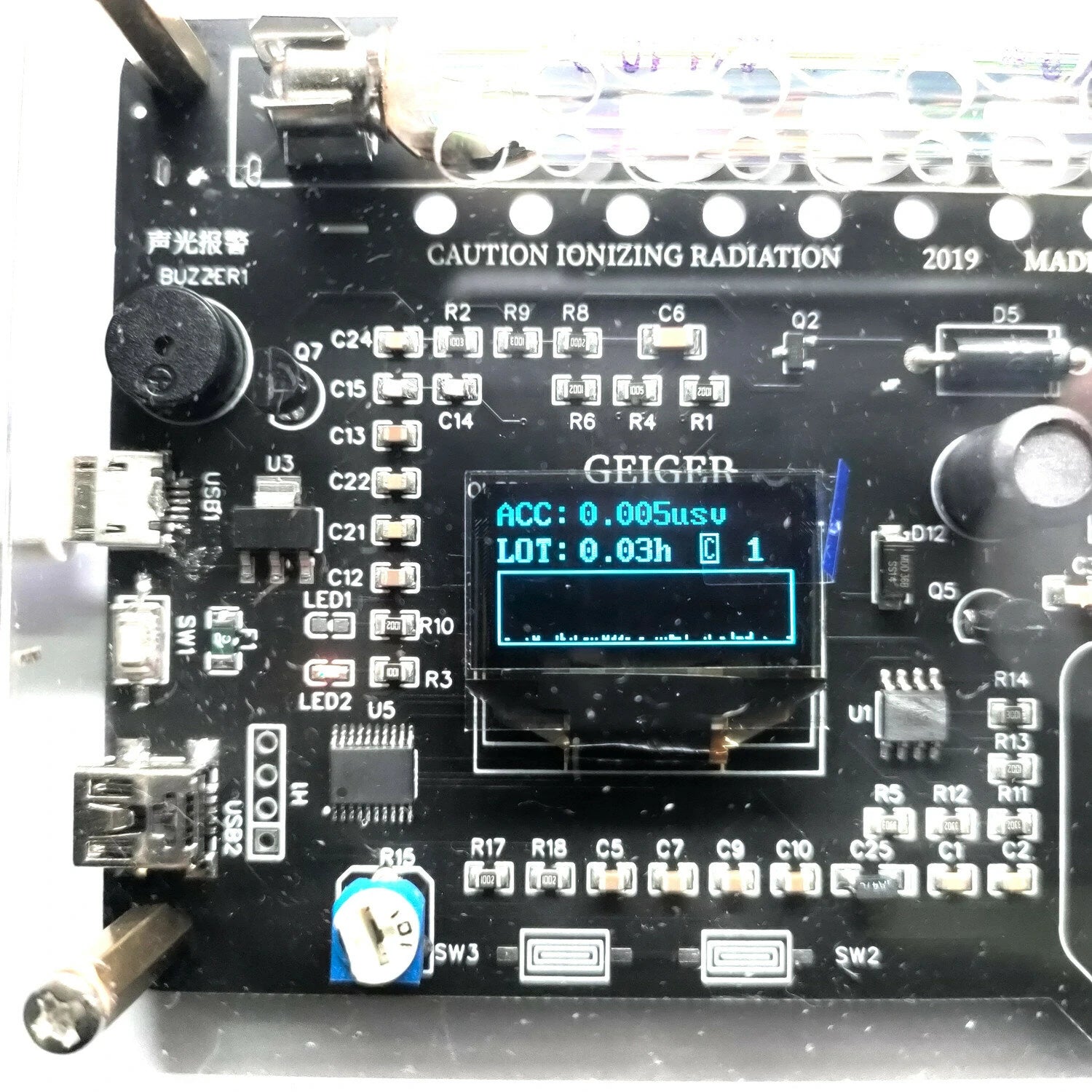

• Includes real-time dose rate, average dose rate, cumulative dose rate, and trend chart functions.

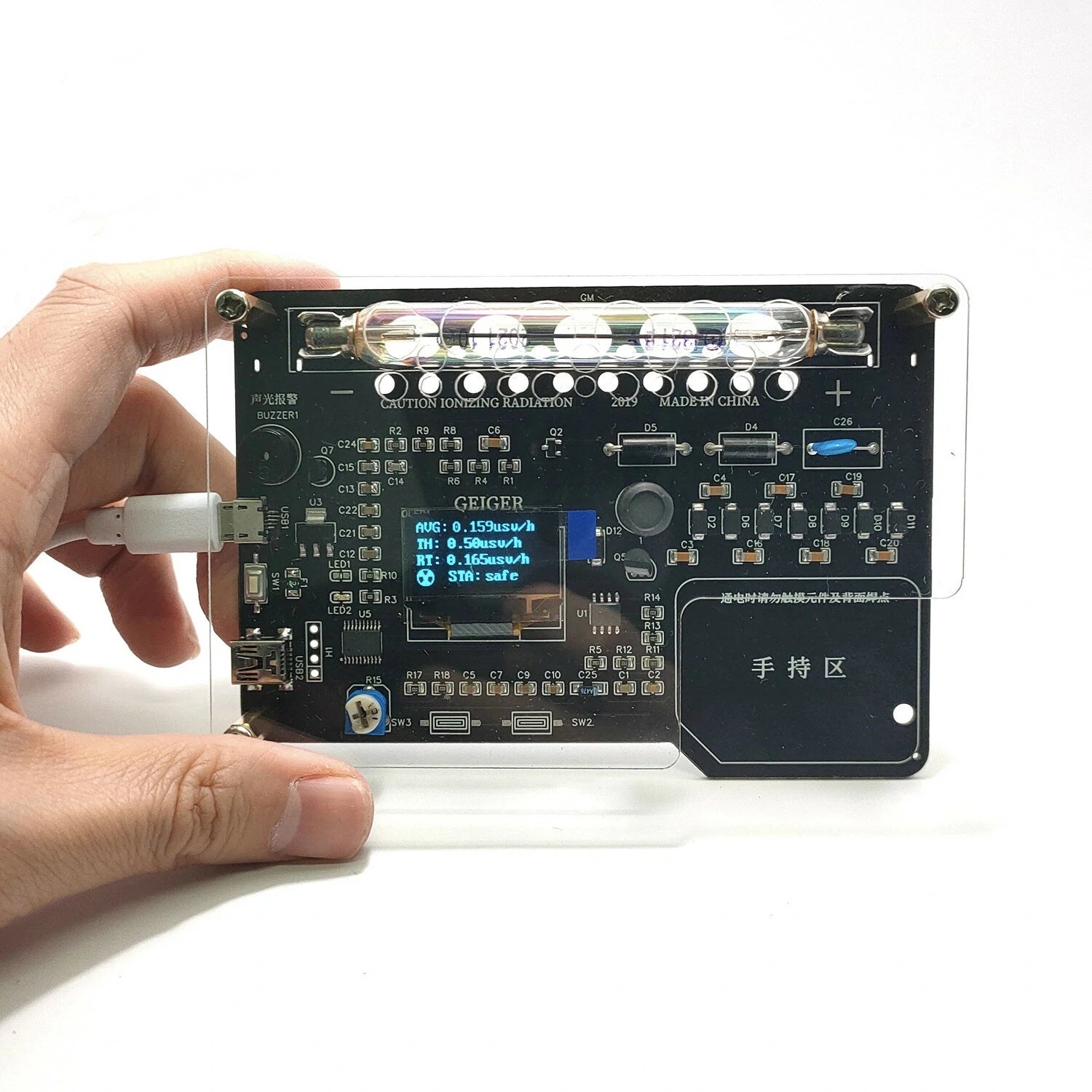

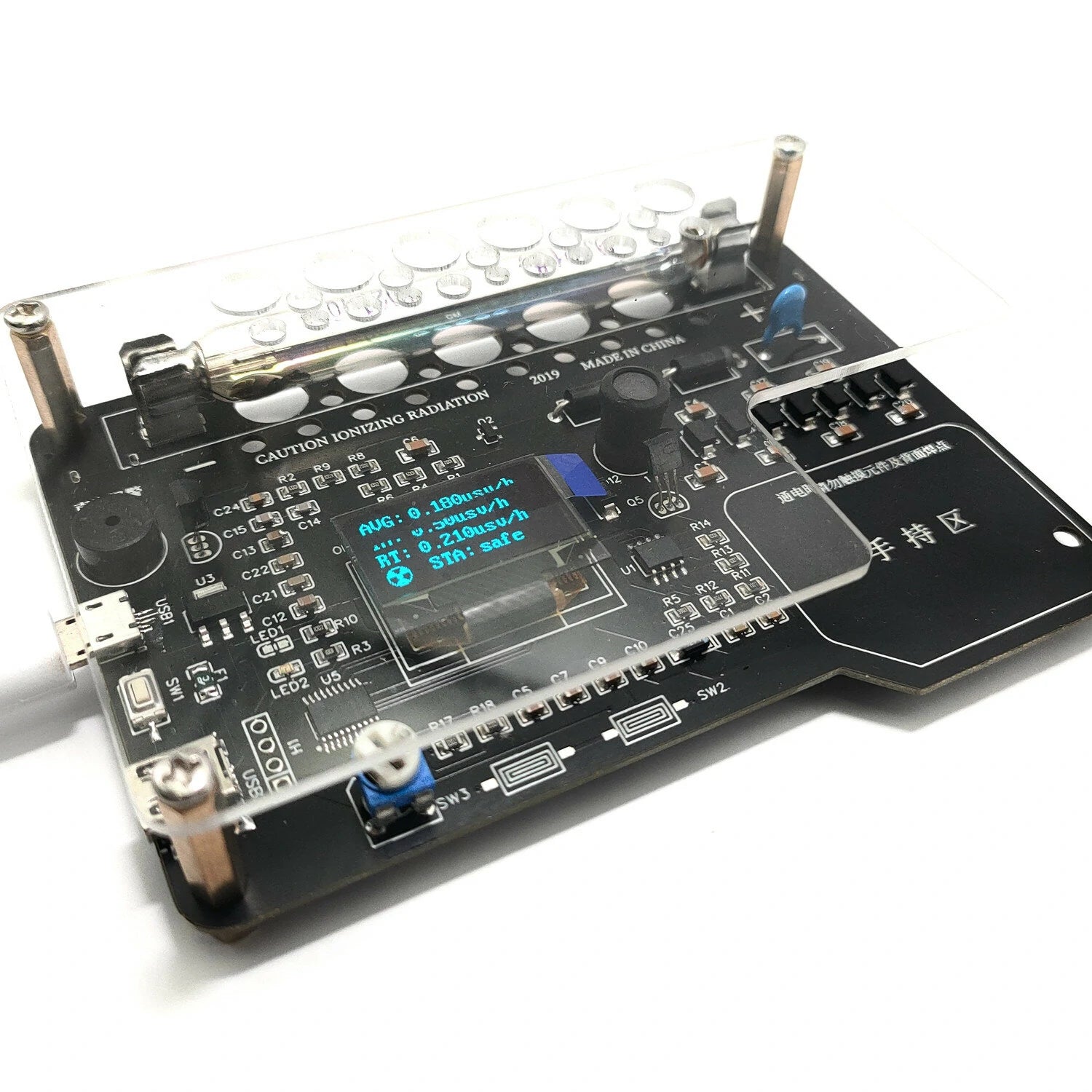

• Equipped with a small OLED screen for clear display of measurement results.
• Powered by an ARM processor for fast operation and strong processing capabilities.

Usage Instructions

1. Position the cover tube close to the radiation source you wish to test.

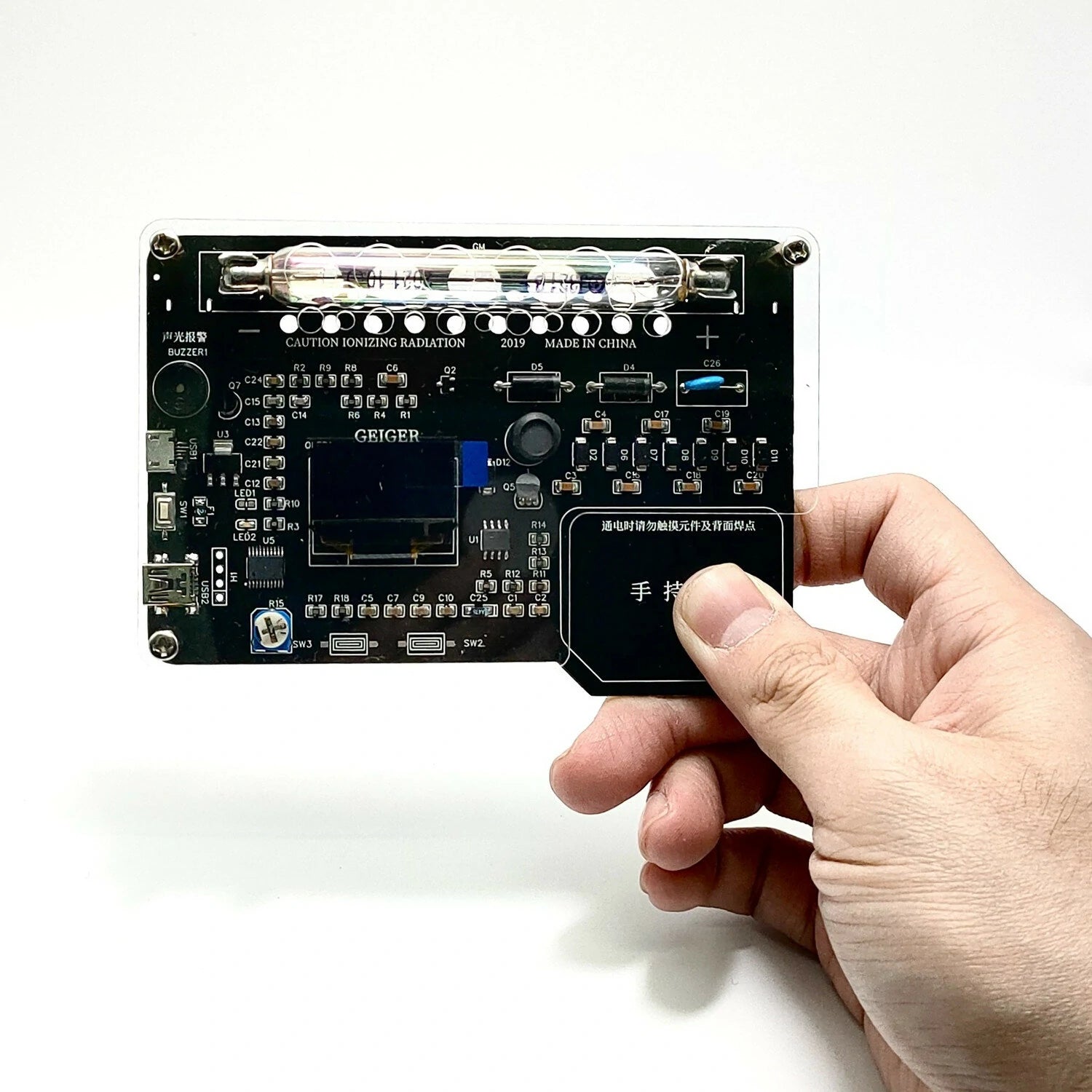

2. Avoid touching the component area when the device is powered on to prevent electric shock. Handle the device using the designated handheld area.

Specifications

• Geiger Tube: J321, compatible with M4011
• Screen Resolution: 128 x 64
• MCU: ARM
• Display Accuracy: 0.001 μSv/h
• Detection Display Range: 0-9999 μSv/h
• Dimensions: Approximately 116 x 85 mm
• Power Supply: USB, 5V, ≥500mA

J321 Pipe Specifications

• Diameter: Φ 10 ± 0.5 mm
• Total Length: 90 ± 2 mm
• Recommended Working Voltage: 380V
• Minimum Ping Length: 80V
• Maximum Ping Slope: 10% / 80V
• Extreme Working Voltage: 550V
• Maximum Background Count Rate: 25 counts/minute
• Service Life: Greater than 1 × 10⁹ pulses

Package Includes

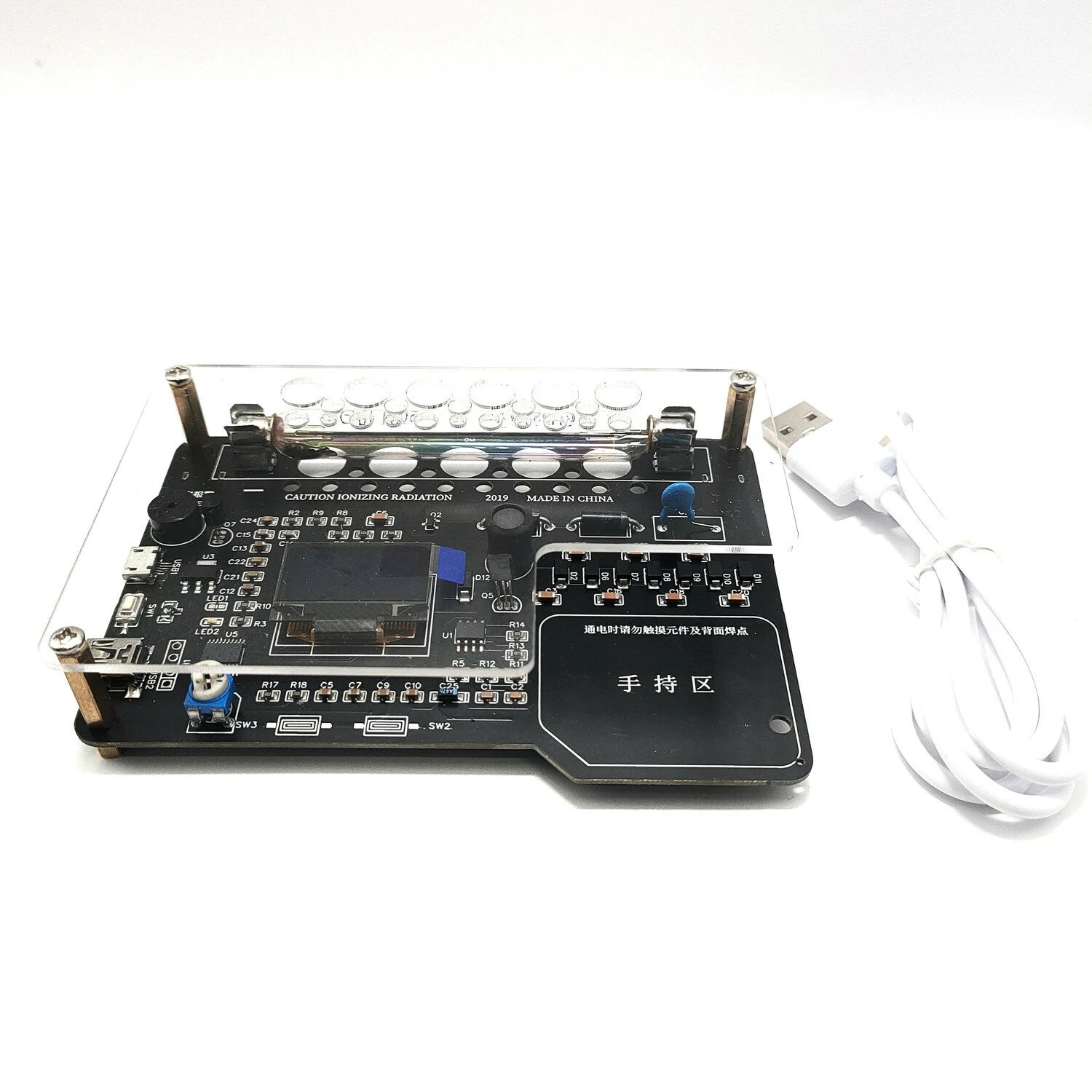

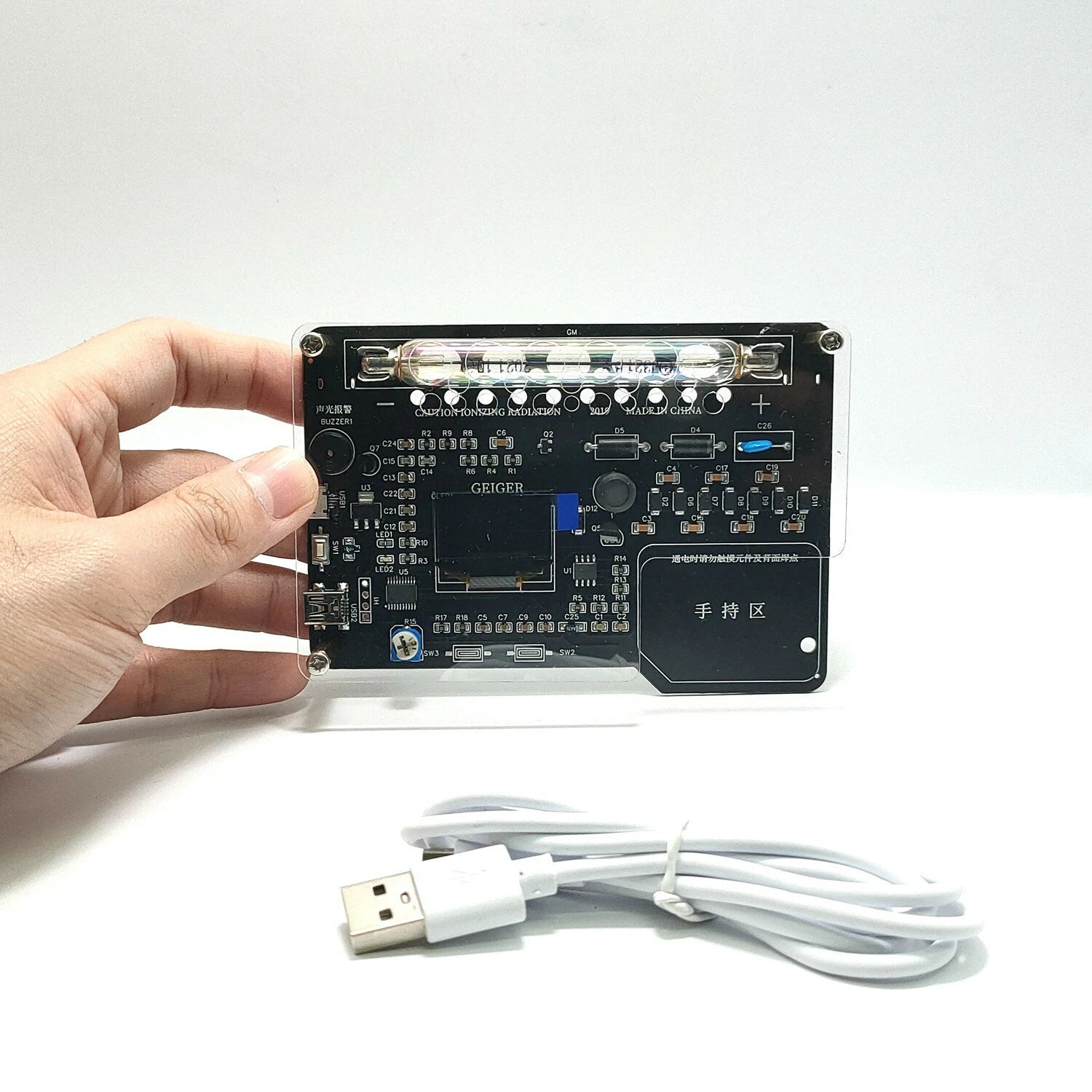

• 1 x Handheld Nuclear Radiation Tester
• 1 x USB Cable
