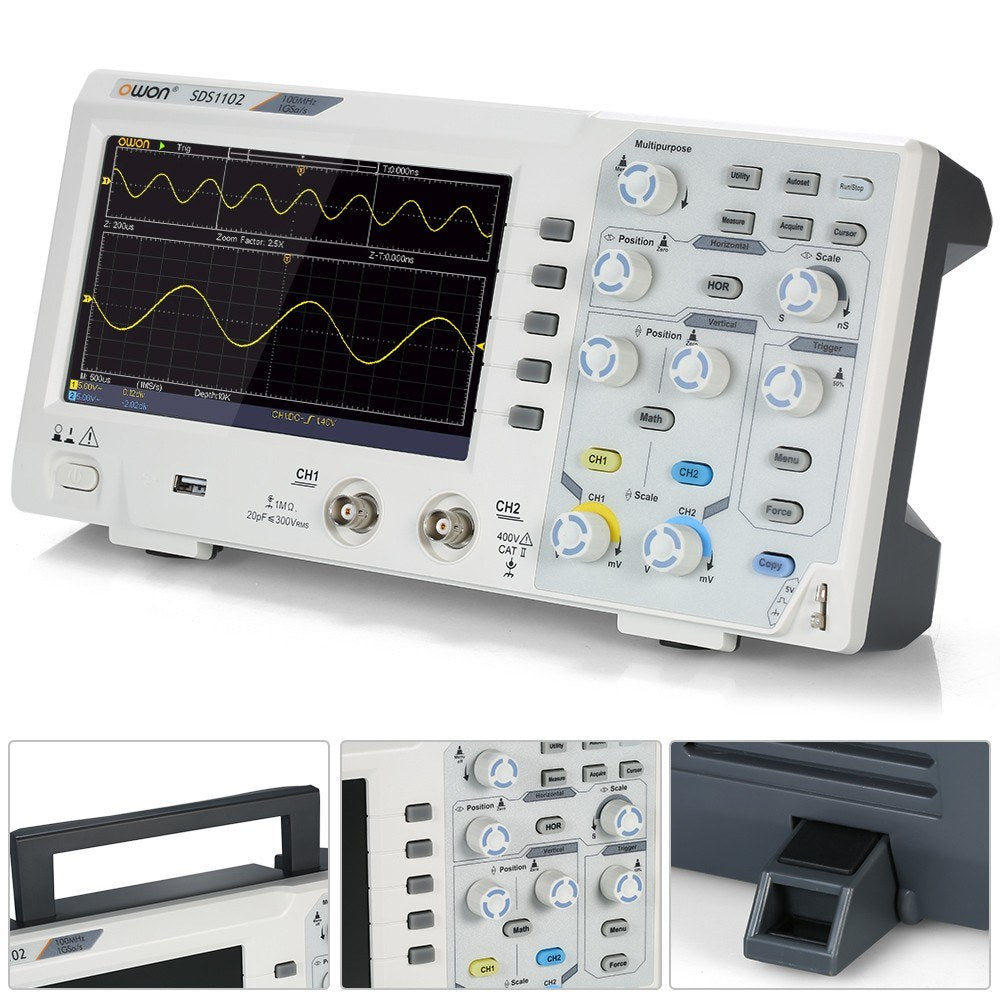

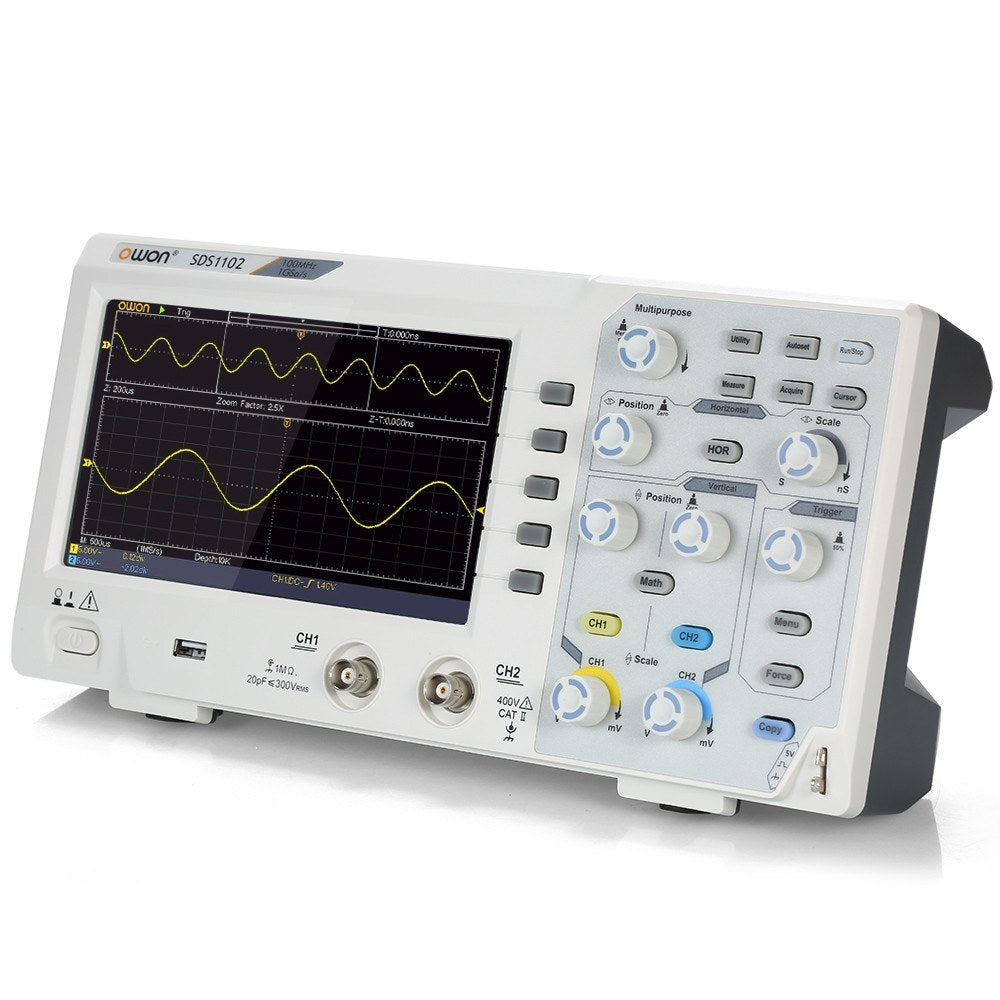

Owon SDS1102 Digital Storage Oscilloscope - 2CH, 100MHz, 1GS/s, 7 LCD Display
Owon SDS1102 Digital Storage Oscilloscope - 2CH, 100MHz, 1GS/s, 7 LCD Display
Regular price
$184.23 USD
Regular price
$0.00 USD
Sale price
$184.23 USD
Shipping calculated at checkout.
Estimated Delivery: -
Quantity
Couldn't load pickup availability
Guaranteed secure & safe checkout.

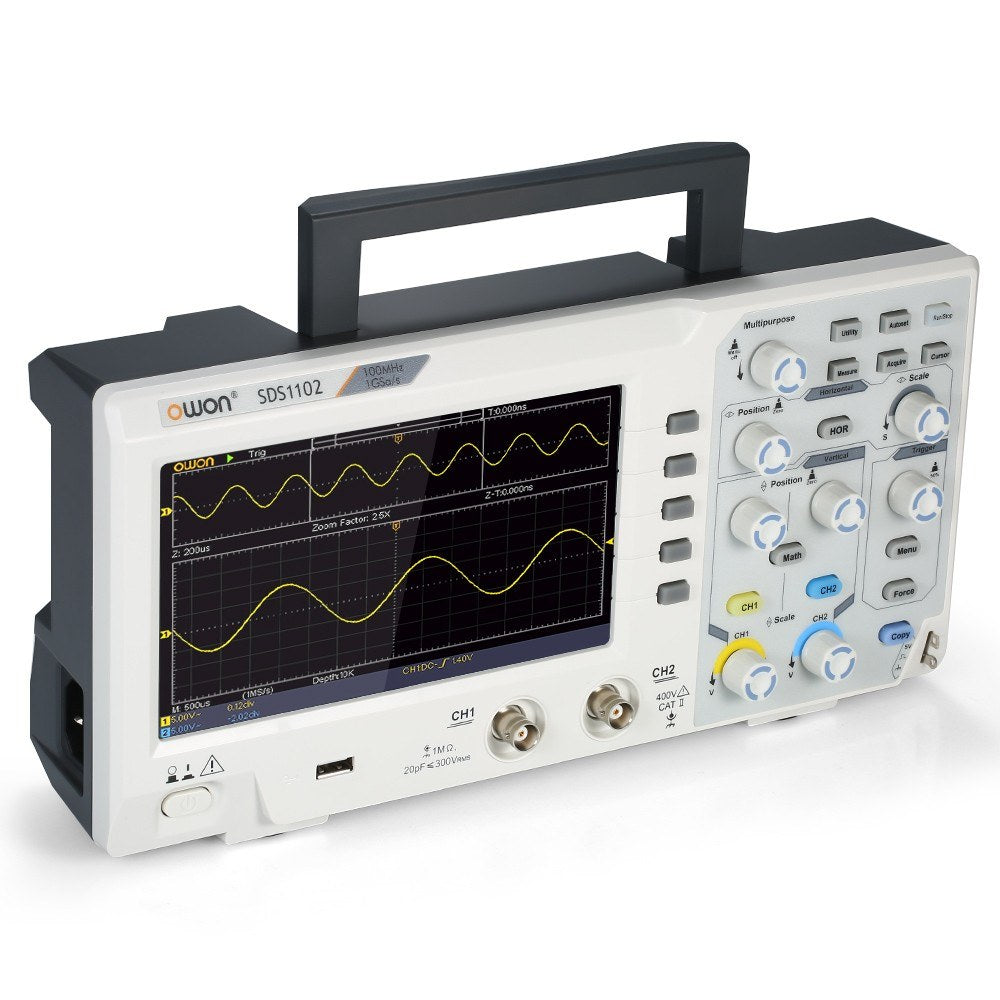

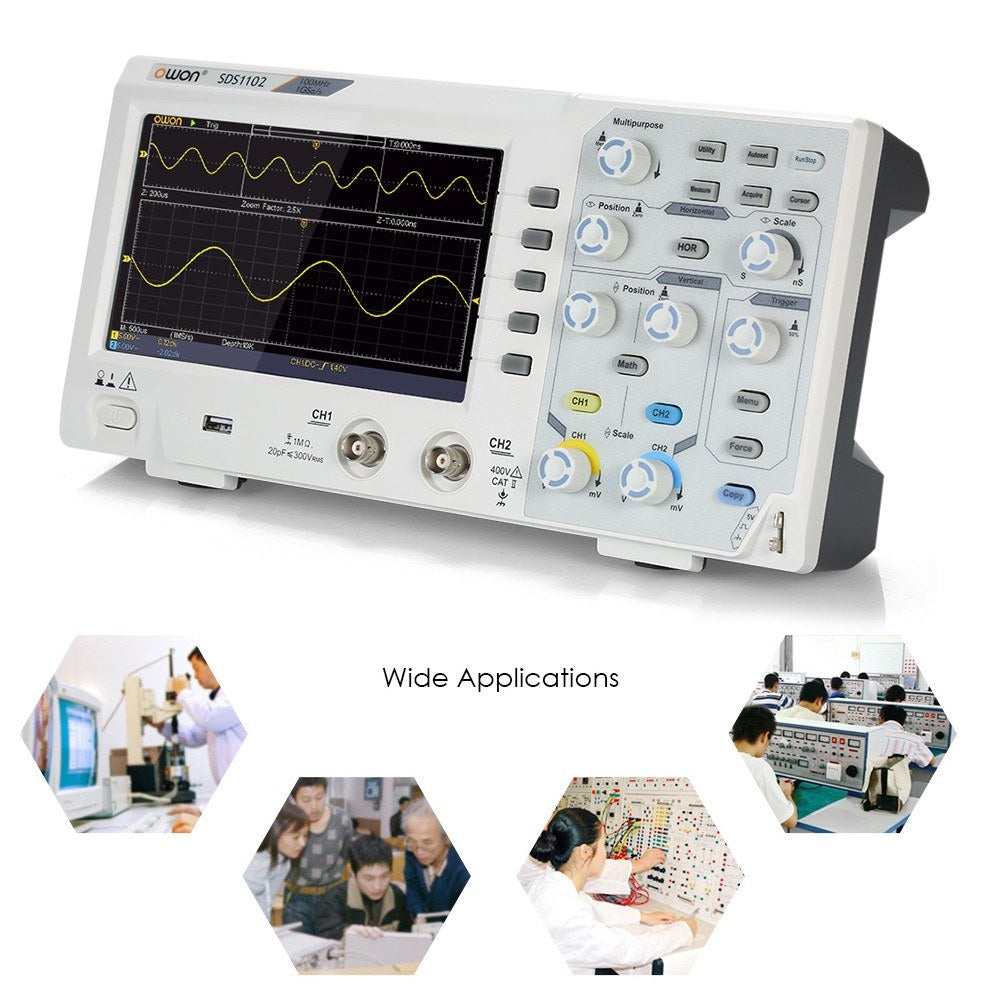

Key Features:
- 100MHz bandwidth
- 1GS/s sample rate
- Time base range: 2ns/div to 100s/div
- 3.5ns rise time
- 2 channels
- 7.0-inch high resolution LCD display
- Compatibility with SCPI and LabVIEW

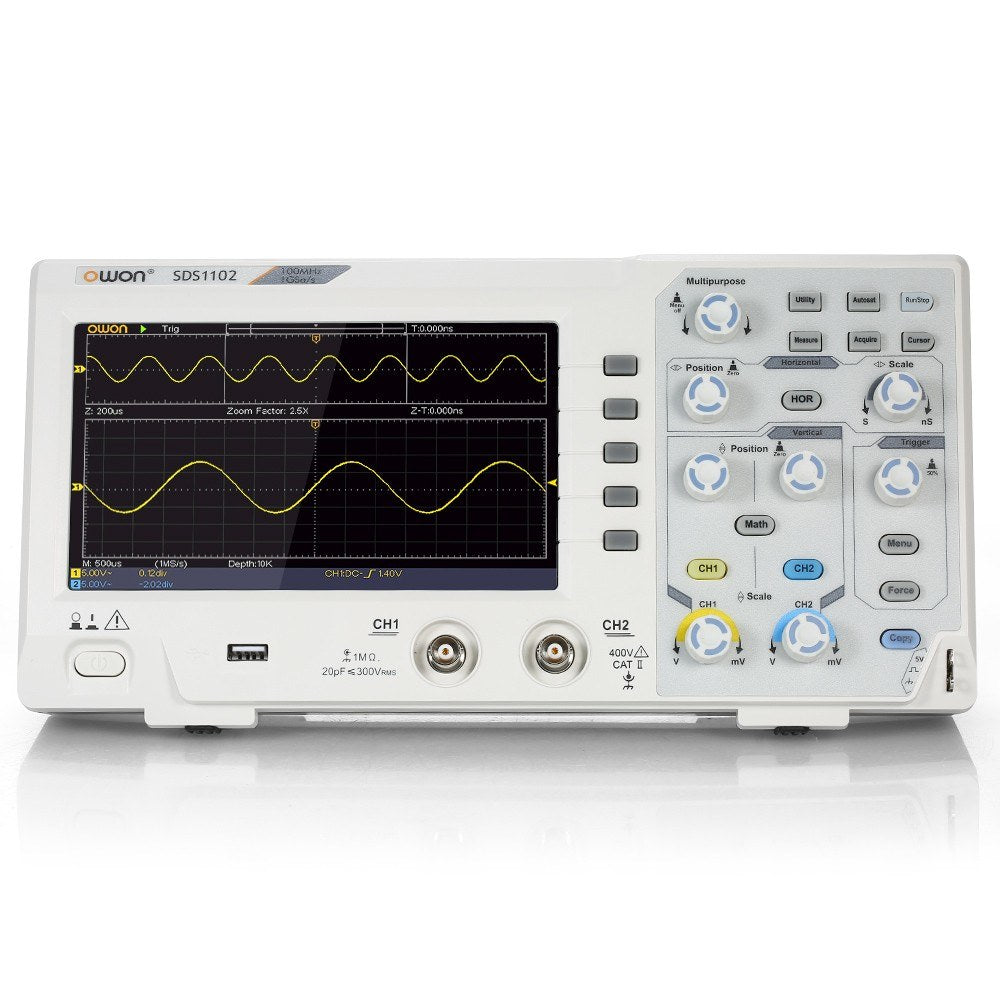

Specifications:
Functions & Specifications of SDS1102
| Bandwidth | 100MHz |
| Sample Rate | 1GS/s |
| Horizontal Scale (s/div) | 2ns/div - 100s/div, step by 1-2-5 |
| Rise Time (at input, typical) | ≤3.5ns |
| Channel | 2 |
| Display | 7" color LCD, 800 × 480 pixels |
| Input Impedance | 1MΩ ± 2%, in parallel with 20pF ± 5pF |
| Channel Isolation | 50Hz:100:1, 10MHz:40:1 |
| Max Input Voltage | 400V (PK-PK) (DC+AC, PK-PK) |
| DC Gain Accuracy | ±3% |
| Record Length | 10k |
| DC Accuracy (average) | Average≥16: ±(3% reading+0.05div) for △V |
| Probe Attenuation Factor | 1X, 10X, 100X, 1000X |
| LF Respond (AC, -3dB) | ≥10Hz (at input, AC coupling, -3dB) |
| Sample Rate / Relay Time Accuracy | ±100ppm |
| Interpolation | sin (x) / x |
| Interval(△T) Accuracy (full bandwidth) | Single: ±(1 interval time + 100ppm × reading + 0.6ns), Average＞16: ±(1 interval time + 100ppm × reading + 0.4ns) |
| Input Coupling | DC, AC, and GND |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |
| Vertical Sensitivity | 5mV/div - 5V/div (at input) |
| Trigger Type | Edge, Video |
| Trigger Mode | Auto, Normal, and Single |
| Trigger Level | ±5 divisions from screen center |
| Line / Field Frequency (video) | NTSC, PAL and SECAM standard |
| Cursor Measurement | △V, and △T between cursors |
| Automatic Measurement | Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B, Delay A→B |
| Waveform Math | +, -, ×, ÷, invert, FFT |
| Waveform Storage | 16 waveforms |
| Lissajous Figure Bandwidth | Full bandwidth |
| Lissajous Figure Phase Difference | ±3 degrees |
| Communication Interface | USB host, USB device |
| Frequency Counter | Available |
| Power Consumption | <15W |
| Fuse | 2A, T class, 250V |
| Power Supply | 220V (EU/UK plug), 110V (US plug), 50/60Hz, CAT II |
| Plug Type | EU / UK / US (Optional) |

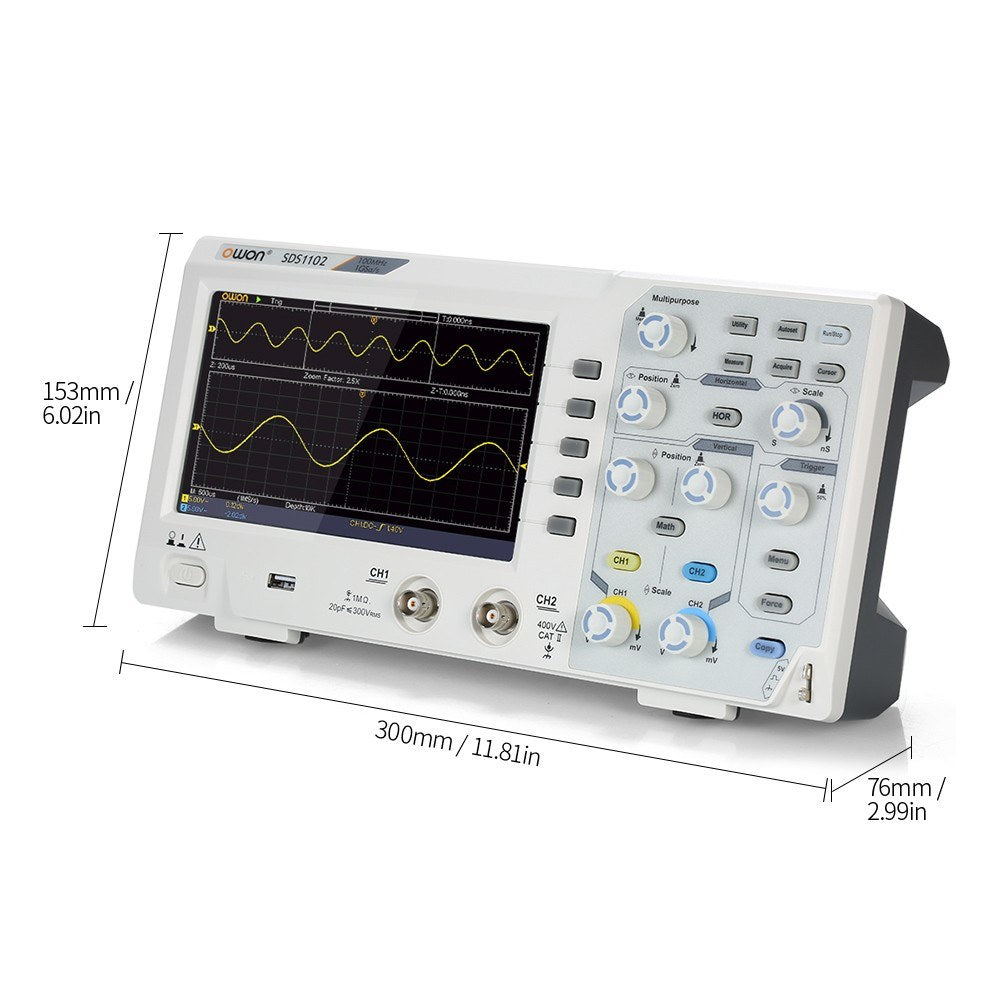

| Item Size | 300 * 76 * 153mm / 11.81 * 2.99 * 6.02in |
| Net Weight | 1403g / 3.09lb |
| Package Weight | 1601g / 3.53lb |
| Package Size | 37 * 18 * 11.5cm / 14.57 * 7.09 * 4.53in |
Package List:

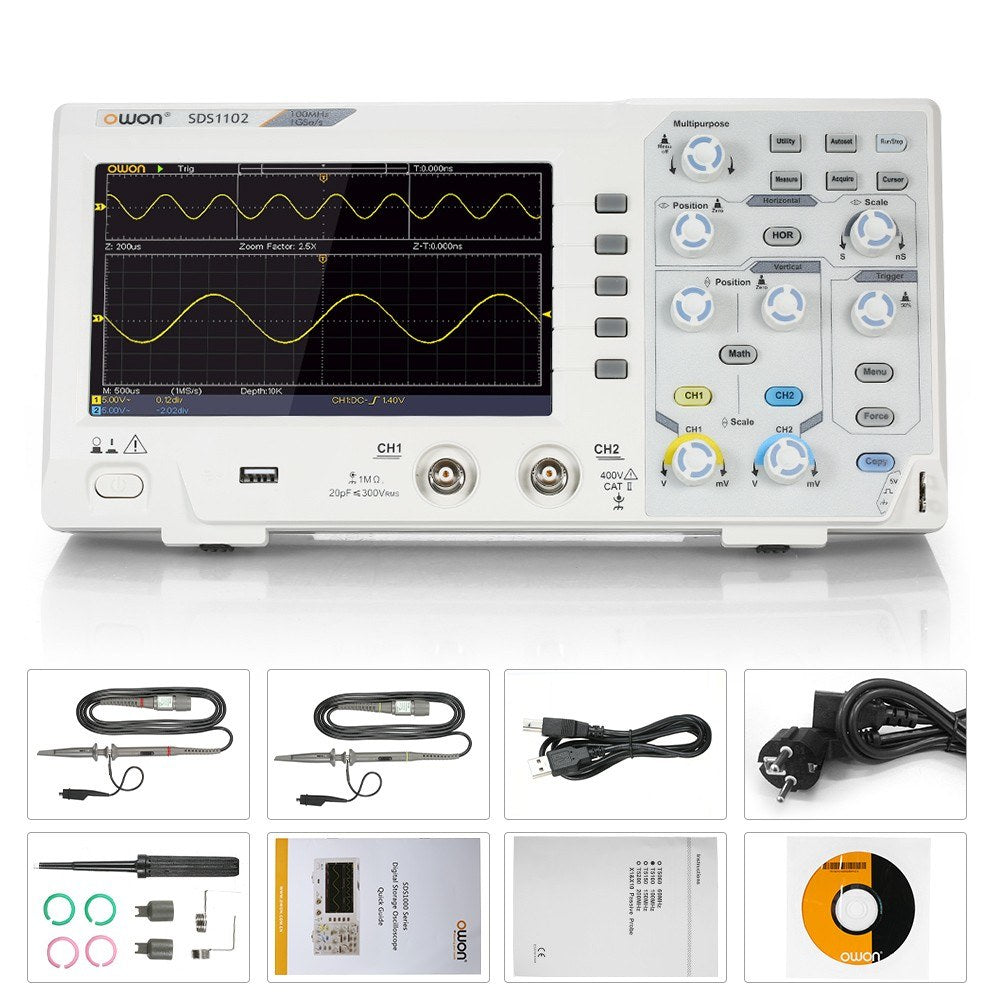

- 1 x Oscilloscope
- 2 x Oscilloscope Probe
- 1 x Oscilloscope Powerline
- 1 x Data CD
- 1 x USB Cable
- 1 x Package of Accessories
- 1 x Quick Guide (English)
Note:
Please read the instruction manual on the CD carefully to avoid injury and prevent damage to this product.
