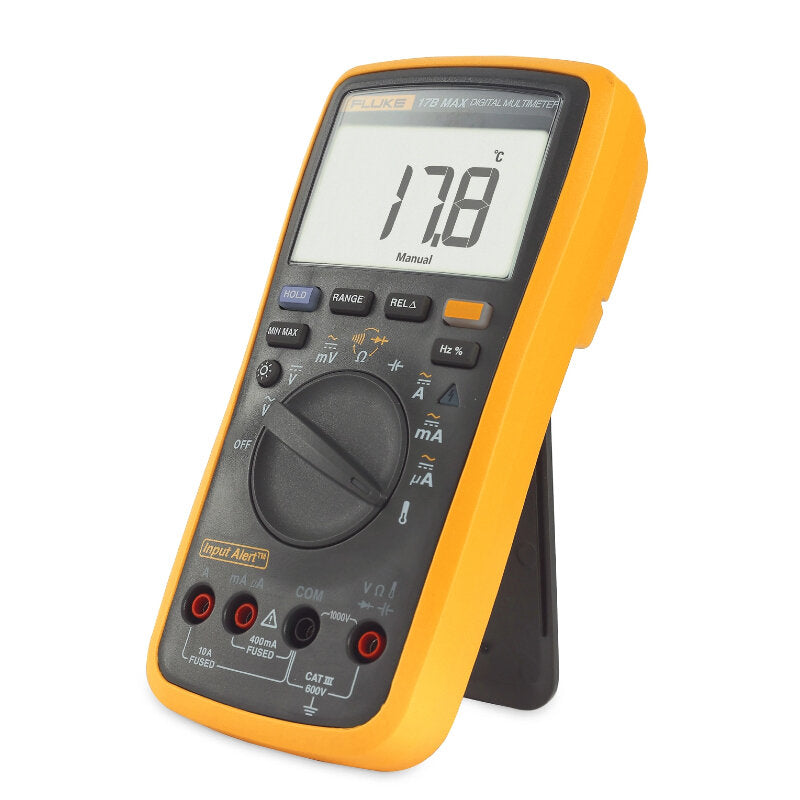

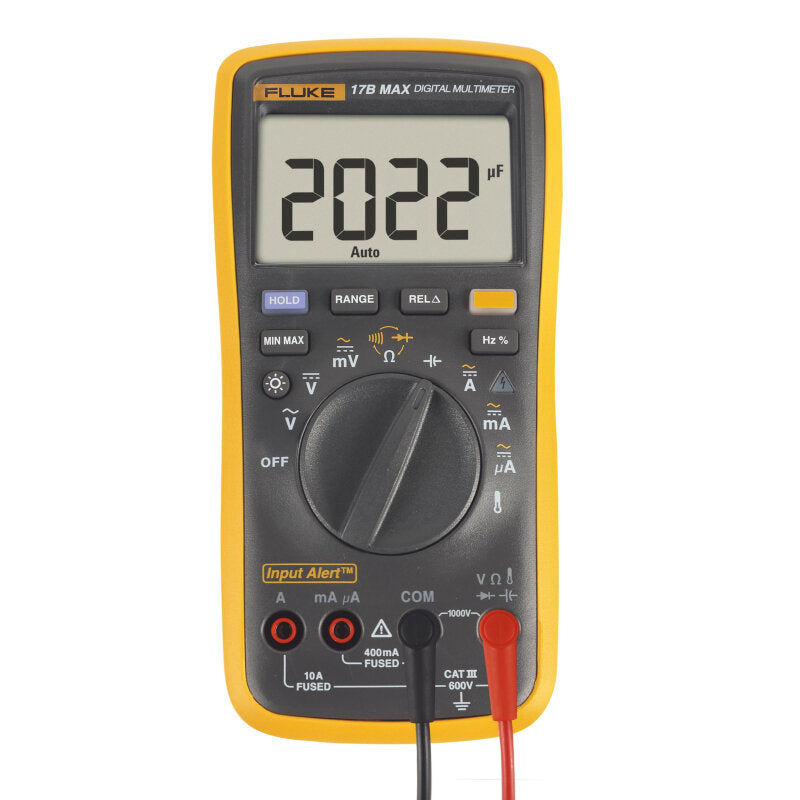

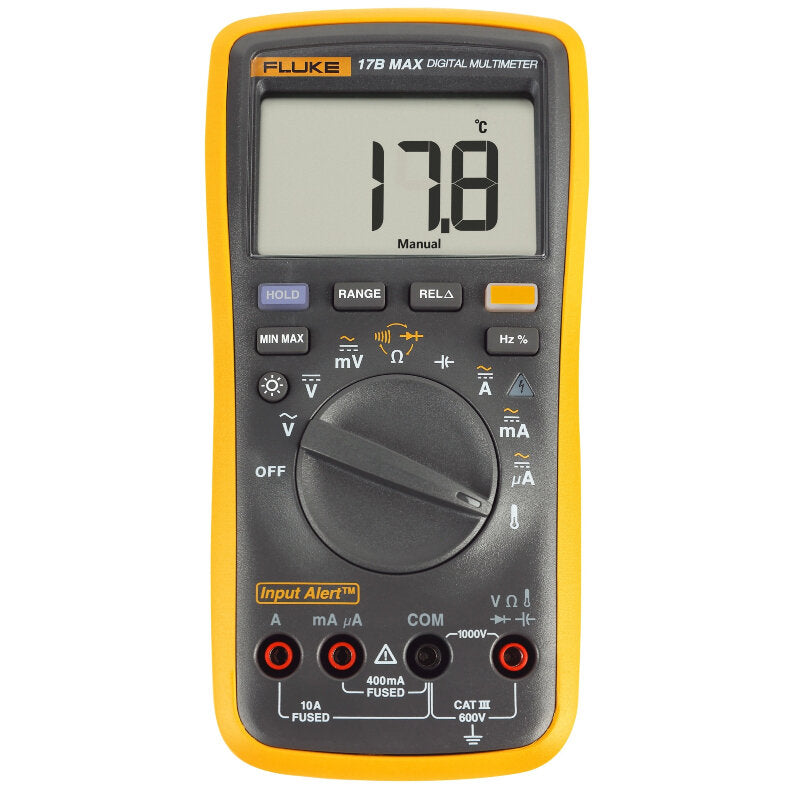

High Precision 17B+ Digital Multimeter 4000 AC/DC Current Capacitance Frequency Tester
High Precision 17B+ Digital Multimeter 4000 AC/DC Current Capacitance Frequency Tester
Regular price
$147.99 USD
Regular price
$0.00 USD
Sale price
$147.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Features
- 600 V Cat III safety design specifications
- Bright white backlight covering 50% of the display range
- Overvoltage indicator
- Frequency and temperature measurement
- Measures Voltage, Resistance, Current, and Capacitance
- AC and DC current measurement with a capacity of up to 10 A
- Diode test and data retention feature
Specifications
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| AC Voltage (40 Hz ~ 500 Hz) | 4.000 V, 40.00 V, 400.0 V, 1000 V | 0.001 V, 0.01 V, 0.1 V, 1 V | 1.0 % |
| DC Voltage | 4.000 V, 40.00 V, 400.0 V, 1000 V | 0.001 V, 0.01 V, 0.1 V, 1 V | 0.5 % |
| Resistance | 400.0 Ω, 4.000 kΩ, 40.00 kΩ, 400.0 kΩ, 4.000 MΩ, 40.00 MΩ | 0.1 Ω, 0.001 kΩ, 0.01 kΩ, 0.1 kΩ, 0.001 MΩ, 0.01 MΩ | 0.5 % |
| Capacitance | 40.00 nF, 400.0 nF, 4.000 μF, 40.00 μF, 400.0 μF, 1000 μF | 0.01 nF, 0.1 nF, 0.001 μF, 0.01 μF, 0.1 μF, 1 μF | 2% to 5% |
| Frequency (Hz) | 50.00 Hz, 500.0 Hz, 5.000 kHz, 50.00 kHz, 100.0 kHz | 0.01 Hz, 0.1 Hz, 0.001 kHz, 0.01 kHz, 0.1 kHz | 0.1 % |
| Duty Cycle | 1 % to 99 % | 0.10% | 1 %, typical |
| Temperature | -55 °C to 400 °C | 0.1°C | 2 % ± 1 °C |

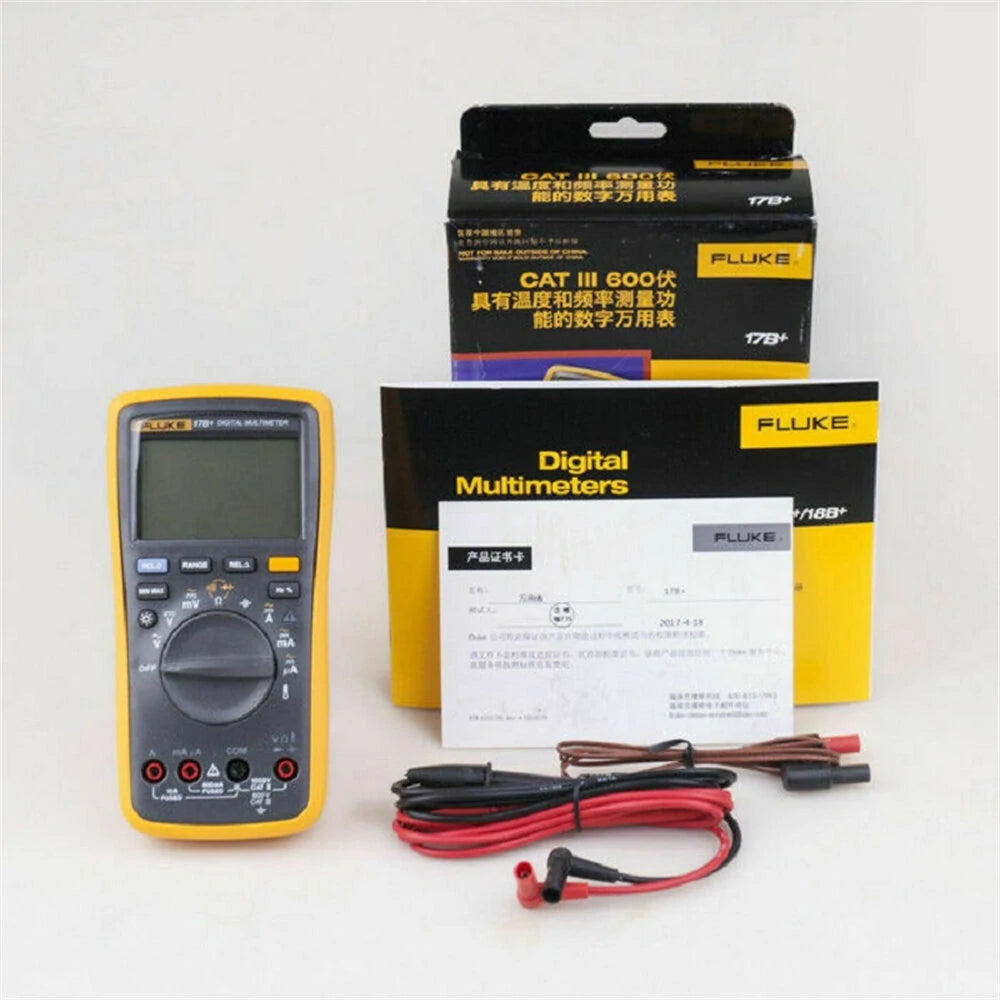

Package Included
- 1 x 17B MAX-01 (Batteries not included)
- 1 x Test Leads
