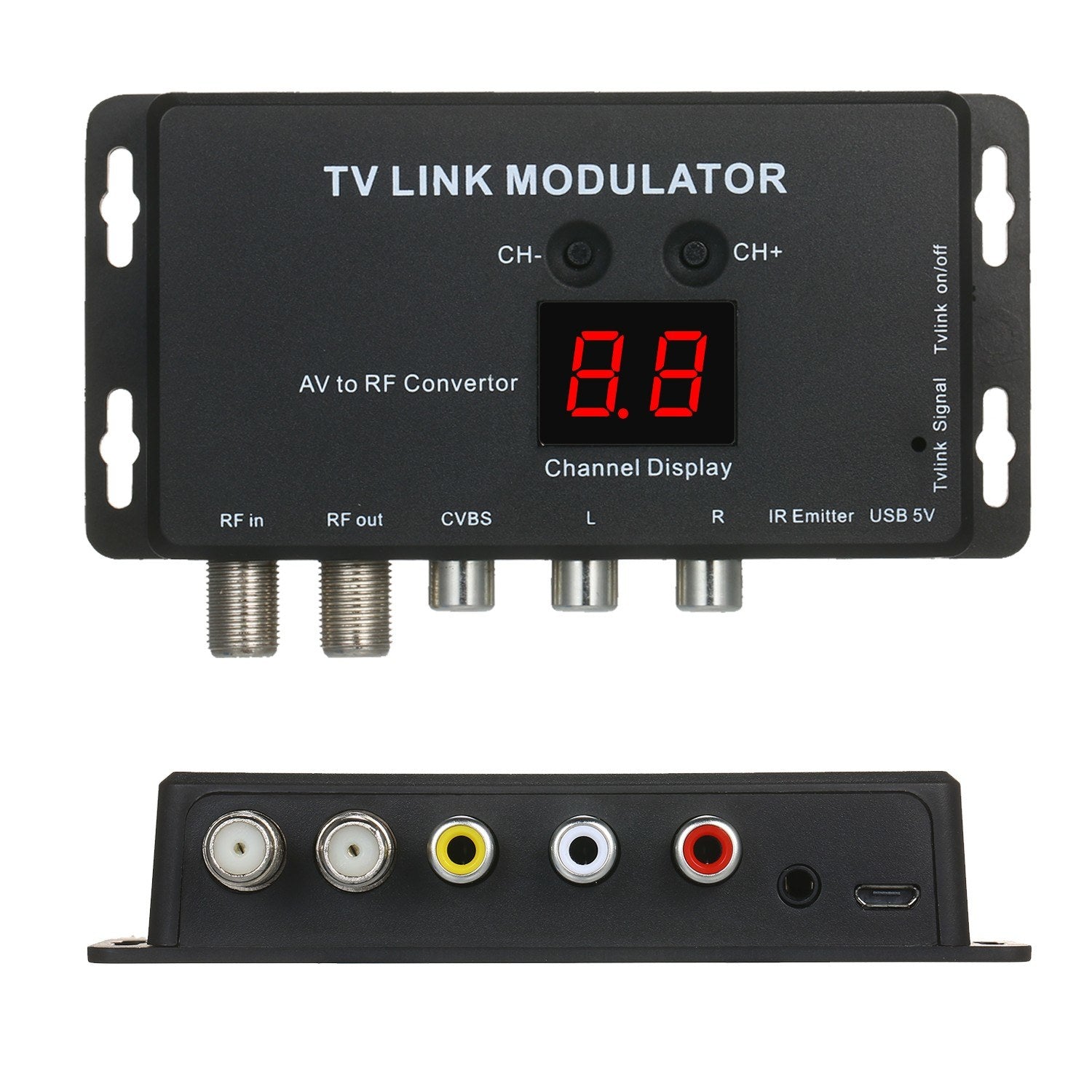

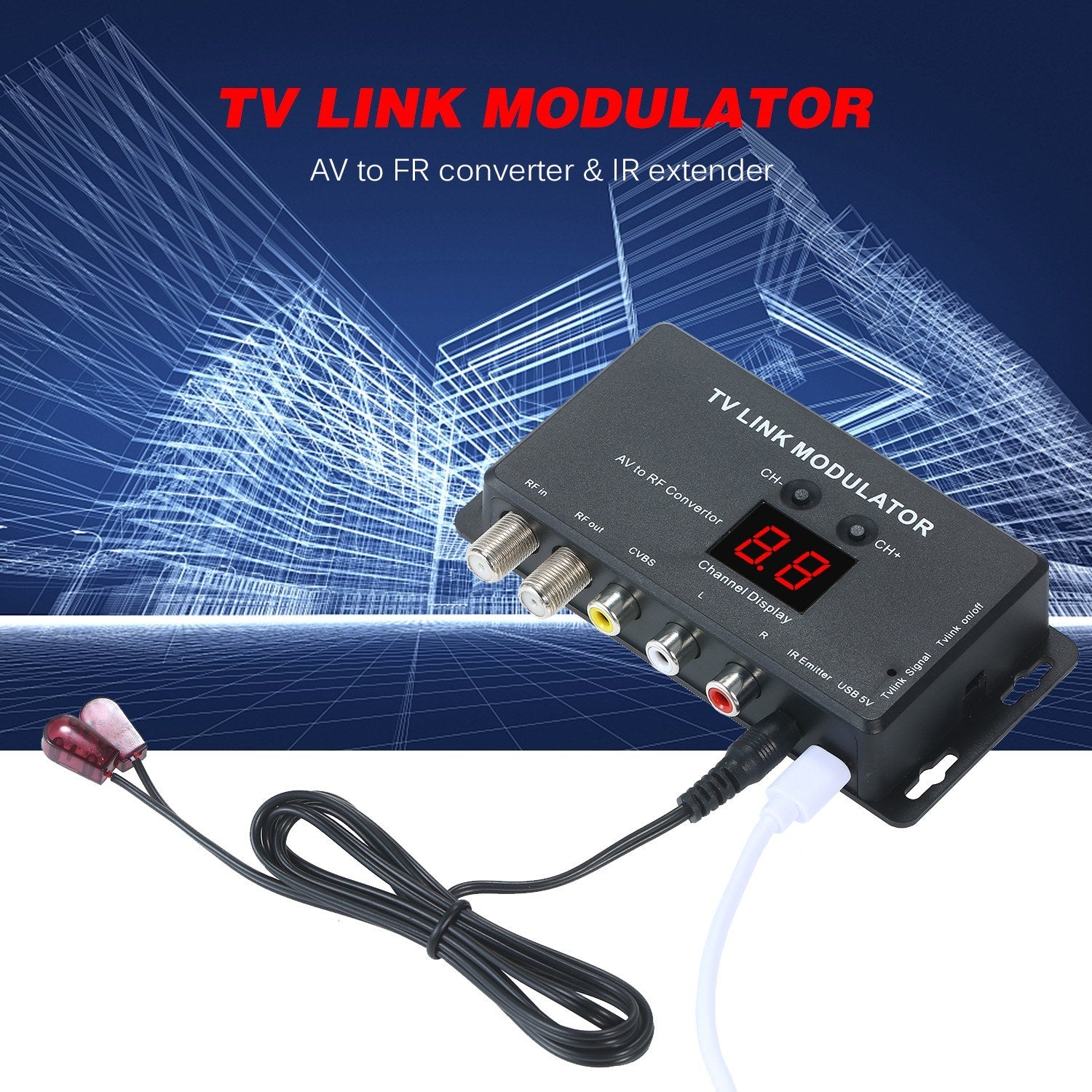

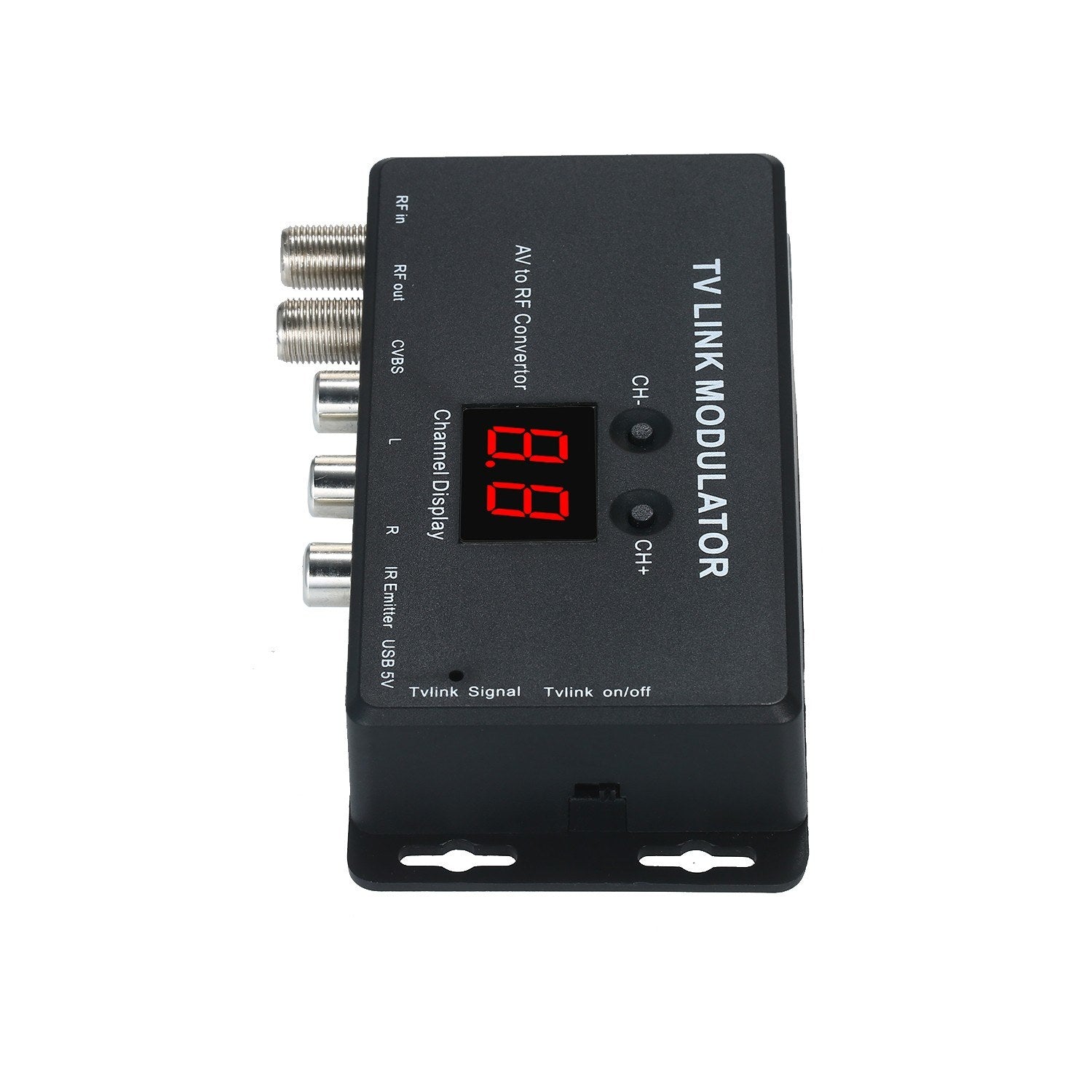

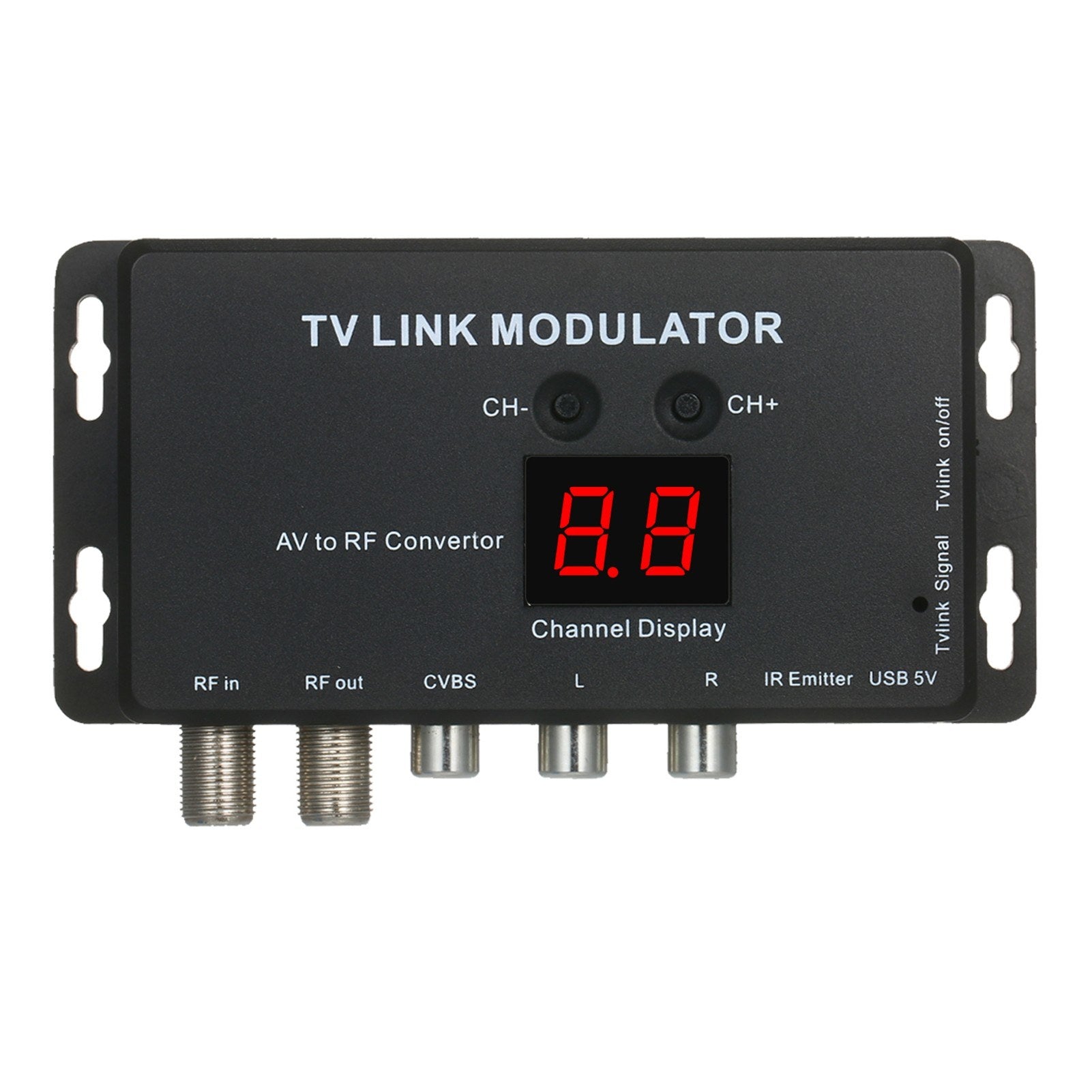

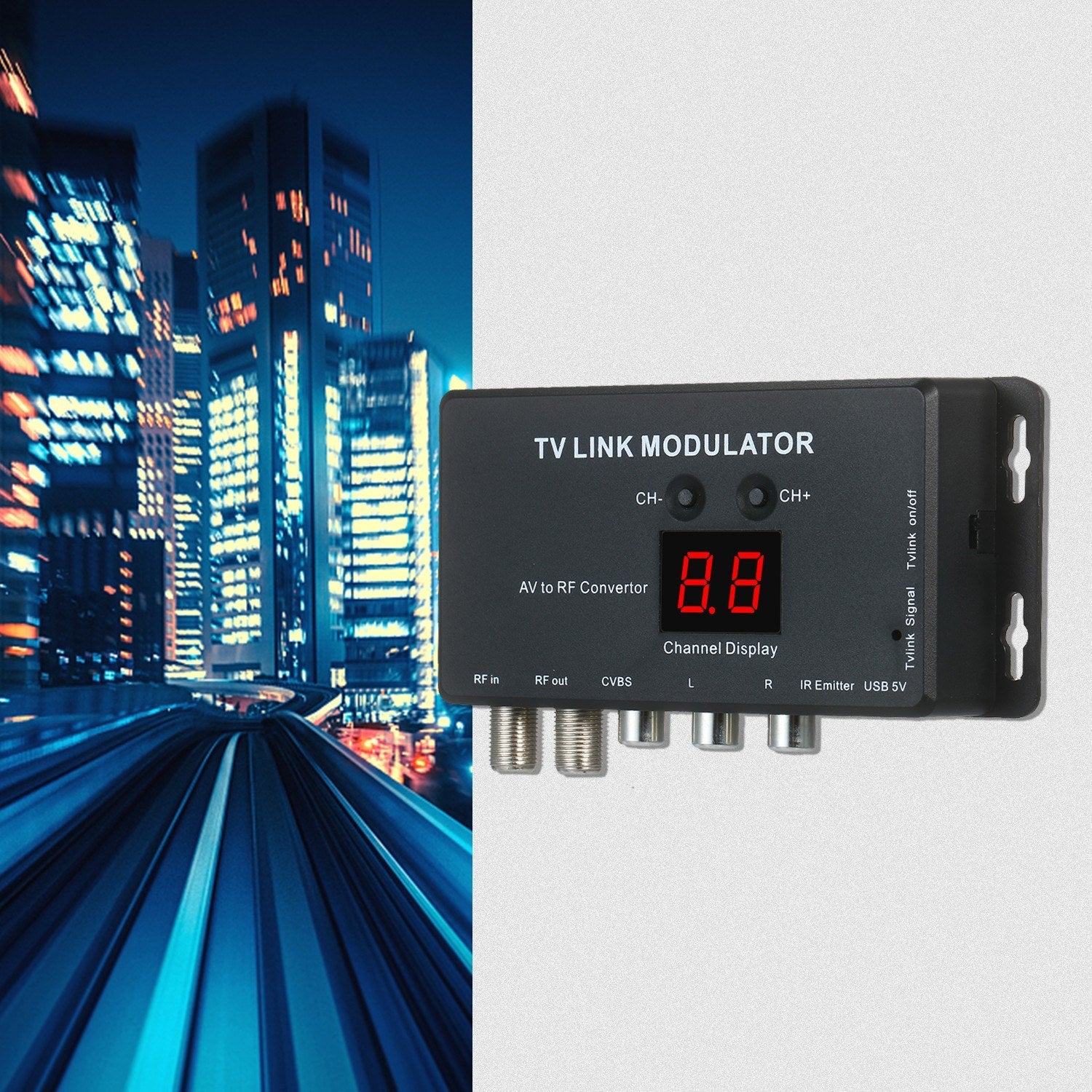

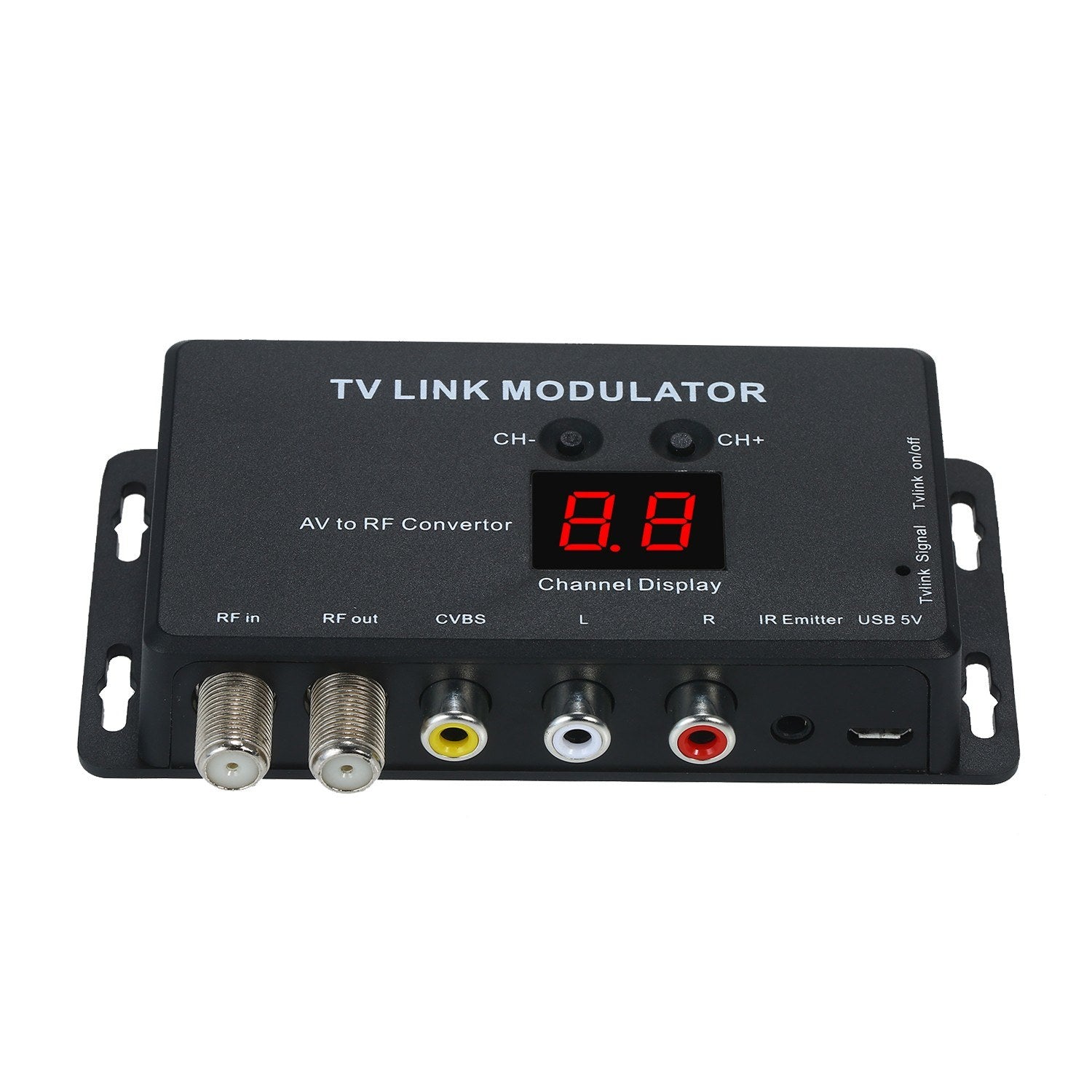

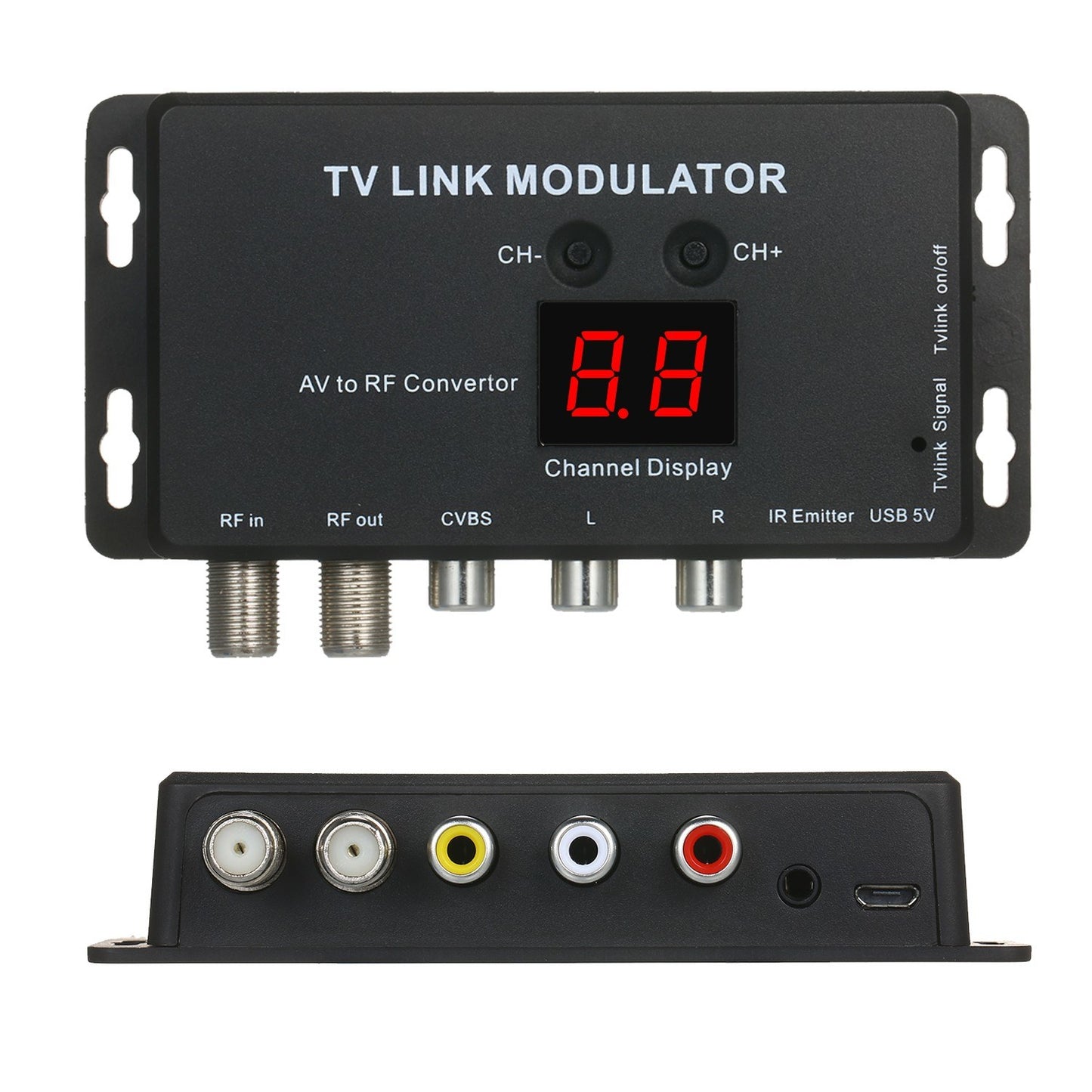

TVLINK AV to RF Modulator & IR Extender Converter

Product Features

• Utilizes existing RF circuits commonly found in homes.
• Transmit remote control signals and power effectively via RF.

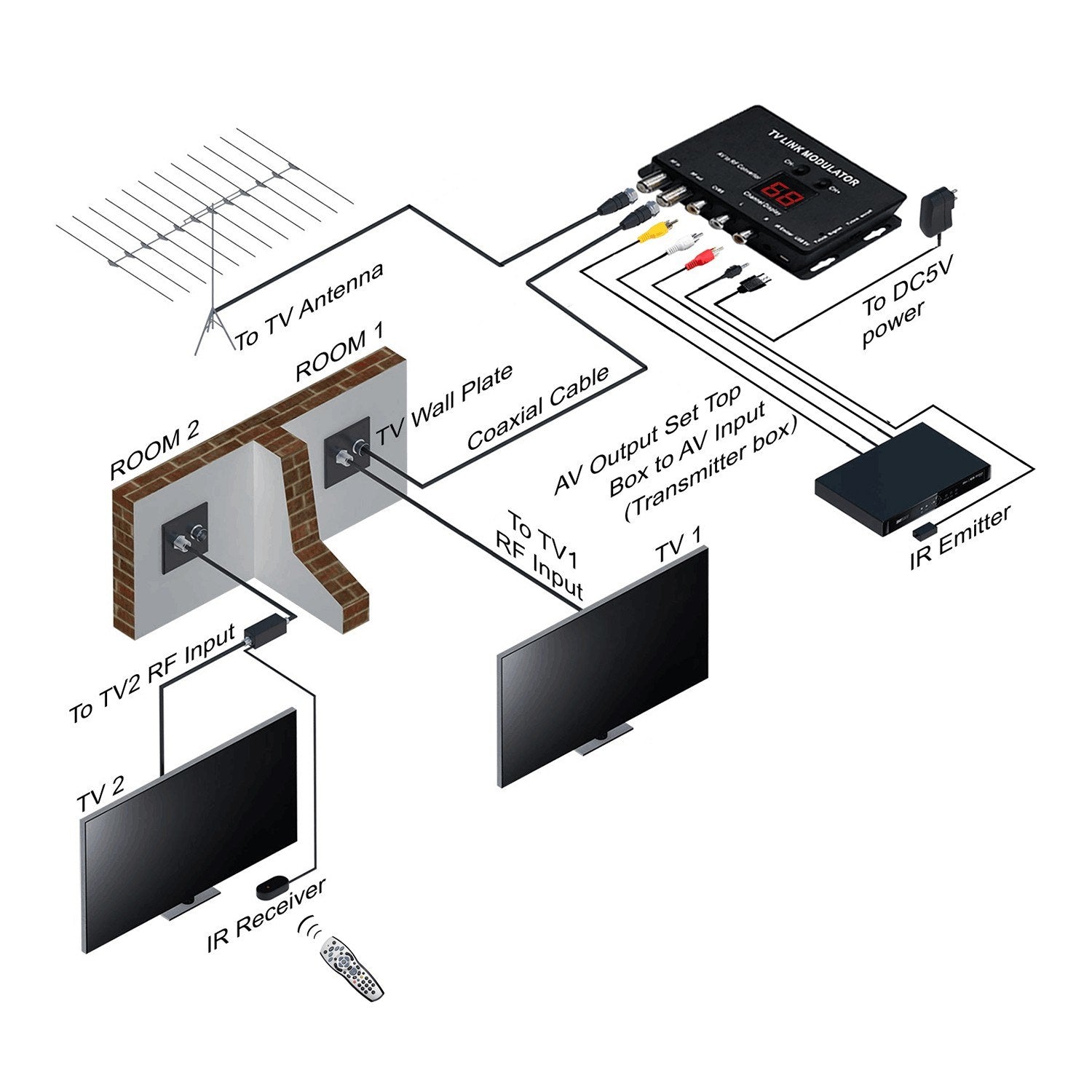

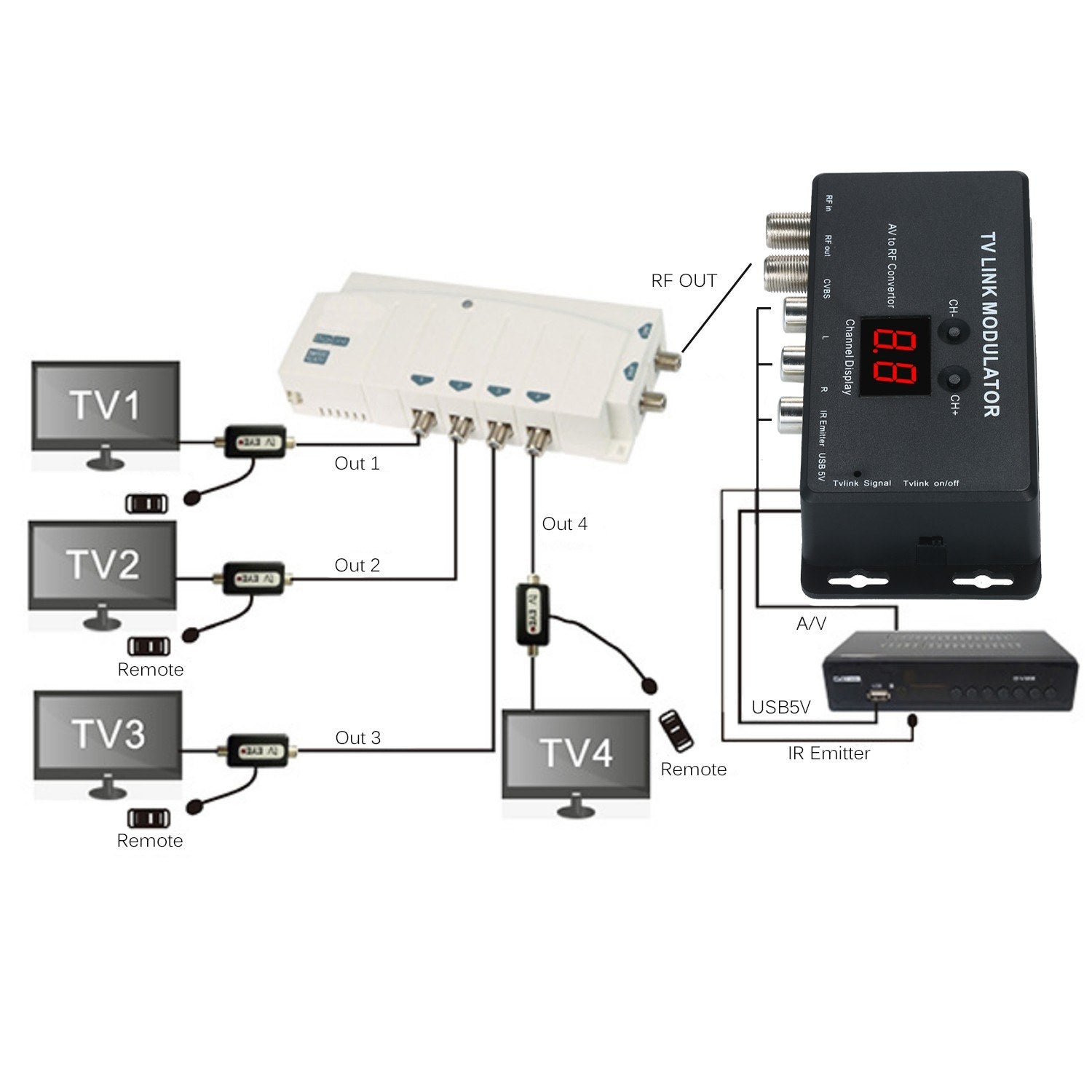

• Share your STB, DVD across multiple rooms, and control them remotely even if they are placed in the living room.
• Flexible TV format settings including PAL/NTSC and Sound IF for global compatibility.
• Wide frequency range from 471.25MHz to 885.25MHz supports both VHF and UHF formats.
• Selectable transmitting frequency with built-in memory to avoid interference.
• Enhanced stability and picture quality with broadcast standard PCB Design.
• External settings for NTSC/PAL B/G, I, D/K, L, M/N formats for worldwide use.

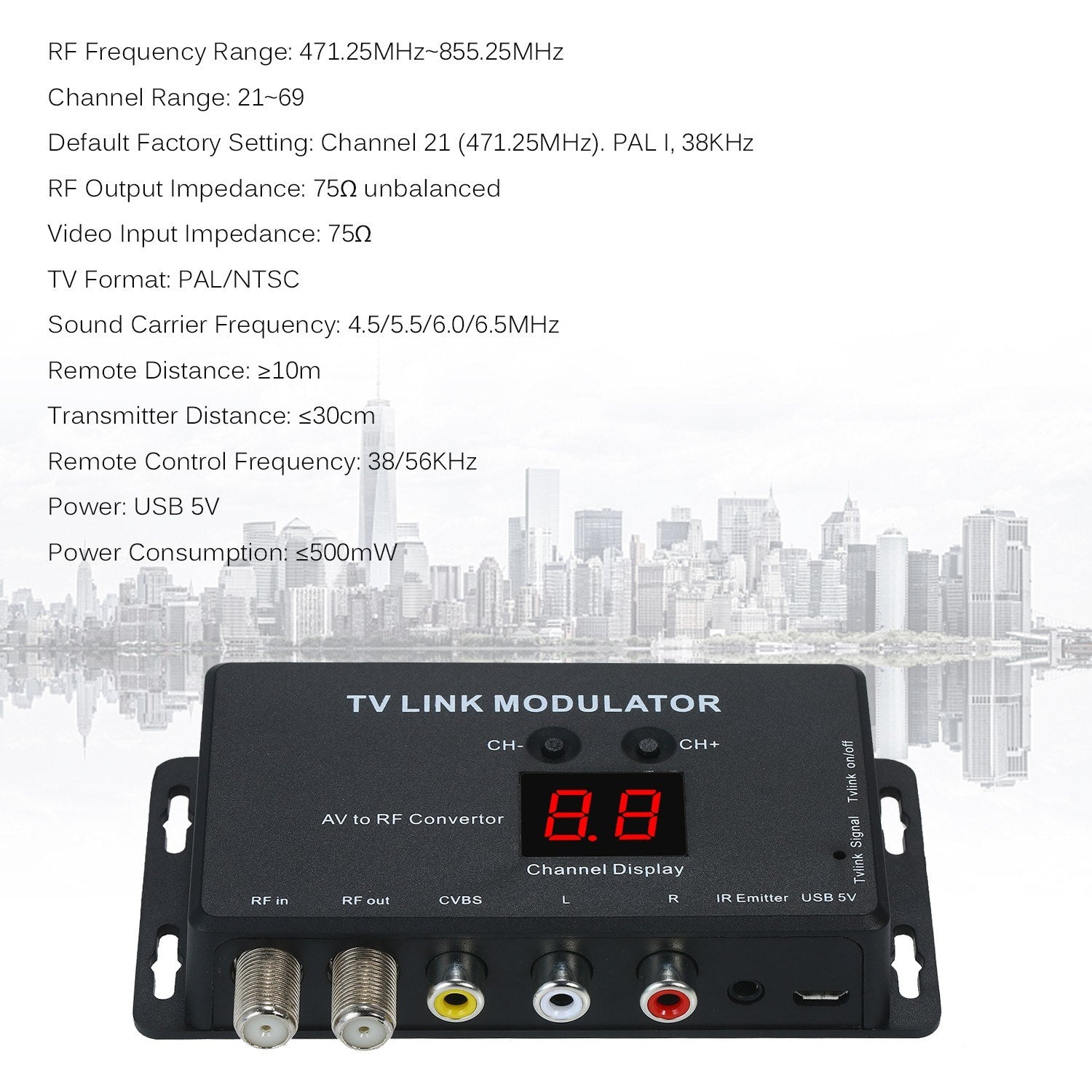

Specifications

• Material: ABS
• RF Frequency Range: 471.25MHz ~ 855.25MHz

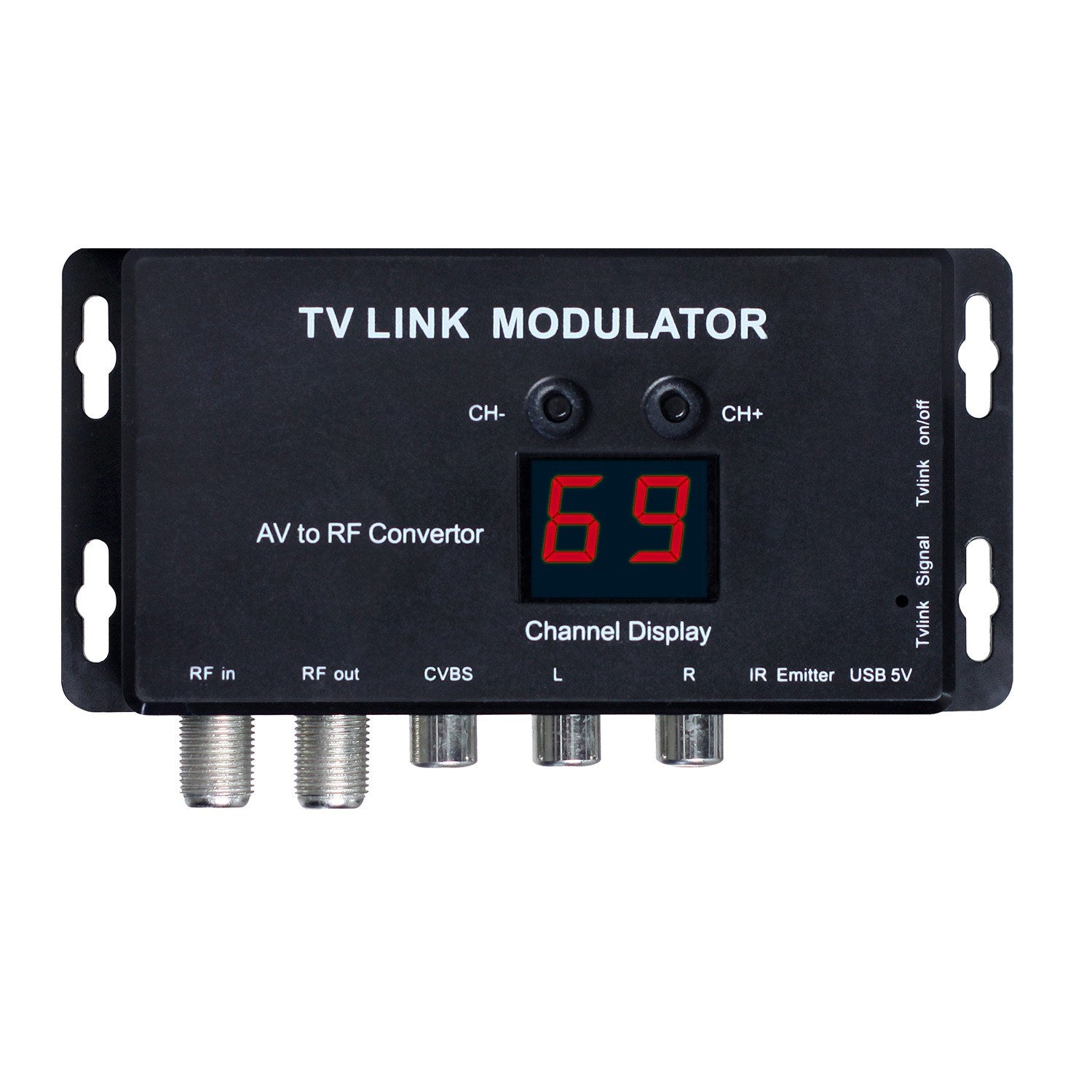

• Channel Range: 21 ~ 69
• Default Factory Setting: Channel 21 (471.25MHz), PAL I, 38KHz
• RF Output Impedance: 75Ω unbalanced
• Video Input Impedance: 75Ω
• TV Format: PAL/NTSC
• Sound Carrier Frequency: 4.5/5.5/6.0/6.5MHz
• Remote Distance: ≥10m
• Transmitter Distance: ≤30cm
• Remote Control Frequency: 38/56KHz
• Power: USB 5V
• Power Consumption: ≤500mW

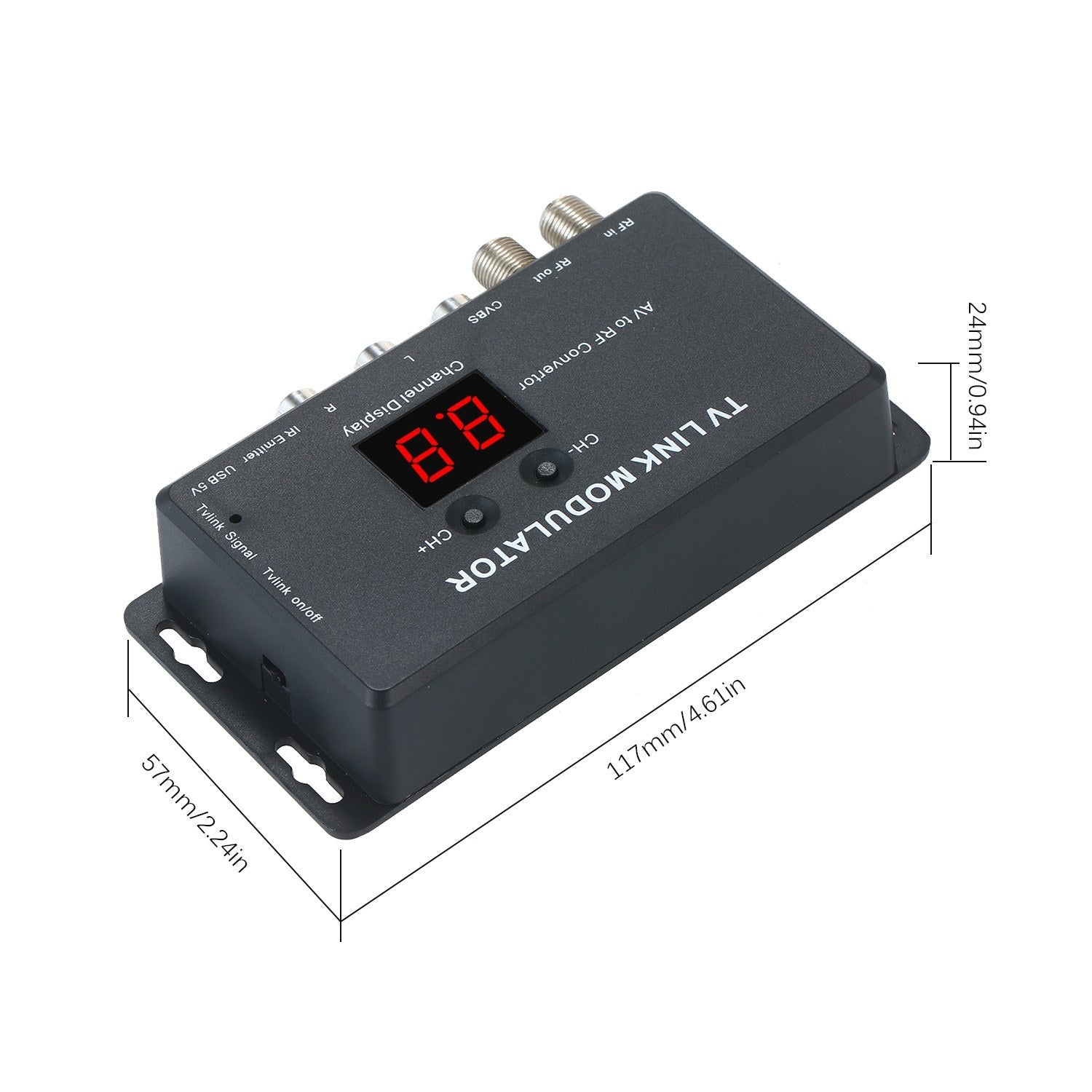

• Item Size: 117 x 57 x 24 mm (4.61 x 2.24 x 0.94 in)
• Item Weight: 107g (3.79oz)
• Package Weight: 124g (4.38oz)
• Package Size: 12 x 9.5 x 2.5 cm (4.72 x 3.74 x 0.98 in)

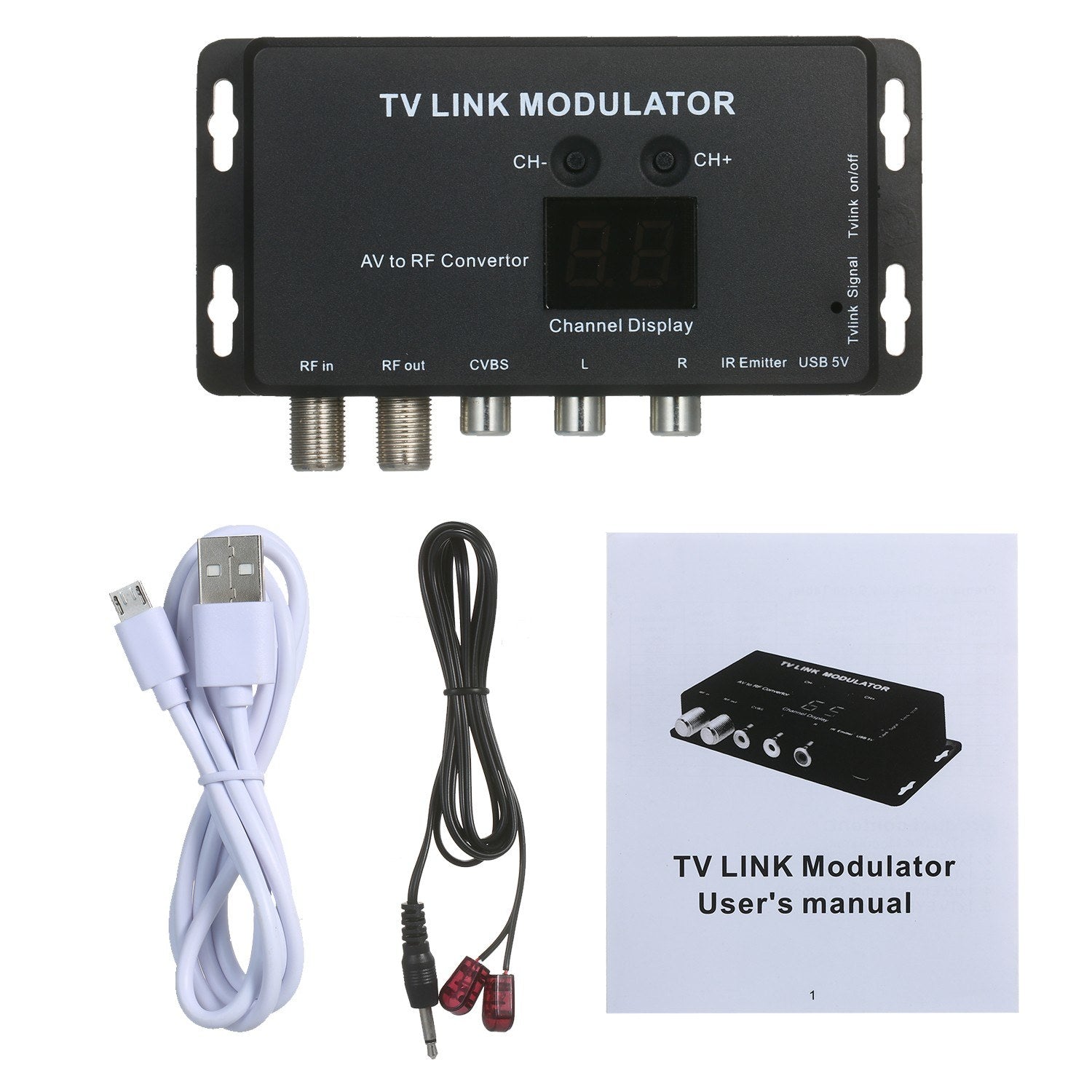

Packing List

• 1 x Modulator
• 1 x USB Cable

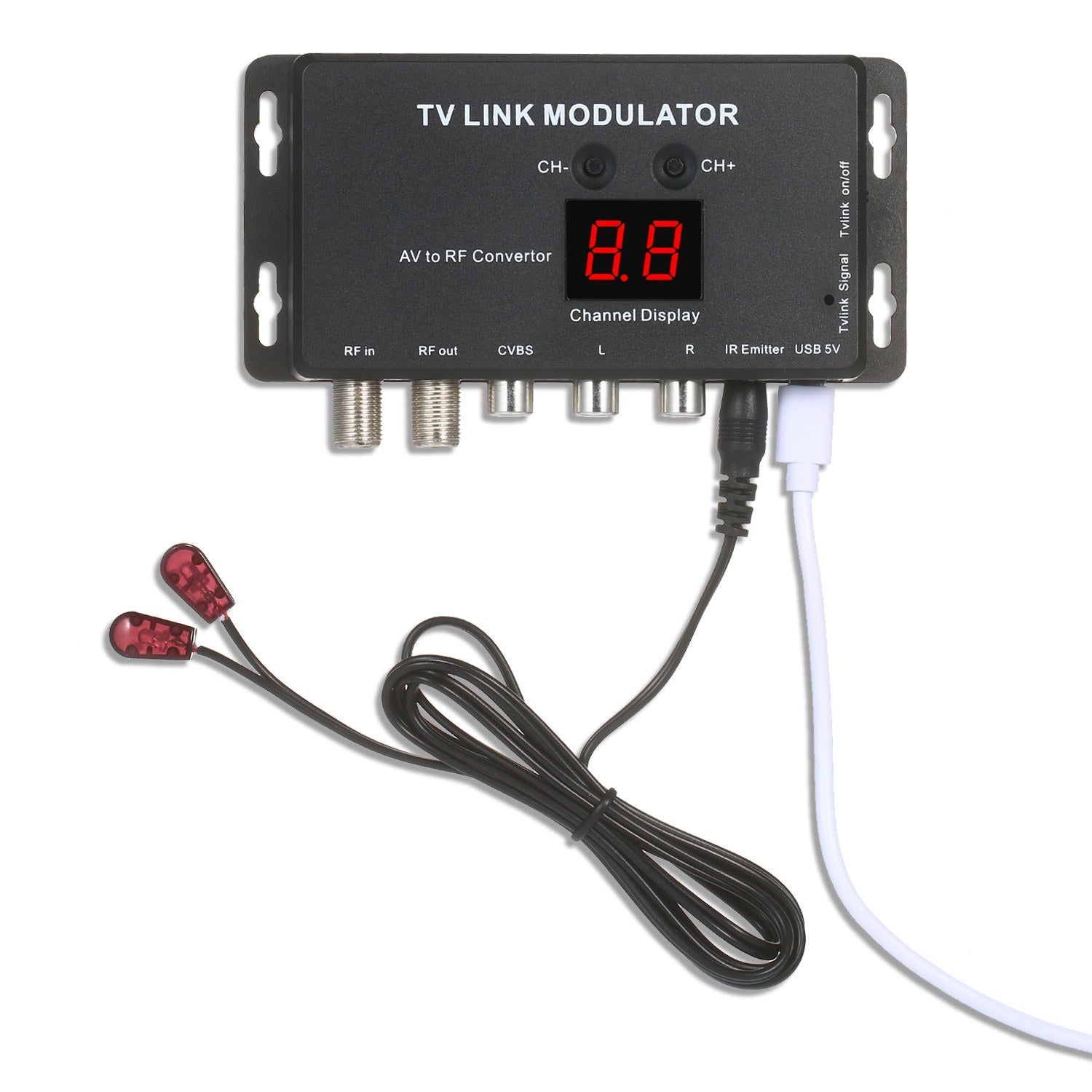

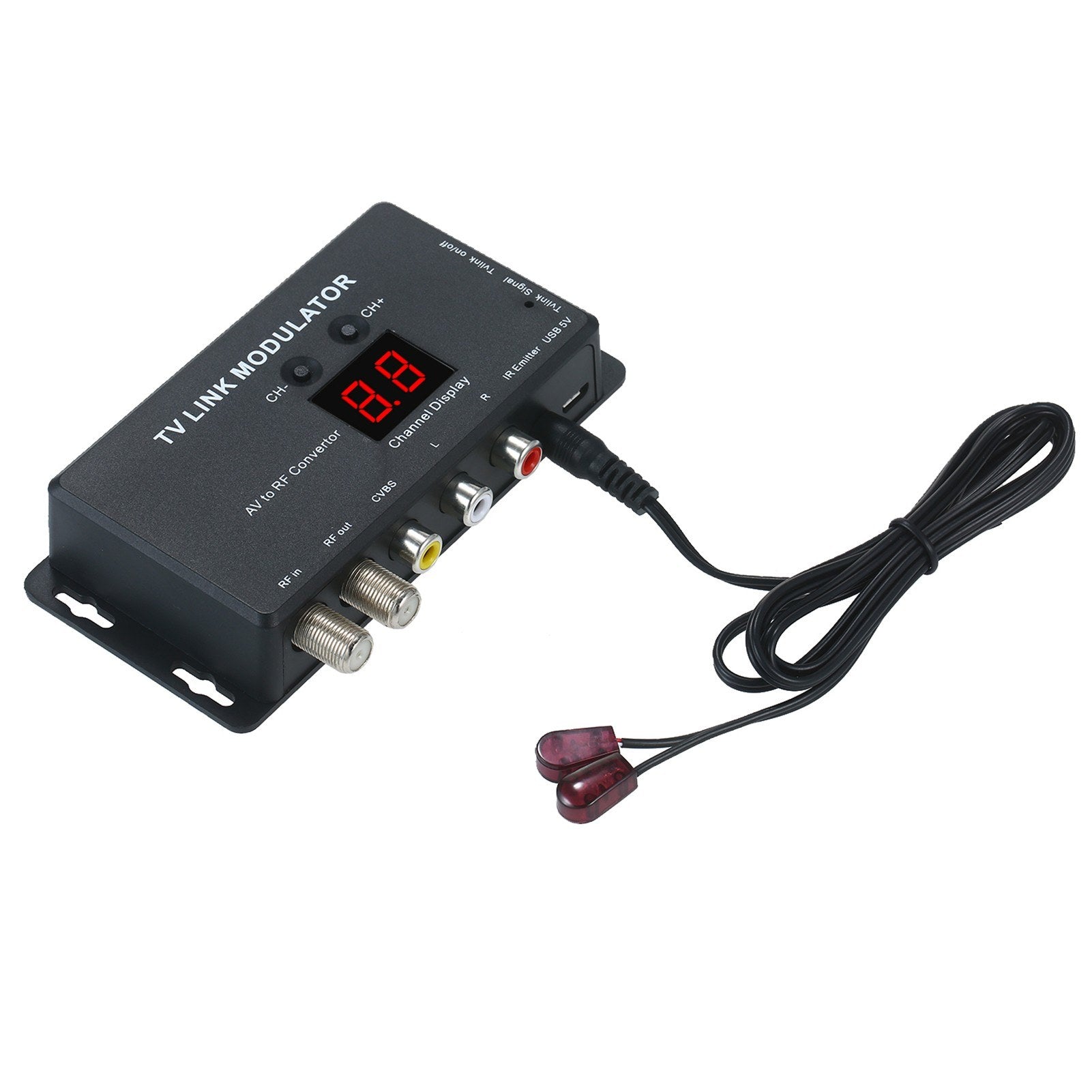

• 1 x IR Emitter Cable
• 1 x Manual (English)
