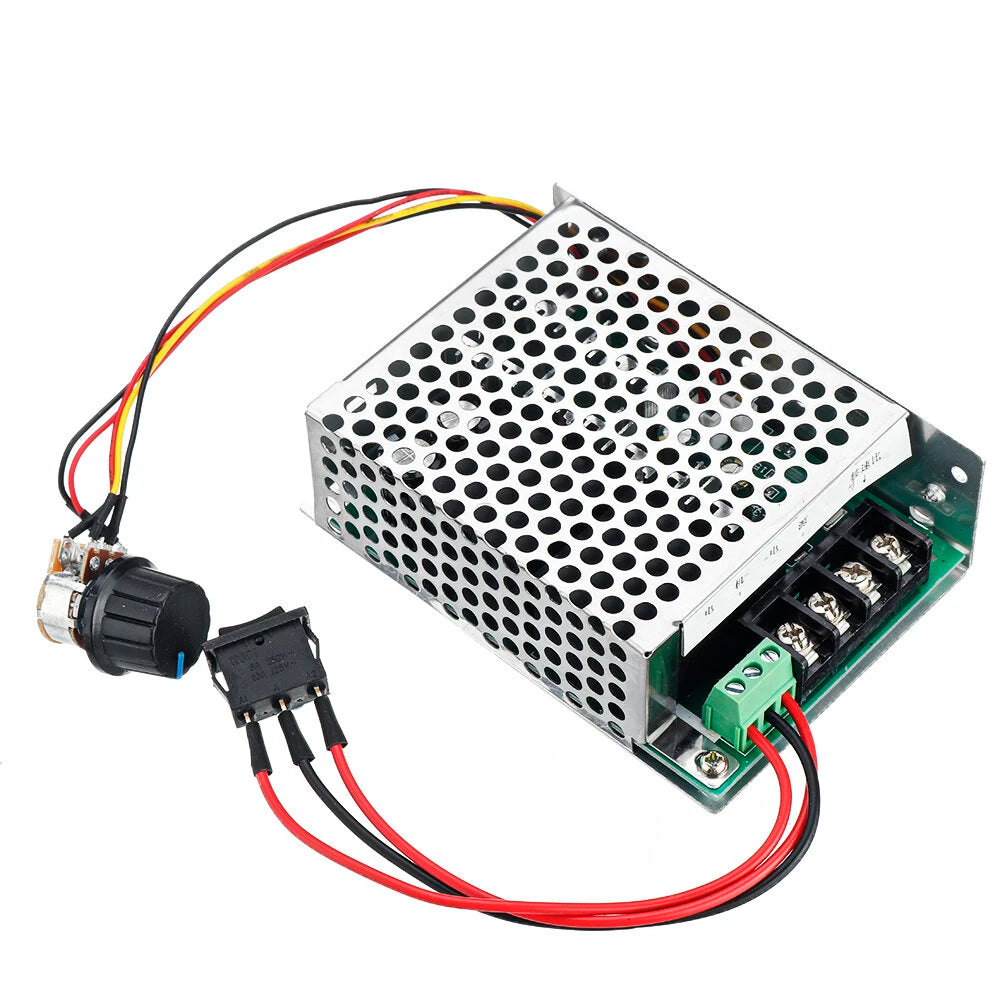

40A 2000W PWM DC Motor Speed Controller with Forward/Reverse Switch for 12V-48V Applications

Enhance your motor control with our advanced 40A 2000W PWM DC Motor Controller. Featuring both positive and negative switches, this versatile tool comes equipped with a potentiometer knob for smooth regulation. It's fully compatible with PLC for controlling motor direction.

Key Specifications:

• Input Voltage: DC 10-50V
• Output Voltage: Linear under load
• Output Limit Current: Up to 40A (recommended 20A for prolonged use)
• Ultimate Power: 2000W
• Speed Regulation Type: Flow regulation
• Speed Regulation Method: Linear potentiometer
• Duty Cycle Range: 0-100%
• Control Frequency: 25KHz
• Wiring Type: Barrier terminal block
• Knob Cord Length: 20cm
• Module Size: 110 x 78 x 38 mm
• Net Weight: 245g
• Motherboard Installation Size: 100 x 76 x 28 mm
• Potentiometer Opening: 7 mm

Important Notes:

Ensure correct polarity before powering on to prevent damage. Avoid contact between the heat sink and wiring. This controller is not a power supply and requires connection to a motor for speed adjustment. Note that the multimeter output won't change without the motor. Do not connect to AC power.

Package Includes:

• 1 x 40A 2000W PWM DC Motor Controller (available with or without casing)
