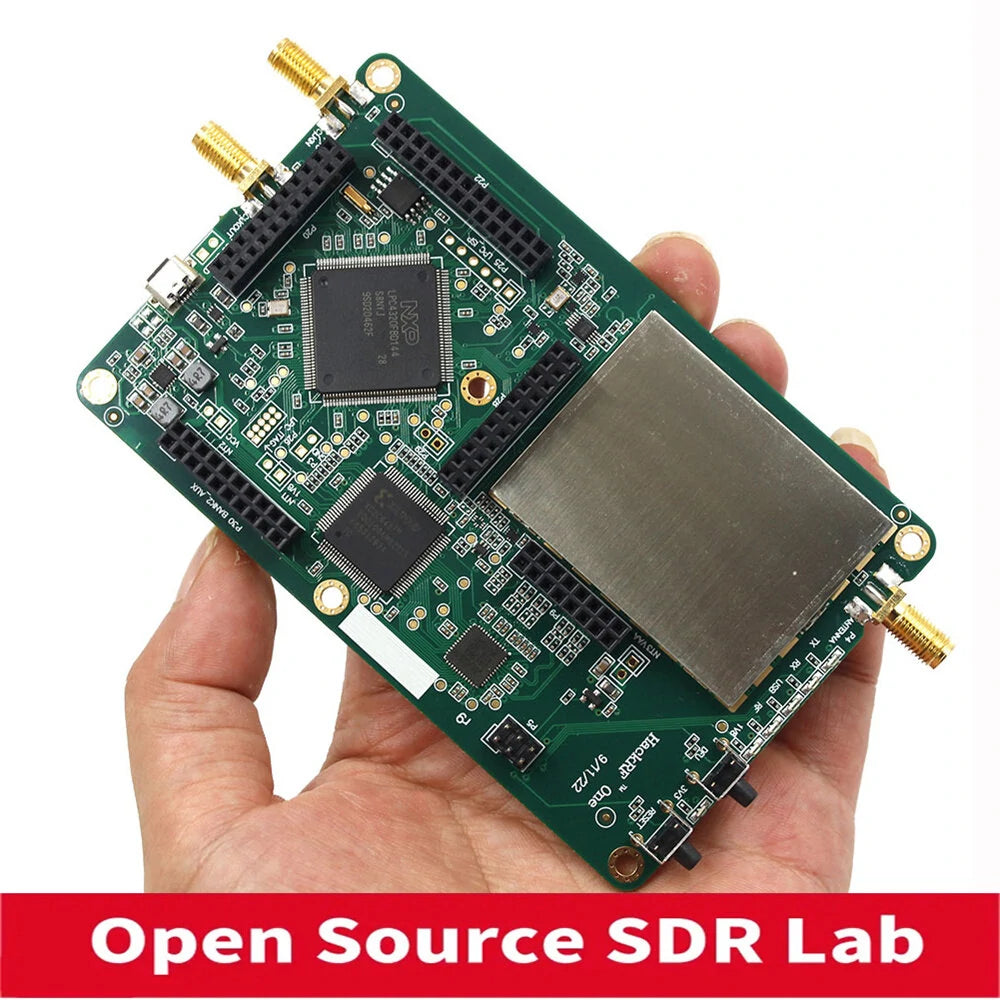

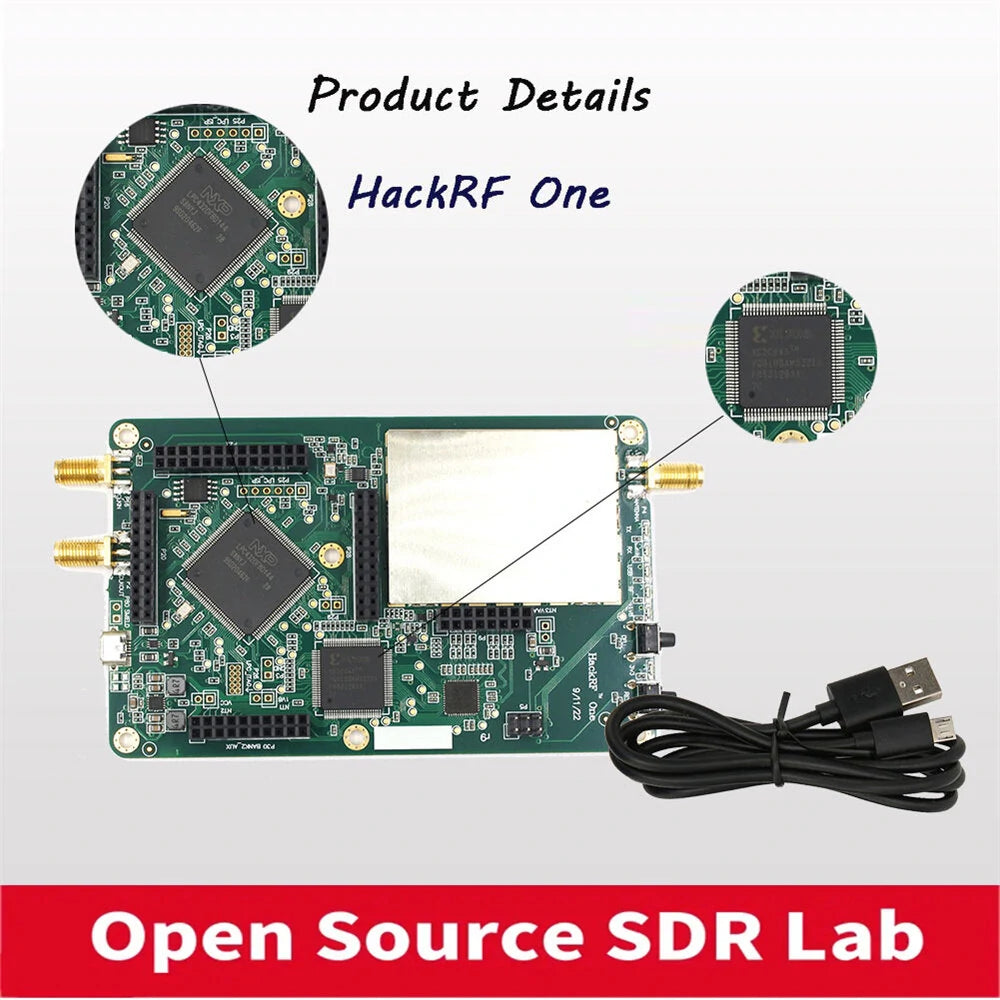

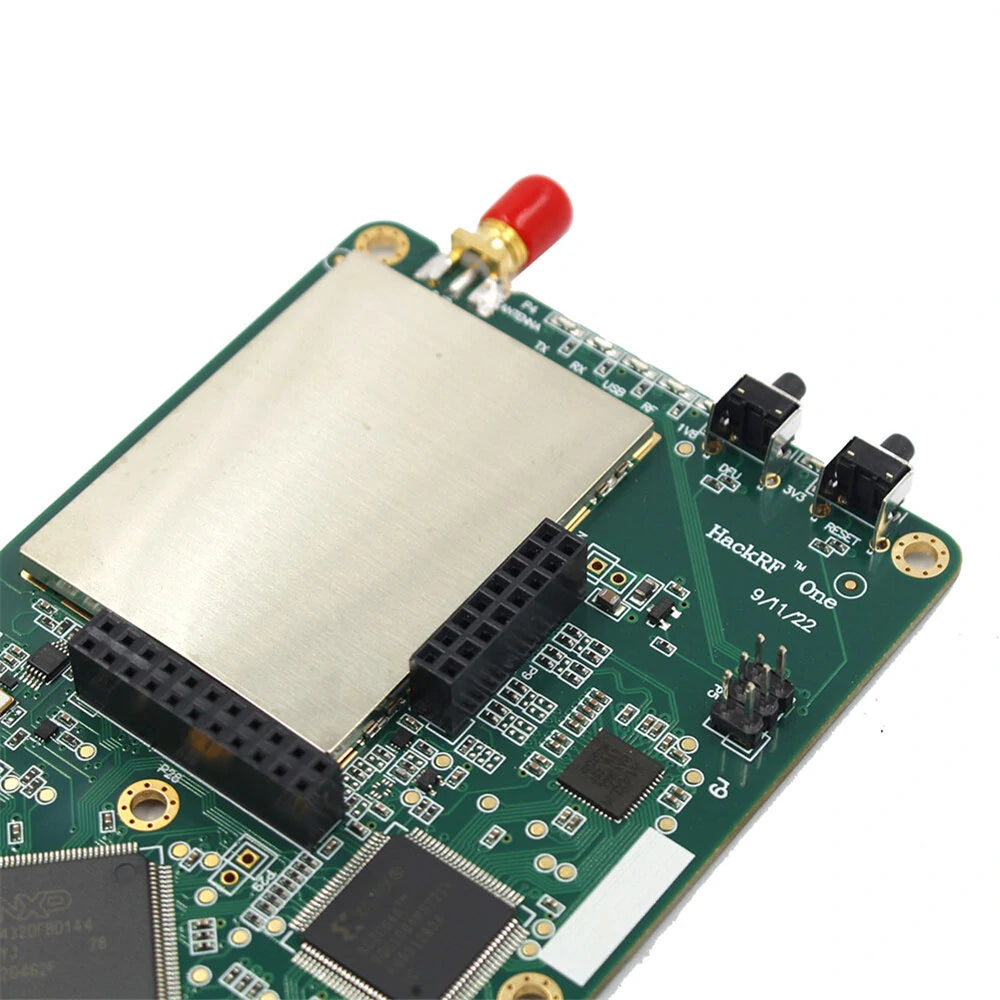

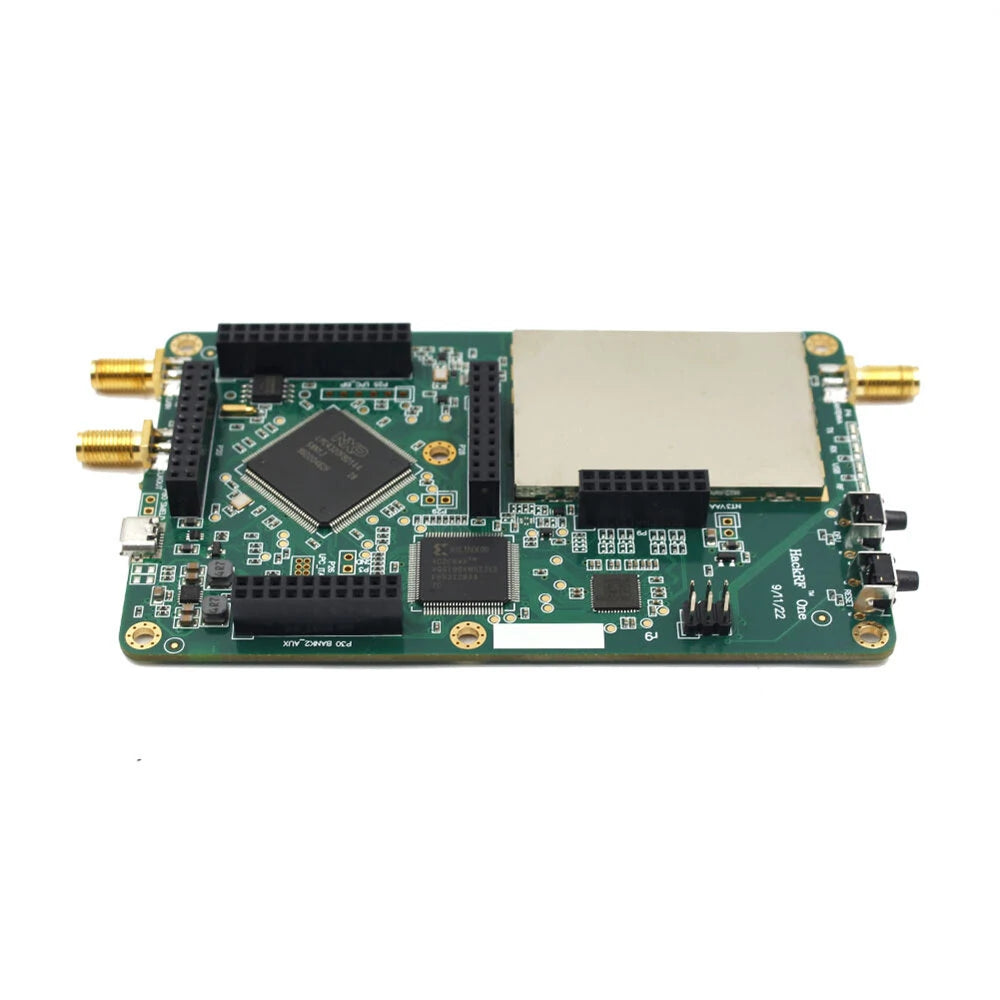

HackRF One

Features:

• Versatility in Frequency: Capable of transmitting or receiving signals ranging from 1 MHz up to 6 GHz. From low-frequency applications to ultra-high frequency uses, HackRF One can handle it all.
• Open-Source Excellence: Designed to foster innovation, HackRF One supports testing and development for both modern and next-gen radio technologies. As an open-source hardware platform, you're investing in community-driven technological development.
• High-Speed Performance: Achieve up to 20 million samples per second with the 8-bit quadrature samples (8-bit I and 8-bit Q). Whether you're receiving or transmitting, enjoy seamless and high-quality signal processing.
• User-Friendly Interface: Compatible with a range of platforms like GNU Radio, SDR#, and others. HackRF One allows for easy integration. Software-configurable RX and TX gain, alongside baseband filters, make tweaking performance to suit specific needs straightforward.
• Comprehensive Connectivity: With an SMA female antenna connector and SMA female clock input/output, synchronization and antenna hook-ups are hassle-free. Moreover, the built-in programming button, internal pin headers, and high-speed USB 2.0 ensure a rich connection experience.

Specifications:

• Operating Frequency: 1 MHz to 6 GHz
• Half-duplex transceiver
• Up to 20 million samples per second
• 8-bit quadrature samples (8-bit I and 8-bit Q)
• Compatible with GNU Radio, SDR#, etc.
• Software-configurable RX and TX gain and baseband filter
• Software-controlled antenna port power (3.3 V at 50 mA)
• SMA female antenna connector
• SMA female clock input/output for synchronization
• Programming button
• Internal pin header expansion
• High-speed USB 2.0, USB-powered
• Open-source hardware

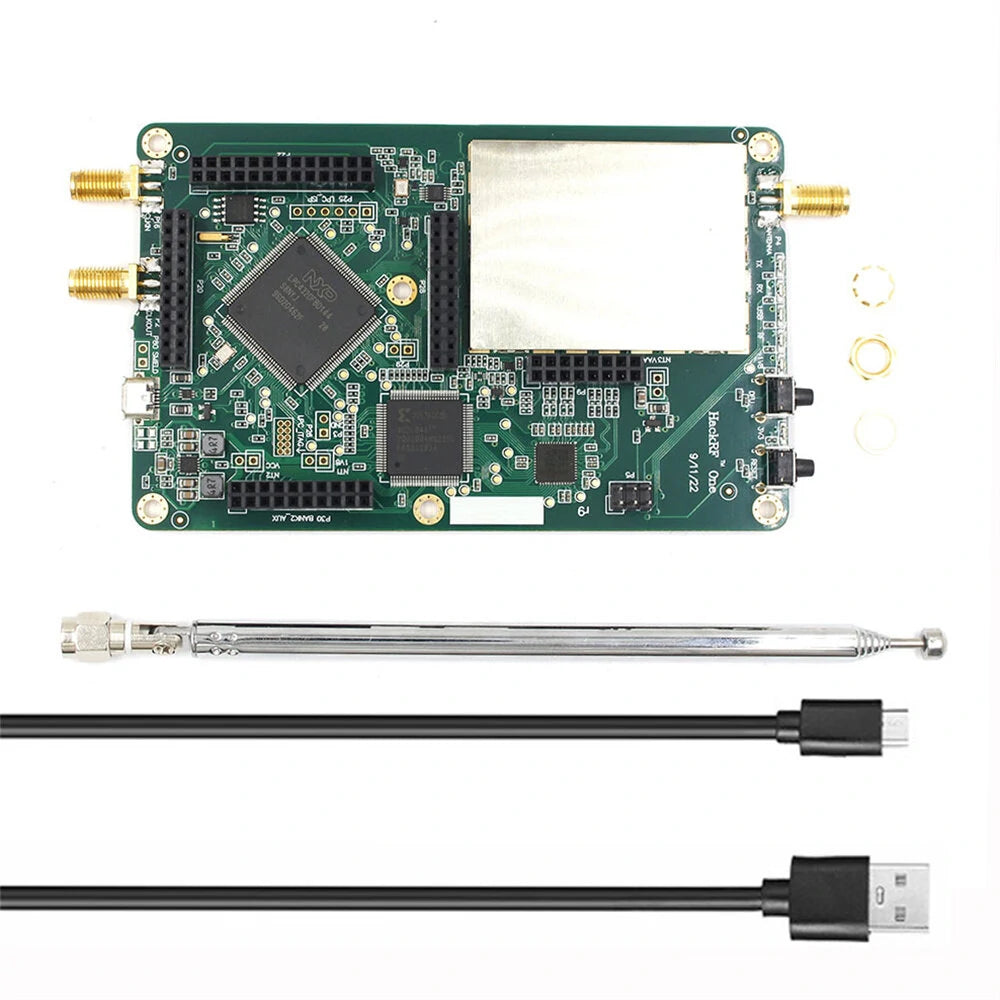

Package Includes:

• 1 x HackRF One Board
• 1 x Accessory Kit
• 1 x Cable
• 1 x Antenna
