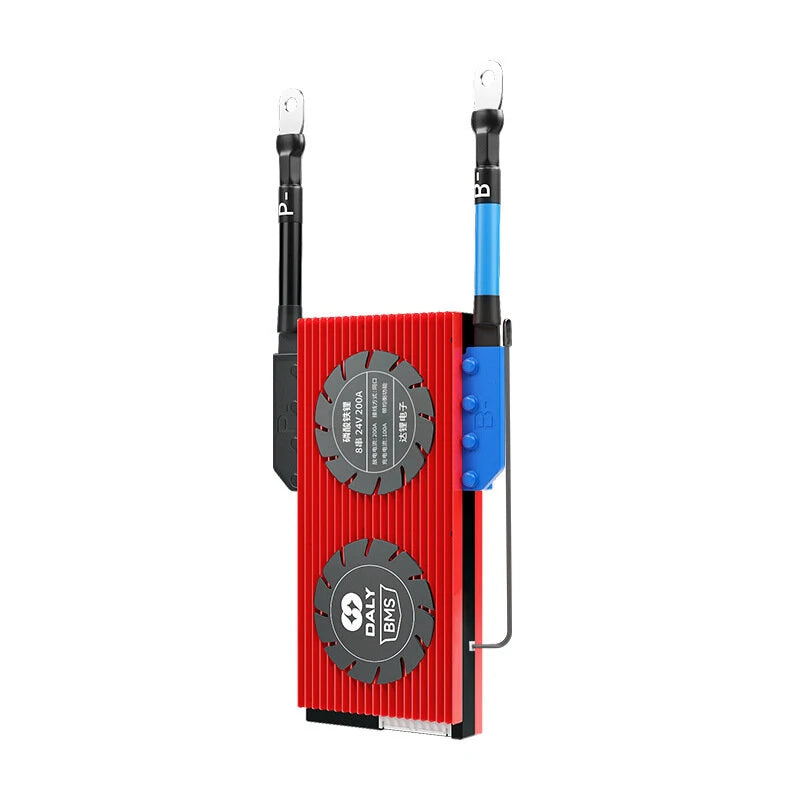

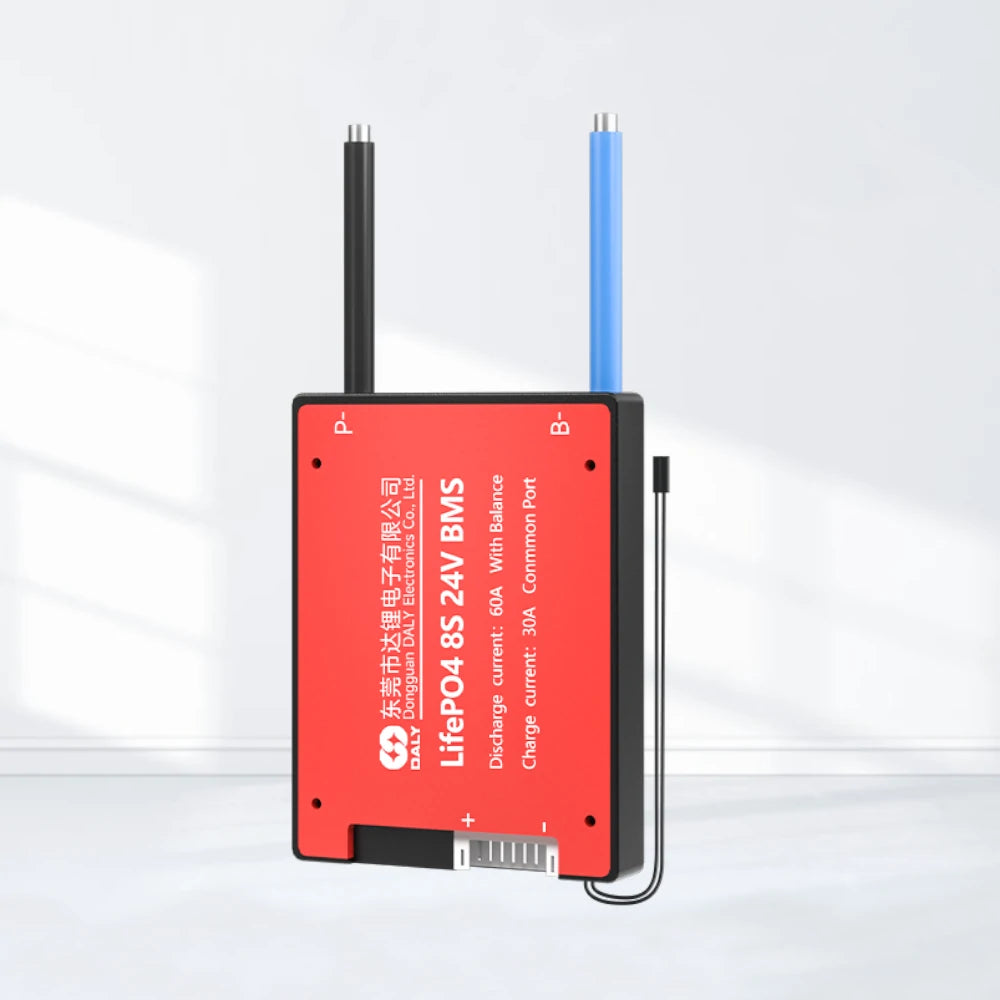

DALY Smart BMS 8S 24V 15A-250A LiFePO4 Battery Protection Board 8-String 18650 Outdoor Energy Storage System

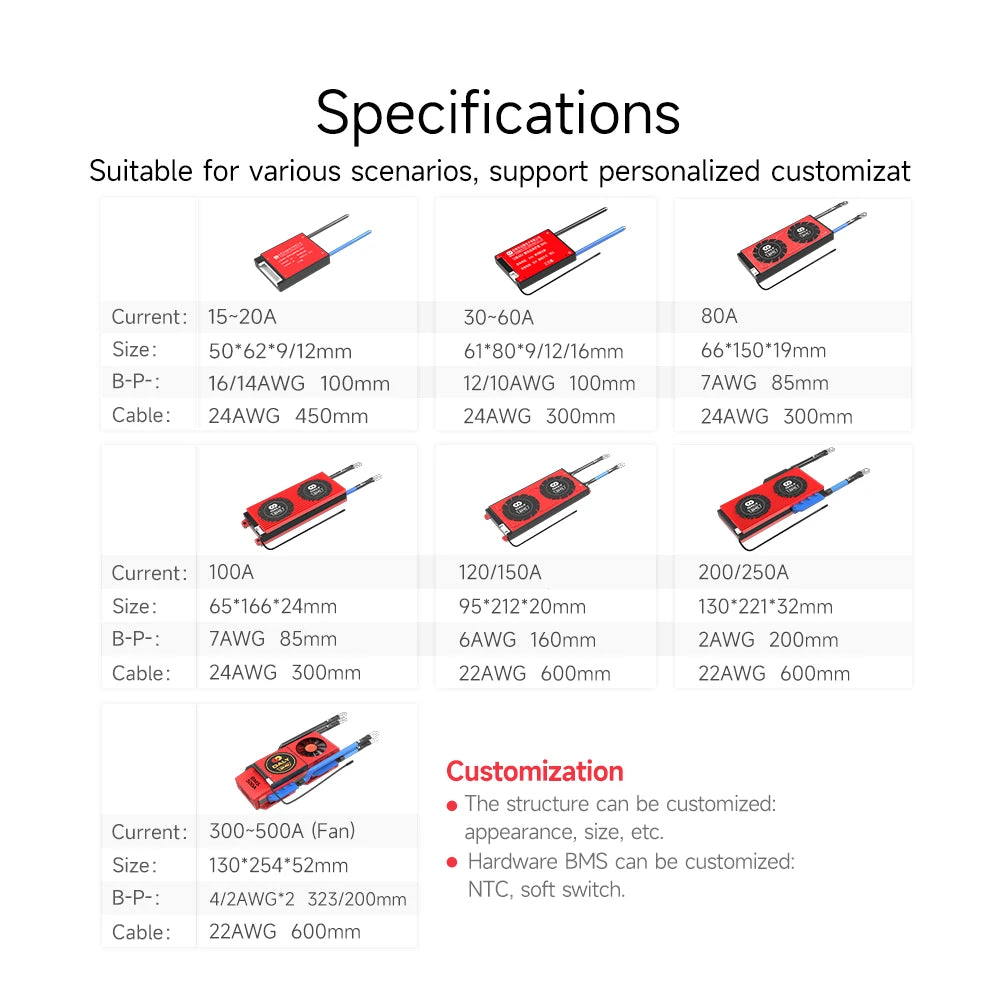

Product Parameters:

If you need customized services, please consult customer service for details.

Electrical Specifications:

• Charge Voltage (LifePO4): N(strings) * 3.65V
• Discharge Current (A): 15, 20, 30, 40, 50, 60, 80, 100, 120, 150, 200, 250, 300, 400, 500
• Discharge Overcurrent Protection (A): 50 ±10, 60 ±10, 100 ±20, 160 ±30, 220 ±40, 360 ±50, 500 ±100, 1000 ±200
• Charge Current (A): 8, 10, 15, 20, 25, 30, 40, 50, 60, 75, 100, 125, 150, 200, 250
• Charge Overcurrent Protection (A): 20 ±3, 25 ±3, 45 ±5, 60 ±10, 75 ±10, 80 ±10, 140 ±20, 200 ±30, 400 ±100

Protection Features:

• Overcharge Protection:
  • Balance Voltage: LifePO4: 3.75 ±0.05V
  • Detect Voltage: LifePO4: 3.525V
  • Protection Delay: 1 Second
  • Release Voltage: LifePO4: 3.55 ±0.05V
  • Balance Current: 30 ±5mA
• Over Discharge Protection:
  • Detect Voltage: LifePO4: 2.3 ±0.05V
  • Protection Delay: 1 Second
  • Release Voltage: LifePO4: 2.7 ±0.05V
  • Release Condition: Off Load
• Short Circuit Protection:
  • Condition: Short Circuit of External Load
  • Working Current: 100~200mA
  • Detect Delay: 200~500uS (Subject to Actual Test)
  • Sleeping Current (Over-Discharge): 0uA
  • Release Condition: Off Load

Environmental Conditions:

• Working Temperature - Charge: -20~55℃
• Working Temperature - Discharge: -40~70℃ (Customizable)
• Working Temperature Range: -20~60℃
• Storing Temperature Range: -40~85℃

Package Includes:

• 1 x Battery Protection Board
• 1 x Cable

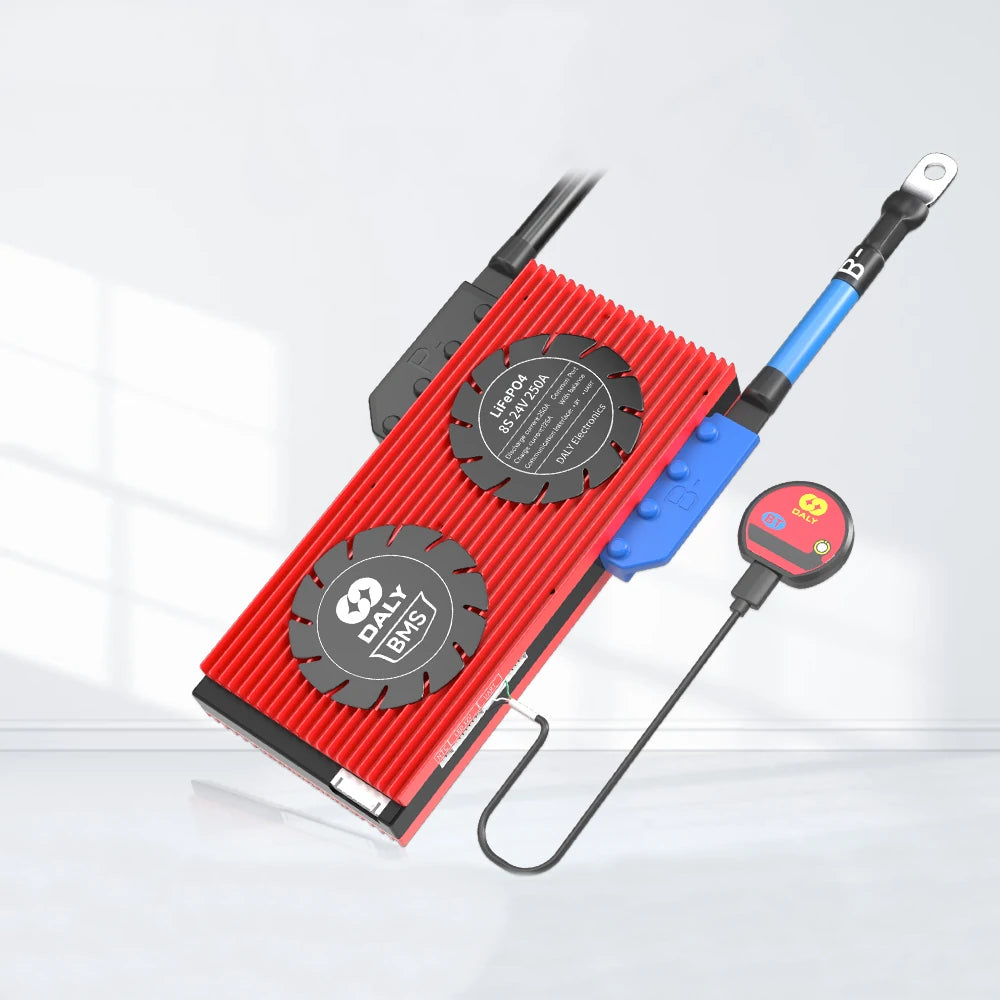

• 1 x Temperature Control Device

The appearance and weight of products with different currents may vary. Please refer to the product appearance upon receipt. Thank you for your understanding.

Protective Board Connection Instructions:

1. Attention: Cable standards may vary. Ensure the use of matching cables, and pay attention to the B- and P- marks, as their colors may differ among manufacturers.
2. When soldering the sampling wire cable, do not insert the cable into the BMS.
3. Connect the total negative electrode B- from the fine black line. Connect the second wire (red) to the positive pole of the first string of batteries, then connect each string's positive electrode in turn until the last wire cable of the total positive B+.
4. After connecting the cable, do not insert the plug directly into the BMS. Measure the voltage between each pair of adjacent metal terminals on the back of the plug. Ensure the voltage is correct according to the battery type before proceeding.
5. Connect the BMS B-line (blue thick line) to the total battery negative electrode. Ensure the B-line is no longer than 40cm.
6. Finally, insert the wire cable into the BMS.

After Wiring is Completed:

1. Verify that the voltage of battery B+, B- is equal to the voltage of B+ and P-. If they match, the BMS is functioning normally. If not, recheck the wiring as described above.
2. For the charging and discharging end:
   • Positive electrodes connect directly to the total positive B+ of the battery.
   • The same port BMS method connects the charging and discharging negative poles to the P- point on the BMS.
   • The branch BMS method connects the charging negative to C- and the discharging negative to P-.
3. If you have any questions, please contact customer service for assistance.
