Energy-Efficient 4-in-1 Passive Filter for Wide Frequency Range – Ideal for SDRs, Radios, Receivers, FM Broadcasting, and Amateur Use

Product Features:

• Four-in-One Design: This innovative device combines four individual band-pass filters within one compact unit, making it an all-in-one solution for various frequency needs.
• Wide Frequency Range: The filter covers a broad spectrum of frequencies, making it versatile for different applications:
  • Filter P1: 0.5-1.5 MHz - Ideal for medium-wave radios.
  • Filter P2: 4.5-12 MHz - Suitable for short-wave low frequency and 40-meter amateur use.
  • Filter P3: 12-30 MHz - Perfect for short-wave high-frequency and 20 meters, 15 meters, 10 meters amateur use.

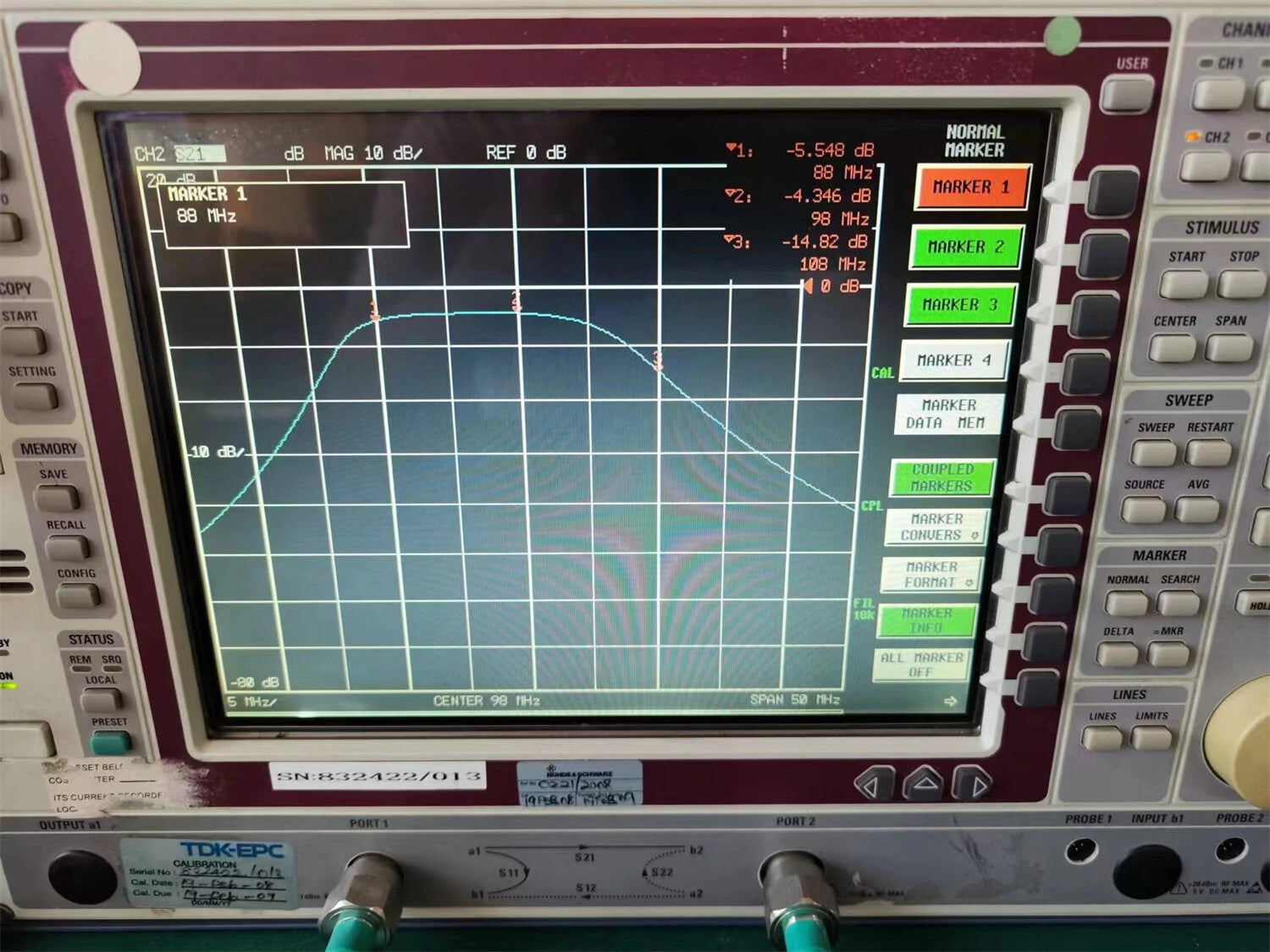

  • Filter P4: 88-108 MHz - Designed for FM broadcasting frequencies.
• Passive Filter: Operates without an additional power source, enhancing energy efficiency, reliability, and reducing maintenance needs.
• Compatibility: Designed to work seamlessly with a 1-to-4 active distributor, offering pre-filtering functions for SDRs, radios, and receivers.
• Functional Versatility: Helps prevent signal interference, enhancing the performance of your primary receiver.

Specifications:

• Design: 4-in-1 filter
• Type: LC, Passive Filter
• Frequency Range:
  • Filter P1: 0.5-1.5 MHz
  • Filter P2: 4.5-12 MHz
  • Filter P3: 12-30 MHz
  • Filter P4: 88-108 MHz
• Compatibility: 1-to-4 active distributor, SDRs, radios, receivers

Package Includes:

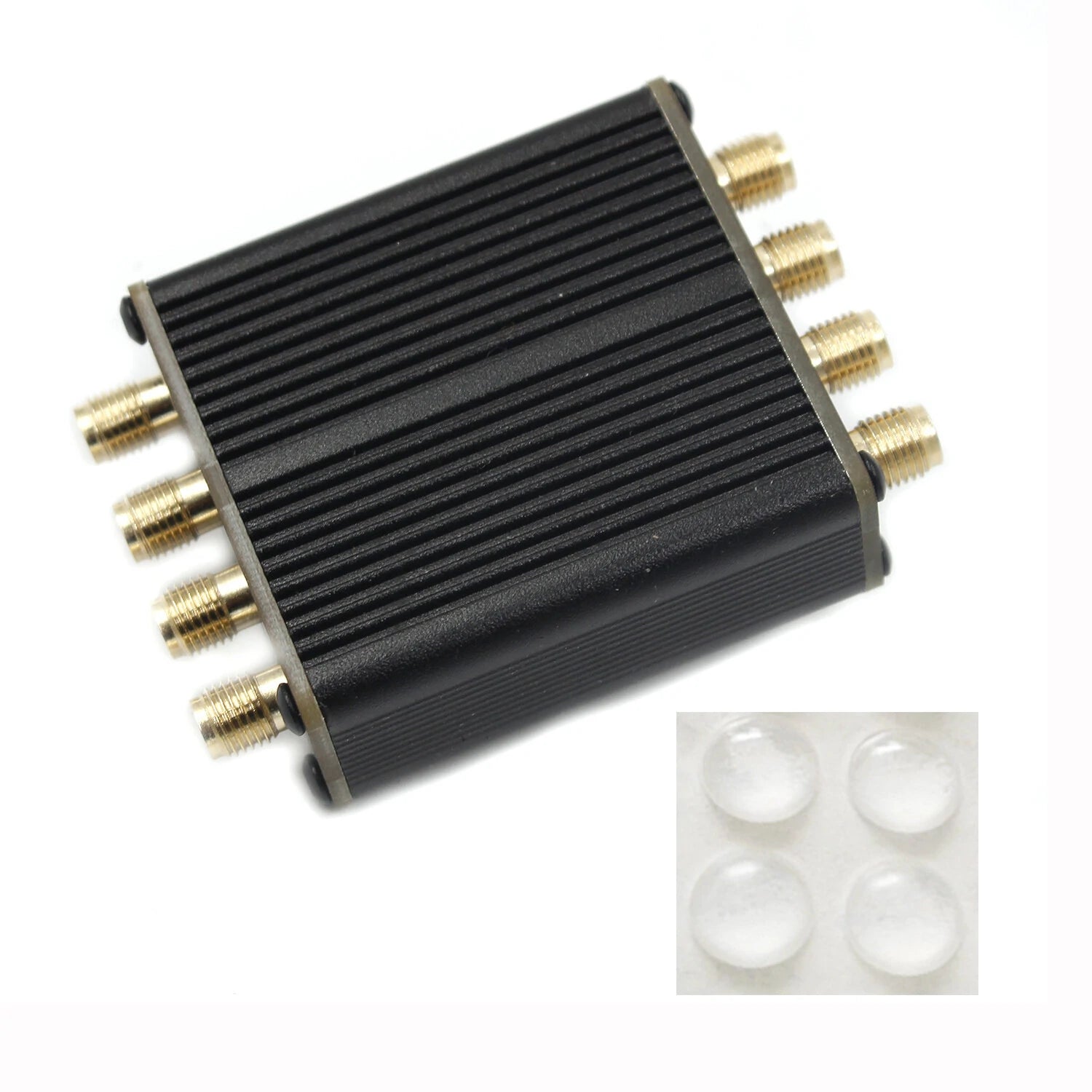

• 1 x 4-in-1 Filter
