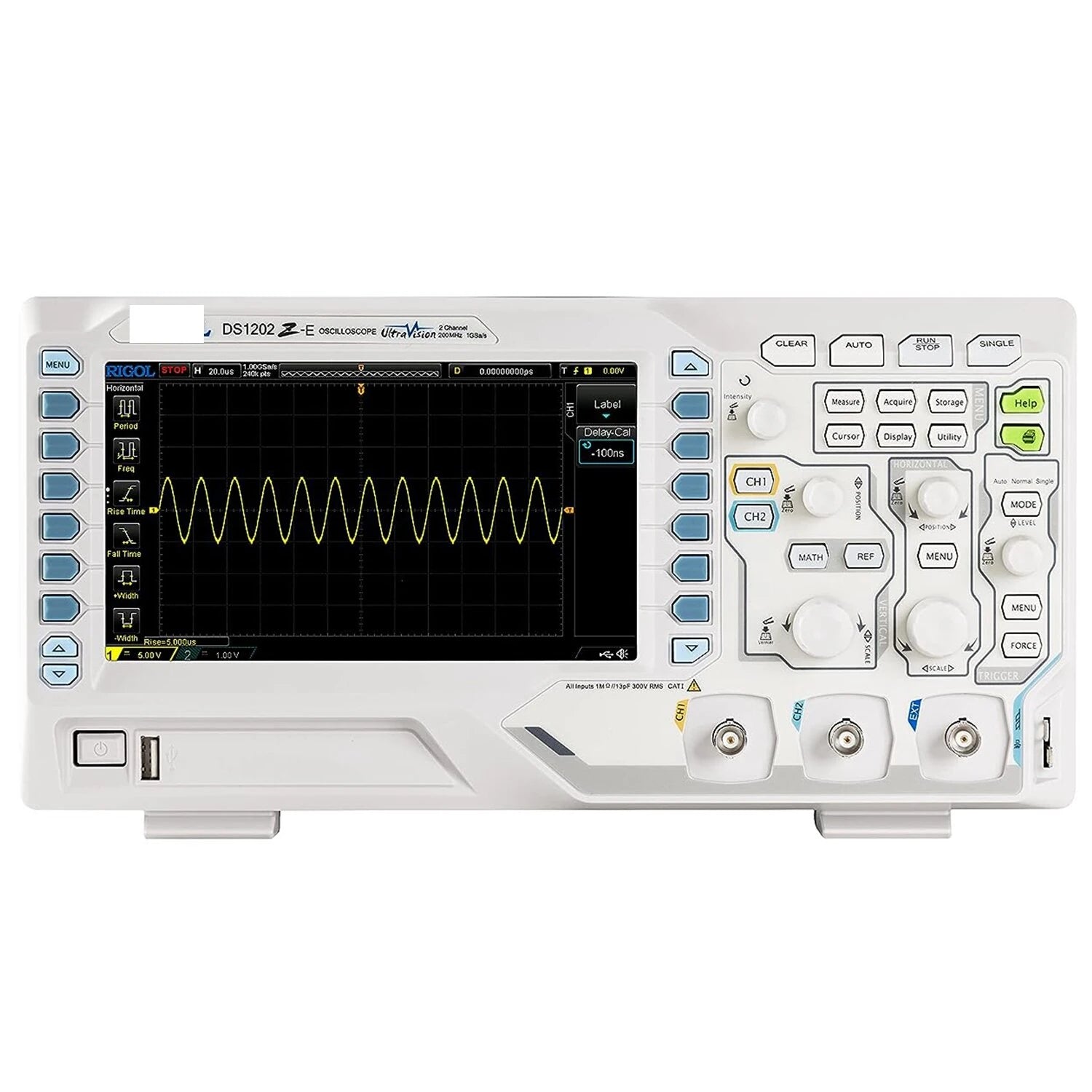

DS1202Z-E Digital Oscilloscope

Features

• High Bandwidth: Experience the power of a 200MHz bandwidth, enabling high-speed signal processing for accurate results.
• Dual Channels: Equipped with 2 analog channels, this oscilloscope allows you to record and observe two separate input signals simultaneously, maximizing efficiency.
• Advanced Sampling Rate: Enjoy a real-time sample rate up to 1 GSa/s coupled with a memory depth of up to 24 Mpts, ensuring comprehensive data collection and high-resolution waveform output.
• Multifunctional: The DS1202Z-E offers various trigger and bus decoding functions, providing flexibility for different measurement and analysis needs.
• Enhanced Display: Featuring a 7-inch WVGA TFT LCD with an intensity graded color display, it delivers clear and detailed visual representation of waveforms.

Specifications

• Power Source: Corded Electric
• Color: White
• Item Weight: 2.89 Kilograms
• Item Dimensions: 12.33 x 6.33 x 4.82 inches
• Analog Channel Bandwidth: 200 MHz
• Analog Channels: 2
• Real-Time Sample Rate: 1 GSa/s
• Memory Depth: 24 Mpts

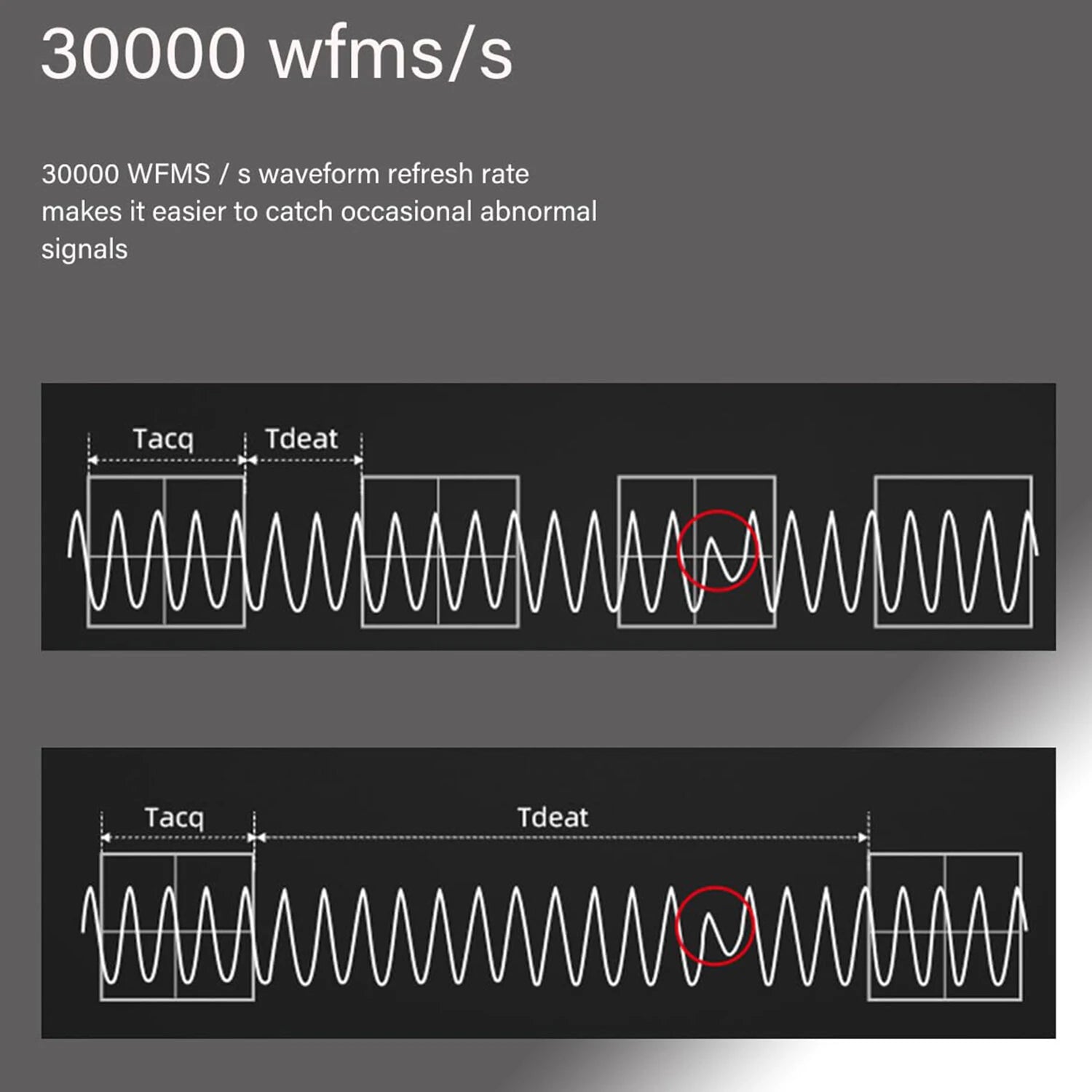

• Waveform Capture Rate: 30,000 wfms/s
• Hardware Real-Time Waveform Recording and Playback: 60,000 frames
• Low Noise Floor, Vertical Scale Range: 1 mV/div to 10 V/div

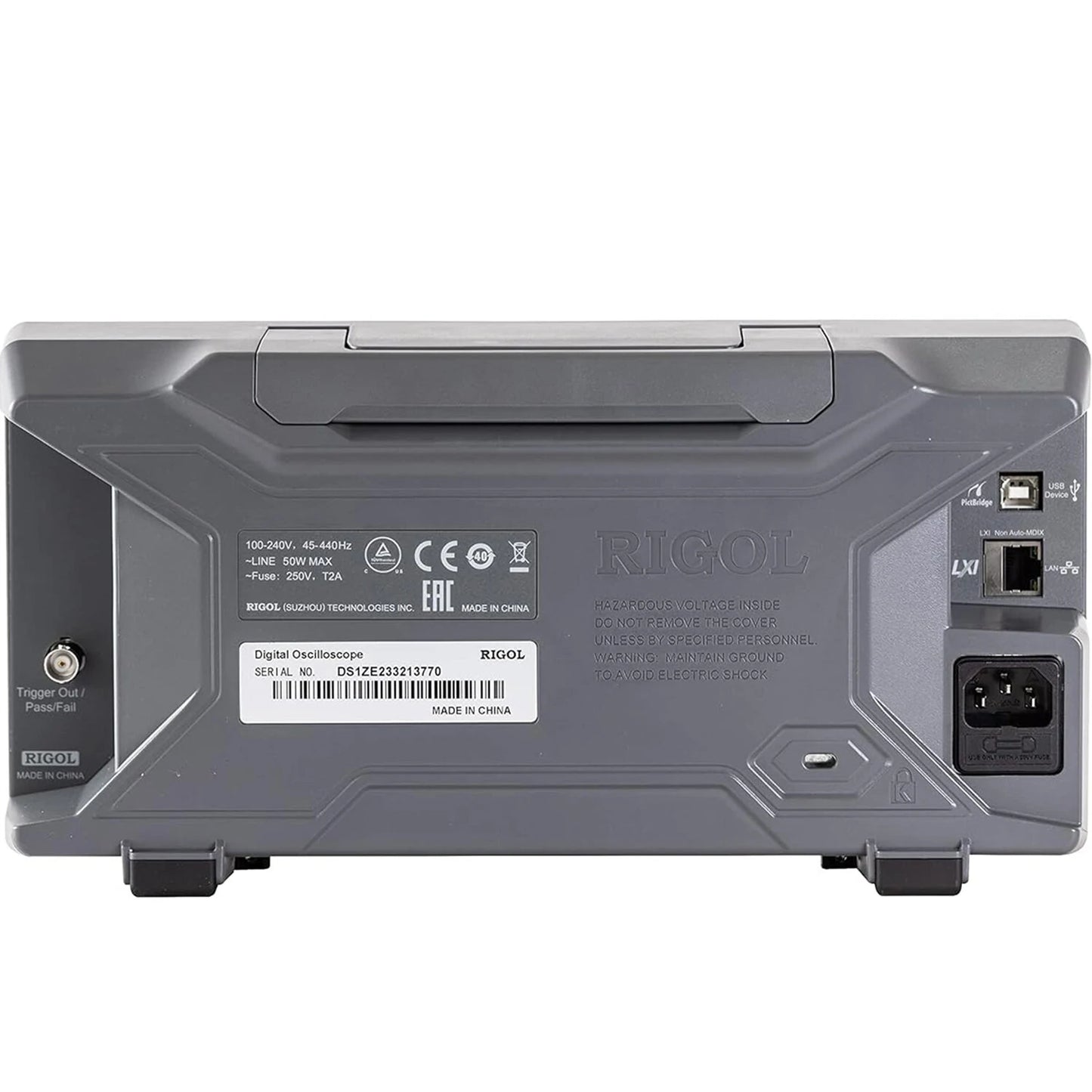

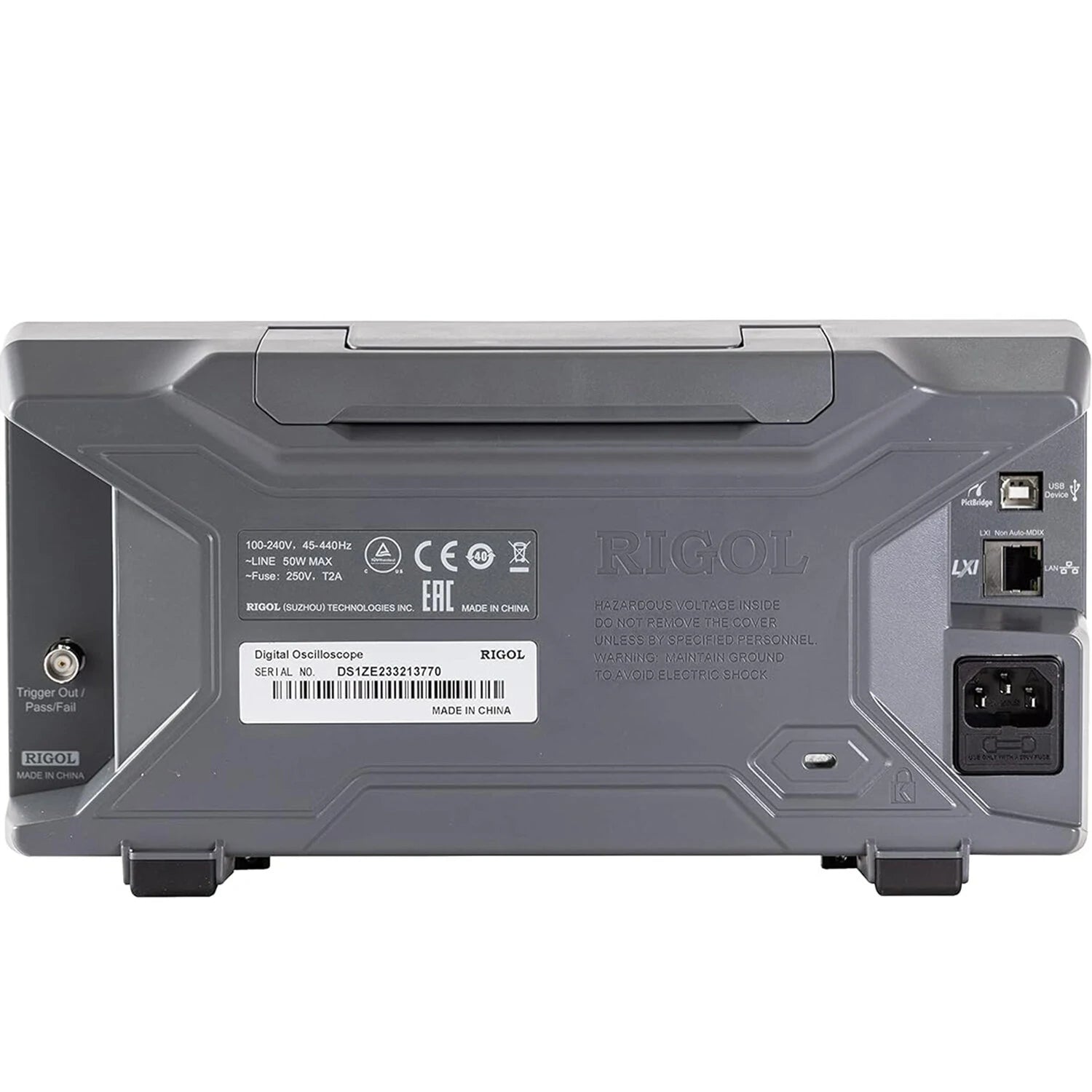

• Interfaces: USB Host & Device, LAN (LXI), AUX

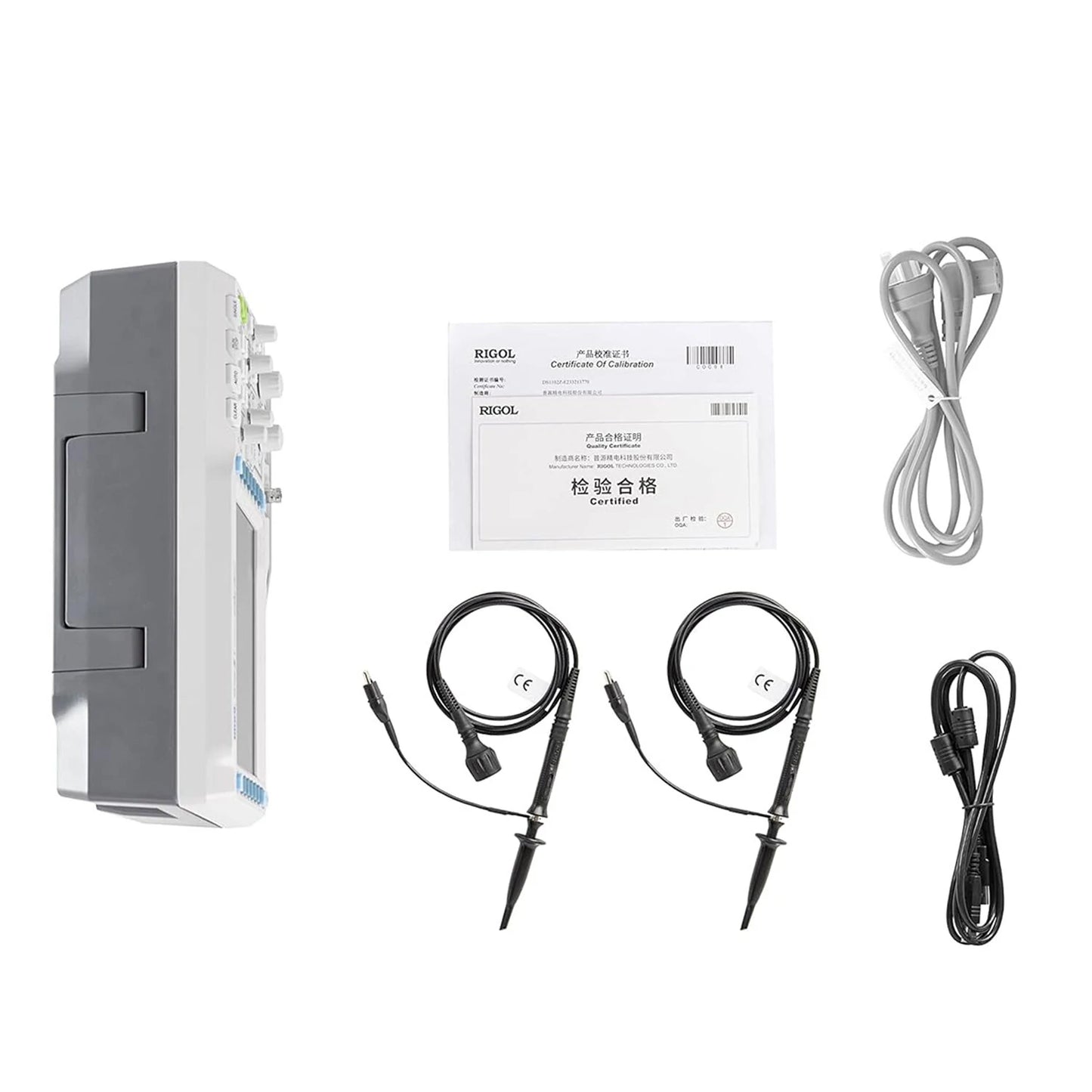

Package Includes

• 1 x DS1202Z-E Digital Oscilloscope
• 1 x Power Cord
