TOOLTOP ET601/ET602 5-Channel Wi-Fi USB Virtual Oscilloscope & Wireless Storage Recorder for Car Repair

Features

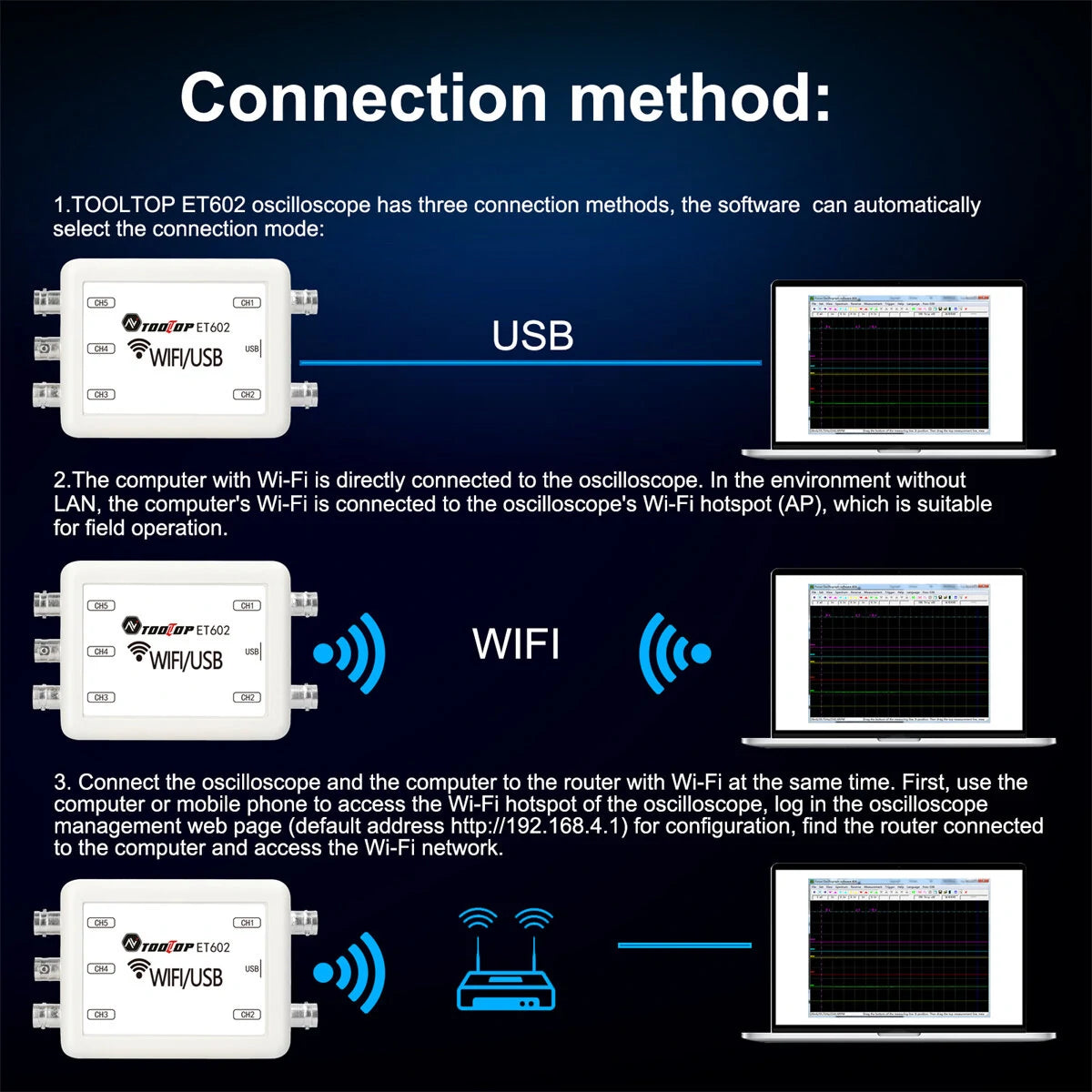

• Wi-Fi Connectivity: Enjoy seamless data transfer and remote control with the built-in 2.4G Wi-Fi for wireless communication.
• High Sampling Rate: Achieve precise measurements with a maximum sampling rate of 150kHz.
• Wide Frequency Range: This oscilloscope covers frequency ranges from 0Hz to 50kHz, catering to various applications.
• Versatile Amplitude Adjustment: Offers flexibility with amplitude adjustment ranges from 10 mV/DIV to 1 V/DIV.

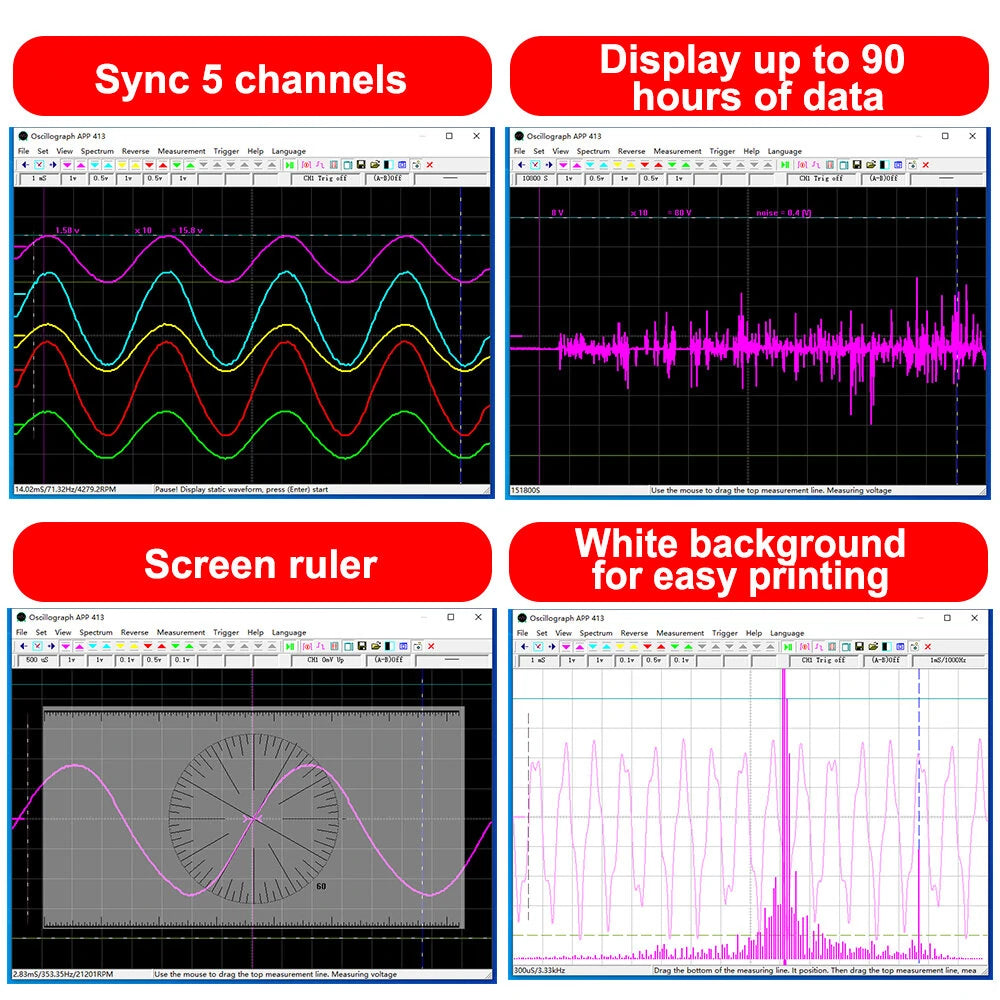

• Extensive Data Recording and Saving: Record and save data for up to 93 hours with a data depth of 8388608*5.
• High Input Impedance: Comes with an input impedance of 1 MΩ for accurate readings.

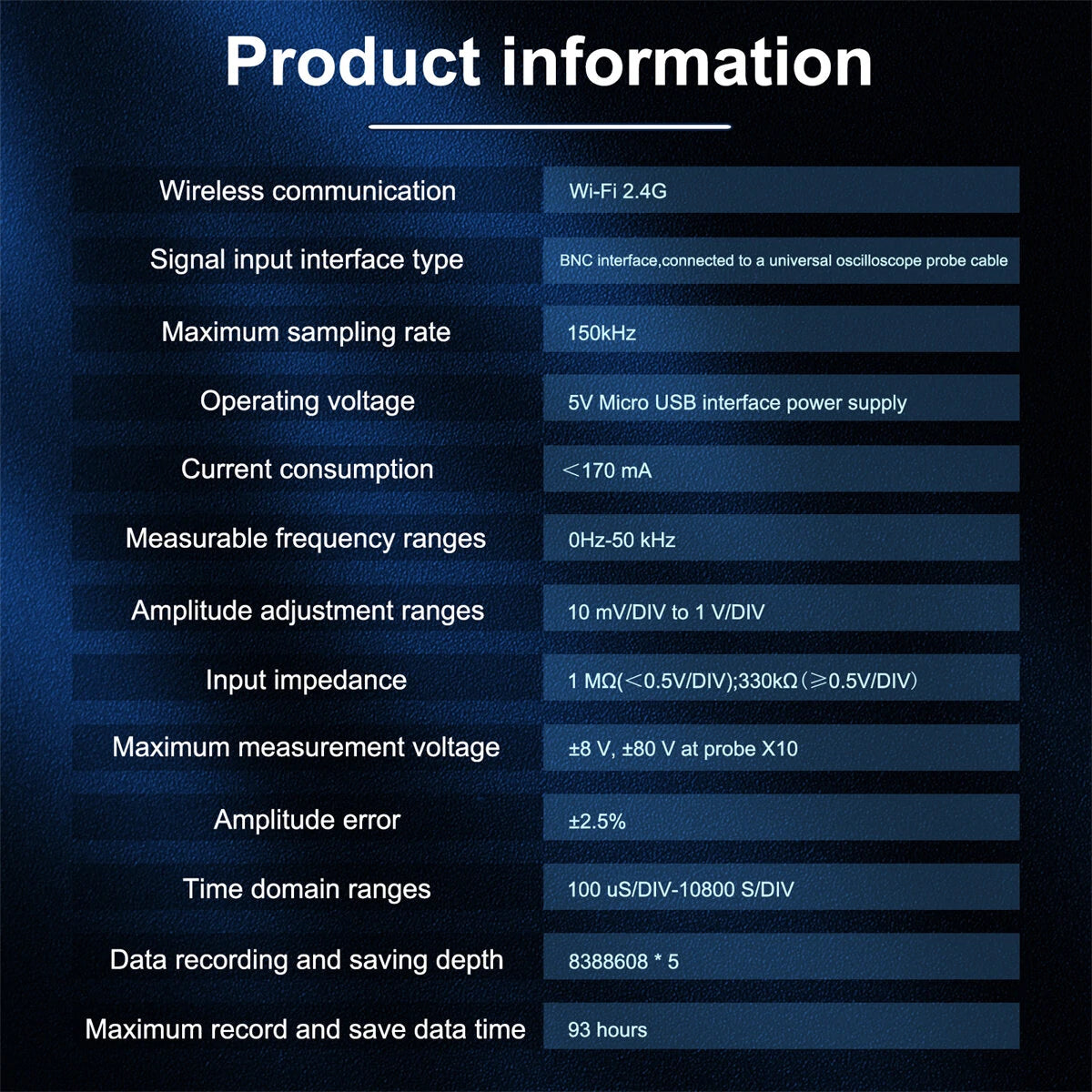

Specification

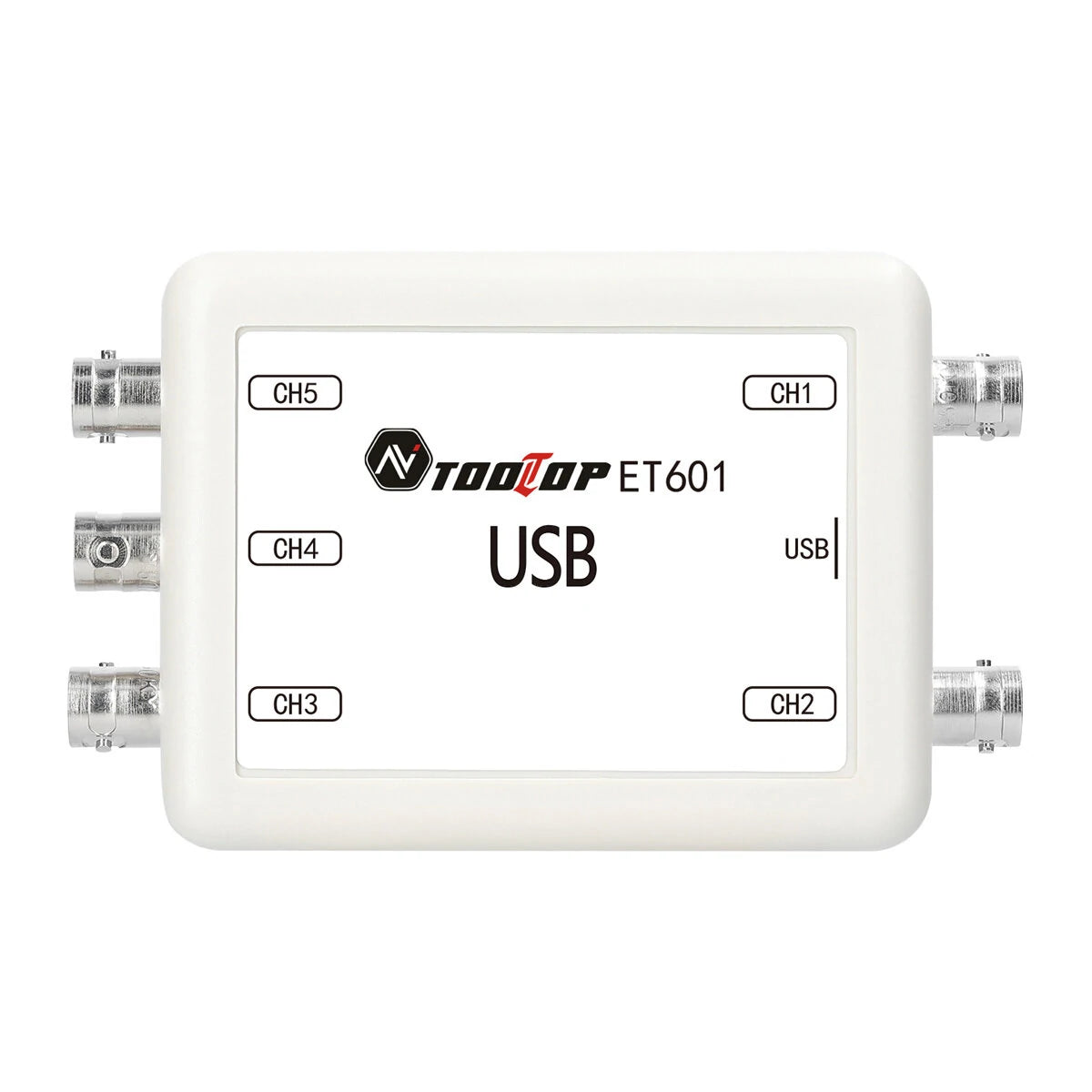

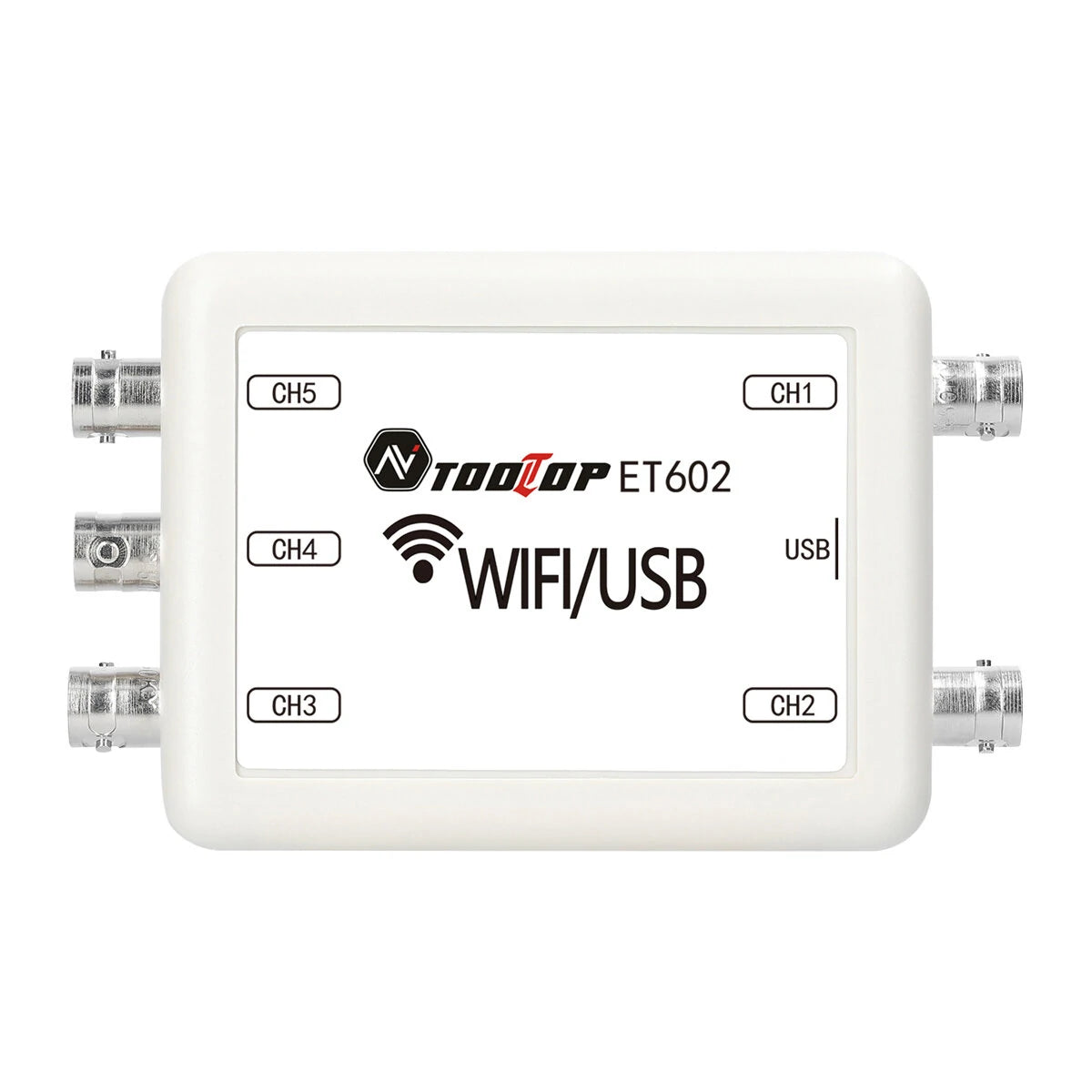

• Model: ET602 / ET601
• Wireless Communication: Wi-Fi 2.4G
• Signal Input Interface Type: BNC Interface
• Maximum Sampling Rate: 150kHz
• Operating Voltage: 5V via Micro USB interface power supply
• Measurable Frequency Ranges: 0Hz-50kHz
• Amplitude Adjustment Ranges: 10 mV/DIV to 1 V/DIV
• Input Impedance: 1 MΩ
• Maximum Measurement Voltage: ±8 V, ±80 V at probe X10
• Amplitude Error: ±2.5%
• Time Domain Ranges: 100 uS/DIV-10800 S/DIV
• Data Recording and Saving Depth: 8388608*5
• Maximum Record and Save Data Time: 93 hours

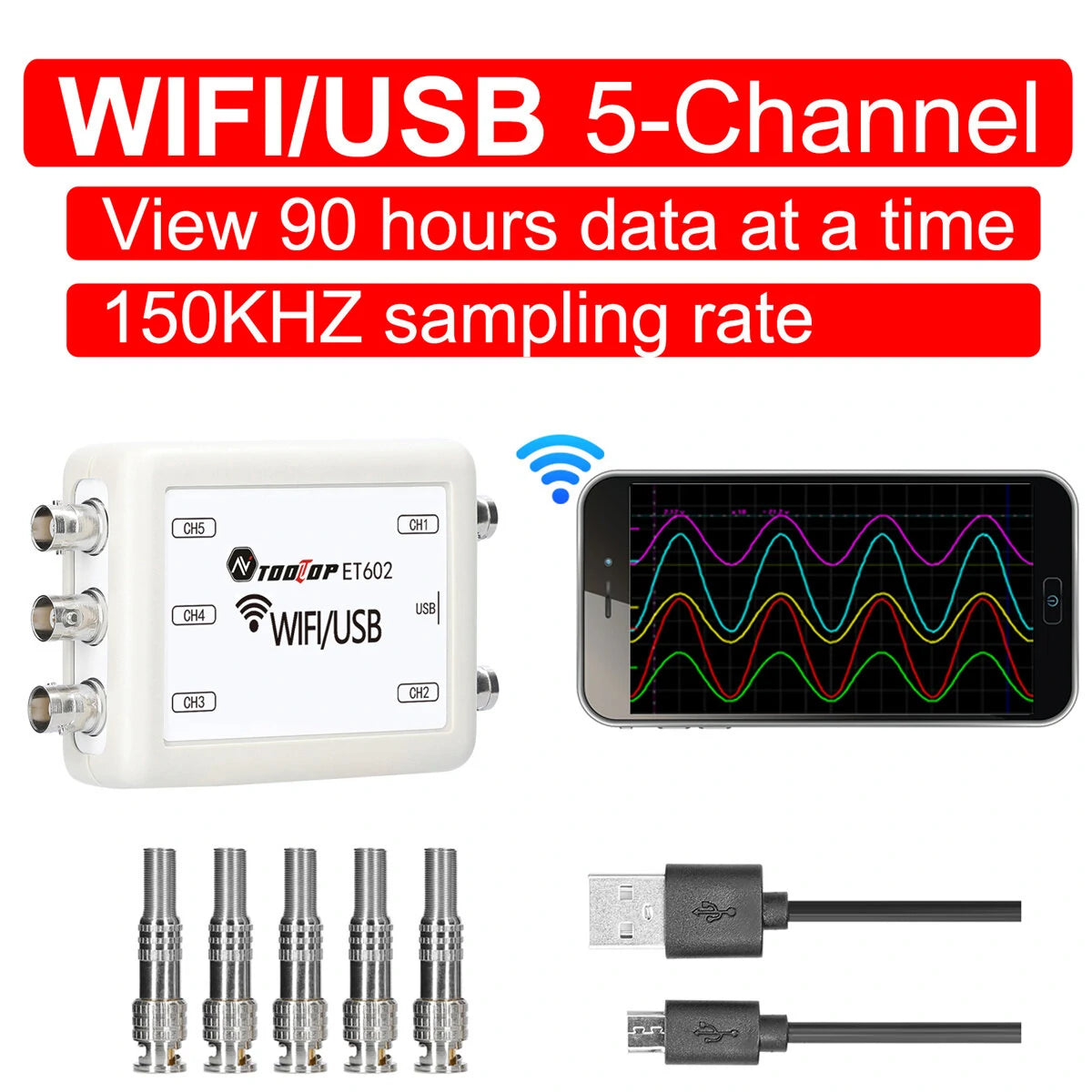

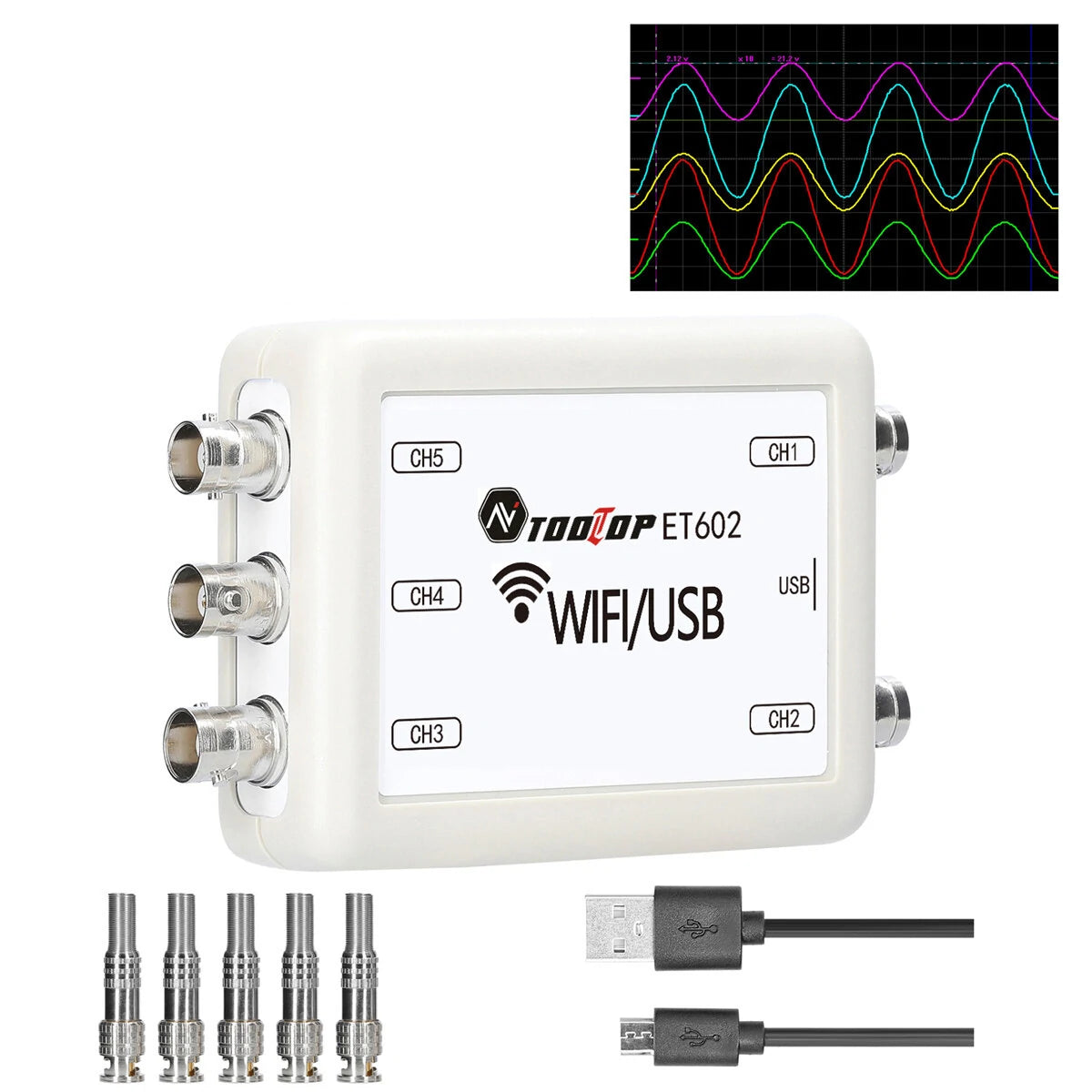

Package Included

• 1 x Oscilloscope (Model as per your choice)
• 1 x BNC Interface Cable
• 1 x Micro USB Power Cable
• 1 x User Manual
