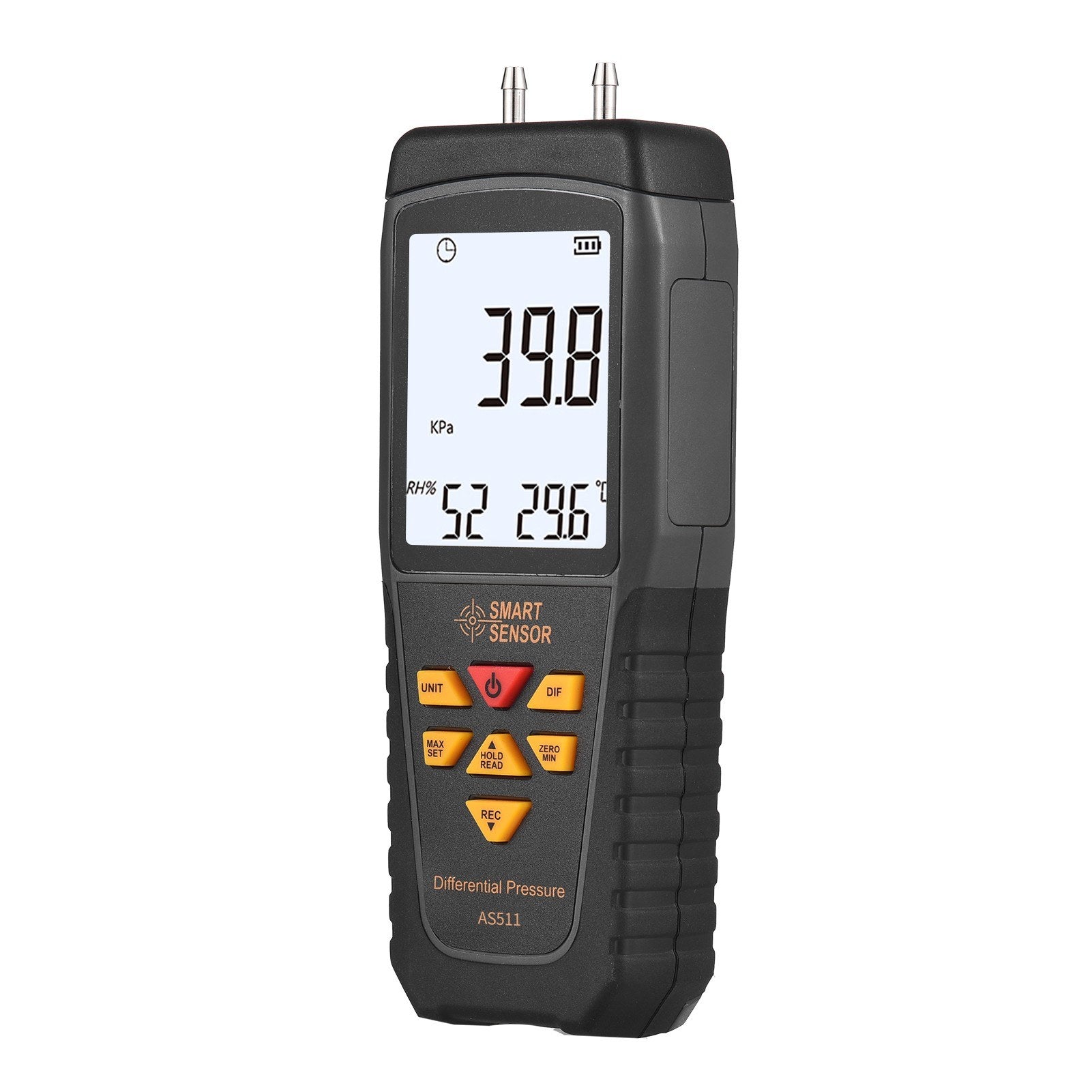

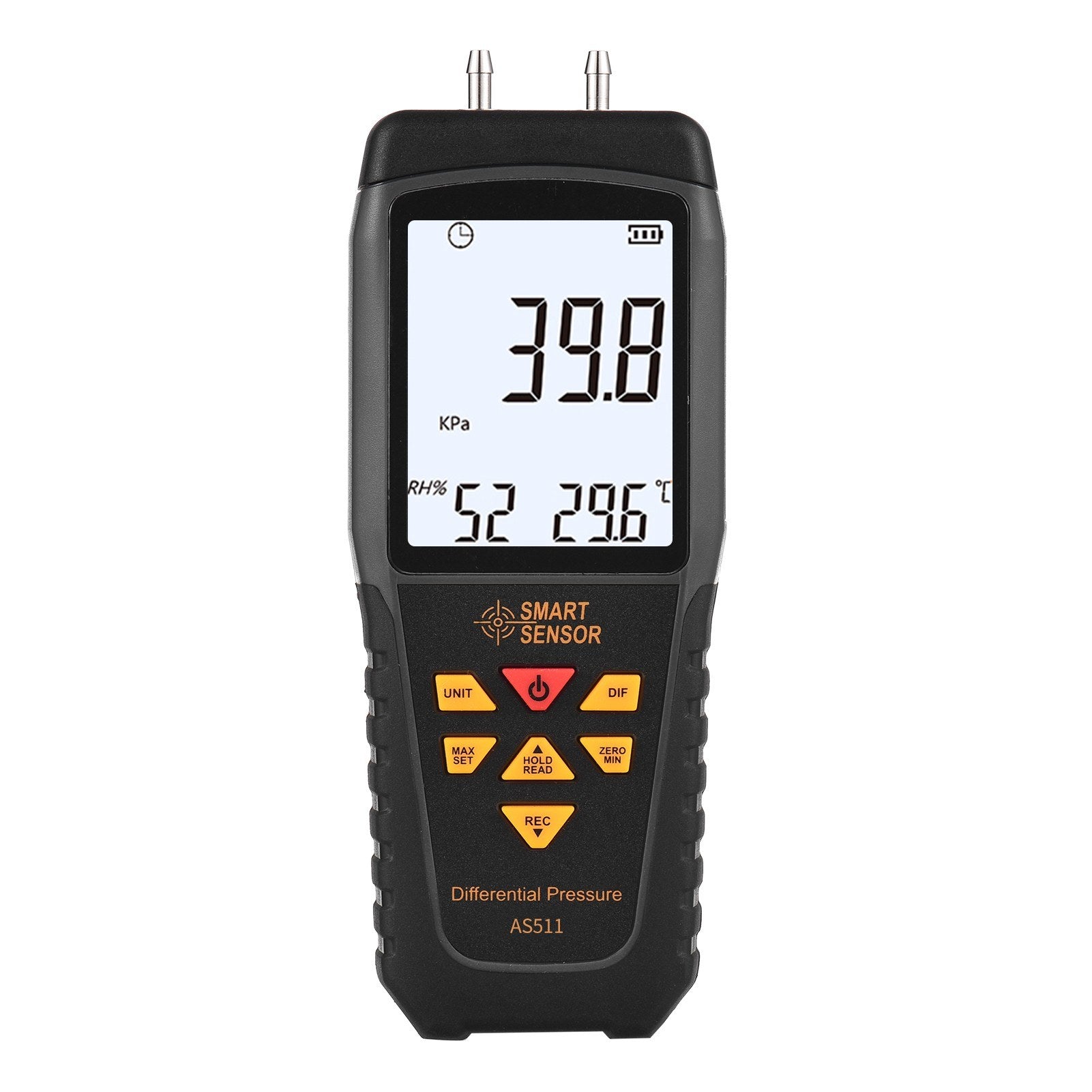

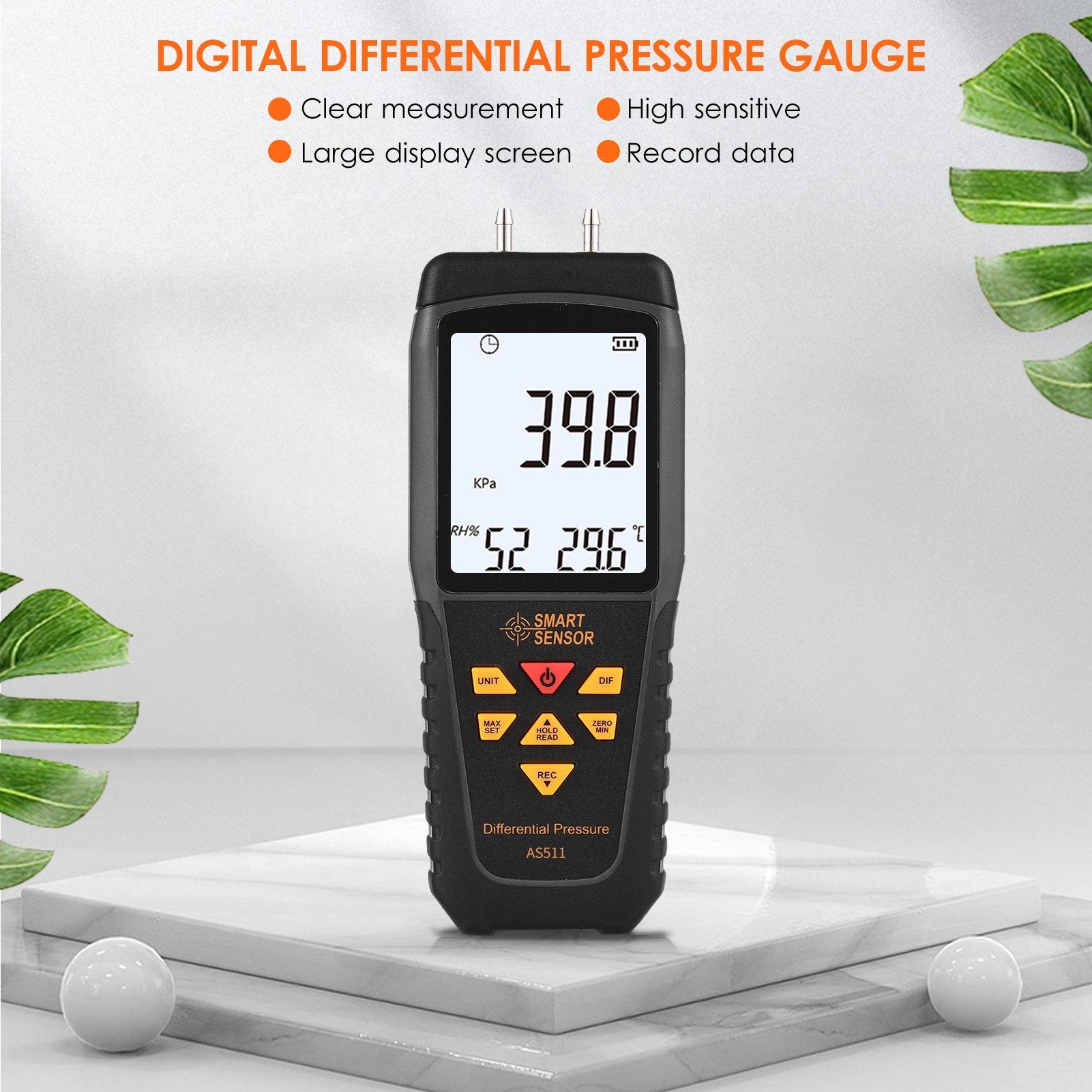

AS511 Digital Differential Pressure Gauge - Dual Port Manometer, Air/Gas Tester -39.98~39.98KPA

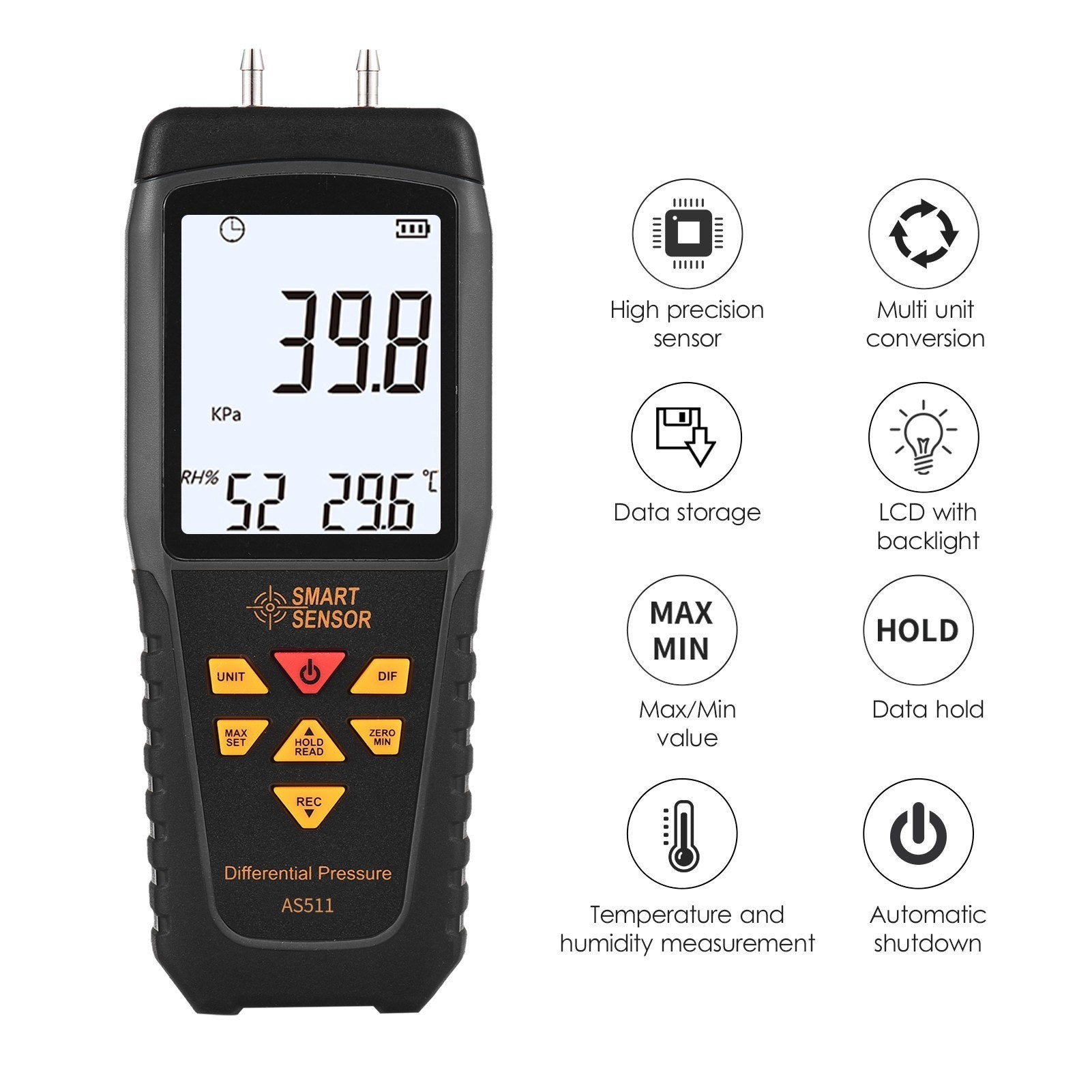

Features

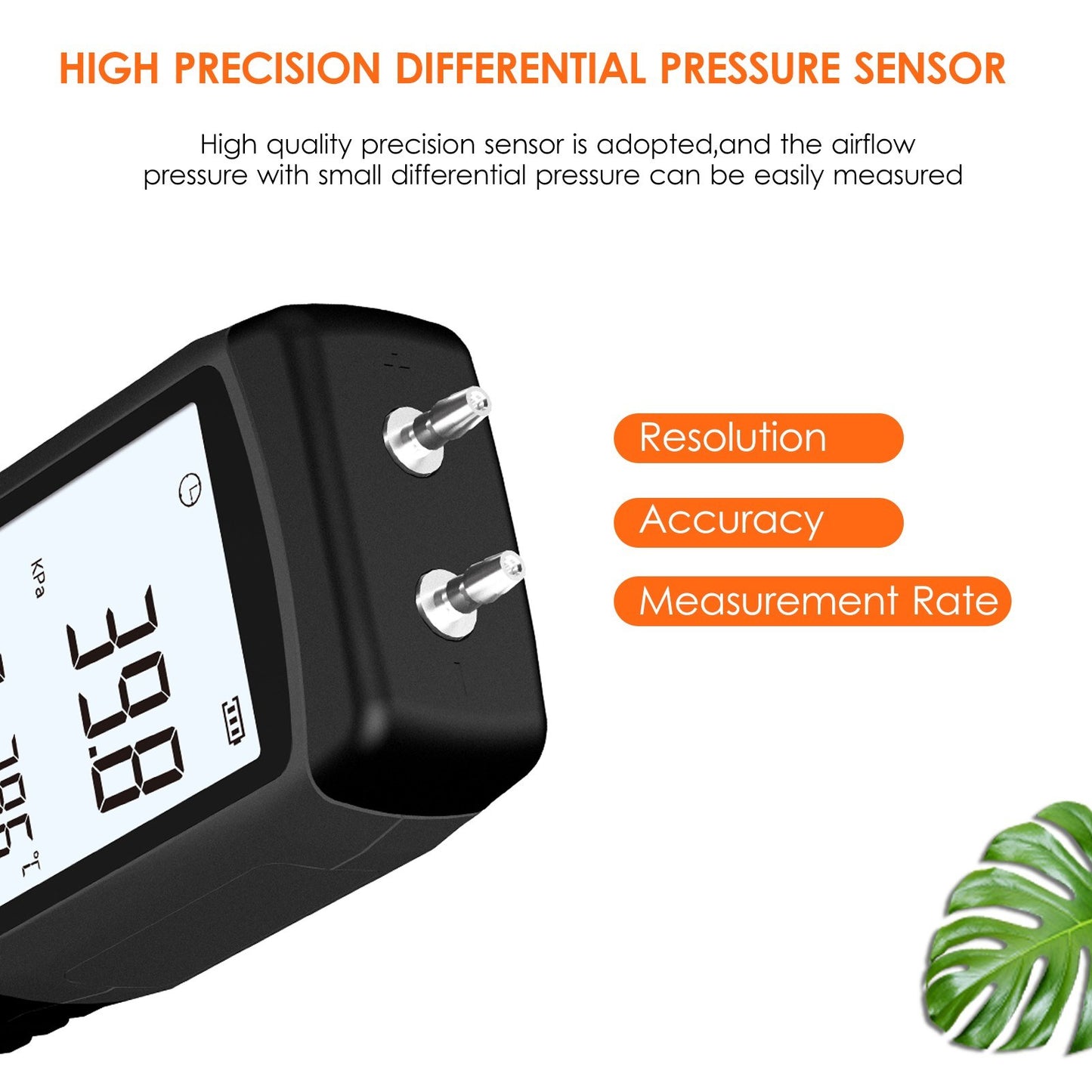

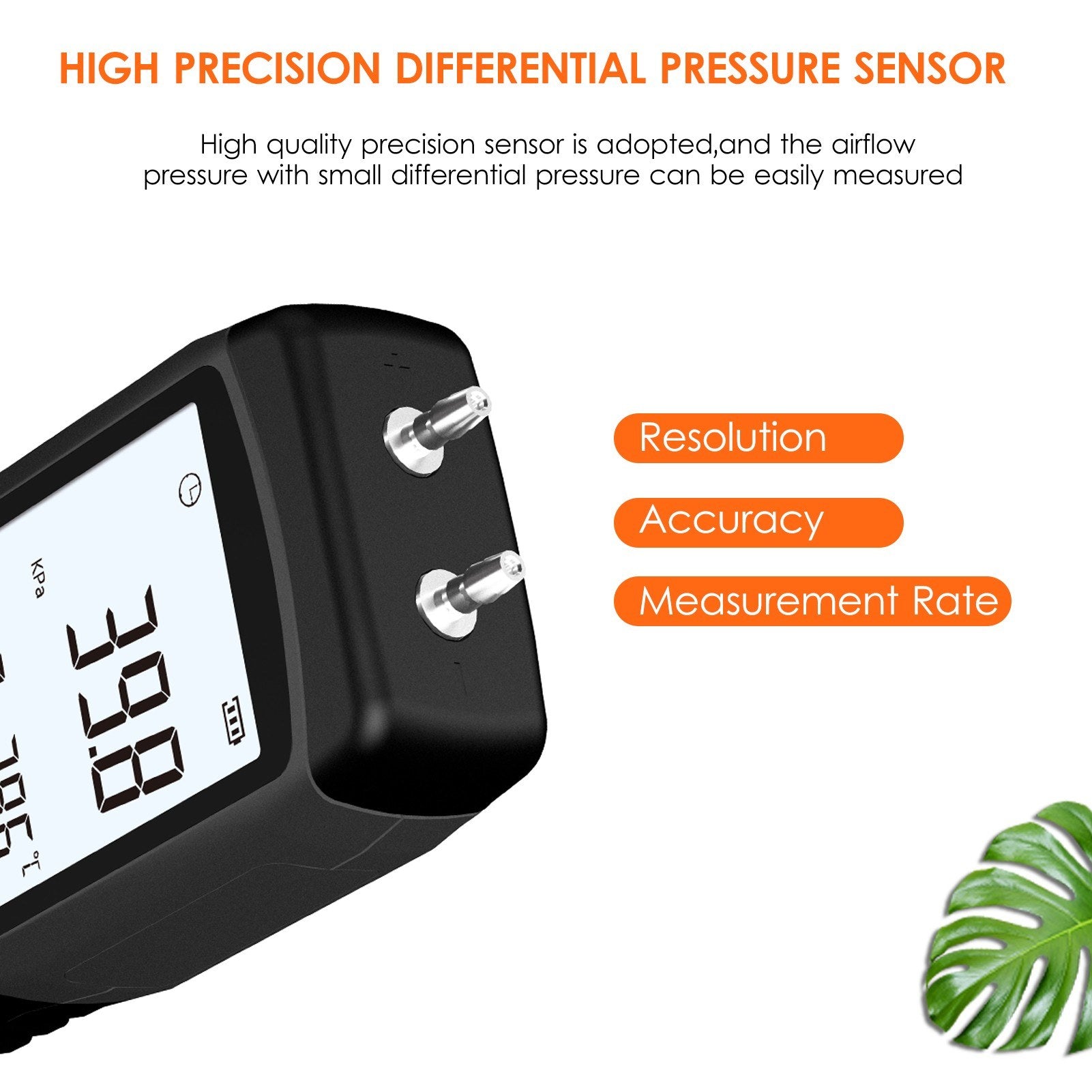

• Professional Manometer: Test differential pressure in areas and pipes, and measure wind velocity in pipelines. It offers a wide pressure range with ±0.1% accuracy.
• Clear Display: Equipped with a 2.7-inch LCD screen featuring a backlight for easy reading.
• Multiple Measuring Units: Choose from 12 different unit options: hpa, kpa, mmHg, psi, mbar, bar, ozin², inHg, Kgcm², inH₂O, ftH₂O, cmH₂O.
• Additional Features: Includes Max./Min. value measurement, data recording, data hold, and zero function.
• User-Friendly Alerts: Features a low battery indicator, and Hi and Lo over range indicators.
• Energy Efficient: Powered by 3 AAA batteries (not included) with automatic power-off after 15 minutes of inactivity.
• Compact and Lightweight Design: Easy to operate and carry, complete with a protective zipper pouch.
• Versatile Applications: Ideal for industries like chemical, electrical, and nuclear to measure air pressure differences.

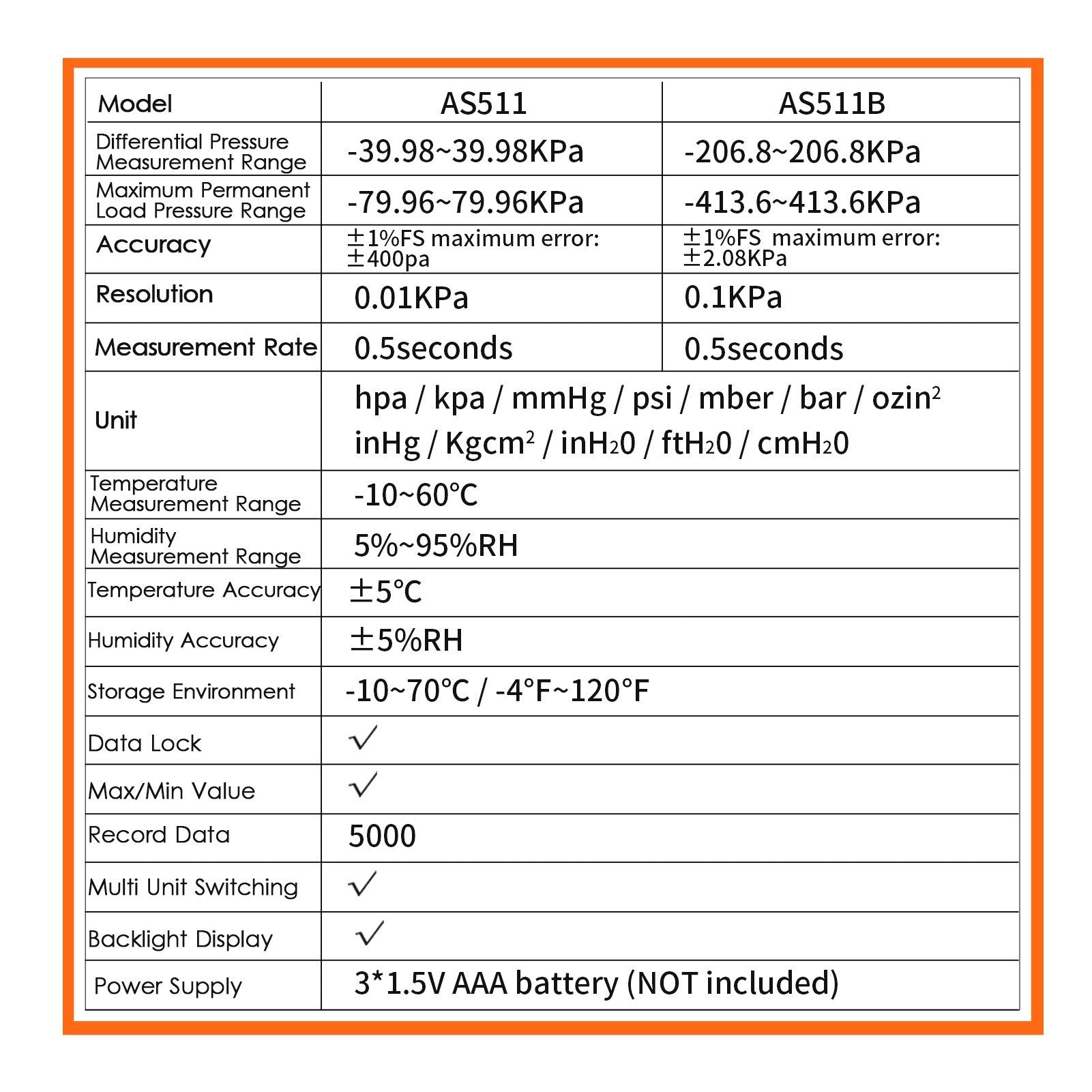

Specifications

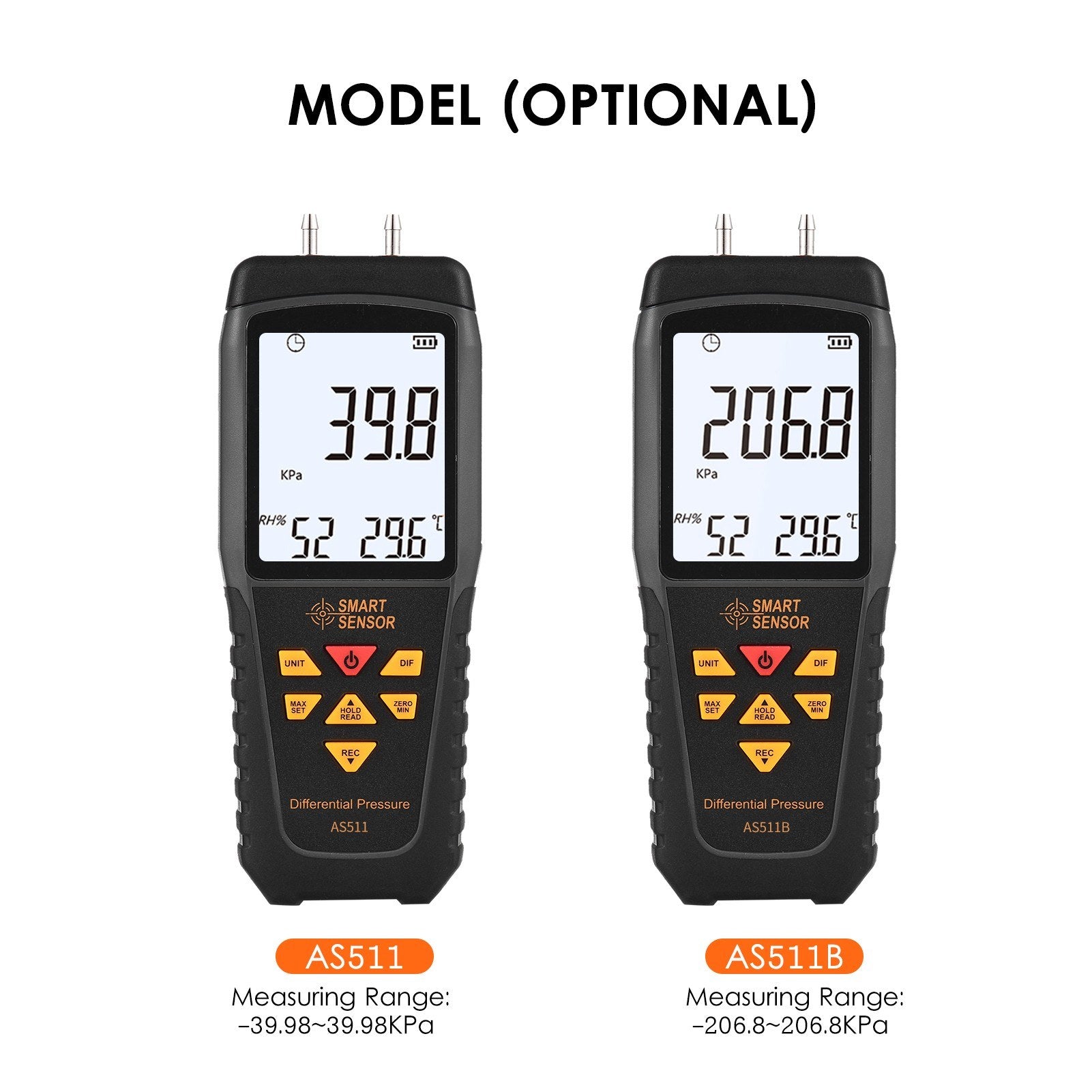

• Model Options: AS511 / AS511B
• AS511:
  • Differential Pressure Range: -39.98 to 39.98 KPa
  • Max Load Pressure: -79.96 to 79.96 KPa
  • Resolution: 0.01 KPa
  • Accuracy: ±1% FS, Max Error: ±400 Pa
• AS511B:
  • Differential Pressure Range: -206.8 to 206.8 KPa
  • Max Load Pressure: -413.6 to 413.6 KPa
  • Resolution: 0.1 KPa
  • Accuracy: ±1% FS, Max Error: ±2.08 KPa
• Measurement Selection Rate: 0.5 seconds
• Temperature Range: -10 to 60℃
• Humidity Range: 5 to 99% RH
• Temperature Accuracy: ±2℃
• Humidity Accuracy: ±5% RH
• Storage Environment: -10 to 70℃ / -4 to 140℉
• Power Supply: 3 * 1.5V AAA batteries (not included)
• Material: ABS

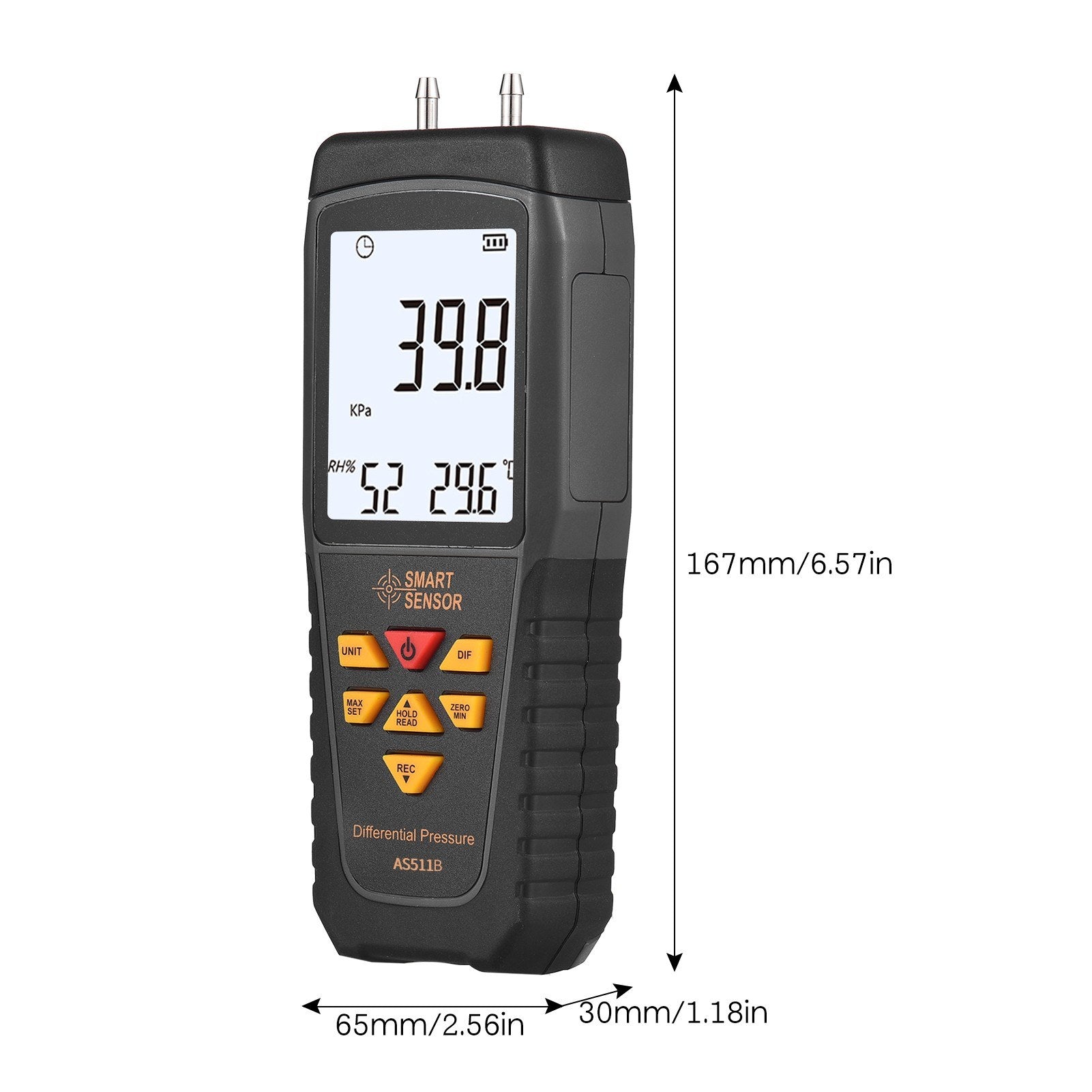

• Item Size: 167 * 65 * 30 mm / 6.57 * 2.56 * 1.18 in
• Item Weight: 141 g / 4.99 oz
• Package Weight: 305 g / 10.77 oz
• Package Size: 24.8 * 9.3 * 5.3 cm / 9.76 * 3.66 * 2.09 in

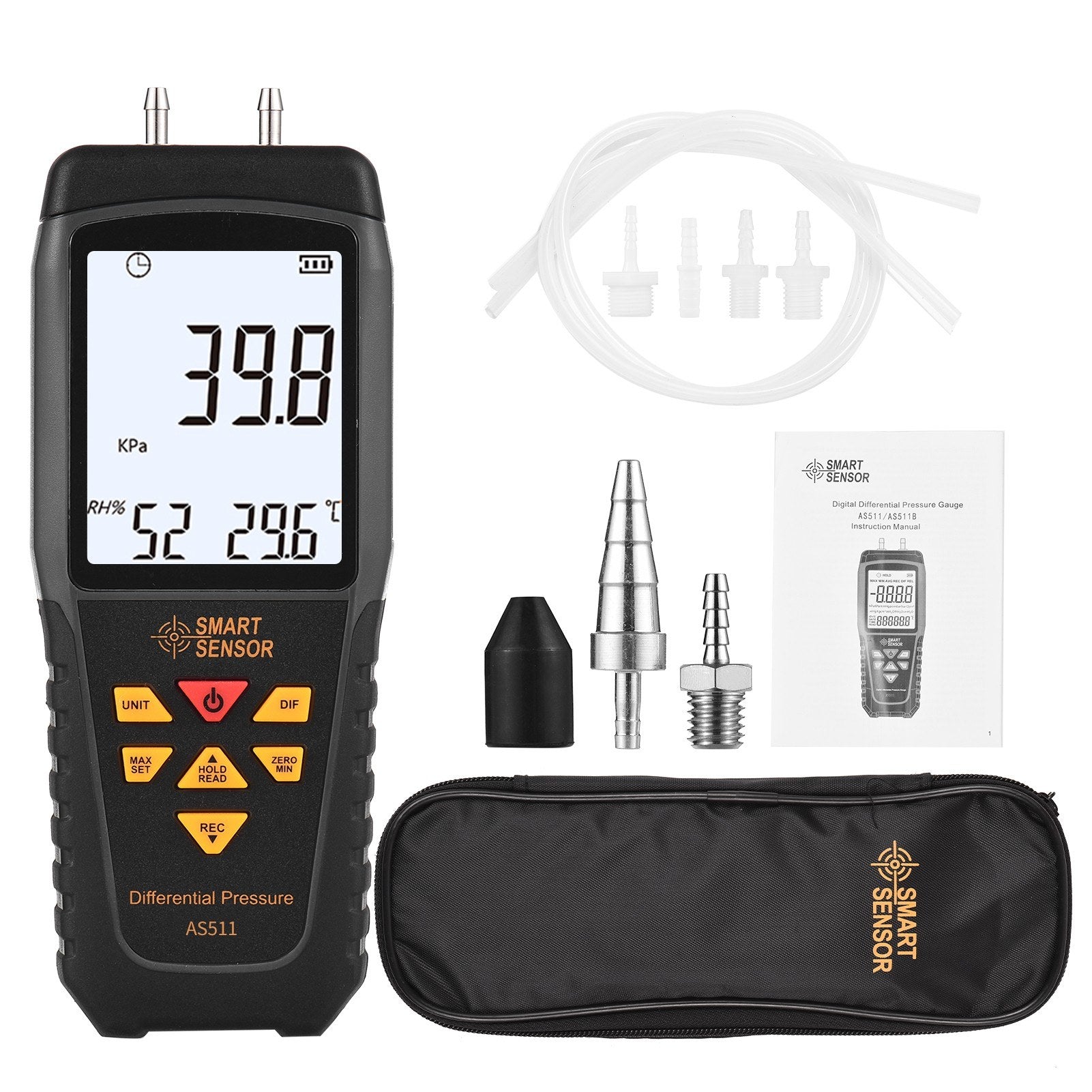

Package List

• 1 Manometer
• 1 Package of Accessories
• 2 Plastic Pipes
• 1 Zipper Pouch
• 1 Manual (English)
