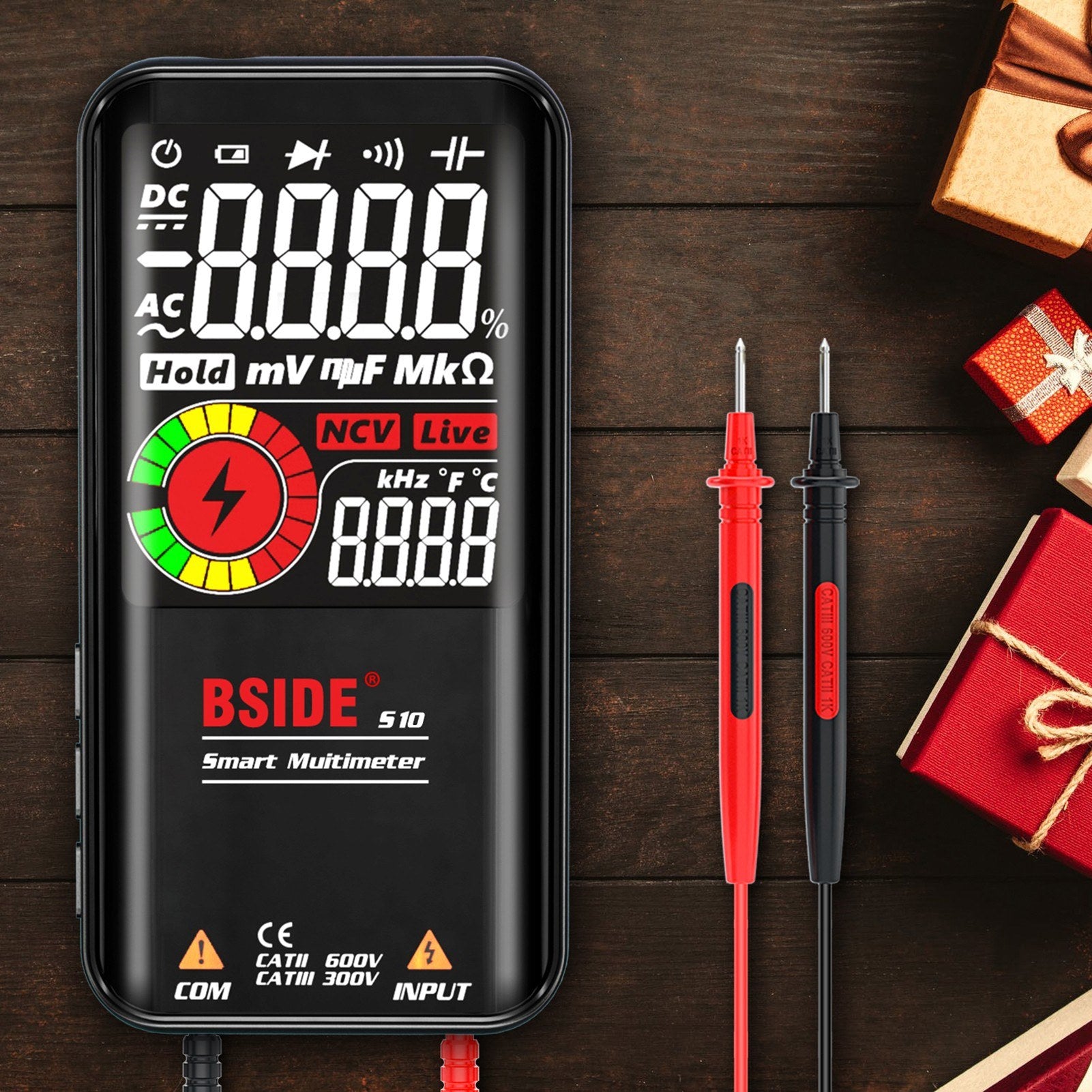

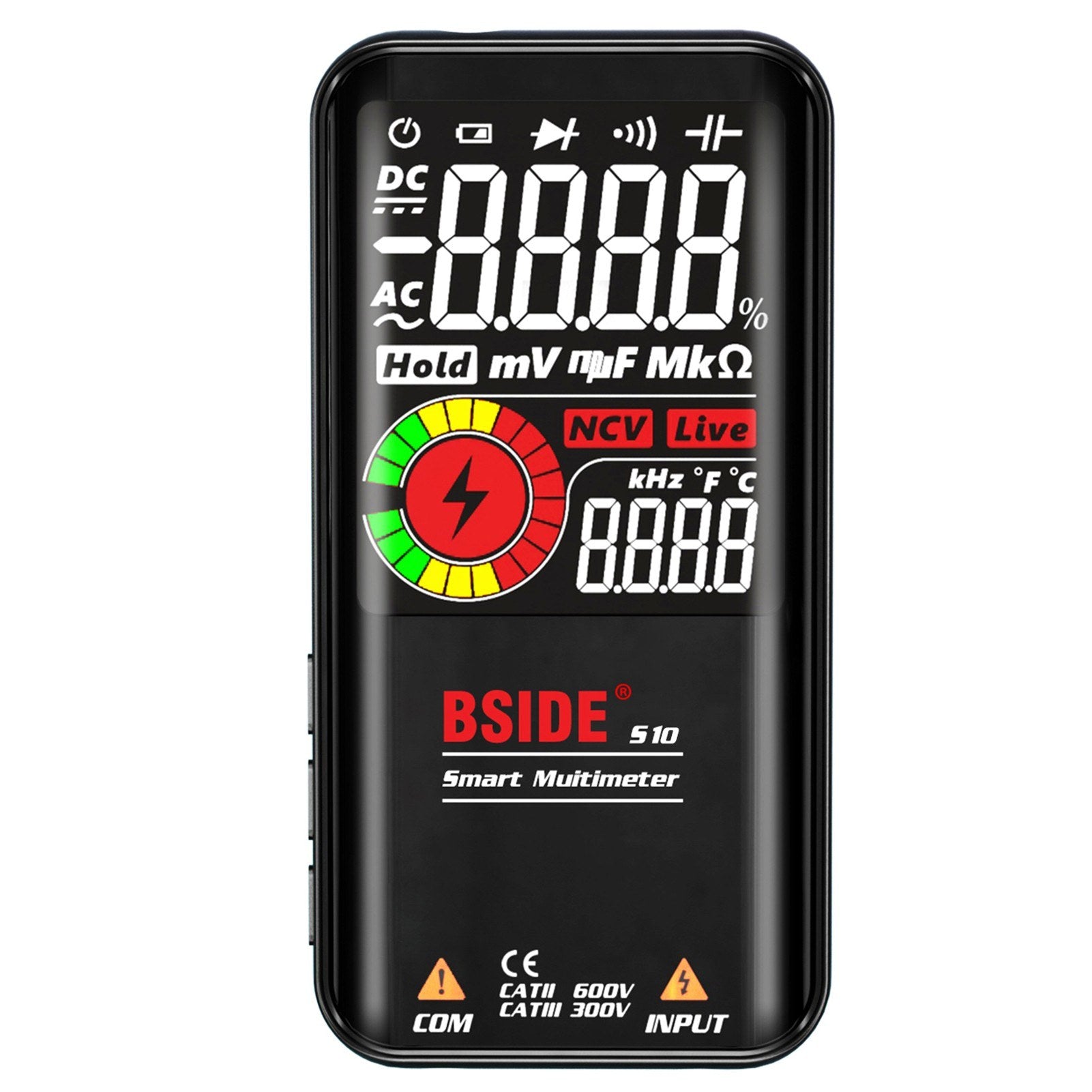

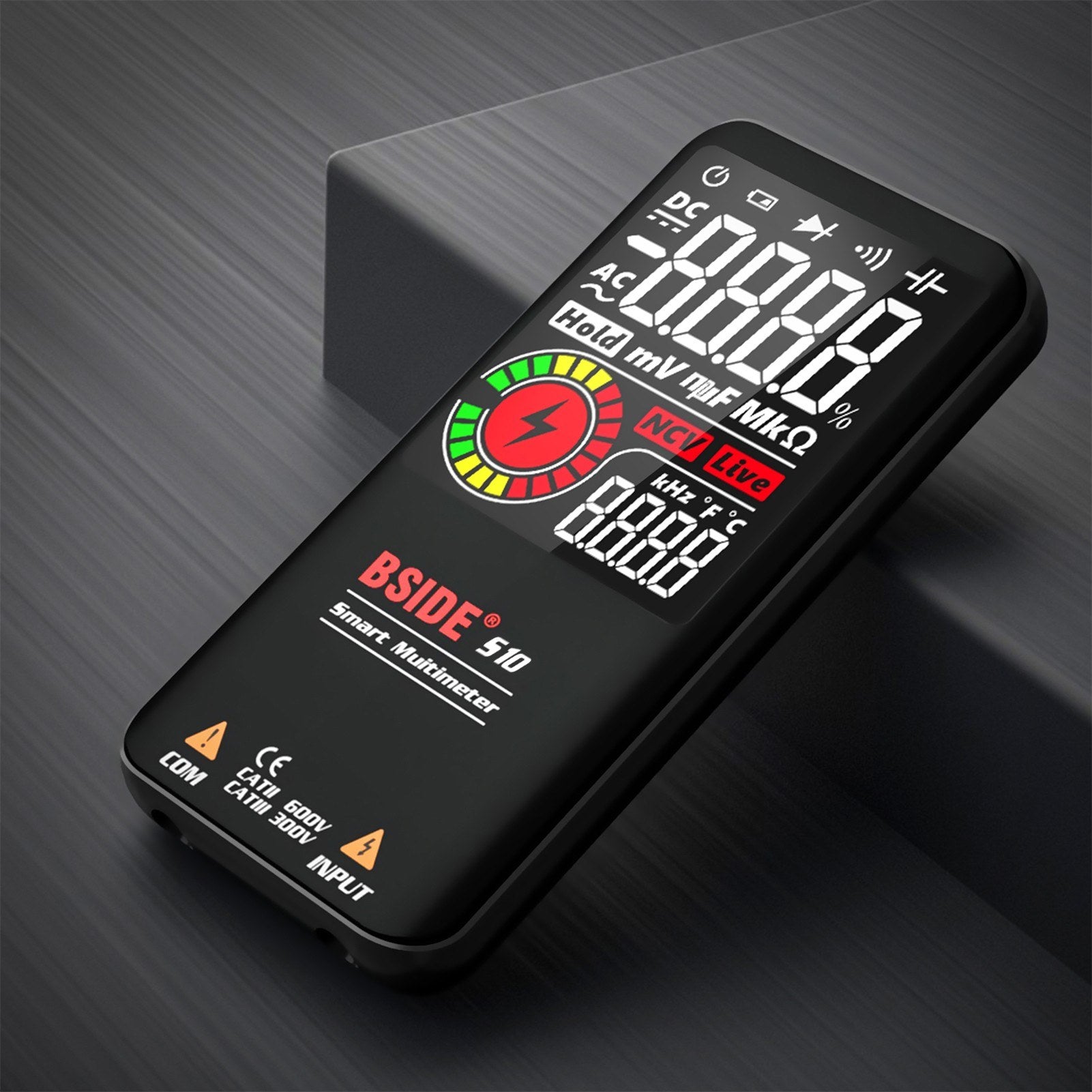

BSIDE S10 Intelligent Multimeter 9999 Counts Digital LCD AC/DC Voltmeter Ohmmeter Test Resistance Capacitance Frequency Diode Continuity NCV Live Line Flashlight Data Hold
BSIDE S10 Intelligent Multimeter 9999 Counts Digital LCD AC/DC Voltmeter Ohmmeter Test Resistance Capacitance Frequency Diode Continuity NCV Live Line Flashlight Data Hold
Regular price
$21.49 USD
Regular price
$0.00 USD
Sale price
$21.49 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Digital Multifunctional Multimeter
Features:
- Multifunctional Measurement: Accurately measures AC/DC voltage, resistance, capacitance, frequency, diode, continuity, and NCV live line for wide-ranging applications.
- Smart Functions: Measures diodes within 3V, with an audible buzzer alert when resistance is below 50Ω or live voltage is detected.

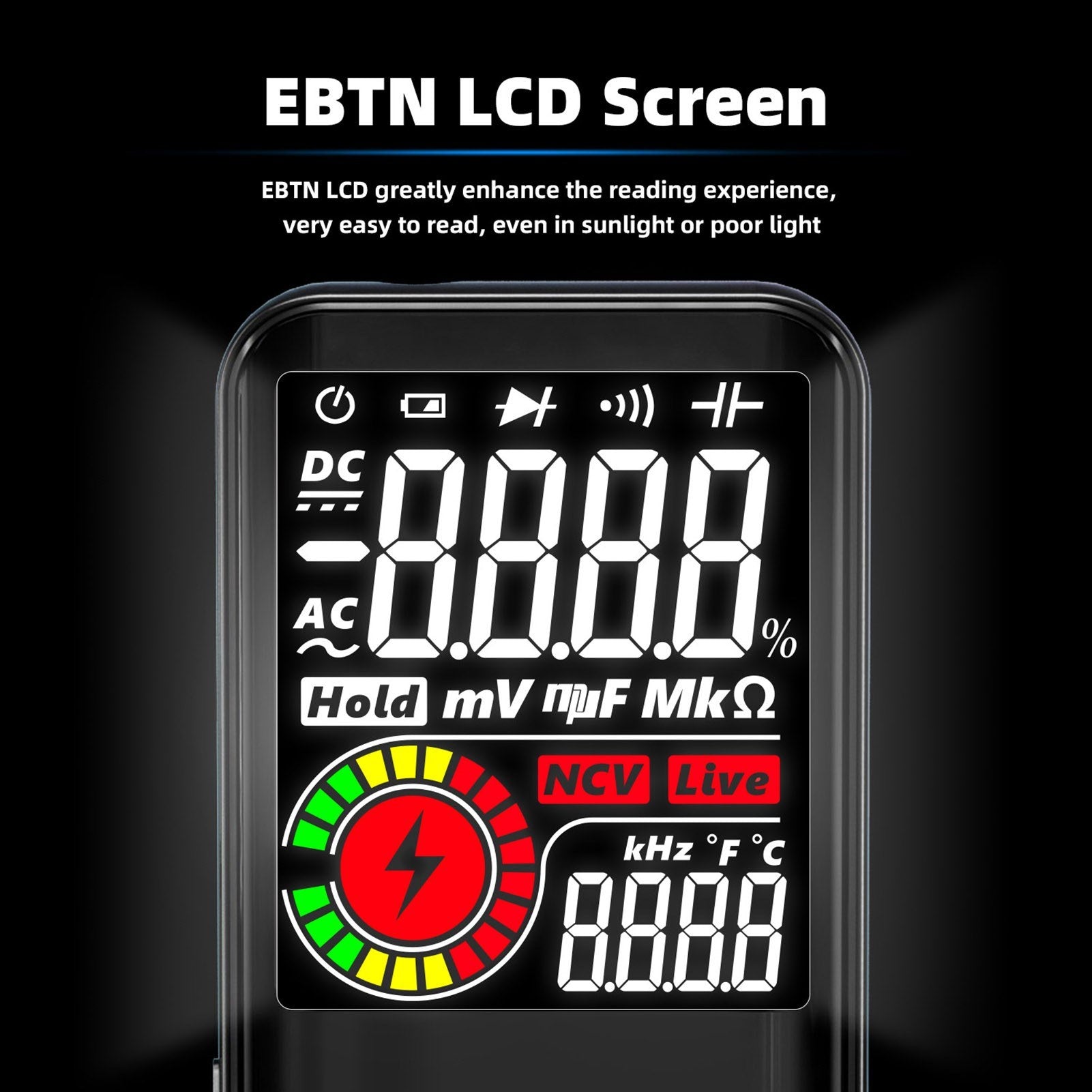

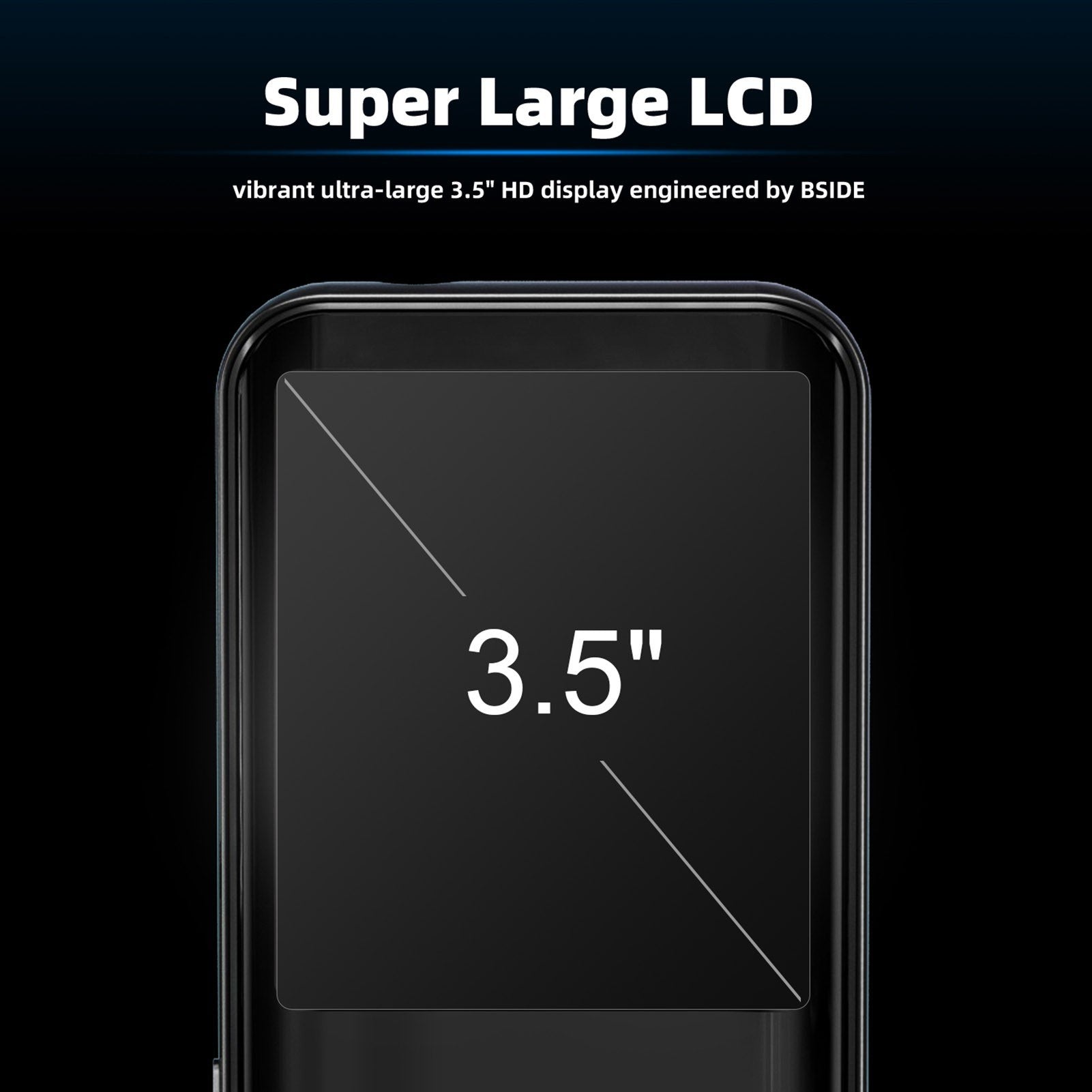

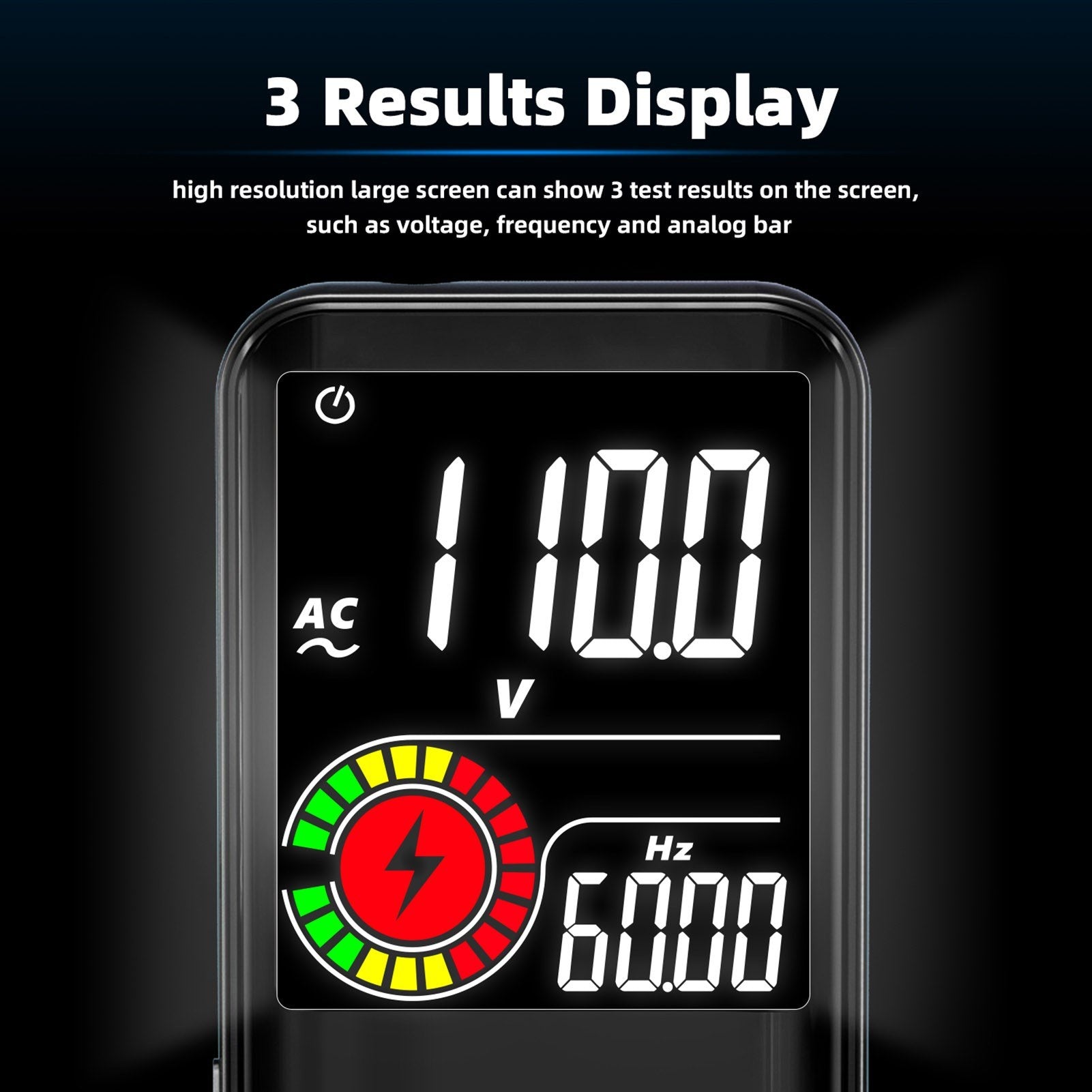

- High Precision Display: A 3.5-inch EBTN LCD offers exceptional readability even in direct sunlight or low-light situations.
- Reliable & Practical: Features NCV measurement, auto-ranging to 9999 counts, and a convenient DATA hold function.
- Safety Assurance: Provides full-range overload protection, double insulation, and complies with CAT.II 600V and CAT.III 300V safety standards.

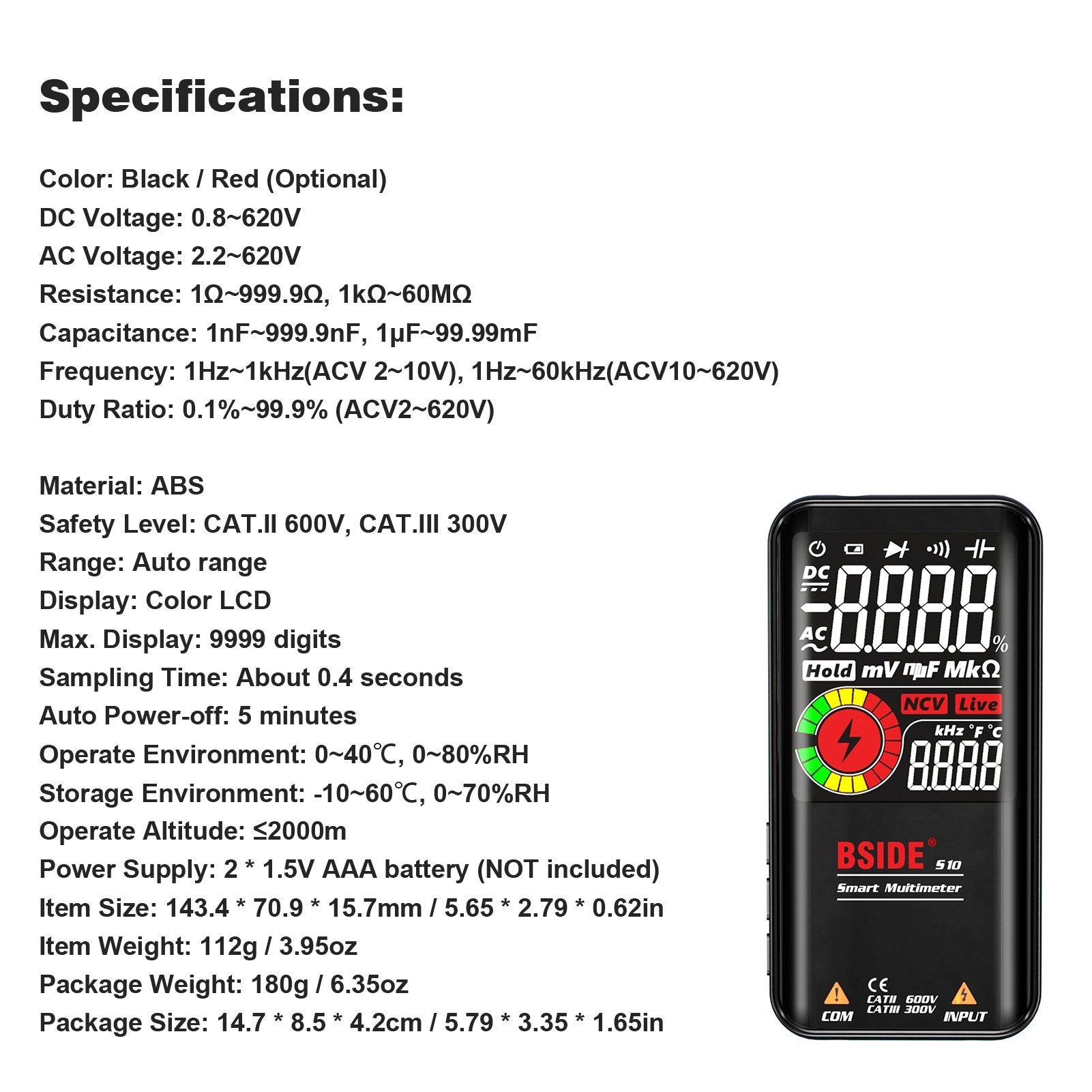

Specifications:

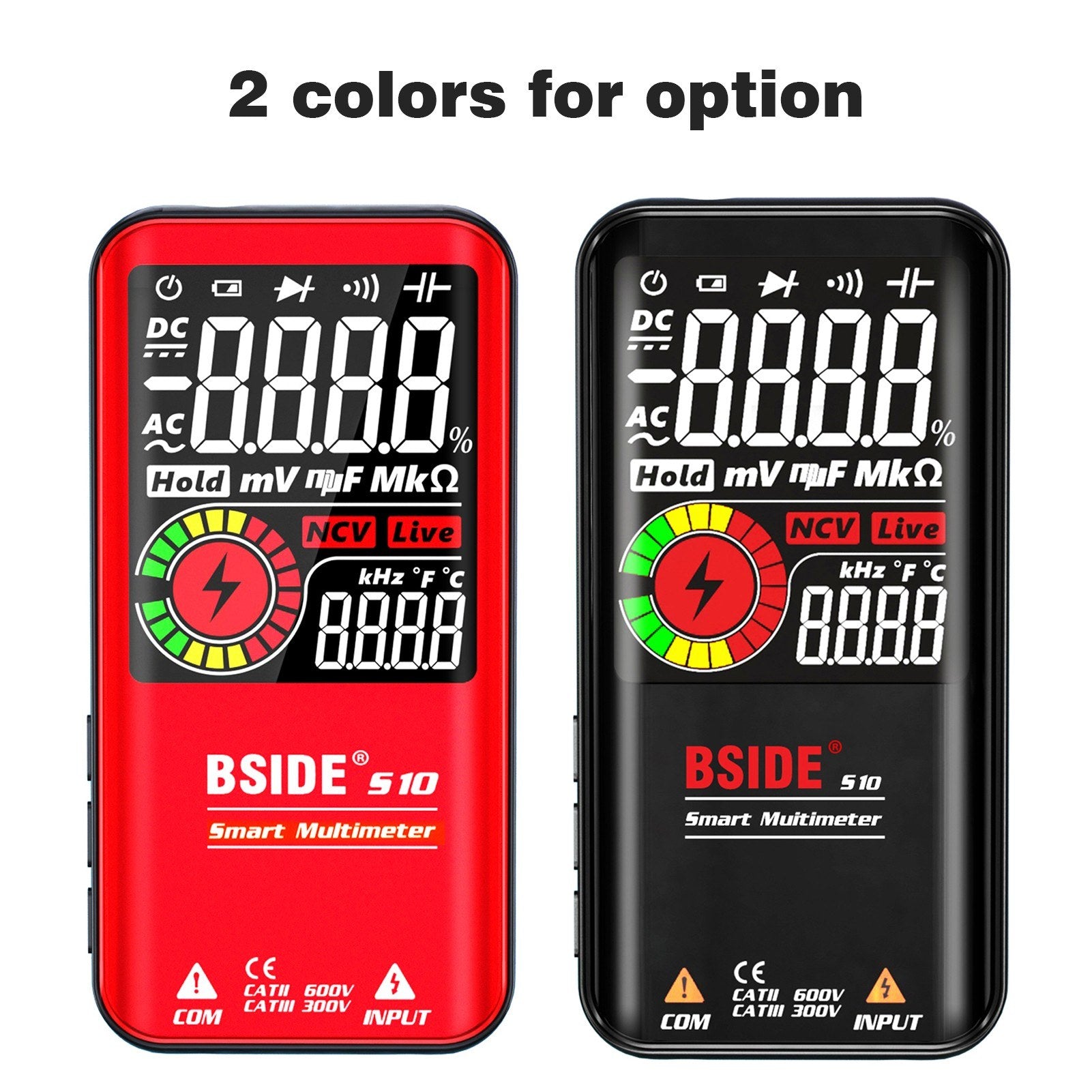

| Color: | Black / Red (Optional) |
| DC Voltage: | 0.8~620V |
| AC Voltage: | 2.2~620V |
| Resistance: | 1Ω~999.9Ω, 1kΩ~60MΩ |
| Capacitance: | 1nF~999.9nF, 1μF~99.99mF |
| Frequency: | 1Hz~1kHz (ACV 2~10V), 1Hz~60kHz (ACV 10~620V) |
| Duty Ratio: | 0.1%~99.9% (ACV 2~620V) |
| Material: | ABS |
| Safety Level: | CAT.II 600V, CAT.III 300V |
| Range: | Auto range |
| Display: | Color LCD |
| Max. Display: | 9999 digits |
| Sampling Time: | About 0.4 seconds |
| Auto Power-off: | 5 minutes |
| Operate Environment: | 0~40℃, 0~80%RH |
| Storage Environment: | -10~60℃, 0~70%RH |
| Operate Altitude: | ≤2000m |
| Power Supply: | 2 * 1.5V AAA battery (NOT included) |

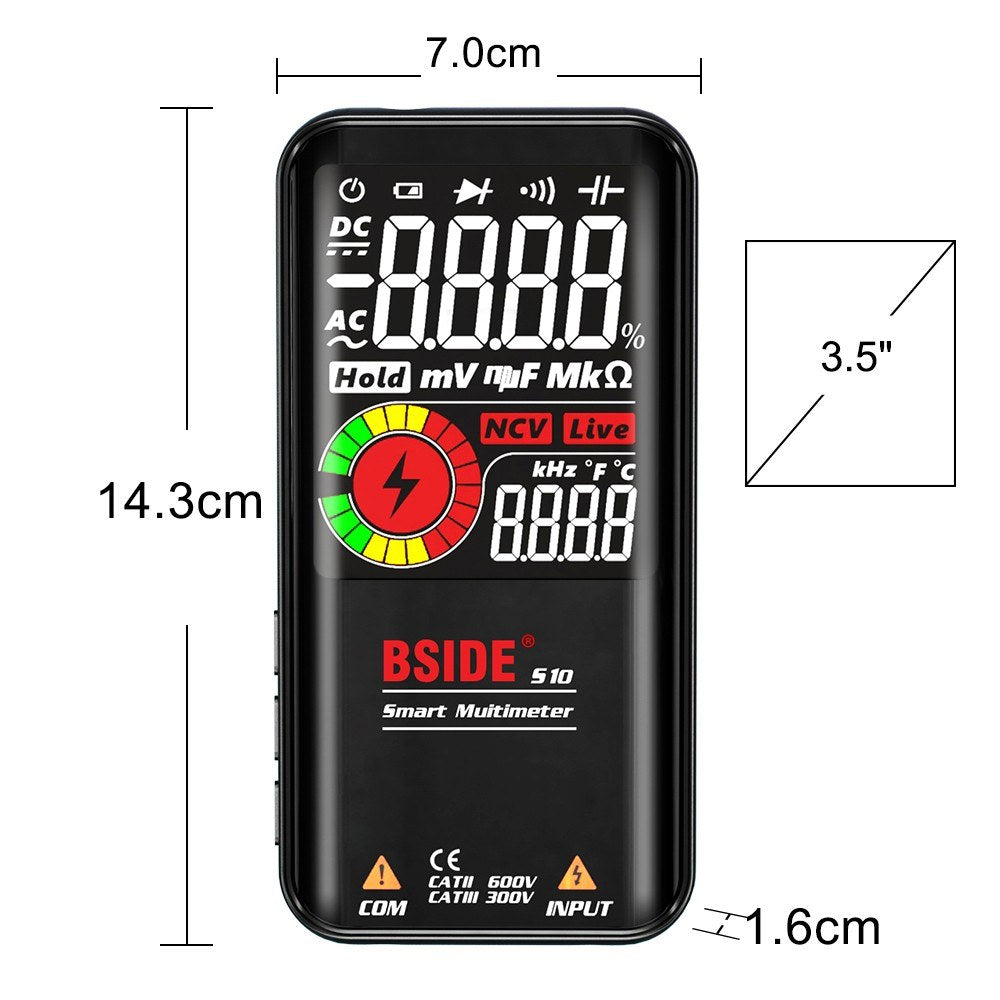

| Item Size: | 143.4 * 70.9 * 15.7mm / 5.65 * 2.79 * 0.62in |
| Item Weight: | 112g / 3.95oz |
| Package Weight: | 180g / 6.35oz |
| Package Size: | 14.7 * 8.5 * 4.2cm / 5.79 * 3.35 * 1.65in |

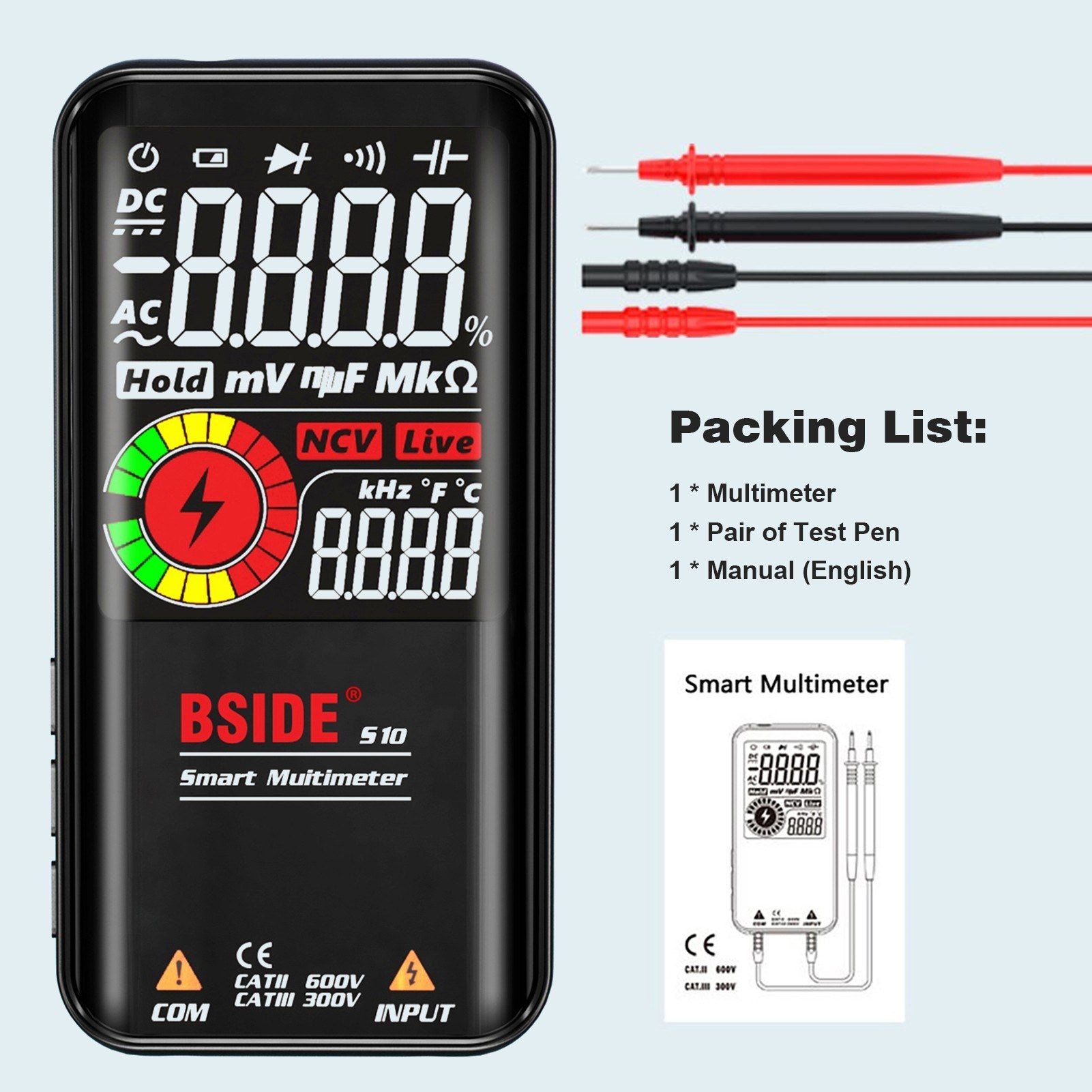

Packing List:

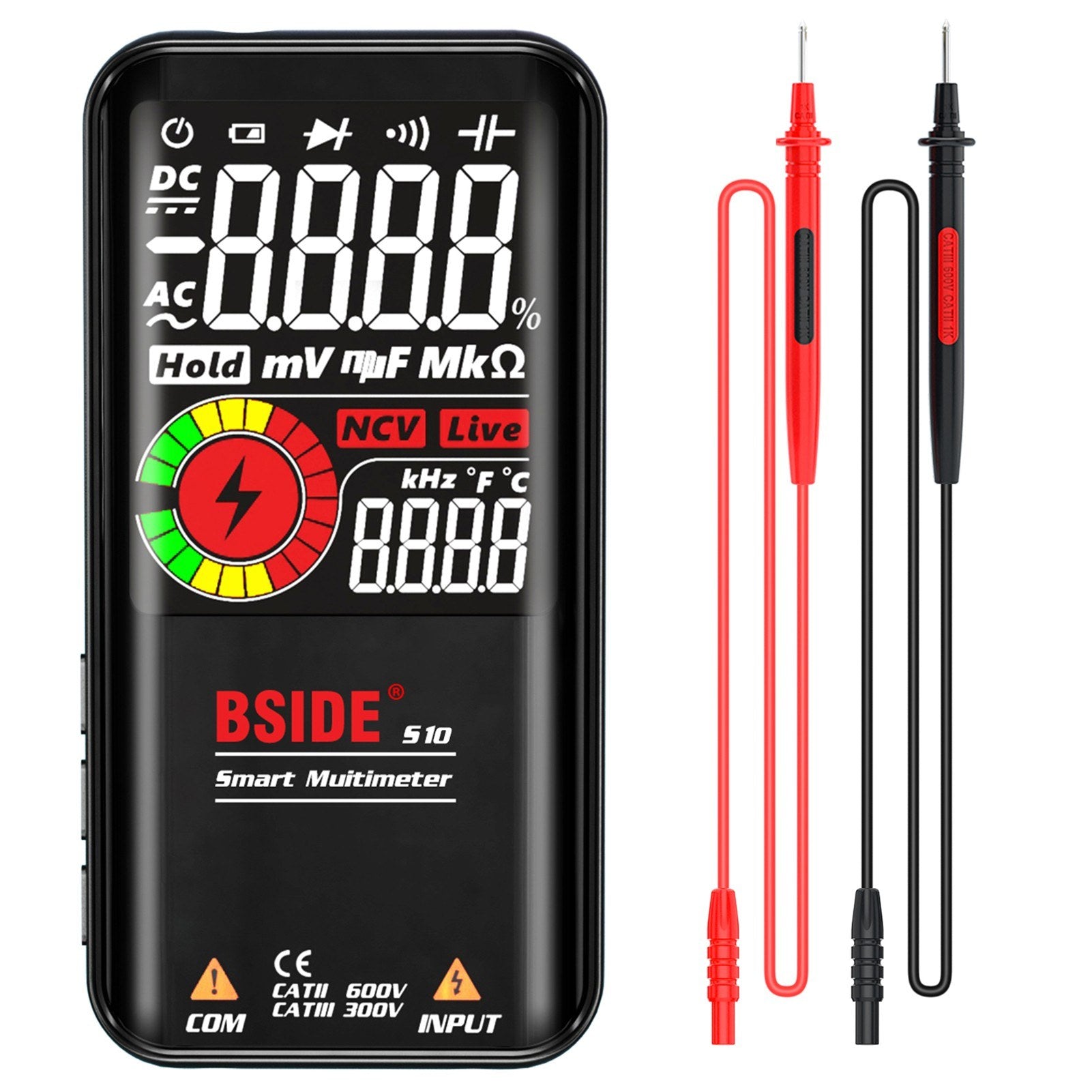

- 1 * Multimeter
- 1 * Pair of Test Pens
- 1 * Manual (English)
