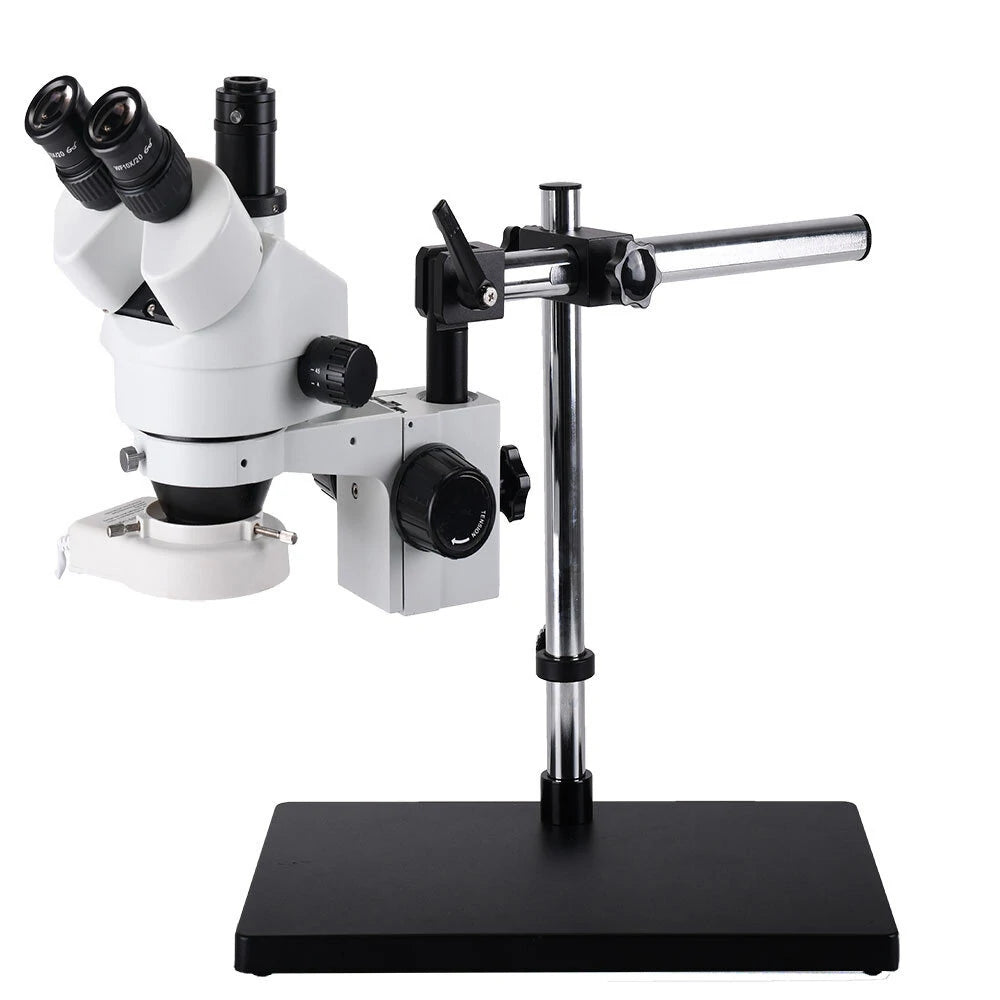

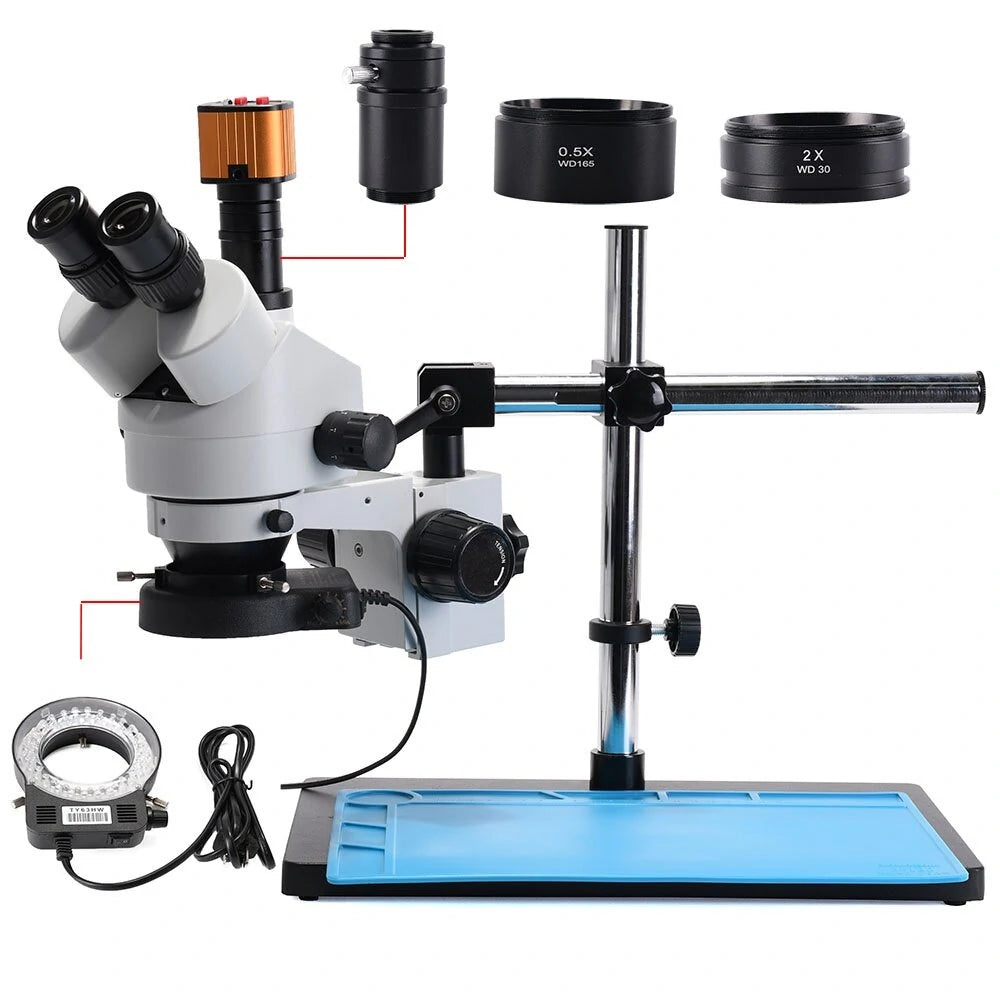

3.5~90X Zoom Stereo Microscope with 16MP Camera for PCB Repair, All-Metal Stand, 56-LED Ring Light

Features:

• 3.5 to 90X zoom magnification power for sharp, crisp images
• Super widefield high-eyepoint optics
• Widefield of view
• 4" (100mm) working distance
• Sturdy all-metal pillar stand
• Powerful 56-LED ring light with dimmer

This stereo microscope offers super widefield optics with 7X-45X zoom magnification and a cool light illumination system, making it an ideal tool for industrial inspection and biological lab applications. Perfect for gemologists, manufacturing engineers, dental lab technicians, and those in the electronic and semiconductor industries.

Key Benefits:

• Adjustable 56-LED ring light for optimal lighting
• 3.5x-90x super wide zoom magnification
• Bright cool light illumination system
• High resolution with excellent flatness and contrast
• Binocular head with 45-degree inclined and 360-degree swiveling eye tubes
• Sharp stereo erect images with wide field of view and true-color reproduction
• Adjustable dual eye tubes with diopters
• Large working distance with a sturdy all-metal table stand
• Accurate alignment for reduced eye strain
• Full optical glass elements and chrome-plated metal components
• Adjustable interpupillary distance and included rubber eye-guards

Specifications:

• Head: 360-degree rotatable, 45-degree inclined binocular
• Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
• Objective Zoom Range: 0.35X-9.0X with Barlow lenses
• Working Distance: 4" (100mm)
• Diopter Adjustment: ± 5dp
• Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
• Round Plate Diameter: 3-3/4" (95mm)
• Stand Dimensions: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
• Illumination: 56-LED ring light
• Power Input: 110-240V, 50-60HZ, automatic switching
• Included Accessories: Paired eye-caps

Microscope Camera:

• CMOS 1/2.9 image sensor
• Automatic white balance, exposure, and color adjustment via USB output
• Full HD 1080p video output via HDMI, 720P via USB
• 4608x3456 image resolution via HDMI
• 1080p video recording via HDMI
• JPEG image format
• C/CS lens compatibility
• 1920x1080@30fps video resolution
• TF card interface supporting up to 64G
• Compatible with Windows XP/7/8/10 and HAYEAR measure software
• 4 times digital zoom
• Languages: English, Chinese, Japanese, French, German, Italian, Korean, Turkish, and Russian

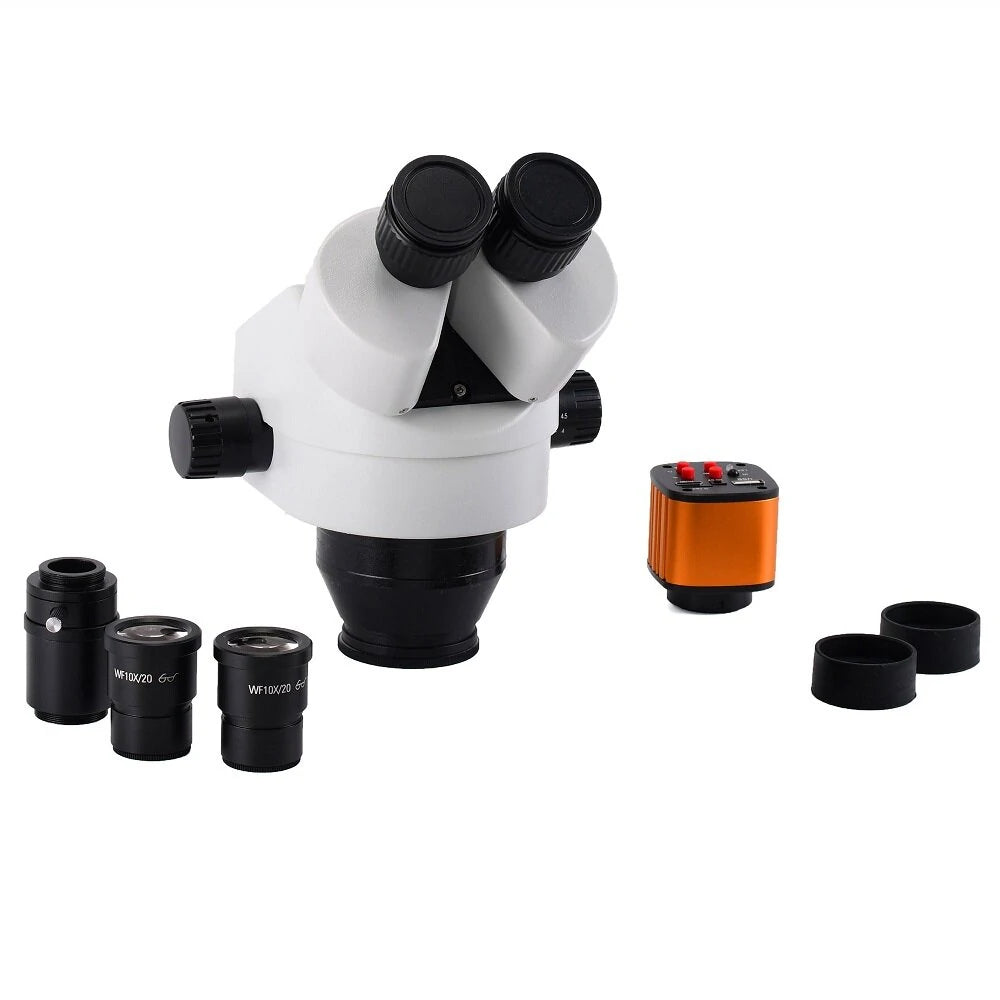

Package Includes:

• 1 x Trinocular microscope zoom head
• 1 x Pair of super widefield 10X eyepieces

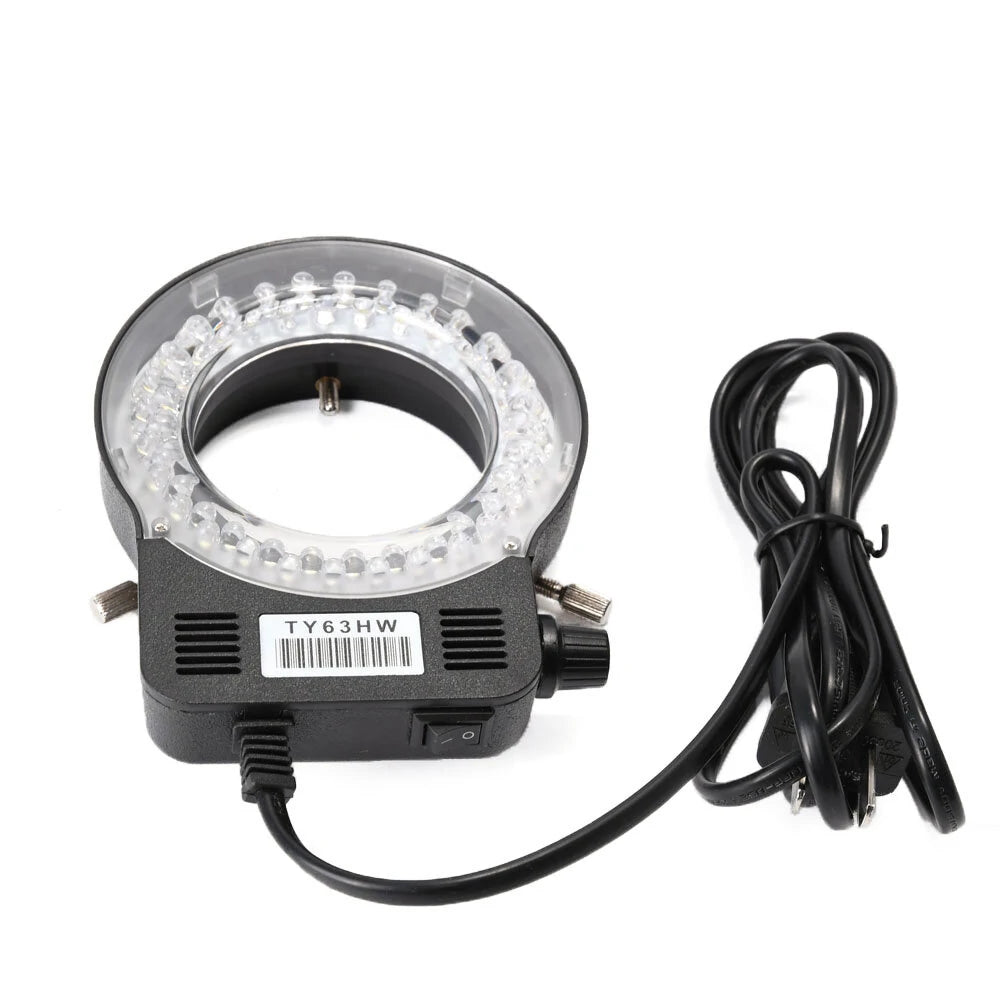

• 1 x 56-LED ring light with adapter

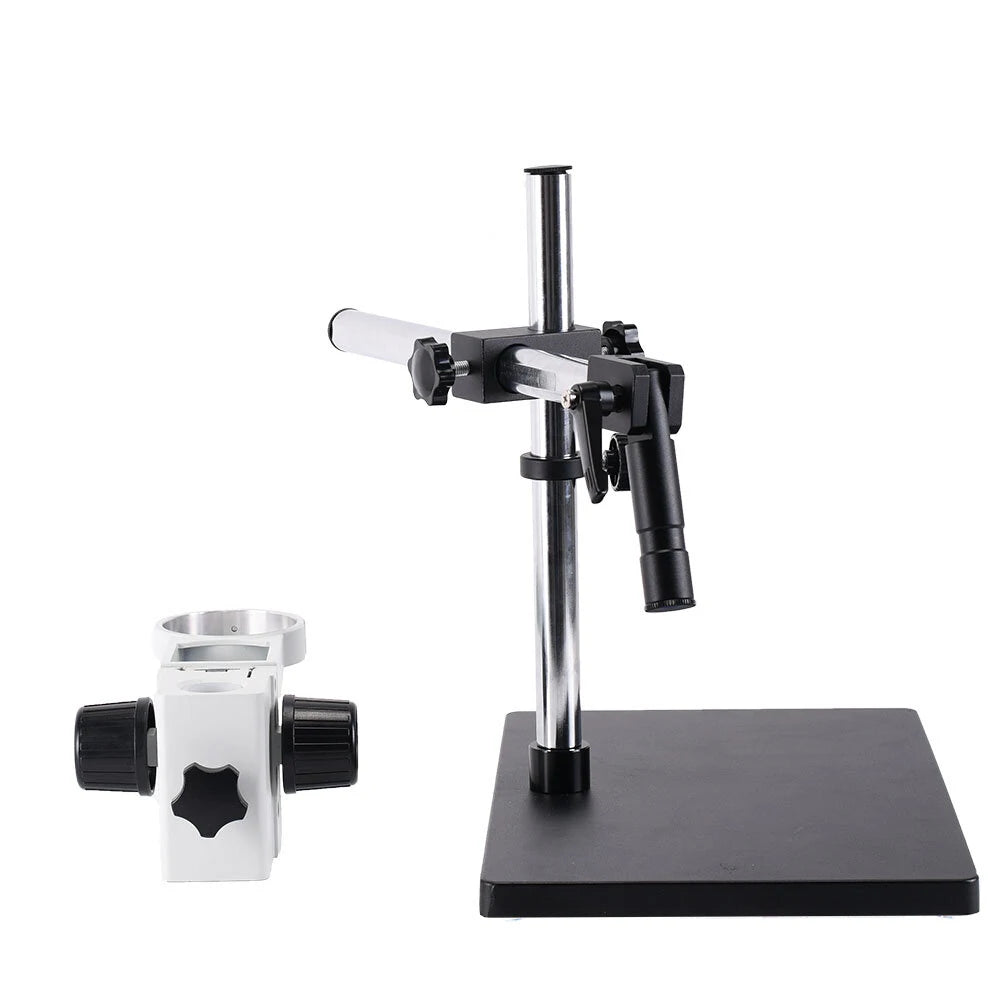

• 1 x Big size pillar table stand
• 1 x Focusing rack
• 1 x Pair of eye-guards
• 1 x Dust cover
• 1 x Microscope camera
• 1 x High temperature resistant working pad
• 1 x Universal bracket

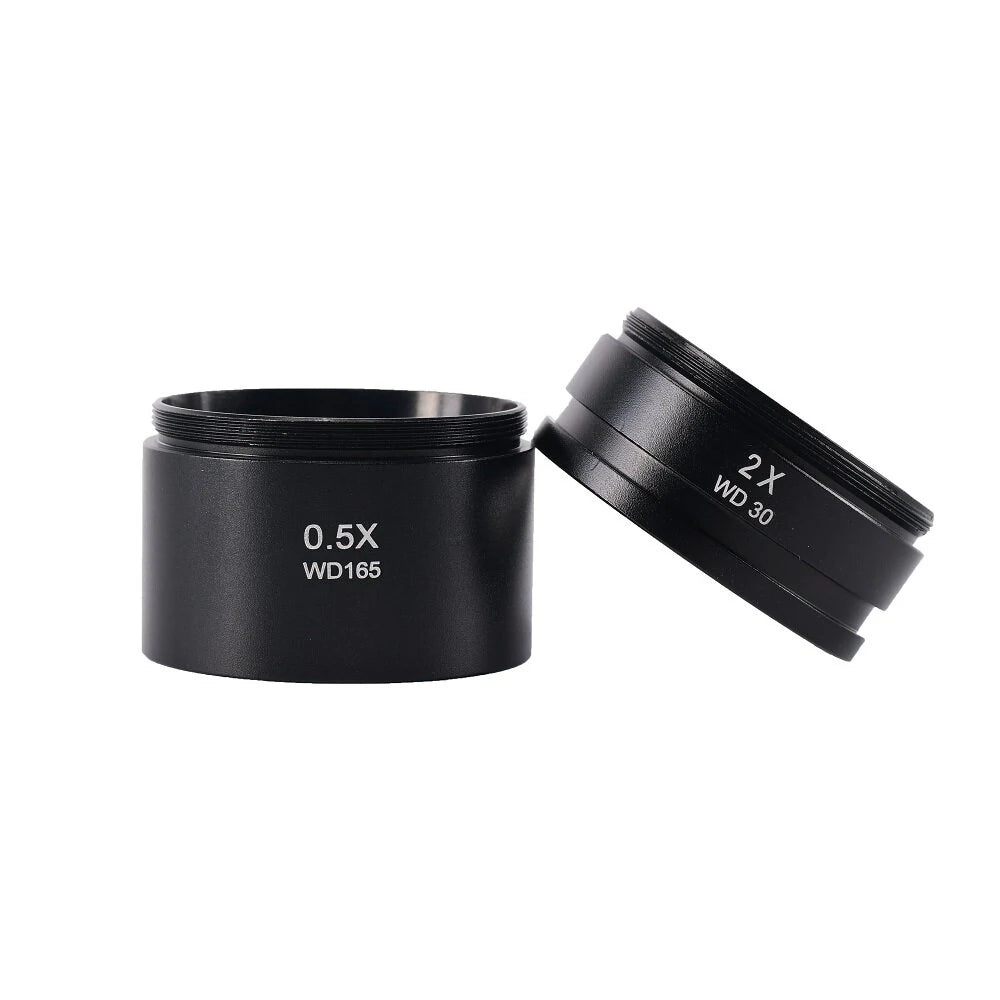

• 1 x 2.0X Microscope auxiliary objective lens (Working distance 30 mm)
• 1 x 0.5X Microscope auxiliary objective lens (Working distance 165 mm)

Note: We will provide a plug adapter suited to your country.
