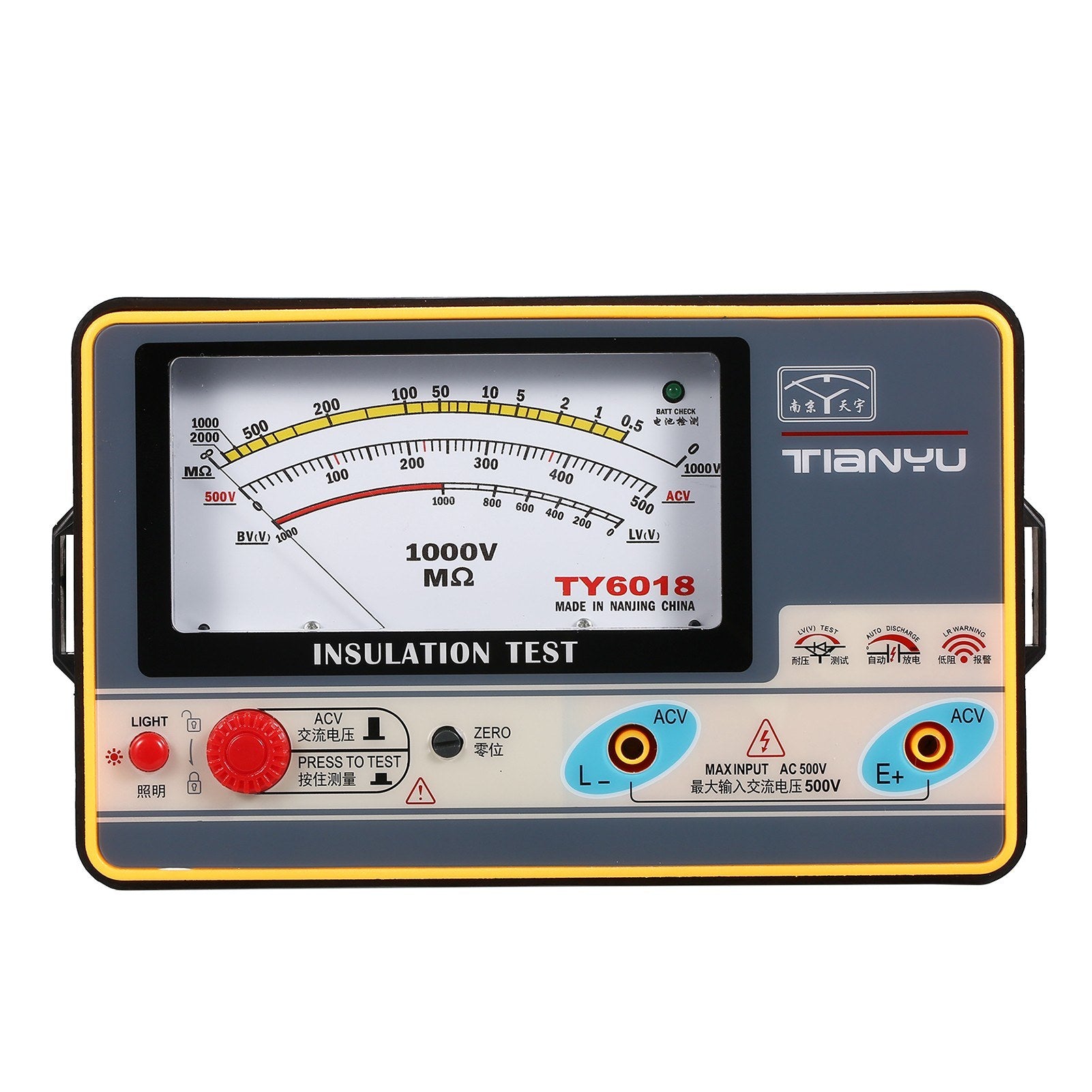

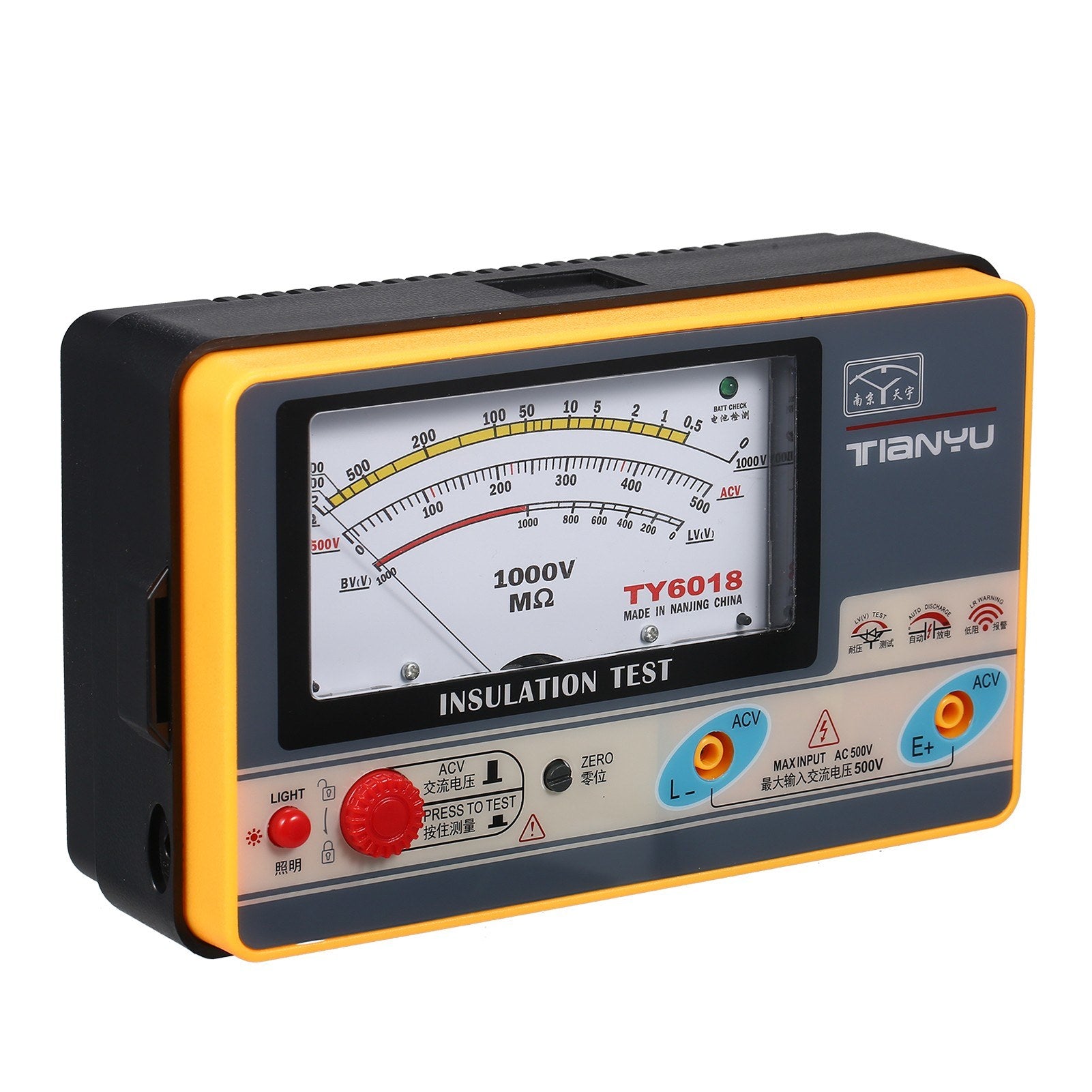

High Accuracy 1000V Digital Insulation Resistance Meter Megohmmeter 0-2000MΩ Tester

Product Features:

• Rated Test Voltage: 1000V with a measurement range up to 2000MΩ.
• Capable of measuring AC voltage up to 500V (full scale linear indication).
• Wide measurement range with a locking button for easy operation.

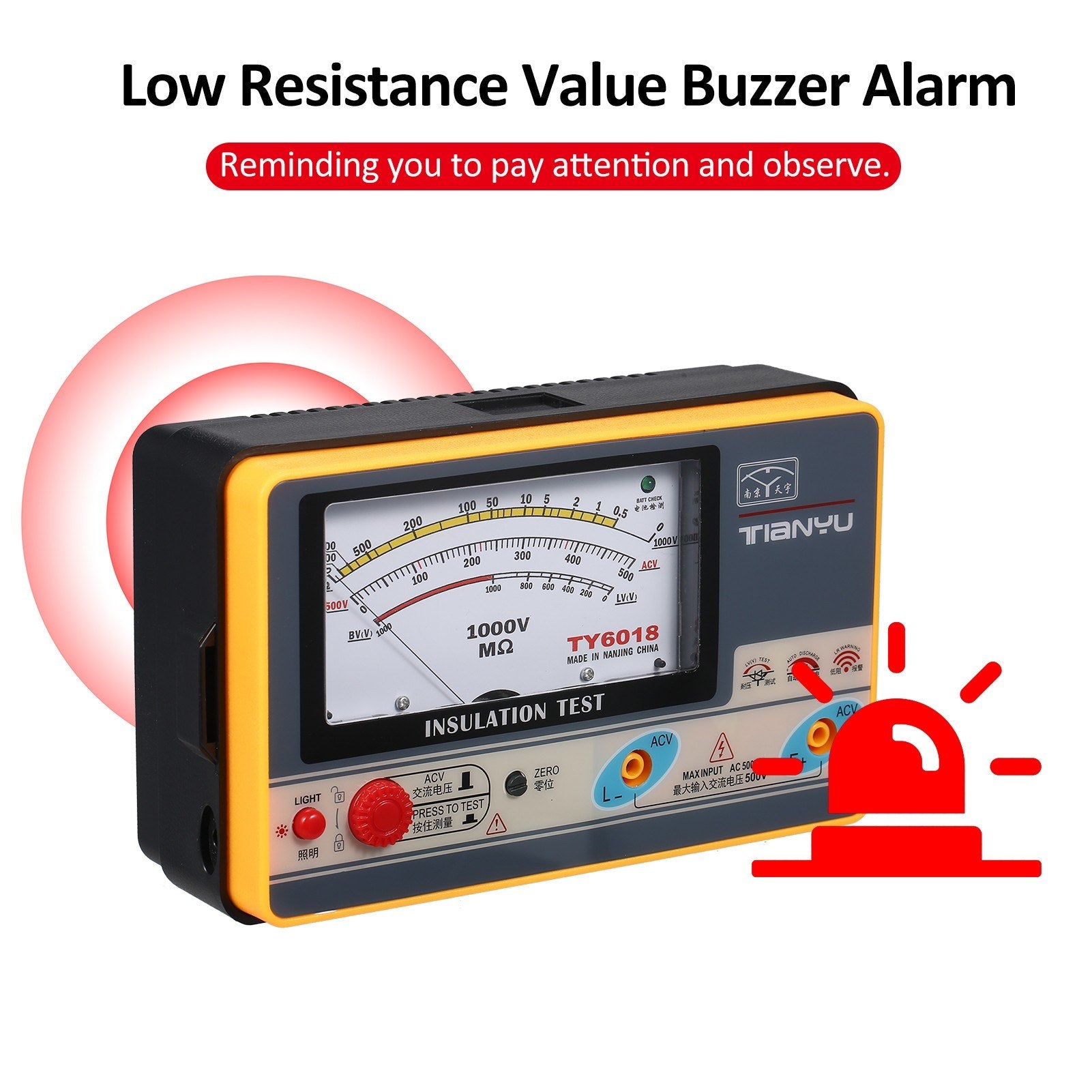

• Low resistance value buzzer alarm for enhanced safety and observation.
• Battery voltage status indicator light serves also as a high voltage indicator for safe operation.
• Convenient external DC power supply (charging) socket included.
• Widened dial design ensures a wider indication range and more accurate fault diagnosis.
• Dial illumination function for use in dim environments, ensuring accurate readings.

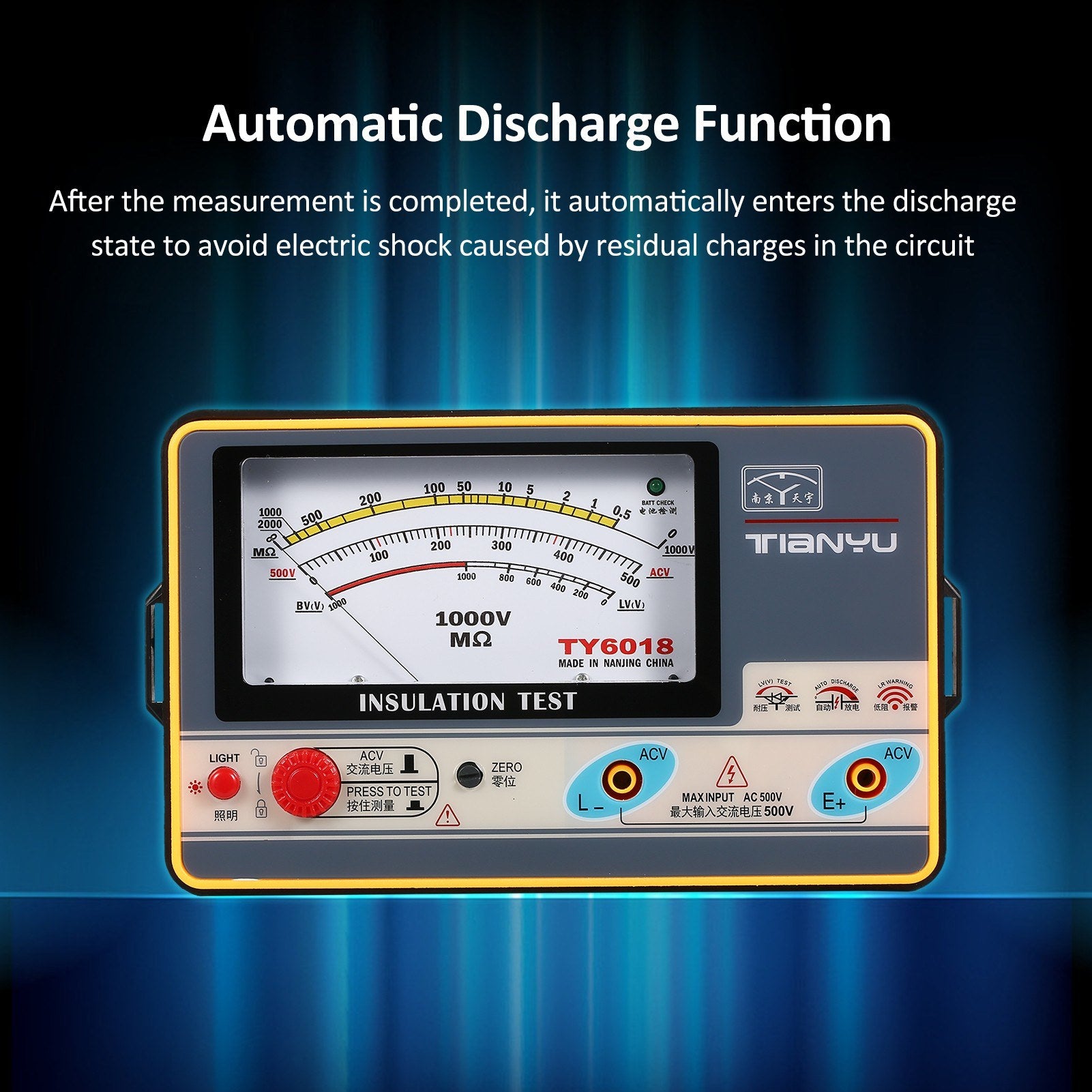

• Automatic discharge function prevents electric shock by automatically discharging after measurement completion.
• Strong output load capacity with a maximum output short-circuit current of 1.1mA.
• Integrated transistor withstand voltage measurement scale for easy voltage value reading.
• Fully functional with higher accuracy, making it an excellent tool for electricians.
• Comes with test leads, alligator clips, and a quality zipper bag for easy carrying and storage.
• Suitable for measuring insulation resistance of equipment such as transformers, motors, cables, and switches.

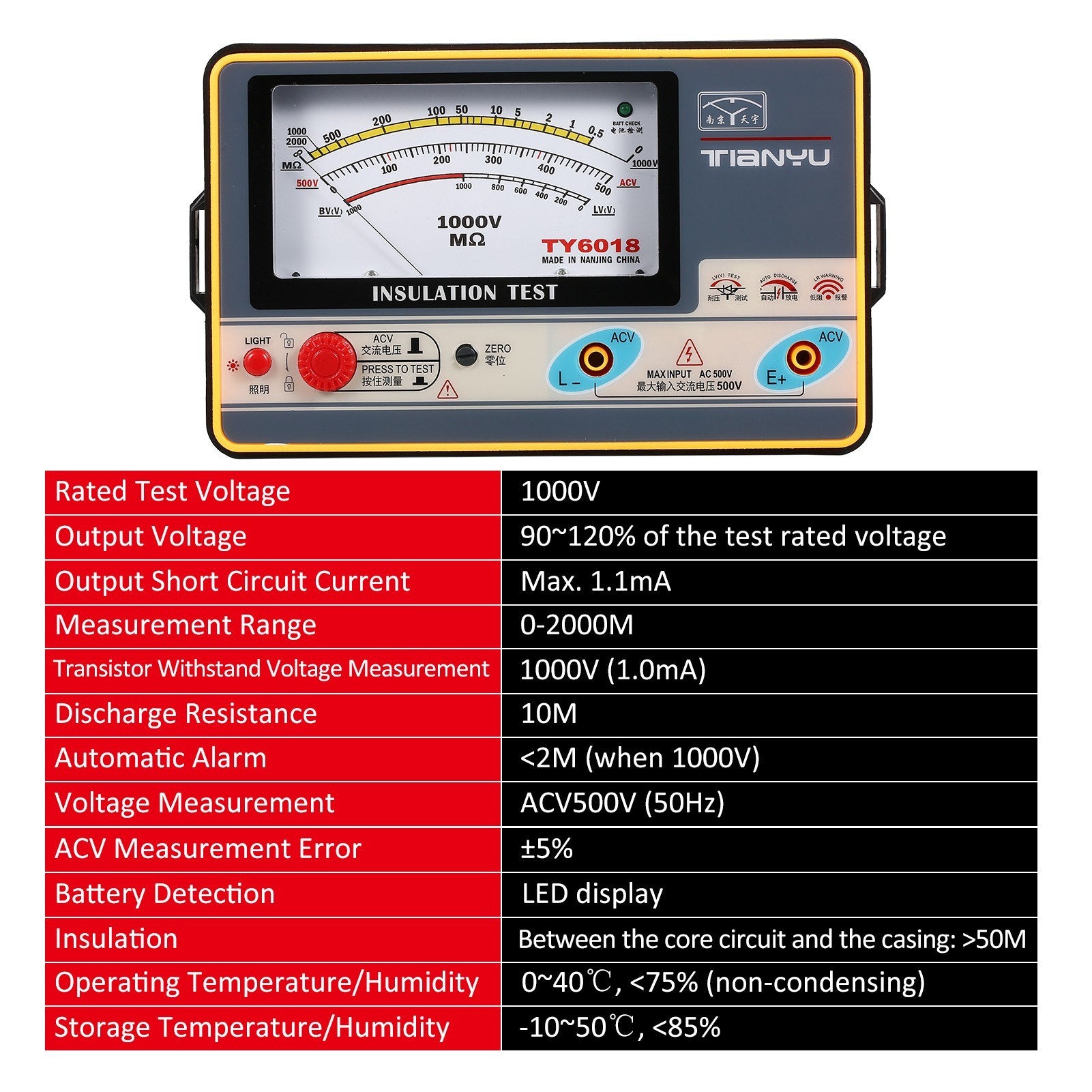

Specifications:

• Material: ABS
• Rated Test Voltage: 1000V
• Output Voltage: 90~120% of the test rated voltage
• Output Short Circuit Current: Max. 1.1mA
• Measurement Range: 0-2000MΩ
• Transistor Withstand Voltage: 1000V (1.0mA)
• Discharge Resistance: 10MΩ
• Automatic Alarm: <2MΩ (when 1000V)
• Voltage Measurement: ACV500V (50Hz)
• ACV Measurement Error: ±5%
• Battery Detection: LED display
• Insulation: >50MΩ between core circuit and casing
• Operating Temperature/Humidity: 0~40°C, <75% (non-condensing)
• Storage Temperature/Humidity: -10~50°C, <85%

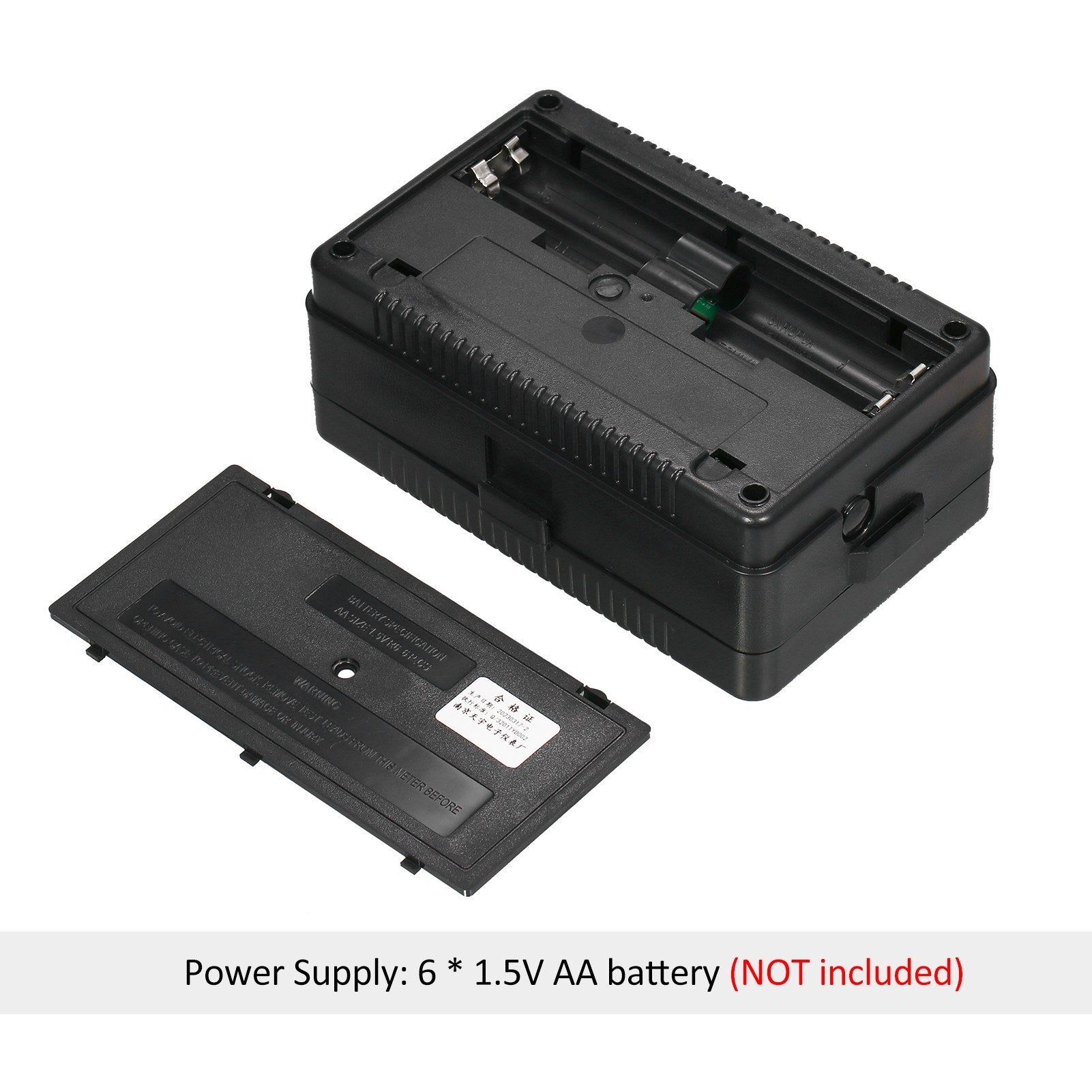

• Power Supply: 6 * 1.5V AA batteries (not included)

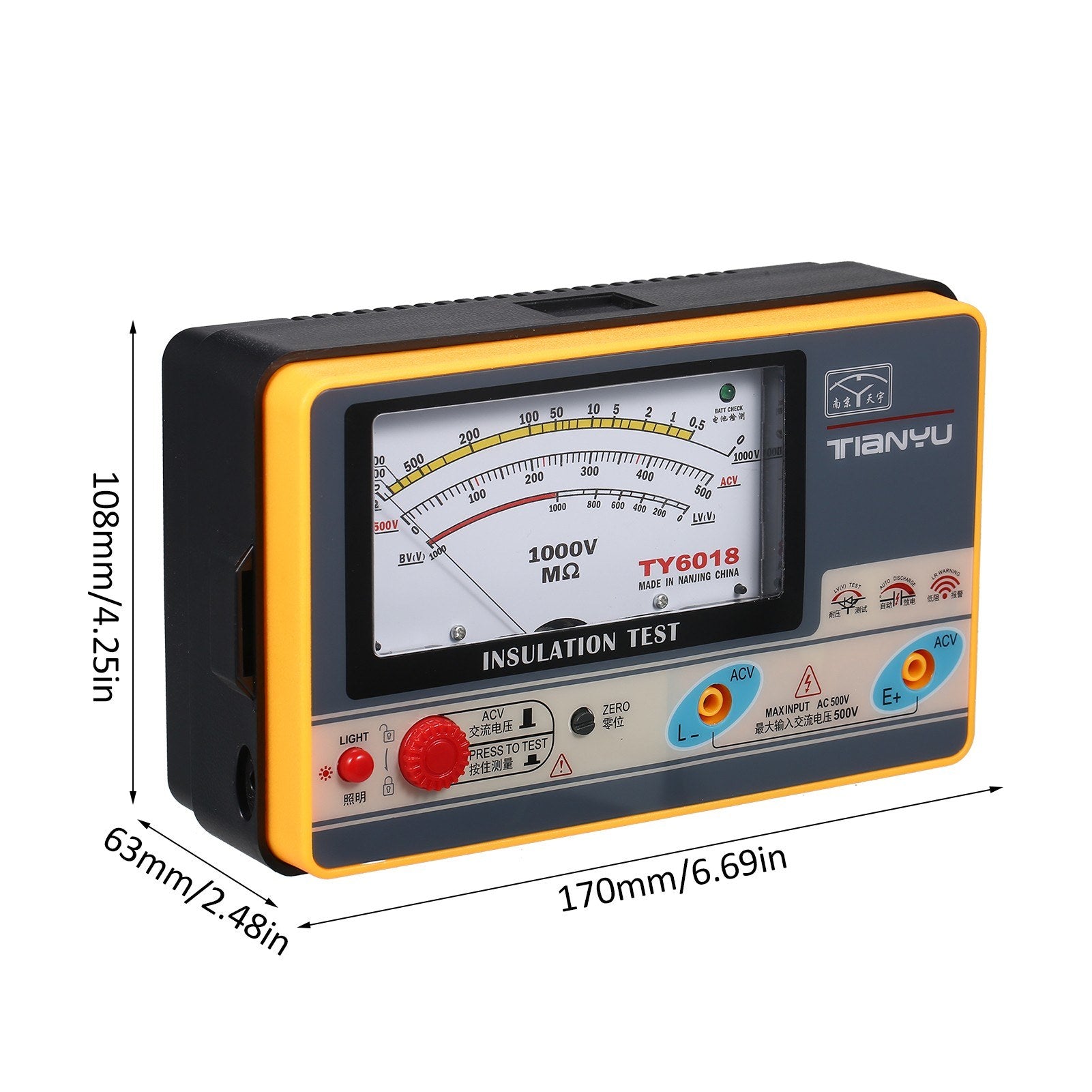

• Item Size: 176 * 110 * 70mm / 6.93 * 4.33 * 2.76 inches
• Item Weight: 515g / 18.18oz
• Package Weight: 802g / 28.29oz
• Package Size: 21.5 * 16.5 * 8cm / 8.46 * 6.50 * 3.15 inches

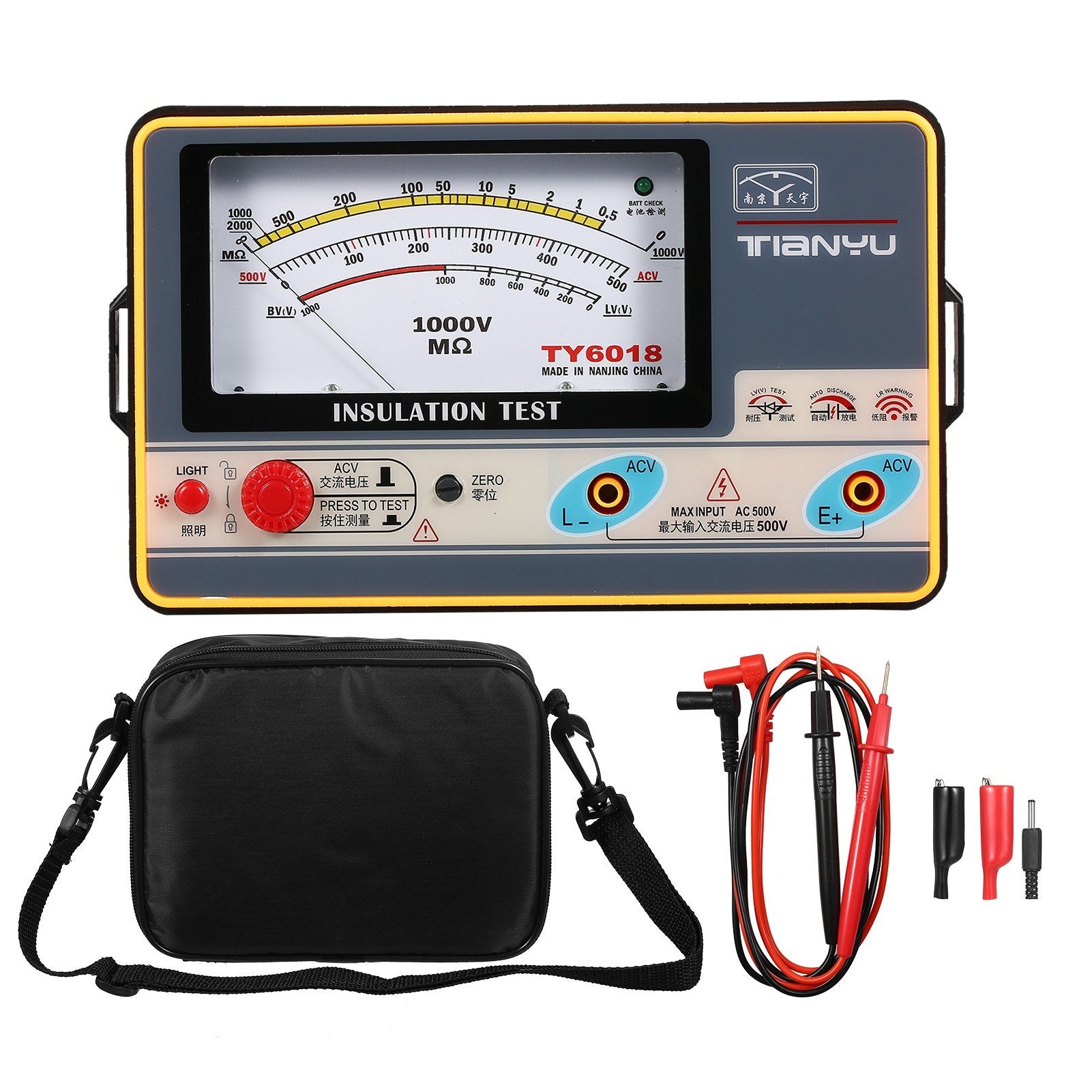

Package List:

• 1 Insulation Resistance Tester
• 1 Strap
• 2 Test Leads
• 2 Alligator Clips
• 1 Carrying Zipper Bag
