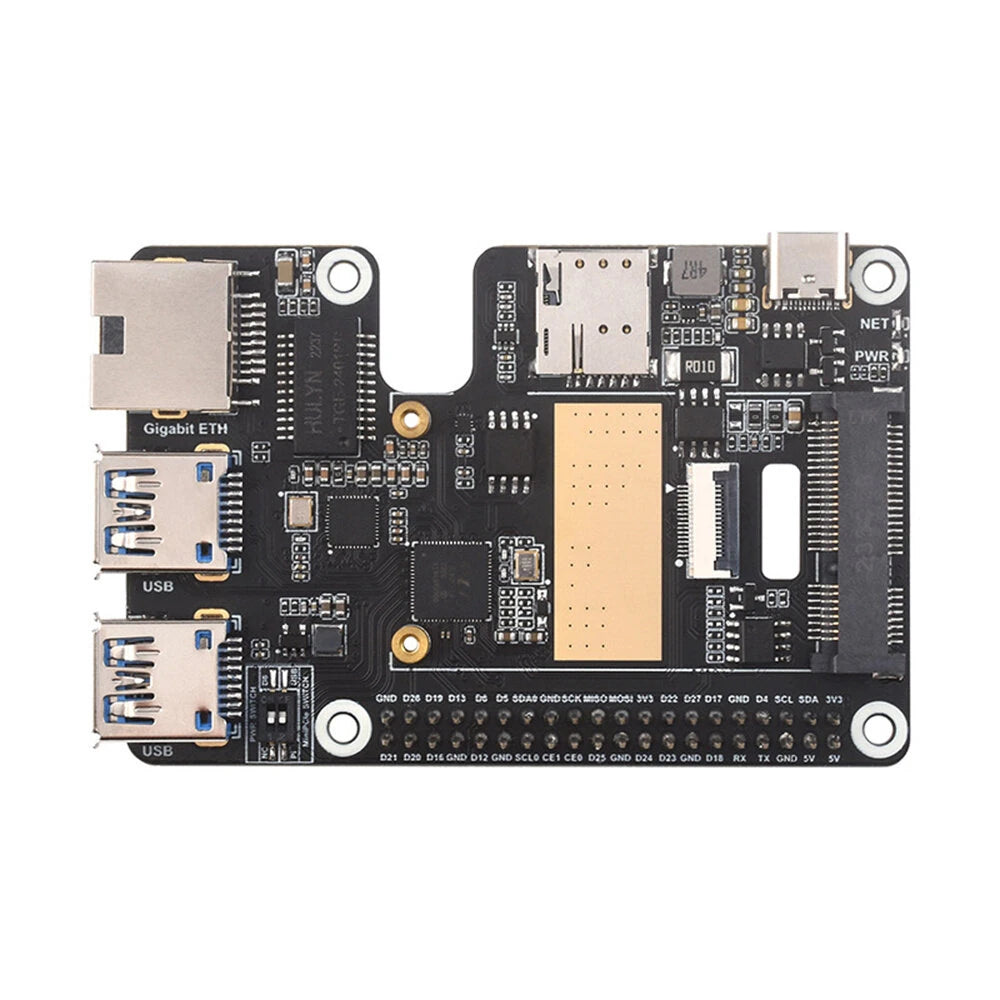

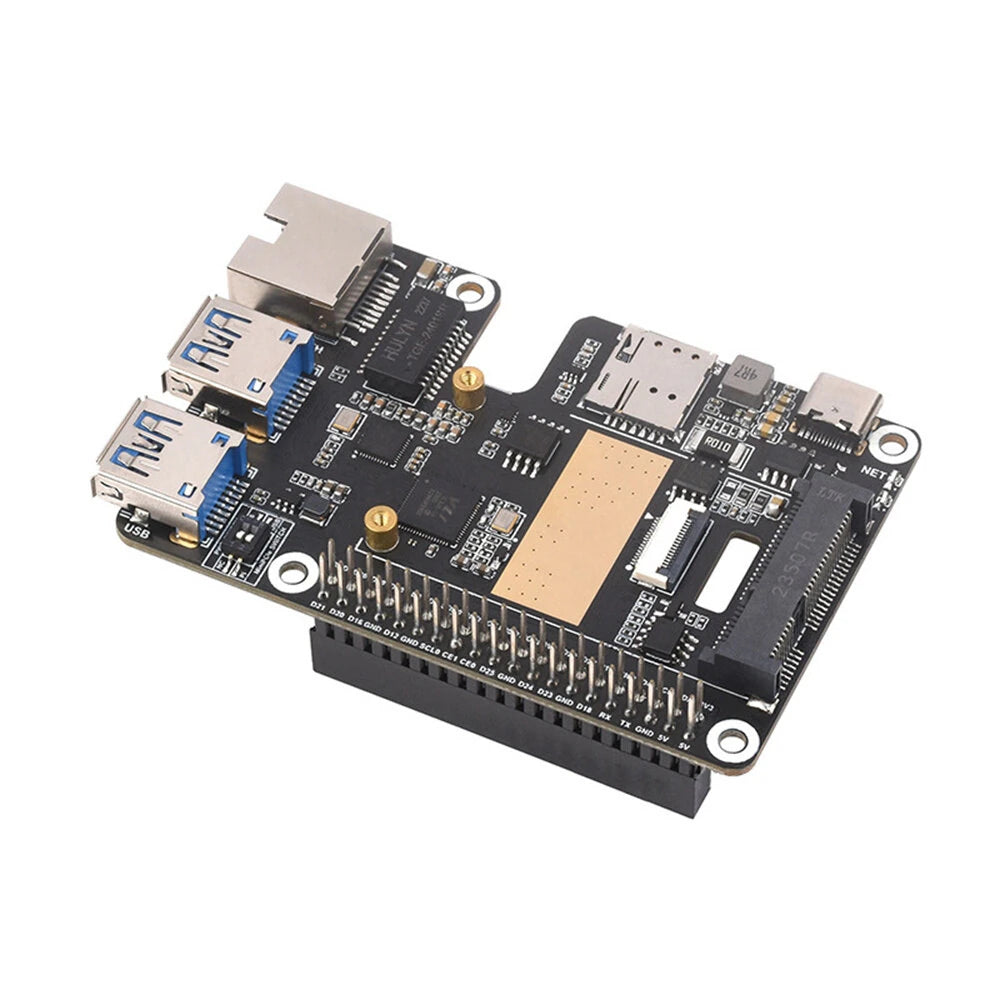

Raspberry Pi 5 MiniPCIe 4G & Gigabit Ethernet Adapter with USB 3.2 Expansion Board

Specifications:

• Product Name: PCIe to MiniPCIe/Gigabit Ethernet/USB 3.2 Gen1 HAT
• Compatibility: Raspberry Pi 5

Slots and Ports:

• MiniPCIe slot
• PCIe interface via 16PIN cable
• USB 3.2 Gen1 ports
• Gigabit Ethernet port with RTL8153B chip

Supported Modules: SIM7600G-H-PCIE / EG25-G-mPCIe series 4G modules

Network Speeds:

• LTE Cat-4: Up to 50Mbps (uplink) / Up to 150Mbps (downlink)
• 3G (HSPA+): Up to 5.76Mbps (uplink) / Up to 42Mbps (downlink)
• 2G (GPRS/EDGE): Up to 236.8Kbps (uplink) / 236.8Kbps (downlink)

Positioning Systems Supported: GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station

Operating Systems: Raspberry Pi OS, Ubuntu, OpenWRT

Power Control: USB port power control via software

Features:

1. Enhanced Compatibility: Designed specifically for Raspberry Pi 5, this HAT seamlessly integrates with the board through a 16PIN PCIe interface cable, bringing high versatility to your Raspberry Pi projects.
2. High-Performance Networking: Equipped with the RTL8153B Gigabit Ethernet chip, this HAT ensures robust and high-speed network connectivity. The sinking design of the network port provides structural elegance and optimizes heat dissipation.

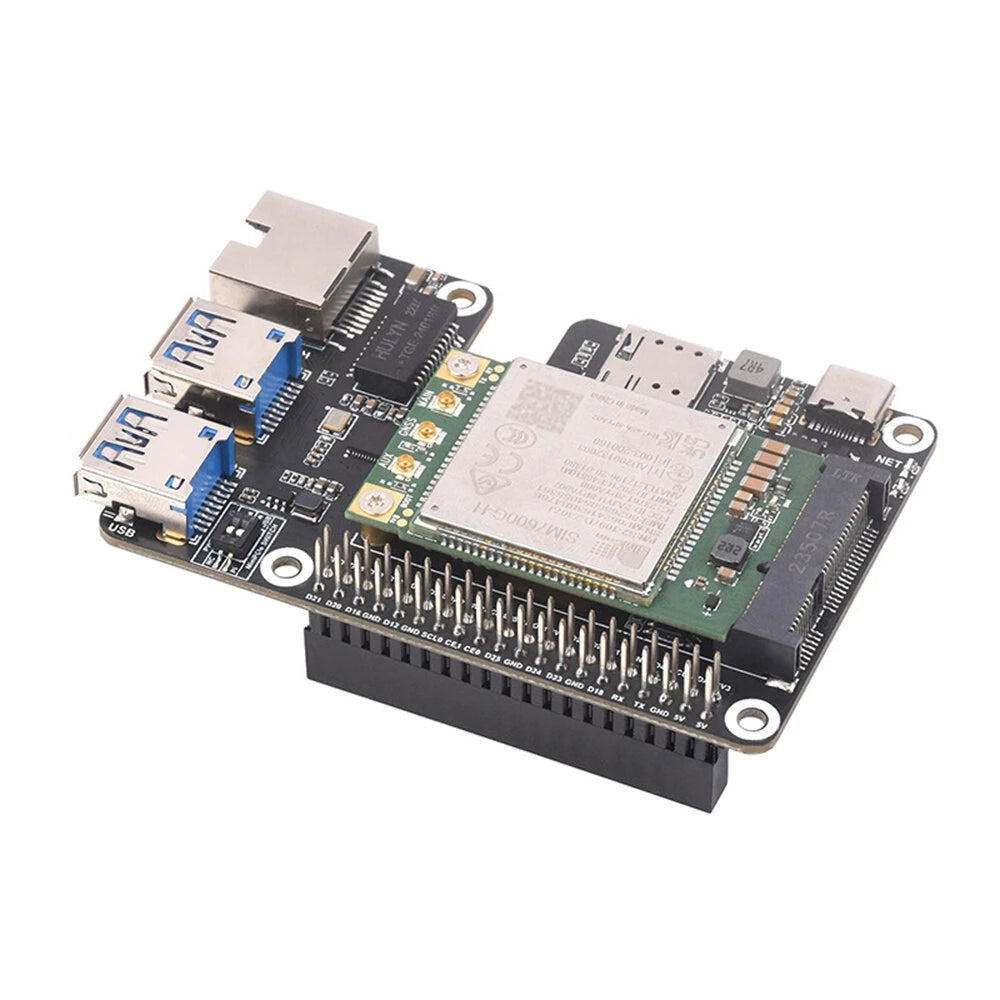

3. Versatile Connectivity: The onboard MiniPCIe slot is compatible with SIM7600G-H-PCIE and EG25-G-mPCIe series 4G modules, allowing easy upgrades to your networking capabilities. USB 3.2 Gen1 ports enable high-speed data transfers.
4. Extensive OS Support: Enjoy the flexibility of using multiple operating systems including Raspberry Pi OS, Ubuntu, and OpenWRT. This broad OS compatibility ensures stable and reliable performance across different platforms.
5. Integrated Positioning Systems: Benefits from multi GPS, BeiDou, Glonass, GALILEO, QZSS, and LBS base station positioning support, ensuring precise and reliable geolocation data for your projects.

Package Included:

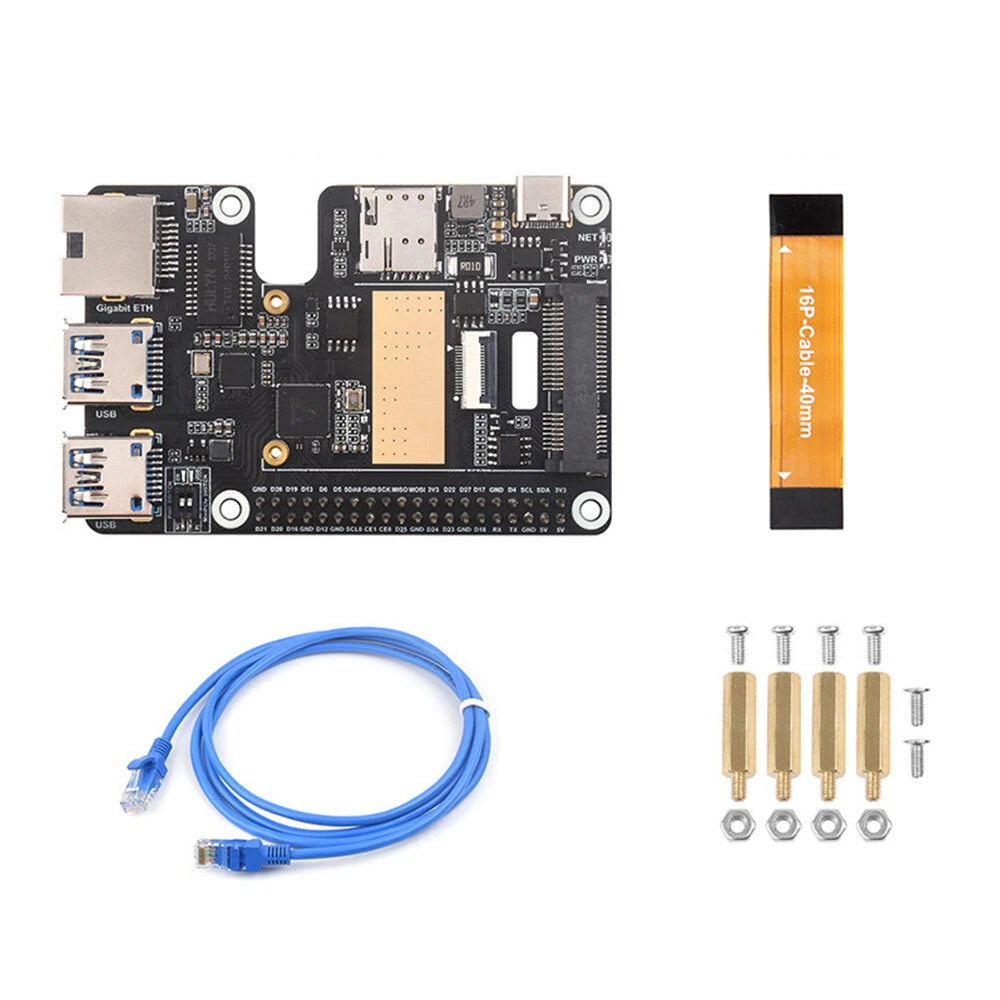

• Type 1:
  • 1 x PCIe Expansion Board
  • 1 Set x Accessories

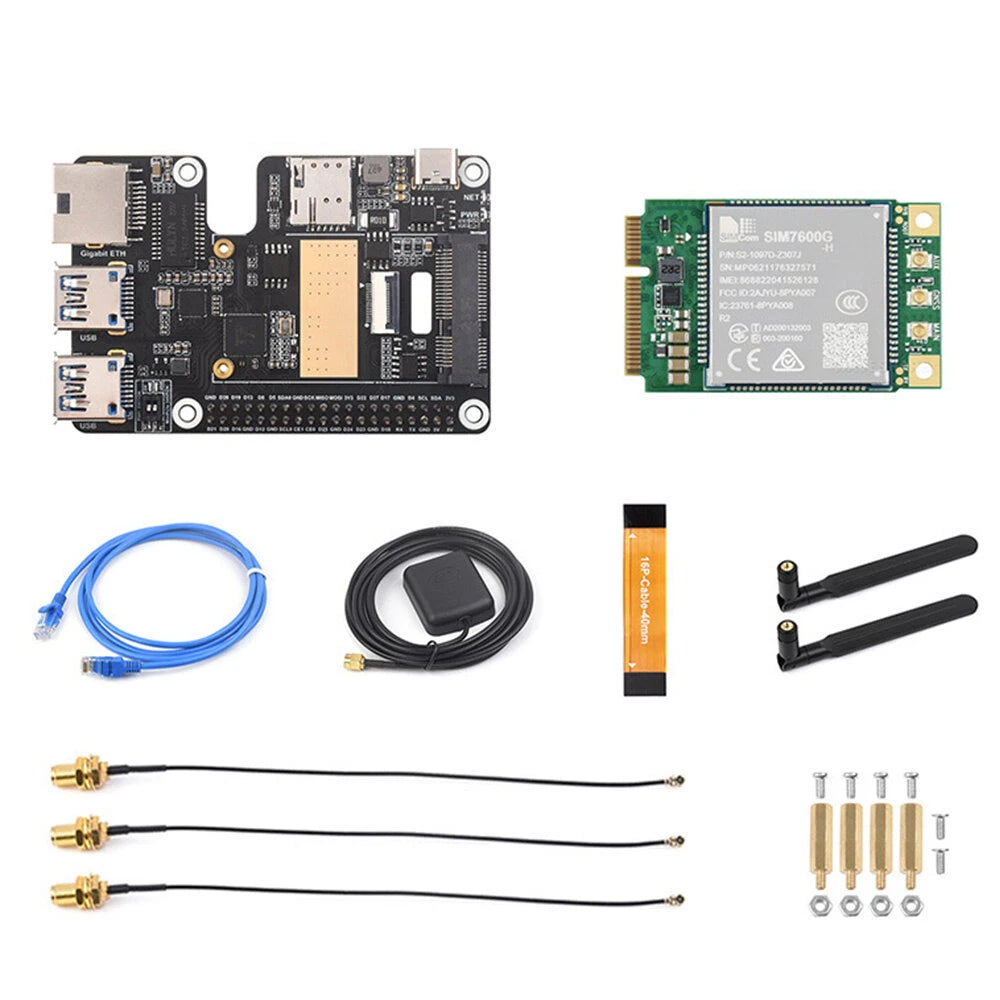

• Type 2:
  • 1 x PCIe Expansion Board
  • 1 x SIM7600G-H-PCIE
  • 1 Set x Accessories

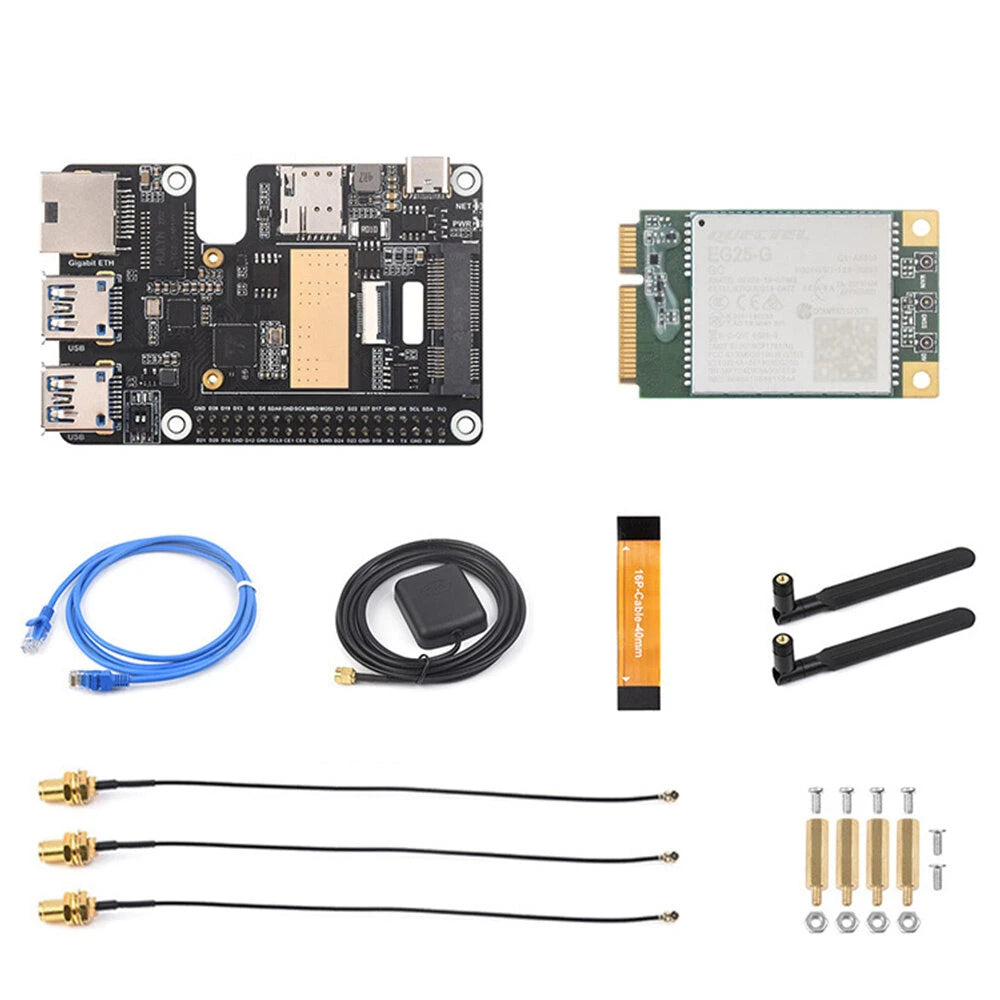

• Type 3:
  • 1 x PCIe Expansion Board
  • 1 x EG25-G mPCIe
  • 1 Set x Accessories
