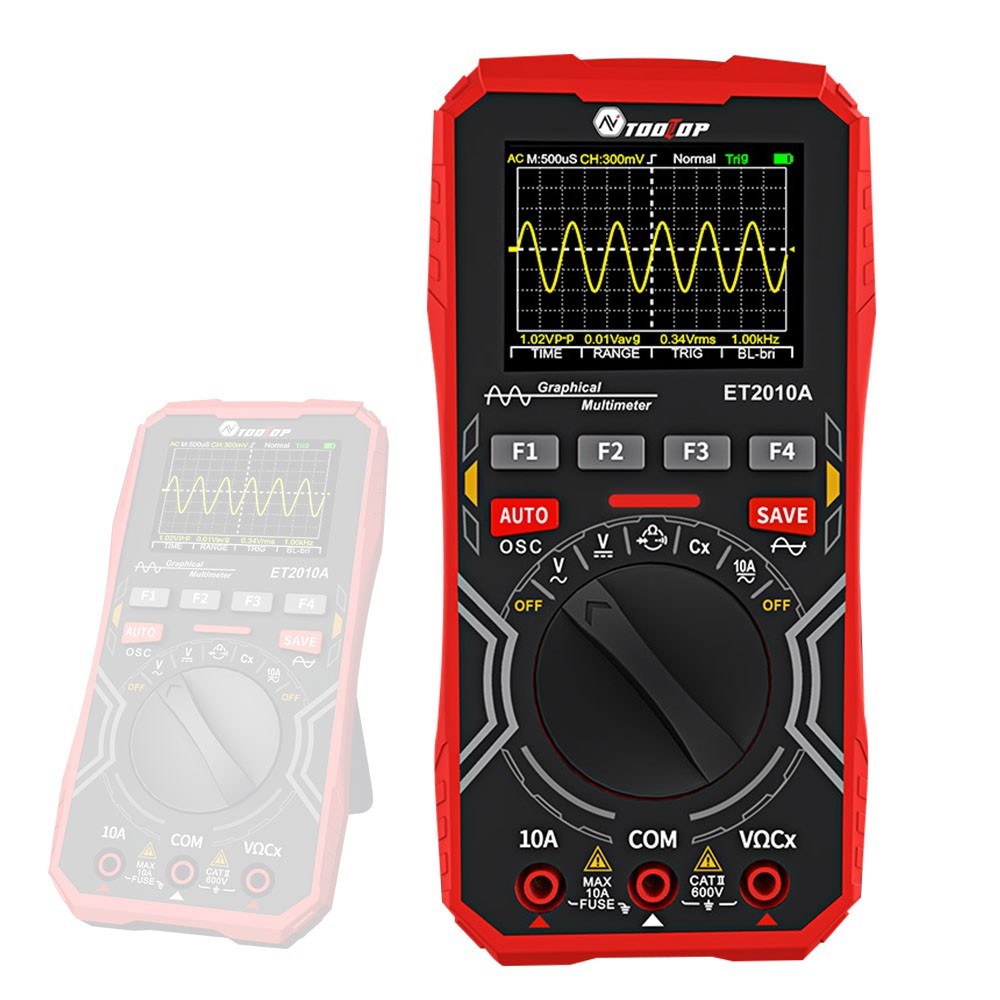

2-in-1 Oscilloscope Multimeter

Discover the power and versatility of our 2-in-1 Oscilloscope Multimeter, designed to meet the needs of professionals and hobbyists alike in a wide range of fields including electronics, automotive, and industrial applications.

Product Overview

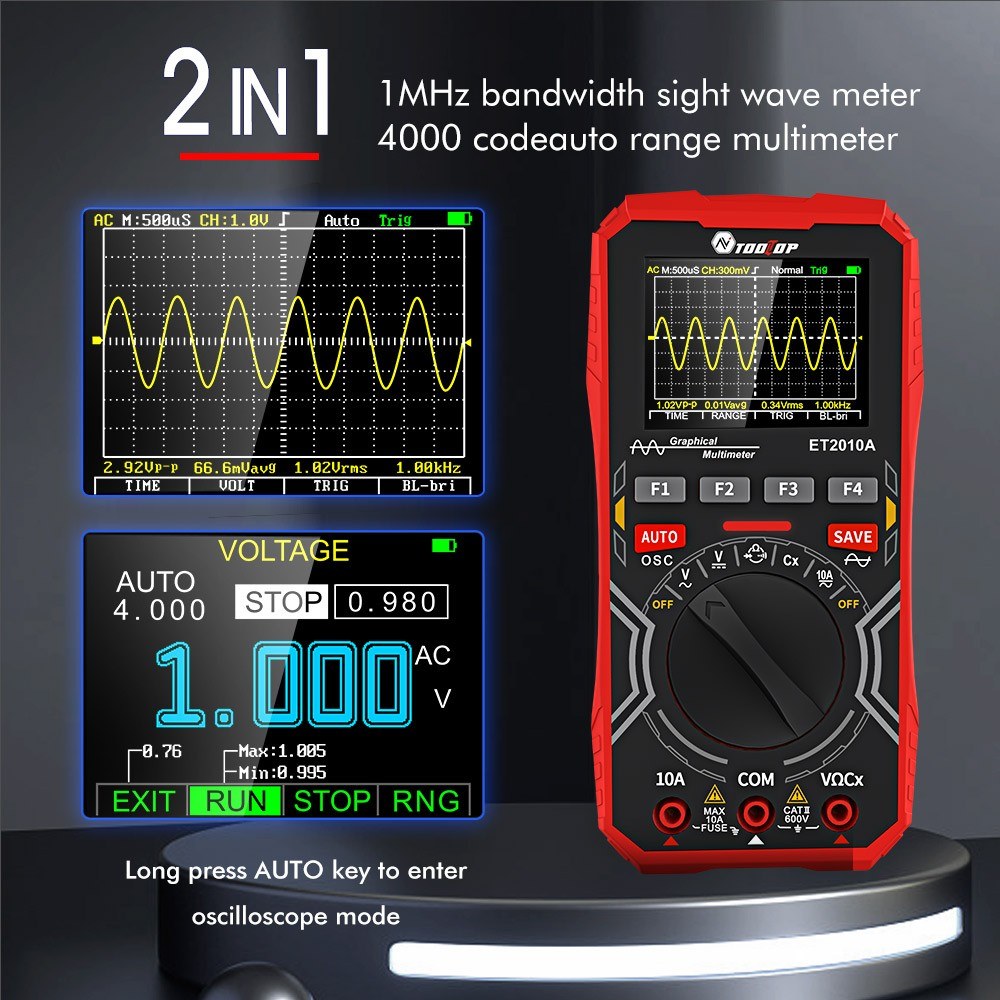

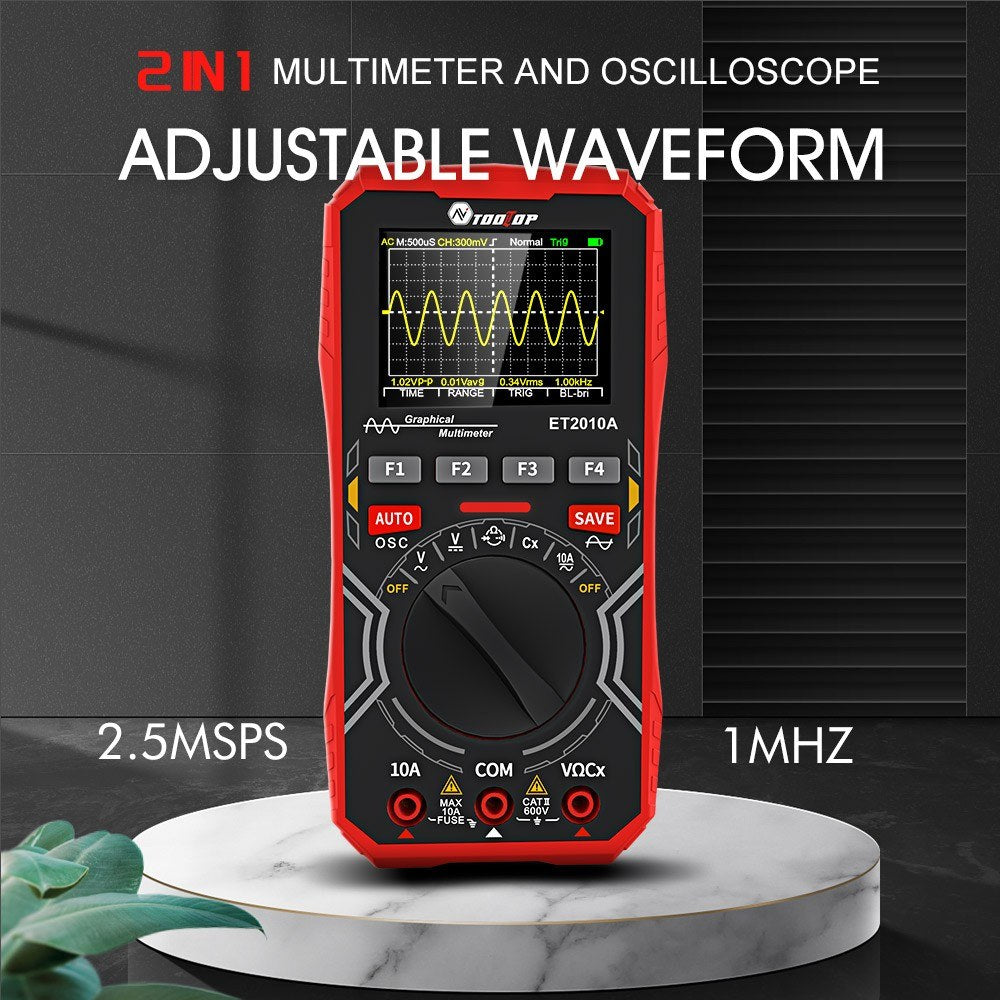

This indispensable tool seamlessly combines a 1MHz oscilloscope with a 4000-count autoranging multimeter, allowing you to simultaneously measure electrical parameters or capture waveforms. Featuring adjustments for time base and amplitude, data storage capabilities, and an auto-sleep function, it's designed for ease and efficiency.

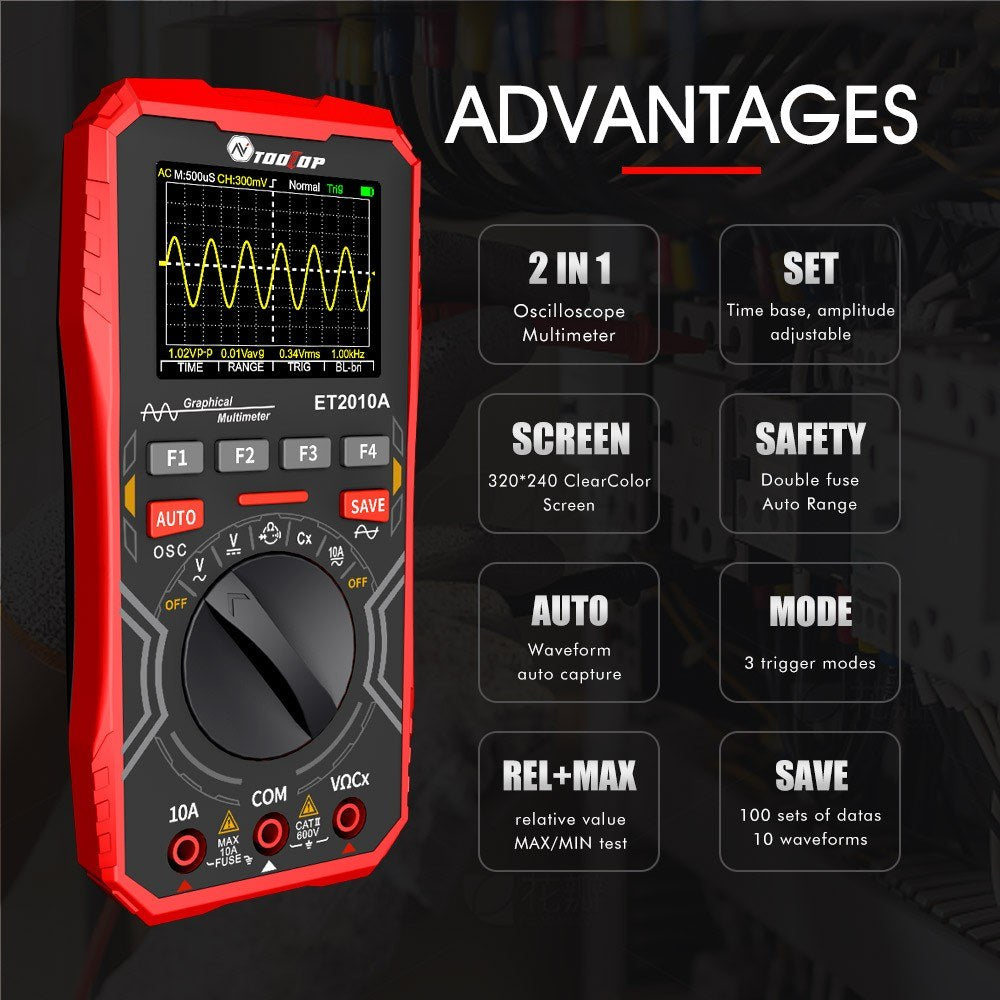

Key Features

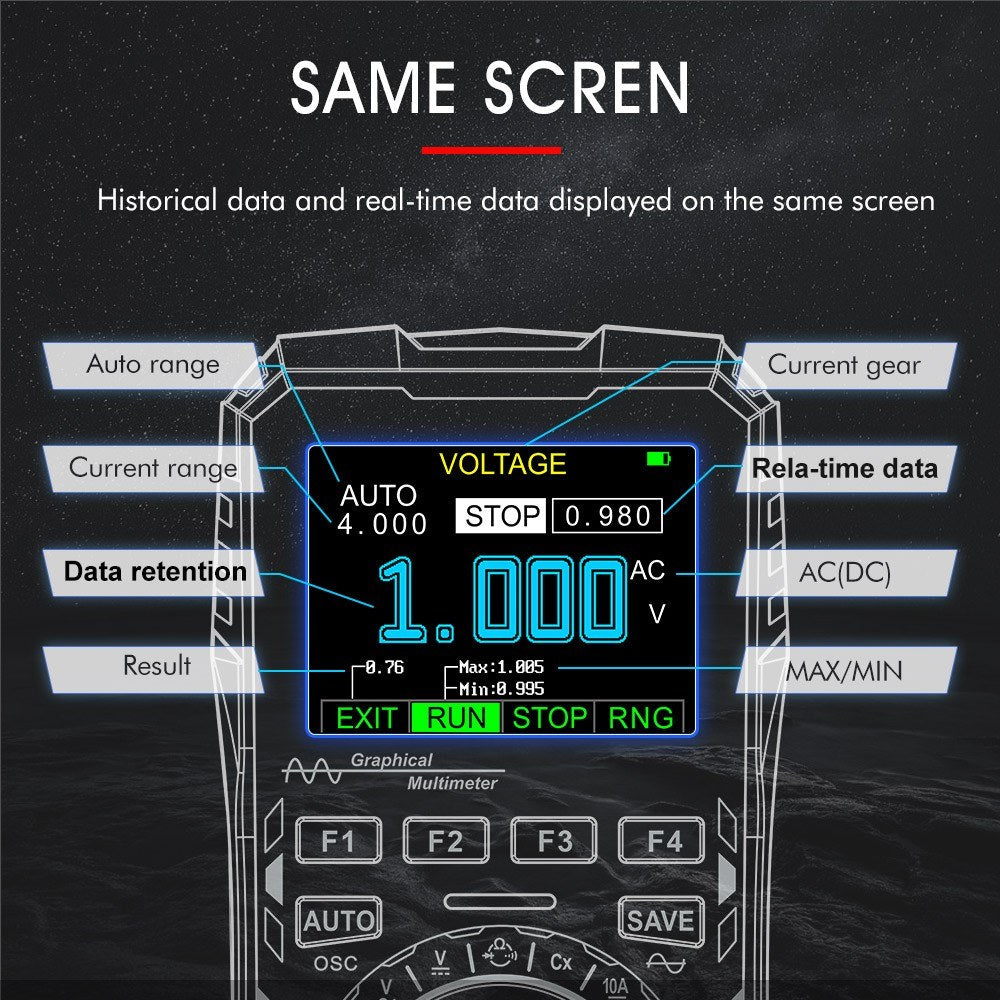

• 2-in-1 Versatility & Digital Display: The high-res 320x240 color display ensures detailed waveform visualization and clear numerical readings, facilitating accurate analysis with both real-time and historical data displayed together.

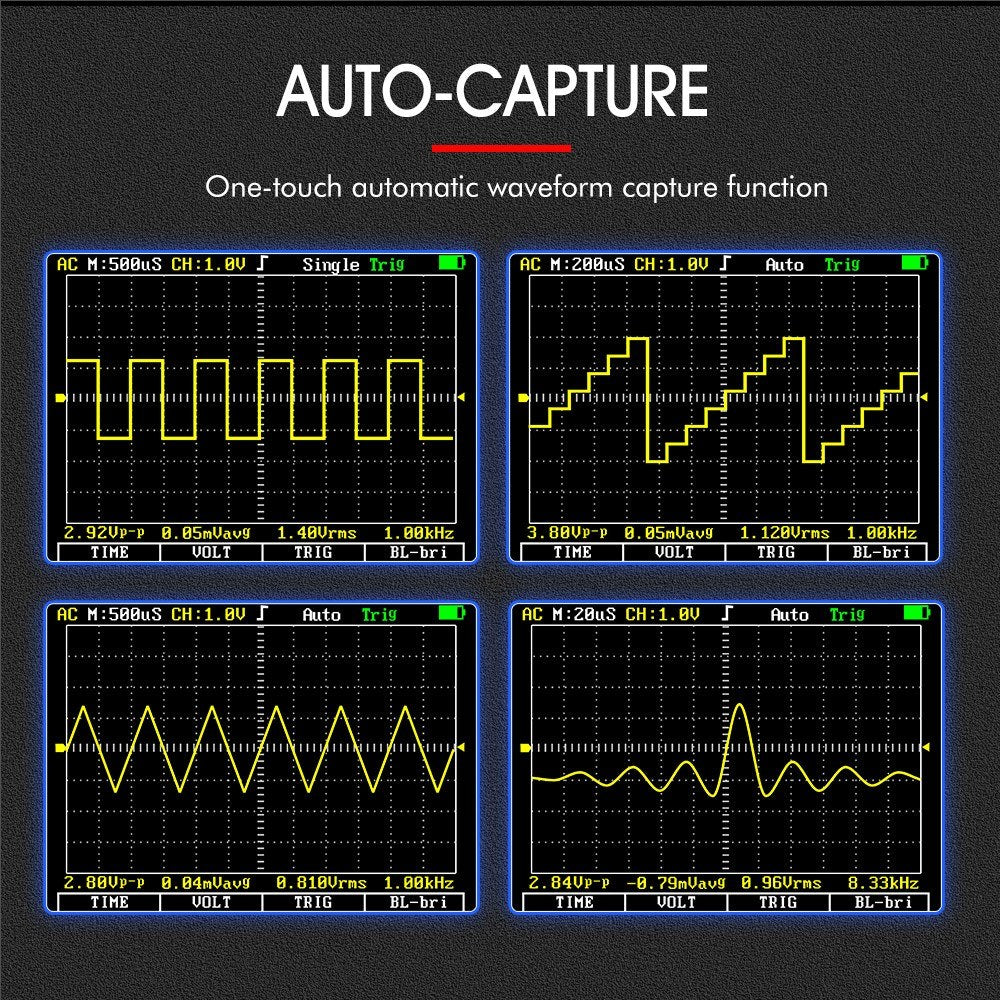

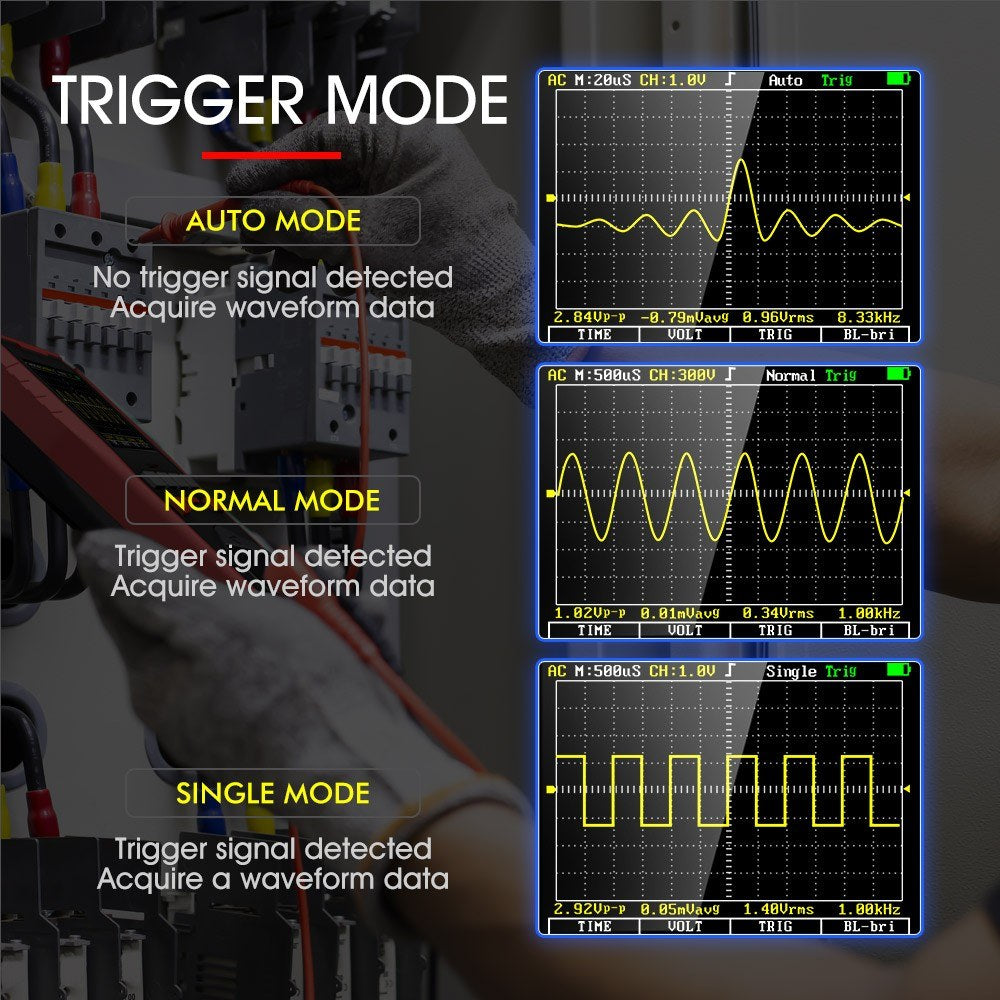

• 3 Trigger Modes & Auto Capture: Select from AUTO, NORMAL, and SINGLE triggering modes for precise waveform acquisition, with a convenient auto-capture function for simplified usage.

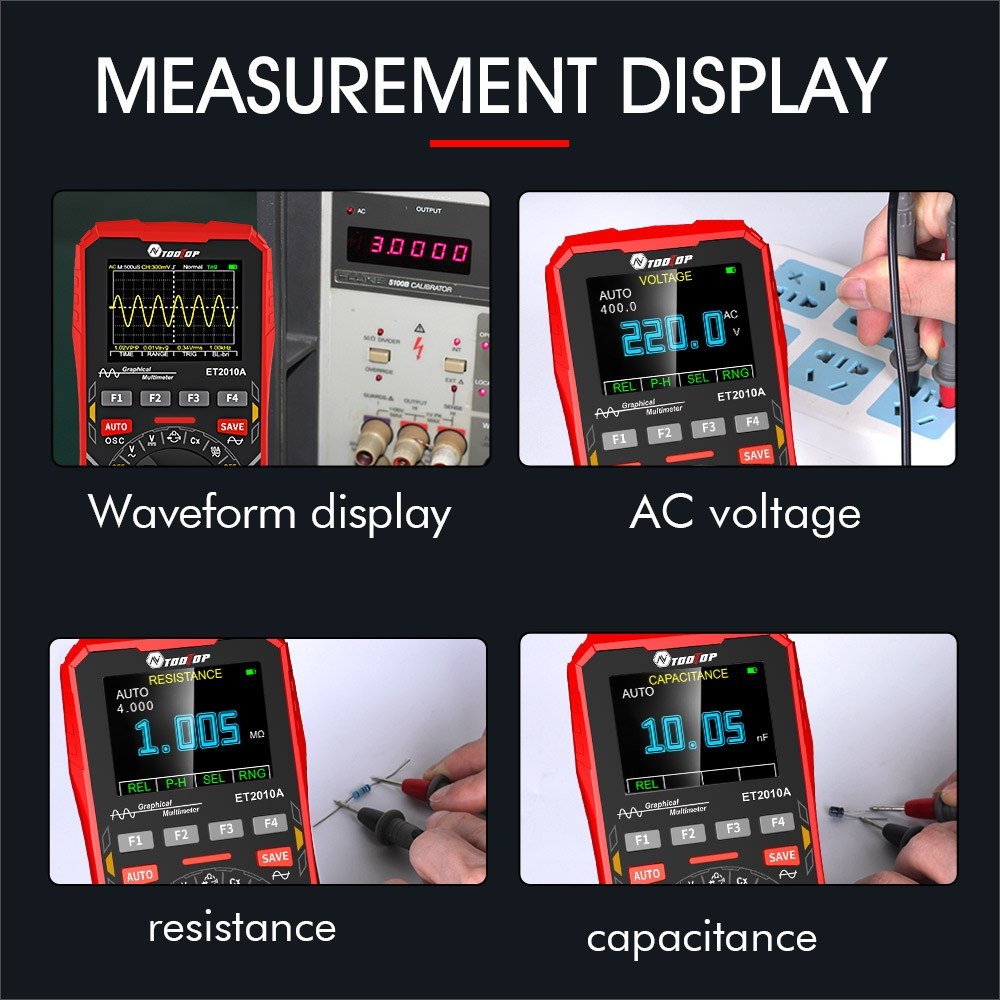

• In-depth Measurement Capabilities: Equipped for comprehensive measurements including Vp-p, Vavg, Vrms, Hz, and more, it provides an exhaustive analysis of electrical specifications, making it an essential tool for detailed diagnostics.

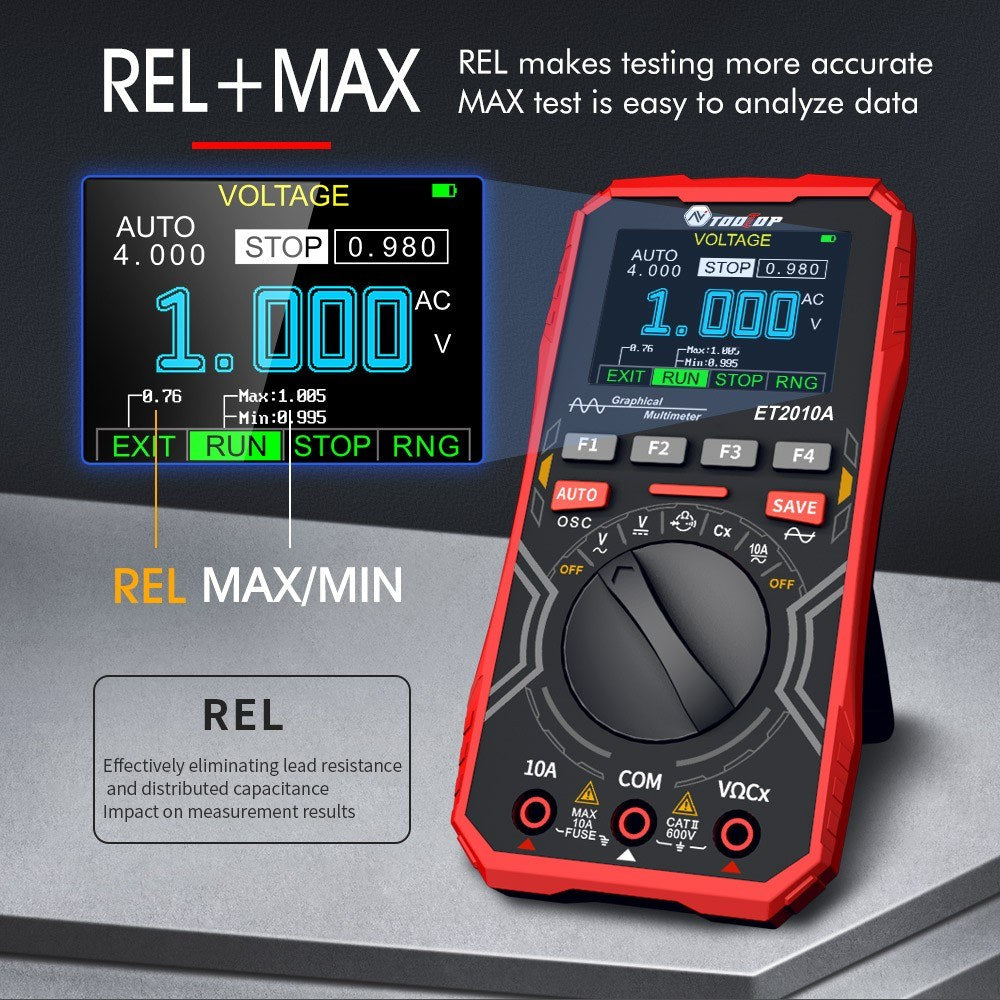

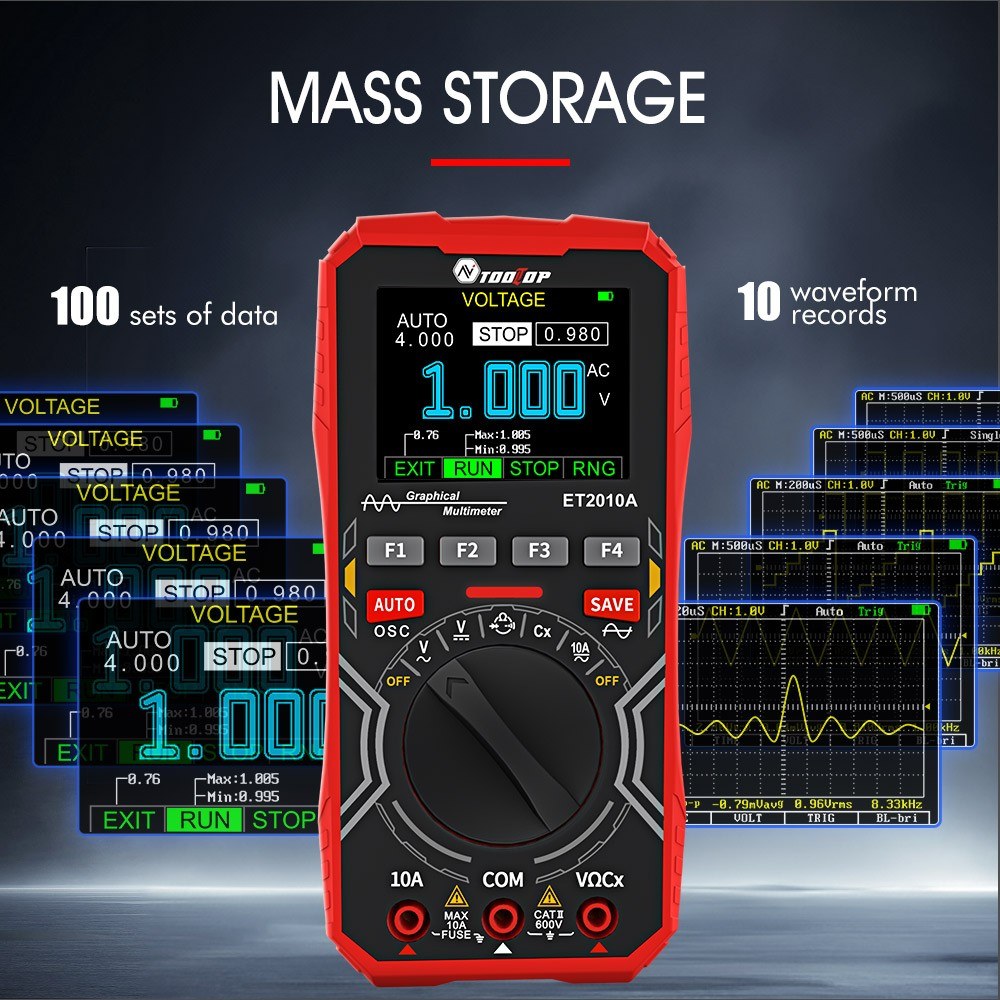

• Enhanced User Experience: Enjoy user-friendly features like 100-group data storage, 10-waveform recall, silent mode, and a compact design for portability.

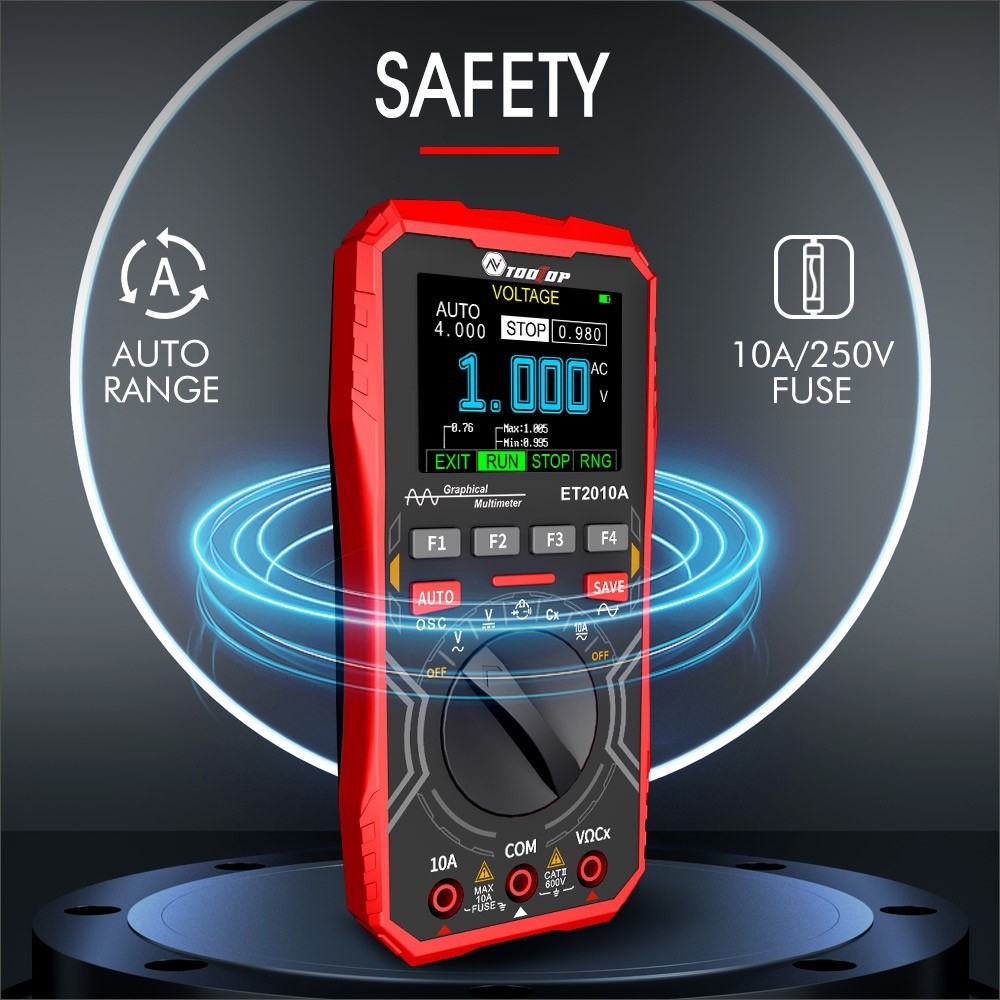

• Comprehensive Safety & Wide Applications: Dual fuses ensure safe operation across varied environments, making it ideal for testing, debugging, troubleshooting, and repairing electronic devices.

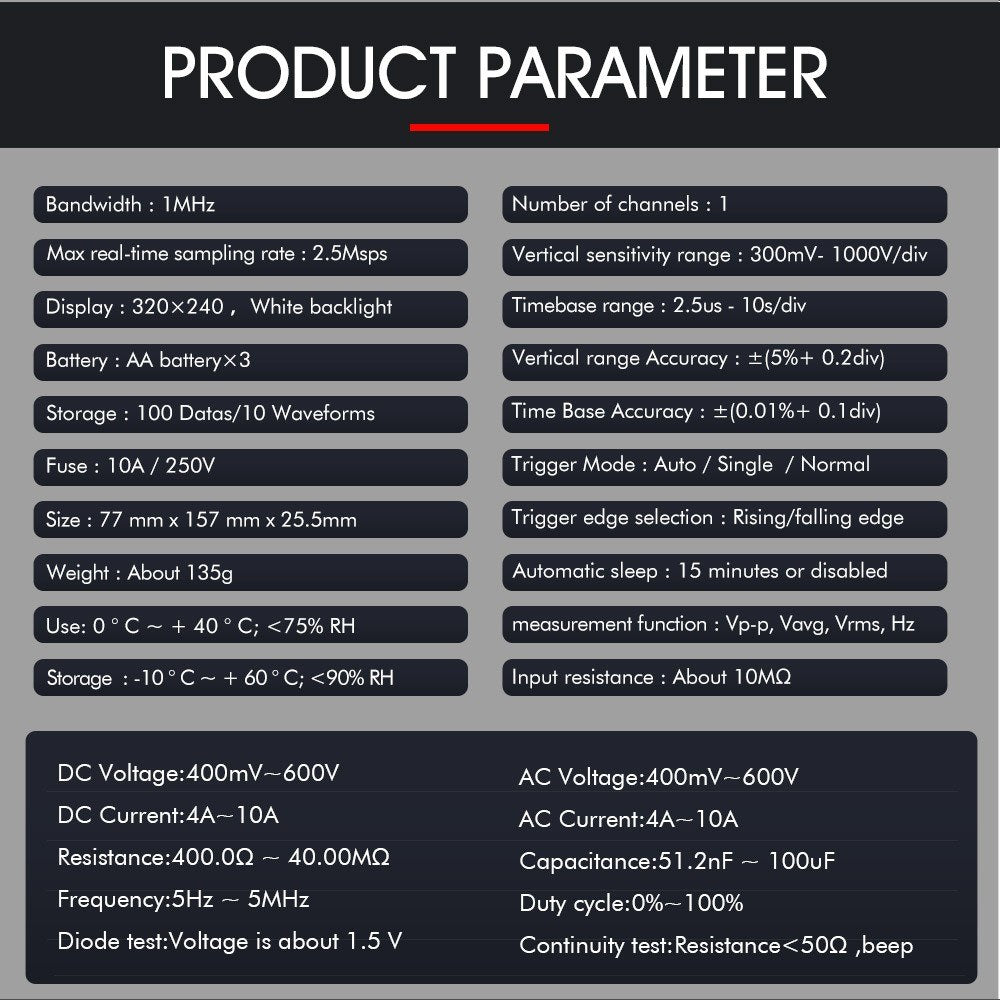

Specifications

General Specifications

• Material: ABS
• Battery: 3 x AA batteries (not included)
• Display: 320x240 pixels

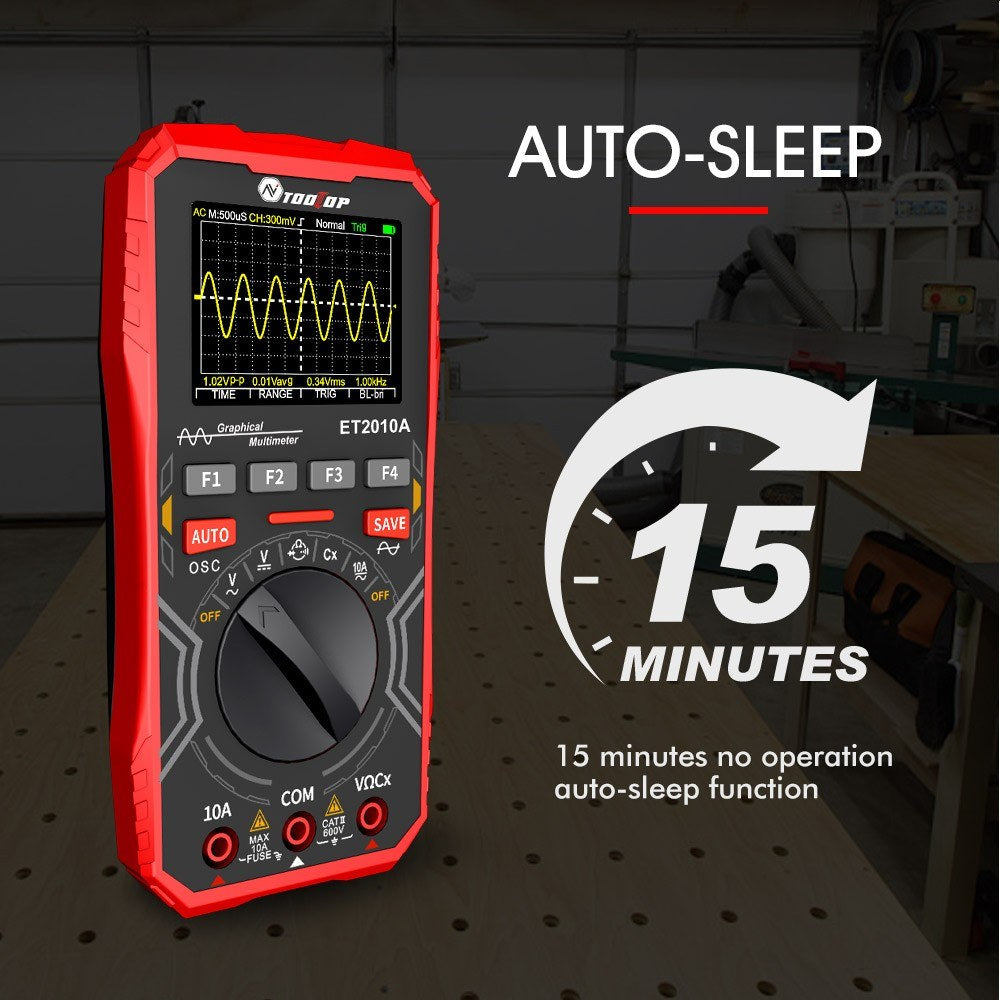

• Auto-sleep: Enabled after 15 minutes non-operation
• Data Storage: 100 data entries, 10 waveforms
• Fuse: 10A, 250V
• Operating Environment: 0°C-40°C; <75% RH
• Storage Environment: -10°C to +60°C; <90% RH

Multimeter Capabilities

• AC Voltage: 400mV-600V
• DC Voltage: 400mV-600V
• AC Current: 4A-10A
• DC Current: 4A-10A
• Resistance: 400.0Ω-40.00MΩ
• Capacitance: 51.2nF~100μF
• Frequency: 5Hz-5MHz
• Duty Cycle: 0%-100%
• Diode Test: Voltage approximately 1.5V
• Continuity Test: Resistance <50Ω, beep sound

Oscilloscope Features

• Bandwidth: 1MHz
• Max Real-Time Sampling Rate: 2.5Msps
• Number of Channels: 1
• Vertical Sensitivity Ranges: 300mV-1000V/div
• Timebase Ranges: 2.5μs-10s/div
• Vertical Ranges Accuracy: ±(5%+ 0.2div)
• Time Base Accuracy: ±(0.01%+ 0.1div)
• Trigger Modes: Auto/Single/Normal
• Trigger Edge Selection: Rising/Falling edges
• Automatic Sleep: 15 minutes or disabled

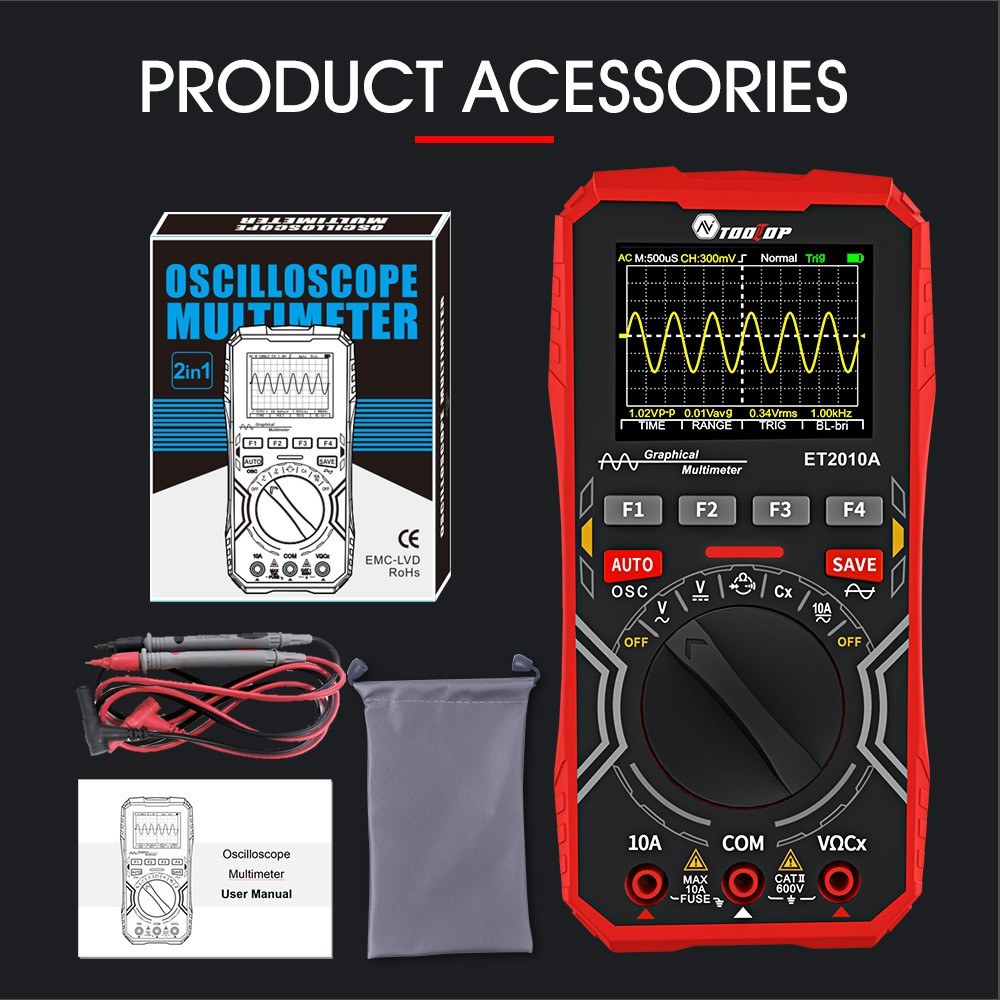

Package Contents

• 1 x 2-in-1 Oscilloscope Multimeter
• 1 x Pair of Test Pens
• 1 x User Guide
• 1 x Storage Bag

With its multifunctional capabilities and user-friendly design, this 2-in-1 Oscilloscope Multimeter is the perfect choice for anyone who requires precise and versatile measurements in their work or hobby projects.
