Bluetooth 5.0 Decoder

Product Specifications

• Power Supply: DC3.7-5V
• Rated Input: DC5V /500MA
• Inputs Supported: Bluetooth, U disk, 3.5MM external audio
• Dimensions: 88 x 25MM

Features

• Color digital screen displays music spectrum
• Supports MP3 and APE lossless decoding
• Bluetooth 5.0 with 0-20 meters range (barrier-free)

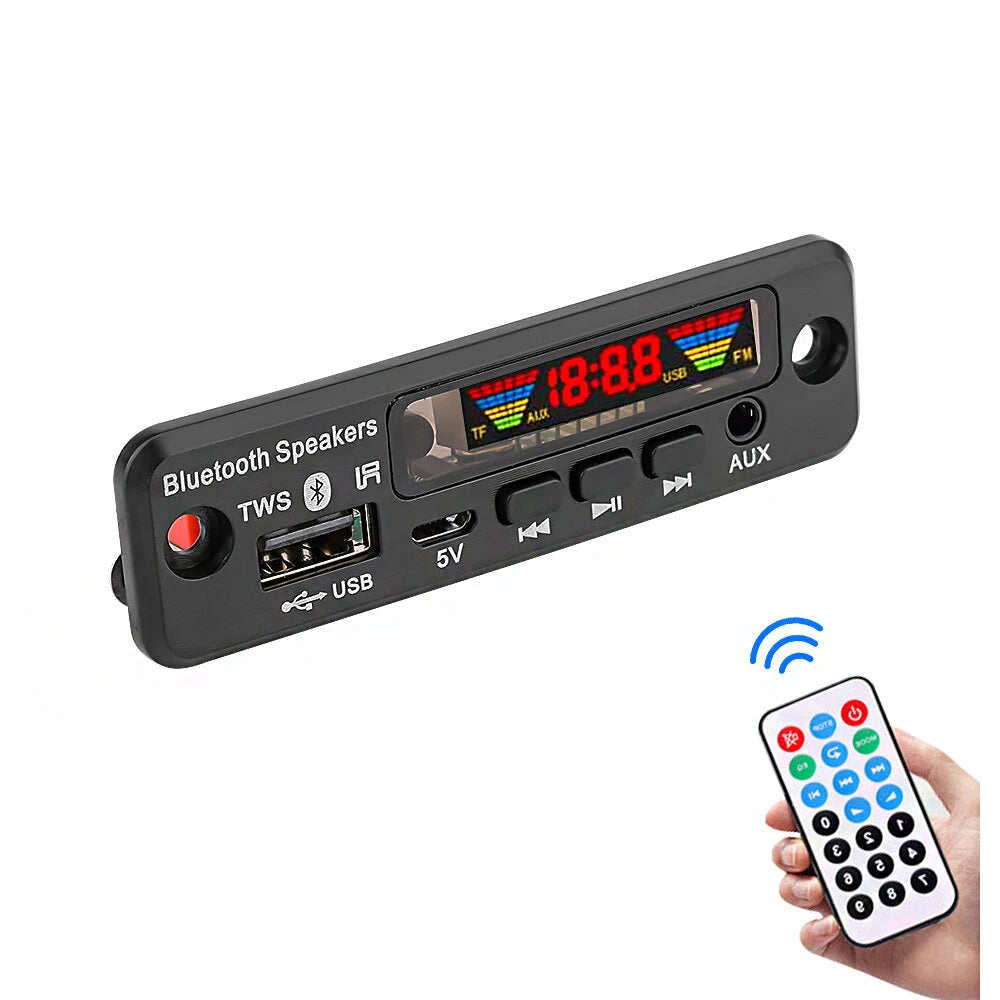

• 10M infrared remote control for easy switching
• FM radio frequency spectrum display
• TWS (True Wireless Stereo) support

TWS Wireless Interconnection

To interconnect two Bluetooth 5.0 decoders (model AVN-757), follow these steps:

1. Turn on both devices and enter Bluetooth mode.
2. Press the play button twice on one device and immediately connect to the other upon hearing the prompt.
3. Activate Bluetooth on your mobile phone, search for "AVN-757" and click to connect for stereo sound.

Key Functions

• POWER: Standby ON/OFF
• MODE: Cycle through input modes: USB—SD—BLUE—FM—LINE
• PREV: Select previous song or radio station; rewind in USB/SD modes
• NEXT: Select next song or radio station; fast forward in USB/SD modes
• VOL+ / VOL-: Increase or decrease volume
• REP: Enter loop modes, including single, folder, random, and all loop
• STOP: Stop playback in USB/SD card mode
• MUTE: Mute and unmute audio
• EQ: Sound field mode selection: NORMAL, BASS, ROCK, POP, JAZZ, CLASSIC, CUR
• PLAY/PAUSE: Play or pause media; auto-search radio stations
• 0~9: Direct selection of tracks and radio frequencies

Package Includes

• 5 x Bluetooth Decoder
• 5 x Remote Controller
