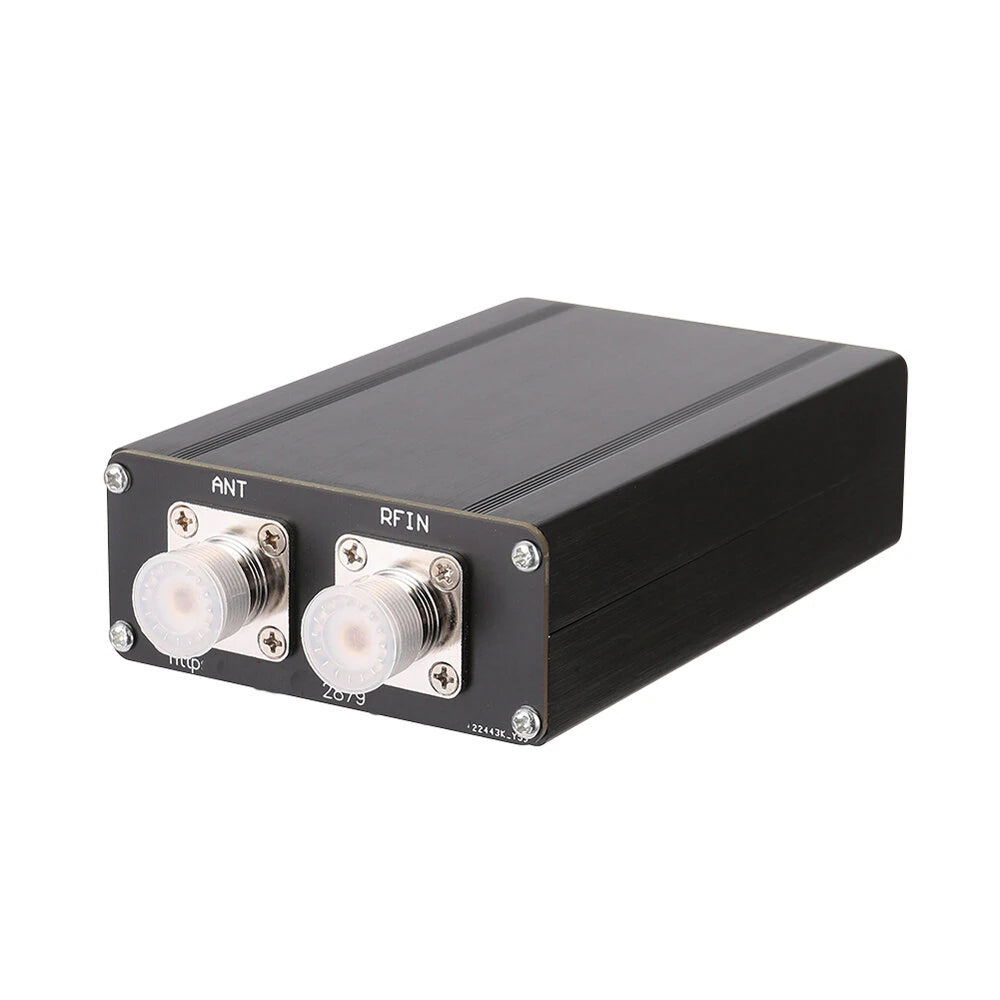

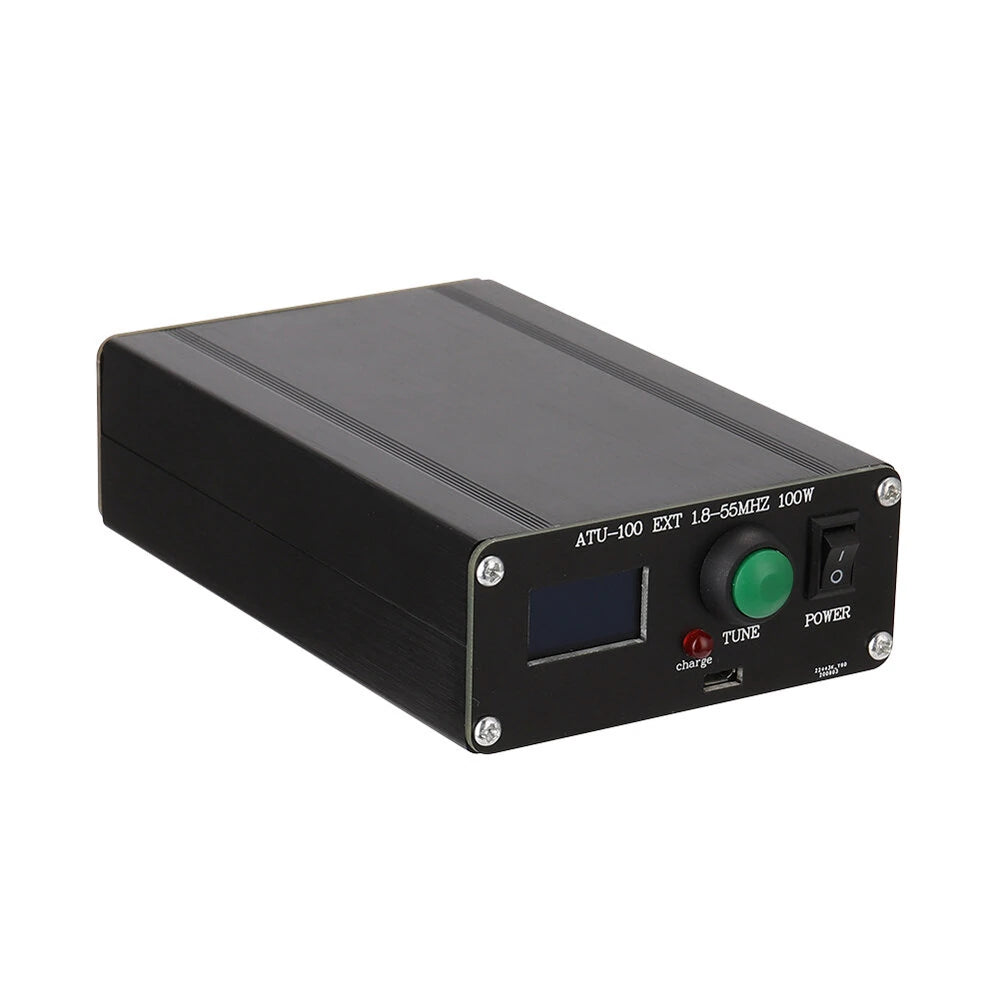

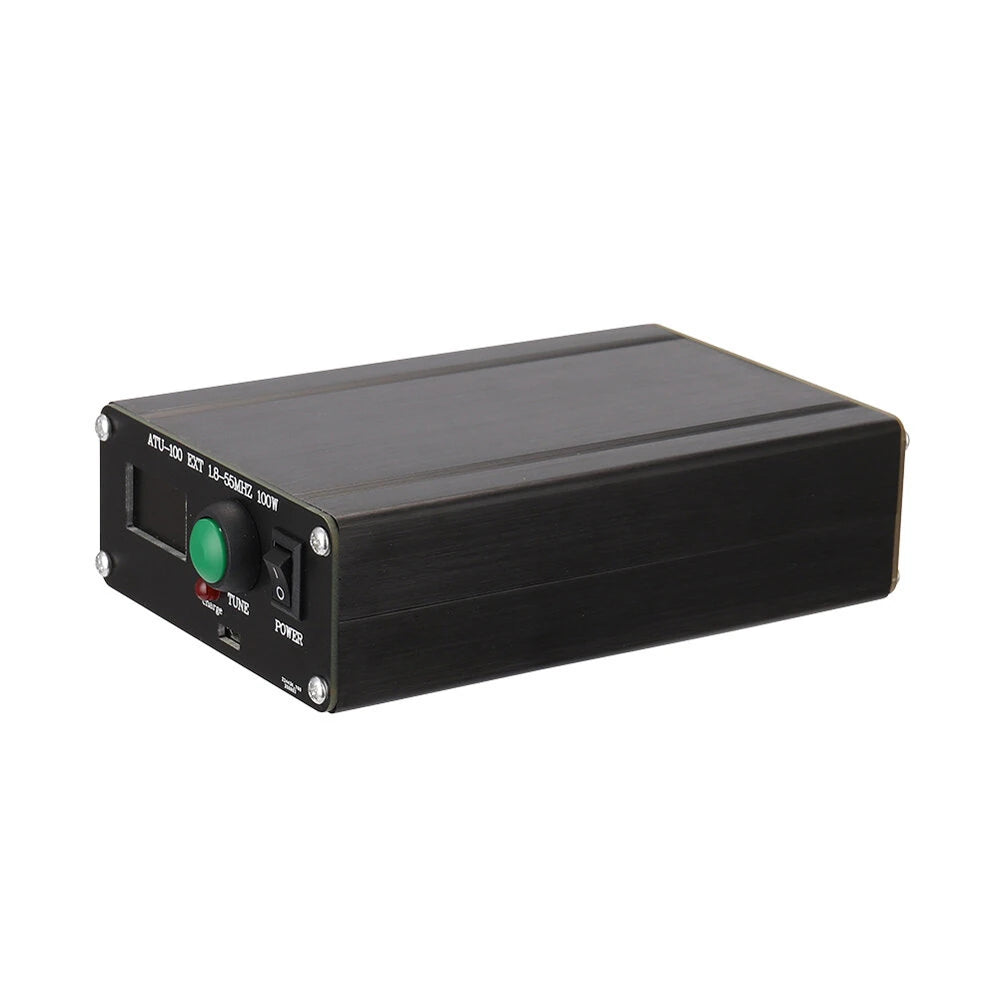

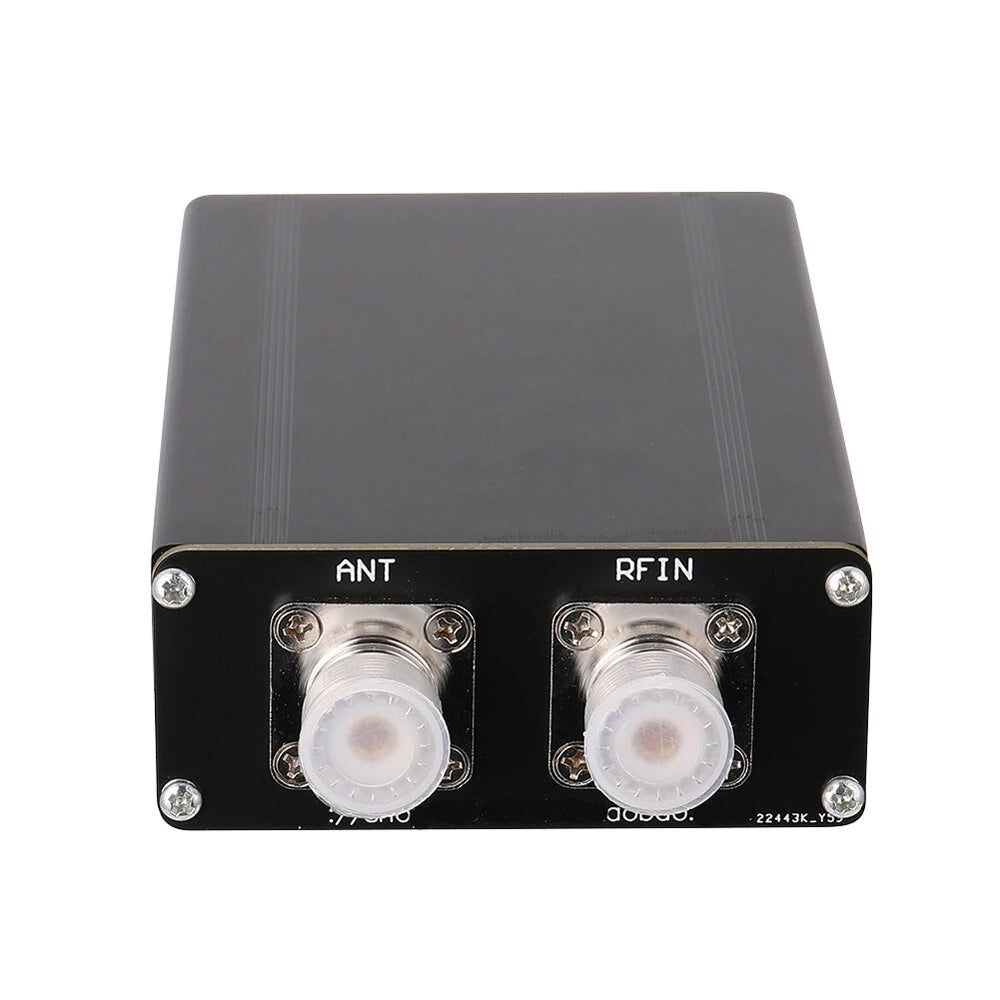

ATU-100 Mini Automatic Shortwave Antenna Tuner 1.8-55MHz 100W Metal Case

Features

• Mini shortwave automatic antenna tuner with Type-C charging interface, M seat, and OLED display.
• Automatically tunes without any control wires, making it suitable for most radio stations.
• Equipped with 7 capacitors and 7 inductors, enabling effective operation over a wide frequency band from 1.8 to 55MHz, covering the amateur radio HF band.
• Housed in a metal casing for stable and reliable performance.

Specifications

• Material: Metal
• Color: Black
• Power Supply Voltage: USB charge and discharge (built-in battery)
• Battery: 1 lithium battery, 400mAh (included)
• Maximum Current Consumption: 400mA
• Maximum Working Power: 100W
• Maximum Possible Measurement Power: 150W
• Minimum Power Required to Start Tuning: 5W
• Minimum Possible Measurement Power: 0.1W
• Measurement Steps for Power Up to 10W: 0.1W
• Measurement Steps for Power Higher Than 10W: 1W
• Power Measurement Accuracy: 10%
• Maximum Installation Inductance: 8.53uH
• Minimum Installation Inductance Step Length: 0.05uH
• Maximum Installation Capacitance: 1869pF
• Minimum Installation Capacitance Step Length: 10pF
• Display: OLED

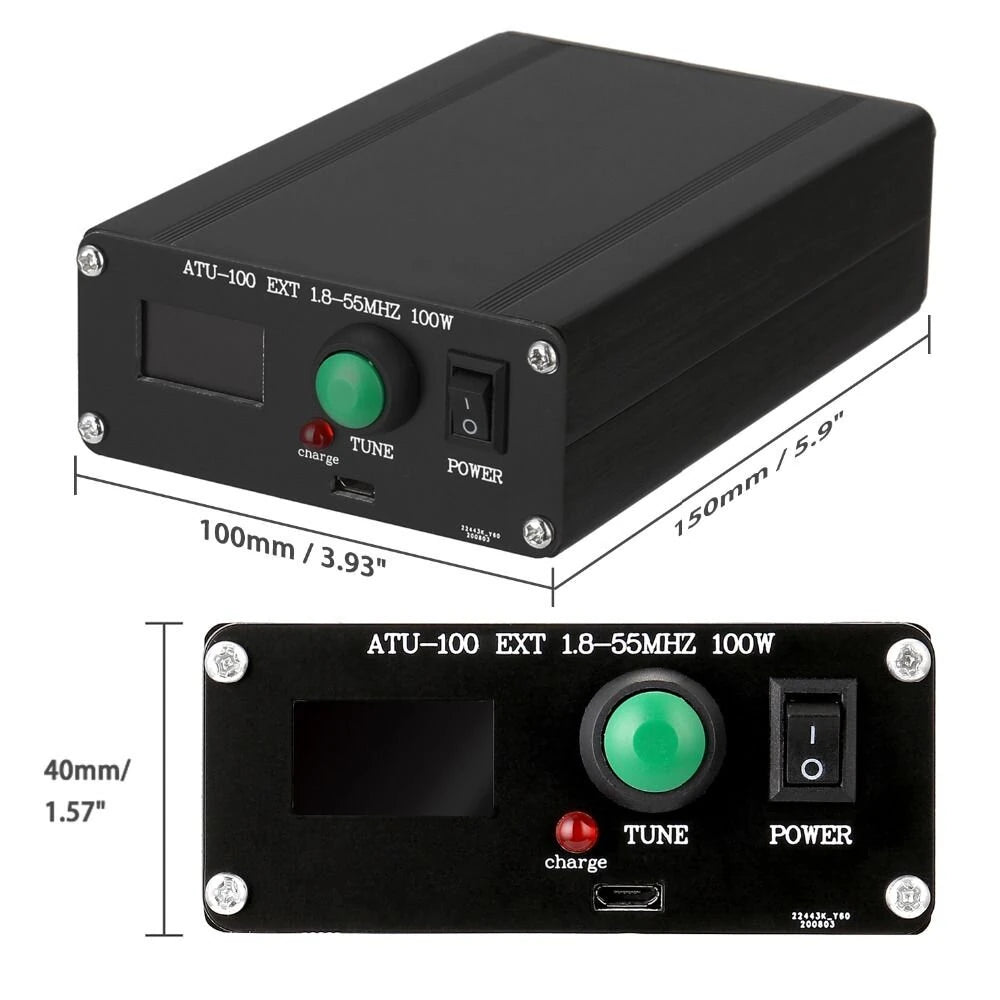

• Package Size: 150 x 100 x 40mm / 5.9 x 3.9 x 1.6in
• Package Weight: 300g / 10.6 ounces

Package Included

• 1 x ATU-100 1.8-55MHz Mini Automatic Antenna Tuner
