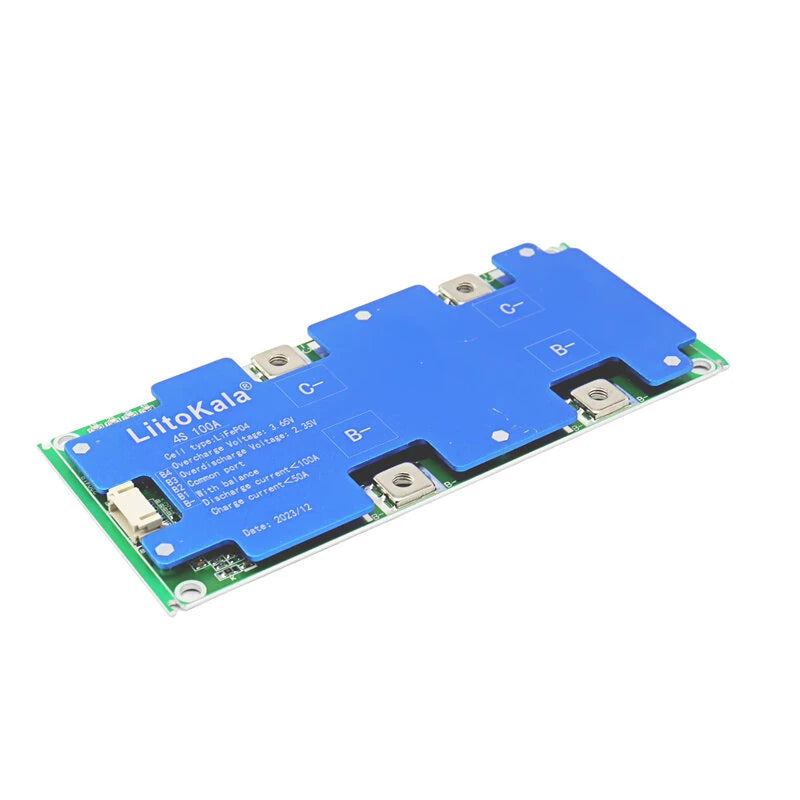

Battery Protection Module

Specifications:

• Discharge Current: 100A
• Charging Current (Same Port): ≤60A
• Main Circuit Conduction Internal Resistance: ≤5mΩ
• Discharge Overcurrent Protection: 150A ± 10A
• Product Size: 146x62x8.36 ± 1mm
• Overcharge Protection:
• Detection Voltage: 3.65 ± 0.025V
• Detection Delay Time: 1000 ± 500ms
• Discharge Voltage: 3.5 ± 0.05V
• Over Discharge Protection:
• Detection Voltage: 2.35 ± 0.1V
• Detection Delay Time: 1000 ± 500ms
• Unwind Voltage: 2.7 ± 0.1V
• Equalization Parameters:
• Detection Voltage: 3.5 ± 0.025V
• Detection Delay Time: 50 ± 50ms
• Equalization Current: 30 ± 5mA
• Overcurrent Protection:
• Detection Voltage: 12.8 ± 15mV
• Detection Delay Time: 1000 ± 500ms
• Current Protection: 100 ± 10A
• Short Circuit Protection:
• Trigger Condition: External Short Circuit
• Detection Delay Time: ≤300µs
• Release Condition: Disconnect the Load
• Temperature Control Protection:
• Charging High Temperature Protection Detection Temperature: 75°C
• Discharge High Temperature Protection Detection Temperature: 75°C
• Discharge Condition: 65°C
• Self-Power Consumption:
• Working Power Consumption: ≤40µA
• Sleep Over Discharge Power Consumption: ≤10µA
• Operating Temperature Range: -20°C to +80°C

Features:

1. Comprehensive Protection Mechanisms: Ensures safety and longevity with overcharge, over discharge, overcurrent, short circuit, and temperature control protection.
2. High Discharge and Charging Currents: Supports a discharge current of up to 100A and a charging current of ≤60A, ideal for high demanding applications.
3. Advanced Equalization Functionality: Maintains battery health and optimizes performance with balanced cell voltage detection at 3.5 ± 0.025V.
4. Low Power Consumption: Energy efficient with ≤40µA working power consumption and ≤10µA sleep over discharge power consumption.
5. Robust Design for Extreme Conditions: Functions efficiently in a temperature range of -20°C to +80°C, with quick response short circuit protection.

Package Included:

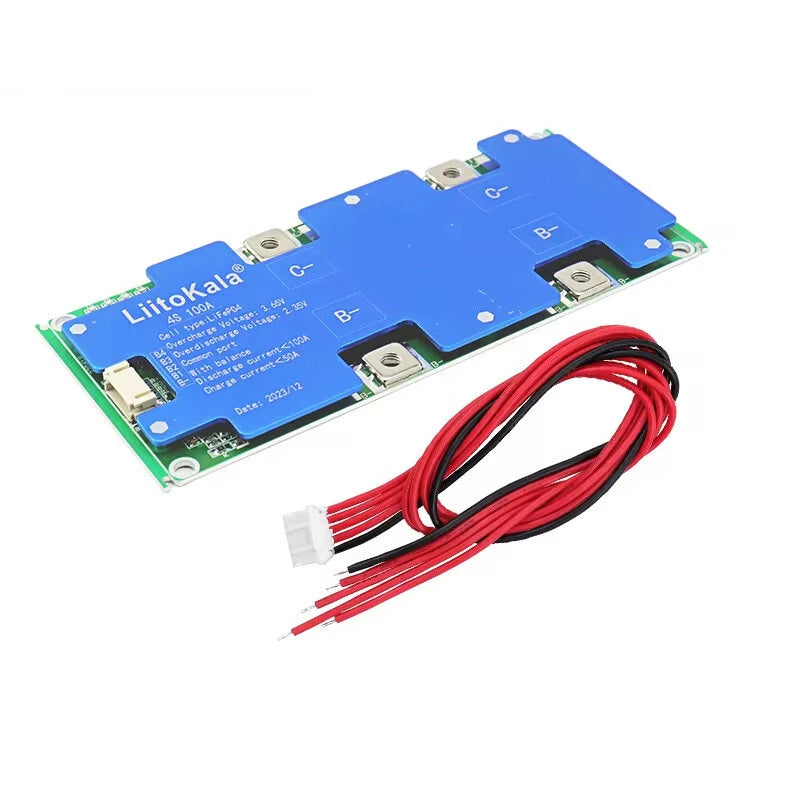

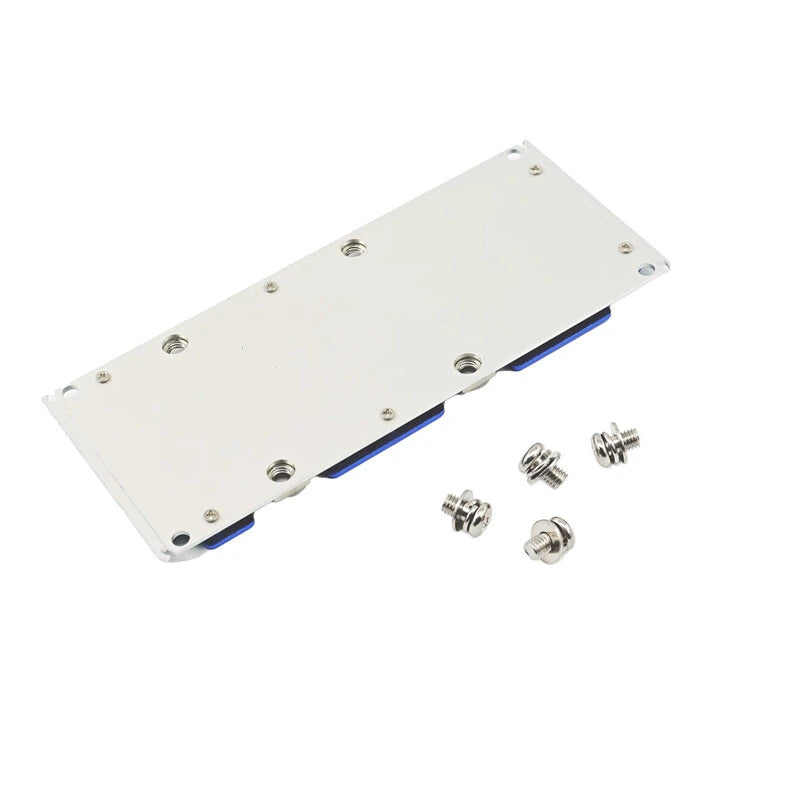

• 1 x Battery Protection Module

Important Note:

Please do not use cables not provided by our store. In case of issues, refunds will not be accepted.

1. Connect the B- wire to the total negative electrode of the battery. Make sure to weld the short wire of the B- wire.
2. Connect the cables:
   • B- connects to the total negative terminal of the battery.
   • B-1 connects to the positive terminal of the first battery.
   • B-2 connects to the positive terminal of the second battery.
   • B-3 connects to the positive terminal of the third battery, and so on.
3. Finally, ensure the total voltage of the battery equals the output voltage of the protection board. This confirms the protection board is operational.
