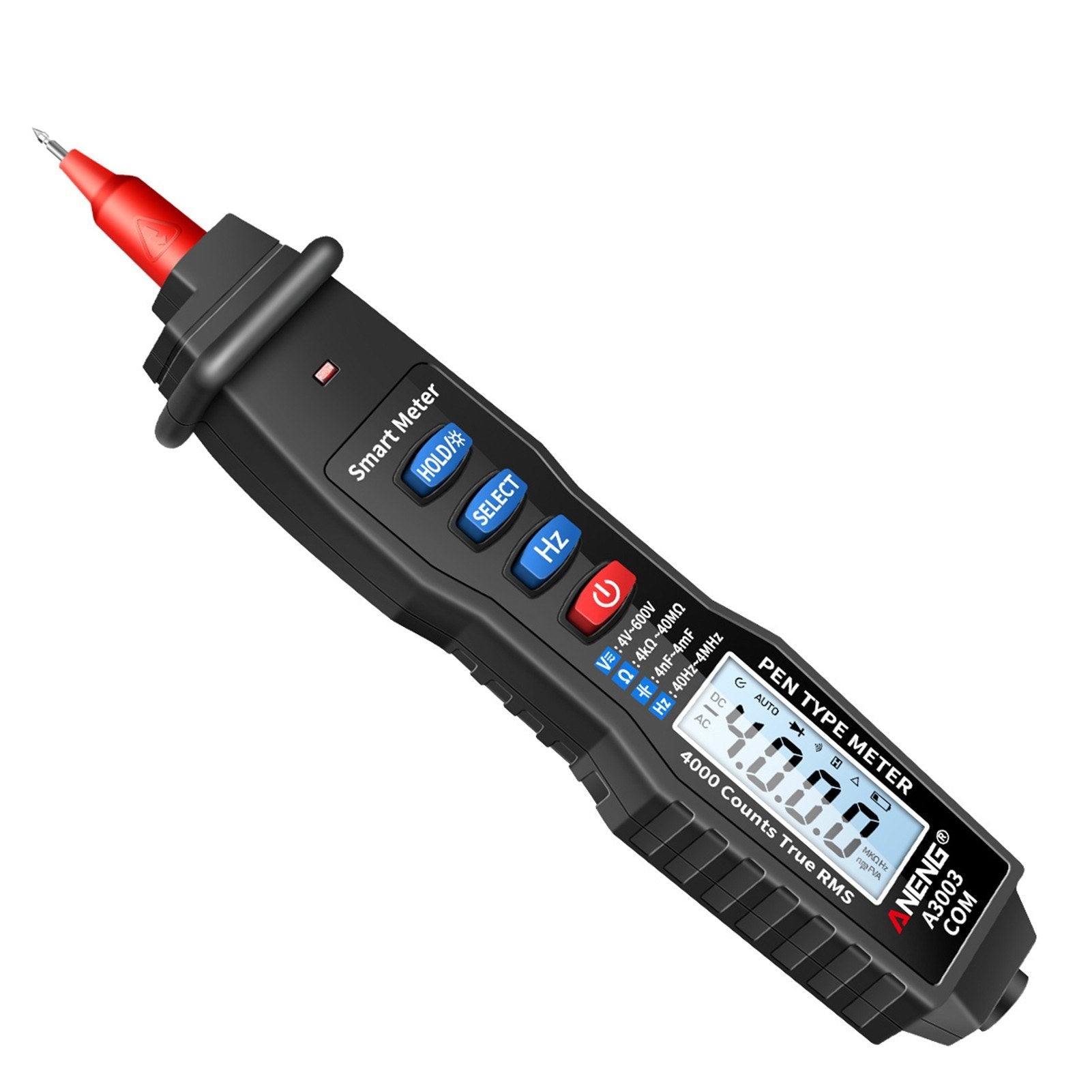

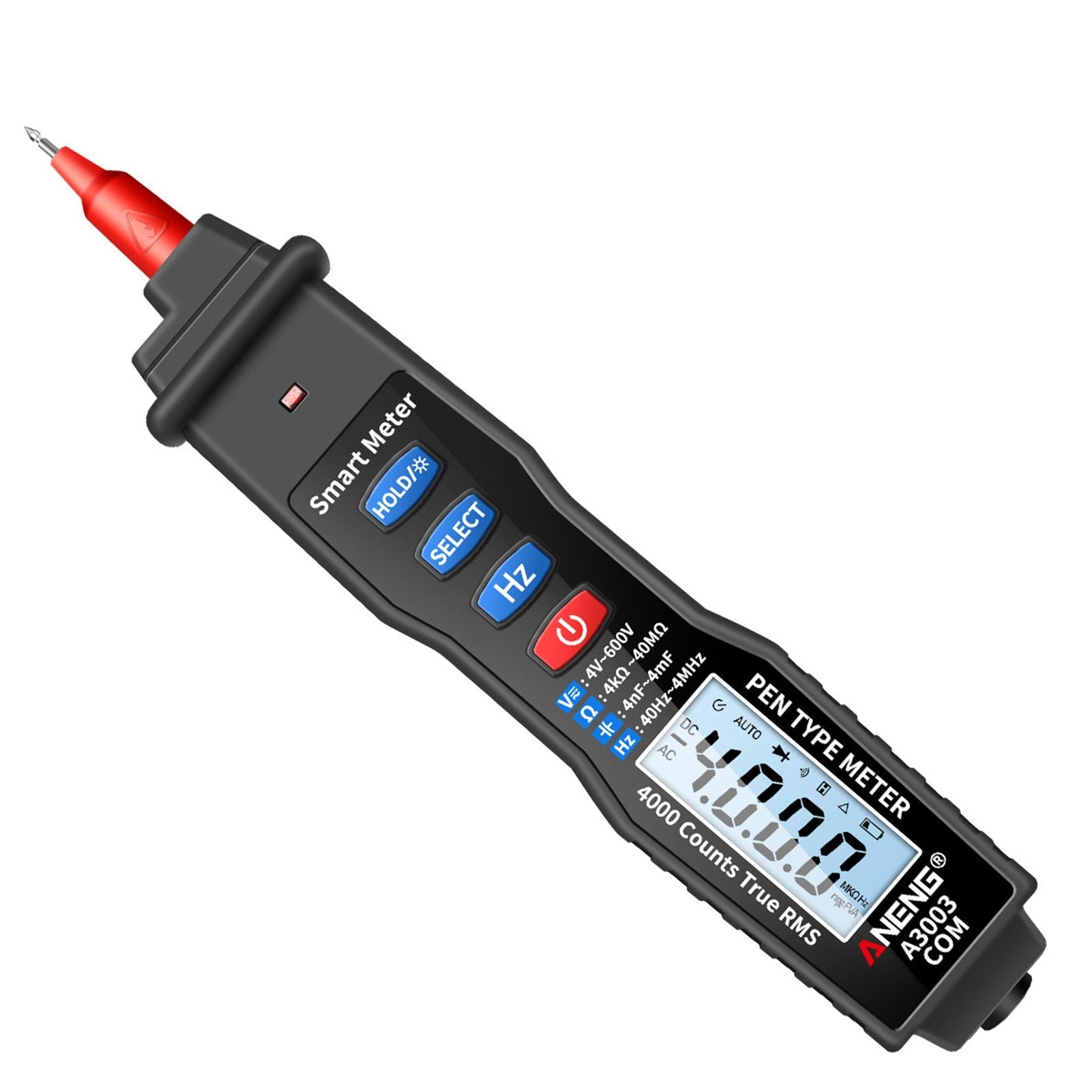

ANENG A3003 Pen Type Digital Multimeter

Discover the precision and versatility of the ANENG A3003 4000 Counts Pen Type Digital Multimeter. Equipped with Non-Contact Voltage (NCV) detection, it measures AC/DC voltage, resistance, capacitance, frequency, and includes a live line test. This digital pen multimeter also features EF function and supports data hold, making testing and reading convenient with its large LCD screen and auto-off functionality for power saving. Benefit from a built-in flashlight and audible/light alarm for increased safety and convenience.

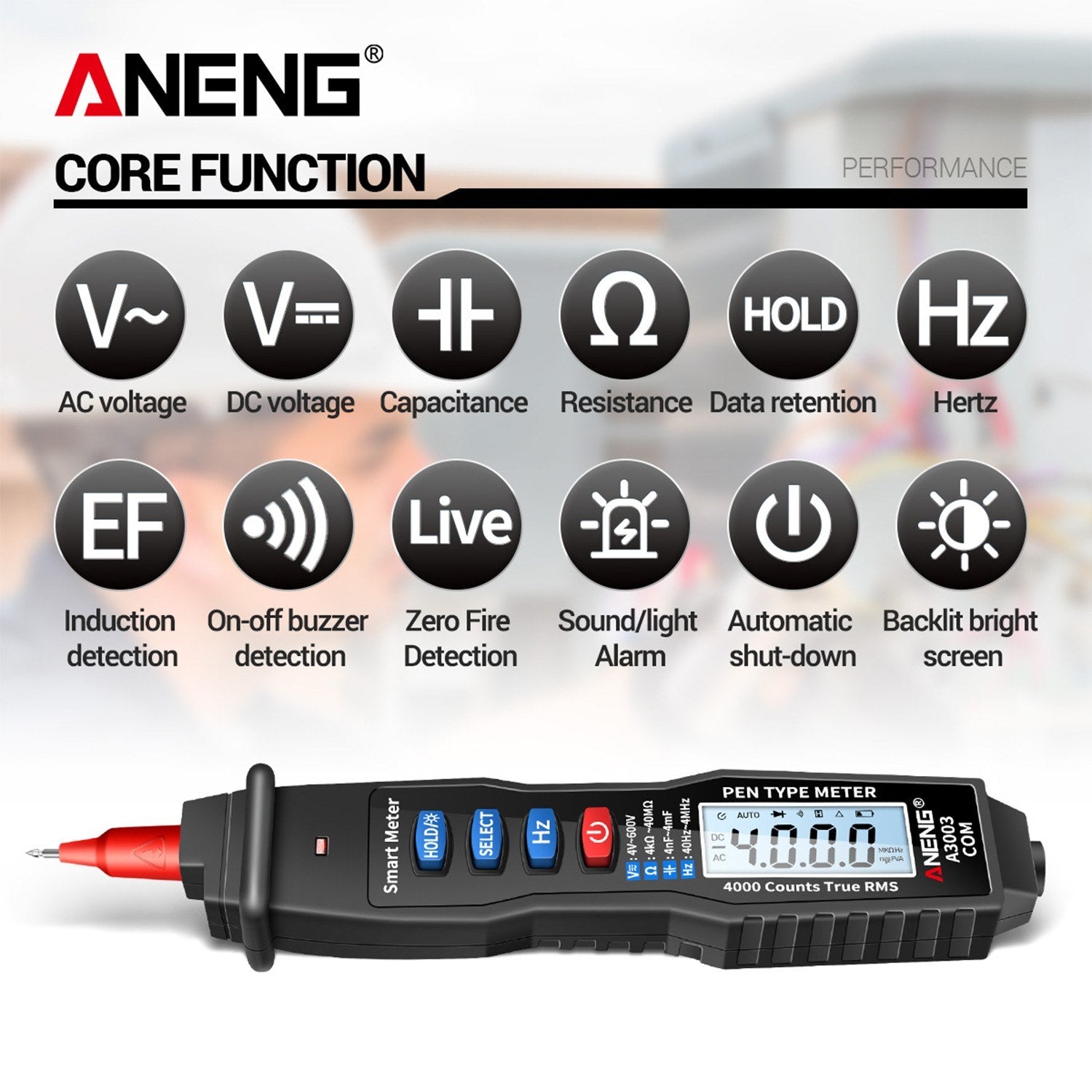

Features

• Multifunction Pen Multimeter: Measures 4V-600V AC/DC voltage, resistance from 4kΩ-40MΩ, capacitance, frequency, and includes an on-off buzzer detection. Perform zero fire detection with ease.

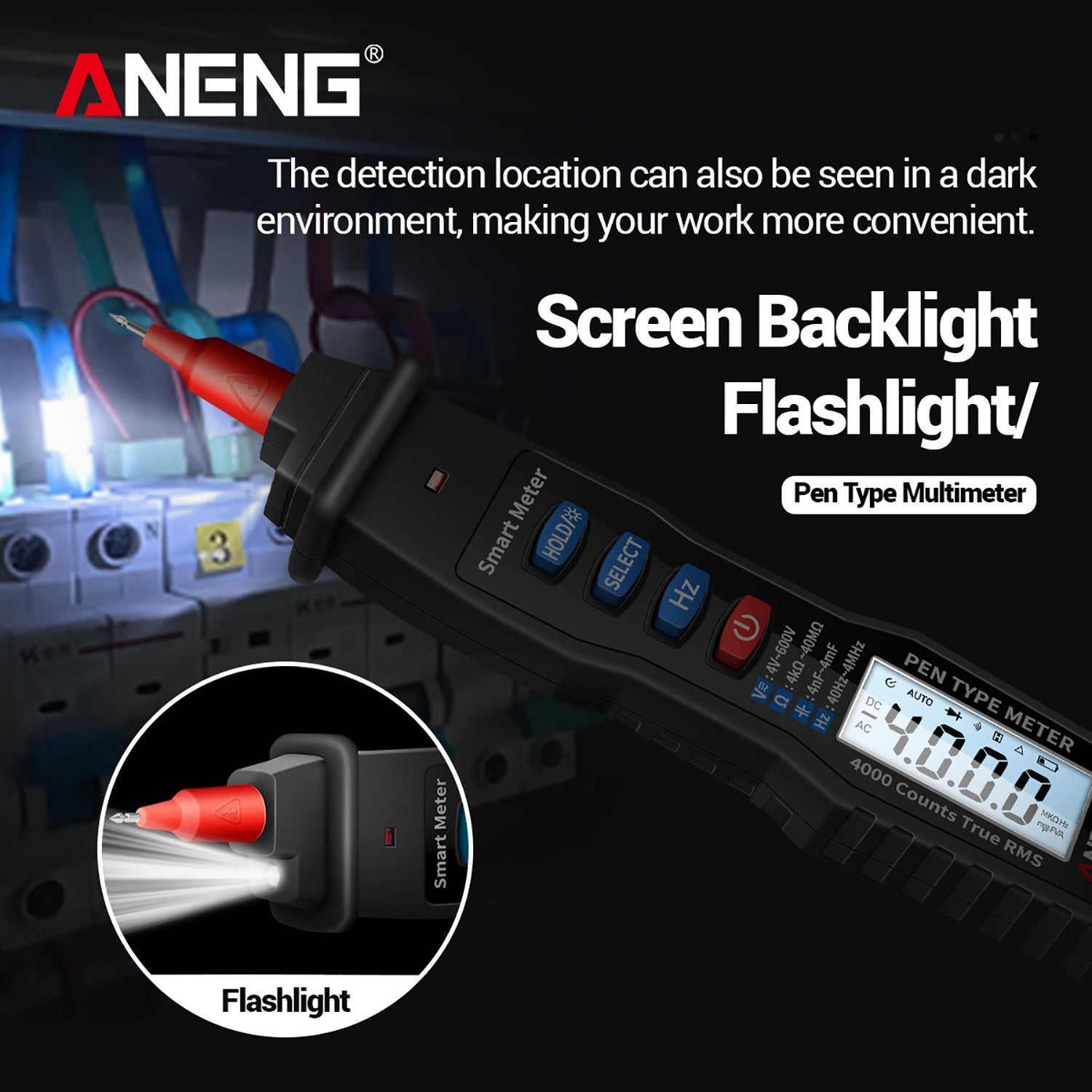

• Convenient Use: Equipped with a 4000 counts large backlight LCD screen and flashlight, ensuring clear readings even in dark environments. The data hold function allows for easy data saving and retrieval.

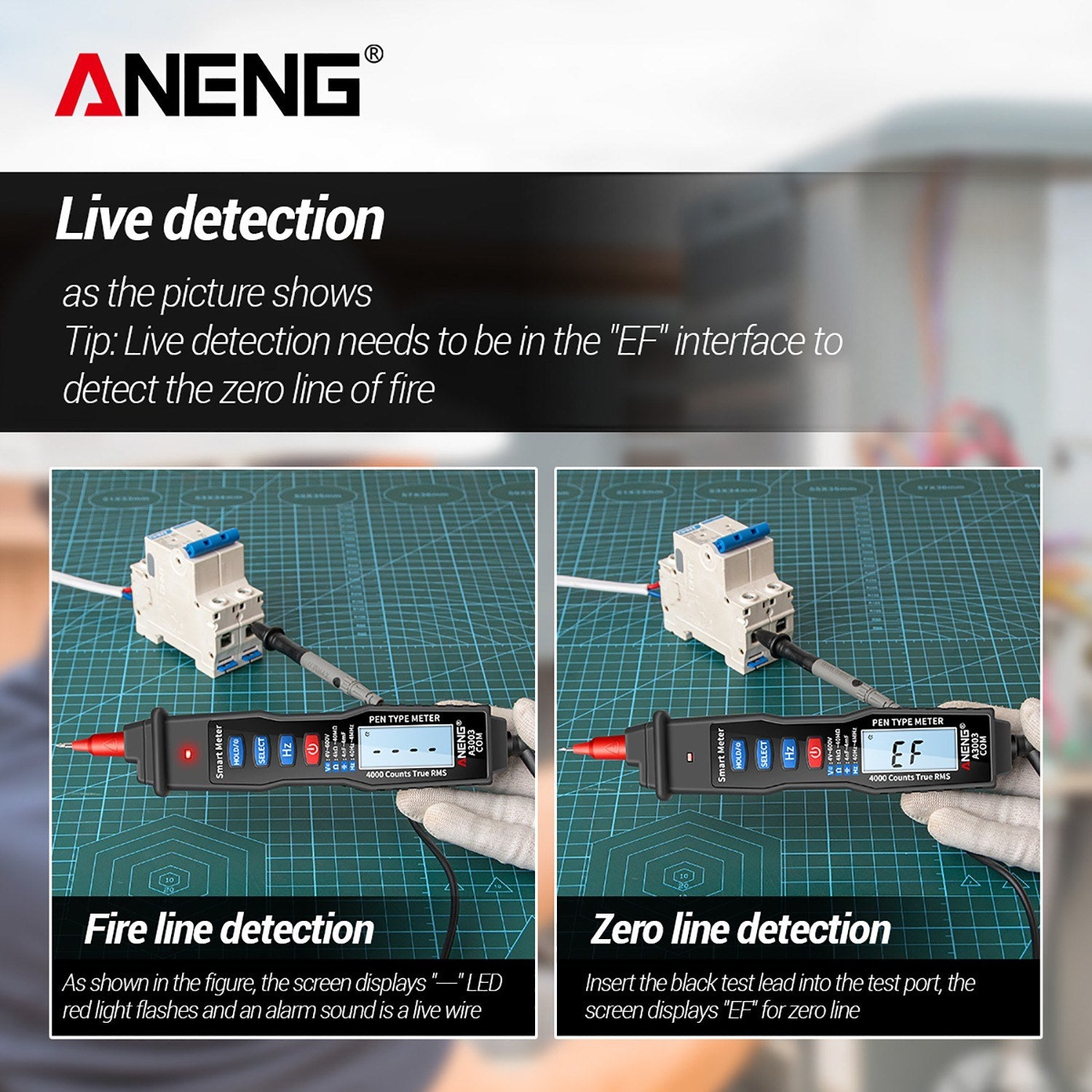

• Non-Contact Measurement: Features NCV non-contact voltage detection to safely distinguish between null and fire lines, reducing the risk of electric shock.
• Auto Power Off & Audible Alarm: Automatically powers off after a period of inactivity to conserve energy. An audible and light alarm enhances measurement efficiency.
• Easy Carry: The compact pen-type design helps in convenient single-hand use and ease of transportation, suitable for home, school, laboratory, factory, and more.

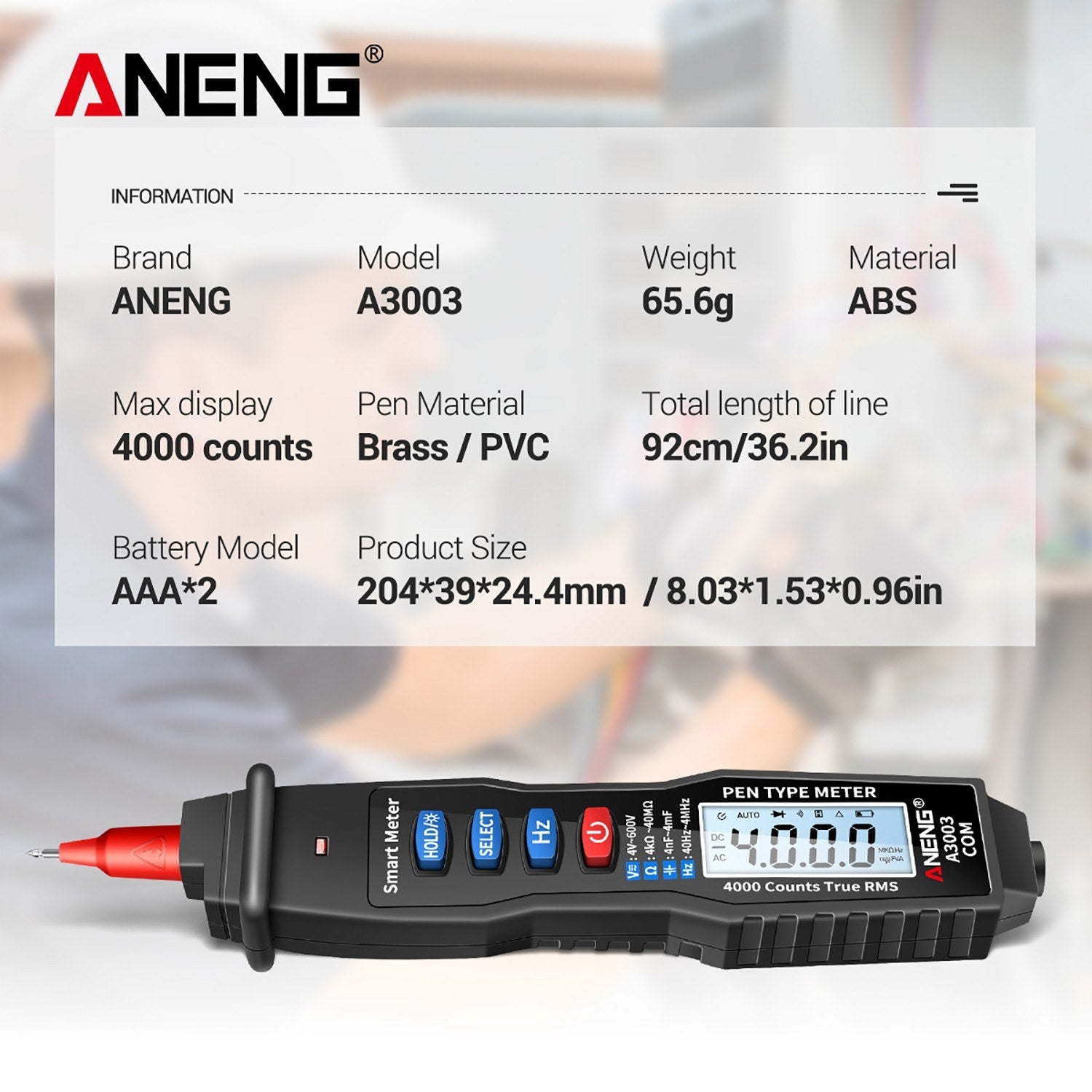

Specifications

• Brand: ANENG
• Model: A3003

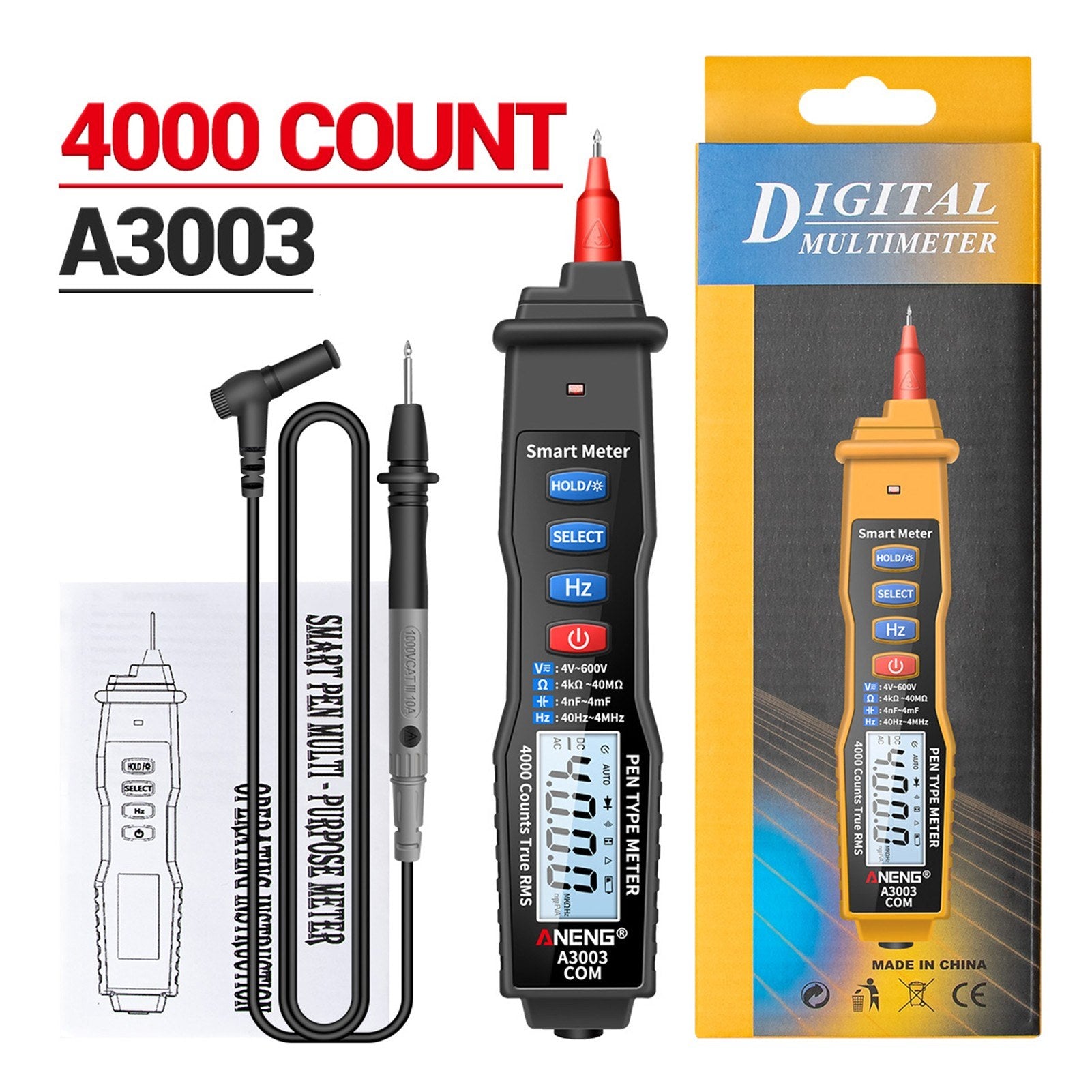

• Maximum Display: 4000 count

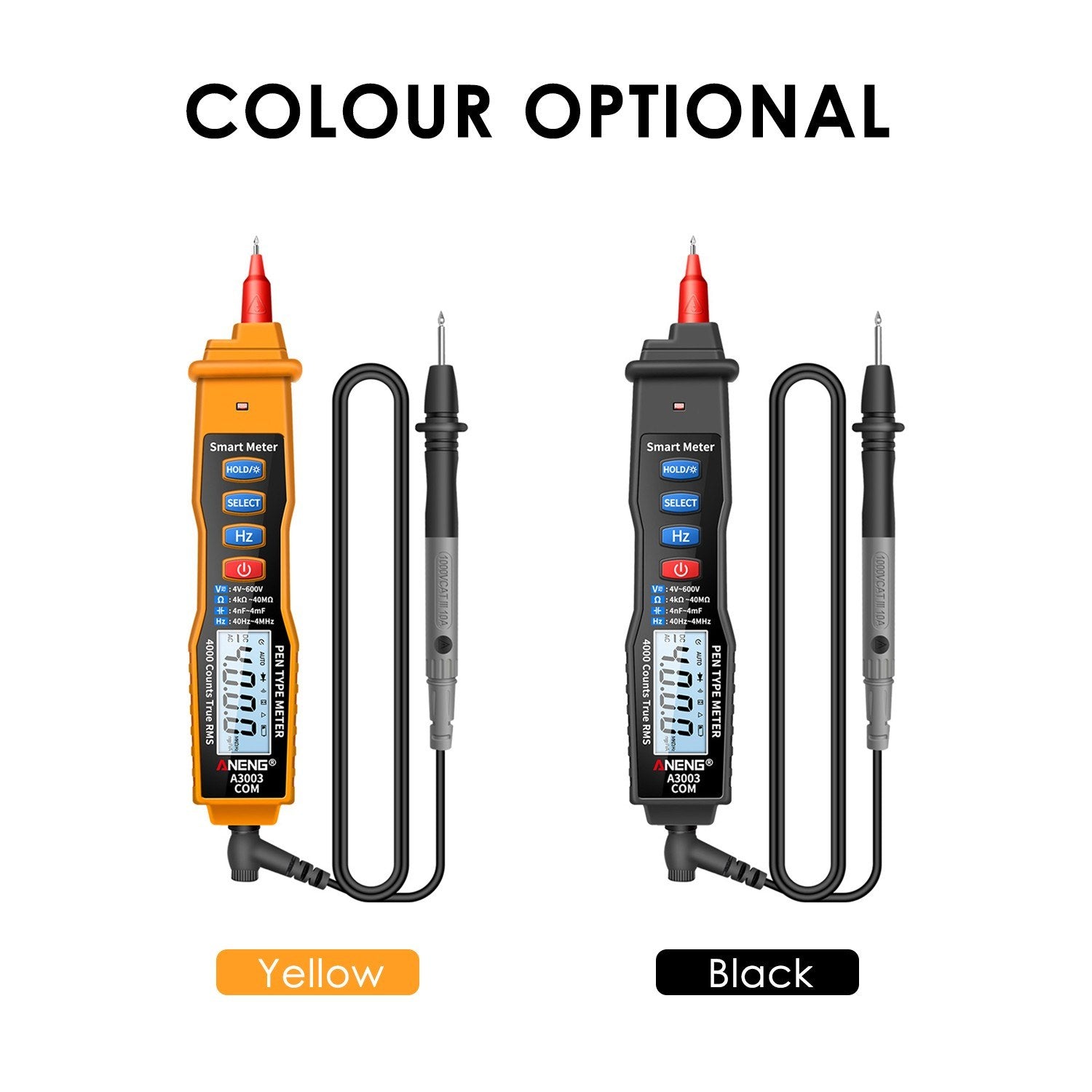

• Color: Yellow / Black (optional)
• Material: ABS + Brass + PVC
• Power Supply: 2 AAA batteries (not included)
• Alarm: Audible + Light alarm
• Auto Off: Yes
• LCD Screen: With Backlight
• Data Hold: Yes
• EF Function: Yes
• Date Retention Function: Yes
• Buzzer Function: Yes

Measurement Ranges and Accuracy

Function	Range	Accuracy
DC Voltage	4V/40V/400V	±(0.8%+ 3)
	600V	±(1%+ 3)

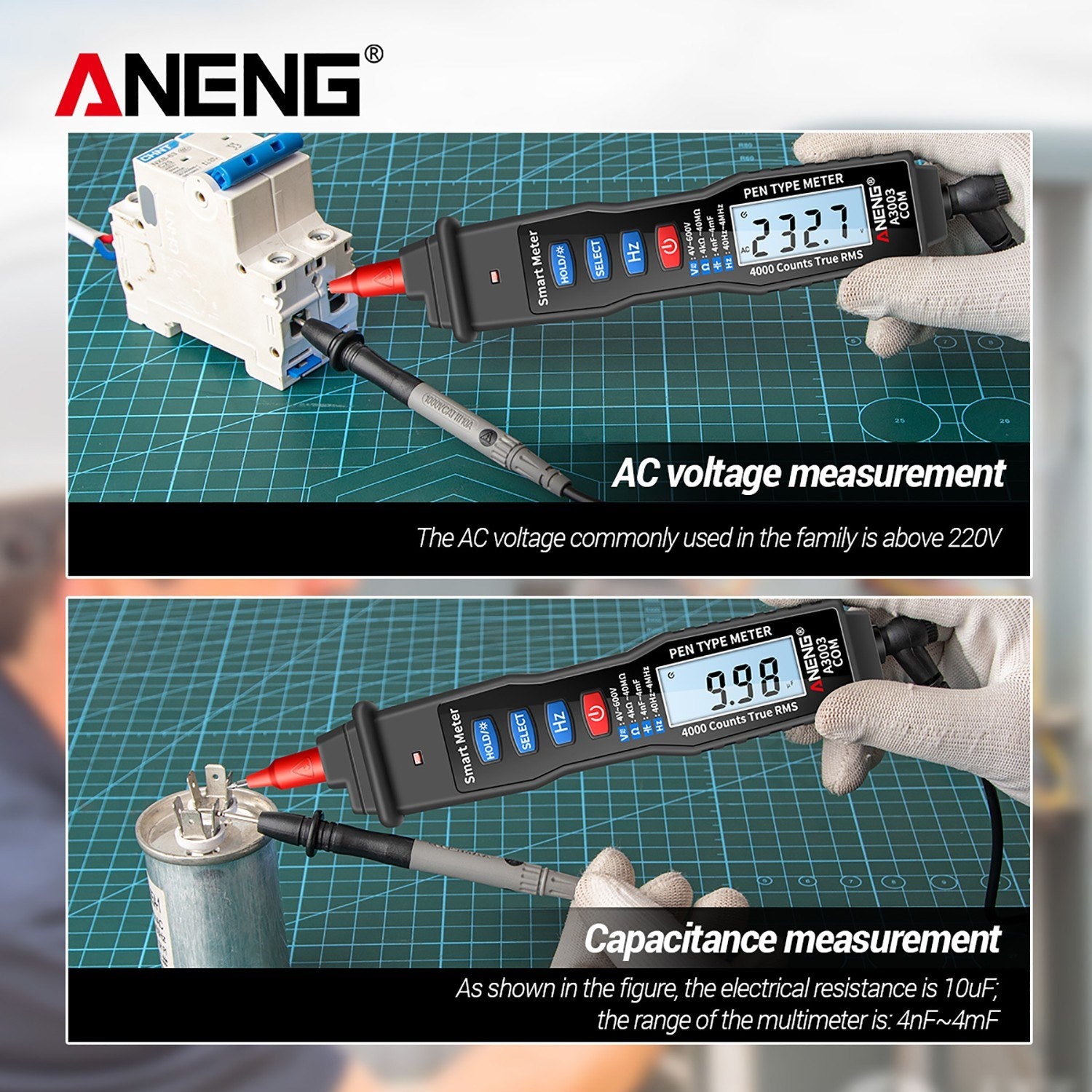

AC Voltage	4V/40V/400V	±(1%+ 3)
	600V	±(1.2%+ 5)
Capacitance	4nF/40nF/400nF/4uF/40uF/400uF	±(3%+ 5)
	4mF	±(5%+ 10)
Resistance	4kΩ/40kΩ/400kΩ/4MΩ	±(1%+ 5)
	40MΩ	±(1.2%+ 8)
Frequency	40Hz/400Hz/4kHz/40kHz/400kHz	±(0.8%+ 8)
	4MHz	±(1.2%+ 8)

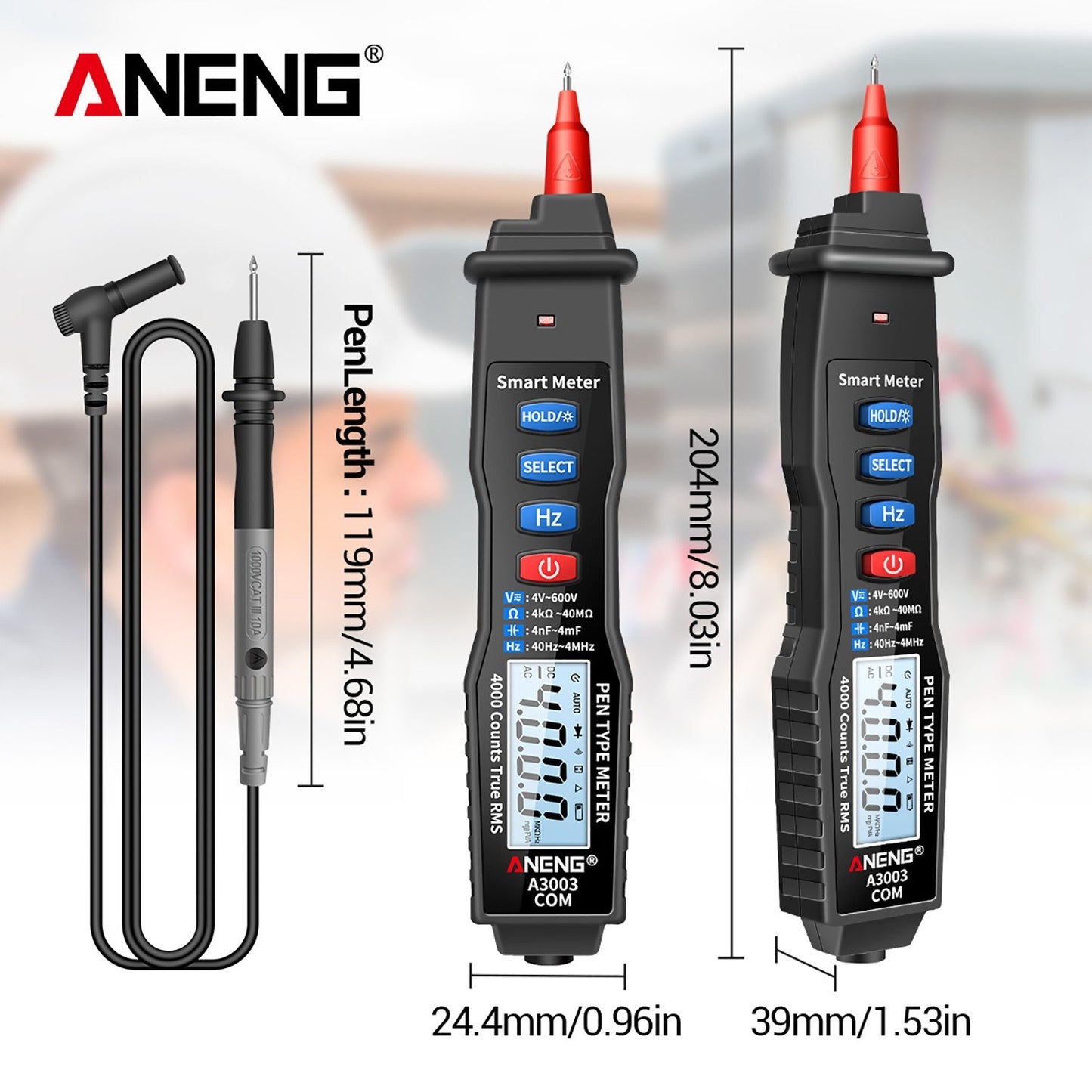

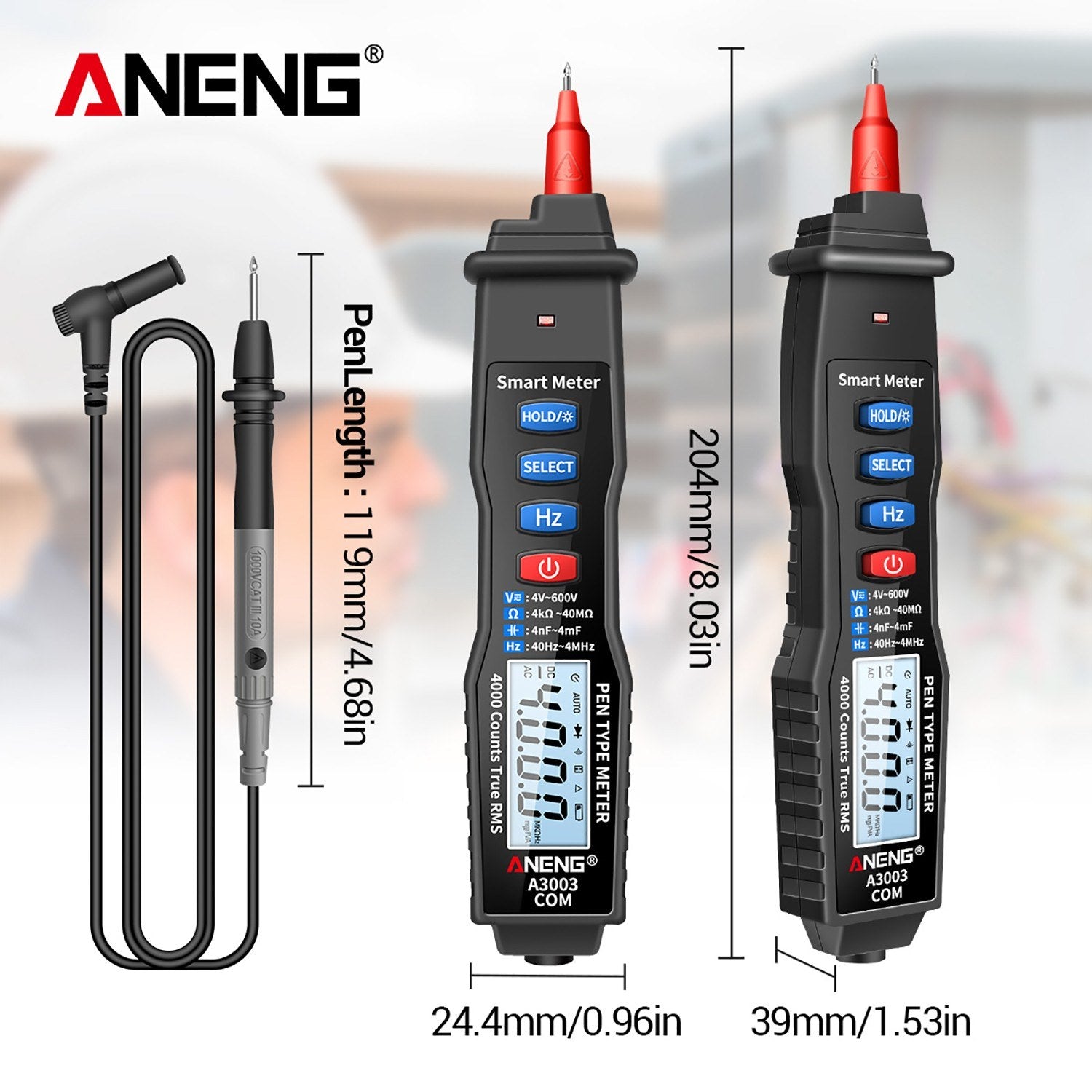

Product Dimensions

• Pen Length: 119mm / 4.68in
• Item Size: 204mm x 39mm x 24.4mm / 8.03in x 1.53in x 0.96in
• Item Weight: 65.6g

Note

1. Due to varying monitor and lighting conditions, the item's actual color may slightly differ from the images. Thank you for understanding.
2. Please allow a 1-2cm margin of error in measurements due to manual measurement.

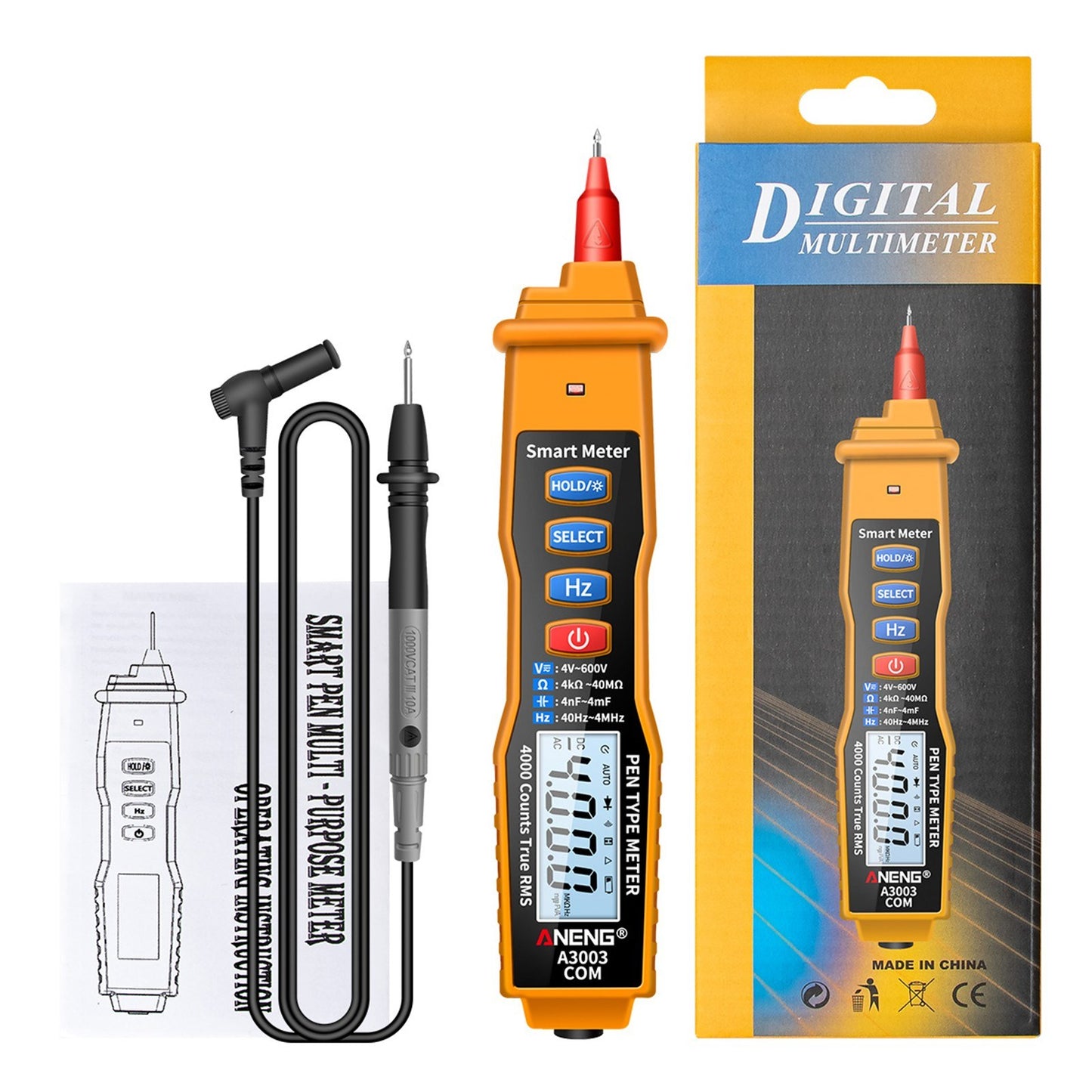

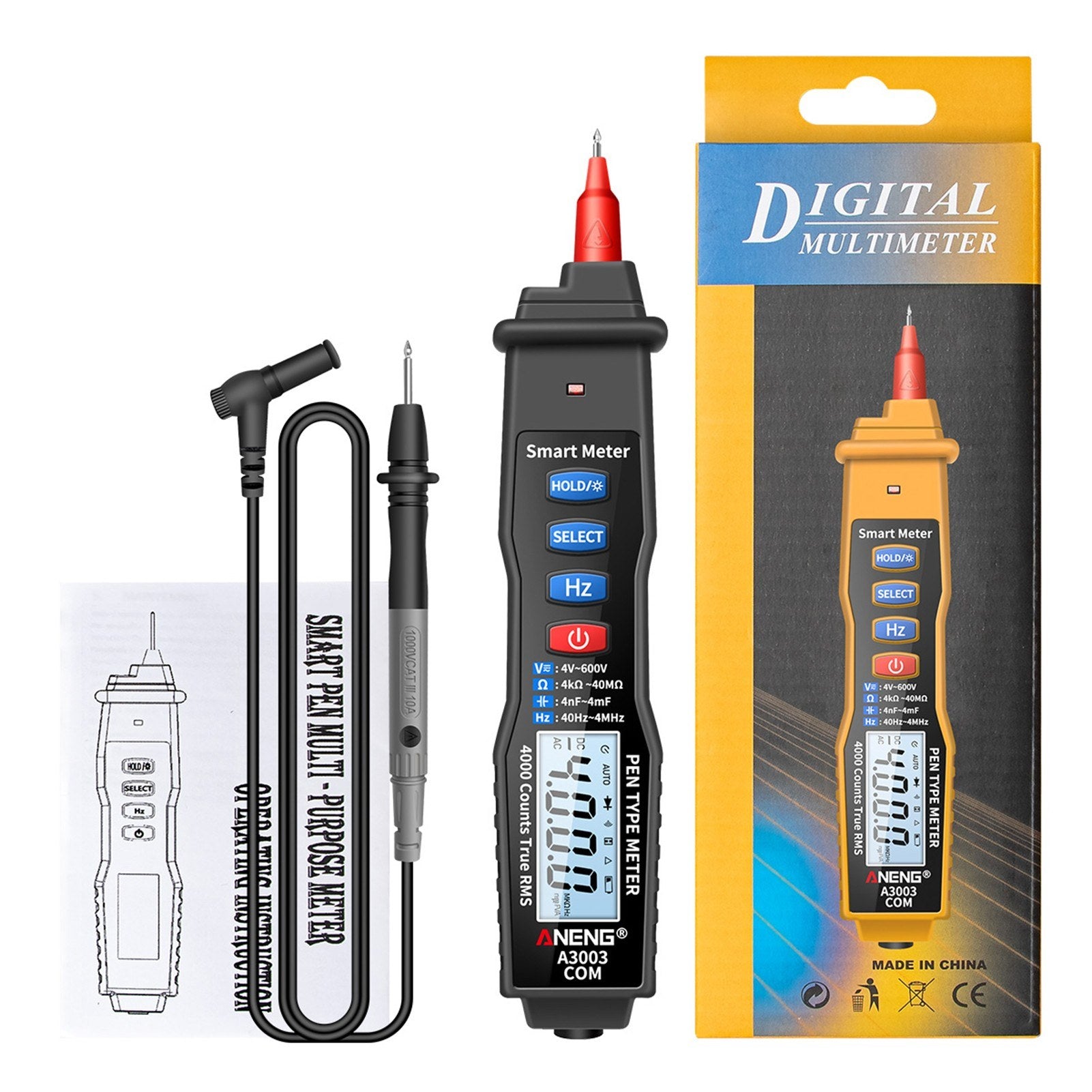

Packing List

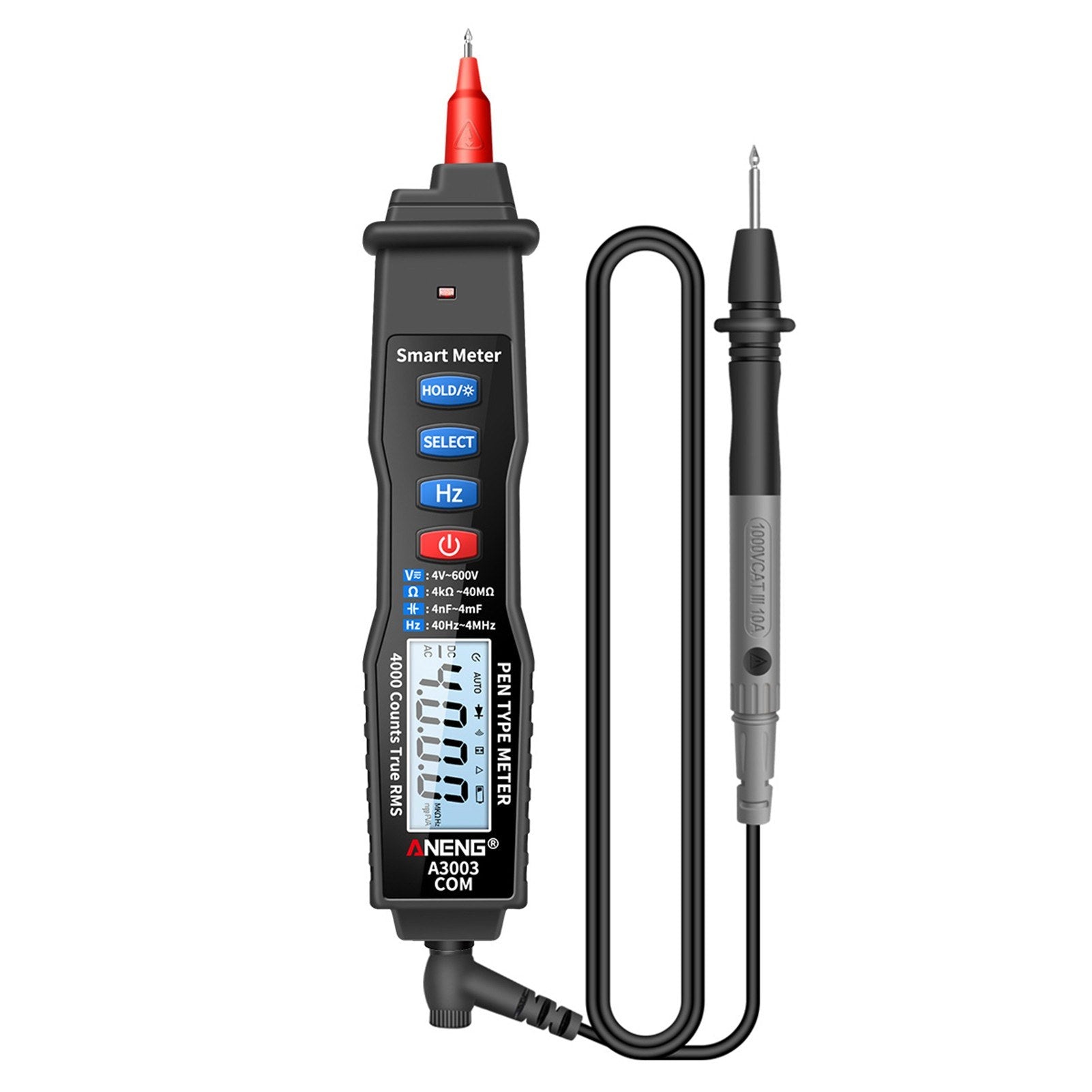

• 1 Pen Type Digital Multimeter
• 1 Test Line
• 1 User Manual
